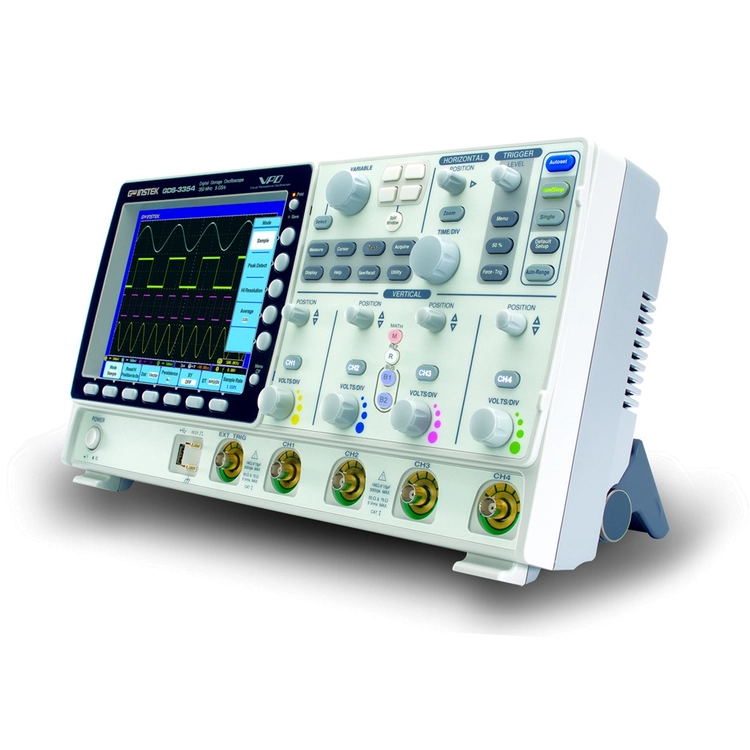

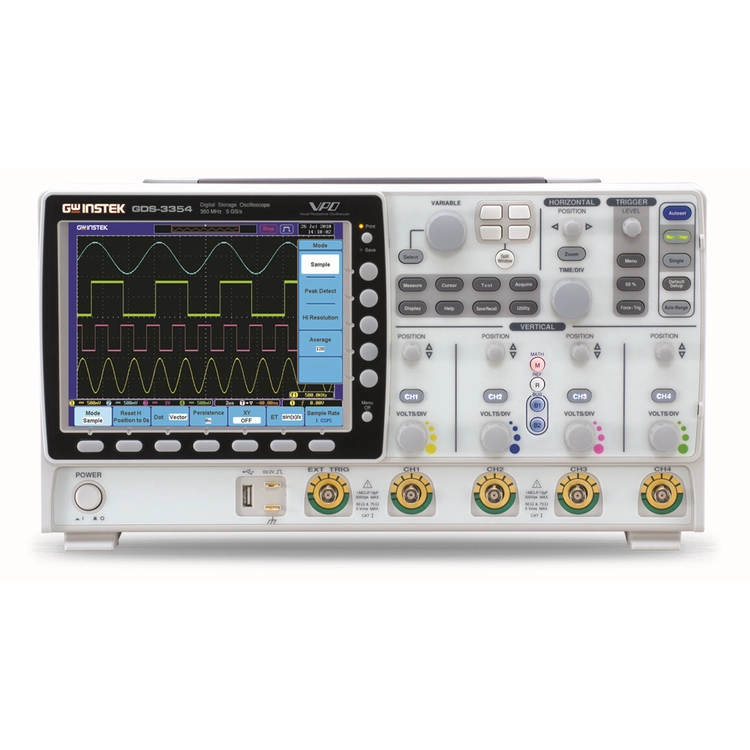

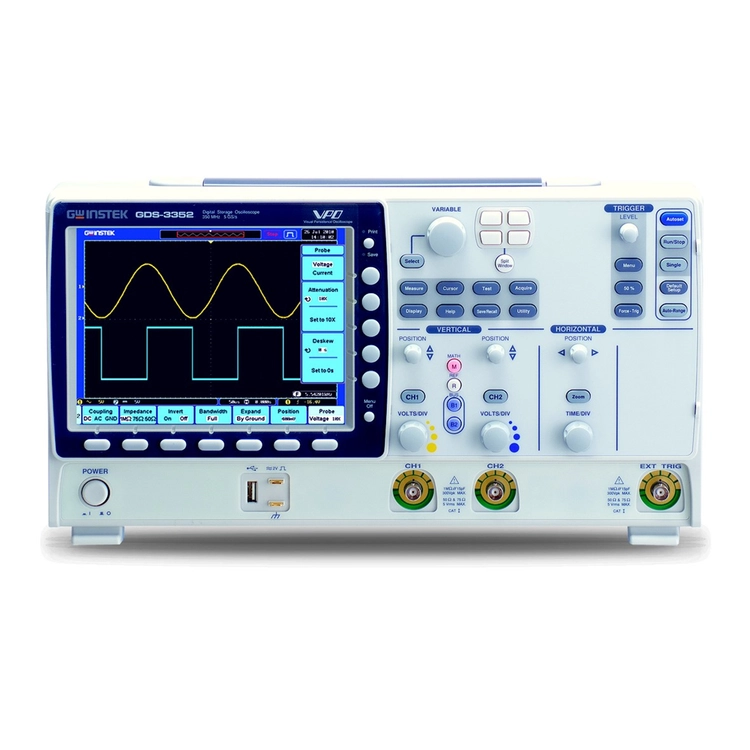

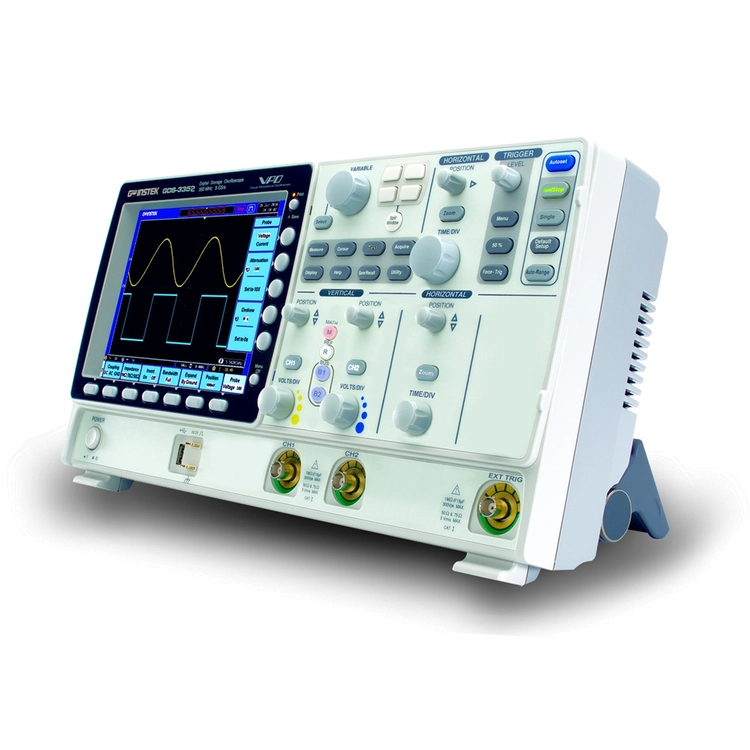

GW INSTEK 굿윌인스텍 GDS-3000A 디지털 오실로스코프 시리즈

하이테크 DSO 플랫폼

GDS-3000 시리즈는 4개 입력 채널, 500MHz 대역폭, 5GSa/s 샘플링 속도 및 VPO 파형 디스플레이의 플랫폼입니다. 분할 화면 기능은 연구 및 제조 분야의 다중 창 및 다중 신호 테스트 요구 사항을 충족하도록 설계되었습니다. 옵션 전력 분석 소프트웨어 및 옵션 직렬 버스 분석 소프트웨어는 관련 제품의 테스트 및 제조에서 엔지니어의 작업을 용이하게 하는 데 사용할 수 있습니다.

디퍼렌셜 프로브 GDP-025, GDP-050 & GDP-100, 전류 프로브 GCP-020, GCP-100, GCP-530 & GCP-1030은 GDS-3000 시리즈와 함께 제공되어 산업, 서비스 및 교육 시장 부문의 다양한 애플리케이션. 사려 깊은 기능을 탑재한 첨단 플랫폼인 GDS-3000 시리즈는 범용 시장과 전문 시장 모두에 매우 높은 고객 가치를 제공합니다.

구매평

Q&A

배송

택배 · 기본 무료

50,000원 이상 구매 시 무료배송

구매평

Q&A

Accessory
User manual CD x 1 , Power cord x1
GTP-151R	150MHz(10:1) passive probe for GDS-3152/ 3154 (per channel)
GTP-251R	250MHz(10:1) passive probe for GDS-3252/ 3254 (per channel)
GTP-351R	350MHz(10:1) passive probe for GDS-3352/ 3354 (per channel)
GTP-501R	500MHz(10:1) passive probe for GDS-3502/ 3504 (per channel)

Optional Accessories
GUG-001	GPIB to USB adapter
GTP-033A	35MHz 1:1 passive probe
GTP-352R	350MHz(20:1) passive probe
GDP-025	25MHz high voltage differential probe
GDP-050	50MHz 25MHz high voltage differential probe
GDP-100	100MHz 25MHz high voltage differential probe
GCP-005	1kHz/5A Current probe
GCP-020	10kHz/200A Current probe
GCP-100	100KHz/100A Current probe
GCP-530	50MHz/ 30A Current probe
GCP-1030	100MHz/ 30A Current probe
GCP-206P	Power supply for current probe (2 input channels)
GCP-425P	Power supply for current probe (4 input channels)
GTL-248	GPIB Cable, Double Shielded, 2000mm
GTL-251	USB-GPIB Adapter, GPIB-USB-HS, USB 2.0, Hi-Speed USB compliance, 2000mm
GSC-008	Soft Carrying Case
GTL-110	Test lead, BNC to BNC connector
GTL-232	RS-232C cable, 9-pin female to 9-pin female, Null Modem for computer
GTL-246	USB 2.0 cable, A-B type cable 4P, 1800mm
GRA-411	Rack Adapter Panel
GDB-03	Oscilloscope Education and Training Kit
GKT-100	Deskew fixture

Model-specific
GDS-3502
Channels	Bandwidth	Calculated Rise Time
2 + Ent	DC - 500MHz (−3dB)	700ps
GDS-3504
Channels	Bandwidth	Calculated Rise Time
4 + Ext	DC - 500MHz (−3dB)	700ps
The bandwidth of the 75Ω input impedance is limited to 150MHz only.

Common
Vertical
Resolution Sensitivity	8 bit @1MΩ : 2mV - 5V/div @20/75Ω : 2mV~1V/div
Input Coupling	AC, DC, GND
Input Impedance	1MΩ // 15pF
DC Gain Accuracy	±3% full scale
Polarity	Normal & Invert
Maximum Input Voltage	@1MΩ : 300Vrms, CAT I @20/75Ω: 5 Vrms max
Offset Position Range	2mV/div ~ 100mV/div : ±0.5V 200mV/div ~ 5V/div : ±25V
Bandwidth Limit	Dependent on the oscilloscope bandwidth(BW) BW=150: Full/20MHz BW=250: Full/20MHz/100MHz BW=350: Full/20MHz/100MHz/200MHz BW=500: Full/20MHz/100MHz/200MHz/350MHz
Waveform Signal Process	Add, subtract, multiply, and divide waveforms, FFT, FFTrms, Integration, Differentiation *: App installation required.
Waveform Signal Process	FFT:Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman‐Harris.
Trigger
Sources	CH1, CH2, CH3, CH4, Line, EXT
Modes	Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence
Type	Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Alternate, Event‐Delay(1~65535 events), Time‐Delay(Duration)(10ns~10s), I2C, SPI, UART* *optional Runt:Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again. SPI (optional):Trigger on SS, MOSI, MISO, or MOSI and MISO on SPI buses. I 2C (optional):Trigger on Start, Repeated Start, Stop, Missing ACK, Address (7 or 10 bit), Data, or Address and Data on I2C buses. UART (optional): Trig ger on Tx Start Bit, Rx Start Bit, Tx End of Packet, Rx End of Packet, Tx Data, Rx Data, Tx Parity Error, and Rx Parity Error.
Holdoff range	10ns to 10s
Coupling	AC, DC, LF rej., Hf rej., Noise rej.
Sensitivity	GDS‐31XX ~ GDS‐33XX: DC ~ 50MHz Approx. 1div or 10mV 50MHz ~ 150MHz Approx. 1.5div or 15mV 150MHz ~ 350MHz Approx. 2div or 20mV
Sensitivity	GDS‐350X: DC ~ 50MHz Approx. 1div or 1.0mV 50MHz ~ 150MHz Approx. 1.5div or 15mV 150MHz ~ 350MHz Approx. 2div or 20mV 350MHz ~ 500MHz Approx. 2.5div or 25mV
External Trigger
Range	±15V
Sensitivity	GDS‐31XX ~ GDS‐33XX: DC ~ 150MHz Approx. 100mV 150MHz ~ 250MHz Approx. 150mV 250MHz ~ 350MHz Approx. 150mV 350MHz ~ 500MHz Approx. 200mV
Input Impedance	1MΩ±3%, ~16pF
Horizontal
Timebase Range	GDS‐315X, GDS‐325X, GDS‐335X: 1ns/div ~ 100s/div (1‐2‐5 increments); ROLL : 100ms/div ~ 100s/div
Timebase Range	GDS‐350X: 1ns/div ~ 100s/div (1‐2.5‐5 increments); ROLL : 100ms/div ~ 100s/div
Pre‐trigger	10 div maximum
Post‐trigger	1000 div maximum. The number of divisions depends on the time division.
Timebase Accuracy	±20 ppm over any ≧1 ms time interval
X‐Y Mode
X‐Axis Input	Channel 1; Channel 3
Y‐Axis Input	Channel 2; Channel 4
Phase Shift	±3° at 100kHz
Signal Acquisition
Real Time Sample Rate	150/250/350MHz models: 5GSa/s (MAX) 150/250MHz models with 2CH: 2.5GSa/s 500MHz models: 4GSa/s (MAX), 2GSa/s per channel
ET Sample Rate	100GSa/s maximum for all models
Record Length	25k points / channel
Acquisition Mode	Normal, Average, Peak Detect, High Resolution, Single Sequence
Peak (Glitch) Detection	2ns (MAX)
Normal: Acquire sampled values. Average: From 2 to 256 waveforms included in average. Peak Detect: Captures glitches as narrow as 2 ns at all sweep speeds Hi‐Res: Real‐time boxcar averaging reduces random noise and increases vertical resolution
Cursors and Measurement
Cursors	Amplitude, Time, Gating available
Automatic Measurement	28 sets: Vpp, Vamp, Vavg , Vrms, Vhi, Vlo, Vmax, Vmin, Rise Preshoot/Overshoot, Fall Preshoot/Overshoot, Freq, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle, and nine different delay measurements (FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase)
Cursors measurement	Voltage difference between cursors (∆V) Time difference between cursors (∆T)
Auto counter	6 digits, range from 2Hz minimum to the rated bandwidth
Power Measurements (Option)
Power Quality Measurements	V RMS, I RMS, True Power, Apparent Power, Reactive Power, Frequency, Power Factor, Phase Angle, V Crest Factor, I Crest Factor, (+)V Peak, (‐)V Peak, (+)I Peak, (‐)I Peak, DC Voltage, DC Current, Impedance, Resistance, Reactance
Harmonics	Frequency (Hz), Magnitude (%), Mag. RMS (A), Phase (˚), Limit (A), Limit (%), Pass \| Fail, Max all , Windows (A), 200% Limit, POHC Limit, THD‐F, THD‐R, RMS, Overall, POHC, POHL, Input Power, Power Factor, Fundamental Current, Harmonic 3, Harmonic 5
Ripple Measurements	Ripple, Noise
In‐rush current	First peak, Second peak
Control Panel Function
Autoset	Single‐button, automatic setup of all channels for vertical, horizontal and trigger systems, with undo autoset
Auto‐Range	allow you to quickly move from test point to test point without having to reset the oscilloscope for each test point
Save Setup	20 sets
Save Waveform	24 sets
Display
TFT LCD Type	8″ TFT LCD SVGA color display
Display Mode	YT, XY
Display Resolution	800 horizontal × 600 vertical pixels (SVGA)
Interpolation	Sin(x)/x & Equivalent Time Sampling
Waveform Display	Dots, vectors, variable persistence, infinite persistence
Display Graticule	8 x 10 divisions
Waveform Update Rate	3500 waveforms per second maximum

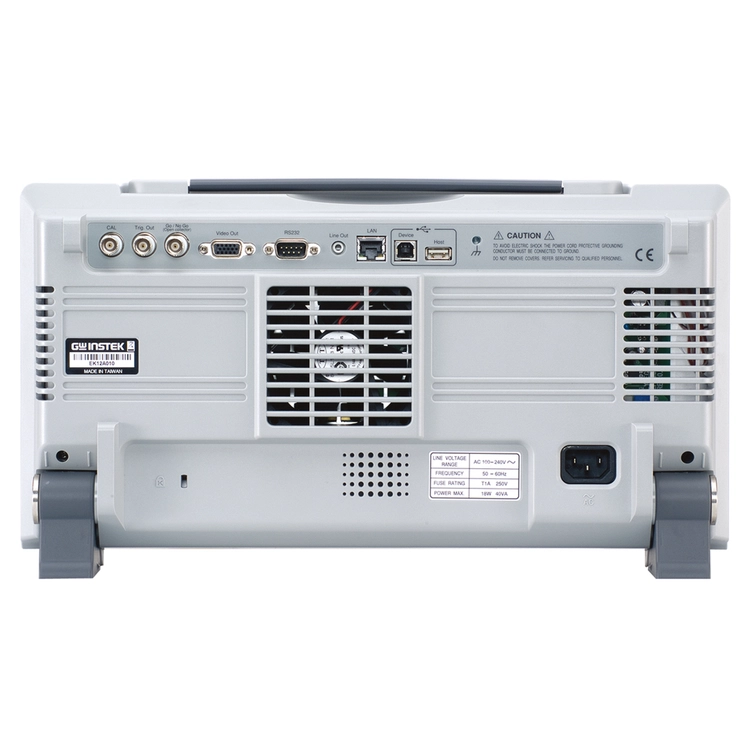

Interface
RS232C	DB‐9 male connector
USB Port	2 sets USB 2.0 High‐speed host port 1 set USB High‐speed 2.0 device port
Ethernet Port (LAN)	RJ‐45 connector, 10/100Mbps
SVGA Video Port	DB‐15 female connector, monitor output for display on SVGA monitors
GPIB	GPIB to USB adapter (Option)
Go‐NoGo BNC	5V Max, 10mA CMOS open collector output
Internal flash disk	64MB
Kensington Style Lock	Rear‐panel security slot connects to standard Kensington‐style lock.
Line output	3.5mm stereo jack for Go/NoGo audio alarm
Power Source
Line Voltage Range	AC 100V - 240V , 48Hz ~ 63Hz , Auto selection
Power Consumption	96VA
Miscellaneous
Multi-language menu	Available
On-line help	Available
Time clock	Time and Date ,Provide the Date/Time for saved data
Dimensions
400W X 200H X 130D, Approx. 4kg

Model-specific Probe Specifications
GTP‐501R
Applicable to	GDS‐3502 / GDS‐3504
Bandwidth	DC ~ 500MHz
Rise time	0.7ns
Input Capacitance	~11.5pF @ 100MHz
Compensation Range	8 ~ 20pF

GW INSTEK 굿윌 인스텍 굿윌인스텍 GDS-3000A 디지털 오실로스코프 시리즈

■ 제품 사양 (Specifications)

■ 관련 상품

■ 제품 사양 (Specifications)

■ 관련 상품

Common Probe Specifications
Position x 10
Attenuation Ratio	10:1 (fixed) with readout pin
Input Resistance	10MΩ when used with 1MΩ input oscilloscope
Maximum Input Voltage	500V CAT I, 300V CAT II derating with frequency
Operating Condition
Temperature	–0°C ~ 50°C
Relative Humidity	≤85% @35°C
Safety Standard	EN61010‐031 CAT II
