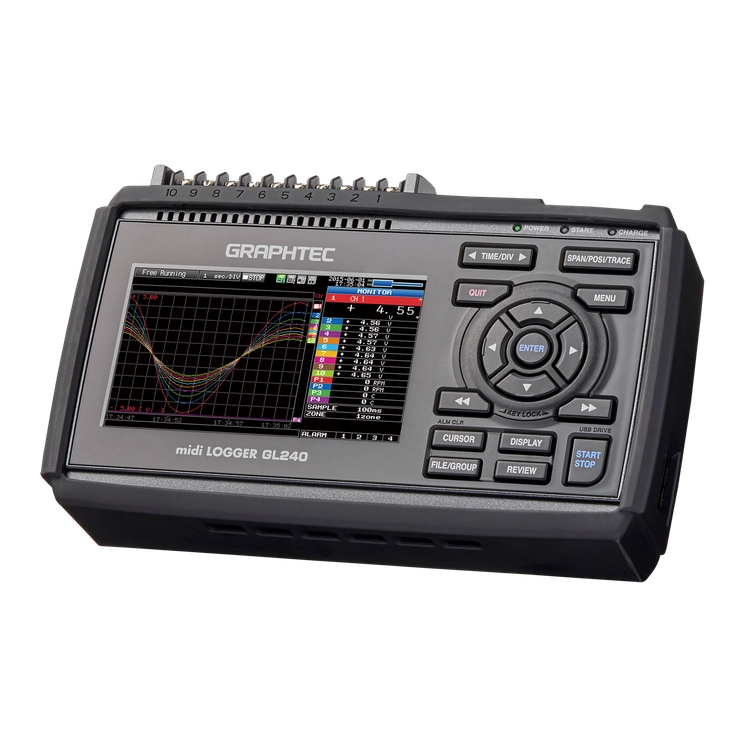

GRAPHTEC 그라프텍 GL240 데이터 로거(10ch)

Name: GRAPHTEC 그라프텍 GL240 데이터 로거(10ch)
Brand: GRAPHTEC
Price: 111111 KRW
Availability: InStock

가격문의(상세정보 참조)

GRAPHTEC 그라프텍 GL240 데이터 로거(10ch)

채널고정형 10채널 국민 데이터로거

원산지 japan

제조사 GRAPHTEC Corp

브랜드 GRAPHTEC

배송방법 택배

배송비 무료 (100,000원 이상 무료배송)

구매평

Q&A

배송

택배 · 기본 무료

50,000원 이상 구매 시 무료배송

구매평

Q&A

전압	20mV~100V, 1-5V/F.S.
온도	열전대 : R, S, B, K, E, T, J, N, W (WRe5-26)
습도	0~100% (옵션 B-530 필요)
Pulse	4ch
Logic	4ch

샘플링 속도		10ms	20ms	50ms	100ms
사용 가능 ch 수		1	2	5	10
측정 대상	전압	●	●	●	●
측정 대상	온도	-	-	-	●

샘플링 속도	10ms	50ms	100ms	200ms	500ms	1s	10s
GBD 형식	41일	88일	103일	207일	365일 이상	365일 이상	365일 이상
CSV 형식	3일	11일	16일	36일	91일	182일	365일 이상

Model number	Description
B-568	GL Wireless LAN unit >> 무선 LAN 유닛을 사용하여 무선 접속 실현 >> PC나 스마트 장비의 iOS/Android를 이용하여 무선 커뮤니케이션 >> 장착위치 : SD CARD2 슬롯에 장착 ※ 무선 LAN 장치를 장착하면 SD CARD2 슬롯에 SD 메모리 카드를 장착 할 수 없습니다. >> PC 없이 GL100-WL 모니터링 ※ GL100-WL 접속 대수 : GL840에 장착 시 5대, GL240에 장착 시 1대 >> 통신거리 : 약 40m (장애물이나 주변 환경에 따라 달라집니다.) >> 무선 LAN 규격 : 표준 : IEEE802.11b / g / n
B-569	배터리팩 >> GL240에 1개, GL840에 2개 까지 장착 가능 >> Capacity: 7.2 Volts/ 2900 mAh / 20.9Wh >> Battery Type: Lithium Secondary Battery >> Running Time: 3 Hours to 10 Hours >> Charging Method: Mount in the Main Unit >> Operation Environment: 15°C to 40°C
B-514	DC 드라이브 케이블 >> 2 Meter Cable
B-513	로직/알람 케이블 >> (4) Logic/Pulse Inputs >> (4) Alarm Outputs >> Cable Length: 2 Meters
B-530	습도센서 >> Measurement Range: 0 to 100% RH and -25°C to 80°C >> 3% RH Accuracy >> 15 Seconds Response Time to 90% >> 0 to 1 Volt DC Output >> Includes 3 Meter Cable Length

Item		Description
Number of analog input channels		10 channels
External input/ output *1	Input *2	Trigger or Sampling (1 channel), Logic/Pulse (4 channels)
External input/ output *1	Output *3	Alarm (4 channels)
Sampling interval		10 ms to 1 hour (10ms to 50ms: voltage only) *4, External signal
Time scale of waveform display		1sec. to 24 hour /division
Trigger, Alarm function	Trigger action	Start or stop capturing data by the trigger
	Repeat action	Off, On (auto rearmed)
	Trigger source	Start: Off, Measured signal, Alarm, External, Clock, Week or Time Stop: Off, Measured signal, Alarm, External, Clock, Week or Time
	Trigger source
	Condition Setting	Combination: OR or AND Analog signal: Rising (High), Falling (Low), Window-in, Window-out Logic signal: Pattern (combination of each input signal in high or low) Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out



	Alarm output	Outputs a signal when alarm condition occurs in the input signal *5
Pulse input function	Rotation count (RPM)	Counts the number of pulses per sampling interval and converts to rpm (rotations per minute), Number of pulses for one rotation may be set to 50, 500, 5000, 50k, 500k, 5M, 50M, 500M rpm/F.S. (rpm./Full Scale)


	Accumulating count	Accumulates the number of pulses from the start of measurement 50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale)
	Accumulating count
	Instant count	Counts the number of pulses per sampling interval 50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale)
	Instant count
Calculation function	Between channels	Addition, Subtraction, Multiplication, and Division for analog input
Calculation function	Statistical	Select two calculations from Average, Peak, Maximum, Minimum, RMS
Search function		Search for analog signal levels, values of logic or pulse or alarm point in captured data
Search function
Interface to PC		USB (Hi-speed), WLAN (using B-568 option)
Storage device	Media	SD memory card (Support SDHC, up to 32 GB), supports 2 slots *6
Storage device	Saved contents	Captured data, Setting conditions, Screen copy
Capturing mode		Mode: Normal, Ring, Relay Ring: Saves most recent data (Number of captured data: 1000 to 2000000 points) *7 Relay: Saves data to multiple files without losing data until data capturing is stopped


Replay Data		Replays captured data that was saved in the GL240 (in BGD or CSV format)
Scaling (Engineering unit) function		Measured value can be converted to the specified engineering unit • Analog voltage: Converts using four reference points (gain, offset) • Temperature: Converts using two reference points (offset) • Pulse count: Converts using two reference points (gain)



Action during data capture		• Displaying parst data (using dual display mode (Current + Past data)) • Hot-swapping the SD memory card • Saving data in between cursors


Display	Size	4.3-inch TFT color LCD (WQVGA: 480 x 272 dots)
	Language	English, French, German, Chinese, Korean, Russian, Spanish, Japanese
	Information *8	Waveform in Y-T with digital values, Waveform only, Digital value, Digital values and statistics values
	Information *8
Operating environment		0 to 45 ºC, 5 to 85 % RH (non condensed) (When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC)
Operating environment
Power source	AC adapter	100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory)
	DC power	8.5 to 24 V DC (DC drive cable (option B-514) is required)
	Battery pack	Mountable battery pack (battery pack (option B-517): 7.2V DC, 2900mAh)
Power consumption *9		Max. 36 VA
External dimensions (W x D x H)		Approx.188 x 117 x 42 mm (Excluding projections)
Weight *10		500 g
