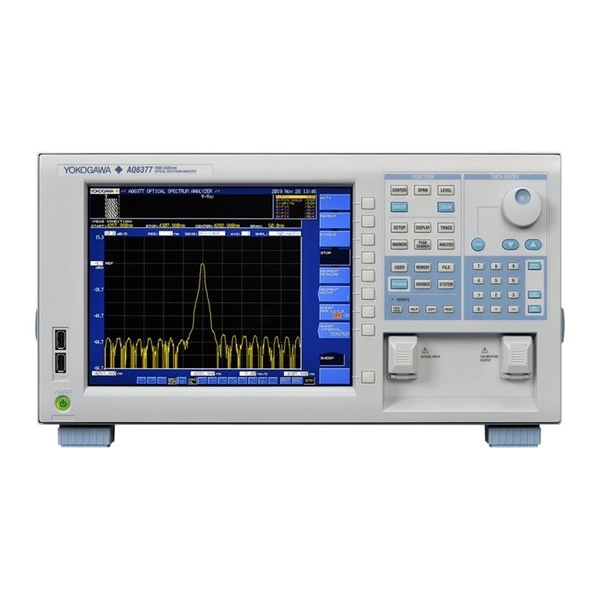

YOKOGAWA AQ6377 광스펙트럼 분석기 1900 - 5500 nm
YOKOGAWA AQ6377 Optical Spectrum Analyzer 1900 - 5500 nm
The AQ6377 is the latest version of our optical spectrum analyzer series, offering extended wavelength coverage into the MWIR region from 1900 - 5500 nm. Its long wavelength range makes the AQ6377 ideal for environmental sensing and medical applications.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
요코가와 ・ YOKOGAWA
AQ6377
광스펙트럼 분석기 1900 - 5500 nm
AQ6377 Optical Spectrum Analyzer 1900 - 5500 nm
Key features of the AQ6377 optical spectrum analyzer include gas purging input ports/output ports, a built-in cut filter for high order diffracted light, and a novel double speed mode which increases the sweep speed up to 2 times compared to the standard sweep mode.
Features:
- Wavelength range: 1900 to 5500 nm
- Wavelength resolution settings: 0.2 to 5 nm
- Wavelength accuracy: ±0.5 nm
- Level range: −60 to +13 dBm
- Dynamic range: 50 dB
Key Features
- Wavelength range: 1900 to 5500 nm
- 5 wavelength resolution settings: 0.2 to 5 nm
- Enables the user to choose the best value according to the device/system under test.
- Wide measurable level range: −60 to +13 dBm
- Suitable to measure high power as well as low power sources used in different fields of application. Sensitivity: HIGH1-3 are only high dynamic mode.
- Wavelength accuracy: ±0.5 nm
- Easily maintained due to the built-in Calibration Function and wavelength reference source.
- Close-in dynamic range: 50 dB
Measurement example of 4.3 μm DFB laser
(Res: 0.2 nm, Span: 50 nm)
- Horizontal scale also in Wave Number (cm−1)
- In addition to the commonly-used scales in wavelength (nm) and frequency (THz).
Purge Feature
Due to the high resolution and sensitivity of the AQ6377, it can actually detect the presence of water molecules in the air. The water vapor is detected in the upper Near-IR wavelength region and could overlap with or mask the spectral characteristics of the actual device under test in that particular region.
By continuously supplying a pure purge gas such as nitrogen to the monochromator through the ports on the back panel, the AQ6377 can reduce the influence of water vapor absorptions and provide more reliable and accurate measurements than ever before.
Built-in Cut Filter for High Order Diffracted Light
Due to the diffractive technology used, the monochromator in some circumstances could generate high order diffracted light, which appears at wavelengths equal to the integral multiple of input wavelengths.
By cutting incoming light below 1500 nm with the built-in filter, the AQ6377 drastically reduces the influence of high order diffracted light on the measurement. Thus, the measured data are always reliable and replicate the real signal under test.
Double Speed Mode
Increases the sweep speed up to 2 times compared to the standard sweep mode, with only a 2 dB penalty to the standard sensitivity value.
Free-Space Optical Input
optical input structureThe AQ6377 uses a free-space optical input structure (i.e. no fiber is mounted inside the instrument), most effective for guaranteeing high coupling efficiency, measurement repeatability, and no maintenance.
This smart solution is:
WORRY-FREE: no internal fiber can be scratched or get dirty by inaccurate coupling of fibers
MAINTENANCE-FREE: no internal fiber has to be cleaned
VERSATILE: the instrument accepts both /PC and /APC connectors
DUAL PURPOSE: the instrument accepts both Single-Mode and Multi-Mode fibers without being affected by the high insertion loss from MM-SM fibers matching
