MEGGER 메거 MIT515/2 & MIT1015 에센셜 5kV 및 10kV 절연 저항 측정기 ☆ 가격문의
111,111원

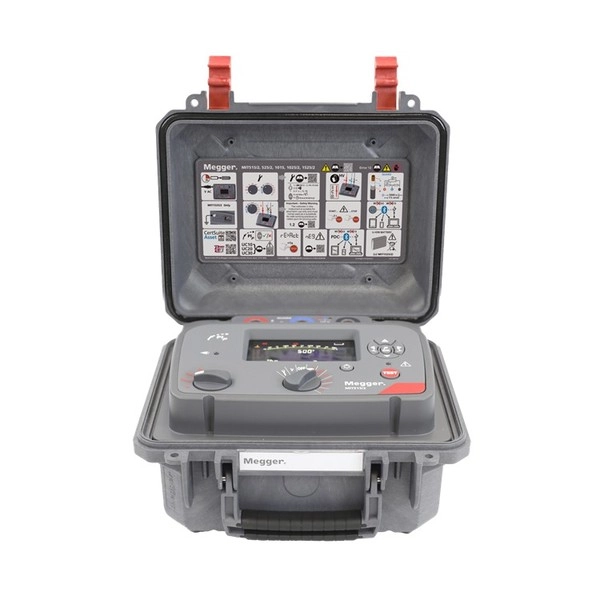

MEGGER MIT515/2 & MIT1015 에센셜 5kV 및 10kV 절연 저항 측정기
MEGGER MIT515/2 & MIT1015 Essential 5 kV and 10 kV insulation resistance testers
Perform essential insulation tests quickly and accurately on motors, transformers, cables and other electrical assets.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
메거 ・ MEGGER
MIT515/2 & MIT1015
에센셜 5kV 및 10kV 절연 저항 측정기
MIT515/2 & MIT1015 Essential 5 kV and 10 kV insulation resistance testers
The range includes two models: the MIT515 (up to 5 kV) and MIT1015 (up to 10 kV), both supporting insulation resistance, dielectric absorption ratio (DAR), and polarisation index (PI) testing. Megger’s PI Predictor™ reduces PI test duration by up to 50%, boosting productivity when testing multiple phases.
The new innovative patent applied RE>Act test mode allows the user to make accurate measurements by monitoring reabsorption current. This groundbreaking test mode can ensure reabsorption current does not result in incorrectly passing or failing insulation, helping to maintain safety. In addition, the test mode can be used to ensure dangerous return voltages to not occur.
These instruments have no onboard storage and a fixed 3 mA burn/charge current—perfect for environments where advanced features like remote control aren’t required. The high-performance guard terminal ensures measurement accuracy even in high-leakage conditions.
Simple to use, CAT IV 600 V rated, and built for demanding industrial, OEM, and utility applications, the Essential range delivers fast, dependable results—without complexity.
MIT515/2 MIT515/2 MEGGER MEGGER MIT515/2 MIT515/2메거 메거 MIT515/2 MIT1015 MIT1015 MEGGER MEGGER MIT1015 MIT1015 메거 메거 MIT1015
■ 제품 사양 (Specifications)
MEGGER 제품 데이터시트의 핵심 사양입니다.
- Default maximum current 3 mA 3 mA 6 mA
- Max. noise current with measurement within 3 mA 6 mA 8 mA
- measurement range and accuracy. to 10 kV single insulation for the large clip.
- Battery voltage: 1 0.8 V, 5.2 Ah Li-ion batteries,
- 100 MΩ load
- Following repair prior to powering up a 100 MΩ load
- Power distribution MIT1015: 500 V, 1000 V, 2500 V, 5000 V,
- Circuit breakers Test voltage accuracy: + 4%, -0%, ±10 V nominal test
- Motors voltage at 1 GΩ load
- Bushings Resistance range: 10 kΩ to 15 TΩ @ 5 kV,
- MIT1015 accuracy (23 °C) from 1 MΩ to ENVIRONMENTAL
- Display analogue: 100 kΩ to 10 TΩ Safety CAT IV 600 V to 3000 m altitude
- Digital: Dimensions L 315 x W 285 x H 181 mm
- Current range 0.01 nA to 6 mA
- Current accuracy ± 5% ±0.2 nA at all voltages the MIT1015.
- Voltmeter range 30 V to 660 V AC or DC,
- Timer range Up to 99 minutes 59 seconds, Cable insulation rating: 12 kV DC (marked on cable)
- insulation rating: 12 kV
- MIT515/2-UK ESSENTIAL 5kV IRT PIP 1016-079 Included accessories
- MIT515/2-EU ESSENTIAL 5kV IRT PIP 1016-080 Power lead 1008-017
- MIT515/2-US ESSENTIAL 5kV IRT PIP 1016-081 Calibration certificate
- MIT515/2-AU ESSENTIAL 5kV IRT PIP 1016-082
- MIT515/2-CN ESSENTIAL 5kV IRT PIP 1016-083
- MIT515/2-BR ESSENTIAL 5kV IRT PIP 1016-621
- MIT1015-UK ESSENTIAL 10kV IRT PIP 1016-089
- MIT1015-EU ESSENTIAL 10kV IRT PIP 1016-090
- MIT1015-US ESSENTIAL 10kV IRT PIP 1016-091
- MIT1015-AU ESSENTIAL 10kV IRT PIP 1016-092
- MIT1015-CN ESSENTIAL 10kV IRT PIP 1016-093
- MIT1015-BR ESSENTIAL 10kV IRT PIP 1016-623
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
