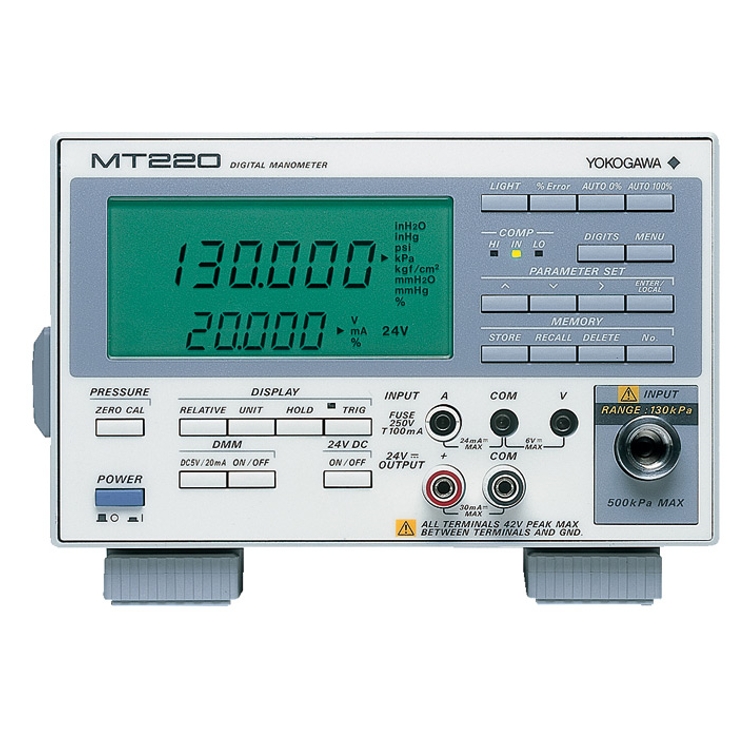

YOKOGAWA 요꼬가와 MT220 압력 측정기 (가격문의)
111,111원

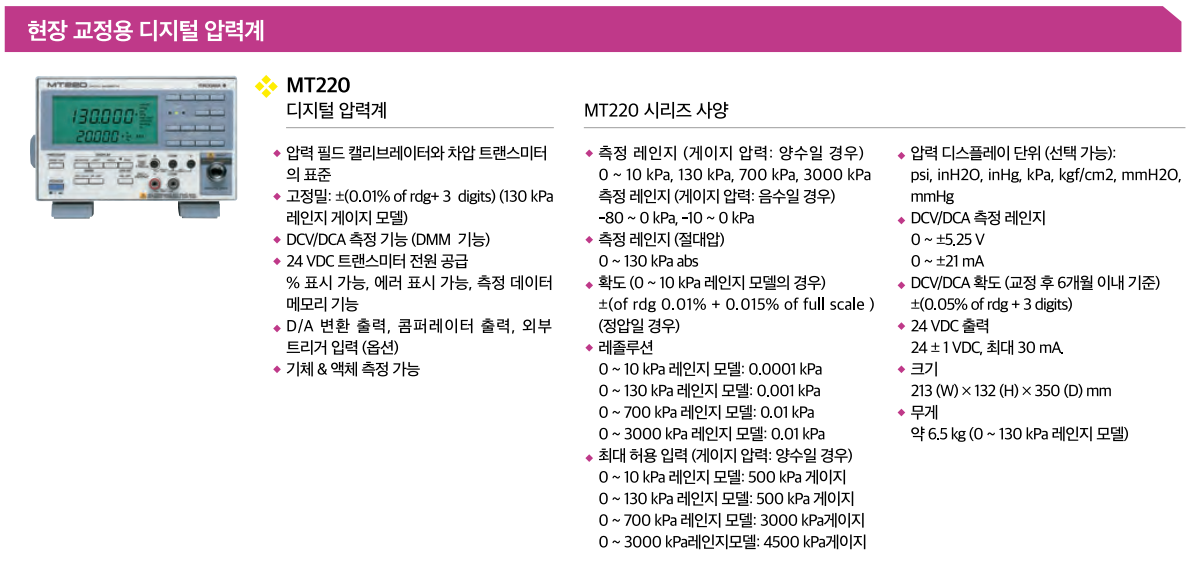

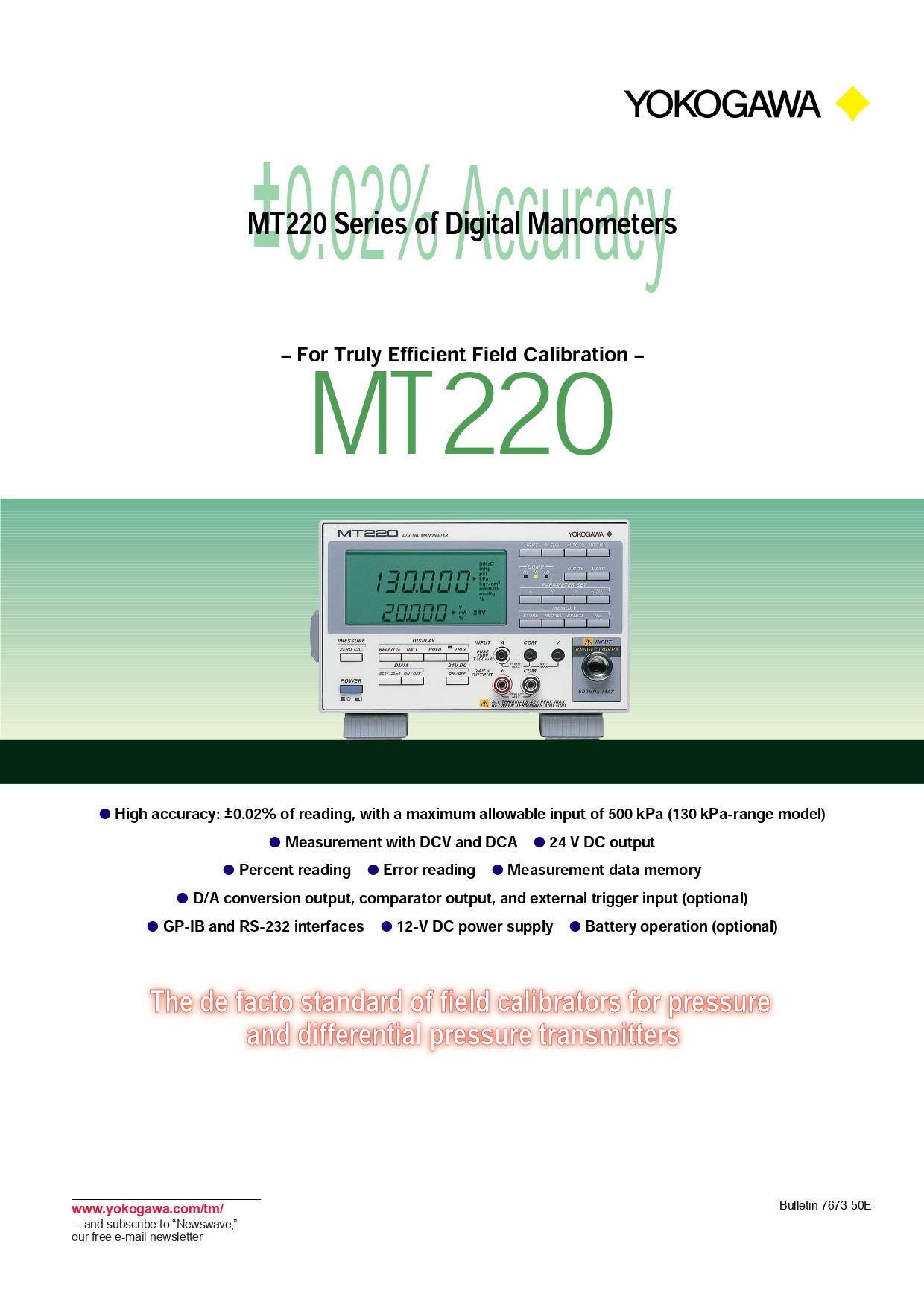

YOKOGAWA 요꼬가와 MT220 압력 측정기
필드 교정작업의 효율을 향상! 고확도 ±0.02％
- 고확도 : ±(0.02% of rdg)(130kPa model,25-130kPa)
- 기체, 액체 모두 사용
- DCV, DCA 측정기능
- 24VDC 출력기능
- GP-IB 、RS-232 인터페이스
- 외부 battery pack(option)
- %표시기능, 오차표시기능, 측정데이터 메모리 기능

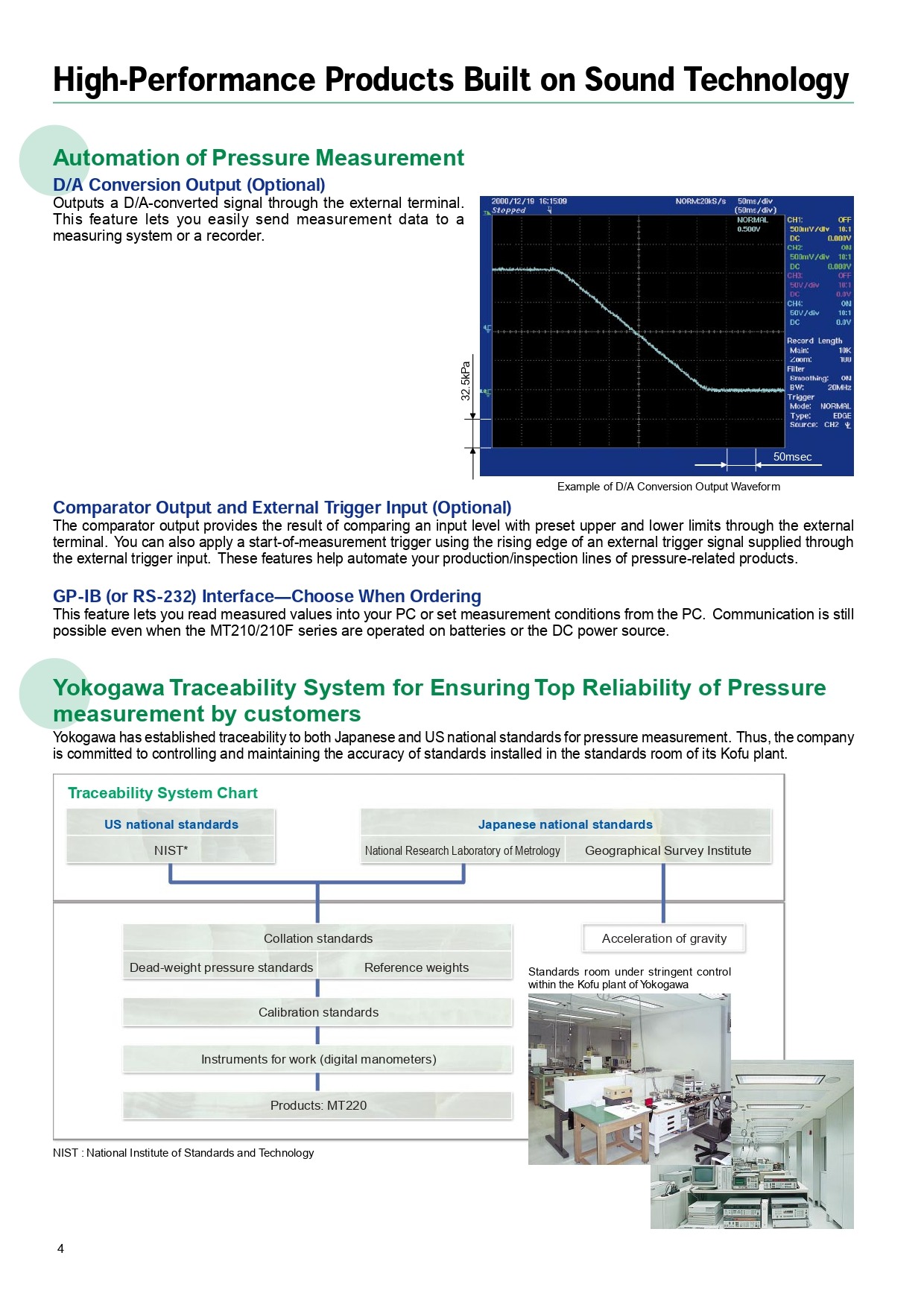

- 모든 D/A출력, Comparator출력, 외부트리거입력(option)
- 배터리구동(option)
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
YOKOGAWA 요꼬가와 MT220 압력 측정기
* 모델명 : MT220
📄 기술자료 다운로드
■ 제품 사양 (Specifications)
YOKOGAWA MT220 제품 데이터시트의 핵심 사양입니다.
- l Measurement with DCV and DCA l 24 V DC output
- 4.5-digit readings measurement (transmitter output)

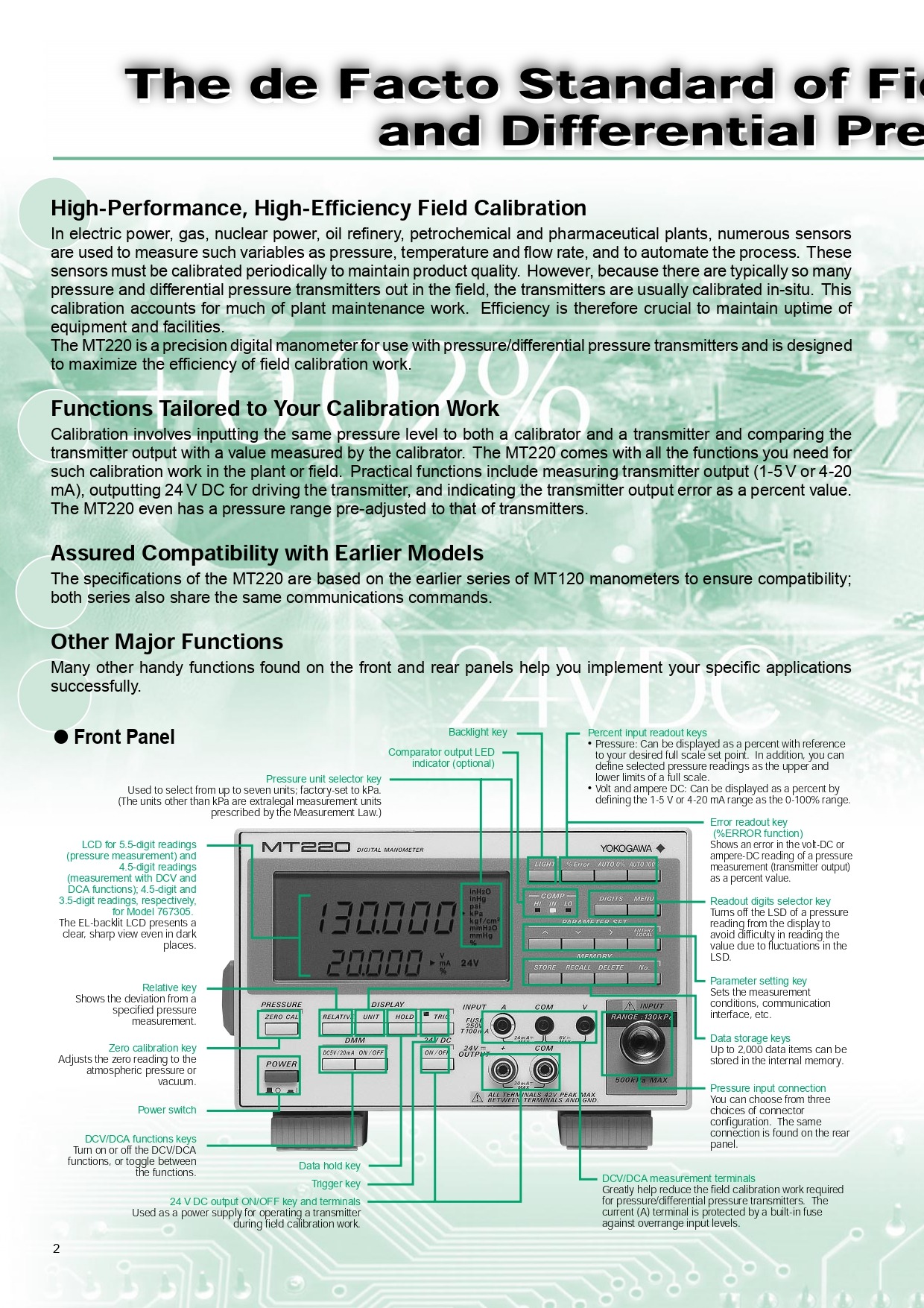

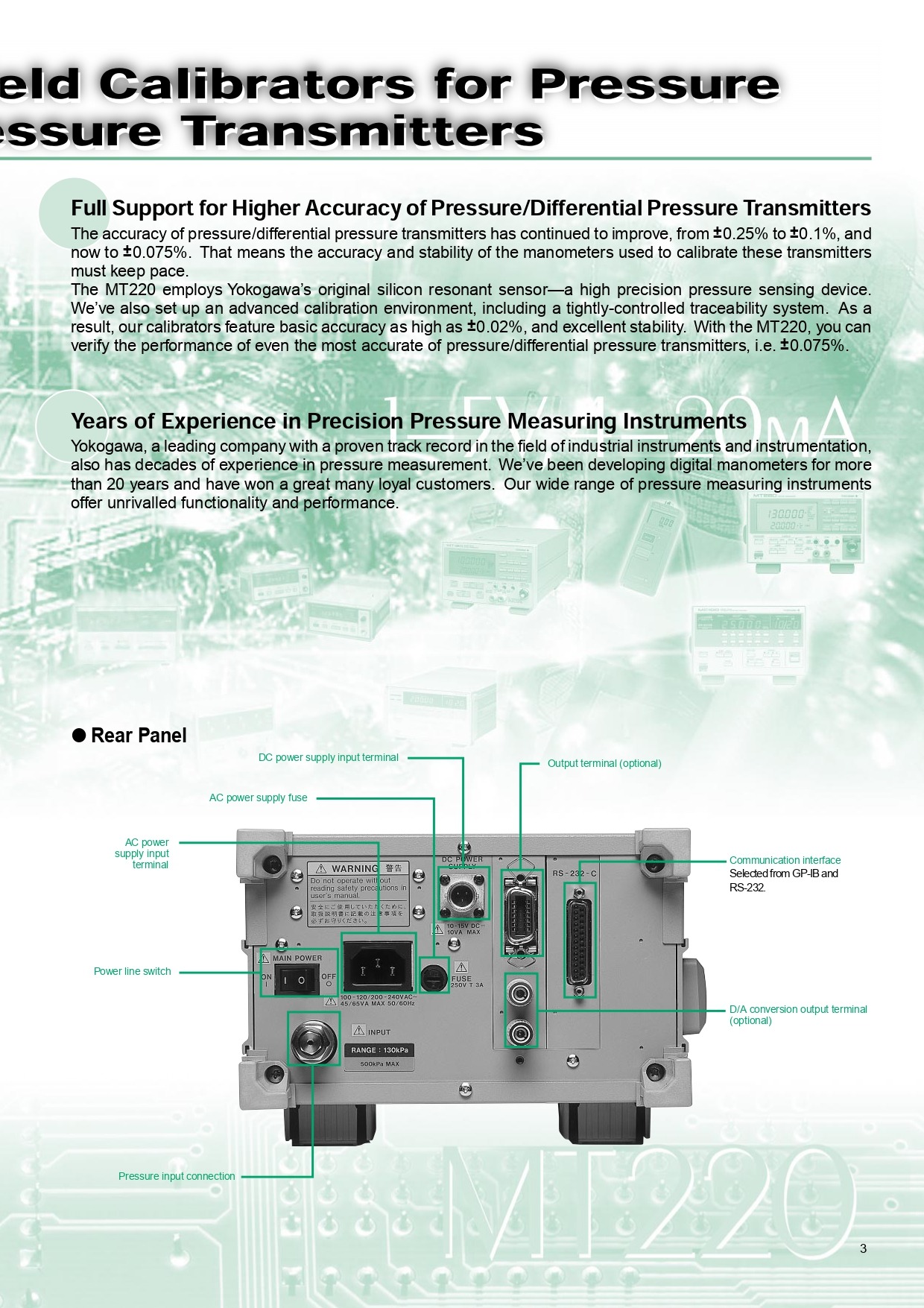

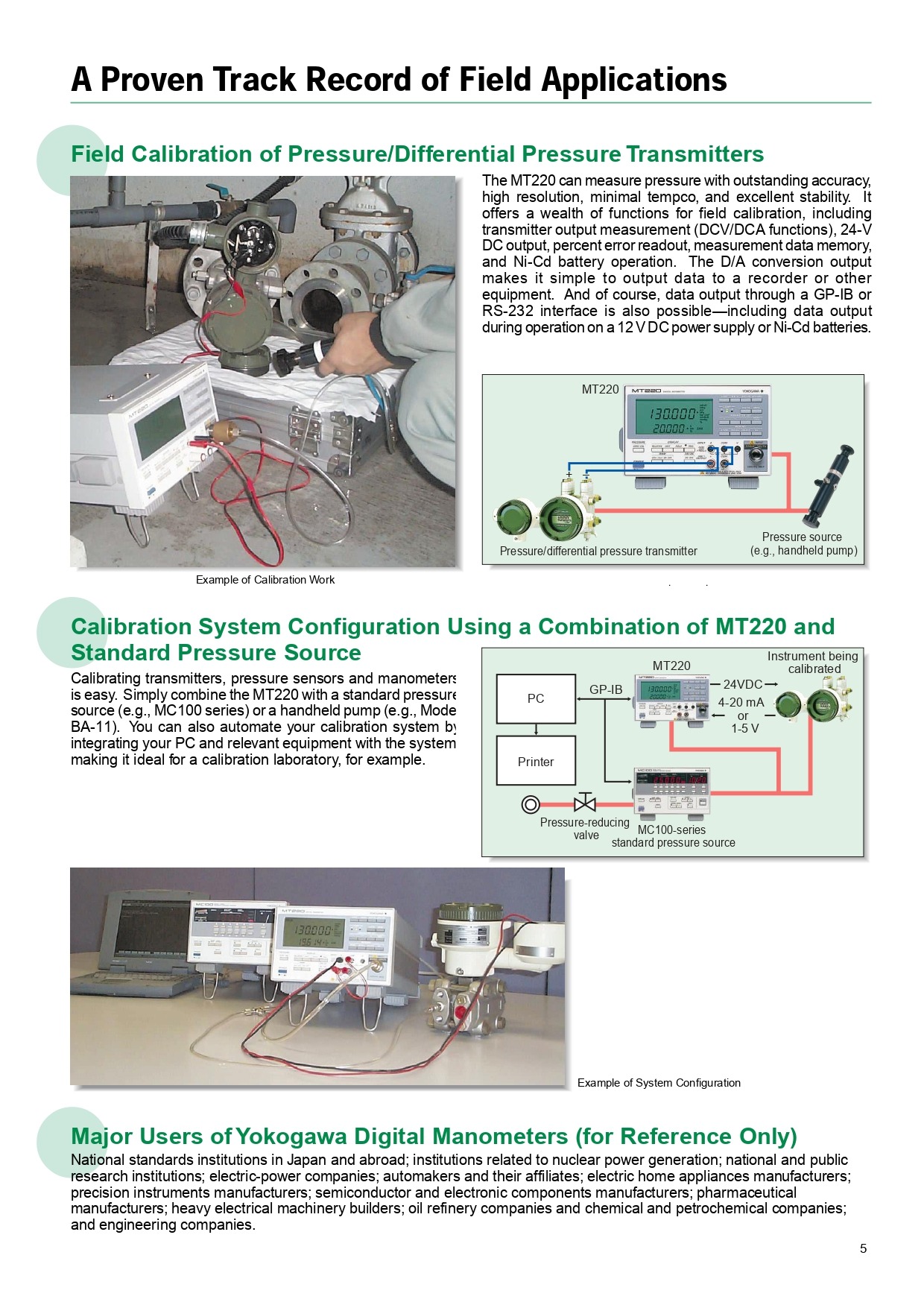

- The MT220 can measure pressure with outstanding accuracy,
- RS-232 interface is also possible—including data output
- during operation on a 12 V DC power supply or Ni-Cd batteries.

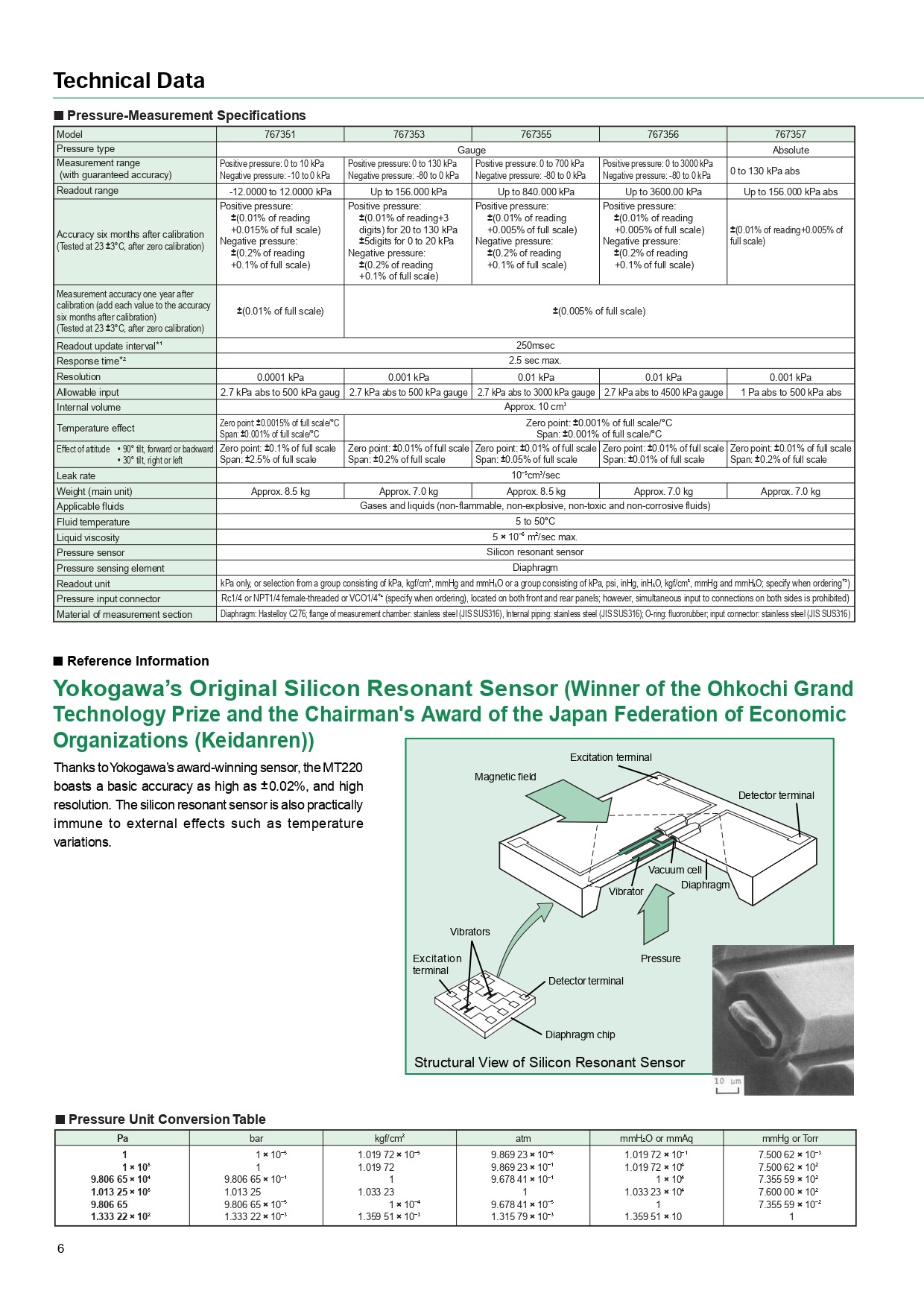

- Fluid temperature 5 to 50°C
- (Tested at 23 – 3°C) – (0.05% of reading + 3 digits) 6 months after calibration Operating temperature/humidity ranges 5 to 40°C/20 to 80% RH (no condensation)
- Storage temperature range -20°C to 60°C

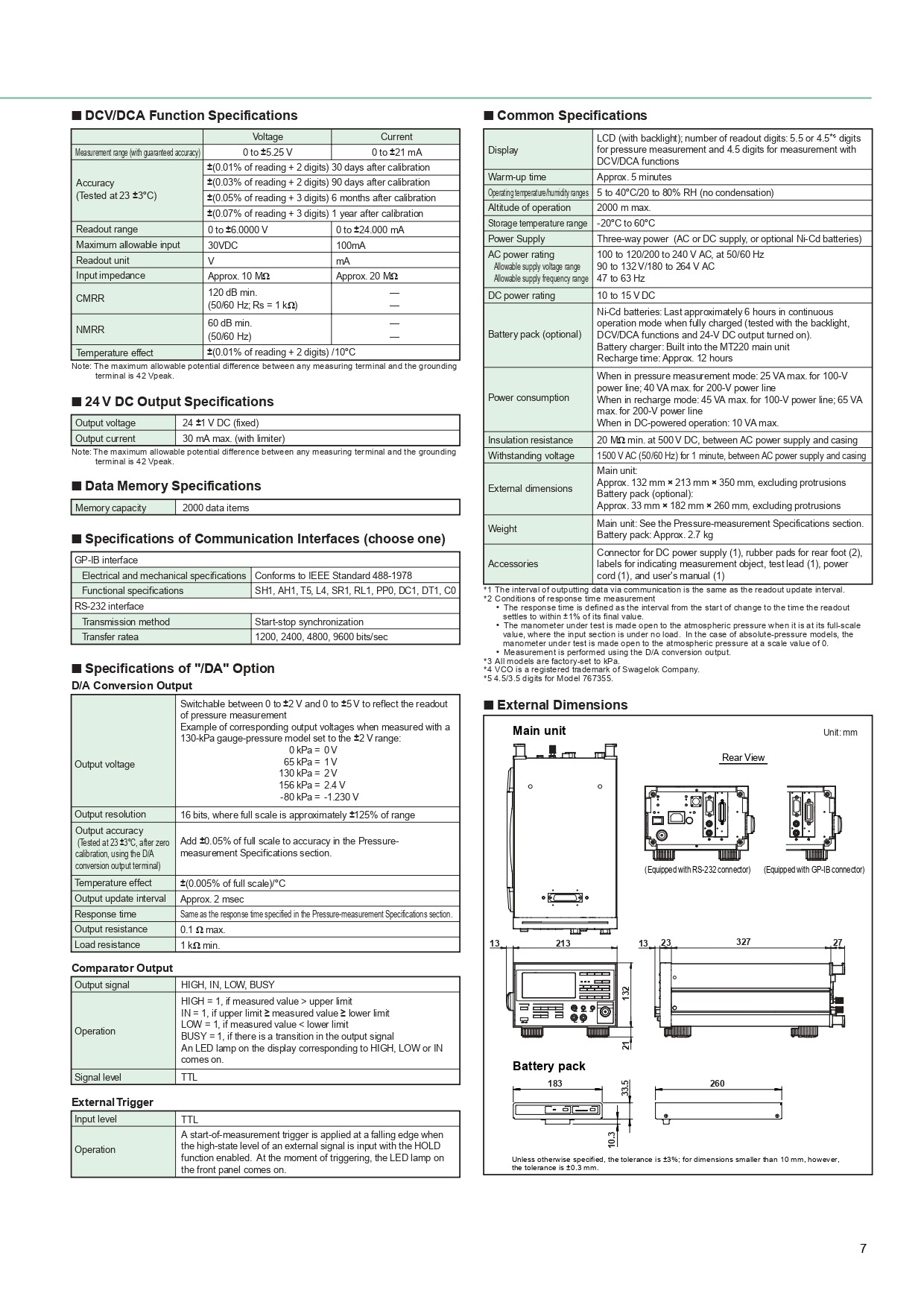

- Readout range 0 to – 6.0000 V 0 to – 24.000 mA
- Maximum allowable input 30VDC 100mA
- AC power rating 100 to 120/200 to 240 V AC, at 50/60 Hz
- Allowable supply voltage range 90 to 132 V/180 to 264 V AC
- Input impedance Approx. 10 MW Approx. 20 MW Allowable supply frequency range 47 to 63 Hz
- CMRR 120 dB min. — DC power rating 10 to 15 V DC
- power line; 40 VA max. for 200-V power line
- Output voltage 24 – 1 V DC (fixed) When in DC-powered operation: 10 VA max.
- Output current 30 mA max. (with limiter) Insulation resistance 20 MΩ min. at 500 V DC, between AC power supply and casing
- Note: The maximum allowable potential difference between any measuring terminal and the grounding Withstanding voltage 1500 V AC (50/60 Hz) for 1 minute, between AC power supply and casing
- n Data Memory Specifications External dimensions Approx. 132 mm · 213 mm · 350 mm, excluding protrusions
- Memory capacity 2000 data items Approx. 33 mm · 182 mm · 260 mm, excluding protrusions
- n Specifications of Communication Interfaces (choose one) Battery pack: Approx. 2.7 kg
- Connector for DC power supply (1), rubber pads for rear foot (2),
- GP-IB interface Accessories labels for indicating measurement object, test lead (1), power
- Example of corresponding output voltages when measured with a 130-kPa gauge-pressure model set to the – 2 V range: Unit: mm
- Output voltage 65 kPa=1 V
- (Tested at 23 –3°C, after zero Add – 0.05% of full scale to accuracy in the Pressure-
- Output resistance 0.1 Ω max.

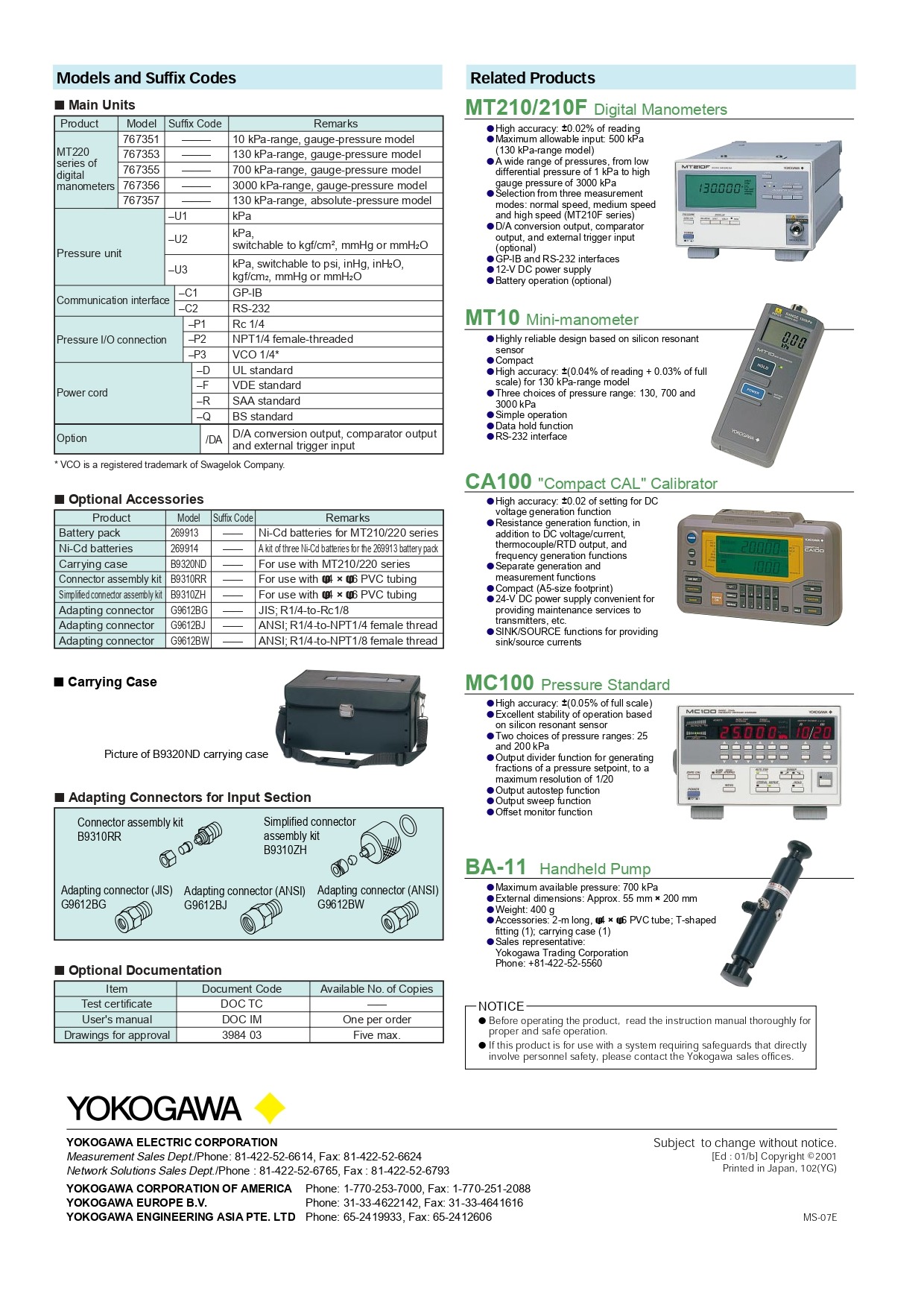

- 767351 ——— 10 kPa-range, gauge-pressure model lMaximum allowable input: 500 kPa
- 767357 ——— 130 kPa-range, absolute-pressure model modes: normal speed, medium speed
- –U2 output, and external trigger input
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
