GW INSTEK 굿윌인스텍 MSO-2202E 혼합 신호 오실로스코프
가격문의(상세정보 참조)

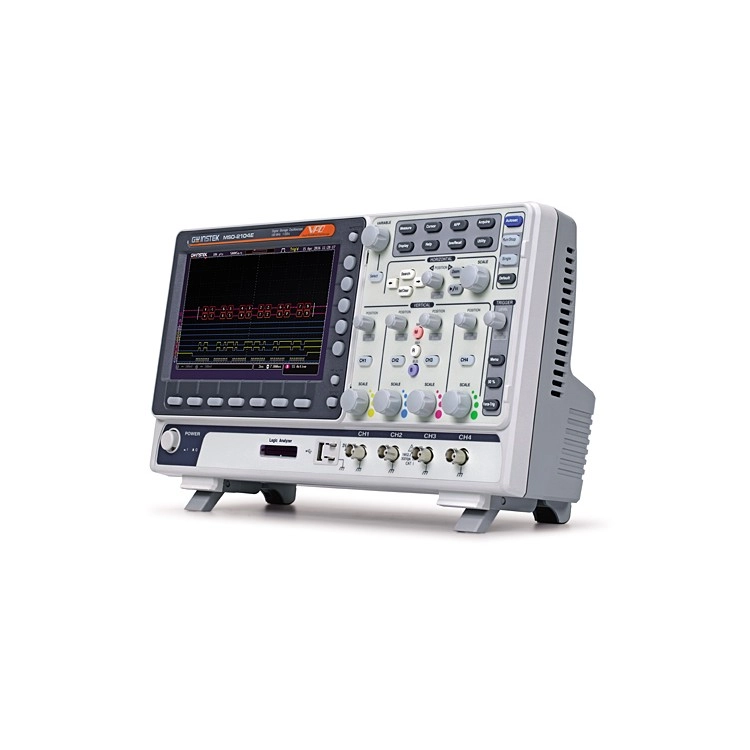

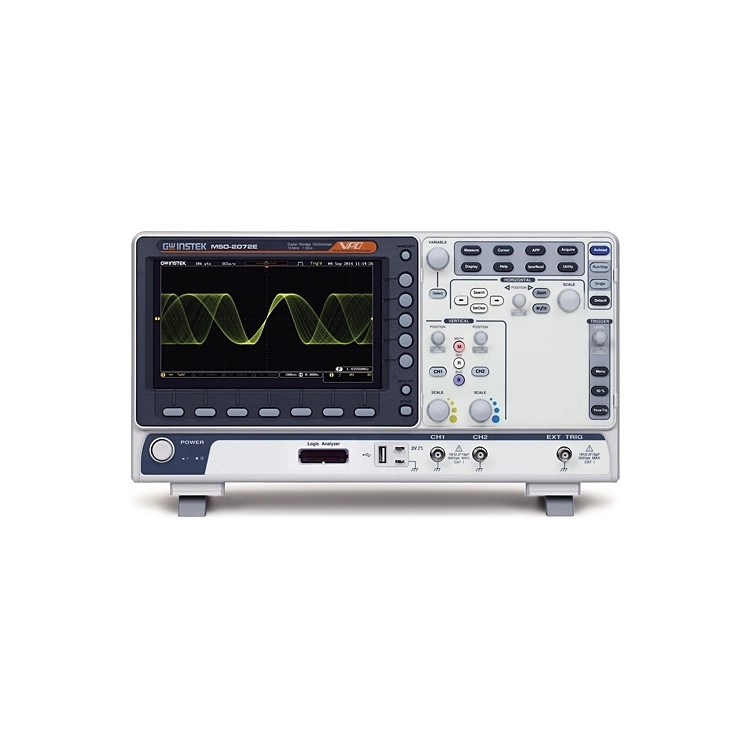

GW INSTEK MSO-2202E 혼합 신호 오실로스코프
GW INSTEK MSO-2202E Mixed-signal Oscilloscopes
- 200/100/70MHz bandwidth selections: 2 or 4 channels
- MSO-2000E equips with a 16-channel logic analyzer
- MSO-2000EA equips with a 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator
- Real time Sampling rate for each channel is 1GSa/s (2-channel models);Maximum real time Sampling rate is 1 GSa/s (4- channel models)
- Maximum 10M memory depth and VPO waveform display technology
- Waveform update rate up to 120,000 wfms/s
- 8 ” WVGA TFT LCD screen display
- Free Frequency Response Analyzer Software
- Maximum 1M FFT provides higher frequency domain resolution measurements
- High Pass, Low Pass and Band Pass Filter Functions
- 29,000 segmented memory sections and waveform search function
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
굿윌인스텍 ・ GW INSTEK
MSO-2202E
혼합 신호 오실로스코프
MSO-2202E Mixed-signal Oscilloscopes
Economical and Multi-Functional MSO
The MSO-2000 series is a mixed-signal oscilloscope, which offers dual analog channels + 16 digital channels or 4 analog channels + 16 digital channels. The MSO-2000 series includes MSO-2000E and MSO-2000EA. MSO-2000E has a built-in 16-channel logic analyzer and MSO-2000EA has a built-in 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator. The entire series features bandwidth selections of 200MHz, 100MH, and 70MHz. Dual analog channel models provide 1GSa/s real-time sampling rate per channel; four analog channel models provide 1GSa/s maximum real-time sampling rate. The 8-inch 800*480 TFT LCD and the minimum 1mV/div vertical range allow the MSO-2000 series to measure complex feeble signals and clearly display measurement results.
For analog channels, the MSO-2000 series provides 10M long memory for users to completely retrieve and analyze waveforms. Users, based upon the application requirements, can select 1k, 10k, 100k, 1M or 10M memory depth. Short memory depth collocating with the high sampling rate allows users to observe fast-changing waveforms and, on the other hand, long memory depth aims for continuously changing waveforms. The MSO-2000 series is equipped with waveform search and segmented memory functions to expand the flexible applications of 10M long memory. The segmented memory can be divided the maximum into 29,000 sections for users to bypass any unimportant waveforms so as to swiftly search all required waveforms. With the segmented memory function, more meaningful waveforms can be saved and target waveforms can be displayed rapidly. Users, by using the waveform search function, can rapidly search desired waveforms according to the required trigger conditions.
16-channel logic analyzer has a memory depth of 10Mpts per channel, which can retrieve more and longer digital signals as well as clearly display digital signals to obtain sufficient information for analysis. The minimum input swing of logic analyzer represents the minimum operating voltage of ±250 mV, which demonstrates that digital channels are highly sensitive with respect to input. The standard bus trigger and decoding functions include serial and parallel bus such as I2C, SPI, UART (RS232/422/485) and CAN/LIN bus for automotive communications. The parallel bus function is only for digital channels. Bus waveforms can be triggered and decoded in real time. The MSO-2000 series offers complete analysis and debugging capabilities with the economical pricing.
CAN Bus Trigger and Decode
In addition to a 16-channel logic analyzer, MSO-2000EA has a built-in dual channel 25MHz arbitrary waveform generator with the modulation capability and also features 14 bits vertical resolution; sample rate of 200MSa/s; 5 standard output waveforms (Sine, Square, Pulse, Ramp, DC, Noise) and 7 user-defined waveforms (Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac); AM/FM/FSK modulation and sweep function. The user friendly interface is the ideal choice for applications such as circuit simulation and education tests.
Dual Channel Arbitrary Waveform Generator
MSO-2000E MSO-2000E GW GW MSO-2000E MSO-2000E GW INSTEK GW INSTEKMSO-2000E MSO-2000E 굿윌 굿윌 MSO-2000E MSO-2000E 굿윌인스텍 굿윌인스텍 MSO-2000E MSO-2102E MSO-2102E GW GW MSO-2102E MSO-2102E GW INSTEK GW INSTEK MSO-2102E MSO-2102E 굿윌 굿윌 MSO-2102E MSO-2102E 굿윌인스텍 굿윌인스텍 MSO-2102E MSO-2104E MSO-2104E GW GW MSO-2104E MSO-2104E GW INSTEK GW INSTEK MSO-2104E MSO-2104E 굿윌 굿윌 MSO-2104E MSO-2104E 굿윌인스텍 굿윌인스텍 MSO-2104E MSO-2202E MSO-2202E GW GW MSO-2202E MSO-2202E GW INSTEK GW INSTEK MSO-2202E MSO-2202E 굿윌 굿윌 MSO-2202E MSO-2202E 굿윌인스텍 굿윌인스텍 MSO-2202E MSO-2204E MSO-2204E GW GW MSO-2204E MSO-2204E GW INSTEK GW INSTEK MSO-2204E MSO-2204E 굿윌 굿윌 MSO-2204E MSO-2204E 굿윌인스텍 굿윌인스텍 MSO-2204E MSO-2000EA MSO-2000EA GW GW MSO-2000EA MSO-2000EA GW INSTEK GW INSTEK MSO-2000EA MSO-2000EA 굿윌 굿윌 MSO-2000EA MSO-2000EA 굿윌인스텍 굿윌인스텍 MSO-2000EA MSO-2102EA MSO-2102EA GW GW MSO-2102EA MSO-2102EA GW INSTEK GW INSTEK MSO-2102EA MSO-2102EA 굿윌 굿윌 MSO-2102EA MSO-2102EA 굿윌인스텍 굿윌인스텍 MSO-2102EA MSO-2104EA MSO-2104EA GW GW MSO-2104EA MSO-2104EA GW INSTEK GW INSTEK MSO-2104EA MSO-2104EA 굿윌 굿윌 MSO-2104EA MSO-2104EA 굿윌인스텍 굿윌인스텍 MSO-2104EA MSO-2202EA MSO-2202EA GW GW MSO-2202EA MSO-2202EA GW INSTEK GW INSTEK MSO-2202EA MSO-2202EA 굿윌 굿윌 MSO-2202EA MSO-2202EA 굿윌인스텍 굿윌인스텍 MSO-2202EA MSO-2204EA MSO-2204EA GW GW MSO-2204EA MSO-2204EA GW INSTEK GW INSTEK MSO-2204EA MSO-2204EA 굿윌 굿윌 MSO-2204EA MSO-2204EA 굿윌인스텍 굿윌인스텍 MSO-2204EA MSO-2000E MSO-2102E MSO-2104E MSO-2202E MSO-2204E MSO-2000EA MSO-2102EA MSO-2104EA MSO-2202EA MSO-2204EA
