GW INSTEK 굿윌 인스텍 GSG-2000 SERIES RF 신호 발생기 ☆ 가격문의
111,111원

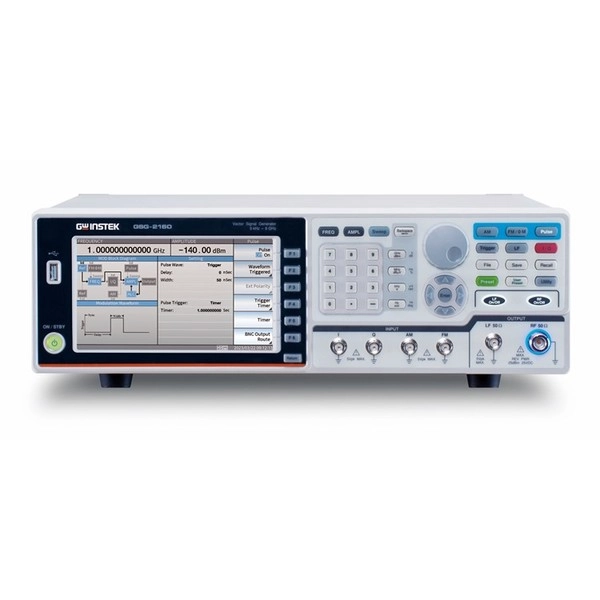

GW INSTEK GSG-2000 SERIES RF 신호 발생기
GW INSTEK GSG-2000 SERIES RF Signal Generator
- Frequency range: 9kHz ~ 6GHz
- Frequency resolution: 1mHz
- Standard 10ppm frequency stability, 2ppm aging rate
- Optional AUX (OCXO): 10ppb frequency stability, 0.1ppm aging rate
- Amplitude range: -140dBm to +20dBm
- 0.01dBm amplitude setting resolution
- Amplitude setting unit: dBm, dBµV, Vrms
- Phase noise: <-117dBc/Hz (real) @1GHz output and 20kHz offset
- The sampling speed of digital modulation signal (I/Q) output reaches 180MSa/s
- Frequency/amplitude switching speed: ≤ 5ms
- Built-in LF/RF signal output, Pulse signal output
- The series has built-in AM, FM, PM analog signal modulation functions
- Supports IQ modulation signal output (GSG-2160 only)
- Up to 60MHz baseband I or Q modulation signal output
- Up to 120MHz RF I+Q modulation signal output
- Built-in ASK, PSK, APSK, QAM, FSK, MSK, self-defined IQ/FSK digital signal modulation functions
- Provides USB, LAN and GPIB (option), commands comply with SCPI standards
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
굿윌인스텍 ・ GW INSTEK
GSG-2000 SERIES
RF 신호 발생기
GSG-2000 SERIES RF Signal Generator
The GSG-2000 series is a basic RF vector signal/ signal generator that covers a frequency range from 9kHz to 6GHz. It is suitable for applications in communications education, RF component testing (such as amplifiers, antennas, and filters), automotive electronic signal testing, and IoT applications. It meets the testing requirements of RF products during production and development stages.
Compared to its main competitors, the GSG-2000 series offers superior specifications including a wide amplitude output range of +20dBm to -140dBm, lower phase noise of -117dBc/Hz, and high frequency accuracy with 10ppm frequency stability and 2ppm aging rate. Users have the option to enhance frequency stability and aging rate by selecting the OCXO (Oven Controlled Crystal Oscillator) option, which provides 10ppb stability and 0.1ppm aging rate.
For the signal modulation, the entire series has built-in AM, FM, and PM analog modulation, and GSG-2160 features a digital signal modulation function with a maximum bandwidth of 60MHz digital signal output, supporting ASK, PSK, APSK, QAM, FSK, MSK, User-defined IQ, User-defined FSK modulation signals.
Furthermore, the GSG-2000 series also provides LF signal and Pulse signal output. The LF signal allows users to output Sine, Square, Triangle/Ramp, Gaussian Noise signals, and the Pulse signal output can simulate pulse wave applications of various widths. In addition to the above signal outputs, GSG-2000 also provides AM/FM/digital IQ signal input, as well as independent output ports for digital I or Q signals.
GSG-2000 adopts a seven-inch TFT LCD display that can fully display the parameters and status set by the user, and the series also provides USB, LAN, GPIB (option) communications interfaces, and provides standard SCPI-compatible commands to support remote control . GSG-2000 is designed for 3U high standard rack size.
The GSG-2000 series is available in two models and the main differences are shown in the following table:
GSG-2000 GSG-2000 GW GW GSG-2000 GSG-2000 GW INSTEK GW INSTEK GSG-2000 GSG-2000 굿윌인스텍 굿윌인스텍 GSG-2000 GSG-2000 굿윌 굿윌 GSG-2000 GSG-2160 GSG-2160 GW GWGSG-2160 GSG-2160 GW INSTEK GW INSTEK GSG-2160 GSG-2160 굿윌인스텍 굿윌인스텍 GSG-2160 GSG-2160 굿윌 굿윌 GSG-2160 GSG-2060 GSG-2060 GW GW GSG-2060 GSG-2060 GW INSTEK GW INSTEK GSG-2060 GSG-2060 굿윌인스텍 굿윌인스텍 GSG-2060 GSG-2060 굿윌 굿윌 GSG-2060 GSG 2000 GSG 2000 GW GW GSG 2000 GSG 2000 GW INSTEK GW INSTEK GSG 2000 GSG 2000 굿윌인스텍 굿윌인스텍 GSG 2000 GSG 2000 굿윌 굿윌 GSG 2000 GSG 2160 GSG 2160 GW GWGSG 2160 GSG 2160 GW INSTEK GW INSTEK GSG 2160 GSG 2160 굿윌인스텍 굿윌인스텍 GSG 2160 GSG 2160 굿윌 굿윌 GSG 2160 GSG 2060 GSG 2060 GW GW GSG 2060 GSG 2060 GW INSTEK GW INSTEK GSG 2060 GSG 2060 굿윌인스텍 굿윌인스텍 GSG 2060 GSG 2060 굿윌 굿윌 GSG 2060
■ 제품 사양 (Specifications)
GW 제품 데이터시트의 핵심 사양입니다.
- (Measurement categories) EN 61010-1:2010 specifies the
- 0 is for measurements performed on circuits not directly
- Frequency: 47 ~ 63 Hz
- Relative Humidity: 20%~ 80%, no condensation
- Temperature: 0°C to 40°C
- Temperature: -10°C to 70°C
- Relative Humidity: ≤90%, no condensation
- This chapter describes the ASR-2000 power
- ASR-2050R and ASR-2100R, differing only in capacity and front
- Performance Maximum AC output voltage is 350 Vrms
- Maximum DC output voltage is 500 Vdc
- Maximum output frequency is 999.9 Hz in AC
- than 0.5% at all frequency
- Factory option RS232 and GPIB interface
- Before using the ASR-2000 power source unit, check the package
- 82GW1SAFE0M*1 Safety guide
- Optional 1 RS232 + GPIB interface
- Optional 2 European Output Socket
- 25 pins Micro-D connector
- 1 Power switch button
- 2 USB interface connector (A Type)
- 4 Display mode select key
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
