YOKOGAWA 요꼬가와 2406E 시리즈 아날로그 절연저항계 – 굿맨시스템 (가격문의)

Name: YOKOGAWA 요꼬가와 2406E 시리즈 아날로그 절연저항계 – 굿맨시스템 (가격문의)
Brand: YOKOGAWA
Price: 111111 KRW
Availability: InStock

111,111원

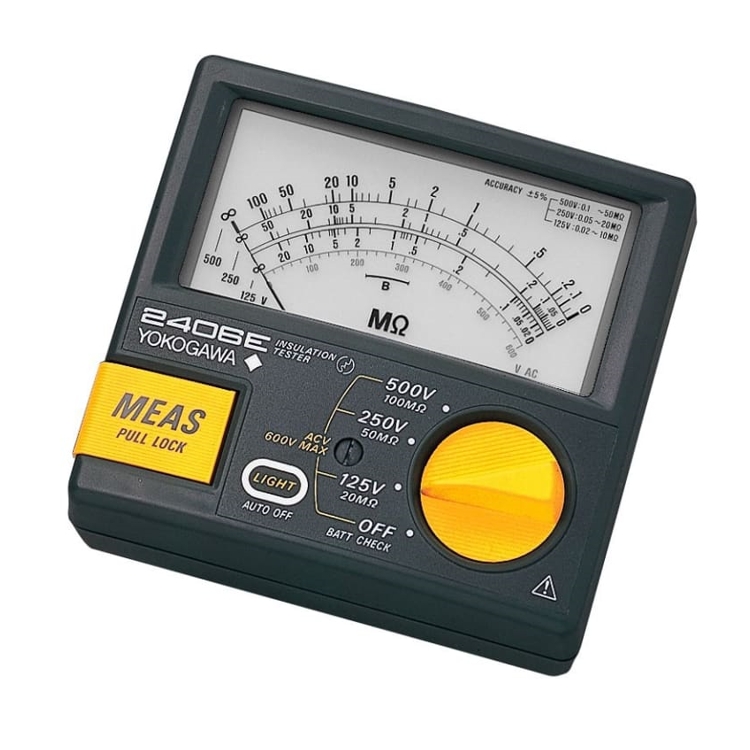

YOKOGAWA 요꼬가와 2406E 시리즈 아날로그 절연저항계

0

구매평

Q&A

배송

택배 · 기본 무료

50,000원 이상 구매 시 무료배송

0 장바구니

구매하기 구매하기

장바구니

구매하기 구매하기

구매평

Q&A

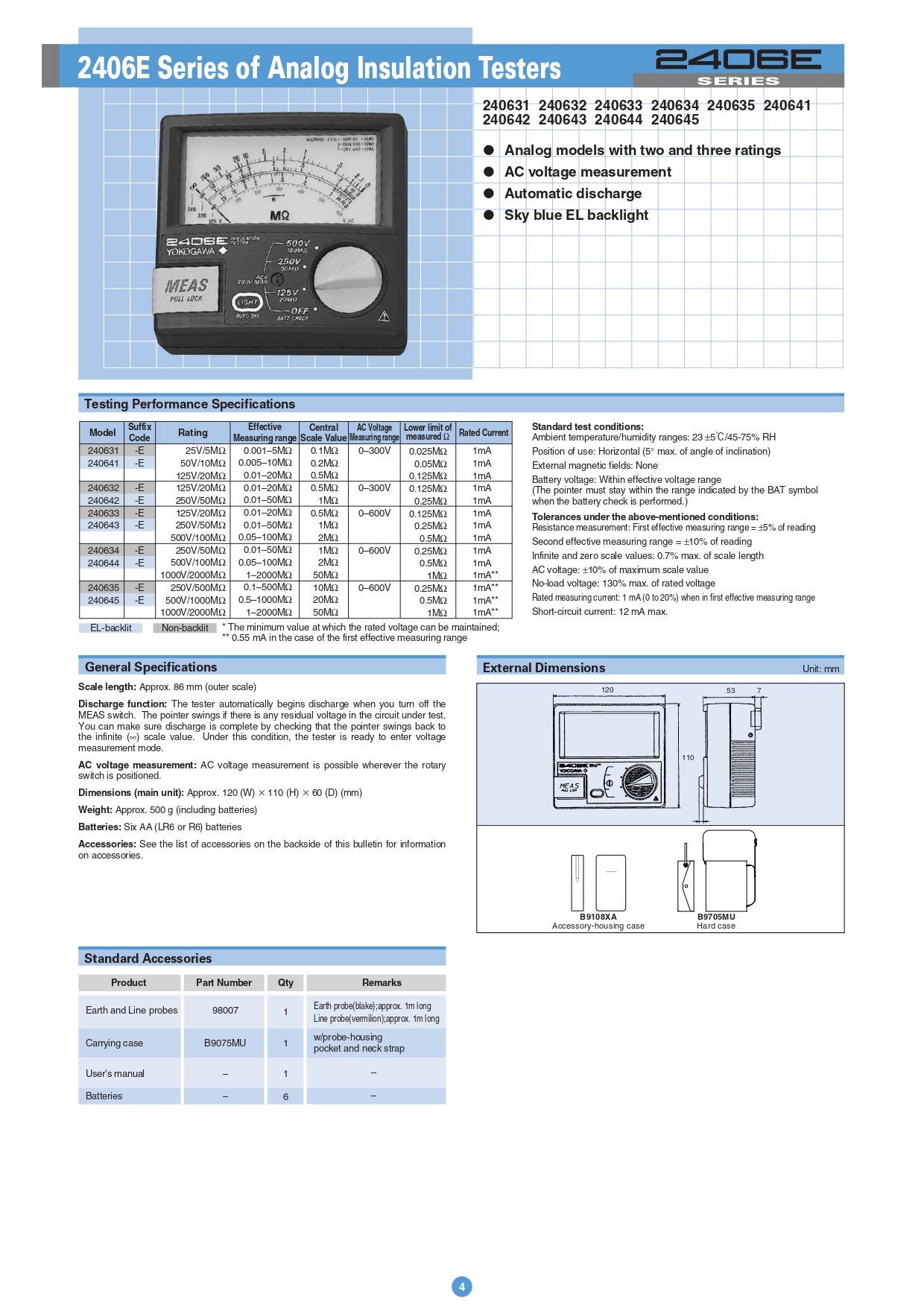

Model	Rating	Effective	Central	AC Voltage	Lower limit of	Rated Current
Model	Rating	Measuring range	Scale Value	Measuring range	measured Ω*1	Rated Current
240631	25 V/5 MΩ	0.001 to 5 MΩ	0.1 MΩ	0 to 300 V	0.025 MΩ	1 mA
240631	50 V/10 MΩ	0.005 to 10 MΩ	0.2 MΩ		0.05 MΩ	1 mA
240641	125 V/20 MΩ	0.01 to 20 MΩ	0.5 MΩ		0.125 MΩ	1 mA
240632	125 V/20 MΩ	0.01 to 20 MΩ	0.5 MΩ	0 to 300 V	0.125 MΩ	1 mA
240642	250 V/50 MΩ	0.01 to 50 MΩ	1 MΩ	0 to 300 V	0.25 MΩ	1 mA
240633	125 V/20 MΩ	0.01 to 20 MΩ	0.5 MΩ	0 to 600 V	0.125 MΩ	1 mA
240633	250 V/50 MΩ	0.01 to 50 MΩ	1 MΩ		0.25 MΩ	1 mA
240643	500 V/100 MΩ	0.05 to 100 MΩ	2 MΩ		0.5 MΩ	1 mA
240634	250 V/50 MΩ	0.01 to 50 MΩ	1 MΩ	0 to 600 V	0.25 MΩ	1 mA
240634	500 V/100 MΩ	0.05 to 100 MΩ	2 MΩ		0.5 MΩ	1 mA
240644	1000 V/2000 MΩ	1 to 2000 MΩ	50 MΩ		1 MΩ	1 mA*2
240635	250 V/500 MΩ	0.1 to 500 MΩ	10 MΩ	0 to 600 V	0.25 MΩ	1 mA*2
240635	500 V/1000 MΩ	0.5 to 1000 MΩ	20 MΩ		0.5 MΩ	1 mA*2
240645	1000 V/2000 MΩ	1 to 2000 MΩ	50 MΩ		1 MΩ	1 mA*2

Rating	125V/20M~
	25V/5M~
	50V/10M~
Effective Measuring Range	0.001-5M~
	0.005-10M~
	0.01-20M~
Central Scale Value	0.1M~
	0.2M~
	0.5M~
AC Voltage Measurement	0 to 300 V
Lower Limit	0.025M~
	0.05M~
	0.125~
Rated Current	1 mA
Approx. Outer Scale Length	88 mm
Discharge Function	The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&
Approx. Width	120 mm
Approx. Height	110 mm
Approx. Depth	60 mm
Approx. Weight	500 g
Batteries	Six AA (R6P) batteries

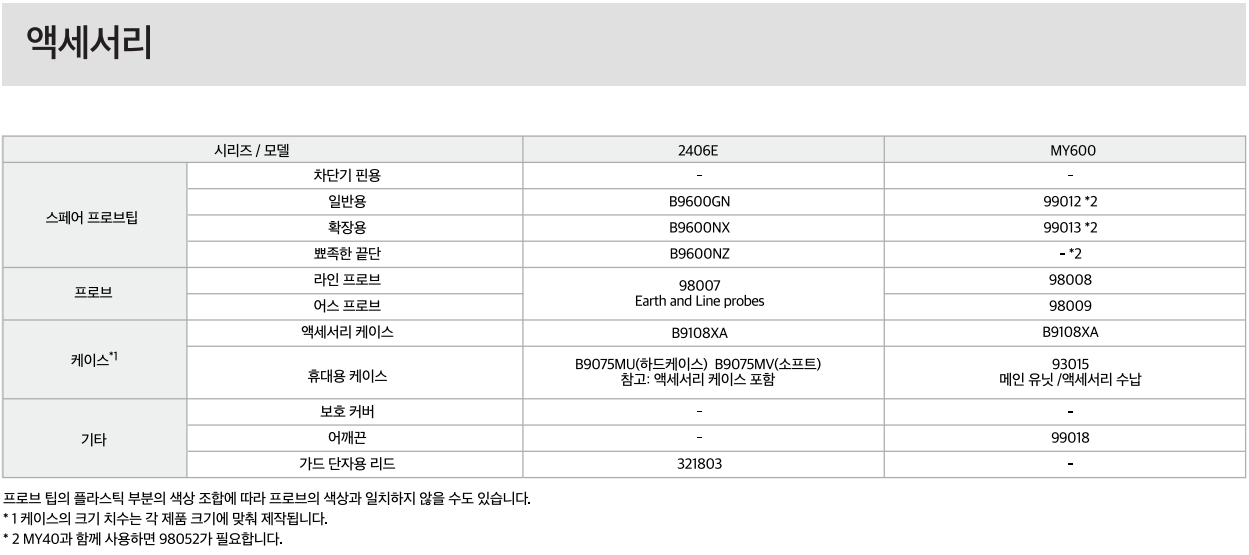

Standard Accessories	Batteries (Qty- 6)

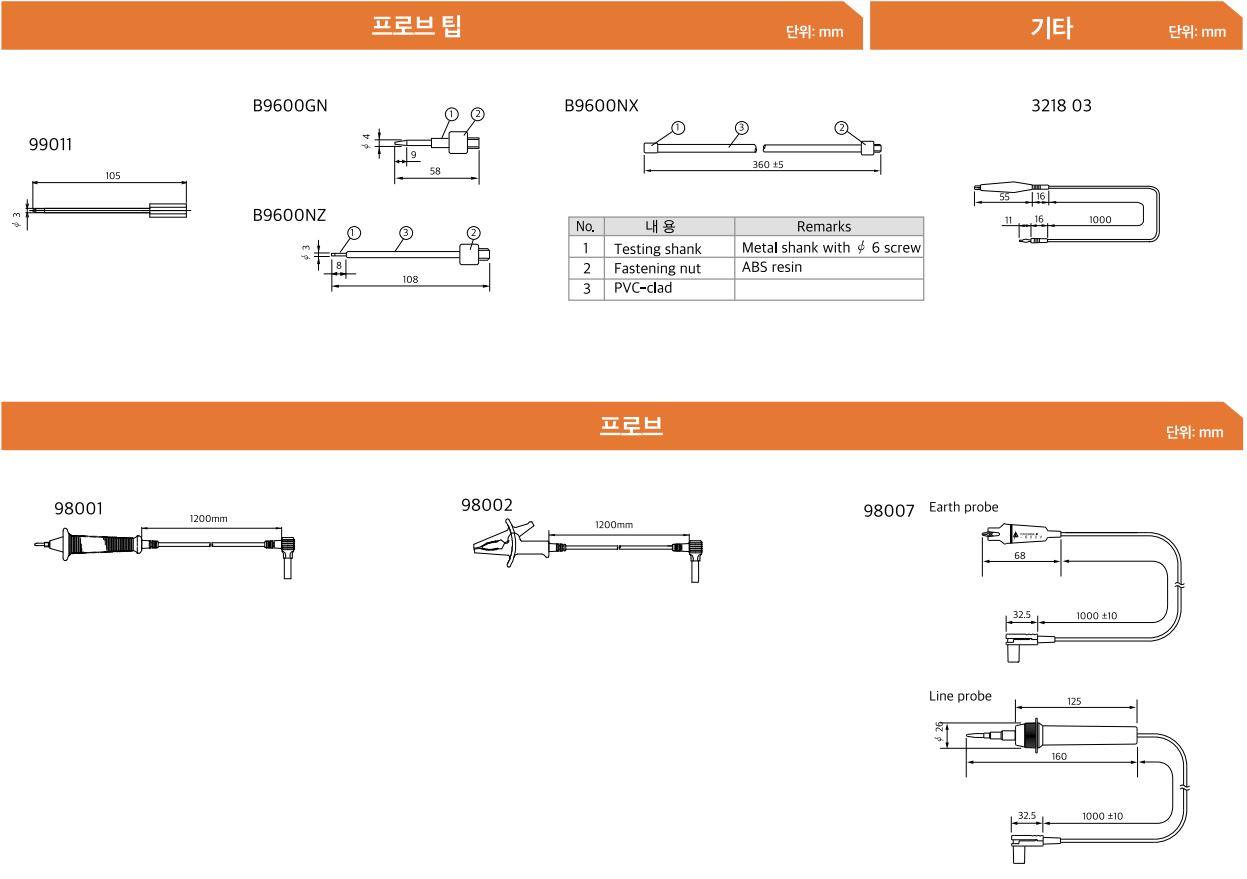

	Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long
	Earth probes and Line Probes (98007) (Qty - 1)
	User's Manual (Qty - 1)- With probe-housing pocket and neck strap

Ambient Temperature/Humidity Ranges	23 ±5 /45-75% RH
Position of Use	Horizontal (5º max. of angle of inclination)
External Magnetic Fields	None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)
Tolerance Mentioned Conditions	Resistance measurement: First effective measuring range = ±5% of reading
	Second effective measuring range = ±10% of reading
	Infinite and zero scale values: 0.7% max. of scale length
	AC voltage: ±10% of maximum scale value
	No-load voltage: 130% max. of rated voltage
	Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range
	Short-circuit current: 12 mA max.

Rating	125V/20M~
	25V/5M~
	50V/10M~
Effective Measuring Range	0.001-5M~
	0.005-10M~
	0.01-20M~
Central Scale Value	0.1M~
	0.2M~
	0.5M~
AC Voltage Measurement	0 to 300 V
Lower Limit	0.025M~
	0.05M~
	0.125~
Rated Current	1 mA
Approx. Outer Scale Length	88 mm
Discharge Function	The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&
Approx. Width	120 mm
Approx. Height	110 mm
Approx. Depth	60 mm
Approx. Weight	500 g
Batteries	Six AA (R6P) batteries
Standard Accessories	Batteries (Qty- 6)
	Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long
	Earth probes and Line Probes (98007) (Qty - 1)
	User's Manual (Qty - 1)- With probe-housing pocket and neck strap

Ambient Temperature/Humidity Ranges	23 ±5 /45-75% RH
Position of Use	Horizontal (5º max. of angle of inclination)
External Magnetic Fields	None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)
Tolerance Mentioned Conditions	Resistance measurement: First effective measuring range = ±5% of reading
	Second effective measuring range = ±10% of reading
	Infinite and zero scale values: 0.7% max. of scale length
	AC voltage: ±10% of maximum scale value
	No-load voltage: 130% max. of rated voltage
	Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range
	Short-circuit current: 12 mA max.

Non-Back-Light	*1 The minimum value at which the rated voltage can be maintained;
	*2 0.55 mA in the case of the first effective measuring range

Rating	250V/50M~
Effective Measuring Range	0.01-50M~
Central Scale Value	1M~
AC Voltage Measurement	0 to 300 V
Lower Limit	0.25~
Rated Current	1 mA
Approx. Outer Scale Length	88 mm
Discharge Function	The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&
Approx. Width	120 mm
Approx. Height	110 mm
Approx. Depth	60 mm
Approx. Weight	500 g
Batteries	Six AA (R6P) batteries
Standard Accessories	Batteries (Qty- 6)
	Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long
	Earth probes and Line Probes (98007) (Qty - 1)
	User's Manual (Qty - 1)- With probe-housing pocket and neck strapㅗ

Rating	1000V/2000M~
	250V/50M~
	500V/100M~
Effective Measuring Range	0.01-50M~
	0.05-100M~
	1-2000M~
Central Scale Value	1M~
	2M~
	50M~
AC Voltage Measurement	0 to 600 V
Lower Limit	0.25M~
	0.5M~
	1~
Rated Current	1 mA
Approx. Outer Scale Length	88 mm
Discharge Function	The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&
Approx. Width	120 mm
Approx. Height	110 mm
Approx. Depth	60 mm
Approx. Weight	500 g
Batteries	Six AA (R6P) batteries
Standard Accessories	Batteries (Qty- 6)
	Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long
	Earth probes and Line Probes (98007) (Qty - 1)
	User's Manual (Qty - 1)- With probe-housing pocket and neck strap

Rating	1000V/2000M~
	250V/500M~
	500V/1000M~
Effective Measuring Range	0.1-500M~
	0.5-1000M~
	1-2000M~
Central Scale Value	10M~
	20M~
	50M~
AC Voltage Measurement	0 to 600 V
Lower Limit	0.25M~
	0.5M~
	1~
Rated Current	1 mA
Approx. Outer Scale Length	88 mm
Discharge Function	The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&
Approx. Width	120 mm
Approx. Height	110 mm
Approx. Depth	60 mm
Approx. Weight	500 g
Batteries	Six AA (R6P) batteries
Standard Accessories	Batteries (Qty- 6)
	Carrying case (B9075MU) (Qty -1) Earth probe (blake); approx. 1 m long
	Earth probes and Line Probes (98007) (Qty - 1)
	User's Manual (Qty - 1)- With probe-housing pocket and neck strap
