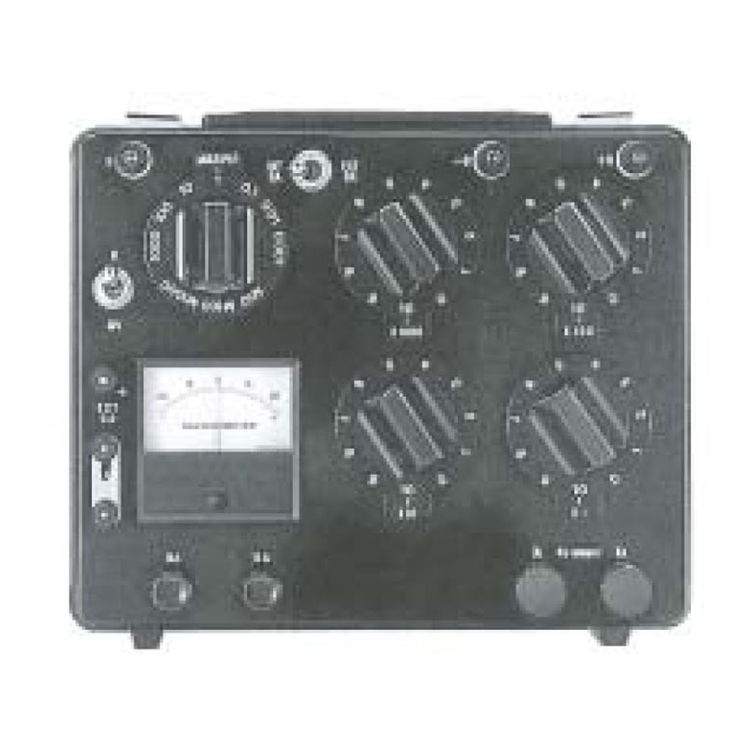

요꼬가와 YOKOGAWA 275597 휴대용 휘스톤 브릿지 – 굿맨시스템 (가격문의)
111,111원
- No auxiliary attachment required
- Galvanometer with a built-in protection circuit
- Compact, lightweight (2 kg)
- Built-in Murray & Varley loop tester

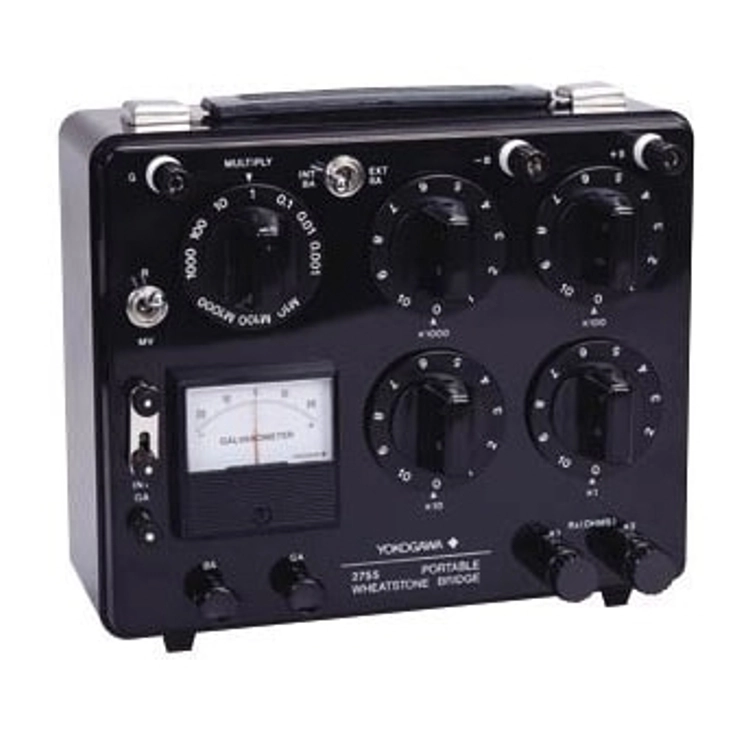

요꼬가와 YOKOGAWA 275597 휴대용 휘스톤 브릿지
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.

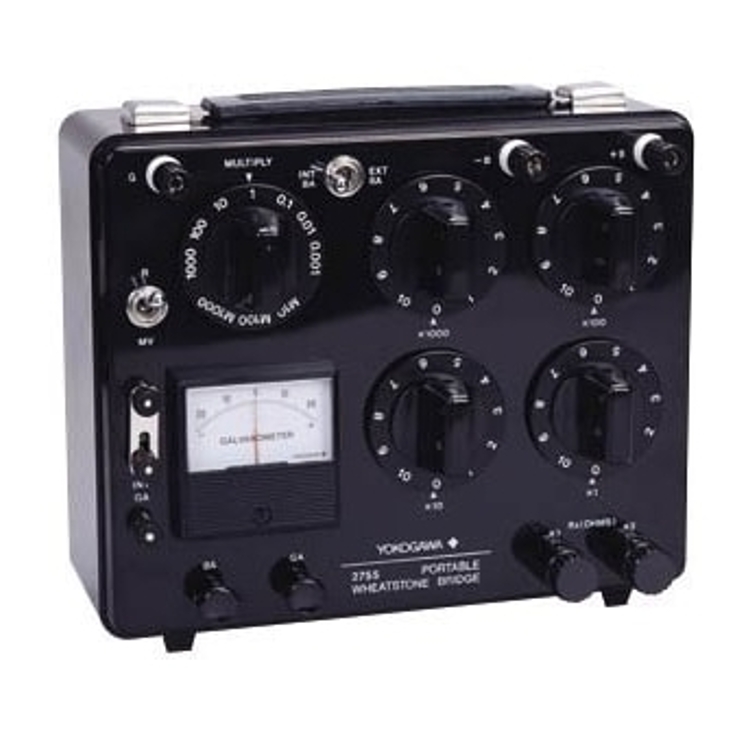

요꼬가와 YOKOGAWA 275597 휴대용 휘스톤 브릿지

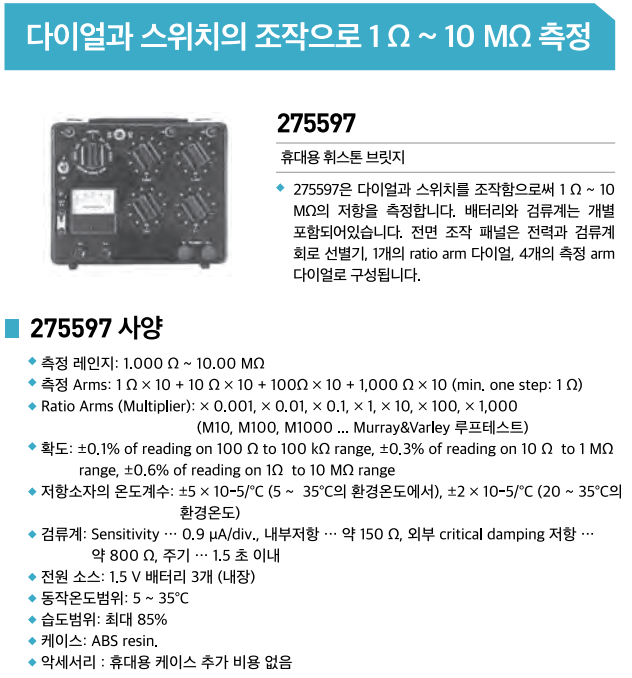

Specifications
Dimensions | 226（W）×182（H）×92（D）mm, excluding protrusions |
| 8.90 × 7.17 × 3.60 in. | |
| Weight | Approx. 2.0kg |
| 4.4 lbs | |
| Measuring Range | 1.000Ω to 10.00MΩ |
| Measuring Arm | x 1mΩ, x 10Ω + 10Ω x 10 + 100Ω x 10 + 1000Ω x10 (min. one step: 1Ω) |
| Ratio Arms | x 0.001 x 0.01, x 0.01, x 0.1, x 1, x 10, 100, x 1000 (M10, M100, M1000 Murray & Varley loop testing) |
| Accuracy | Range, ±0.1% of reading on 100Ω to 100kΩ Range, ±0.3% of reading on 10Ω to 1MΩ Range, ±0.6% of reading on 1Ω to 10MΩ Range |
| Temperature Coefficient of Resistance Elements | ±0.5 x 10-5 /°C at ambient temperature of 5 to 35°C (41 to 95°F), ±2 x 10-5 /°C at ambient temperature of 20 to 35°C (68 to 95°F) |
| Galvanometer (Built-In) | Sensitivity 0.9 μA/div, Internal Resistance - Approx. 150Ω, External Critical Damping resistance - Approx. 800Ω, Period - within 1.5 Seconds |
| Galvanometer Power Source | Three 1.5V batteries (built-in) |
| Operating Temperature Range | 5 to 35°C (41 to 95°F) |
| Humidity Range | 85% Max., Relative Humidity |
| Outer Case | ABS Resin |
| Current Rating | 0.01A at x 10 (1000Ω) |
| 0.1A at x 1 (100Ω) | |
| 0.3A at x 0.1 (10Ω) | |
| 10A at x 0.0001 (0.01Ω) | |
| 1A at x 0.01 (1Ω) | |
| 3A at x 0.001 (0.1Ω) | |
| Accessories Supplied at No Extra Cost | Carrying Case |
■ 제품 사양 (Specifications)
YOKOGAWA 275597 제품 데이터시트의 핵심 사양입니다.
- In measurement of resistances below 10 ohms,
- general resistance measurement and fault point detection of ±5×10-5/°C or less (at 5 to 35°C)
- Measuring Range: 1 Ω to 10 MΩ (4 digits)
- Measuring arm: 1 Ω ×10 + 10 Ω ×10+ resistance:
- Measuring arm ×1000: ±0.06%
- Operating Temperature: 5 to 35°C
- * For the measurement of more than 100 kΩ,
- Operating Humidity: 85% RH or less it is recommended to use external galvanometer,
- Power Source: Three 1.5V batteries (built-in) type which has high sensitivity.
- Weight : Approx. 2 kg (4.4 lbs) It is possible to measure 0.1% variation of Rx value of
- Accessory: User’s manual: 1 copy. 2 MΩ (4.5 V power supply).
- 6 5 6 5 (7) Measuring arm dials
- (10) Power supply selector switch
- 3.3 External Power Supply
- Fig 3.2 Connection of External Galvanometer turn the power supply selector switch to “EXT BA”.
- 70 VDC and maximum current is 60 mADC
- BA 6 5 6 5 1 kΩ (2 W type) protective resistance is inserted
- 7 4 7 4 between the external power supply and bridges,
- 9 2 9 2 the circuit is protected from overcurrent.
- (2) Confirm that the galvanometer indicates “0” by Adjust measuring dials until the galvanometer
- 4.2 Resistance Measurement
- (3) Set the MULTIPLY dial to proper range 100 kΩ to 1 MΩ 100
- (4) Set the Measuring dial at 1999 and push BA
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
