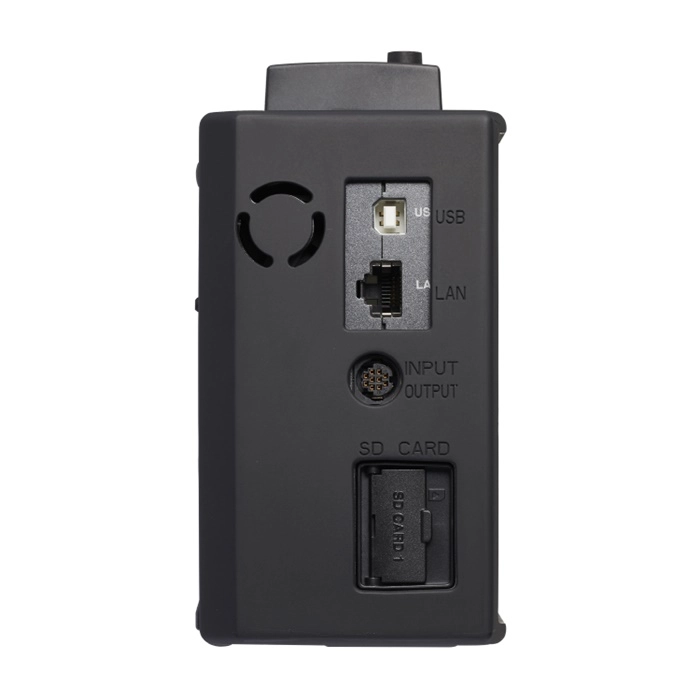

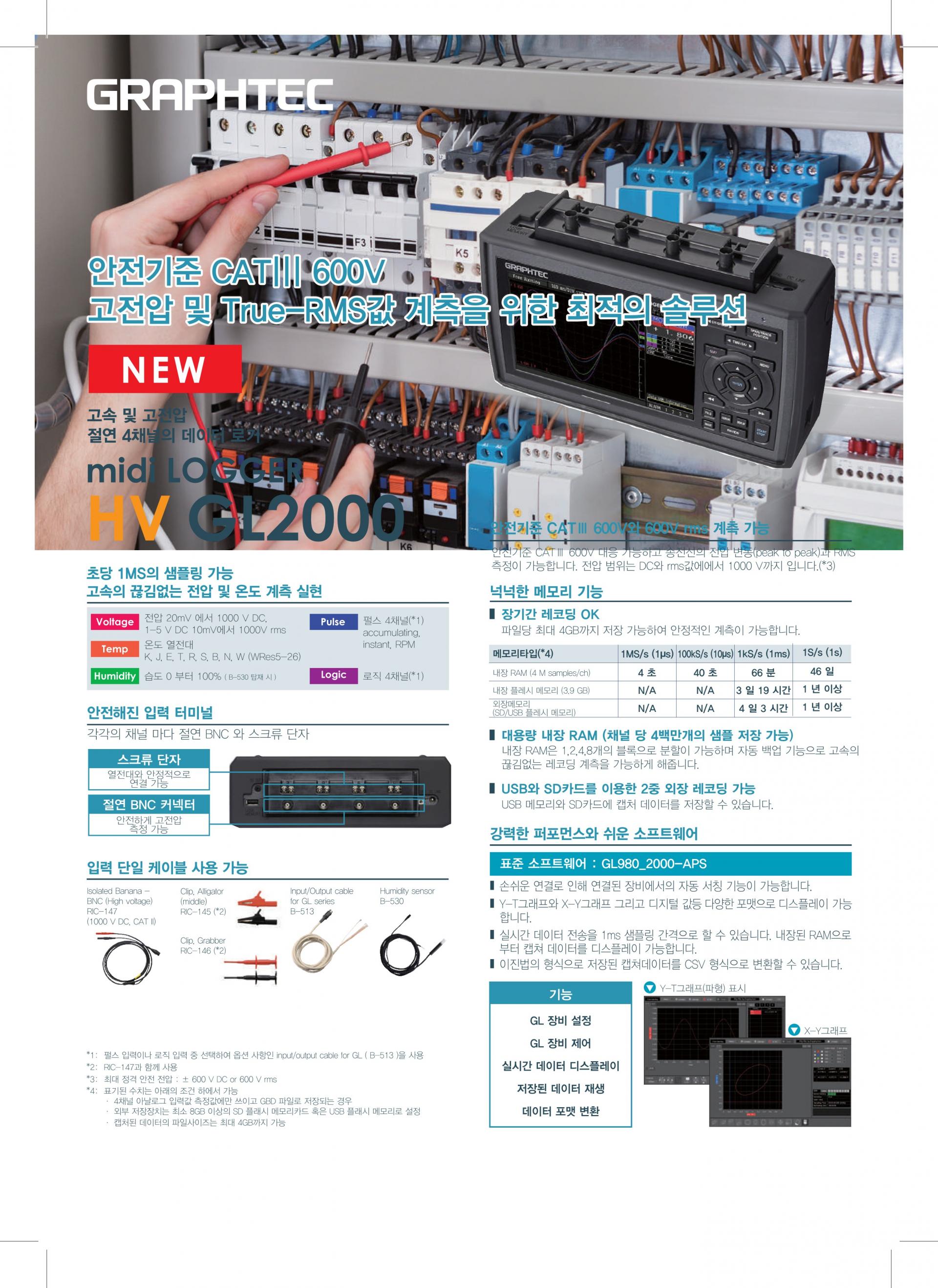

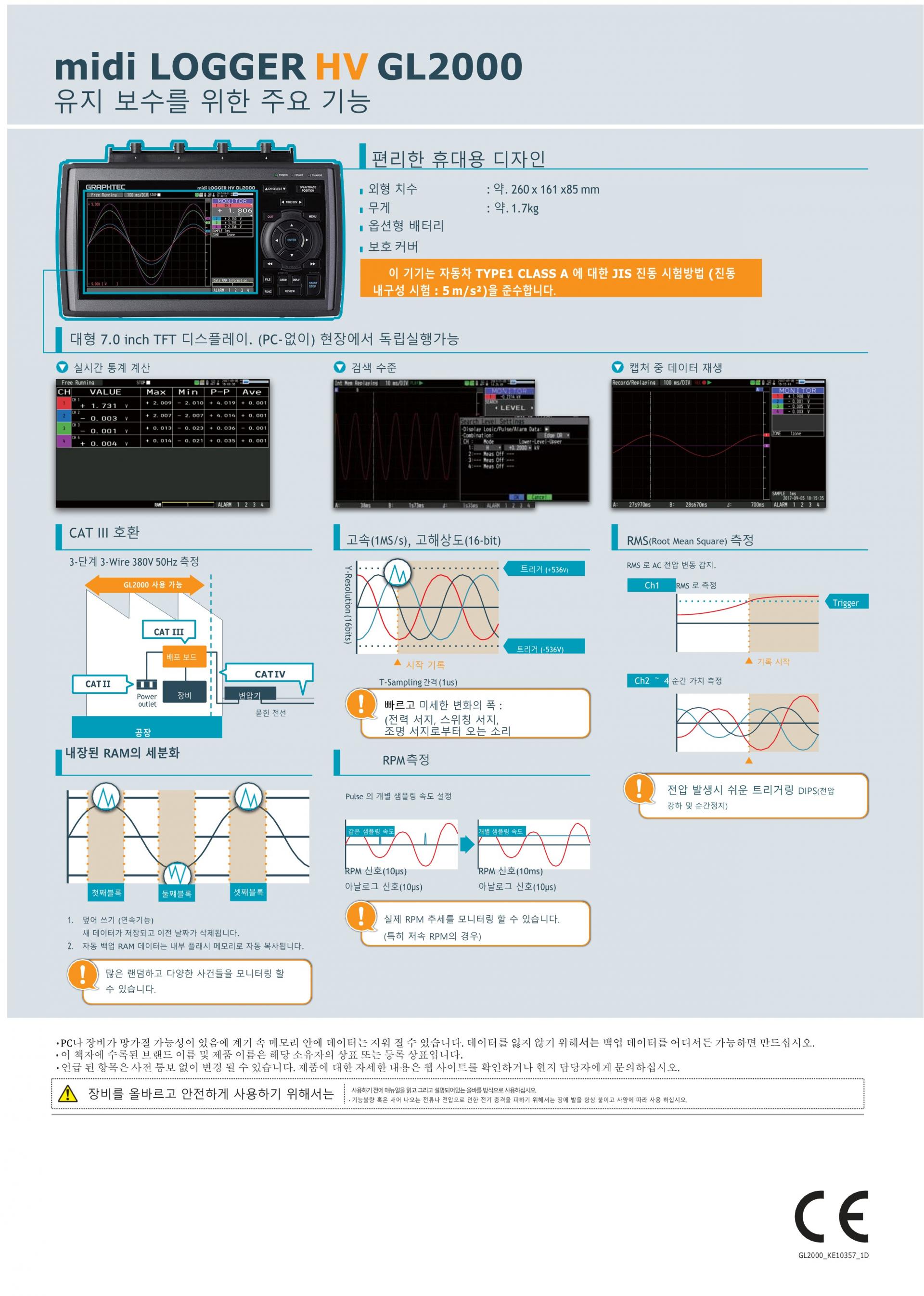

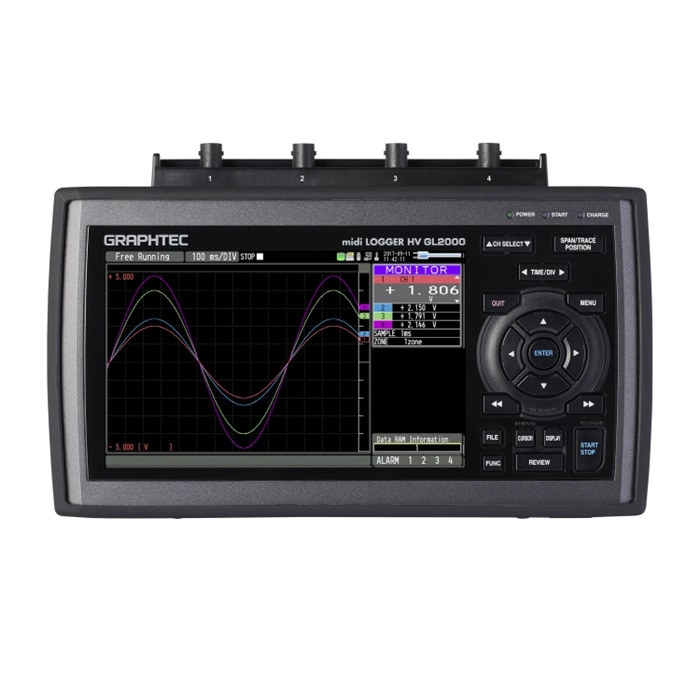

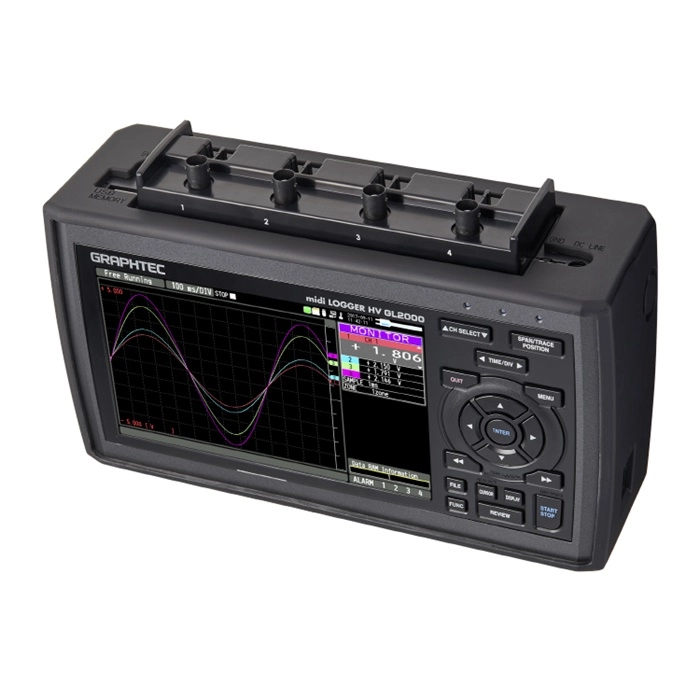

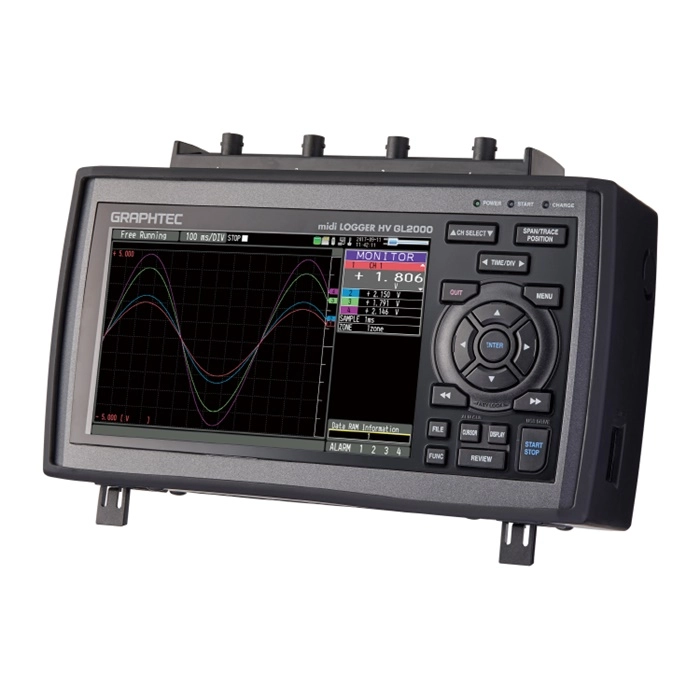

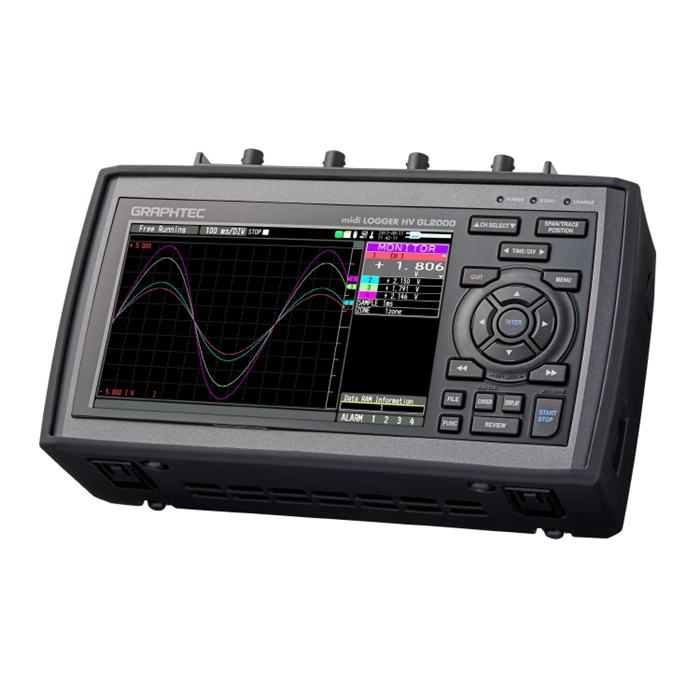

GRAPHTEC 그라프텍 GL2000 – 4채널 고속 고전압 데이터로거
📄 기술자료 다운로드

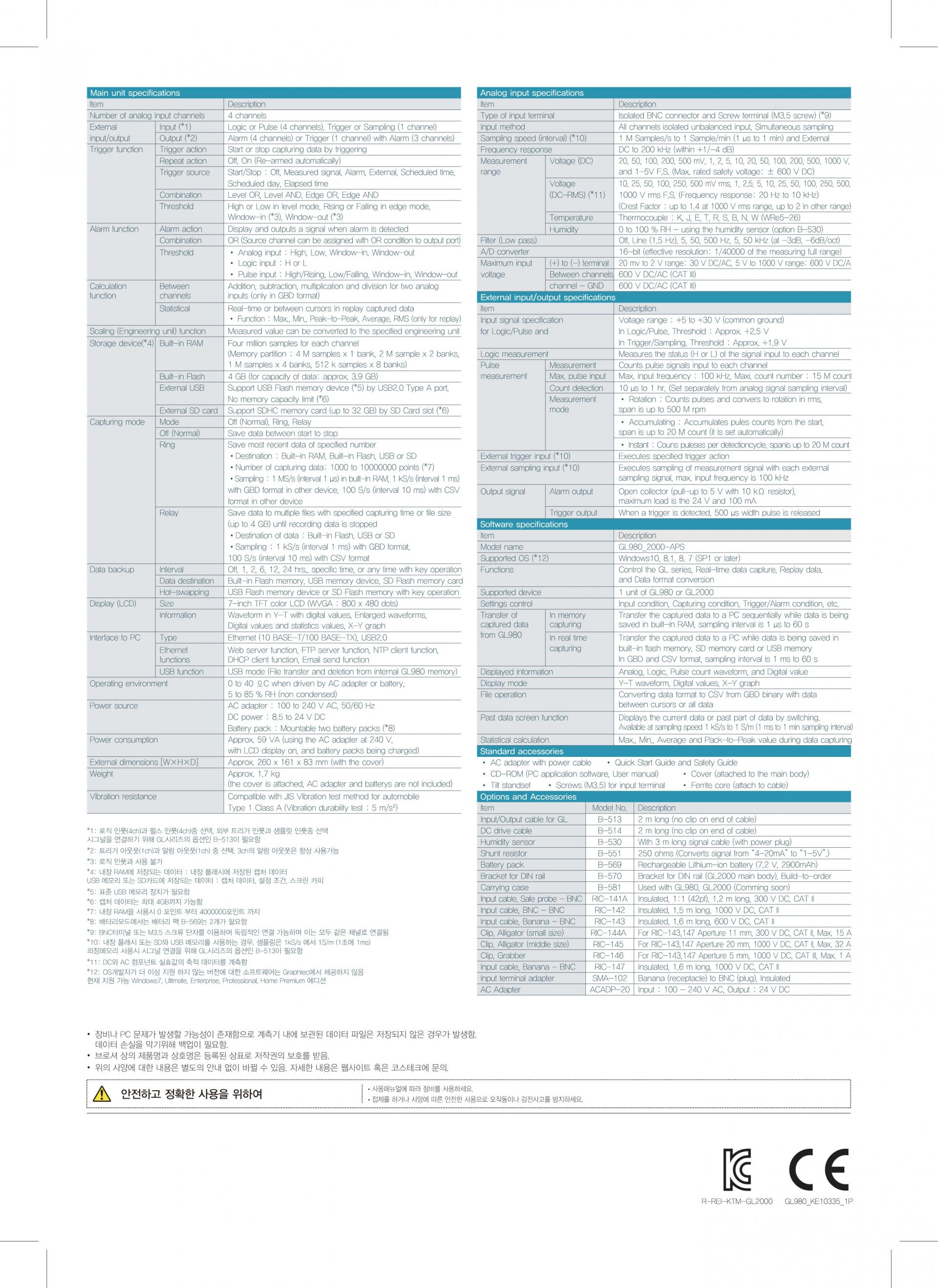

■ 제품 사양 (Specifications)
GRAPHTEC GL2000 제품 데이터시트의 핵심 사양입니다.
- Voltage 전압 20mV 에서 1000 V DC, Pulse 펄스 4채널(*1) ■ 장기간 레코딩 OK
- *1: 펄스 입력이나 로직 입력 중 선택하여 옵션 사항인 input/output cable for GL ( B-513 )을 사용

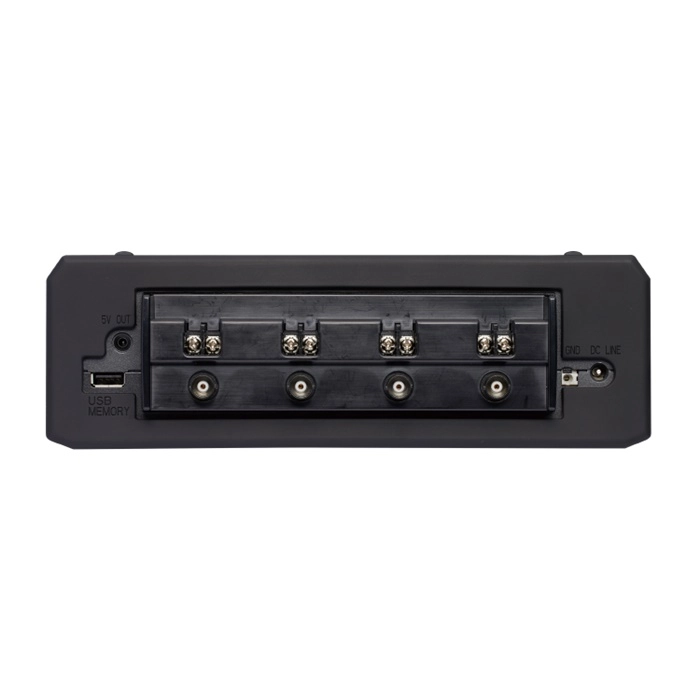

- Number of analog input channels 4 channels Type of input terminal Isolated BNC connector and Screw terminal (M3.5 screw) (*9)
- External Input (*1) Logic or Pulse (4 channels), Trigger or Sampling (1 channel) Input method All channels isolated unbalanced input, Simultaneous sampling
- Trigger function Trigger action Start or stop capturing data by triggering Frequency response DC to 200 kHz (within +1/-4 dB)
- Repeat action Off, On (Re-armed automatically) Measurement Voltage (DC) 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000 V,
- Trigger source Start/Stop : Off, Measured signal, Alarm, External, Scheduled time, range and 1-5V F.S. (Max. rated safety voltage: ± 600 V DC)
- Scheduled day, Elapsed time Voltage 10, 25, 50, 100, 250, 500 mV rms, 1, 2.5, 5, 10, 25, 50, 100, 250, 500,
- Combination Level OR, Level AND, Edge OR, Edge AND (DC-RMS) (*11) 1000 V rms F.S. (Frequency response: 20 Hz to 10 kHz)
- Threshold High or Low in level mode, Rising or Falling in edge mode, (Crest Factor : up to 1.4 at 1000 V rms range, up to 2 in other range)
- Threshold • Analog input : High, Low, Window-in, Window-out A/D converter 16-bit (effective resolution: 1/40000 of the measuring full range)
- • Logic input : H or L Maximum input (+) to (-) terminal 20 mv to 2 V range: 30 V DC/AC, 5 V to 1000 V range: 600 V DC/A
- • Pulse input : High/Rising, Low/Falling, Window-in, Window-out voltage Between channels 600 V DC/AC (CAT III)
- • Function : Max., Min., Peak-to-Peak, Average, RMS (only for replay) Input signal specification Voltage range : +5 to +30 V (common ground)
- Storage device(*4) Built-in RAM Four million samples for each channel In Trigger/Sampling, Threshold : Approx. +1.9 V
- (Memory partition : 4 M samples x 1 bank, 2 M sample x 2 banks, Logic measurement Measures the status (H or L) of the signal input to each channel
- Built-in Flash 4 GB (for capacity of data: approx. 3.9 GB) measurement Max. pulse input Max. input frequency : 100 kHz, Maxi. count number : 15 M count
- No memory capacity limit (*6) Measurement • Rotation : Counts pulses and convers to rotation in rms,
- with GBD format in other device, 100 S/s (interval 10 ms) with CSV Output signal Alarm output Open collector (pull-up to 5 V with 10 kΩ resistor),
- •Sampling : 1 kS/s (interval 1 ms) with GBD format, Model name GL980_2000-APS
- Power source AC adapter : 100 to 240 V AC, 50/60 Hz between cursors or all data
- DC power : 8.5 to 24 V DC Past data screen function Displays the current data or past part of data by switching.
- Battery pack : Mountable two battery packs (*8) Available at sampling speed 1 kS/s to 1 S/m (1 ms to 1 min sampling interval)
- Power consumption Approx. 59 VA (using the AC adapter at 240 V, Statistical calculation Max., Min., Average and Pack-to-Peak value during data capturing
- External dimensions [W×H×D] Approx. 260 x 161 x 83 mm (with the cover) • AC adapter with power cable • Quick Start Guide and Safety Guide
- Weight Approx. 1.7 kg • CD-ROM (PC application software, User manual) • Cover (attached to the main body)
- Input/Output cable for GL B-513 2 m long (no clip on end of cable)
- *2: 트리거 아웃풋(1ch)과 알람 아웃풋(1ch) 중 선택. 3ch의 알람 아웃풋은 항상 사용가능 Shunt resistor B-551 250 ohms (Converts signal from “4-20mA” to “1-5V”.)
- *6: 캡처 데이터는 최대 4GB까지 가능함 Input cable, Safe probe - BNC RIC-141A Insulated, 1:1 (42pf), 1.2 m long, 300 V DC, CAT II
- AC Adapter ACADP-20 Input : 100 - 240 V AC, Output : 24 V DC
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
