ISOTECH 아이소텍 830 | TRU HOTBOX (가격문의)
111,111원

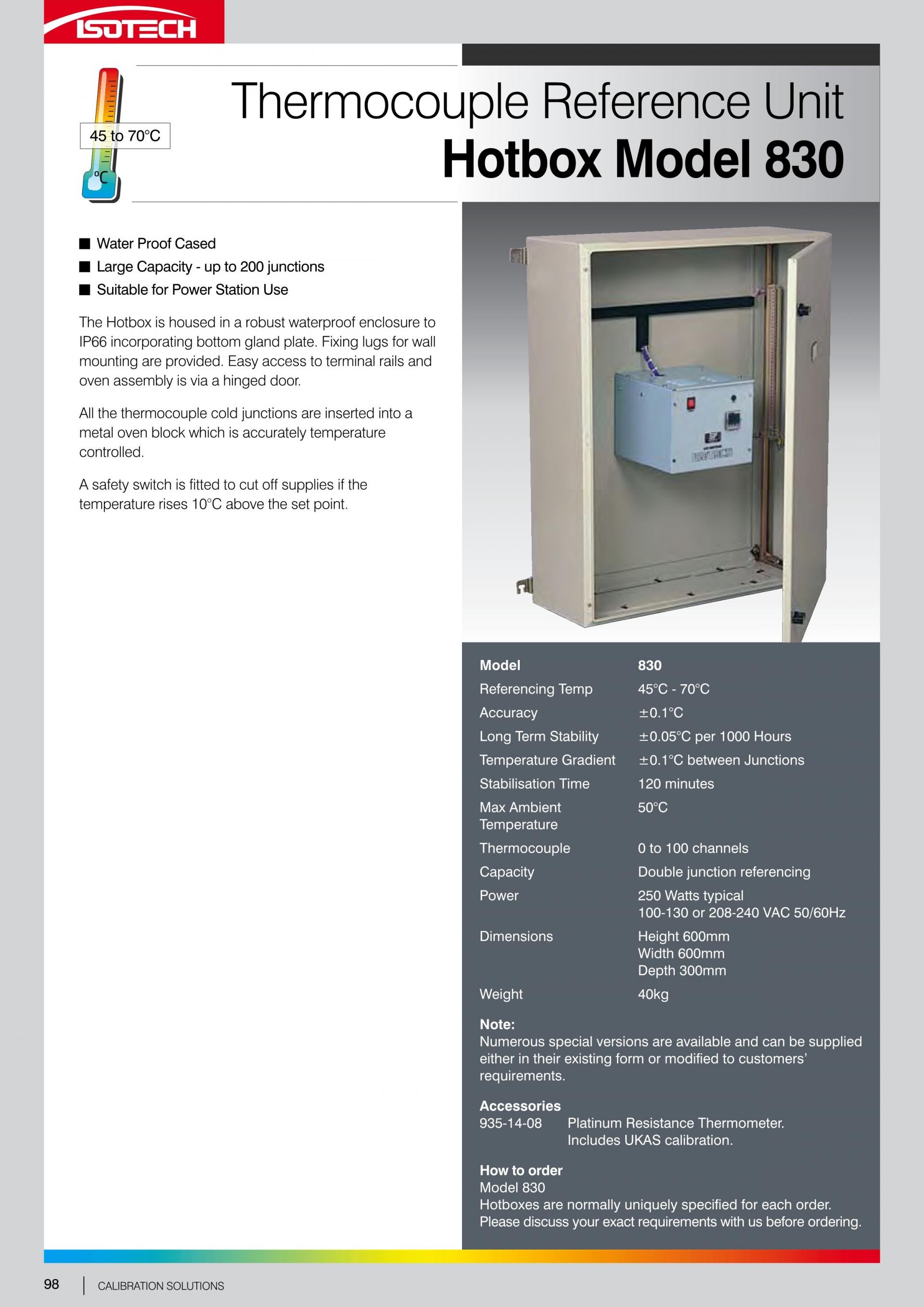

ISOTECH 830 TRU HOTBOX
45°C to 70°C
The Hotbox is housed in a robust waterproof enclosure to IP66 incorporating bottom gland plate.
- Water Proof Cased
- Large Capacity - up to 200 junctions
- Suitable for Power Station Use
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
아이소텍 ISOTECH
830
TRU HOTBOX
- Water Proof Cased
- Large Capacity – up to 200 junctions
- Suitable for Power Station Use
The Hotbox is housed in a robust waterproof enclosure to IP66 incorporating bottom gland plate. Fixing lugs for wall mounting are provided. Easy access to terminal rails and oven assembly is via a hinged door.
All the thermocouple cold junctions are inserted into a metal oven block which is accurately temperature controlled.
A safety switch is fitted to cut off supplies if the temperature rises 10°C above the set point.
- SPECIFICATION
| Referencing Temp | 45°C – 70°C |
| Accuracy | ±0.1°C |
| Long Term Stability | ±0.05°C per 1000 Hours |
| Temperature Gradient | ±0.1°C between Junctions |
| Stabilisation Time | 120 minutes |
| Max Ambient Temperature | 50°C |
| Thermocouple | Up to 100 channels |

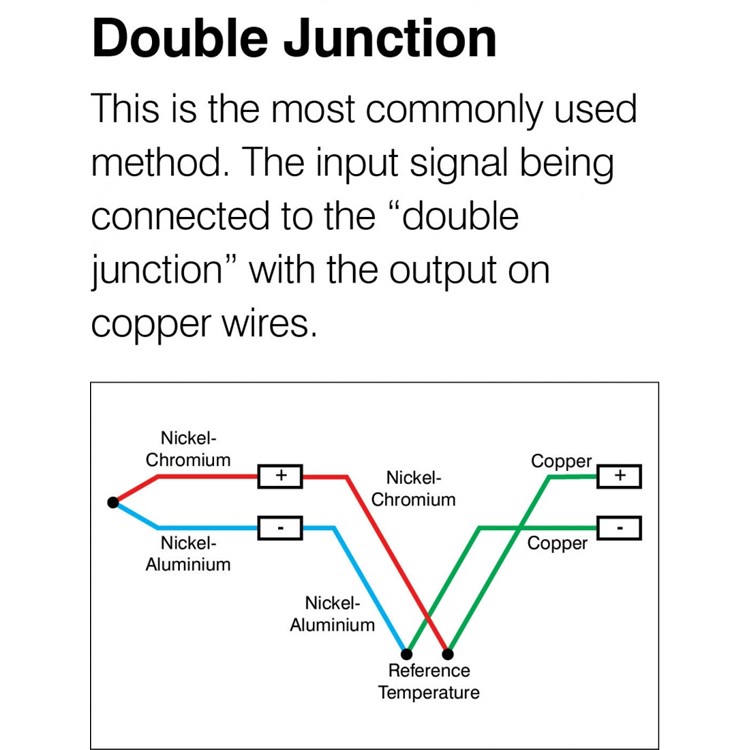

| Capacity | Double junction referencing |
| Power | 250 Watts typical 100-130 or 208-240 VAC 50/60Hz |
| Dimensions | Height 600mm Width 600mm Depth 300mm |
| Weight | 40kg |
| Note | Numerous special versions are available and can be supplied either in their existing form or modified to customers’ requirements. |
| Accessories | 935-14-08 Platinum Resistance Thermometer. Includes UKAS calibration. |
| How to order | Model 830 Hotboxes are normally uniquely specified for each order. Please discuss your exact requirements with us before ordering. |
