ISOTECH 아이소텍 842 (가격문의) TRU ISOBOX
111,111원

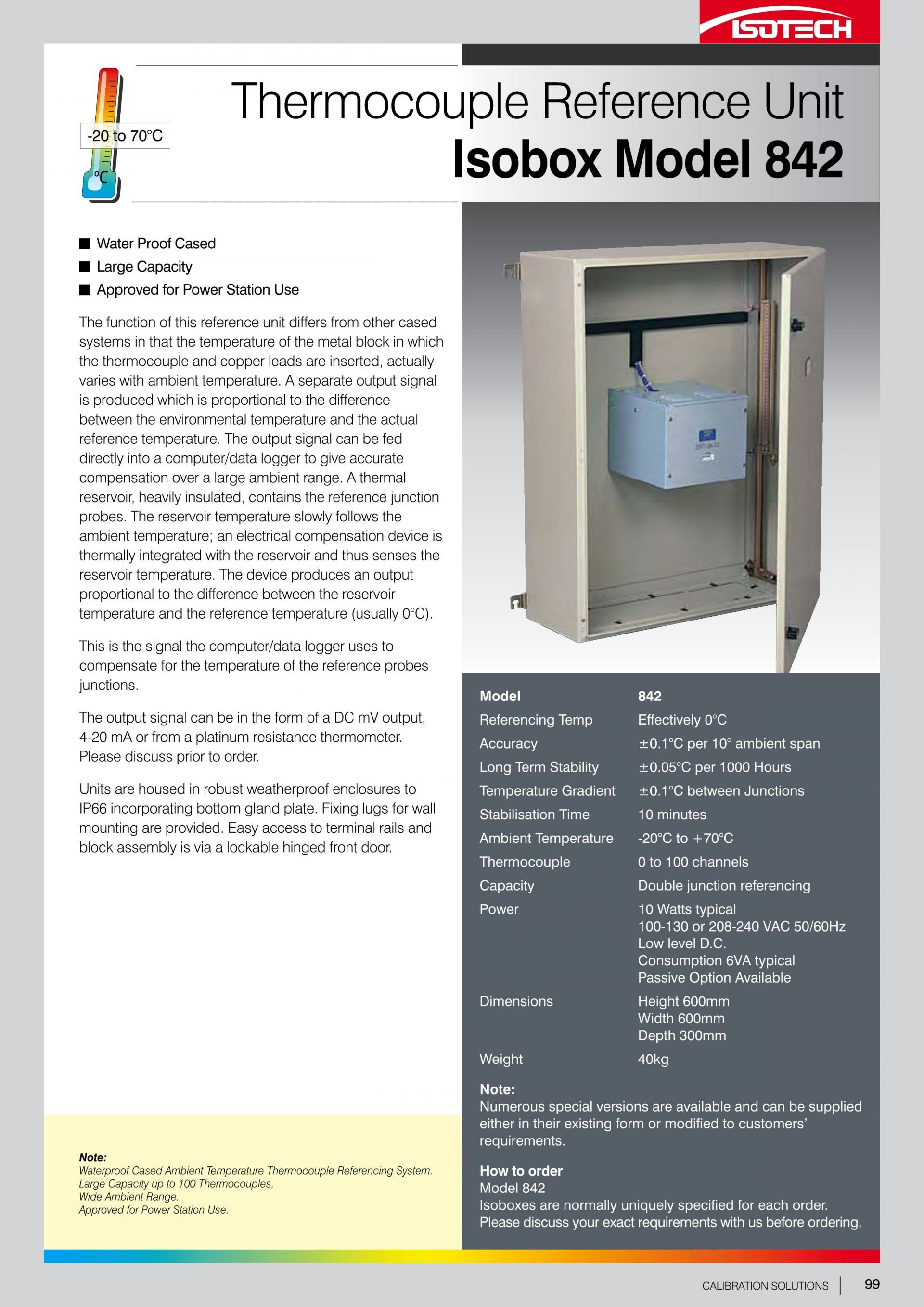

ISOTECH 842 TRU ISOBOX
-20°C to +70°C
The function of this reference unit differs from other cased systems in that the temperature of the metal block in which the thermocouple and copper leads are inserted, actually varies with ambient temperature.
- Water Proof Cased
- Large Capacity
- Approved for Power Station Use
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
아이소텍 ISOTECH
842
TRU ISOBOX
The function of this reference unit differs from other cased systems in that the temperature of the metal block in which the thermocouple and copper leads are inserted, actually varies with ambient temperature. A separate output signal is produced which is proportional to the difference between the environmental temperature and the actual reference temperature. The output signal can be fed directly into a computer/data logger to give accurate compensation over a large ambient range. A thermal reservoir, heavily insulated, contains the reference junction probes. The reservoir temperature slowly follows the ambient temperature; an electrical compensation device is thermally integrated with the reservoir and thus senses the reservoir temperature. The device produces an output proportional to the difference between the reservoir temperature and the reference temperature (usually 0°C). This is the signal the computer/data logger uses to compensate for the temperature of the reference probes junctions.
The output signal can be in the form of a DC mV output, 4-20 mA or from a platinum resistance thermometer. Please discuss prior to order.

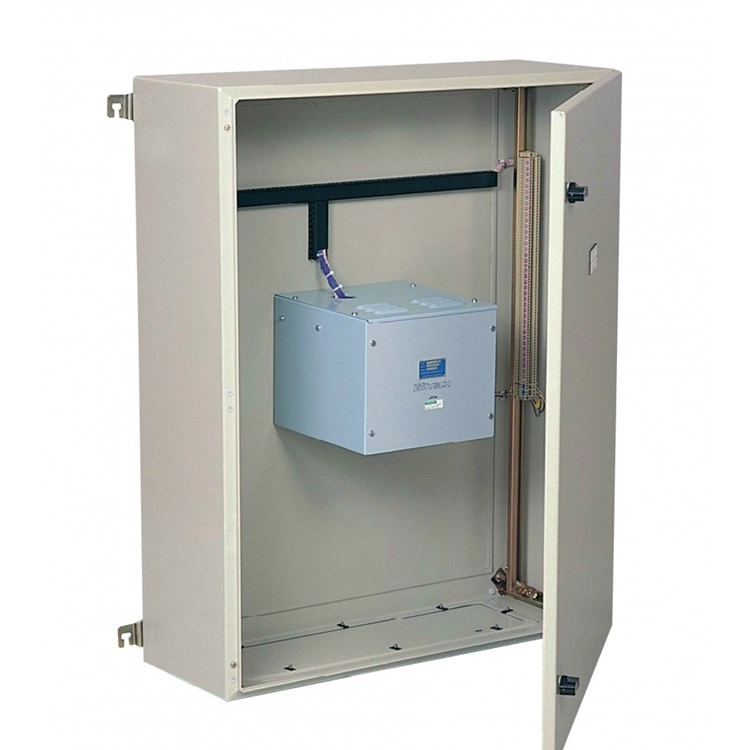

Units are housed in robust weatherproof enclosures to IP669 incorporating bottom gland plate. Fixing lugs for wall mounting are provided. Easy access to terminal rails and block assembly is via a lockable hinged front door.
- SPECIFICATION
| Referencing Temp | Effectively 0°C |
| Accuracy | ±0.1°C per 10° ambient span |
| Long Term Stability | ±0.05°C per 1000 Hours |
| Temperature Gradient | ±0.1°C between Junctions |
| Stabilisation Time | 10 minutes |
| Ambient Temperature | -20°C to +70°C |
| Thermocouple | 0 to 100 channels |

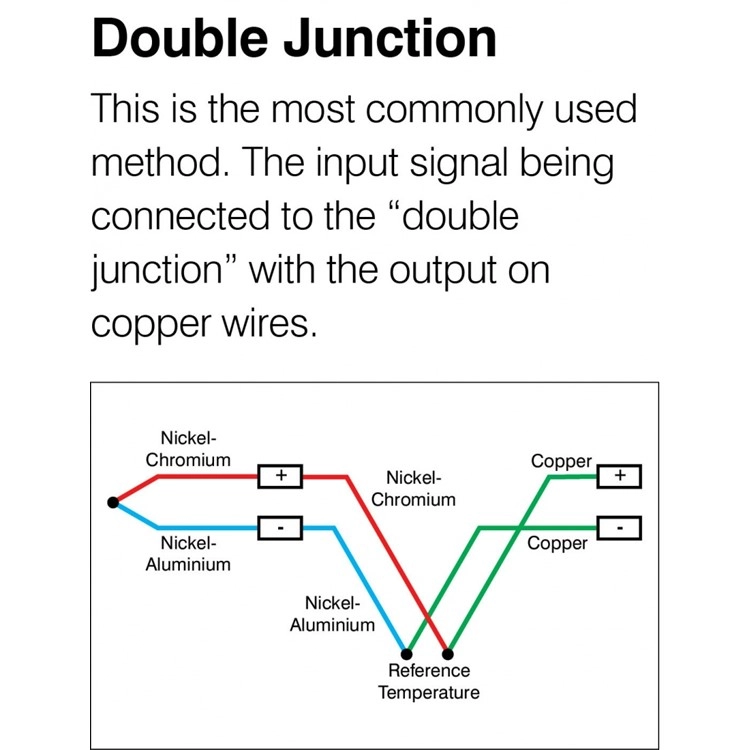

| Capacity | Double junction referencing |
| Power | 10 Watts typical 100-130 or 208-240 VAC 50/60Hz Low level D.C. Consumption 6VA typical Passive Option Available. |
| Dimensions | Height 600mm Width 600mm Depth 300mm |
| Weight | 40kg |
| Note | Numerous special versions are available and can be supplied either in their existing form or modified to customers’ requirements. |
| How to order | Model 842 – Isoboxes are normally uniquely specified for each order. Please discuss your exact requirements with us before ordering. |
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
아이소텍 ISOTECH
842
TRU ISOBOX
The function of this reference unit differs from other cased systems in that the temperature of the metal block in which the thermocouple and copper leads are inserted, actually varies with ambient temperature. A separate output signal is produced which is proportional to the difference between the environmental temperature and the actual reference temperature. The output signal can be fed directly into a computer/data logger to give accurate compensation over a large ambient range. A thermal reservoir, heavily insulated, contains the reference junction probes. The reservoir temperature slowly follows the ambient temperature; an electrical compensation device is thermally integrated with the reservoir and thus senses the reservoir temperature. The device produces an output proportional to the difference between the reservoir temperature and the reference temperature (usually 0°C). This is the signal the computer/data logger uses to compensate for the temperature of the reference probes junctions.
The output signal can be in the form of a DC mV output, 4-20 mA or from a platinum resistance thermometer. Please discuss prior to order.
Units are housed in robust weatherproof enclosures to IP669 incorporating bottom gland plate. Fixing lugs for wall mounting are provided. Easy access to terminal rails and block assembly is via a lockable hinged front door.
- SPECIFICATION
| Referencing Temp | Effectively 0°C |
| Accuracy | ±0.1°C per 10° ambient span |
| Long Term Stability | ±0.05°C per 1000 Hours |
| Temperature Gradient | ±0.1°C between Junctions |
| Stabilisation Time | 10 minutes |
| Ambient Temperature | -20°C to +70°C |
| Thermocouple | 0 to 100 channels |
| Capacity | Double junction referencing |
| Power | 10 Watts typical 100-130 or 208-240 VAC 50/60Hz Low level D.C. Consumption 6VA typical Passive Option Available. |
| Dimensions | Height 600mm Width 600mm Depth 300mm |
| Weight | 40kg |
| Note | Numerous special versions are available and can be supplied either in their existing form or modified to customers’ requirements. |
| How to order | Model 842 – Isoboxes are normally uniquely specified for each order. Please discuss your exact requirements with us before ordering. |
