아이소텍 ISOTECH 881 THERMOCOUPLE HOMOGENEITY SCANNER (가격문의)
111,111원
ISOTECH 881 THERMOCOUPLE HOMOGENEITY SCANNER
- Determine Uncertainty Due to Inhomogeneity
- Identify Contaminated Sections of Thermocouple Wire
- Assess Quality of Thermocouple Wires
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
아이소텍 ISOTECH
881
THERMOCOUPLE HOMOGENEITY SCANNER

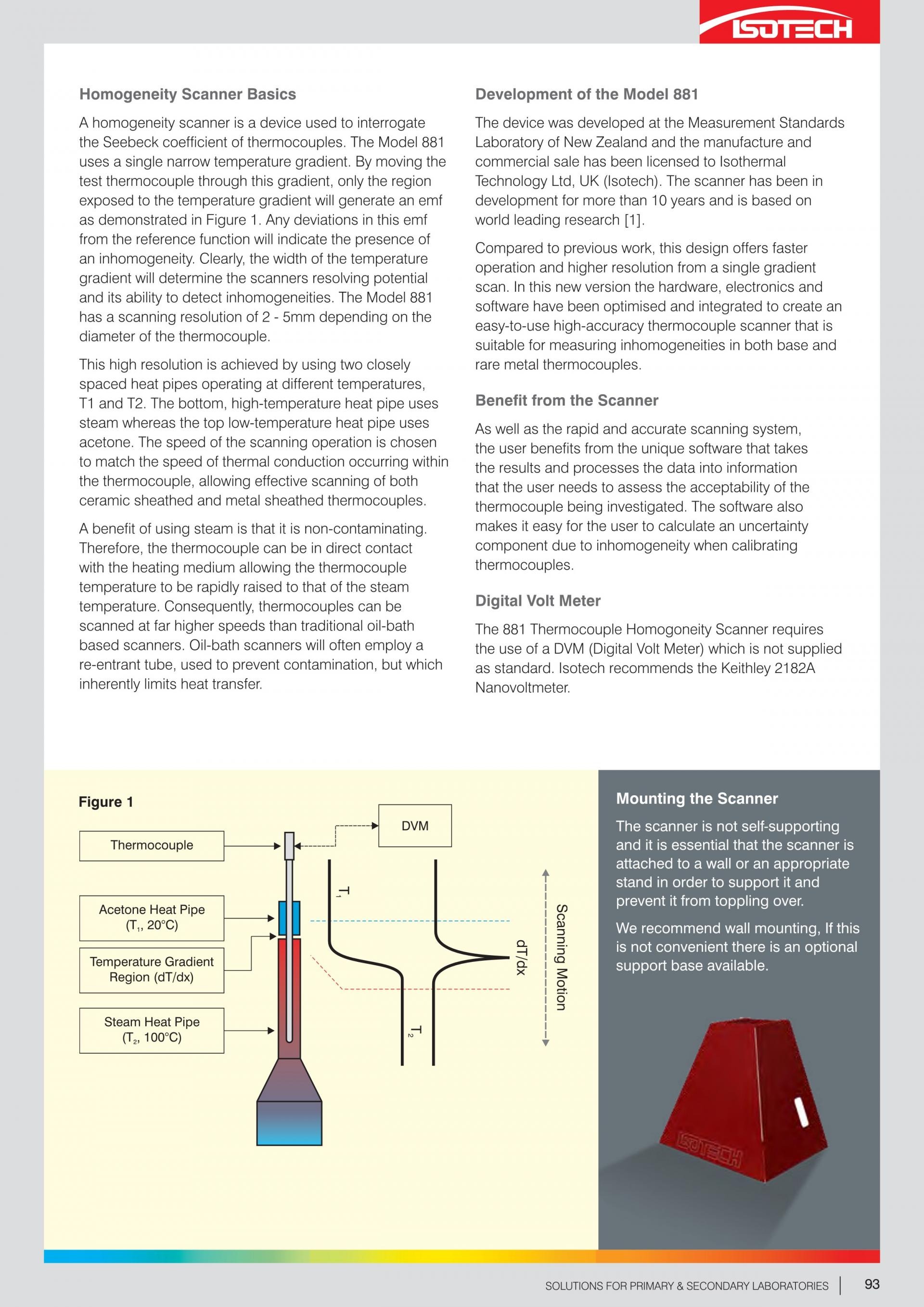

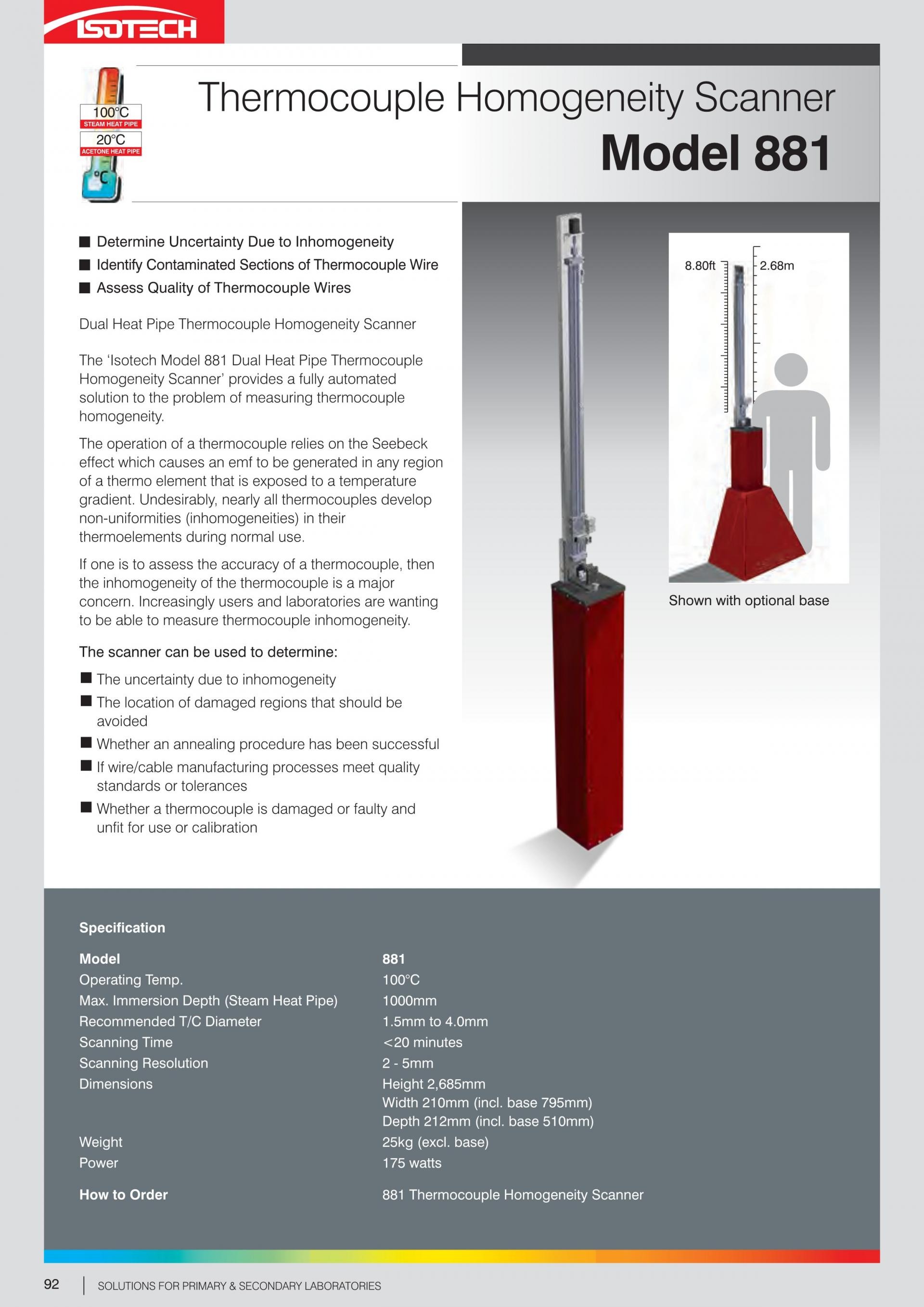

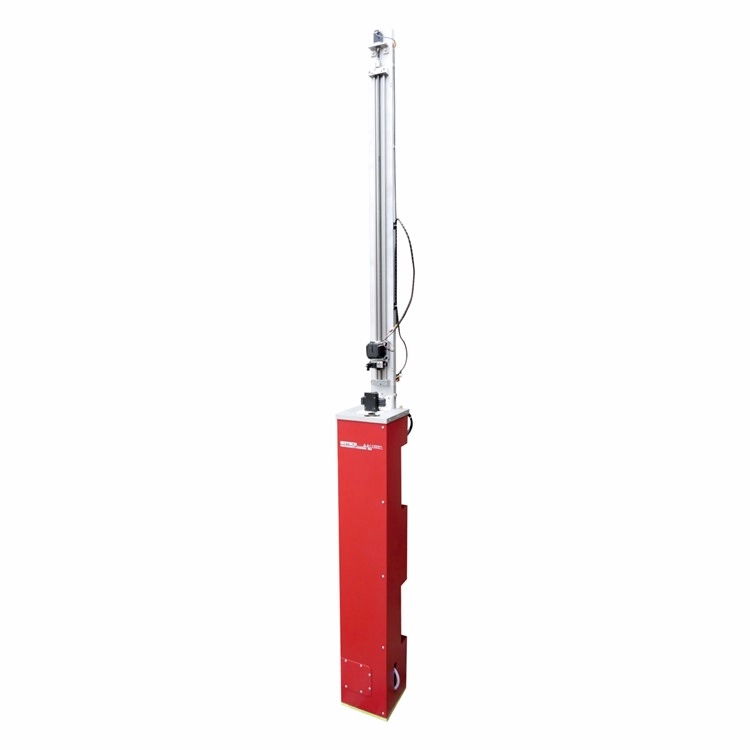

The ‘Isotech Model 881 Dual Heatpipe Thermocouple Homogeneity Scanner’ provides a fully automated solution to the problem of measuring thermocouple homogeneity.
The operation of a thermocouple relies on the Seebeck effect which causes an emf to be generated in any region of a thermo element that is exposed to a temperature gradient. Undesirably, nearly all thermocouples develop non-uniformities (inhomogeneities) in their thermoelements during normal use.
If one is to assess the accuracy of a thermocouple, then the inhomogeneity of the thermocouple is a major concern. Increasingly, users and laboratories want to be able to measure thermocouple inhomogeneity.
- The scanner can be used to determine:
If wire/cable manufacturing processes meet quality standards or tolerances
Whether a thermocouple is damaged or faulty and unfit for use or calibration
- SPECIFICATION
| Operating Temp | 100°C |
| Max Immersion Depth | 1000mm |
| Recommended T/C Diameter | 1.5 to 4mm |
| Scanning Time | < 20 minutes |

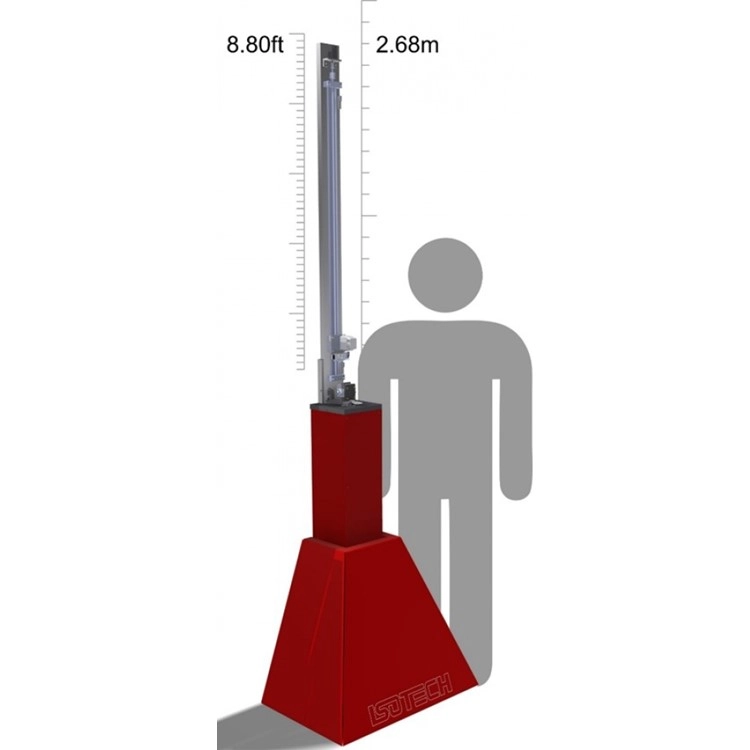

| Height | 2685mm |
| Width | 210mm, 795mm incl base |
| Depth | 212mm, 510mm incl base |
| Weight | 25kg (excluding base) |
| Power | 175 watts |
