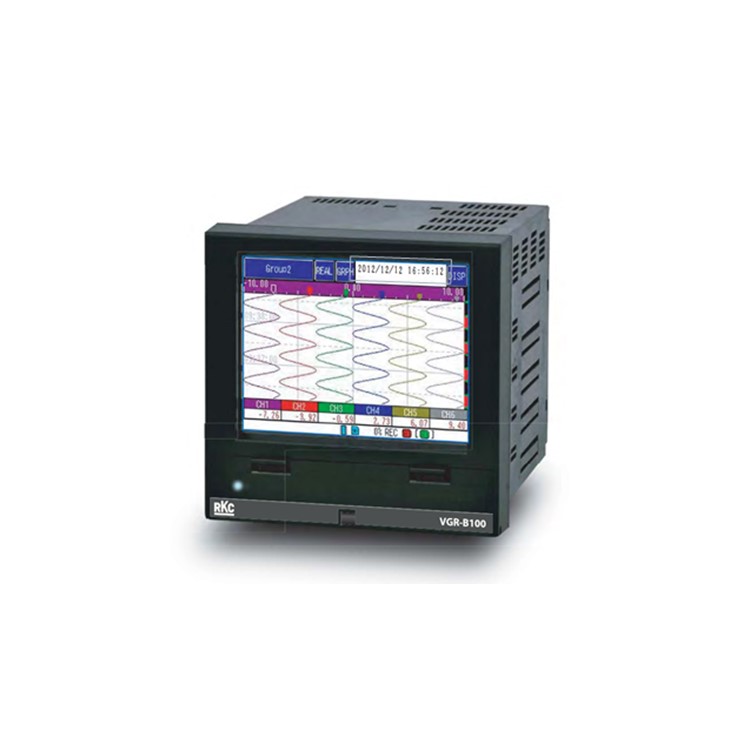

RKC VGR-B100 페이퍼리스 레코더
RKC VGR-B100 Paperless recorder
-Touch screen operation
-Max.12 points (in the recorder) and additional 36 points of inputs (external devices connected via Modbus Master), total 48 inputs
-Ethernet is supplied as standard
-Extended security (21 CFR Part 11, Optional)
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
알케이씨 RKC
VGR-B100
페이퍼리스 레코더
VGR-B100 Paperless recorder
RKC 알케이씨 VGR-B100 페이퍼리스 레코더
Main features

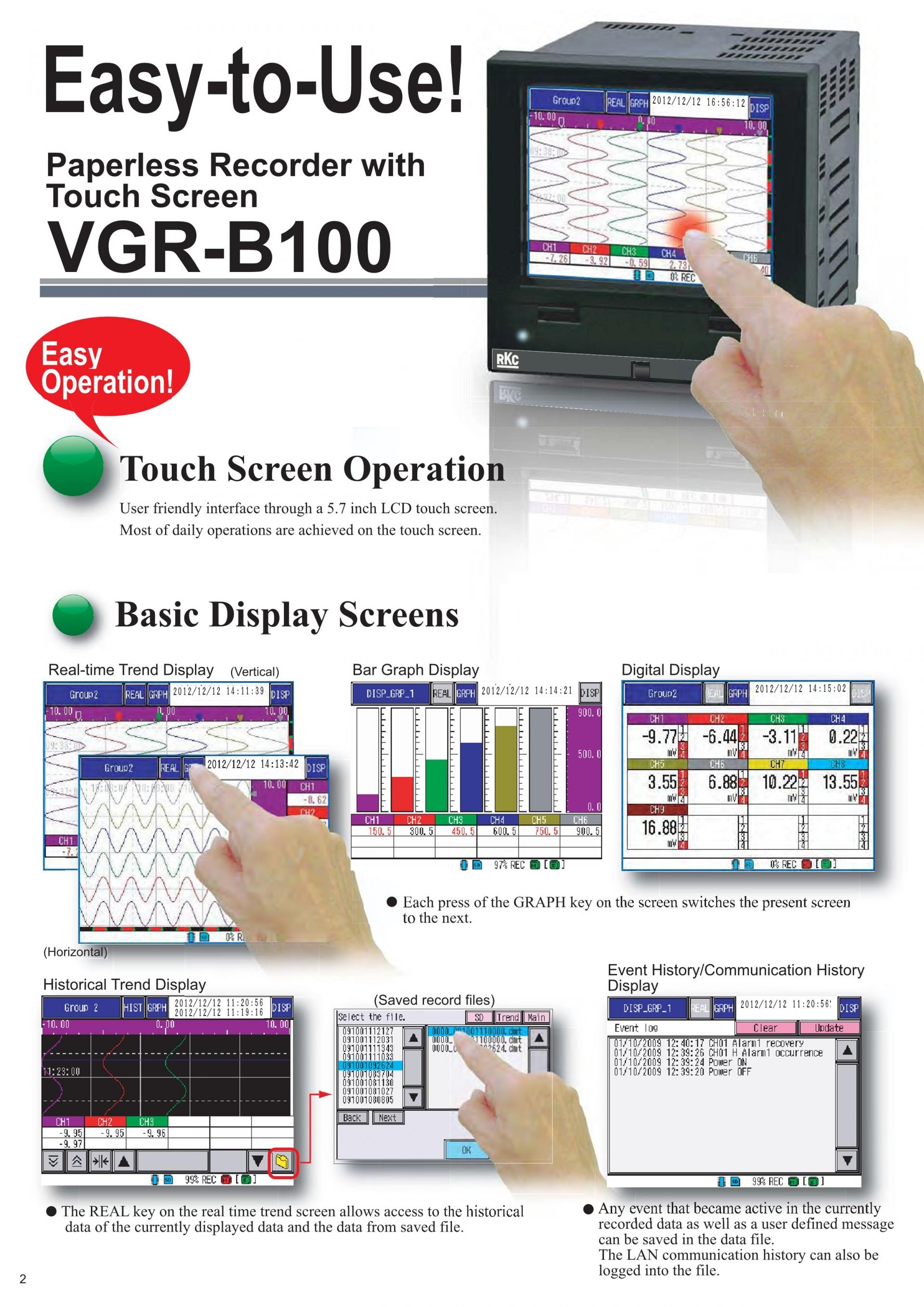

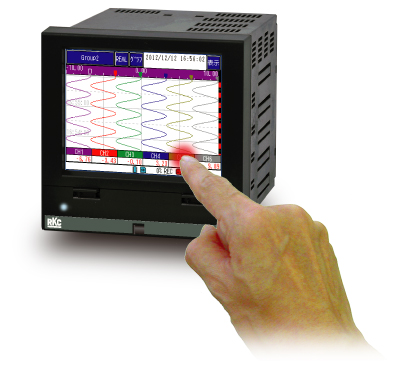

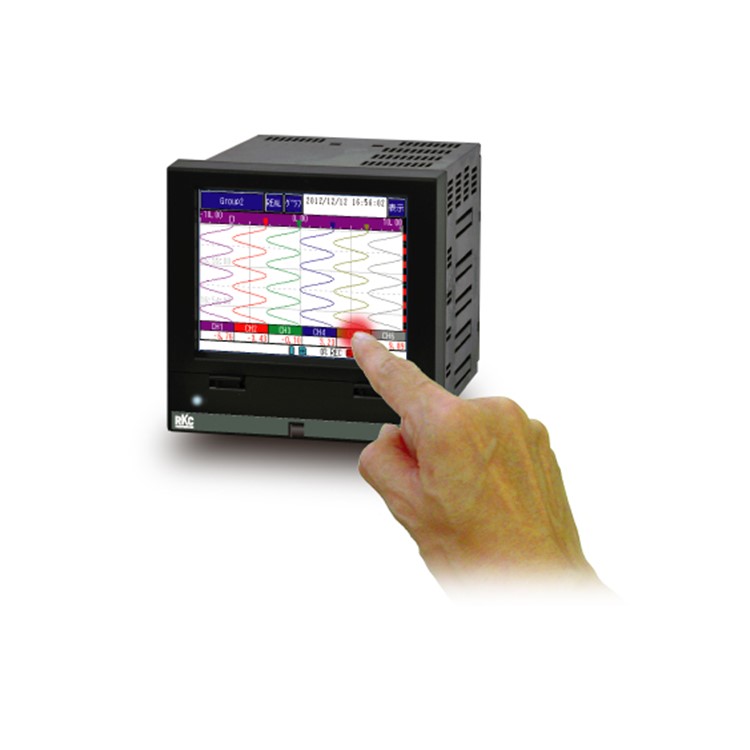

- Intuitive operation by touch screen
 | The use of 5.7-inch touch screen LCD display achieves intuitive operation Intuitive operation is achieved. |

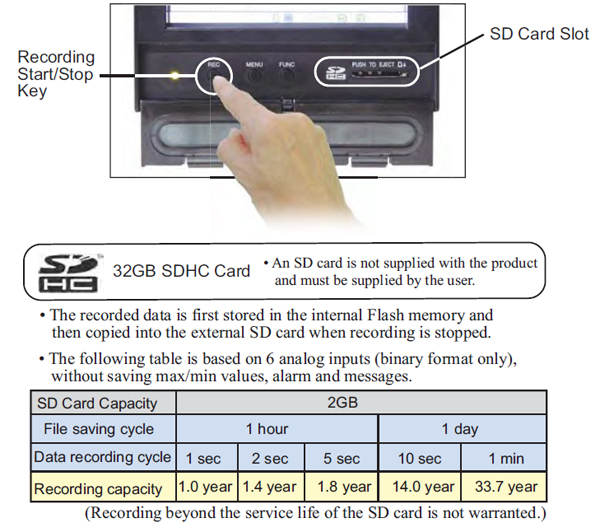

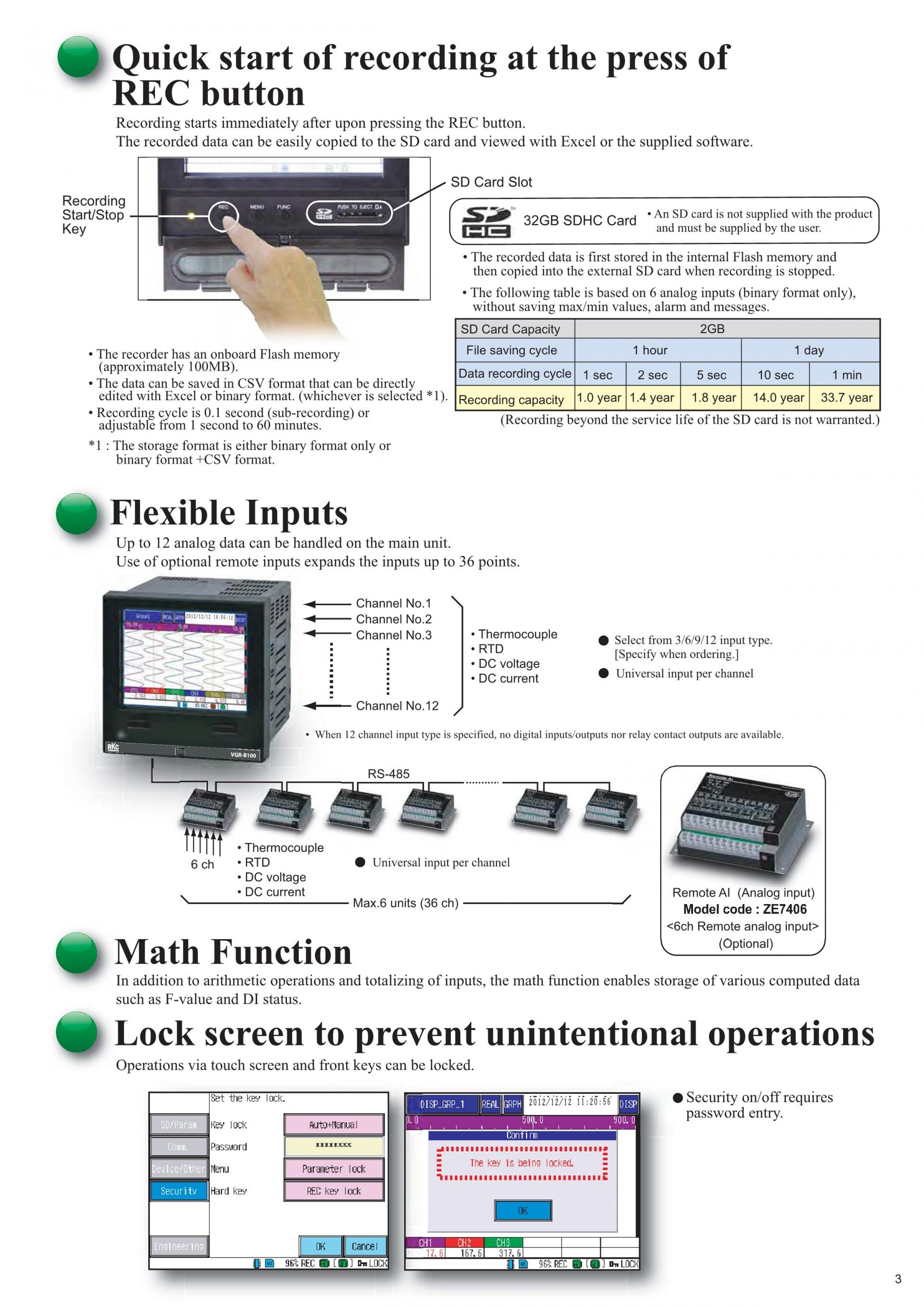

- Recording starts immediately after pressing the REC button
 | Pressing the REC button starts recording. Data is stored into the SD card. With the supplied software, the recorded data can be easily viewed and managed. |

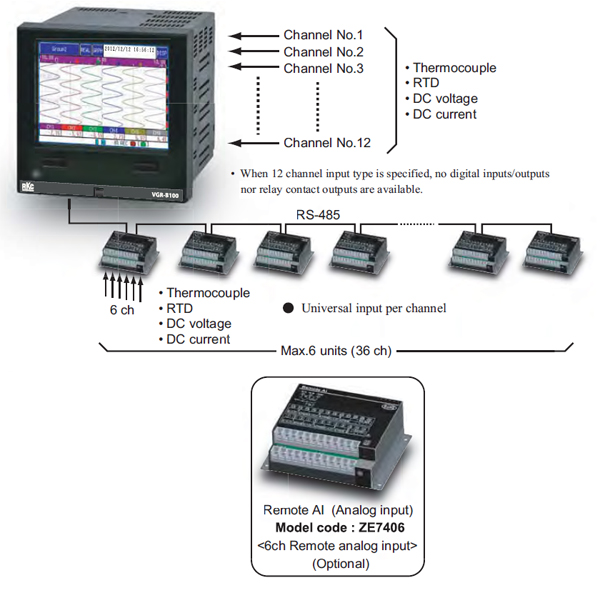

- Various input methods
 | Via an external remote AI device (optional) and MODBUS master function, external controllers can be connected to the recorder, enabling a maximum of 48 channel recording. |

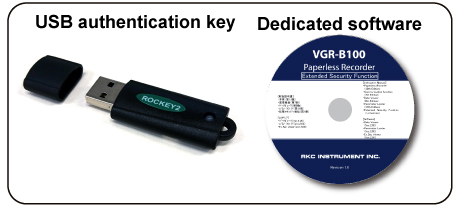

- Extended Security Function: conforming to FDA 21 CFR Part 11 (optional)
 | Access limit: Only users whose account is registered can operate the recorder with this option. Audit trail: Operation history such as change of set values, recording start/stop and so on is automatically recorded. Electronic signature, Signature data output: Both trend and instantaneous values with electronic signature data can be printed out. Data falsification and damage are detected: Viewing detected data will be limited. |

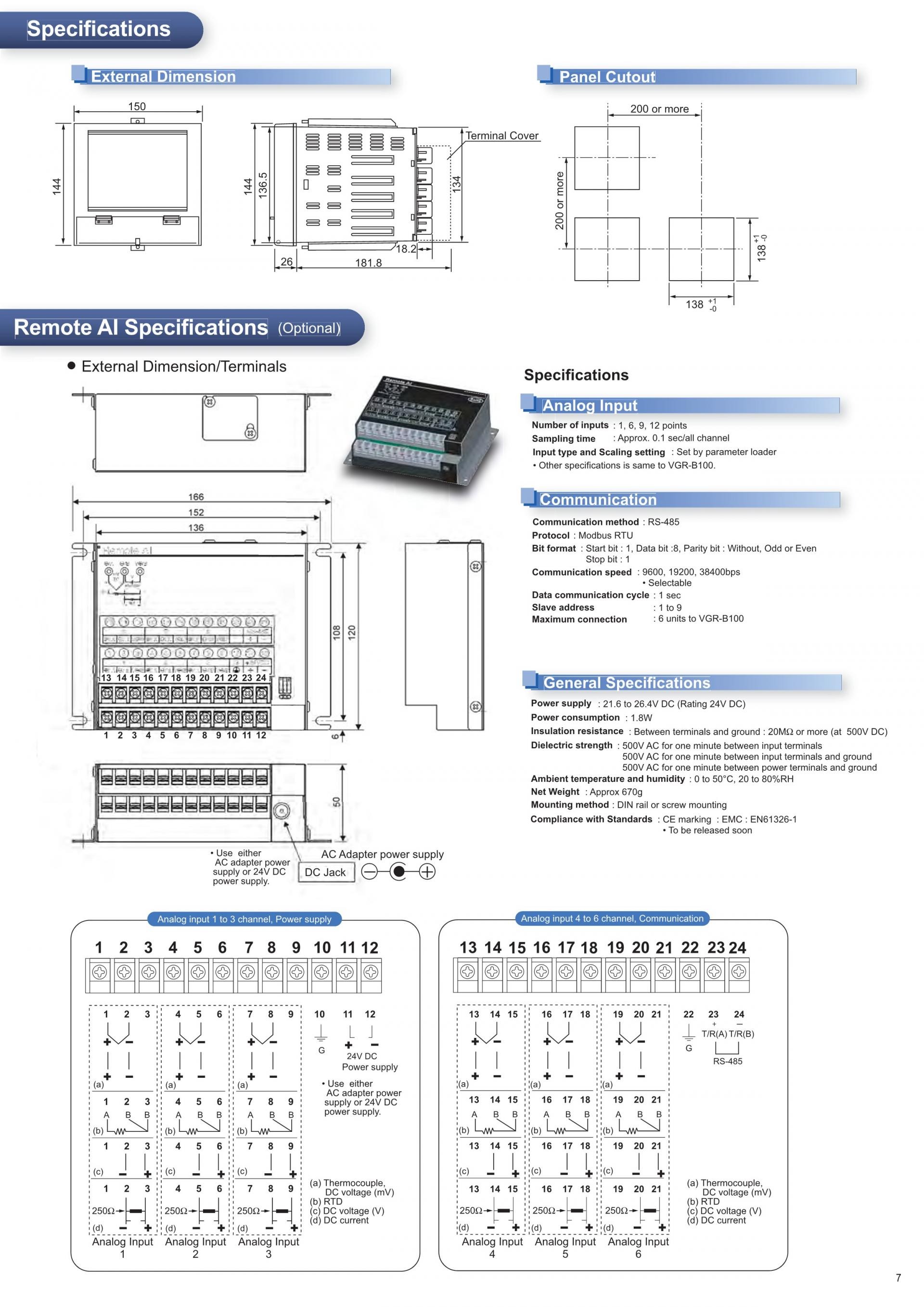

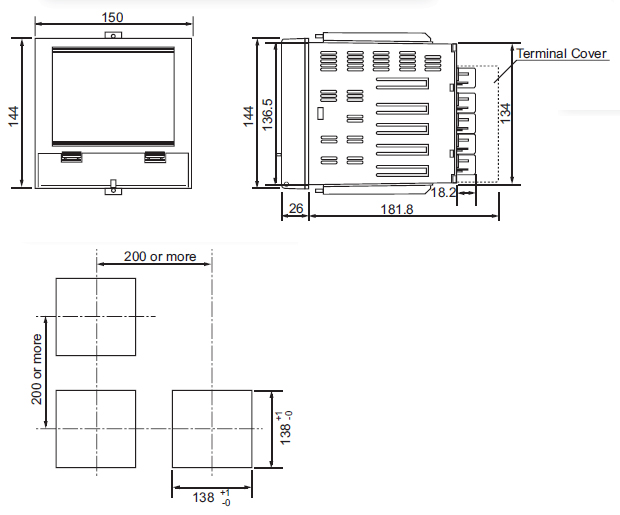

External dimensions

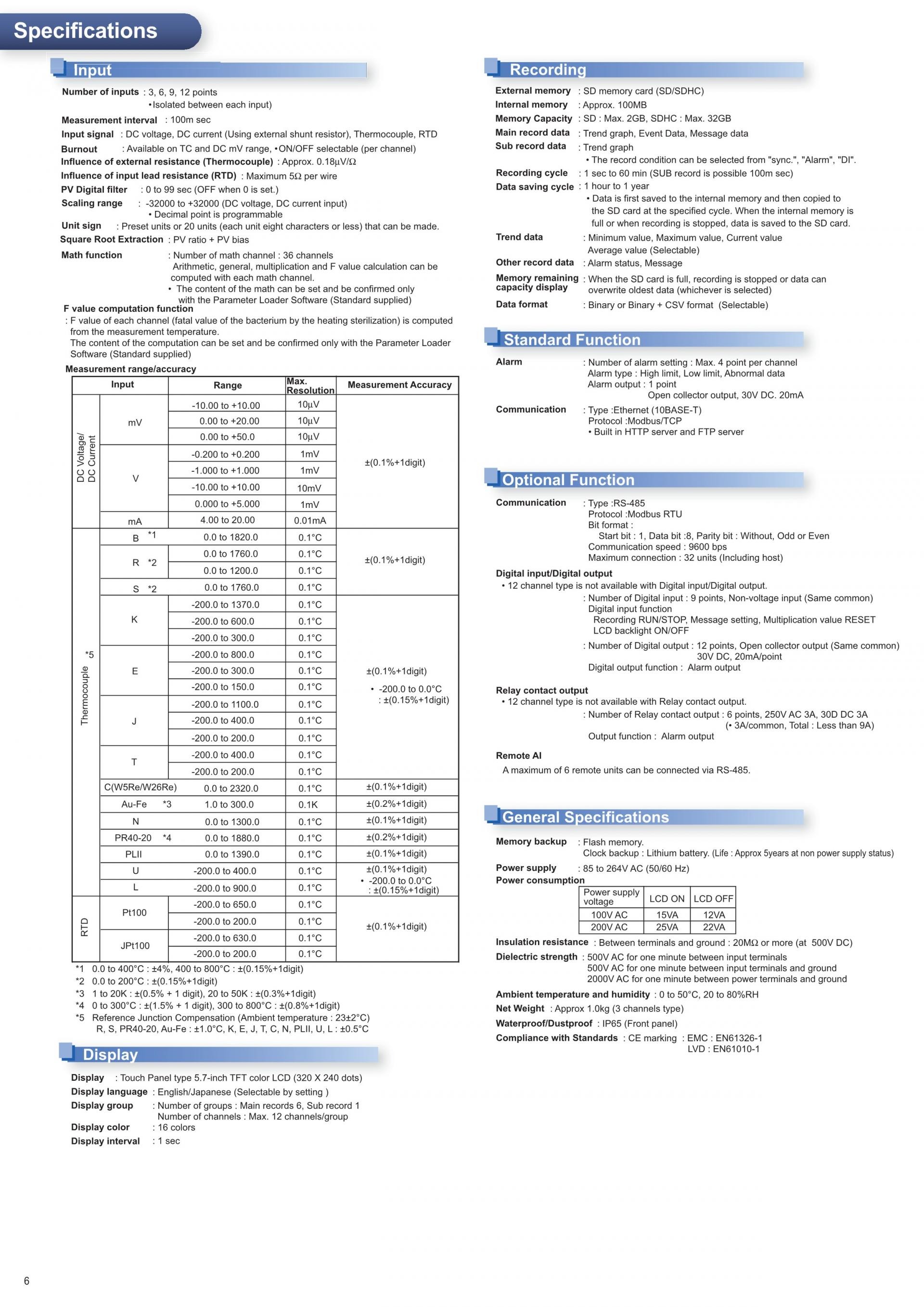

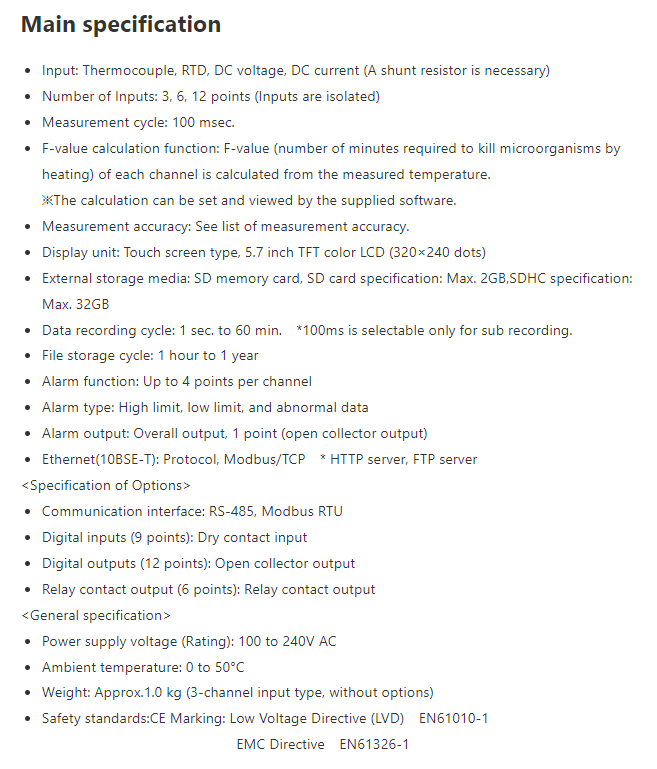

■ 제품 사양 (Specifications)
RKC VGR-B100 제품 데이터시트의 핵심 사양입니다.
- CH 1 : DC voltage
- CH 2 : DC current
- Measurement interval : 100m sec
- Influence of input lead resistance (RTD): Maximum 5Ω per wire
- Scaling range : -32000 to +32000 (DC voltage, DC current input)
- Internal memory : Approx. 100MB
- Memory Capacity : SD : Max. 2GB, SDHC : Max. 32GB
- Alarm output : 1 point
- Open collector output, 30V DC. 20mA
- Communication speed : 9600 bps
- 0.0 to 1200.0 0.1°C Digital input/Digital output
- -200.0 to 1370.0 0.1°C Digital input function
- 0.0 to 1390.0 0.1°C Clock backup : Lithium battery. (Life : Approx 5years at non power supply status)
- -200.0 to 400.0 0.1°C ±(0.1%+1digit) Power supply : 85 to 264V AC (50/60 Hz)
- • -200.0 to 0.0°C Power consumption
- -200.0 to 900.0 0.1°C : ±(0.15%+1digit) Power supply
- Ambient temperature and humidity: 0 to 50°C, 20 to 80%RH
- Net Weight : Approx 1.0kg (3 channels type)
- *5 Reference Junction Compensation (Ambient temperature : 23±2°C)
- Display LVD : EN61010-1
- Number of channels : Max. 12 channels/group
- Display color : 16 colors
- Display interval : 1 sec
- Numbber of inputs: 1, 6, 9, 12 points
- Power supply : 21.6 to 26.4V DC ((Ratingg 24V DC))
- Power consumption : 1.8W
- Insulation resistance : Between terminals and ground : 20MΩ or more (at 500V DC)
- Dielectric strength: 500V AC for one minute between input terminals
- Net Weight : Approx 670g
- supply or 24V DC DC Jack
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
