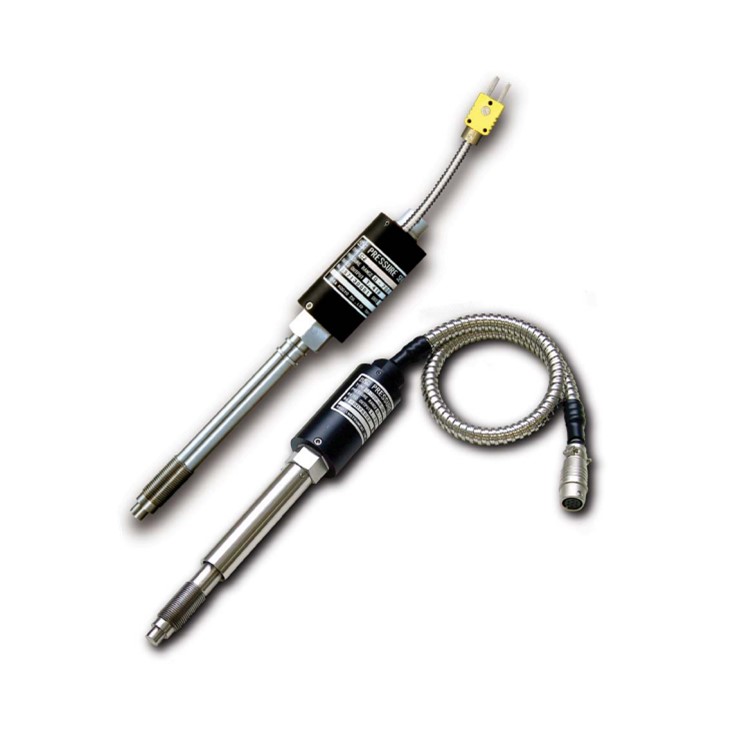

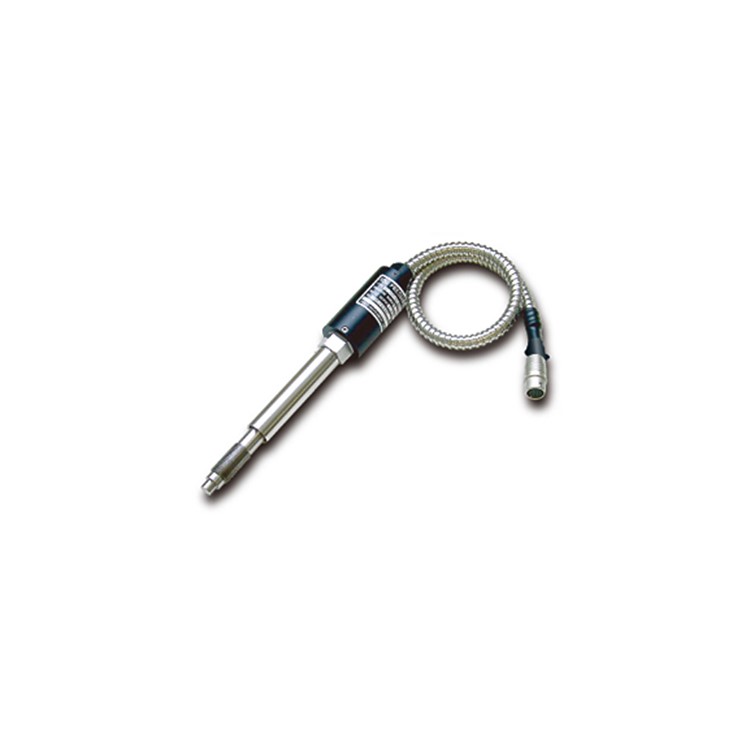

RKC CZ-200P 레진 압력센서
RKC CZ-200P Resin Pressure Sensor

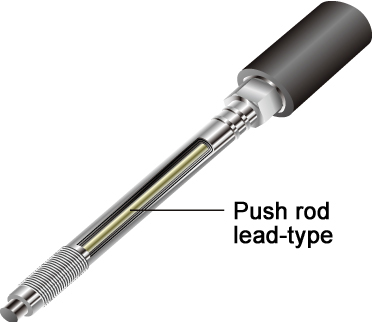

- Pushrod system which provides no risk of resin contamination when the sensor is damaged.
- The optional built-in thermocouple type can measure resin pressure and temperature simultaneously.
- Various types are available, including highly accurate type which enables overall accuracy of 0.5% FS.

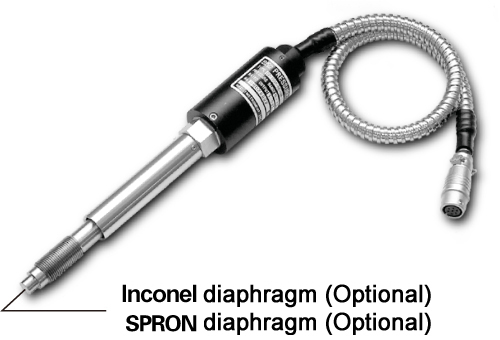

- Optional Inconel, SPRON diaphragm which enables measurement up to 550°C.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
알케이씨 RKC
CZ-200P
레진 압력센서
CZ-200P Resin Pressure Sensor
알케이씨 RKC CZ-200P 레진 압력센서

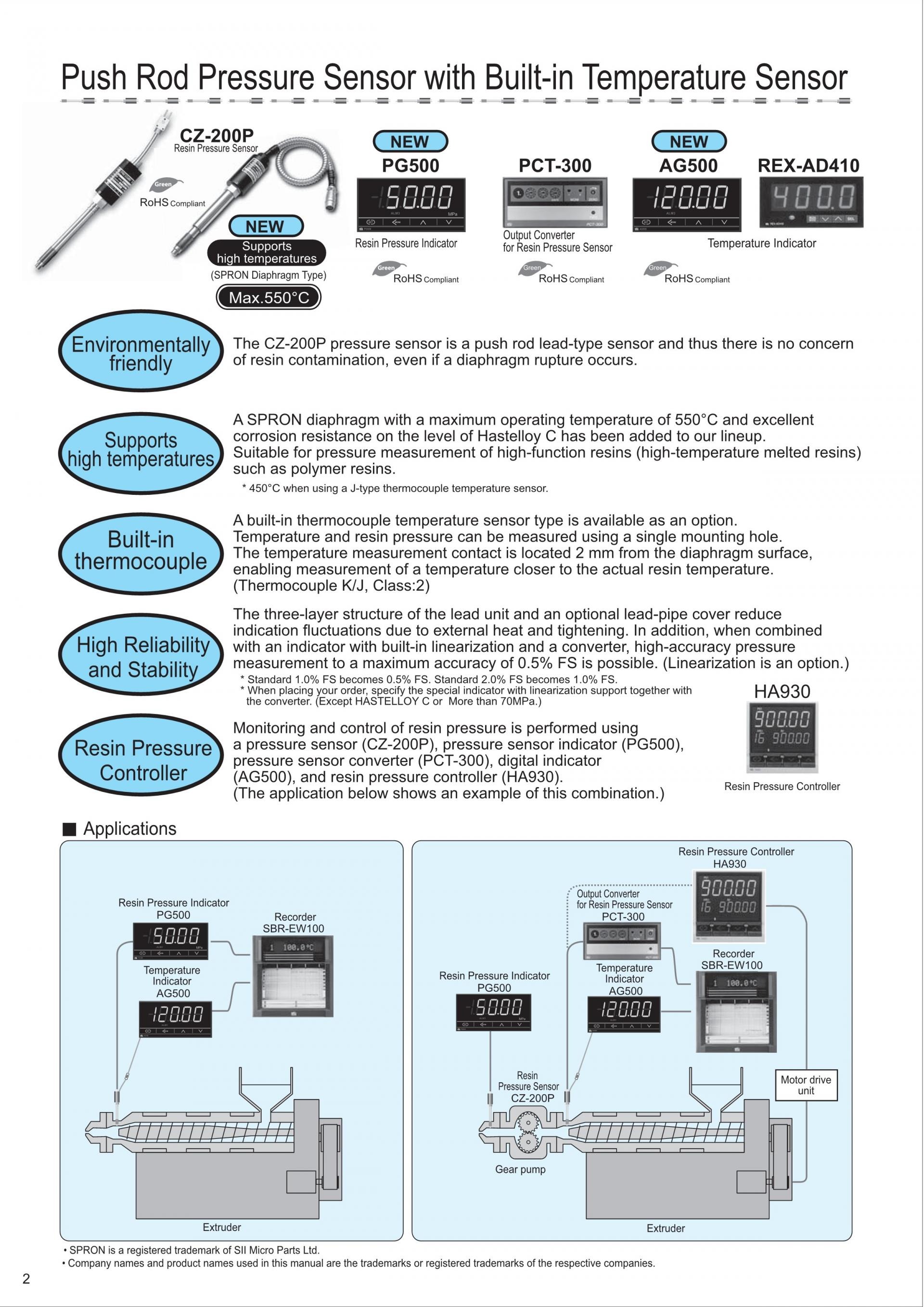

Main features
- Environment friendly
 | The use of a pushrod design eliminates the risk of resin contamination by the filling such as mercury. |
- Highly reliable and highly accurate

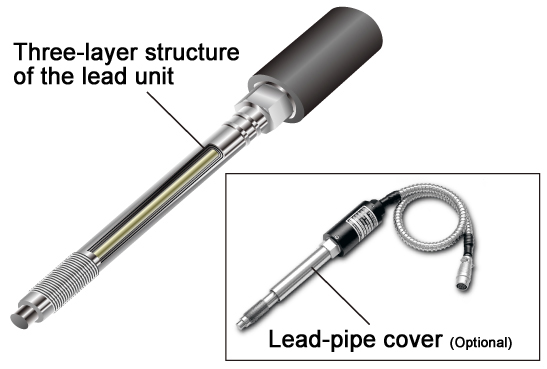

 | Triple construction of the stem and the optional stem cover reduces influence by external heat and indication errors when the sensor is tightened. When used with an indicator or a converter with a built-in linearizer, the sensor enables highly accurate pressure measurement of 0.5% FS. (Linearizer is optional) |

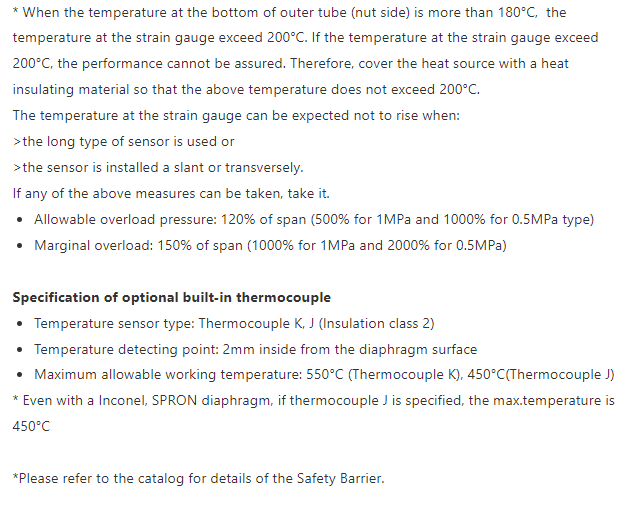

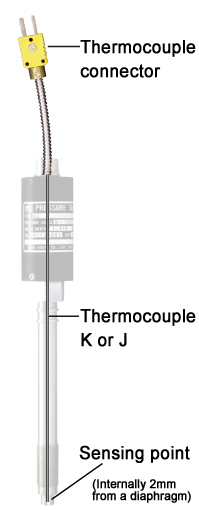

- Available with an optional built-in thermocouple
 | Available with an optional built-in thermocouple Temperature and resin pressure can be measured in a single mounting hole. (Thermocouple: type K, J class 2) |
- Can be used at Max. 550°C

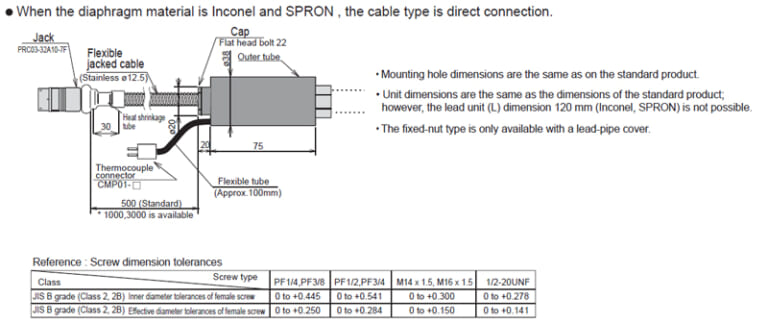

 | The Inconel, SPRON diaphragm type enables operation at high temperature (max. 550°C*) . This enables pressure measurement of high performance plastic materials (high-melt plastics). The SPRON diaphragm type is Attains the same corrosion resistance as Hastelloy C. *When the temperature sensor is type J, the maximum temperature is 450°C. |

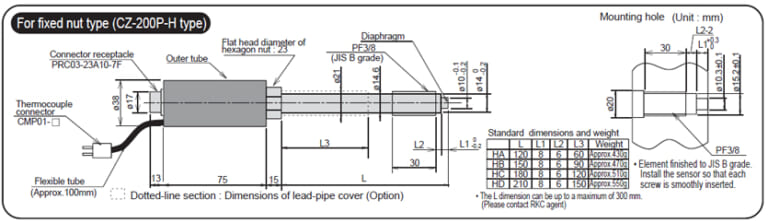

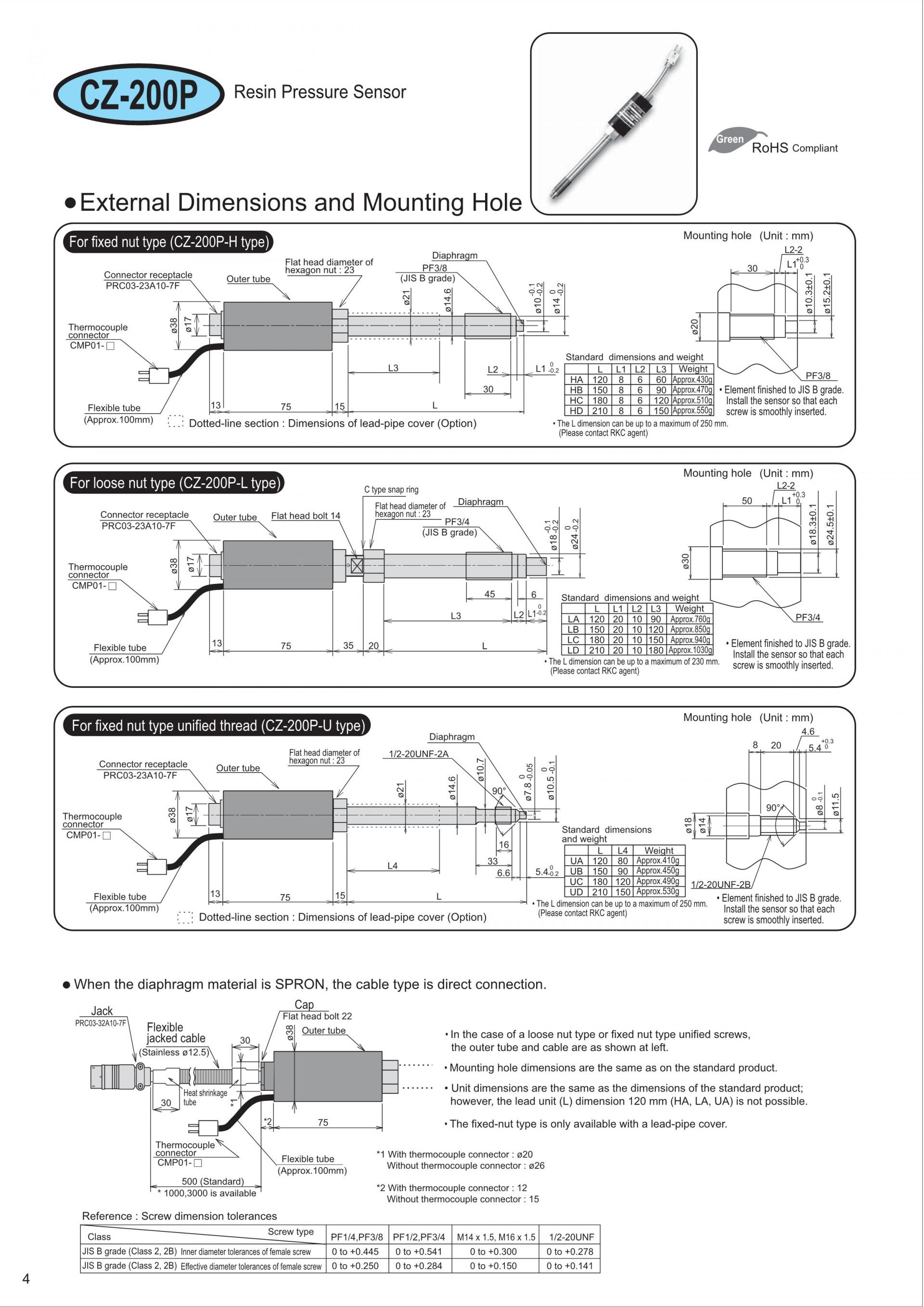

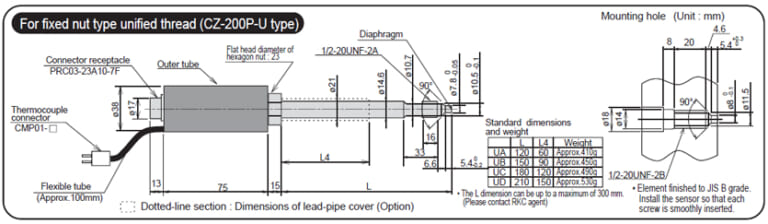

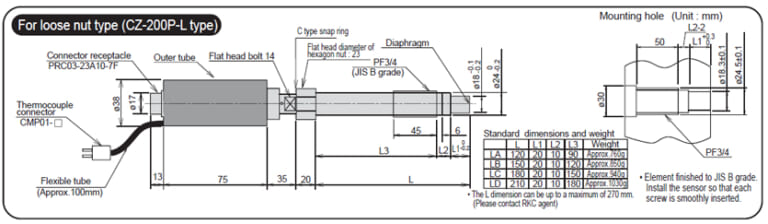

External dimensions

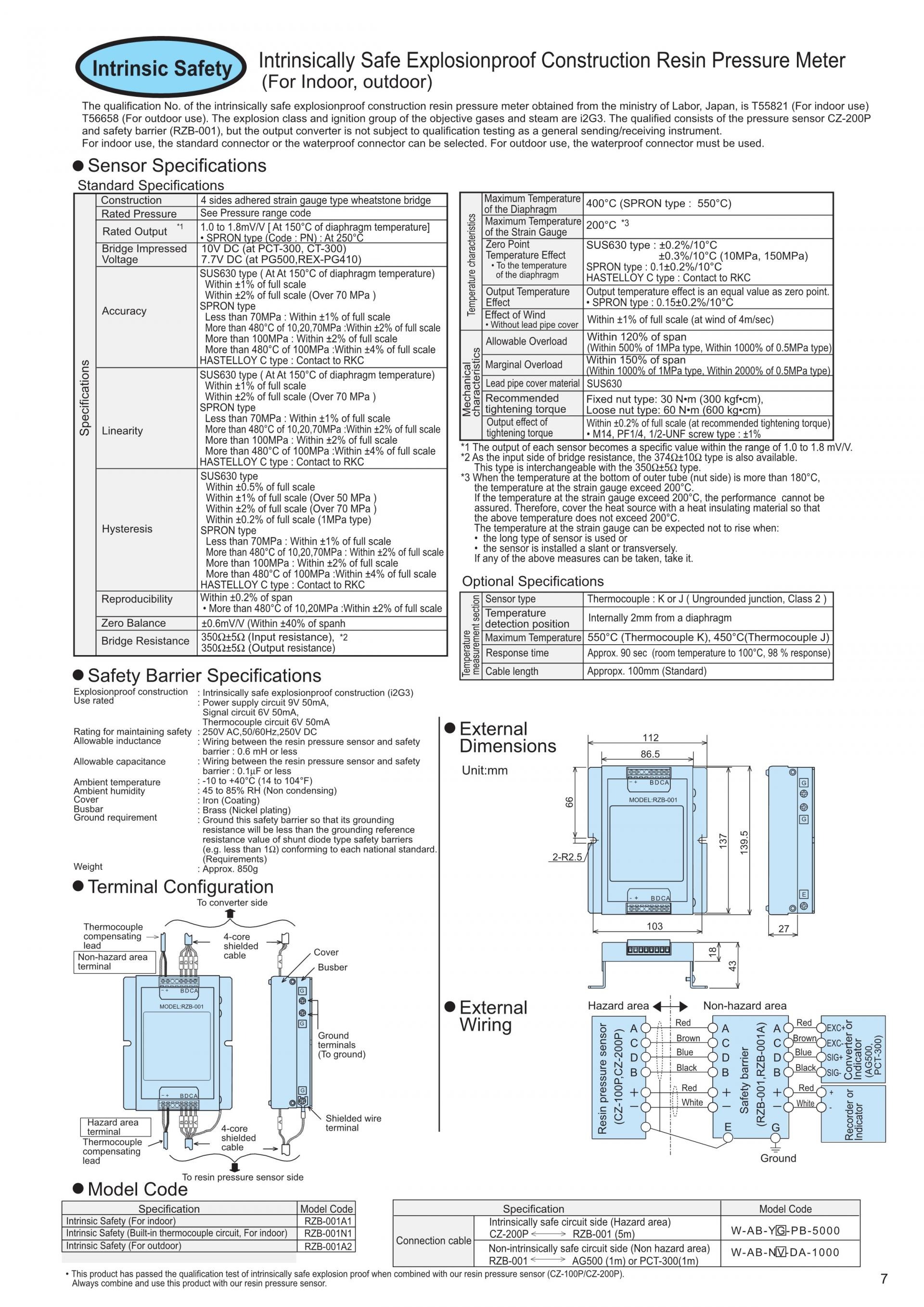

*Please refer to the catalog for details of the Safety Barrier.
📄 기술자료 다운로드

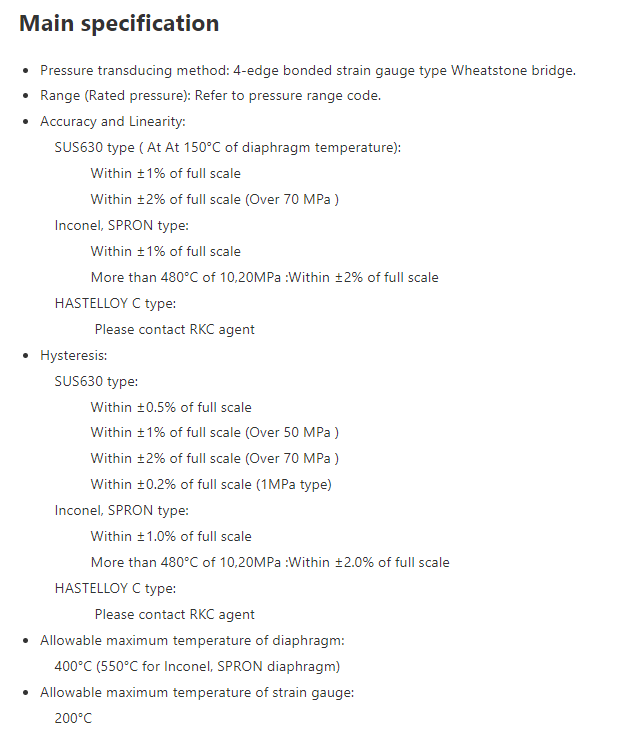

■ 제품 사양 (Specifications)
RKC CZ-200P 제품 데이터시트의 핵심 사양입니다.
- 3. HANDLING OF THE PRESSURE SENSOR ························································· 2
- 3.6 Pressure Sensor Installation ·············································································· 5
- REX-PG410). However, excluding the sensor having pressure
- (6) Pressure range
- (9) Connector specification G: Heat-resistant glass coated cable
- 3. HANDLING OF THE PRESSURE SENSOR
- 3.1 Caution in Mounting Pressure Sensors
- temperature of less than 200 °C, the operating temperature of the sensor strain
- 3.2 Caution in Removing Pressure Sensors
- Approx. 100 mm For other materials without optional temperature sensor
- (thermocouple connector): φ26
- (thermocouple connector): 15
- 3.6 Pressure Sensor Installation

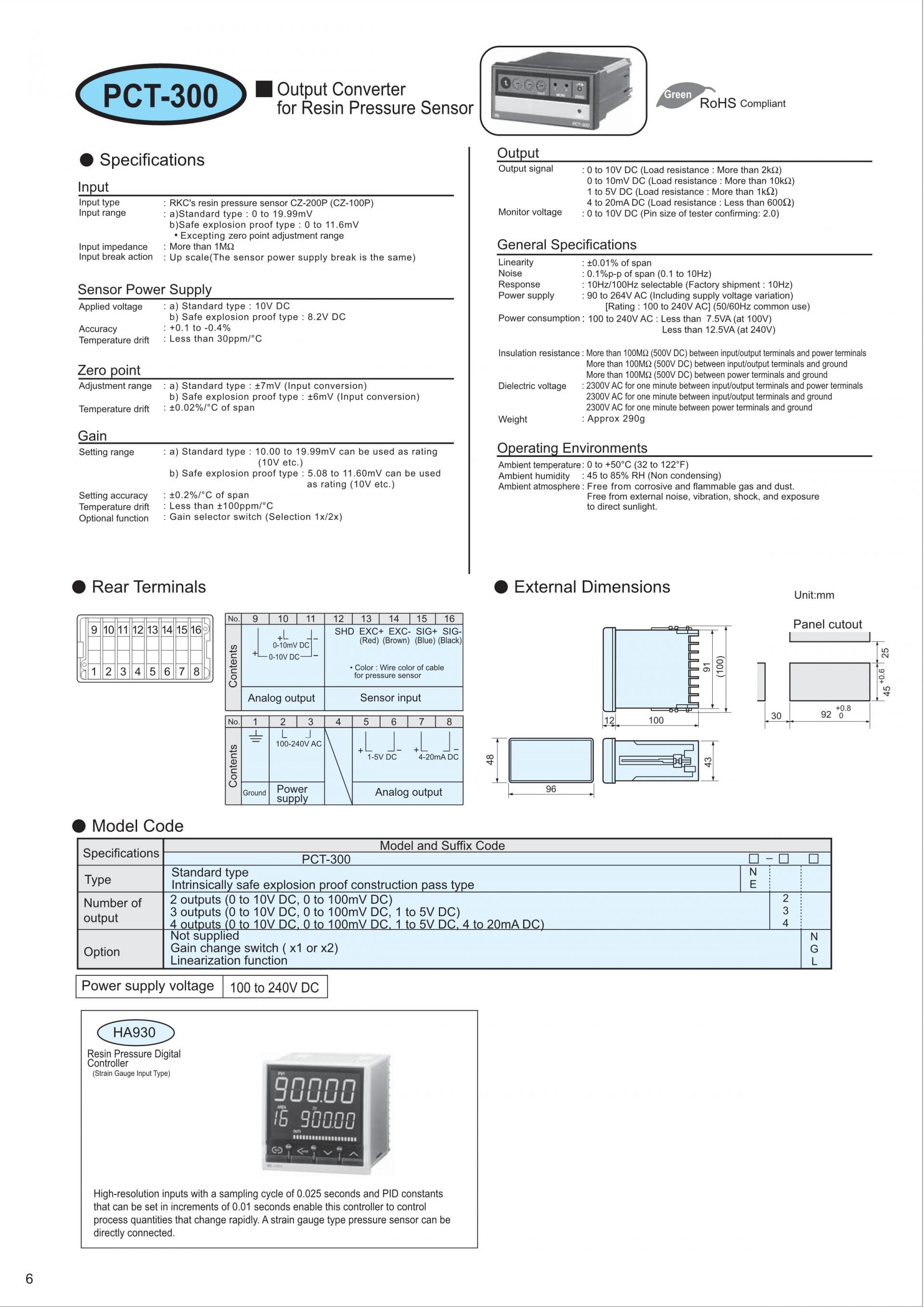

- T: Operating temperature converter (CT-300: Rated output setter, PCT-300: Gain setter,
- SUS630 150 +0.13 × 10−3 Rated output of the resin pressure sensor (e’) = 1.500 mV/V
- sensor is used at 230 °C.
- [Calibration temperature: At diaphragm temperature of 150 °C]
- 0.5 to 0.9 mV/V (For the “0.5 MPa” range)
- lower value. deformed, or broken down. range of 1.0 to 1.8 mV/V.
- SUS630 diaphragm specification type [At diaphragm temperature of 150 °C]:
- Hysteresis: Maximum operating temperature: K type: 550 °C
- The range of 50 MPa or less: ± 0.5 % of span Temperature detection position: Internally 2 mm from a diaphragm
- (room temperature → 100 °C, 98 % response)
- (Continuous operating temperature 140 °C)
- Input side*: 350 ± 5 Ω, Output side: 350 ± 5 Ω
- 200 °C. each time when pressure-loaded three times
- on zero point temperature changes by 10 °C.
- SUS630 diaphragm specification type [As to diaphragm temperature]: on output diaphragm temperature changes by 10 °C.
- ±0.3 % of span /10 °C (the range of 10 MPa and 150 MPa), pressure.
- ±0.4 % of span /10 °C (only the “0.5 MPa” range)
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
