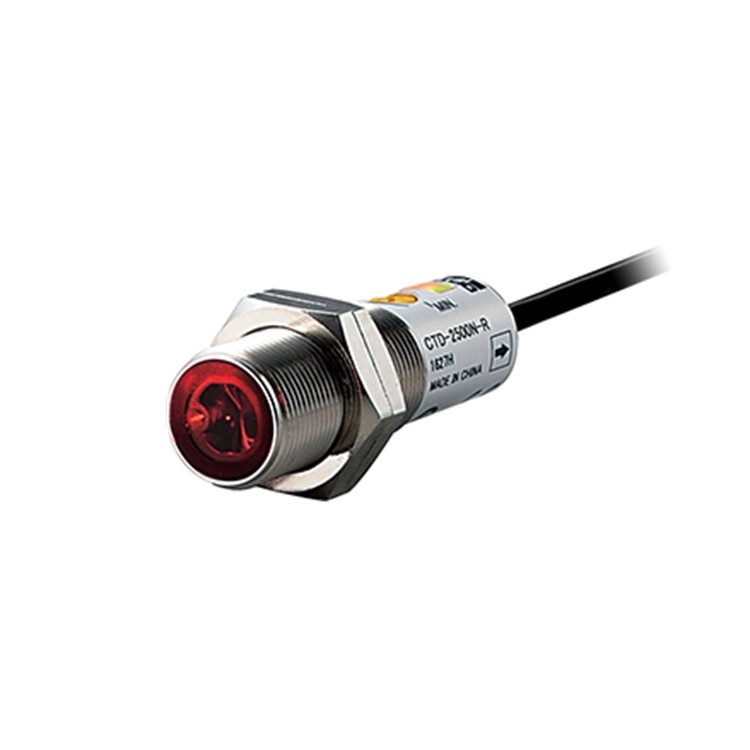

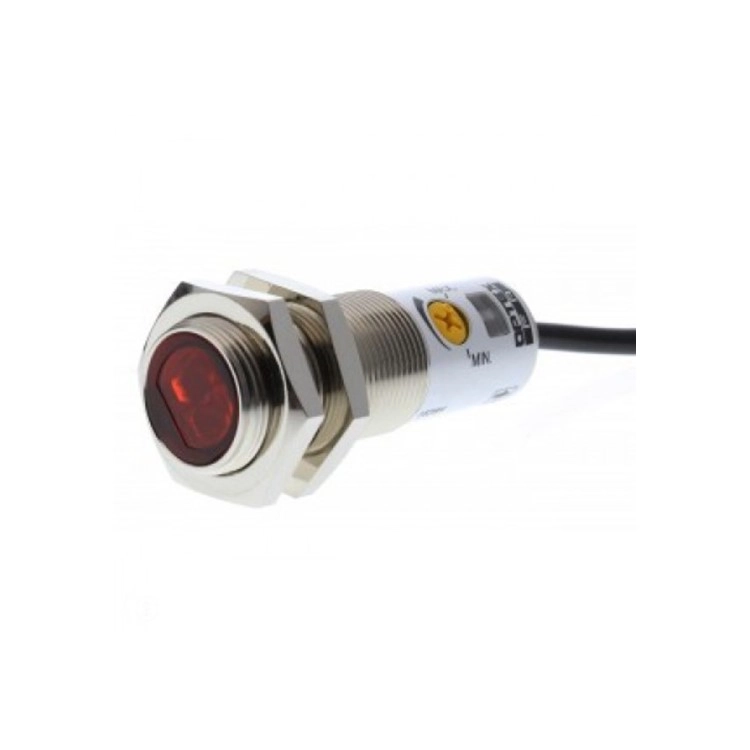

OPTEX FA C-R SERIES M18 원통형 센서
OPTEX FA C-R SERIES M18 Cylindrical Sensors
Best-in-class robust and powerful
- Large sensing distance
- Full-metal housing in brass
- Easy to Align even the long distance
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA OPTEX FA
C-R SERIES
M18 원통형 센서
C-R SERIES M18 Cylindrical Sensors
OPTEX FA 옵텍스 에프에이 C-R SERIES M18 원통형 센서

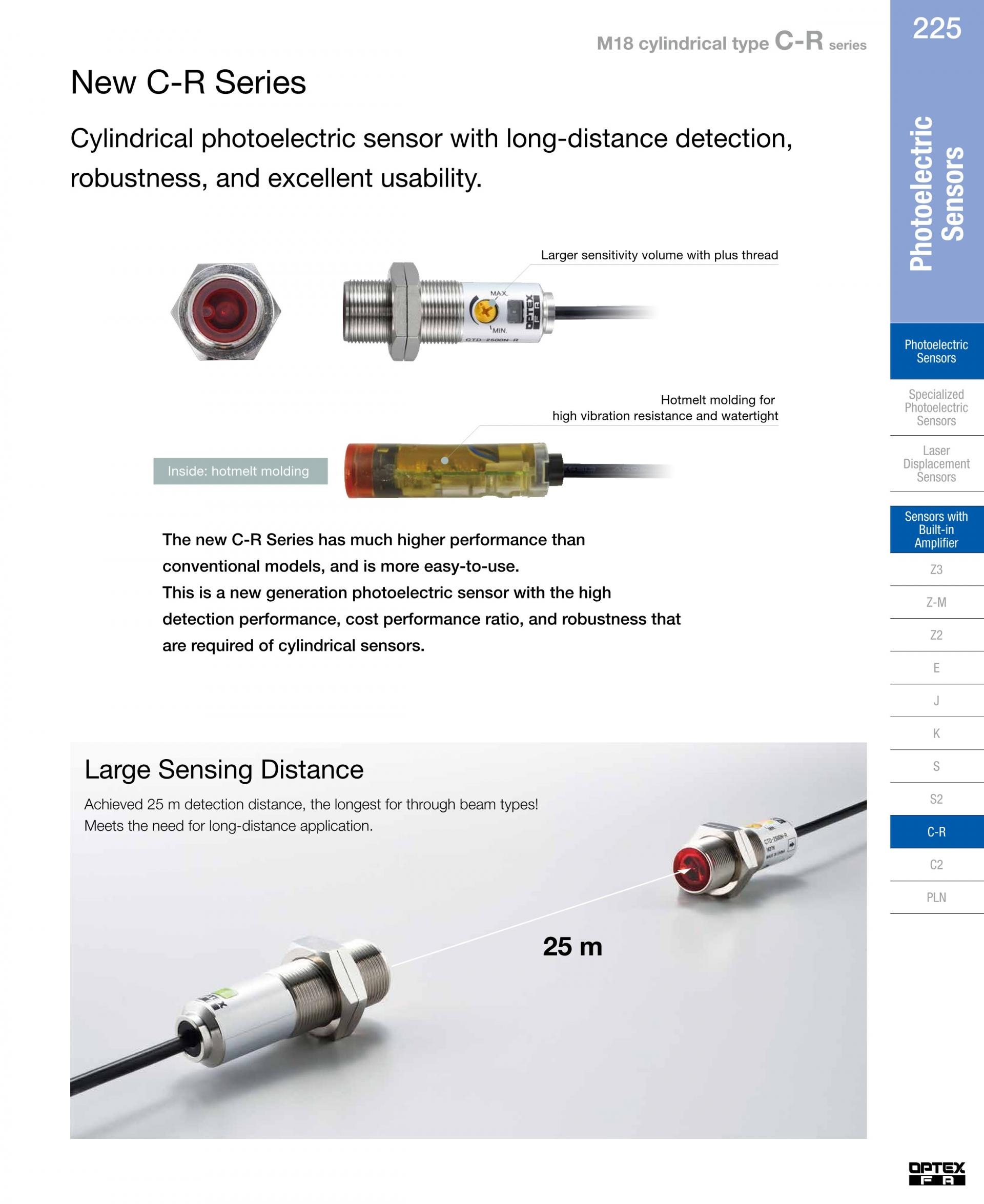

- New C-R Series
Cylindrical photoelectric sensor with long-distance detection, robustness, and excellent usability.
The new C-R Series has much higher performance than conventional models, and is more easy-to-use.
This is a new generation photoelectric sensor with the high detection performance, cost performance ratio, and robustness that are required of cylindrical sensors.
- Large Sensing Distance
Achieved 25m detection distance, the longest for through beam types! Meets the need for long-distance application.

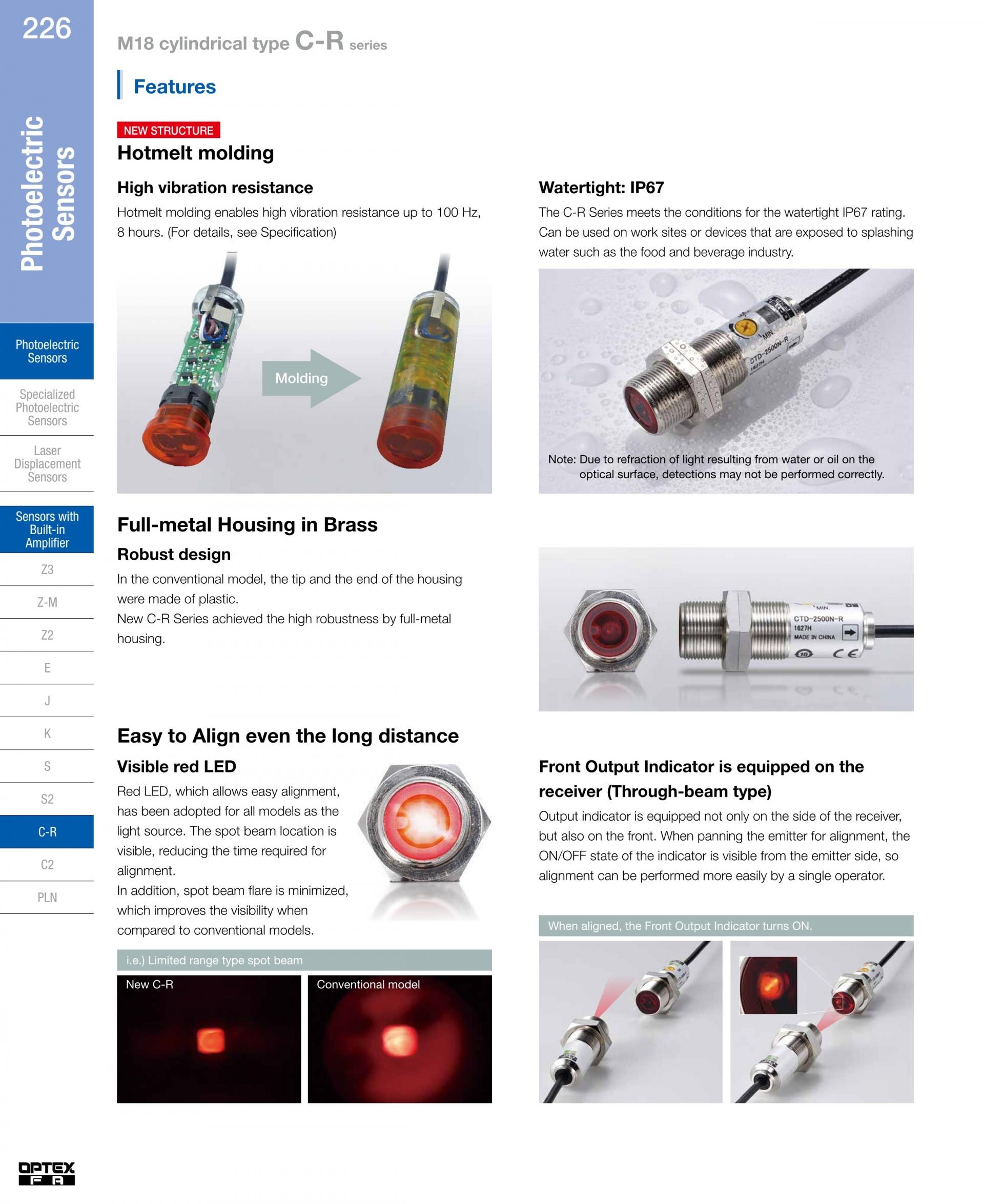

- Hotmelt molding :
High vibration resistance
Hotmelt molding enables high vibration resistance up to 100Hz, 8 hours. (For details, see Specification)
Watertight：IP67
The C-R Series meets the conditions for the watertight IP67 rating.
Can be used on work sites or devices that are exposed to splashing water such as the food and beverage industry.

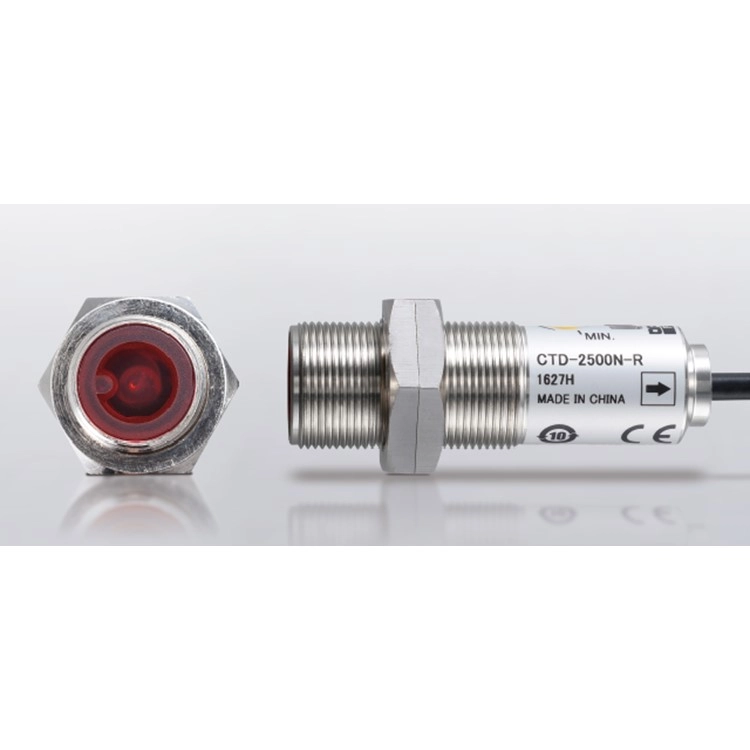

- Full-metal Housing in Brass
Robust design
In the conventional model, the tip and the end of the housing were made of plastic.
New C-R Series achieved the high robustness by full-metal housing.
- Easy to Align even the long distance
Visible red LED
Red LED, which allows easy alignment, has been adopted for all models as the light source. The spot beam location is visible, reducing the time required for alignment.
In addition, spot beam flare is minimized, which improves the visibility when compared to conventional models.
Front Output Indicator is equipped on the receiver (Through beam type)
Output indicator is equipped not only on the side of the receiver, but also on the front. When panning the emitter for alignment, the ON/OFF state of the indicator is visible from the emitter side, so alignment can be performed more easily by a single operator.

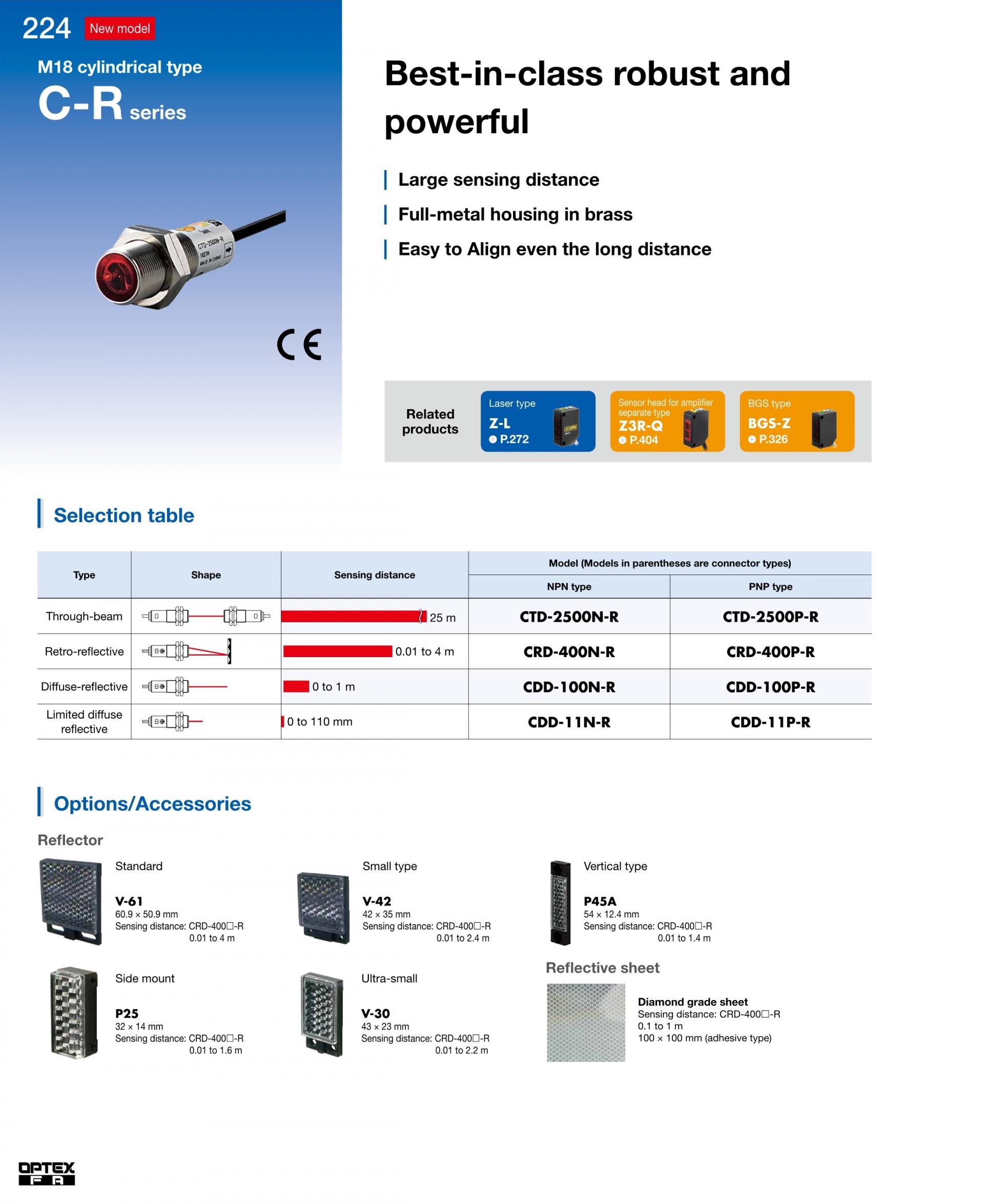

- LINEUP
Through-beam
RED LED
CTD-2500N-R CTD-2500P-R Infrared LED
CTD-2500N-IR CTD-2500P-IR Retro reflective
RED LED
CRD-400N-R CRD-400P-R Diffuse reflective
RED LED
CDD-100N-R CDD-100P-R Infrared LED
CDD-100N-IR CDD-100P-IR Infrared LED
CDD-40N-IR CDD-40P-IR Limited diffuse
reflective
RED LED
CDD-11N-R CDD-11P-R Infrared LED CDD-11N-IR CDD-11P-IR
