옵텍스 에프에이 OPTEX FA - SCREEN/ARRAY 스크린 / 어레이 – 굿맨시스템 (가격문의)
111,111원
OPTEX FA - SCREEN/ARRAY 스크린 / 어레이

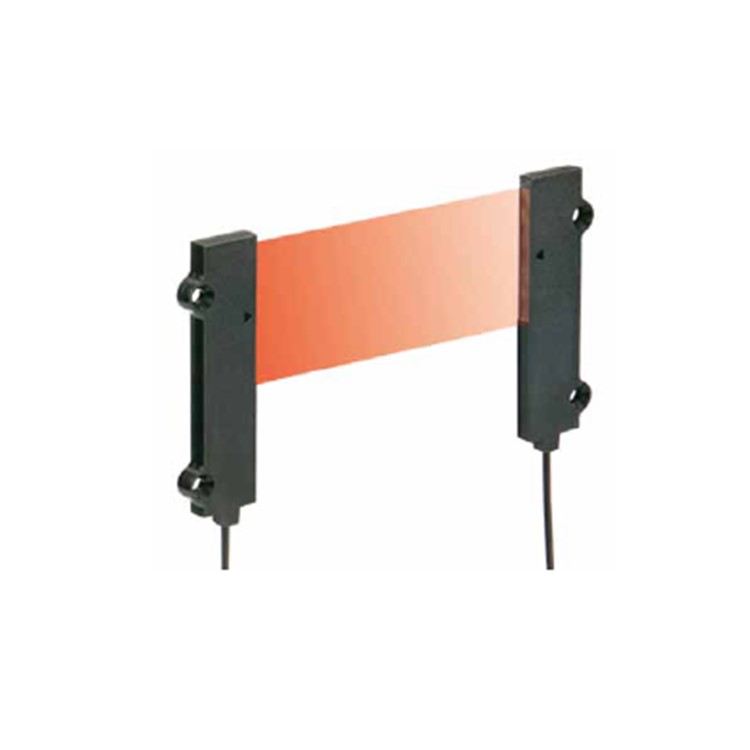

Fiber units for detecting with light screen
- Optimal for detection of complex shapes and when workpiece passage locations are not fixed.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA OPTEX FA
SCREEN/ARRAY
스크린 / 어레이
옵텍스 에프에이 OPTEX FA - SCREEN/ARRAY 스크린 / 어레이

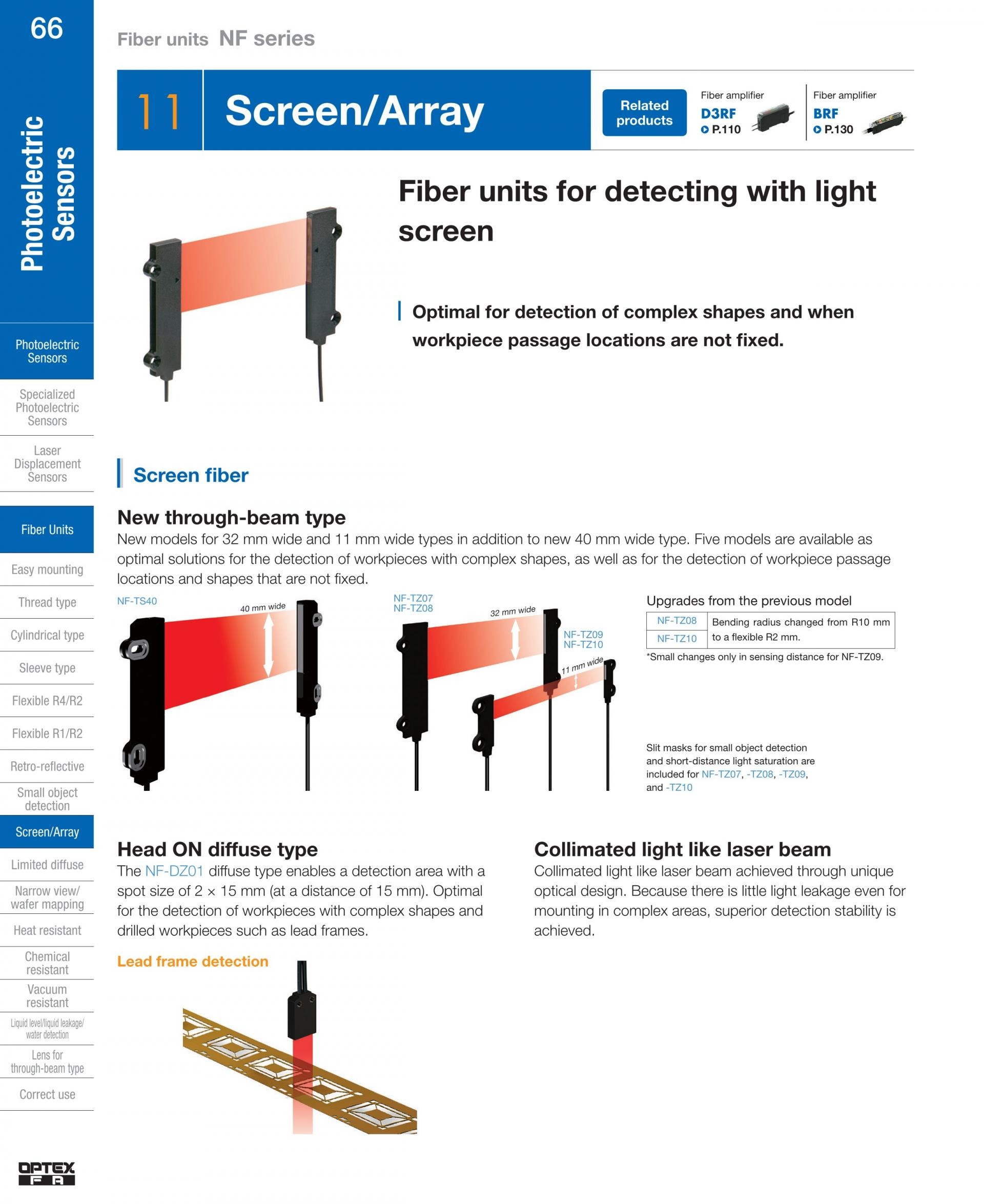

- Screen fiber
New through-beam type

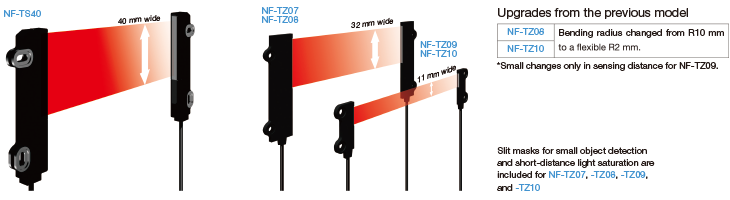

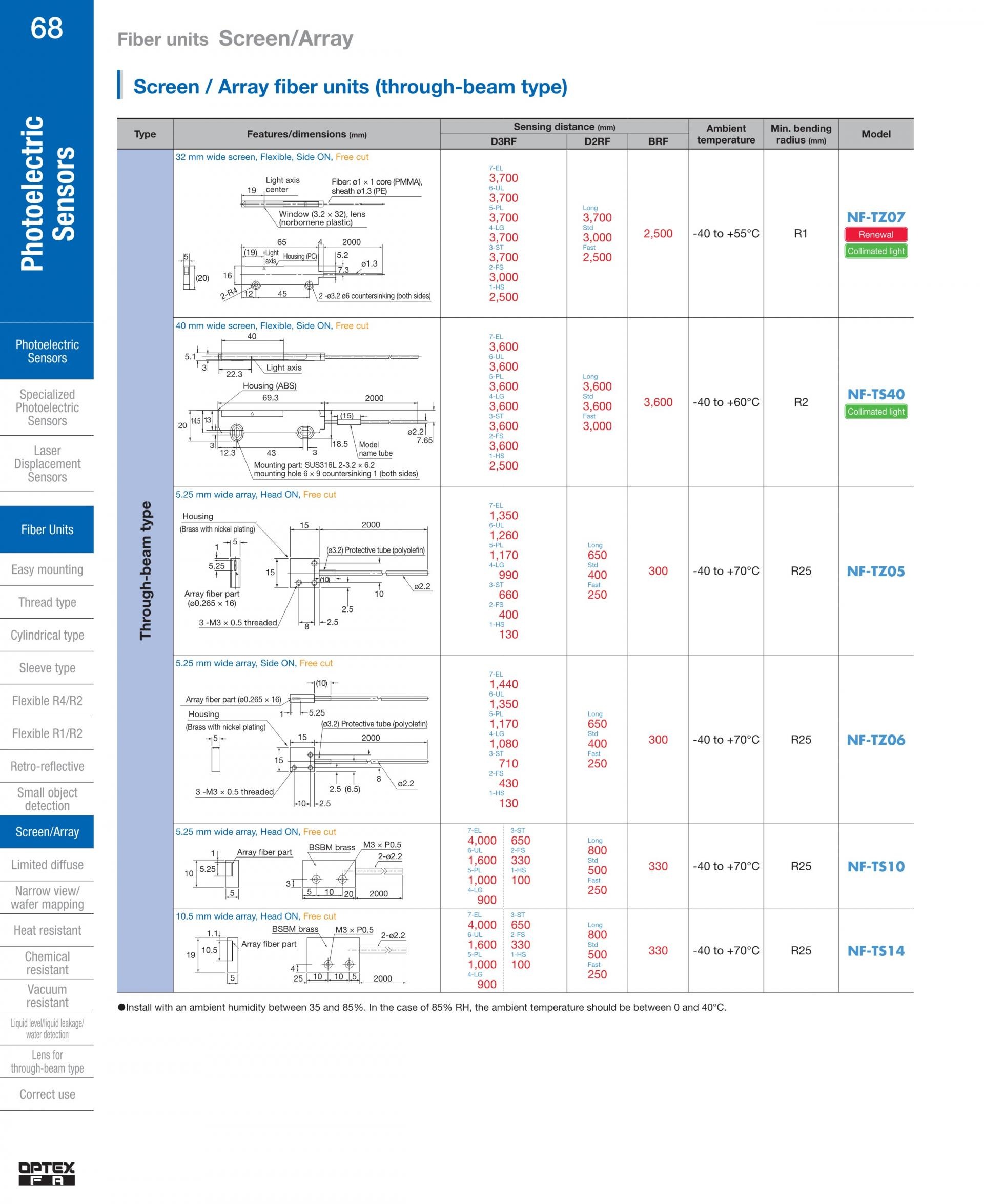

New models for 32 mm wide and 11 mm wide types in addition to new 40 mm wide type. Five models are available as optimal solutions for the detection of workpieces with complex shapes, as well as for the detection of workpiece passage locations and shapes that are not fixed.

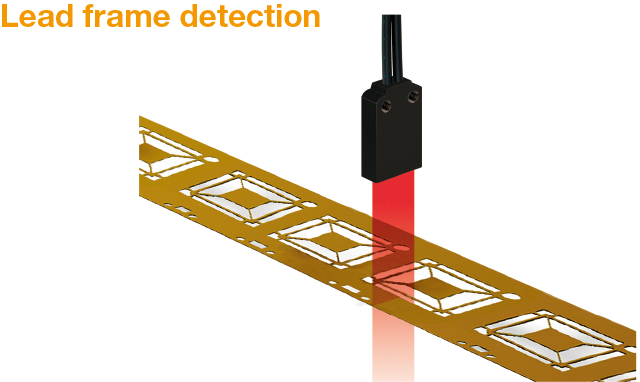

The NF-DZ01 diffuse type enables a detection area with a spot size of 2 × 15 mm (at a distance of 15 mm). Optimal for the detection of workpieces with complex shapes and drilled workpieces such as lead frames. |
Collimated light like laser beam achieved through unique optical design. Because there is little light leakage even for mounting in complex areas, superior detection stability is achieved. |

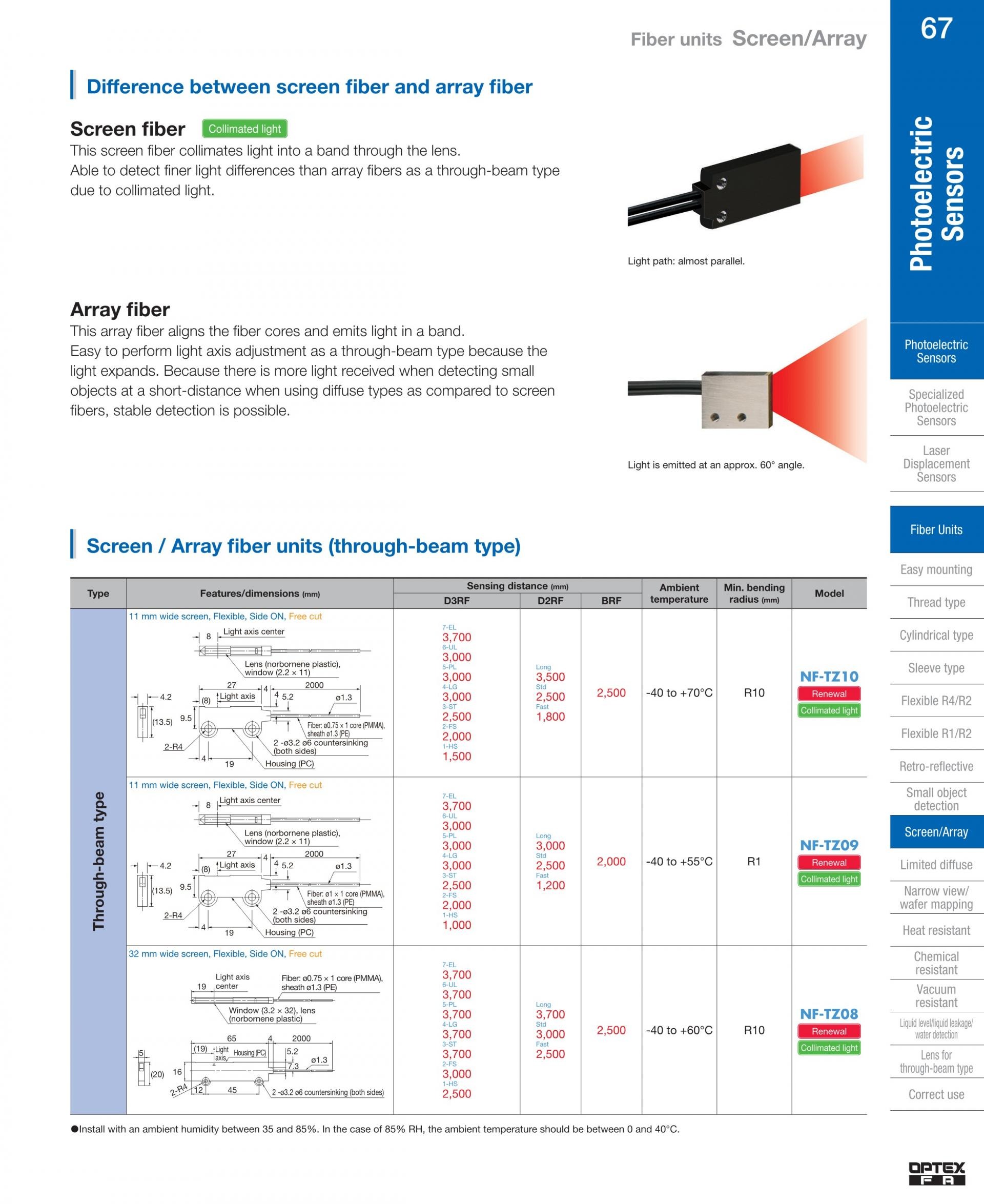

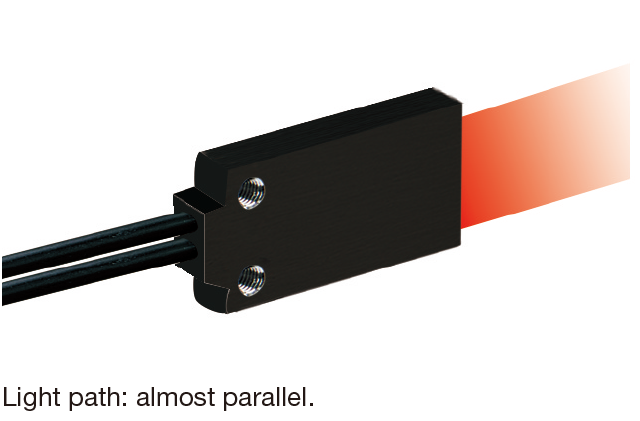

Screen fiber This screen fiber collimates light into a band through the lens. Able to detect finer light differences than array fibers as a through-beam type due to collimated light. |  |

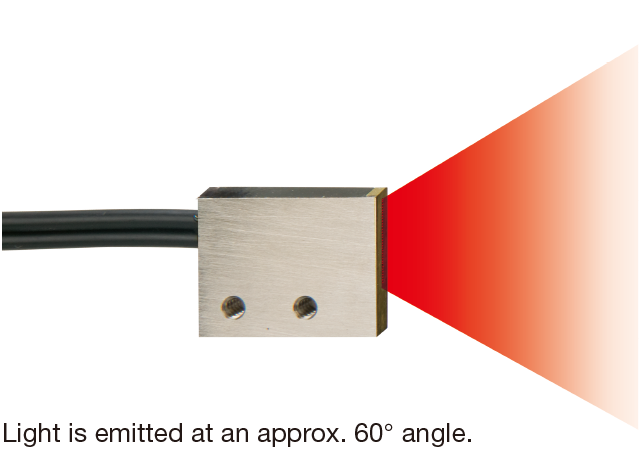

This array fiber aligns the fiber cores and emits light in a band. Easy to perform light axis adjustment as a through-beam type because the light expands. Because there is more light received when detecting small objects at a short-distance when using diffuse types as compared to screen fibers, stable detection is possible. |  |
옵텍스 에프에이 OPTEX FA SCREEN/ARRAY 스크린 / 어레이
NF TZ10 NF TZ09 NF TZ08 NF TZ07 NF TS40 NF TZ05 NF TZ06 NF TS10 NF TS14 NF TS28 NF TS19 NF DZ01 NF DZ02 NF DZ03 FD ML02 NF- TZ10
NF- TZ09 NF- TZ08 NF- TZ07 NF- TS40 NF- TZ05 NF- TZ06 NF- TS10 NF- TS14 NF- TS28 NF- TS19 NF- DZ01 NF- DZ02 NF- DZ03 FD- ML02 SCREEN ARRAY SCREEN / ARRAY OPTEX FA SCREEN ARRAY OPTEX SCREEN ARRAY FASTUS SCREEN ARRAY 옵텍스 FA SCREEN ARRAY 옵텍스 SCREEN ARRAY OPTEX FA SCREEN / ARRAY OPTEX SCREEN / ARRAY FASTUS SCREEN / ARRAY 옵텍스 FA SCREEN / ARRAY 옵텍스 SCREEN / ARRAY SCREEN / ARRAY OPTEX FA SCREEN / ARRAY OPTEX SCREEN / ARRAY FASTUS SCREEN / ARRAY 옵텍스 FA SCREEN / ARRAY 옵텍스
