OPTEX FA 옵텍스 에프에이 D1RF SERIES 티치 인 디스플레이 화이버센서 (가격문의)
111,111원
OPTEX FA D1RF SERIES 티치 인 디스플레이 화이버센서
OPTEX FA D1RF SERIES Teach-In + Display type
Intelligent & flexible
- Teach-In + Display type
- Degree of protection: IP66
- Mounting holes for M3 screws
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA ・ OPTEX FA
D1RF SERIES
티치 인 디스플레이 화이버센서
D1RF SERIES Teach-In + Display type
OPTEX FA 옵텍스 에프에이 D1RF SERIES 티치 인 디스플레이 화이버센서
- Mounting holes
Features mounting holes for M3 screws. This enables the amplifier to be mounted without use of a DIN rail or mounting bracket.

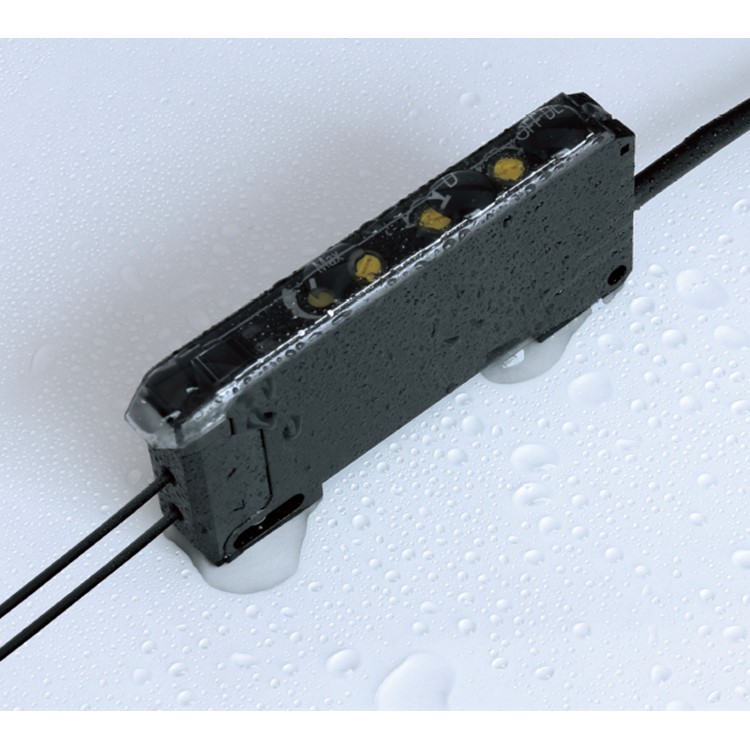

- Degree of protection: IP66
Featuring an IP66 structure uncommon for fiber-amplifiers. Can be used without worry in factories or with devices in which contact with water occurs.

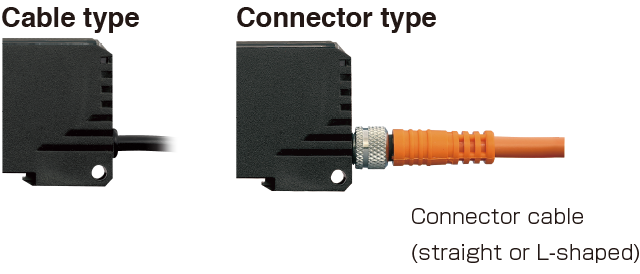

- Cable and connector type
Both a cost-effective cable type, as well as a connector type that does not require wiring when replacing sensors, are available.

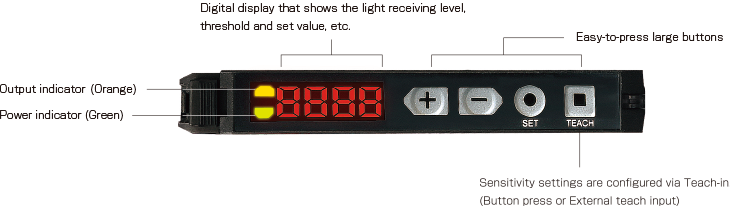

- User-friendly control panel
- Response time switching is possible
It is possible to switch the response time between the standerd 250 μs and the high-speed responce of 50 μs.
This is effective in detecting small workpieces travelling at high speeds.
- Emitted light power reducing function
Switching between three levels of emitted light power is possible. Because saturation of received light can be prevented by reducing emitted light power, it is useful when detecting at short distances or when detecting transparent objects or small objects.
- NPN/PNP switchable
The control output can be used by switching between either NPN or PNP. Thanks to this, stock can be reduced and order errors eliminated.
- Timer function
Equipped with timer function in which ON delay, OFF delay and One-shot can be selected. The delay time can also be set in 1 ms increments within a range of 1 to 9999 ms.
- LINEUP
| Teach-In + Display |  | Control Output External teach input | 250 μｓ / 50 μｓ | D1RF-T (D1RF-TC) | |
* For the connector types, please order an optional JCN series connector cable.
옵텍스 에프에이 OPTEX FA D1RF SERIES 티치 인 디스플레이 화이버센서
D1RF-T D1RF-TC D1RF T D1RF TC D1RF D1RF SERIES OPTEX FA D1RF OPTEX D1RF FASTUS D1RF 옵텍스 FA D1RF 옵텍스 D1RF D1RF OPTEX FA D1RF OPTEX D1RF FASTUS D1RF 옵텍스 FA D1RF 옵텍스
■ 제품 사양 (Specifications)
OPTEX 제품 데이터시트의 핵심 사양입니다.
- and Potentiometer type protection M3 screws
- Mounting holes Degree of protection: IP66
- Control Output D1RF-T
- External teach input (D1RF-TC)
- eliminated. increments within a range of 1 to 9999 ms.
- sensitivity is possible even for applications that require fine pulse width to 40 ms or more, input is possible even for input
- Connector type D1RF-TC V2RF-CN V2RF-CP
- Protection circuit Reverse connection protection, Overcurrent protection, 30 V max.
- Rating Supply voltage* 10 to 30 VDC (including 10% ripple)
- Company standards Noise resistance: Feilen Level 3 cleared
- Environmental Ambient temp./Humidity* -25 to +55°C / 35 to 85% (no freezing or condensation)
- resistance Storage temp./Humidity -40 to +70°C / 35 to 95% (no freezing or condensation)
- Vibration resistance 10 to 55 Hz; Double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
- Shock resistance 50 G (500 m/s2), 3 times in each of the X, Y, and Z directions
- Degree of protection IP66
- M8, 4-pin connector
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
