옵텍스 에프에이 OPTEX FA V2RF – SERIES 전위차계 섬유 센서 (가격문의)
111,111원

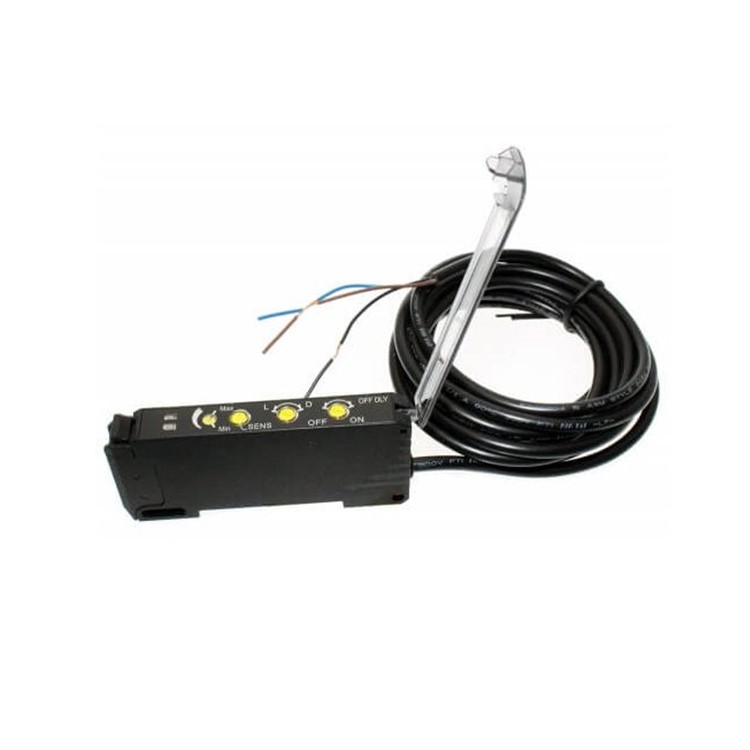

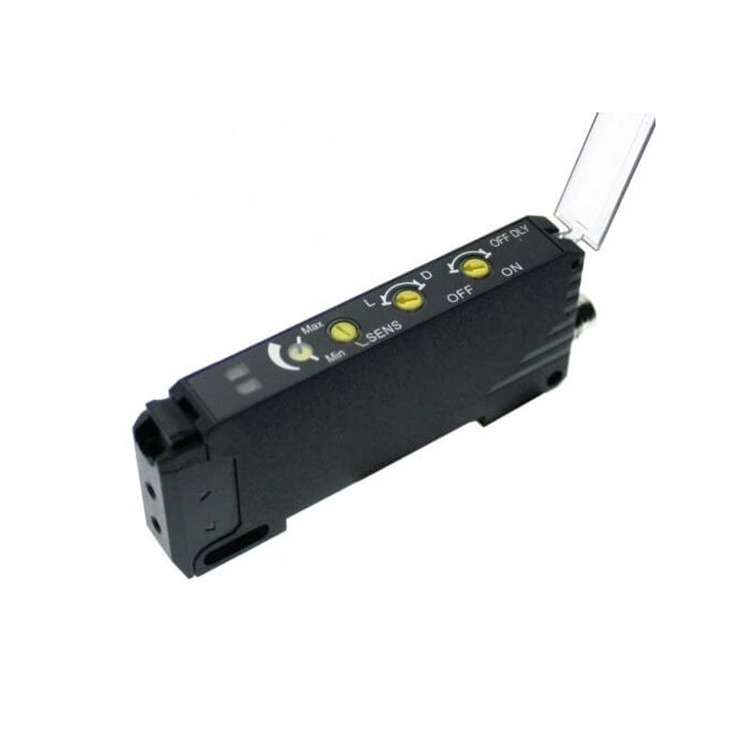

OPTEX FA V2RF SERIES 전위차계 섬유 센서
OPTEX FA V2RF SERIES Potentiometer type
Simple & cost effective
- Potentiometer type
- Degree of protection: IP66
- Mounting holes for M3 screws
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA OPTEX FA
V2RF SERIES
전위차계 섬유 센서
V2RF SERIES Potentiometer type
옵텍스 에프에이 OPTEX FA V2RF – SERIES 전위차계 섬유 센서

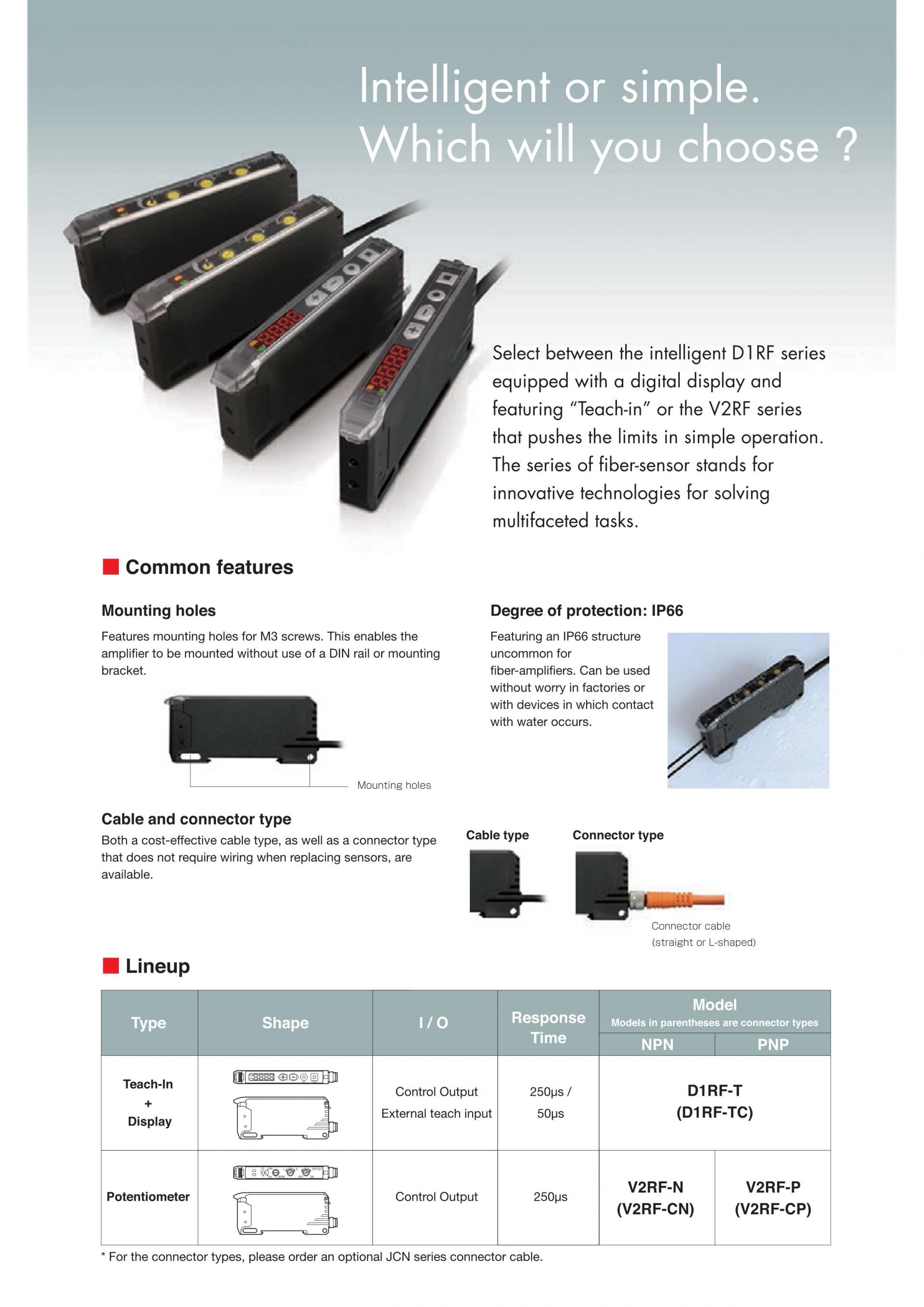

- Mounting holes
Features mounting holes for M3 screws. This enables the amplifier to be mounted without use of a DIN rail or mounting bracket.
- Degree of protection: IP66
Featuring an IP66 structure uncommon for fiber-amplifiers. Can be used without worry in factories or with devices in which contact with water occurs.
- Cable and connector type
Both a cost-effective cable type, as well as a connector type that does not require wiring when replacing sensors, are available.

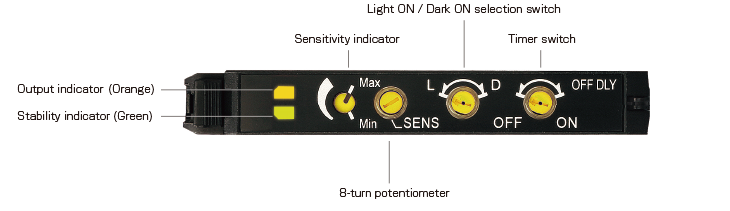

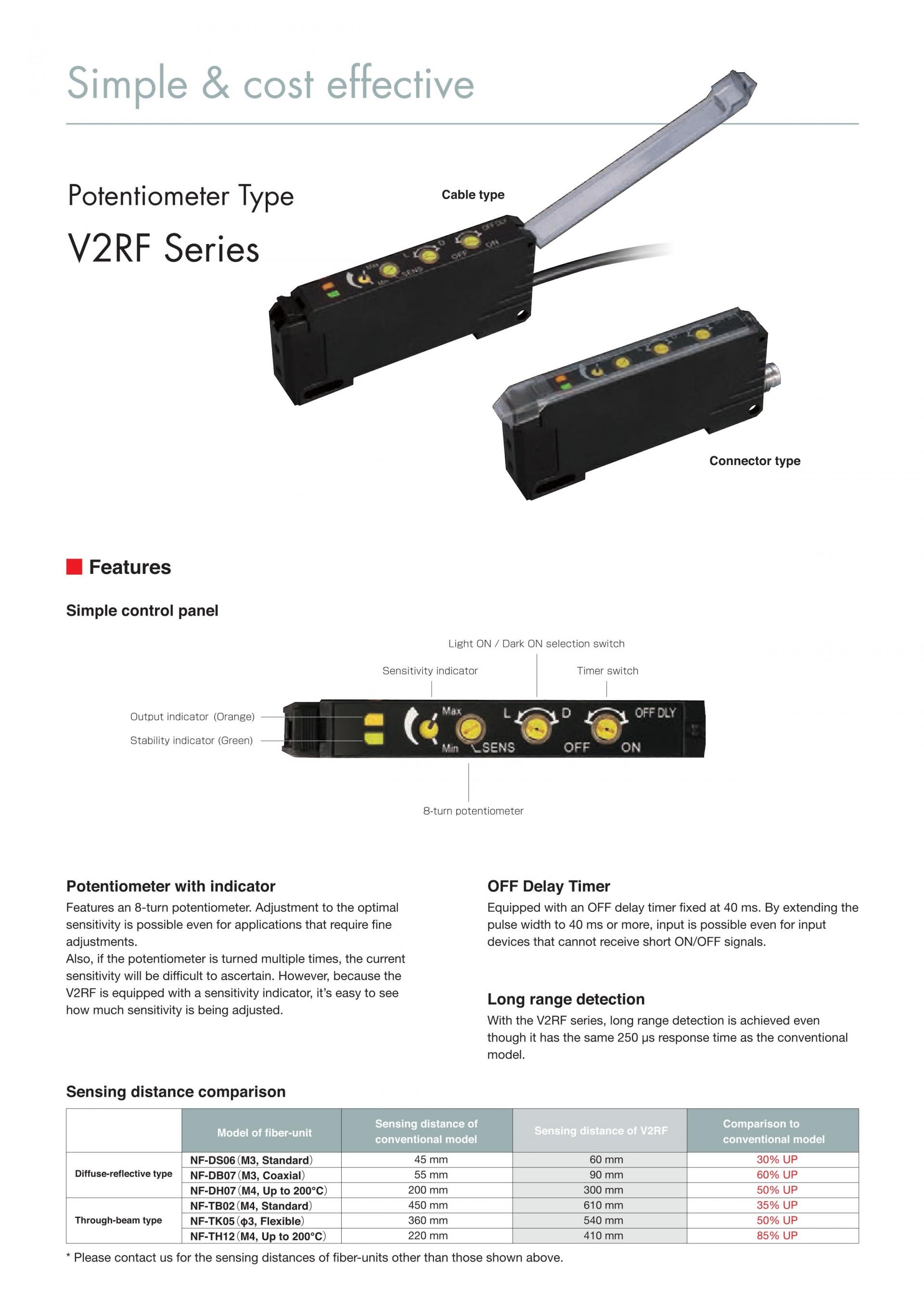

- Simple control panel
- Potentiometer with indicator
Features an 8-turn potentiometer. Adjustment to the optimal sensitivity is possible even for applications that require fine adjustments.
Also, if the potentiometer is turned multiple times, the current sensitivity will be difficult to ascertain. However, because the V2RF is equipped with a sensitivity indicator, it’s easy to see how much sensitivity is being adjusted.
- OFF Delay Timer
Equipped with an OFF delay timer fixed at 40 ms. By extending the pulse width to 40 ms or more, input is possible even for input devices that cannot receive short ON/OFF signals.
- Long range detection
With the V2RF series, long range detection is achieved even though it has the same 250 μs response time as the conventional model.
옵텍스 에프에이 OPTEX FA V2RF SERIES 전위차계 섬유 센서
