OPTEX FA DS SERIES 디지털앰프 분리형 레이저센서
OPTEX FA DS SERIES Digital Amplifier Separate Type

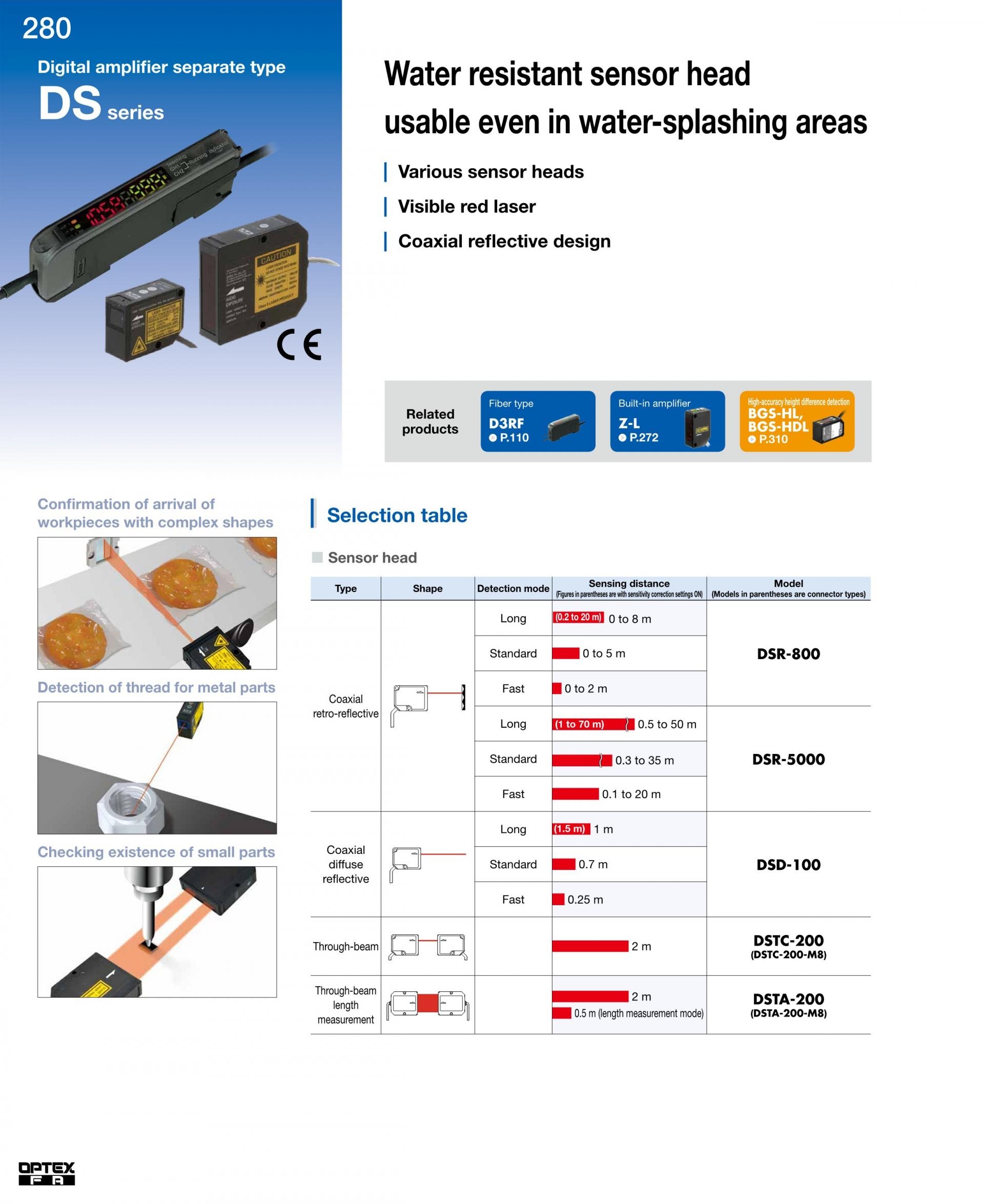

Water resistant sensor head usable even in water-splashing areas
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA OPTEX FA
DS SERIES
디지털앰프 분리형 레이저센서

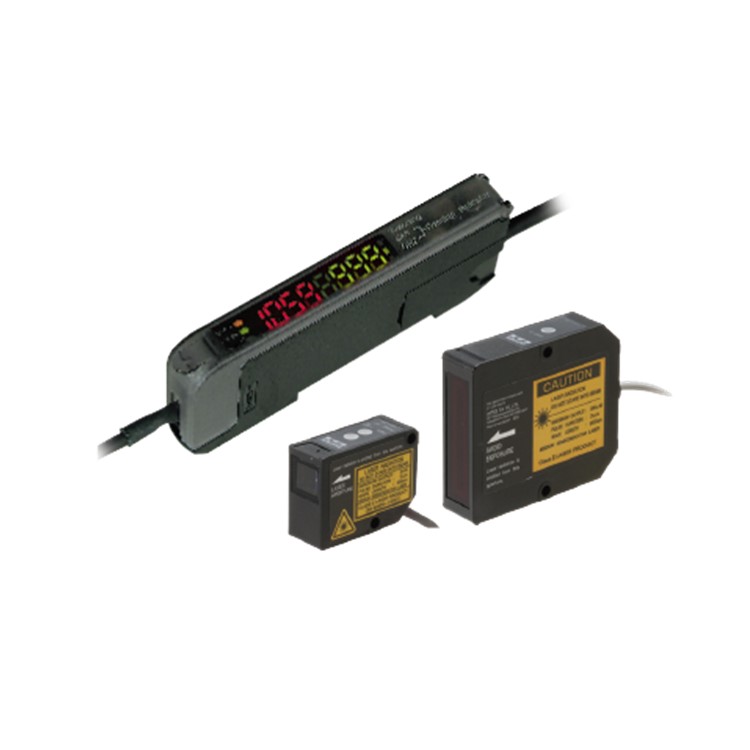

DS SERIES Digital Amplifier Separate Type
옵텍스 에프에이 OPTEX FA DS SERIES 디지털앰프 분리형 레이저센서

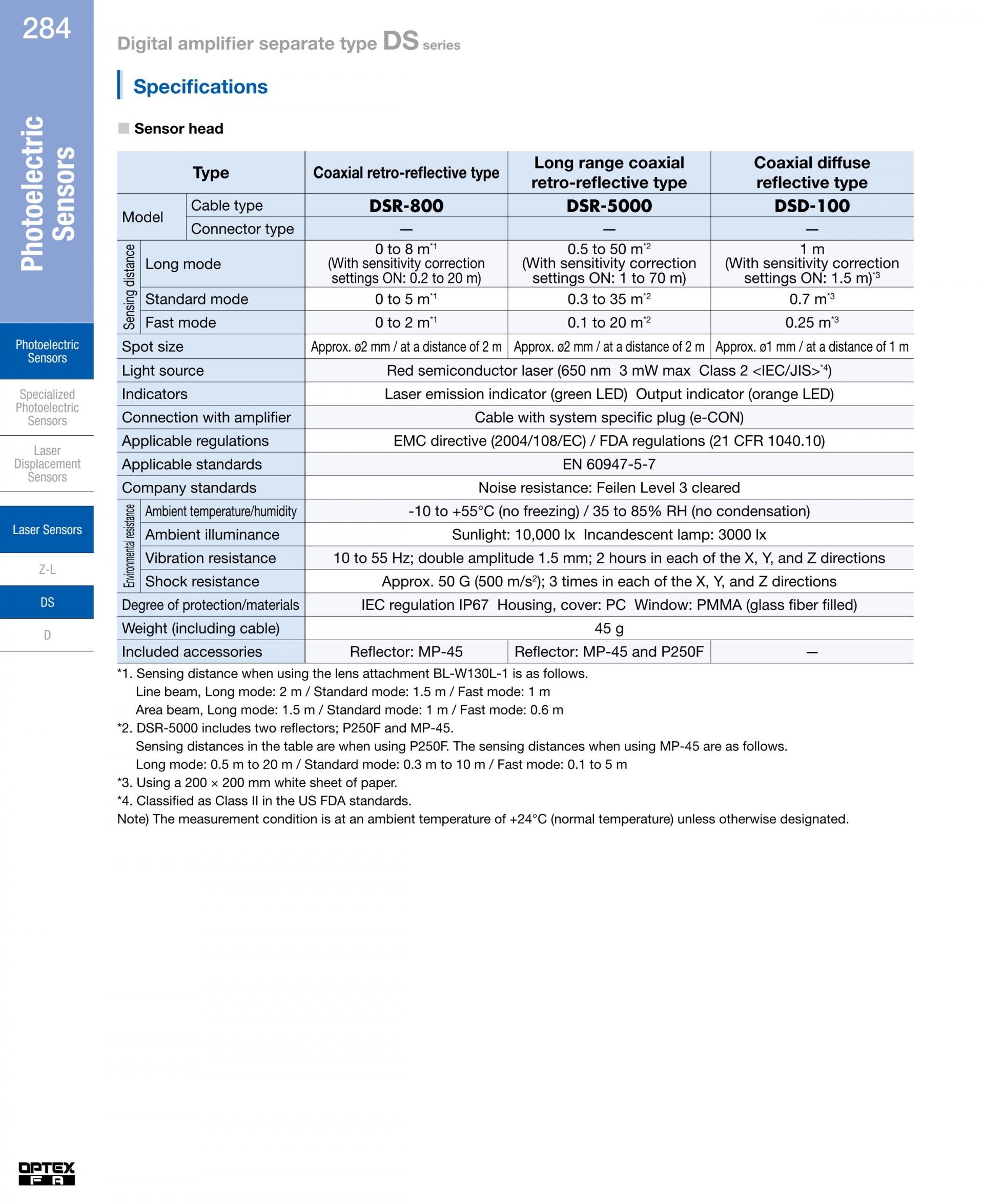

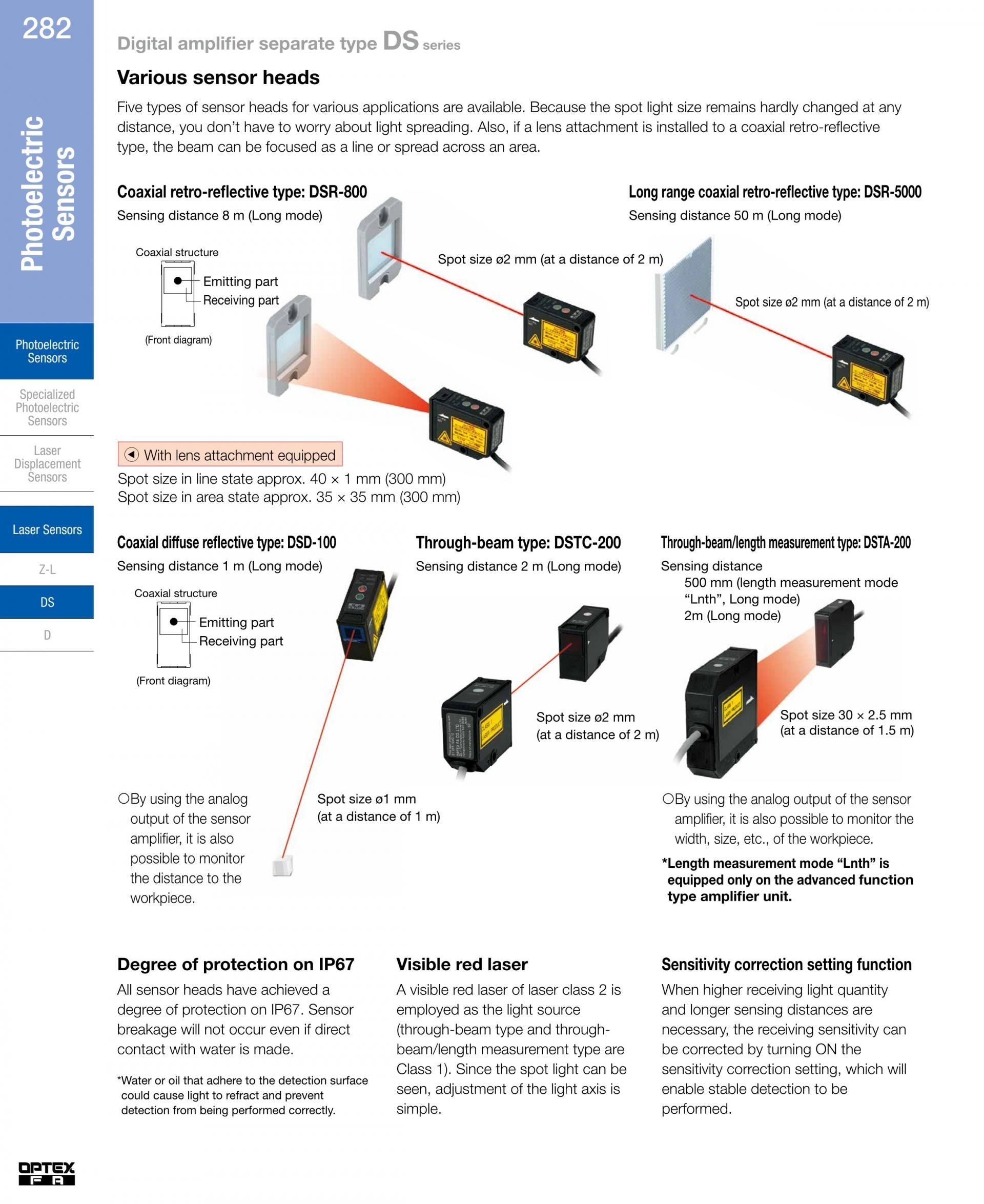

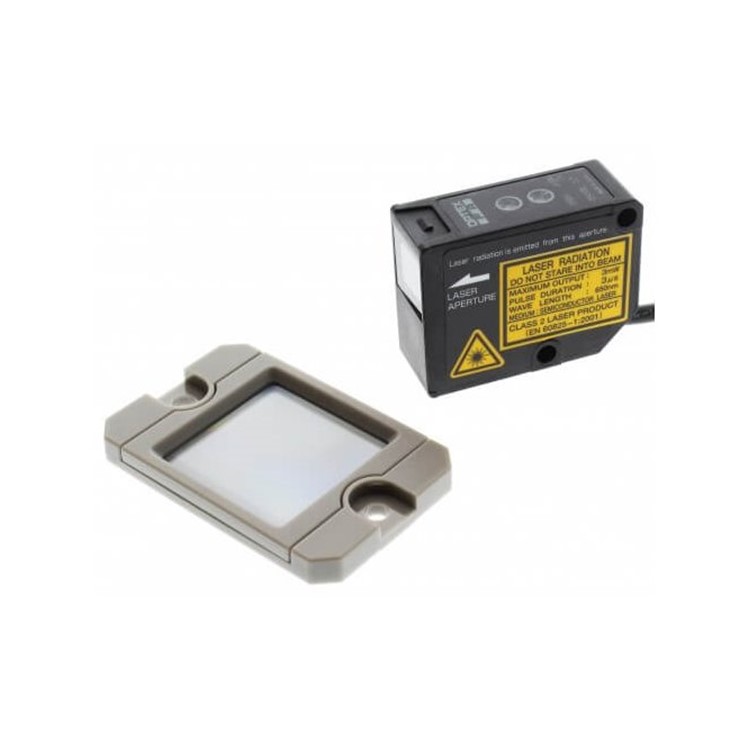

Five types of sensor heads for various applications are available. Because the spot light size remains hardly changed at any distance, you don’t have to worry about light spreading. Also, if a lens attachment is installed to a coaxial retro-reflective type, the beam can be focused as a line or spread across an area.
All sensor heads have achieved a degree of protection on IP67. Sensor breakage will not occur even if direct contact with water is made. * Water or oil that adhere to the detection surface could cause light to refract and prevent detection from being performed correctly. |

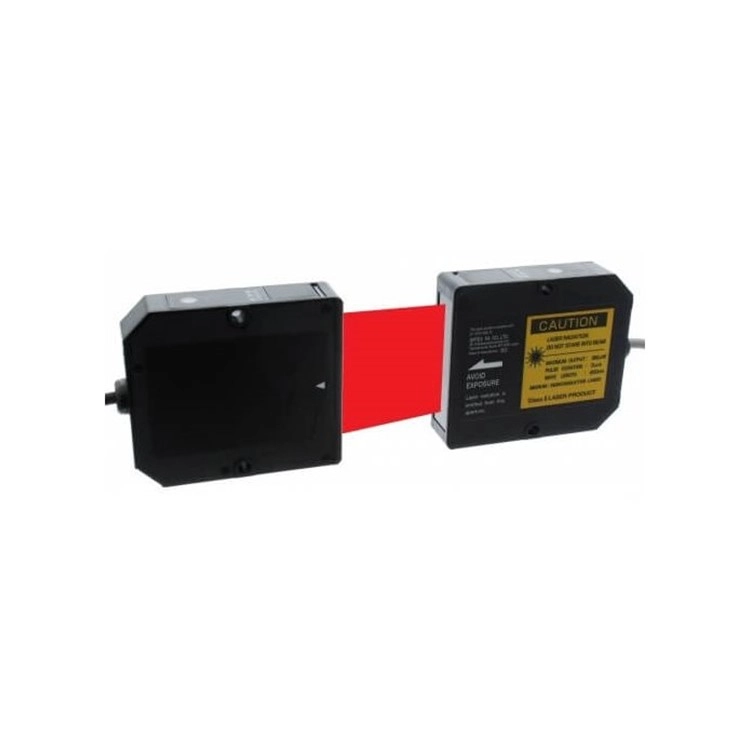

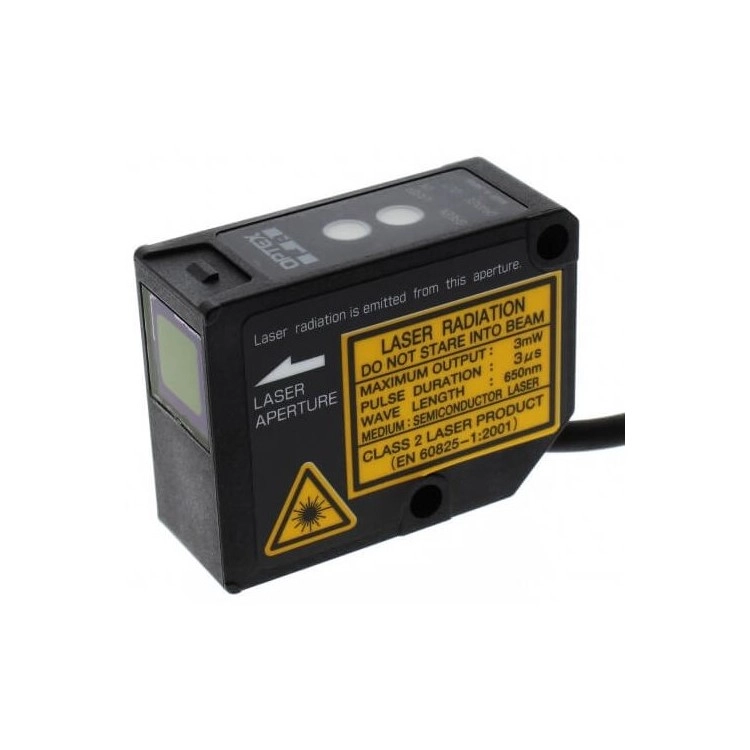

A visible red laser of laser class 2 is employed as the light source (through-beam type and throughbeam/length measurement type are Class 1). Since the spot light can be seen, adjustment of the light axis is simple. |
When higher receiving light quantity and longer sensing distances are necessary, the receiving sensitivity can be corrected by turning ON the sensitivity correction setting, which will enable stable detection to be performed. |
Dual display
Displaying the threshold and receiving light quantity side by side enables sensitivity adjustments to be performed quickly and easily.
Connecting up to 4 amplifiers, stable detection with reduced wiring and no cross talk is possible. (Up to 8 units can be connected if cross-talk prevention is not used)
In addition, connecting with the fiber amplifier D2RF series is also possible.
* For the response time when connected, set Long mode or Standard mode.
Features a built-in counter function in which the output turns ON when the count value reaches the preset number.
Counter resets can also be input externally.
External Teaching input
Teaching can be performed externally without operating the sensor unit.
Output signals from another sensor can be directly input to the sensor amplifier as simultaneous signals.
Laser can be turned to OFF except when necessary.
(Excluding standard type amplifier unit cable type)

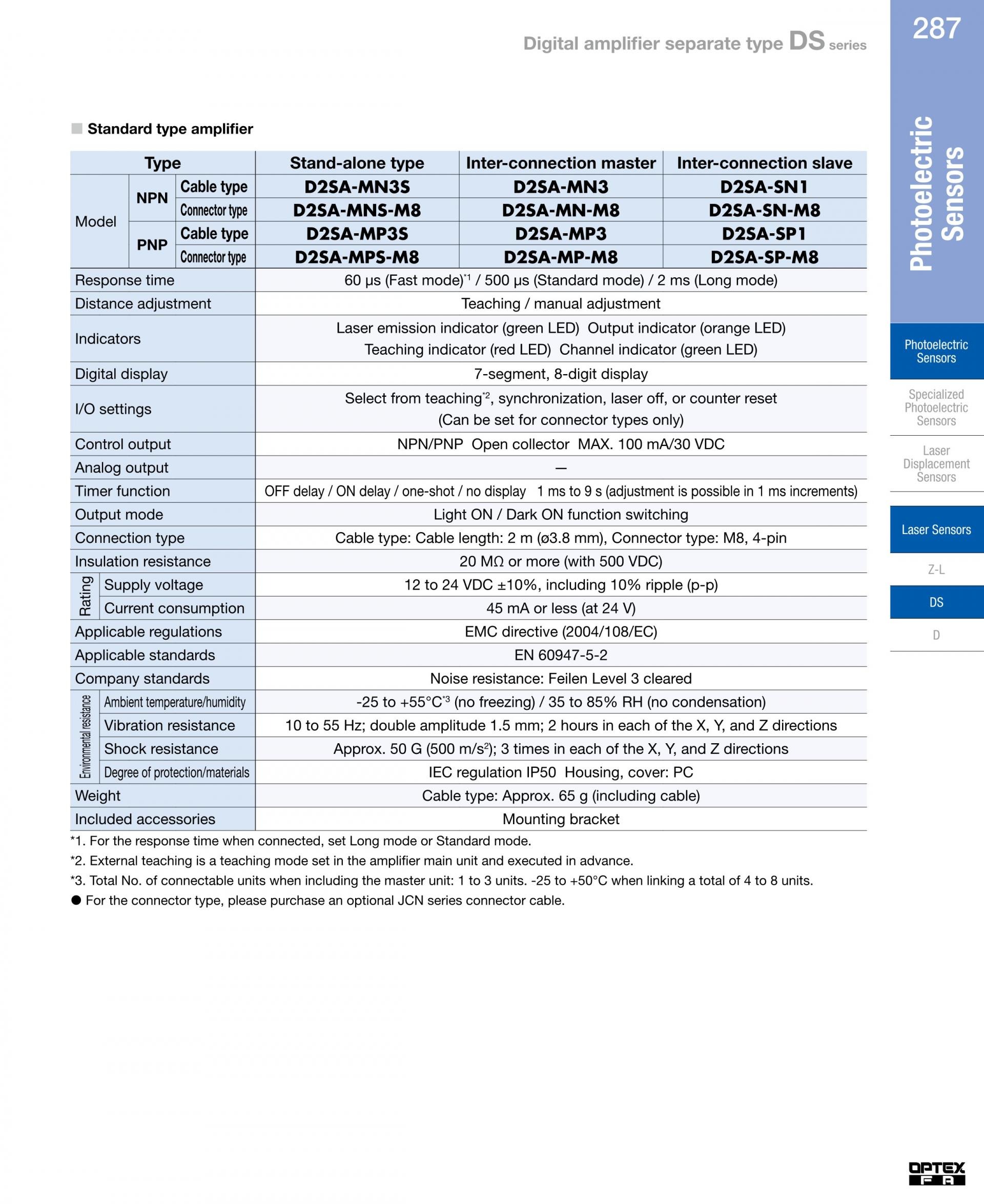

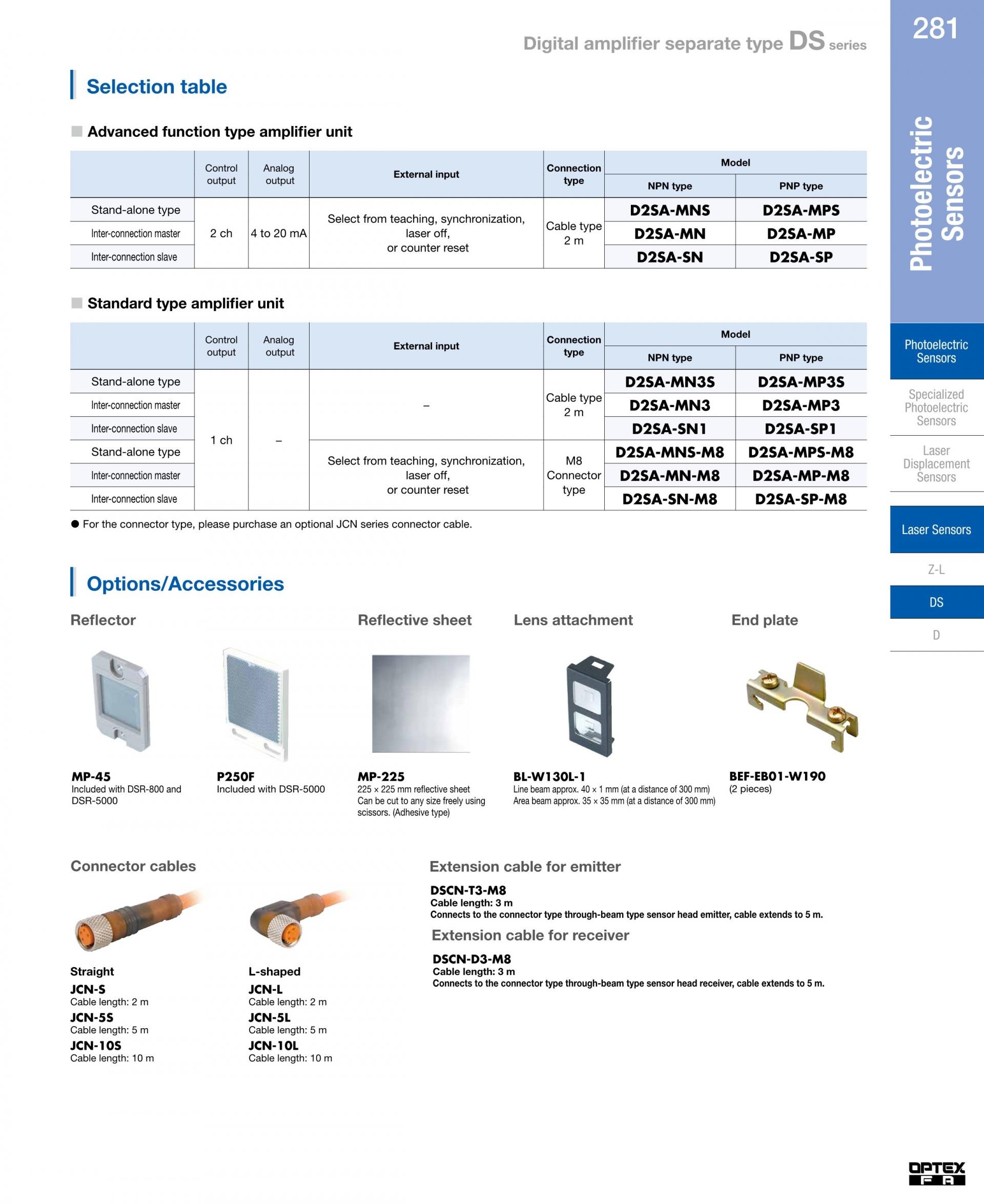

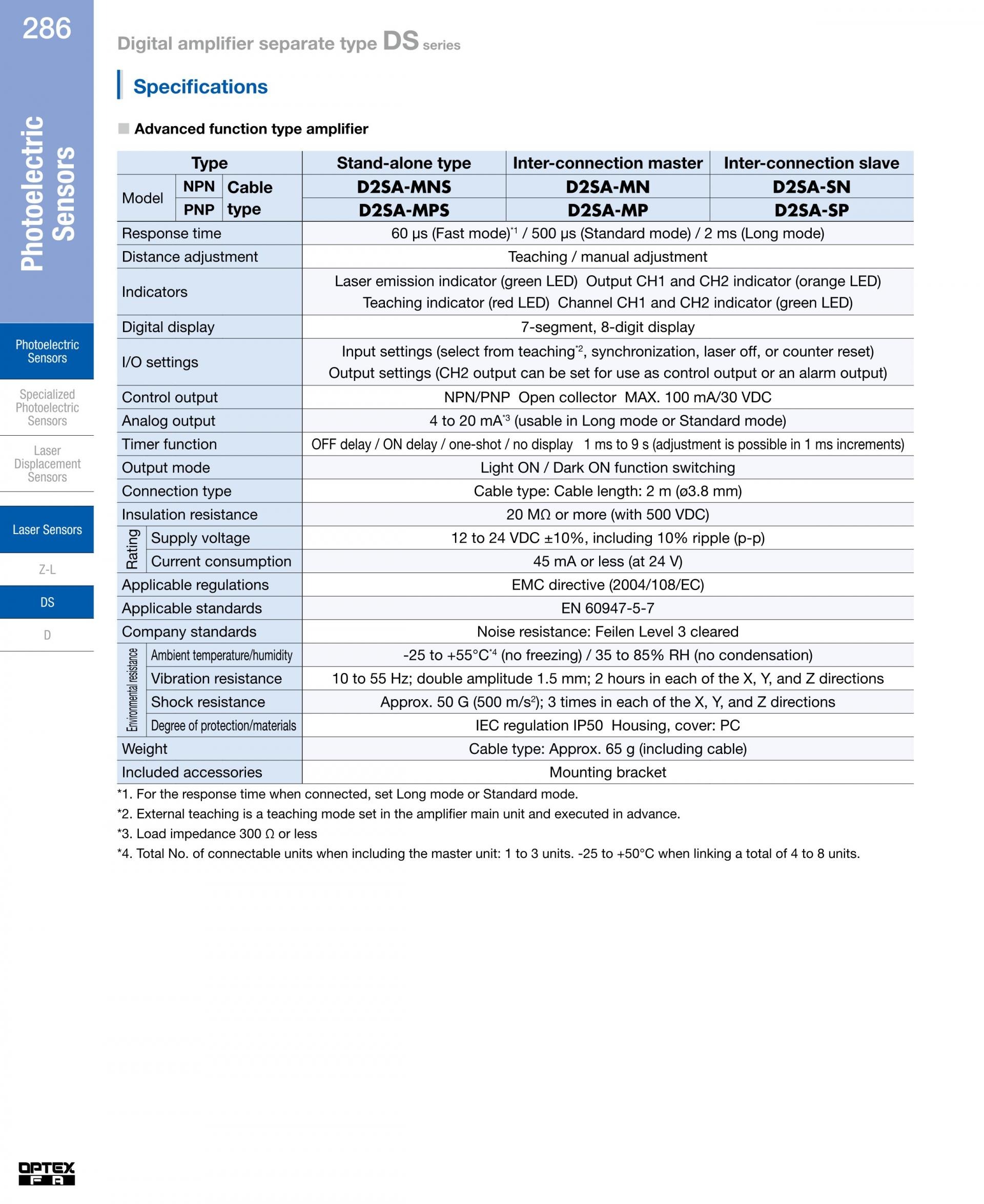

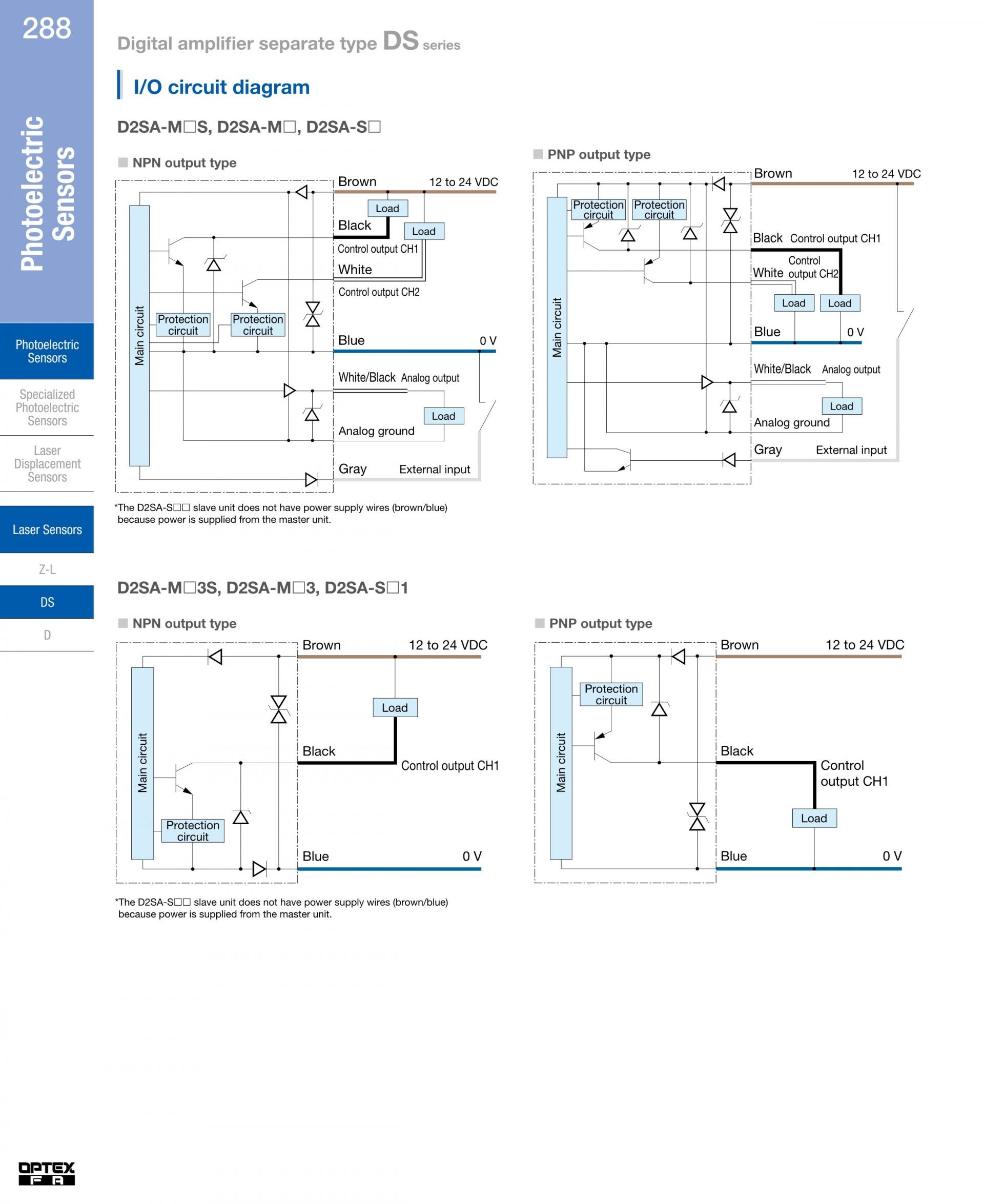

Advanced function type amplifier units D2SA-MNS, D2SAMN and D2SA-SN are equipped with two control outputs and one 4 to 20 mA analog output. Precise control depending on the receiving light quantity can be performed by one amplifier.
옵텍스 에프에이 OPTEX FA DS SERIES 디지털앰프 분리형 레이저센서
DSR 800 DSR 5000 DSD 100 DSTC 200 DSTC 200-M8 DSTC 200 M8 DSTA 200 DSTA 200-M8 DSTA 200 M8 D2SA MNS D2SA MPS D2SA MN D2SA MP D2SA SM D2SA SP D2SA MN3S D2SA MP3S D2SA MN3 D2SA MP3 D2SA SN1 D2SA SP1 D2SA MNS-M8 D2SA MNS M8 D2SA MPS-M8 D2SA MPS M8 D2SA MN-M8 D2SA MN M8 D2SA MP-M8 D2SA MP M8 D2SA SN-M8 D2SA SN M8 D2SA SP-M8 D2SA SP M8 DSR- 800 DSR- 5000 DSD- 100 DSTC- 200 DSTC- 200-M8 DSTC- 200 M8 DSTA- 200 DSTA- 200-M8 DSTA- 200 M8 D2SA- MNS D2SA- MPS D2SA- MN D2SA- MP D2SA- SM D2SA- SP D2SA- MN3S D2SA- MP3S D2SA- MN3 D2SA- MP3 D2SA- SN1 D2SA- SP1 D2SA- MNS-M8 D2SA- MNS M8 D2SA- MPS-M8 D2SA- MPS M8 D2SA- MN-M8 D2SA- MN M8 D2SA- MP-M8 D2SA- MP M8 D2SA- SN-M8 D2SA- SN M8 D2SA- SP-M8 D2SA- SP M8 DS DS SERIES OPTEX FA DS OPTEX DS FASTUS DS 옵텍스 FA DS 옵텍스 DS DS OPTEX FA DS OPTEX DS FASTUS DS 옵텍스 FA DS 옵텍스 OPTEX FA DS SERIES OPTEX DS SERIES FASTUS DS SERIES 옵텍스 FA DS SERIES 옵텍스 DS SERIES DS SERIES OPTEX FA DS SERIES OPTEX DS SERIES FASTUS DS SERIES 옵텍스 FA DS SERIES 옵텍스
