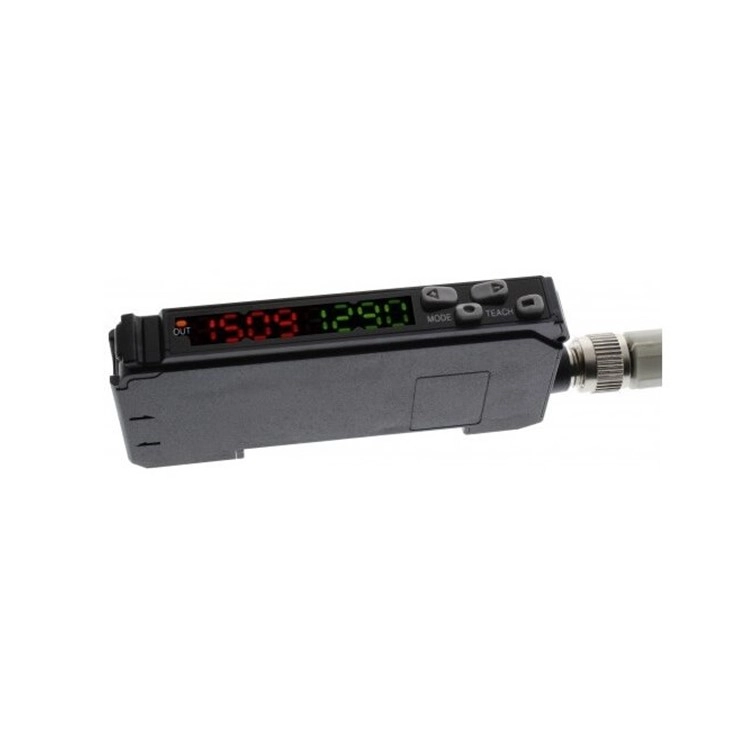

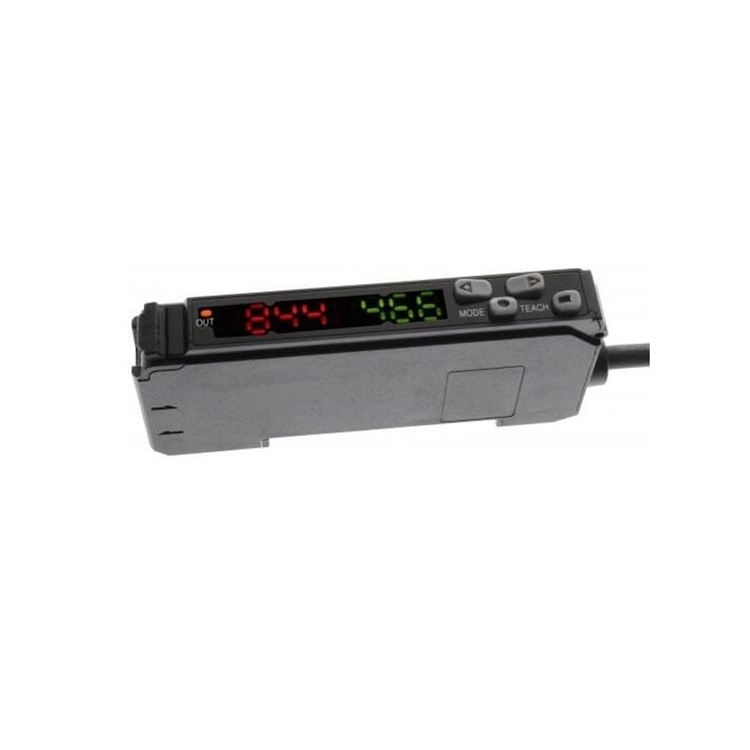

OPTEX FA D3WF SERIES 백색LED 디지털화이버 앰프 컬러/마크감지 센서
OPTEX FA D3WF SERIES White LED Fiber Amplifiers
White light source enables easy detection of subtle color differences.
- 3 teaching modes to support various detection requirements
- Fastest response time of 16μs in the world
- Easy-to-read 3 display modes of value, percentage and bar graph
- Dual Sensitivity Correction for stable operation
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA ・ OPTEX FA
D3WF SERIES
백색LED 디지털화이버 앰프 컬러/마크감지 센서
D3WF SERIES White LED Fiber Amplifiers
옵텍스 에프에이 OPTEX FA D3WF SERIES 백색LED 디지털화이버 앰프 컬러/마크감지 센서

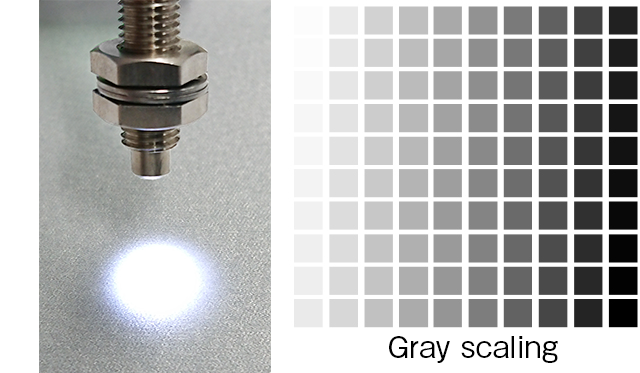

White LED light source enables stable detection of subtle color contrasts of dark colors that a sensor with red LED light source may have had difficulty in detection. |  |
- Typical characteristic data
 |  |
- 3 teaching modes to support various detection requirements
There are three types of teaching (dynamic teaching, 2-point teaching, and 1-point teaching).
Select the mode that matches the application.
- Dynamic teaching
Teaching without stopping the line
Move the workpiece, passing the marked and non-marked parts by the sensor.
The thresholds for the marked and non-marked parts are set automatically.

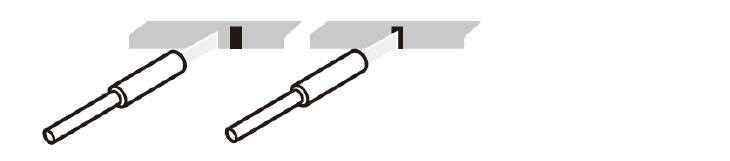

- 2-point teaching
Teaching with marked and non-marked parts
Perform teaching when a mark is present and when no mark is present.
The threshold value is set and stored between the first and second points.

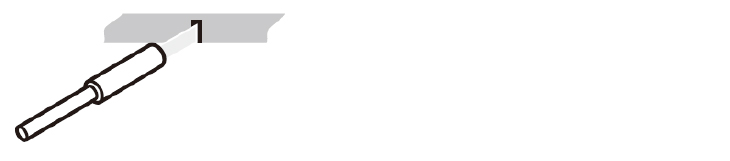

- 1-point teaching
Teaching just with the marked part
Ideal for detecting only within a fixed range of received light. The threshold is set in the range of the receiving light level ± approximately 10% (default value).
- Fastest response time of 16μs in the world
Our originally developed super high-speed processor“FAntron DUO” enables the fastest speed in its class at 16 μs. It can detect over 30,000 workpieces per second.
Maximum speed during linked use is 32 μs. It can prevent cross talk for up to 3 units. Copying of setting is also possible.

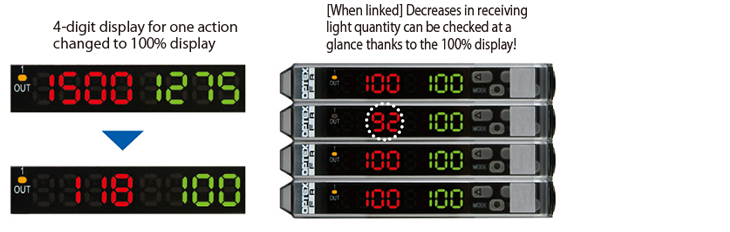

- Easy-to-read 3 display modes of value, percentage and bar graph
Display for receiving light quantity can be changed to a percentage display with one simple single action, making changes in receiving light quantity are easy to recognize even when linked.

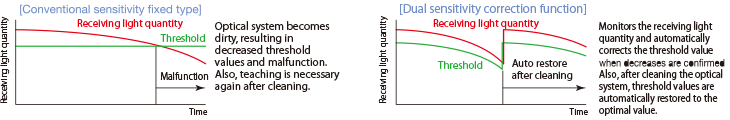

- Dual Sensitivity Correction for stable operation
Unique functionality in which automatic sensitivity corrections are performed when light level decreases occur due to contamination of fiber tips caused by dust, etc. After cleaning, the threshold value is automatically restored, so there is no need for re-teaching. *For dual output types, ASC operates only for control output 1.
옵텍스 에프에이 OPTEX FA D3WF SERIES 백색LED 디지털화이버 앰프 컬러/마크감지 센서
D3WF-TN D3WF-TP D3WF-TMCN4 D3WF-TMCP4 D3WF-TSCN4 D3WF-TSCP4 D3WF TN D3WF TP D3WF TMCN4 D3WF TMCP4 D3WF TSCN4 D3WF TSCP4 D3WF OPTEX FA D3WF OPTEX D3WF FASTUS D3WF 옵텍스 FA D3WF 옵텍스 D3WF D3WF OPTEX FA D3WF OPTEX D3WF FASTUS D3WF 옵텍스 FA D3WF 옵텍스
