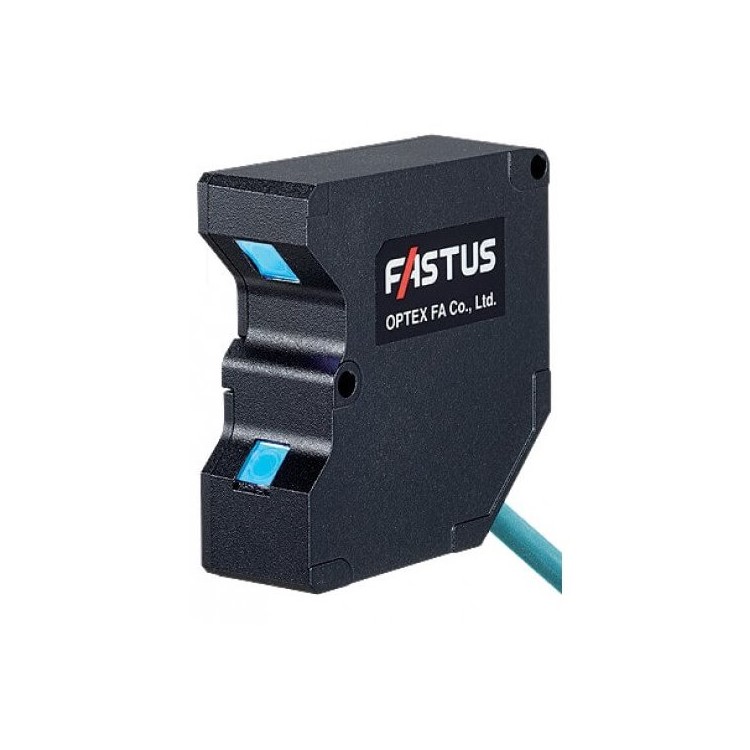

OPTEX FA CDX SERIES 초 고정밀 레이저 변위센서
OPTEX FA CDX SERIES Ultra High-Accuracy Laser Displacement Sensors
World’s No. 1 Linearity

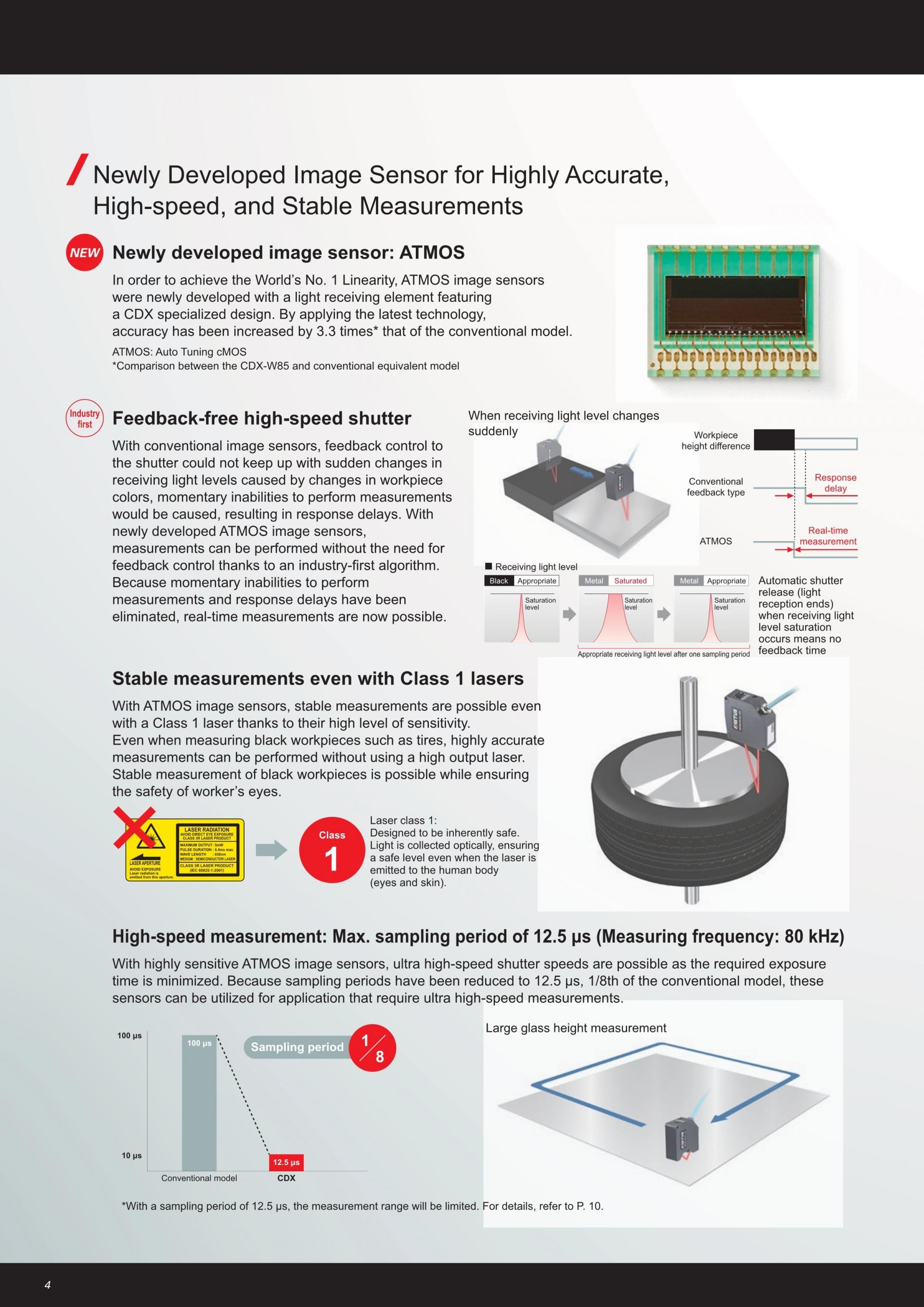

- Developed image sensor: ATMOS

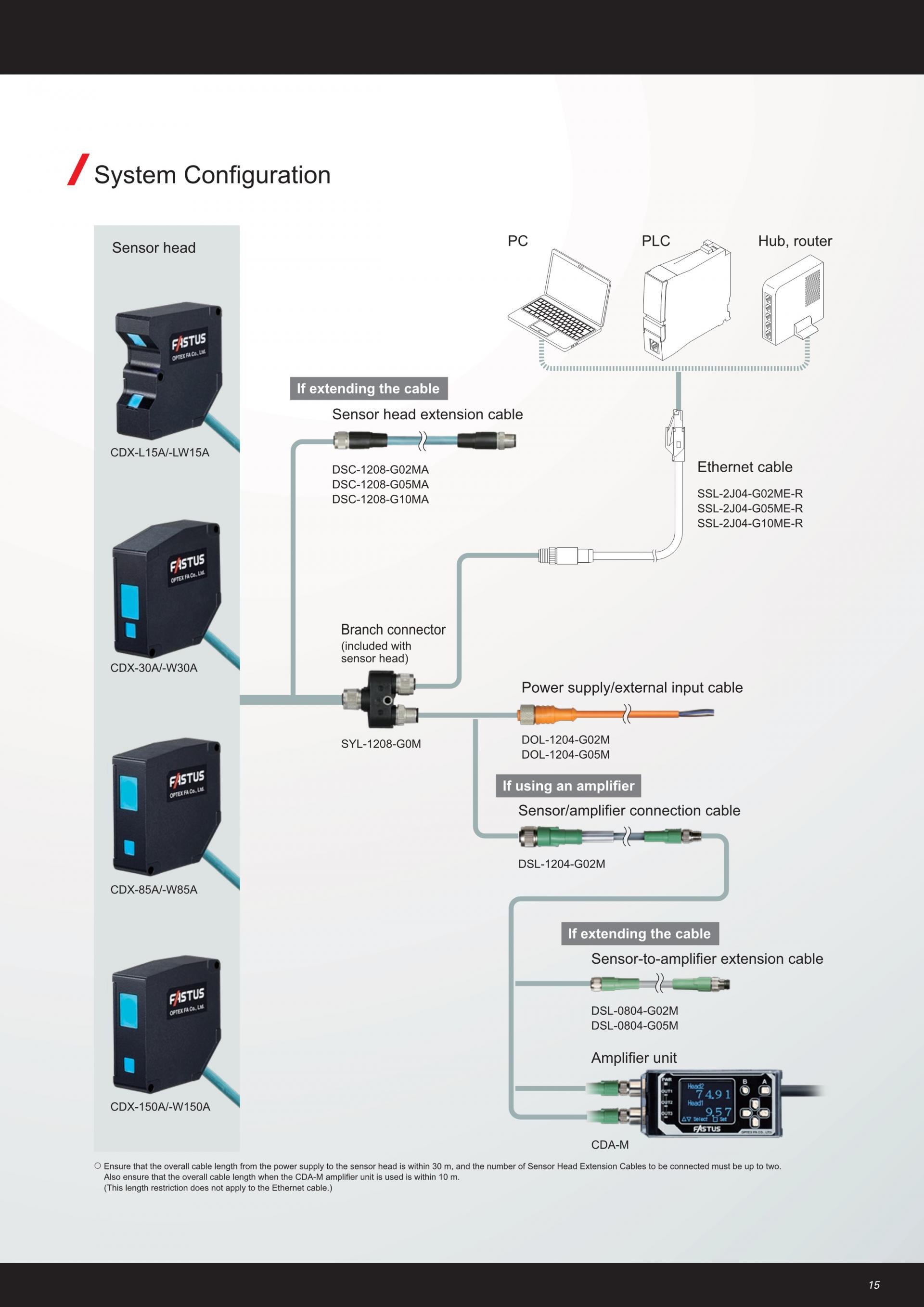

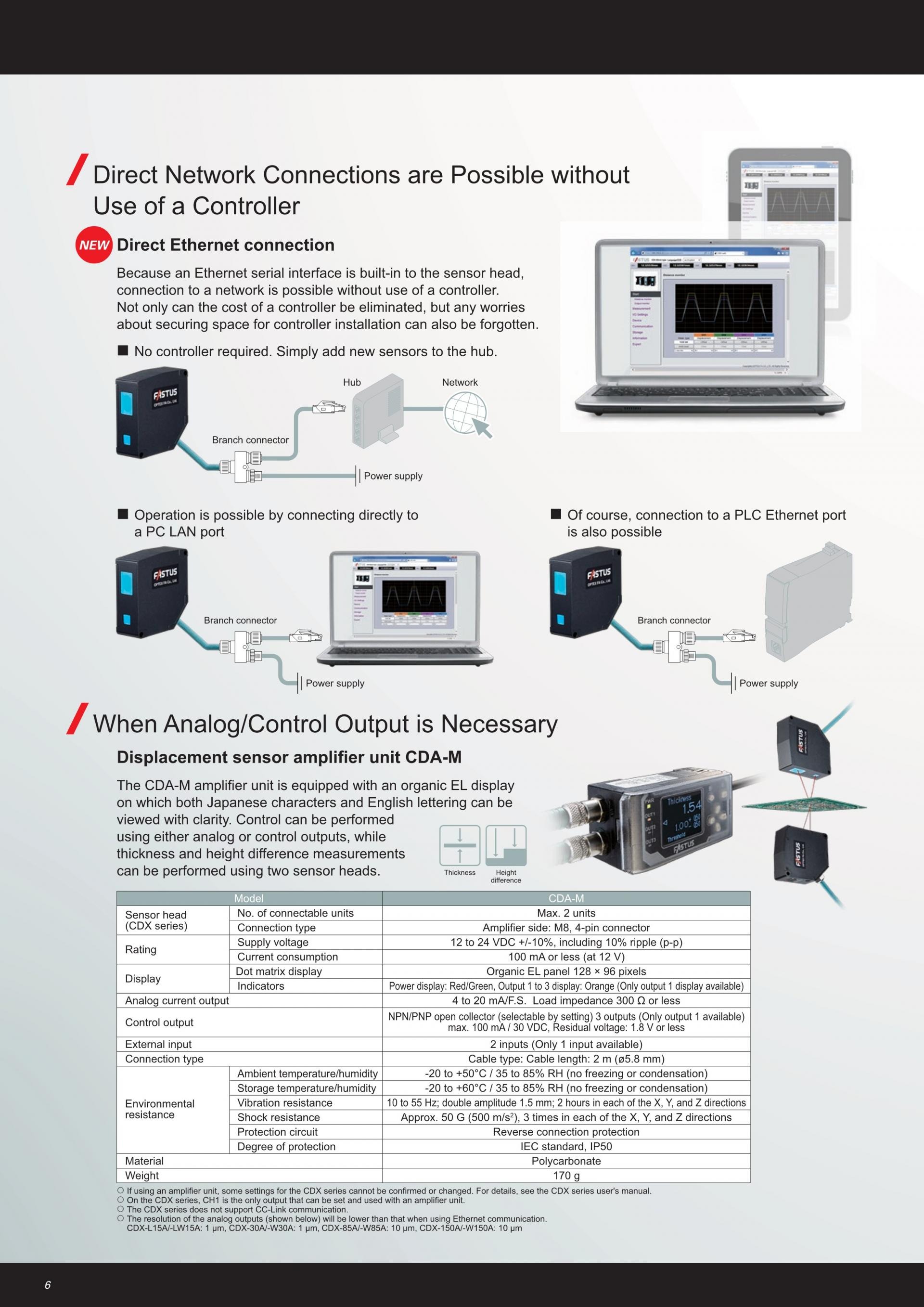

- Direct Ethernet connection

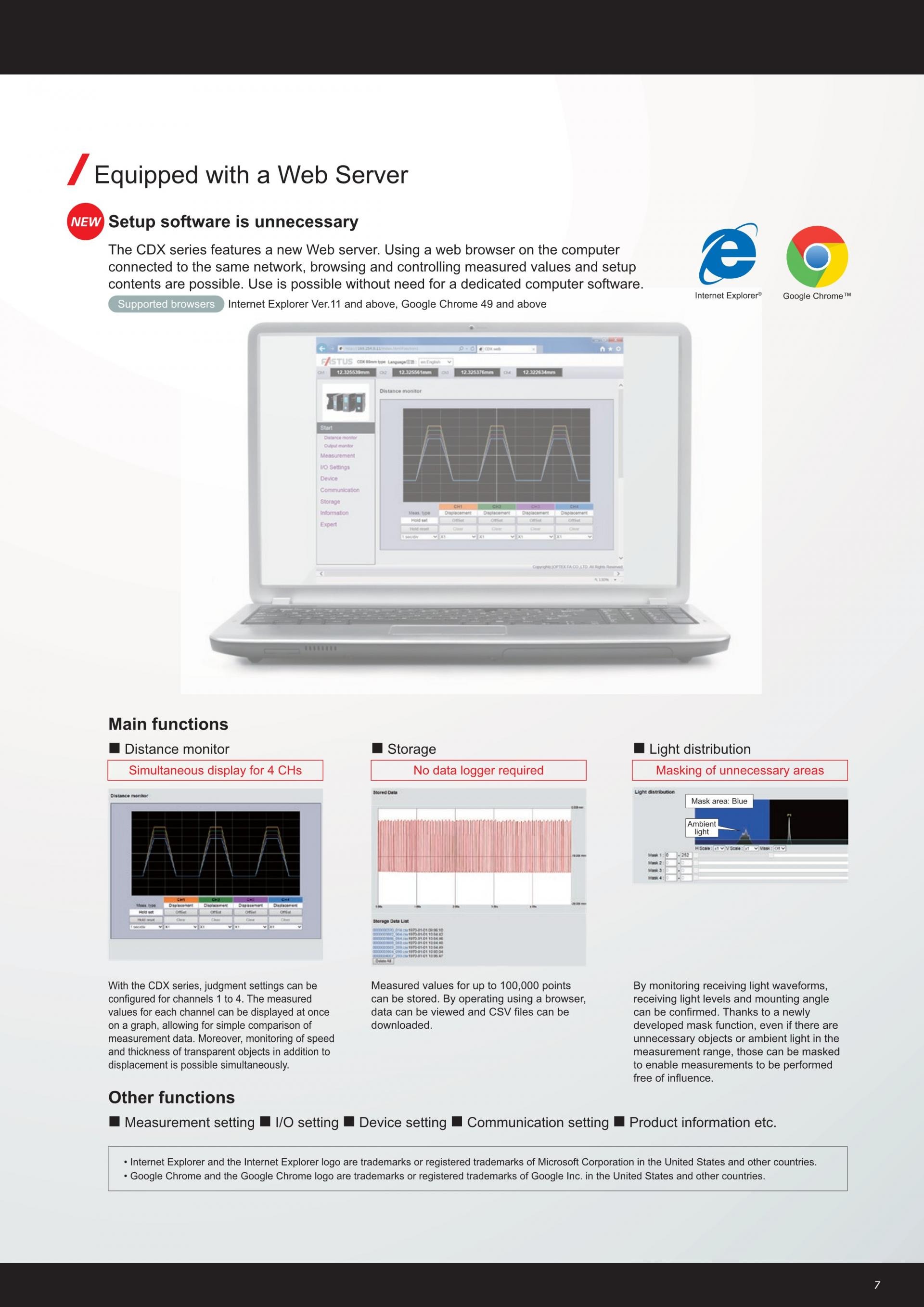

- Equipped with a Web Server
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA ・ OPTEX FA
CDX SERIES
초 고정밀 레이저 변위센서
CDX SERIES Ultra High-Accuracy Laser Displacement Sensors
옵텍스 에프에이 OPTEX FA CDX SERIES 초 고정밀 레이저 변위센서

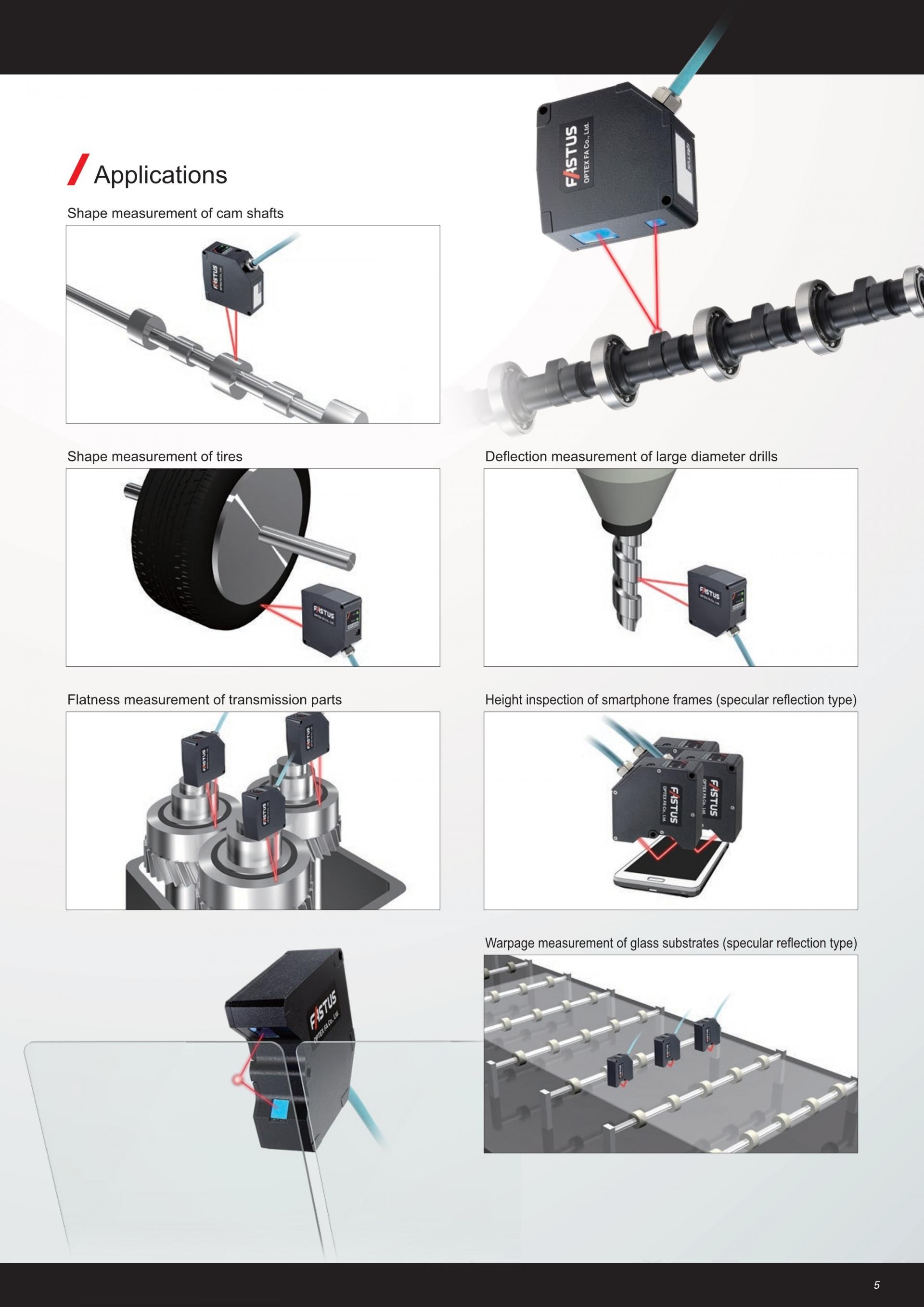

- Realize World’s No. 1 Linearity

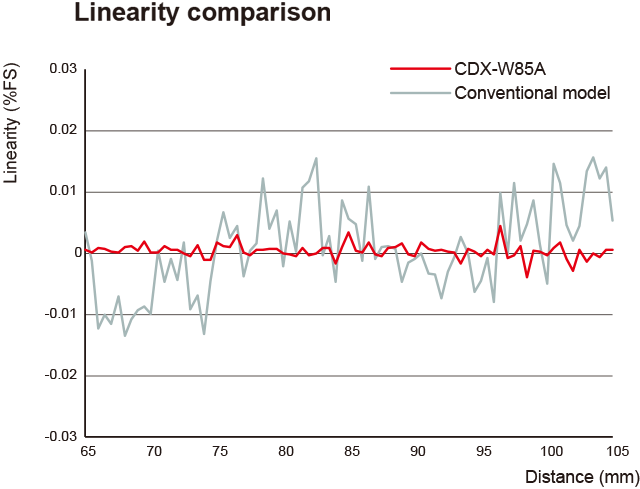

 Featuring the World’s No. 1 linearity that easily satisfies the [+/-0.015% F.S.] catalog specification, CDX series models realize measurements with significantly higher levels of accuracy than the conventional model. * Workpiece angle: +/-0°, diffuse mode. For measurement conditions, refer to the footnote of Lineup/specifications. |  |

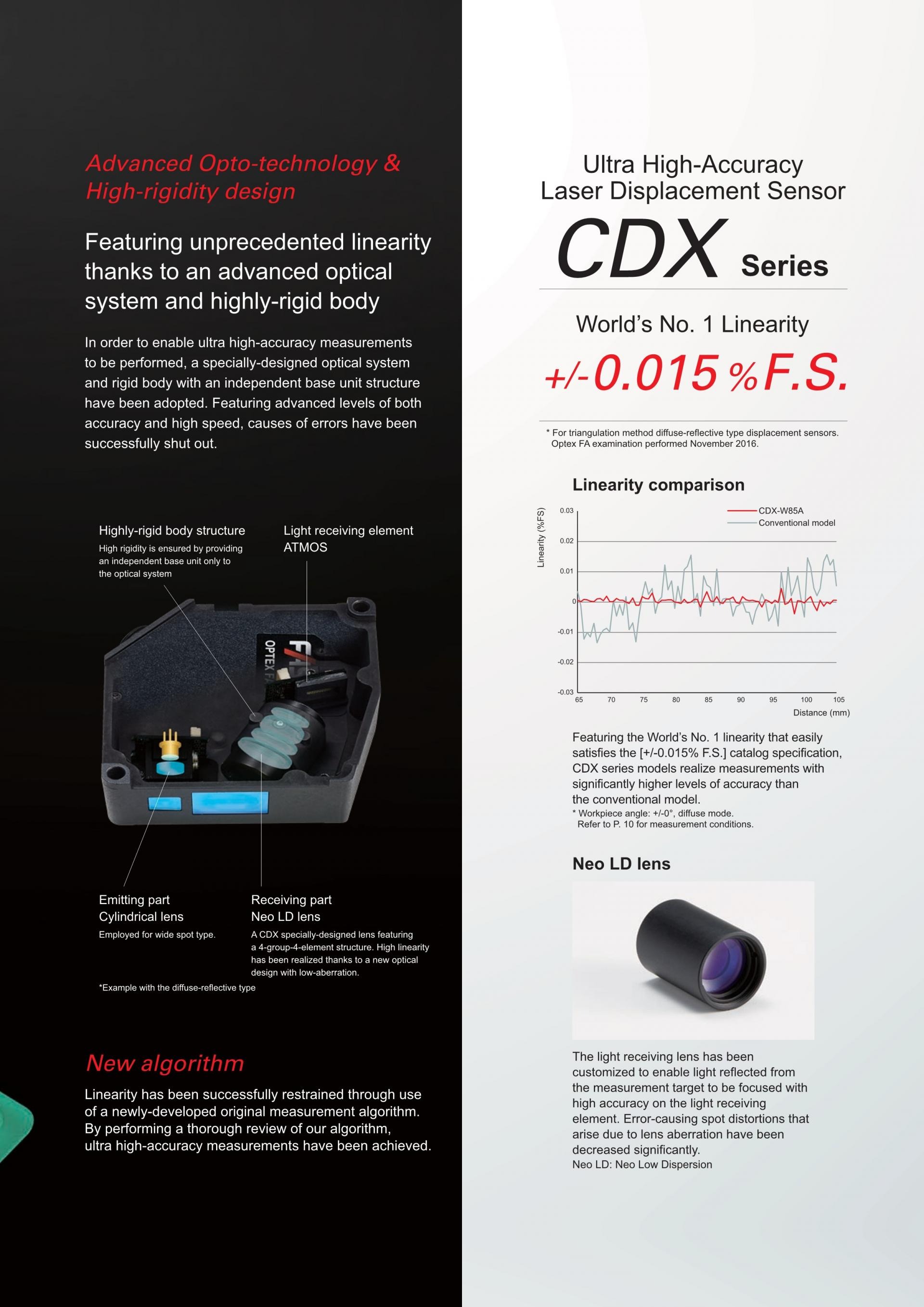

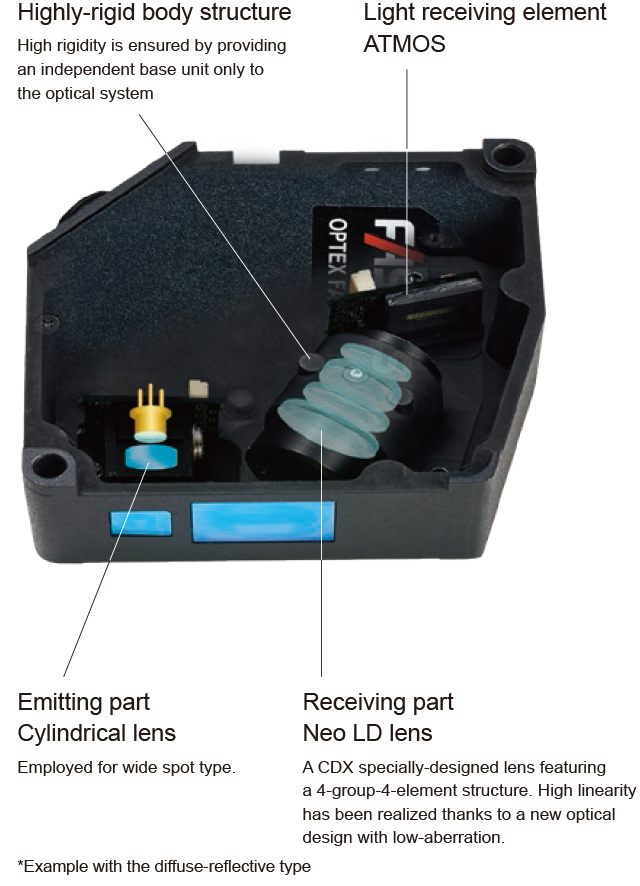

- Advanced optical system and highly-rigid body
In order to enable ultra high-accuracy measurements to be performed, a specially-designed optical system and rigid body with an independent base unit structure have been adopted.
Featuring advanced levels of both accuracy and high speed, causes of errors have been successfully shut out.

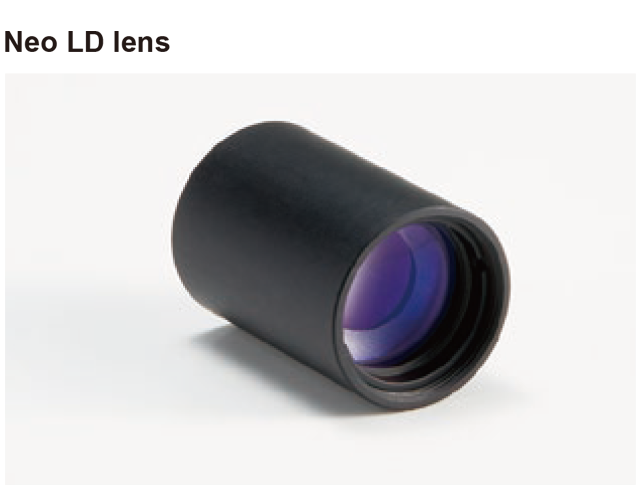

Equipped with Neo LD lens
The light receiving lens has been customized to enable light reflected from the measurement target to be focused with high accuracy on the light receiving element. Error-causing spot distortions that arise due to lens aberration have been decreased significantly.
Neo LD: Neo Low Dispersion

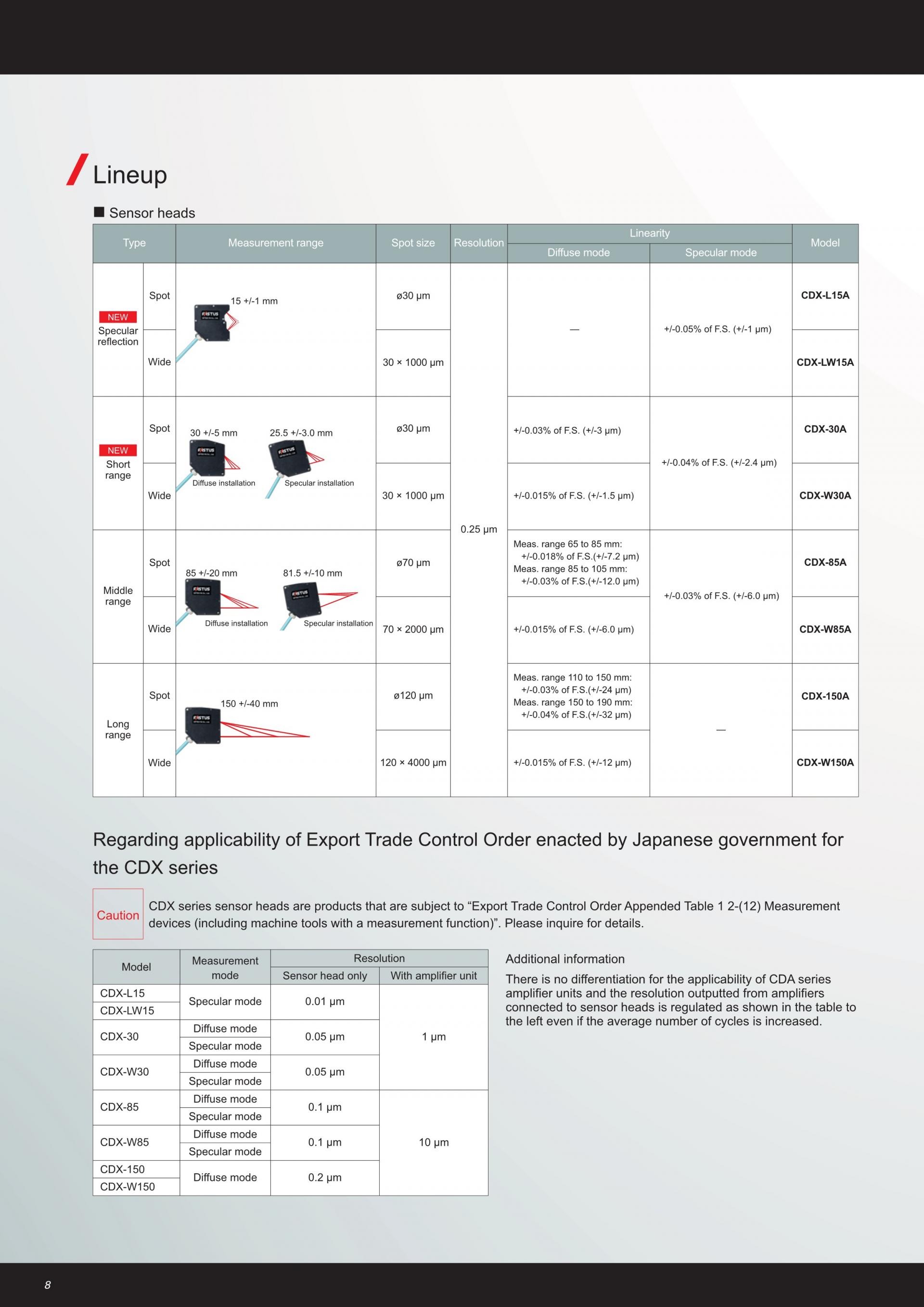

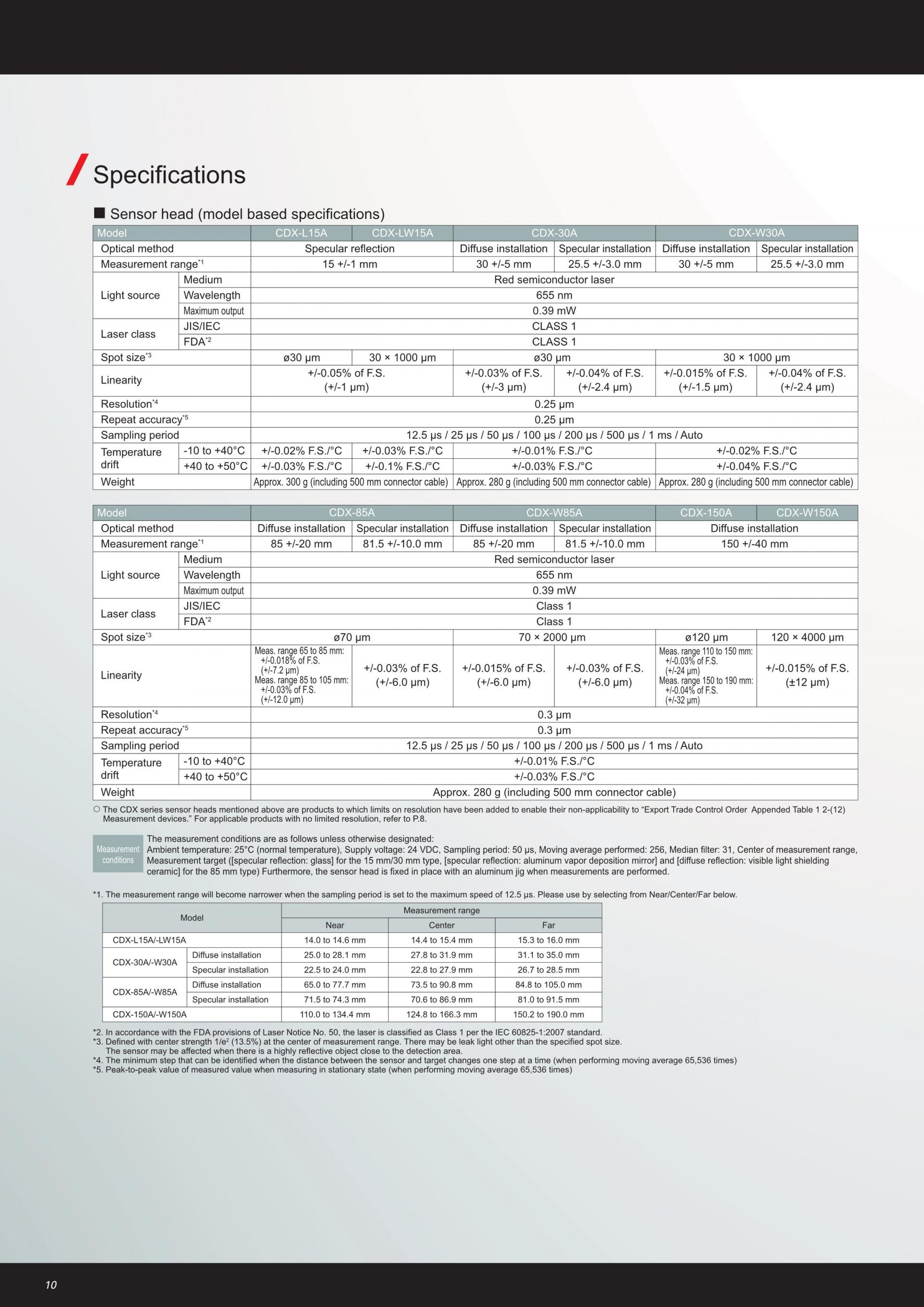

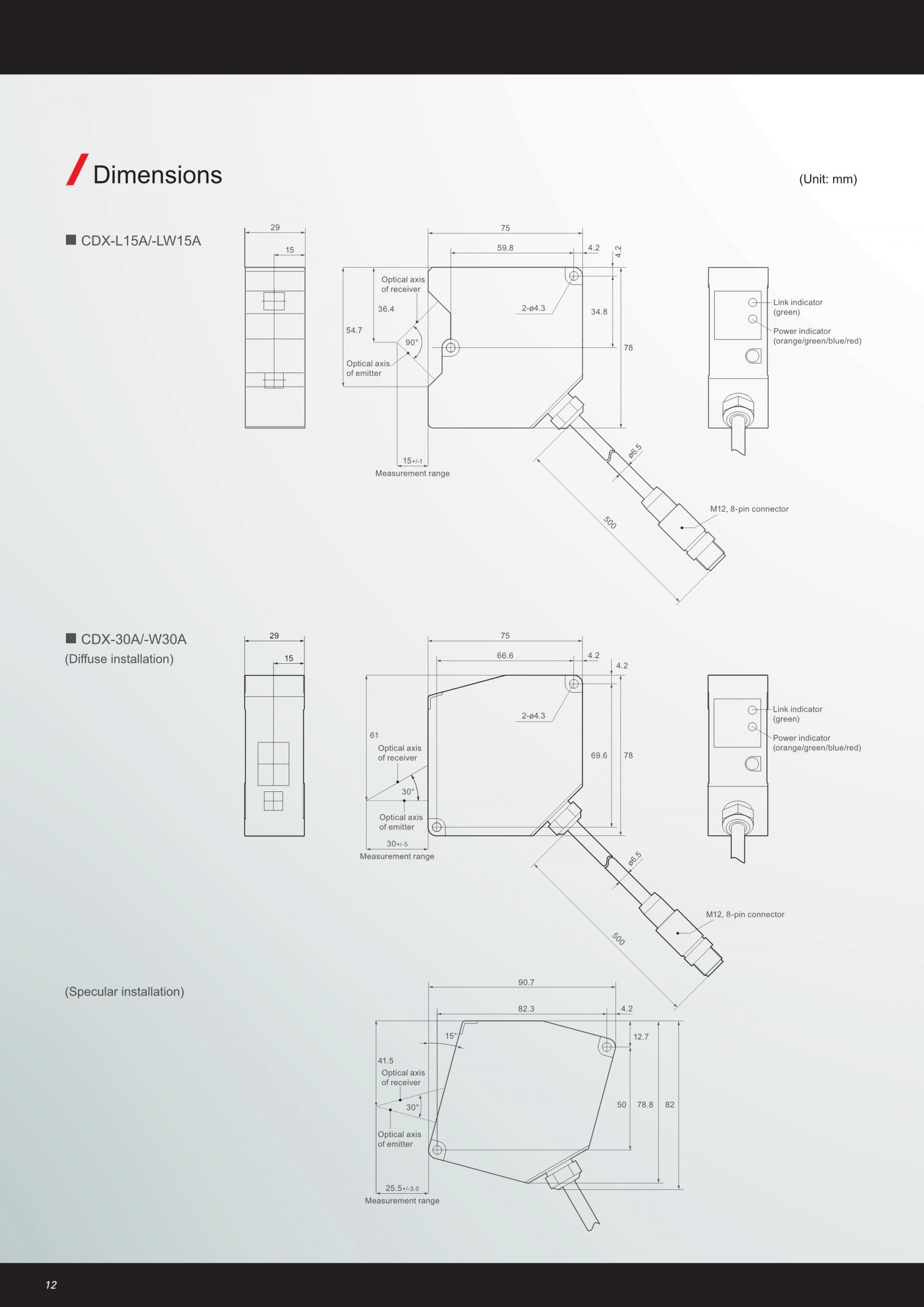

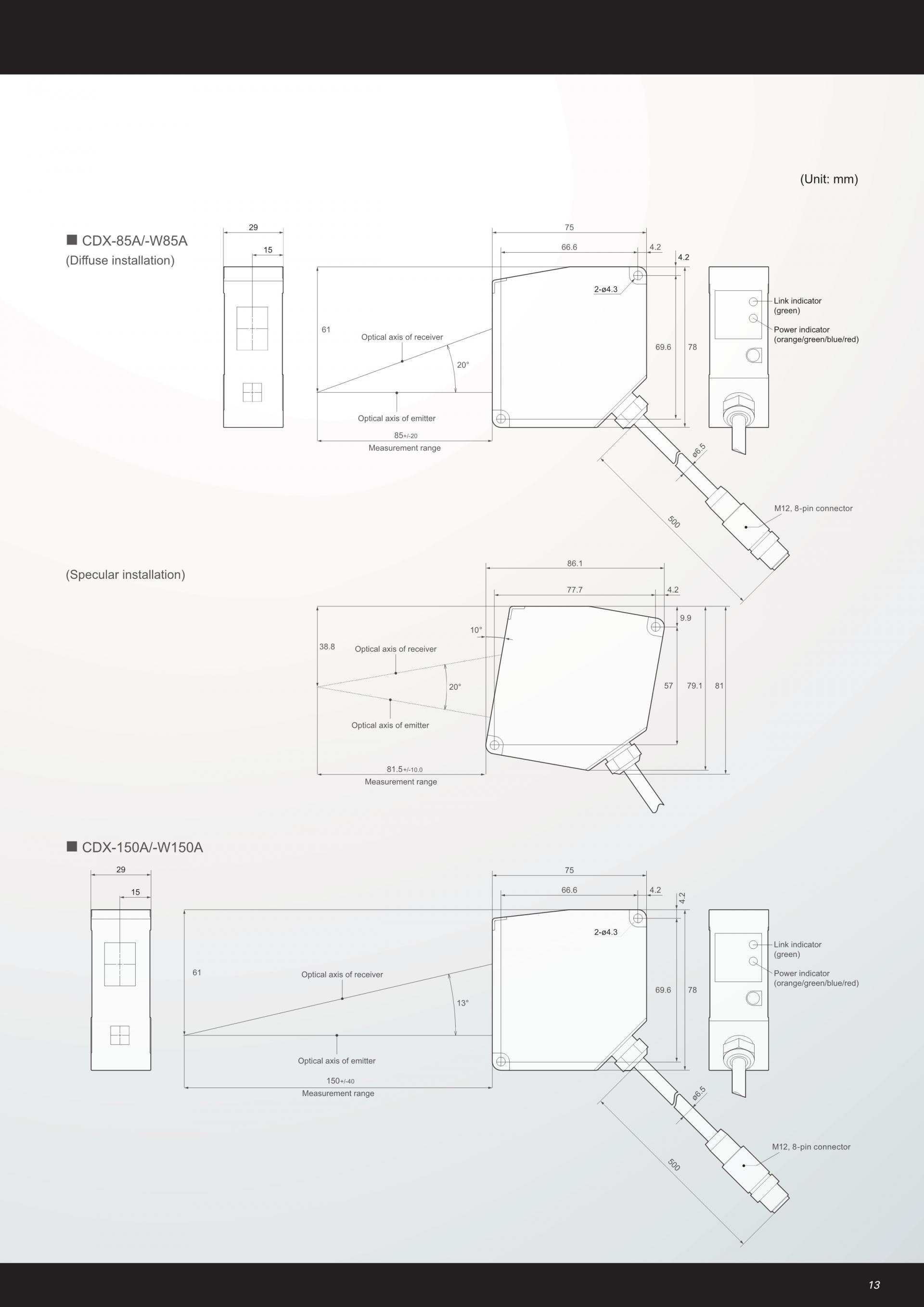

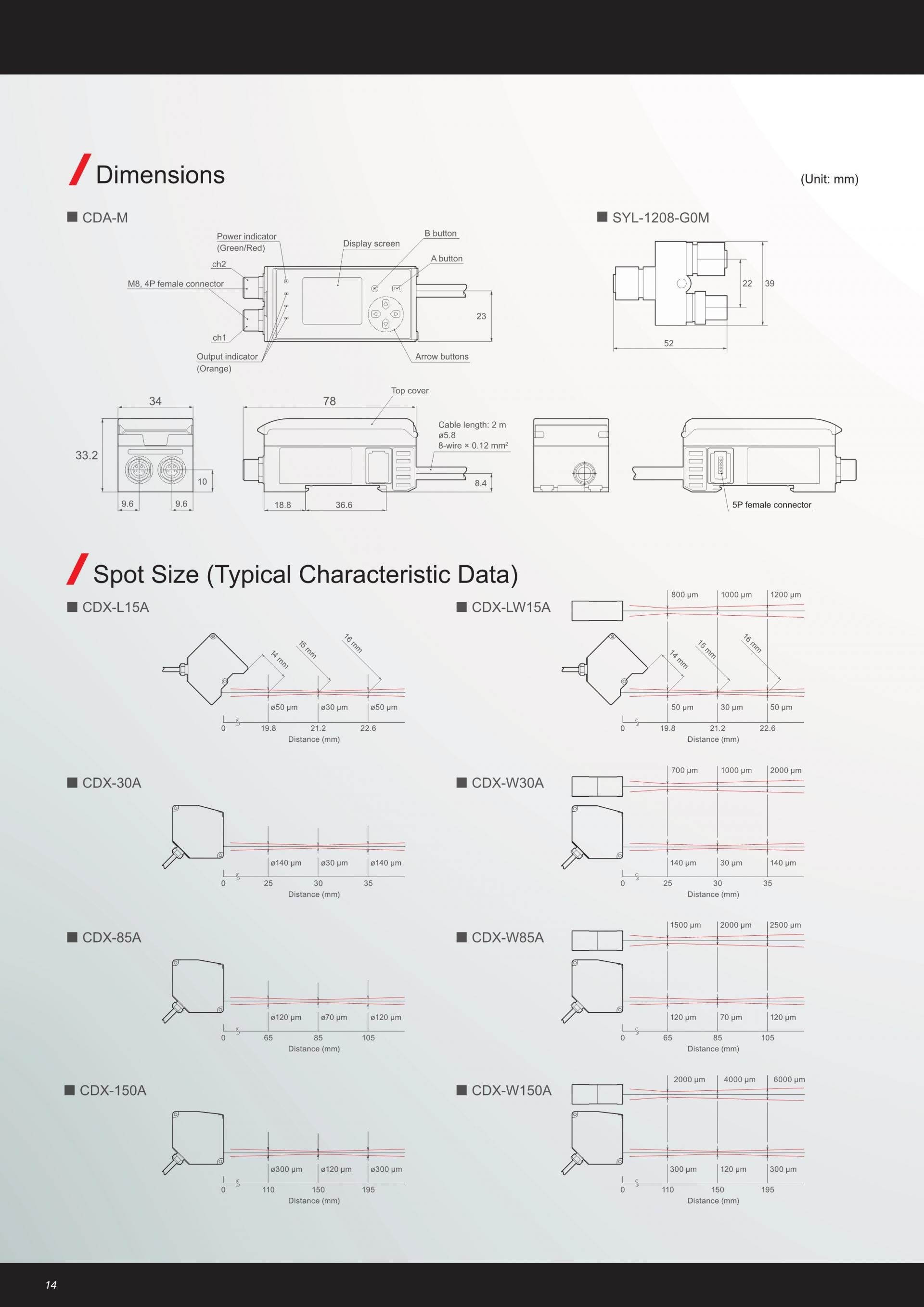

- LINEUP
| Specular reflection | Spot |  | ø30 μm | 0.25 μm | — | +/-0.05% of F.S. (+/-1 μm) | CDX-L15A |
| Wide | 30 × 1000 μm | CDX-LW15A | |||||
| Short range | Spot |  | ø30 μm | +/-0.03% of F.S. (+/-3 μm) | +/-0.04% of F.S. (+/-2.4 μm) | CDX-30A | |
| Wide | 30 × 1000 μm | +/-0.015% of F.S. (+/-1.5 μm) | CDX-W30A | ||||
| Middle range | Spot | ø70 μm | Meas. range 65 to 85 mm: +/-0.018% of F.S.(+/-7.2 μm) Meas. range 85 to 105 mm: +/-0.03% of F.S.(+/-12.0 μm) | +/-0.03% of F.S. (+/-6.0 μm) | CDX-85A | ||
| Wide | 70 × 2000 μm | +/-0.015% of F.S. (+/-6.0 μm) | CDX-W85A | ||||
| Long range | Spot |  | ø120 μm | Meas. range 110 to 150 mm: +/-0.03% of F.S.(+/-24 μm) Meas. range 150 to 190 mm: +/-0.04% of F.S.(+/-32 μm) | — | CDX-150A | |
| Wide | 120 × 4000 μm | +/-0.015% of F.S. (+/-12 μm) | CDX-W150A |

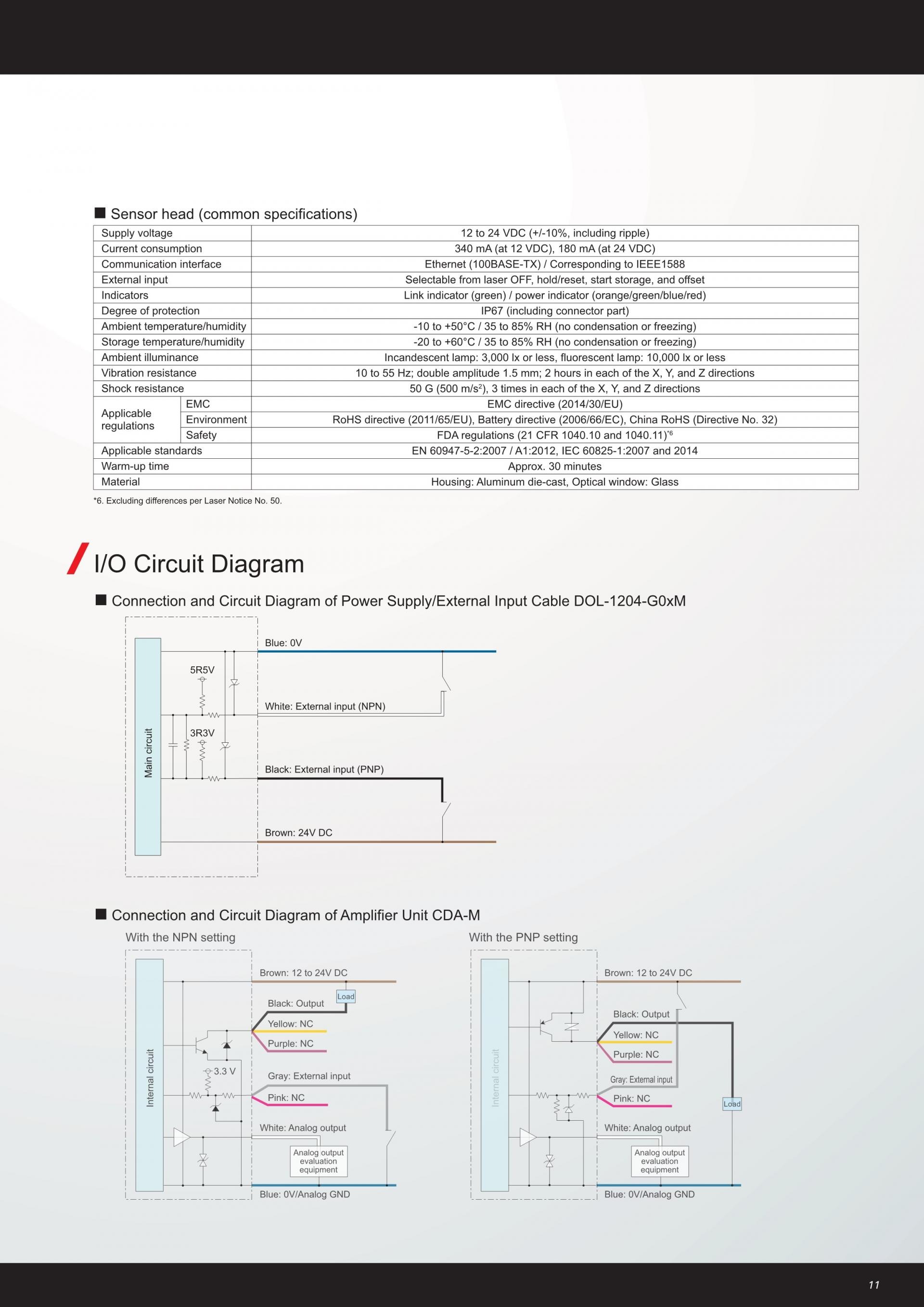

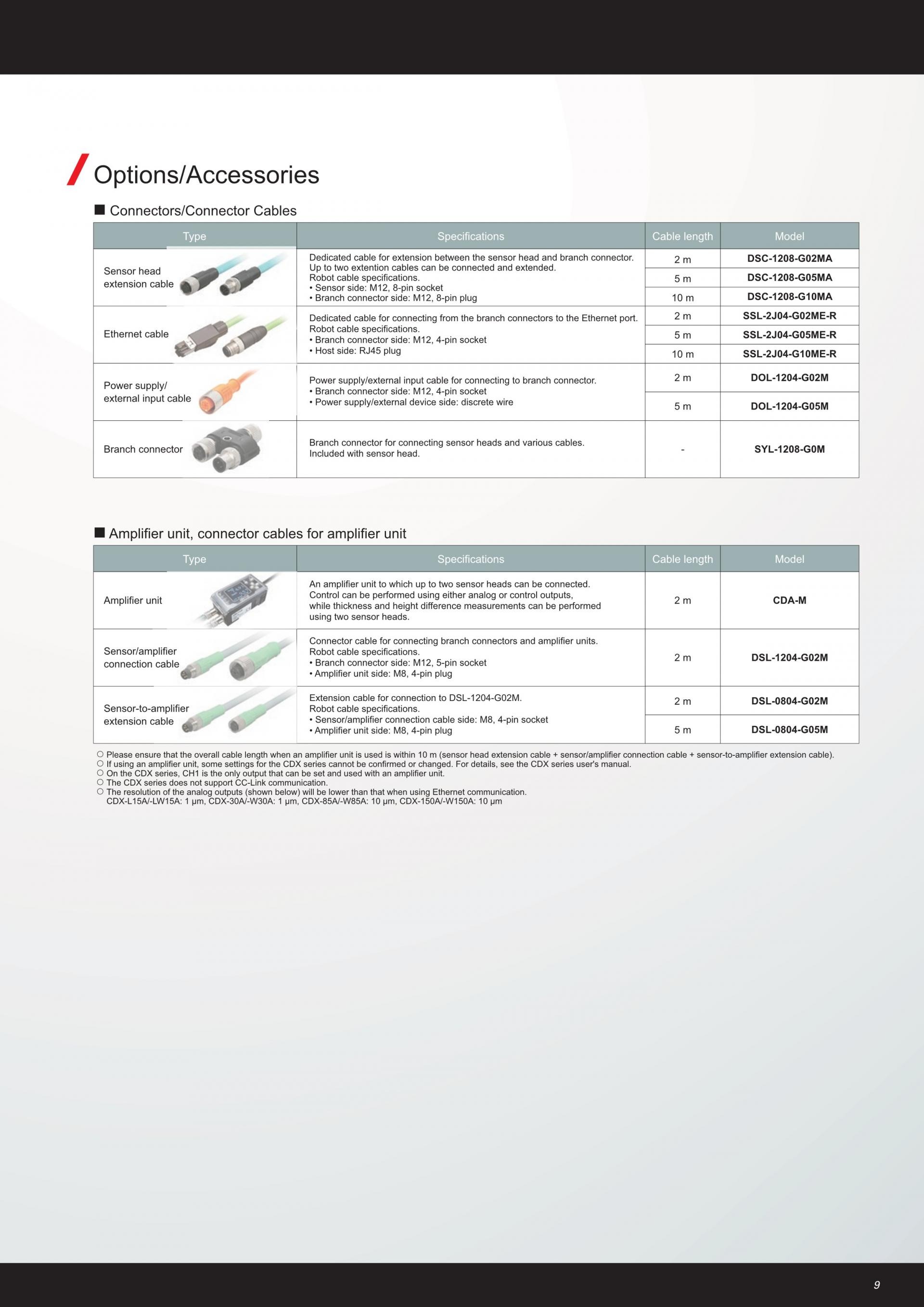

영문 데이터시트 & 매뉴얼 바로 가기
CDX-L15A CDX-LW15A CDX-30A CDX-W30A CDX-85A CDX-W85A CDX-150A CDX-W150A CDX L15A CDX LW15A CDX 30A CDX W30A CDX 85A CDX W85A CDX 150A CDX W150A CDX OPTEX FA CDX OPTEX CDX FASTUS CDX 옵텍스 FA CDX 옵텍스 CDX CDX OPTEX FA CDX OPTEX CDX FASTUS CDX 옵텍스 FA CDX 옵텍스
