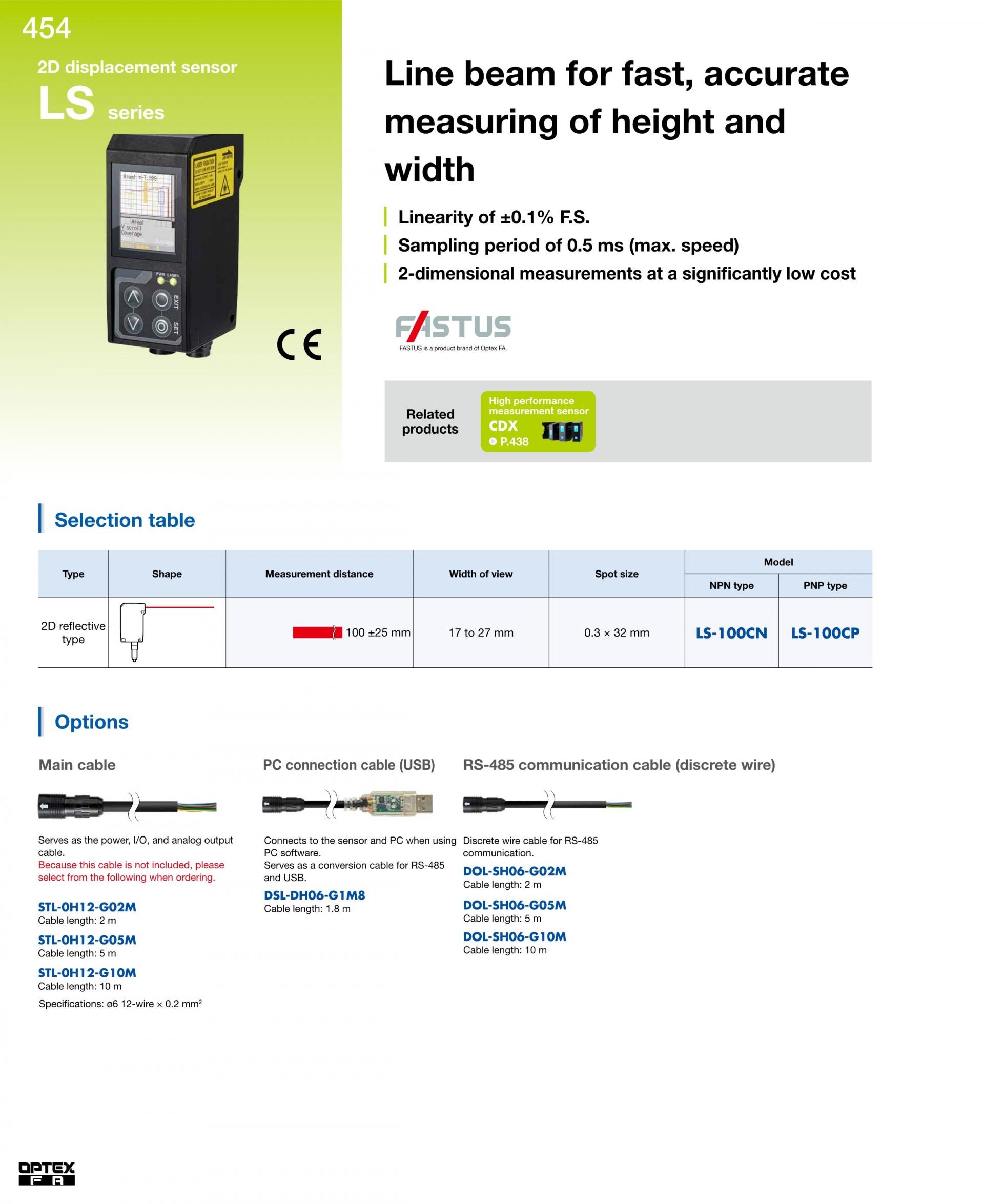

Line beam for fast, accurate measuring of height and width
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA OPTEX FA
LS SERIES
2차원 레이저 변위센서
LS SERIES 2-dimentional Laser Displacement Sensors

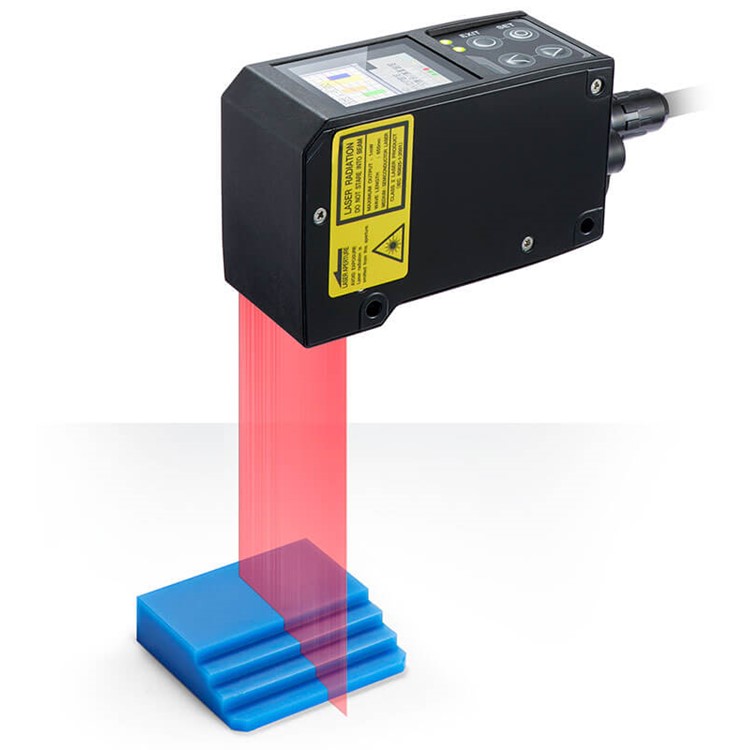

옵텍스 에프에이 OPTEX FA - LS SERIES 2차원 레이저 변위센서

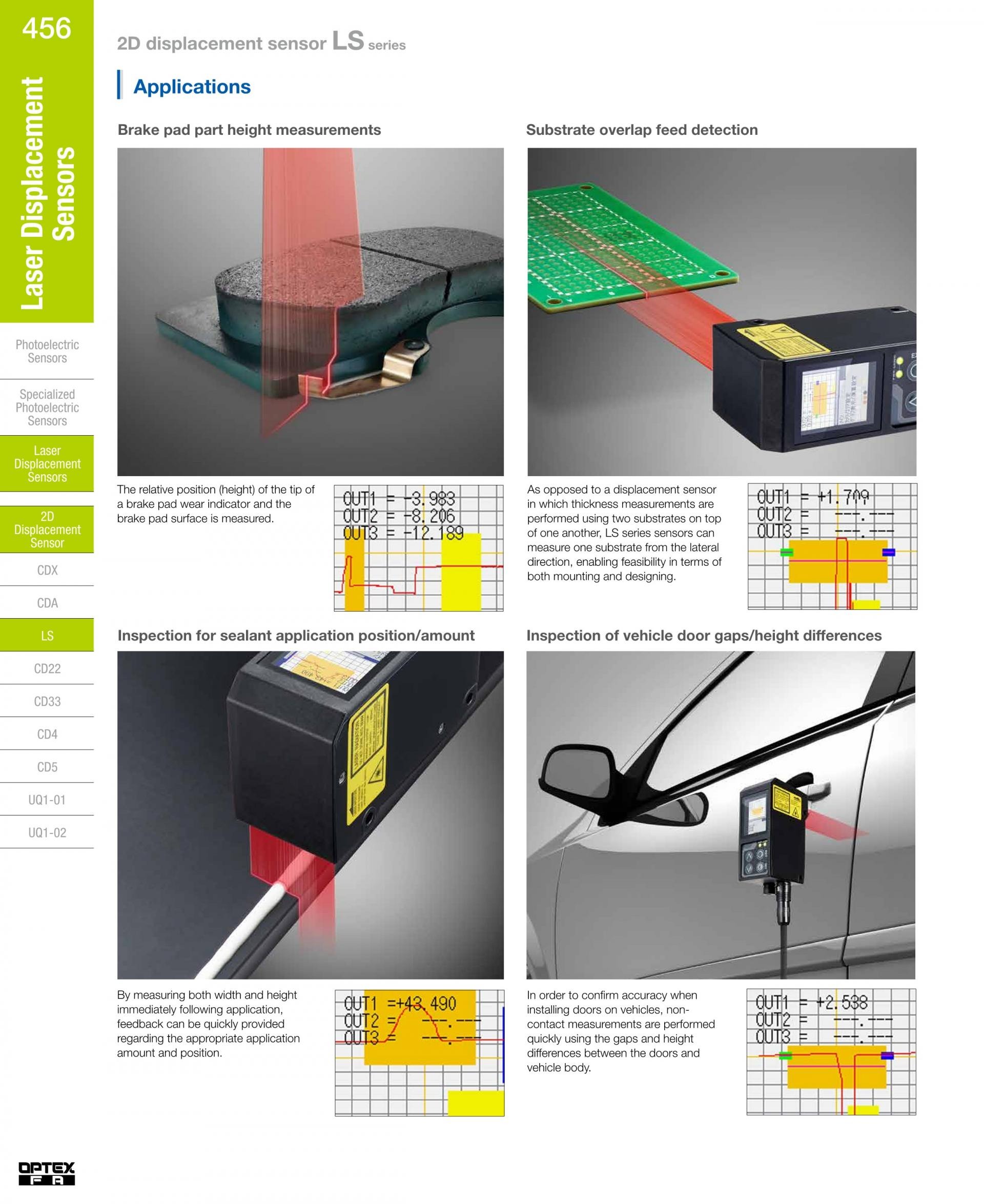

These sensors can be used on any manufacturing line to perform the shape measurements required for quality management of parts and materials. With the FASTUS LS series, high-accuracy 2D measurement sensor achieved both super cost effectiveness and significantly high speed measurement that conventional 1D measurement sensors can't achieve.
These are next generation 2D displacement sensors that have created a whole new category in part measurement.

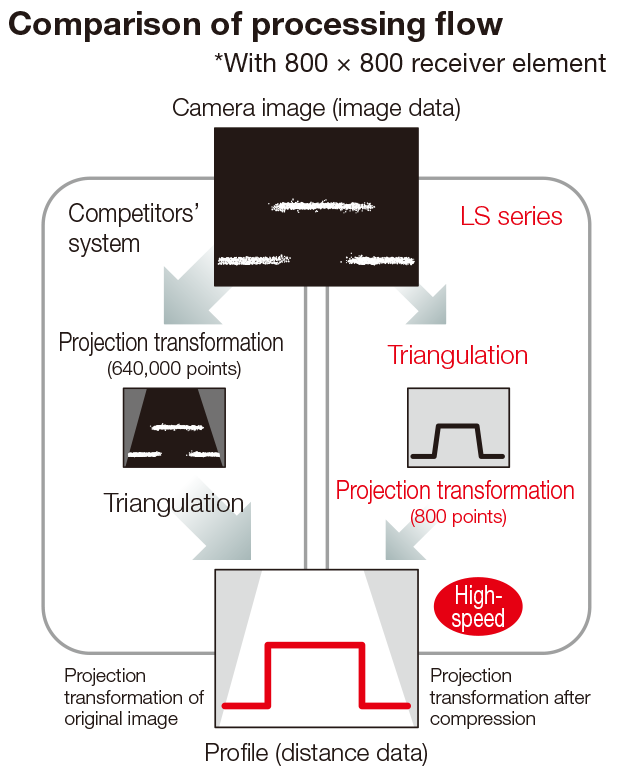

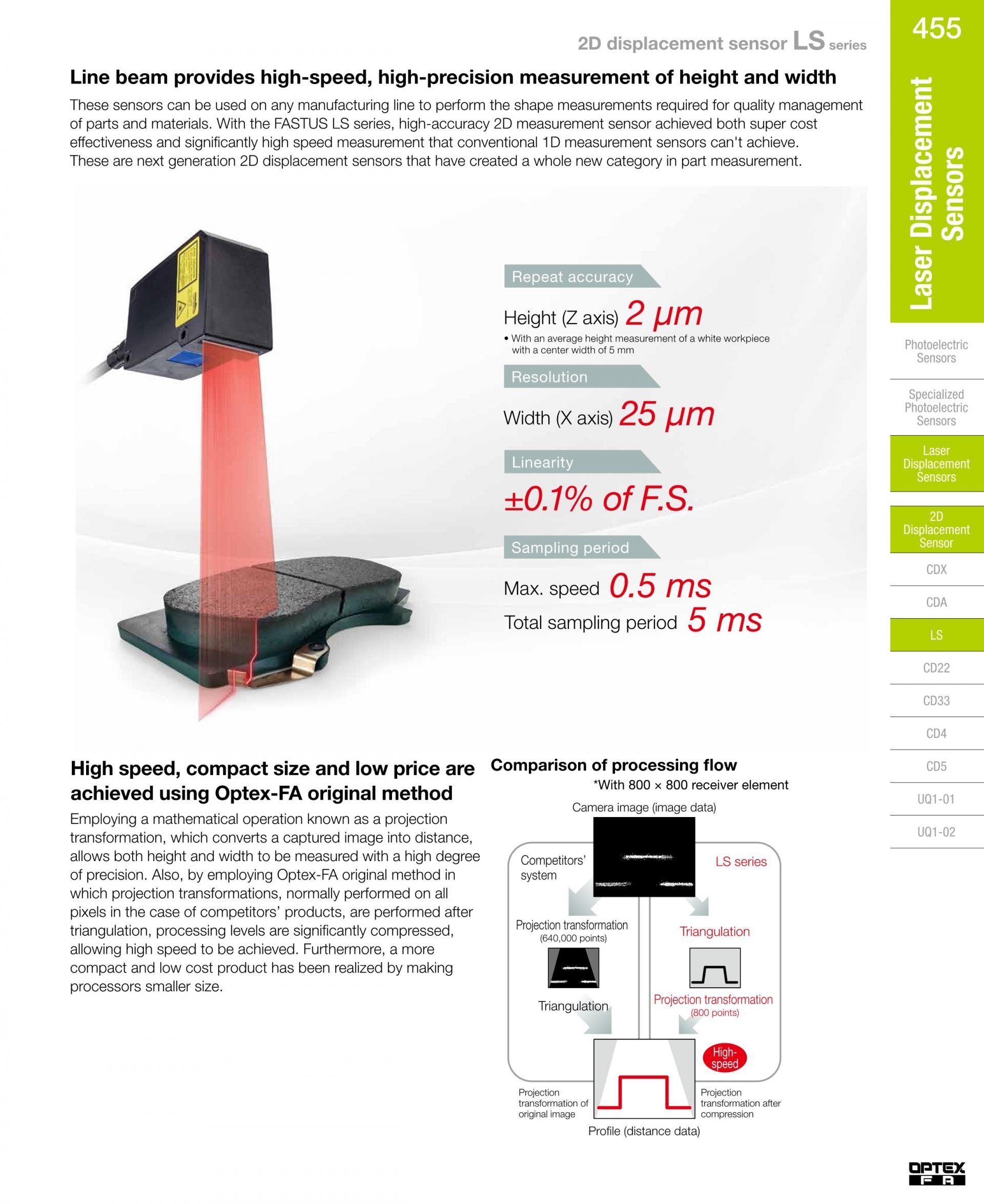

Employing a mathematical operation known as a projection transformation, which converts a captured image into distance, allows both height and width to be measured with a high degree of precision. Also, by employing Optex-FA original method in which projection transformations, normally performed on all pixels in the case of competitors’ products, are performed after triangulation, processing levels are significantly compressed, allowing high speed to be achieved. Furthermore, a more compact and low cost product has been realized by making processors smaller size. |  |
옵텍스 에프에이 OPTEX FA LS SERIES 2차원 레이저 변위센서
LS-100CN LS-100CP LS 100CN LS 100CP LS OPTEX FA LS OPTEX LS FASTUS LS 옵텍스 FA LS 옵텍스 LS LS OPTEX FA LS OPTEX LS FASTUS LS 옵텍스 FA LS 옵텍스
