옵텍스 에프에이 OPTEX FA UQ1 SERIES 변위센서 통신유닛 (가격문의)
111,111원

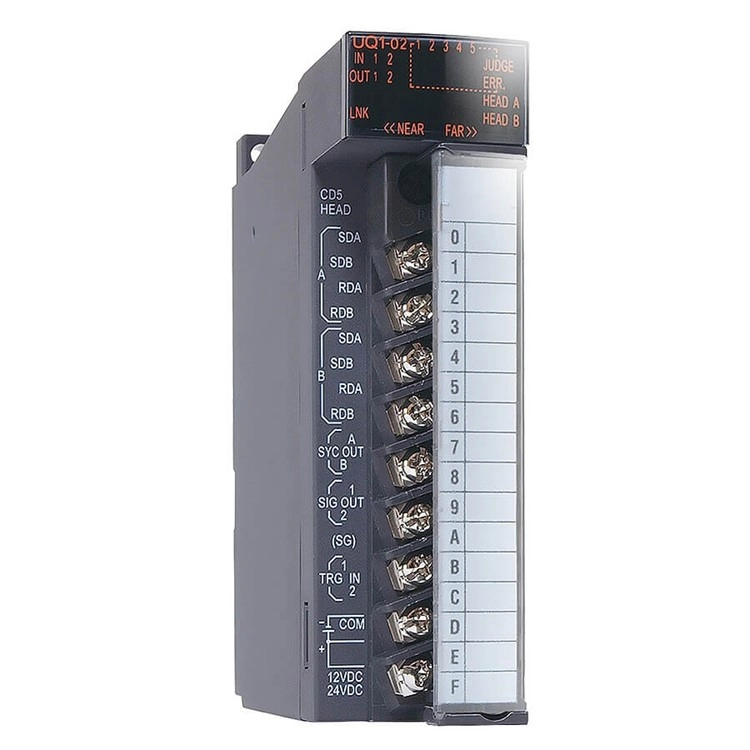

OPTEX FA UQ1 SERIES 변위센서 통신유닛
OPTEX FA UQ1 SERIES Displacement Sensor Communication Units
Can be connected to Mitsubishi Electric PLCs!
- The industry’s first displacement sensor control unit
- With three industry firsts, this unit enables high-speed connection of displacement sensors!
- Easy connection and set up.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA ・ OPTEX FA
UQ1 SERIES
변위센서 통신유닛
UQ1 SERIES Displacement Sensor Communication Units
옵텍스 에프에이 OPTEX FA UQ1 SERIES 변위센서 통신유닛

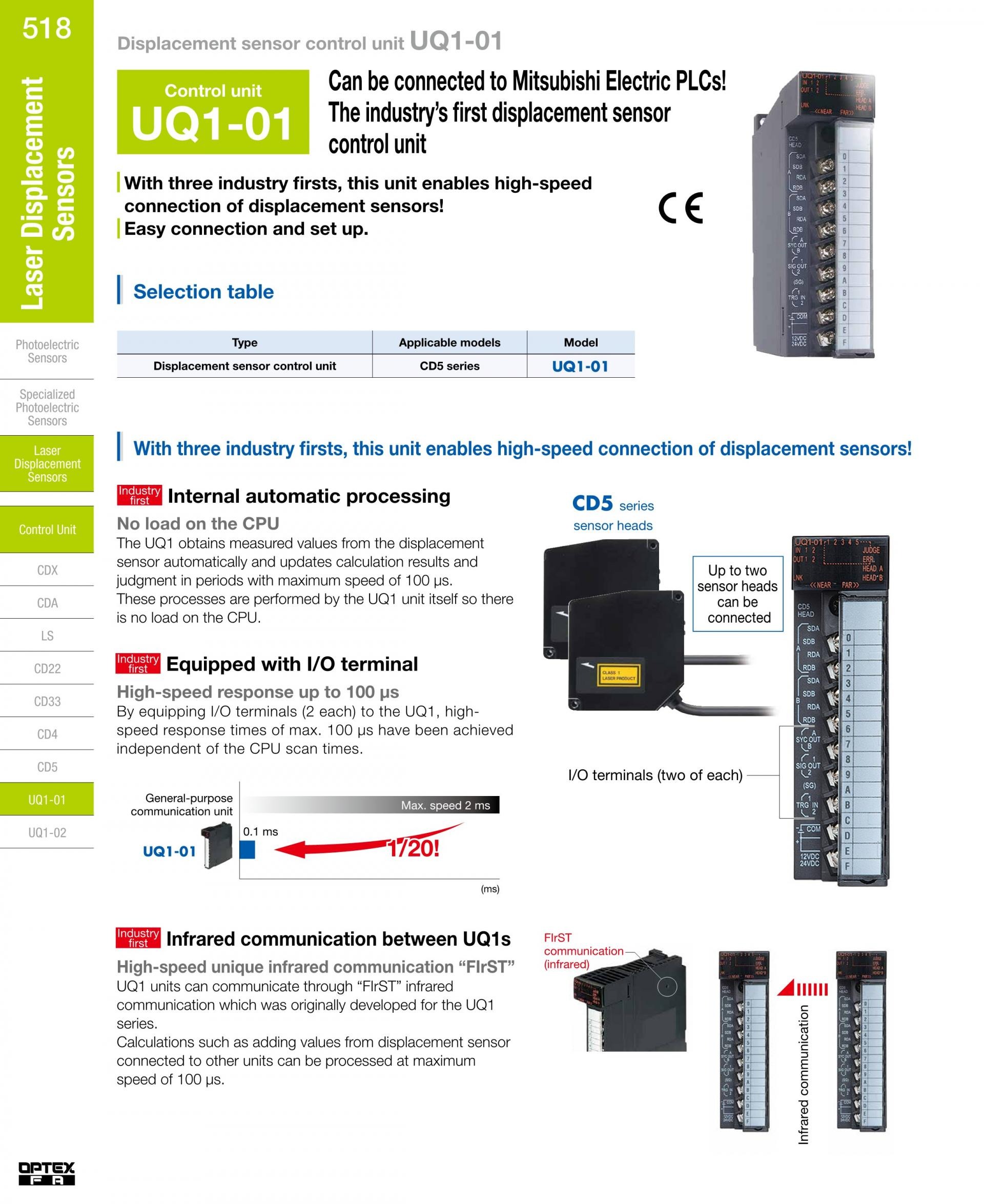

- With three industry firsts, this unit enables high-speed connection of displacement sensors!
No load on the CPU The UQ1 obtains measured values from the displacement sensor automatically and updates calculation results and judgment in periods with maximum speed of 100μs（UQ1-01）500μs（UQ1-02）. These processes are performed by the UQ1 unit itself so there is no load on the CPU.

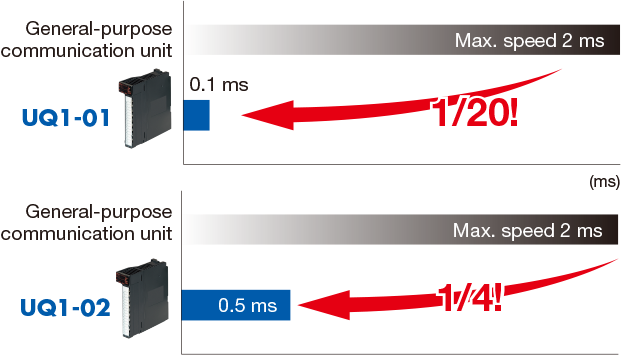

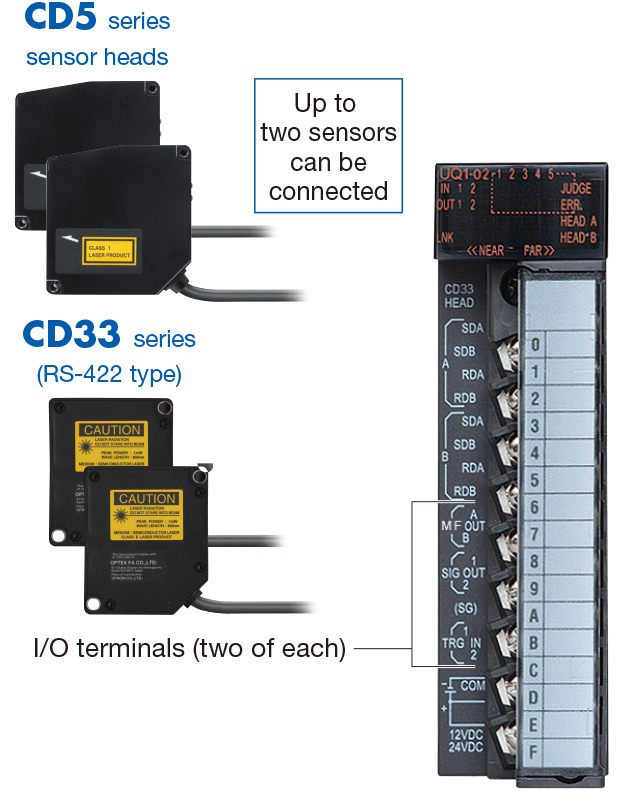

High-speed response up By equipping I/O terminals (2 each) to the UQ1, highspeed response times of max. 100μs（UQ1-01）500μs（UQ1-02） have been achieved independent of the CPU scan times.  |  |

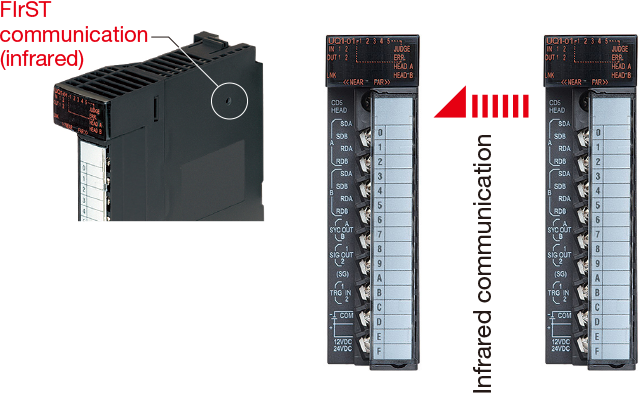

High-speed unique infrared communication “FIrST” UQ1 units can communicate through “FIrST” infrared communication which was originally developed for the UQ1 series. Calculations such as adding values from displacement sensor connected to other units can be processed at maximum speed of 100 μs. |  |

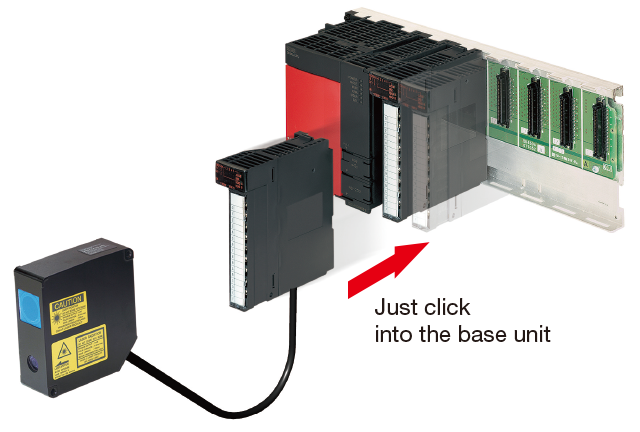

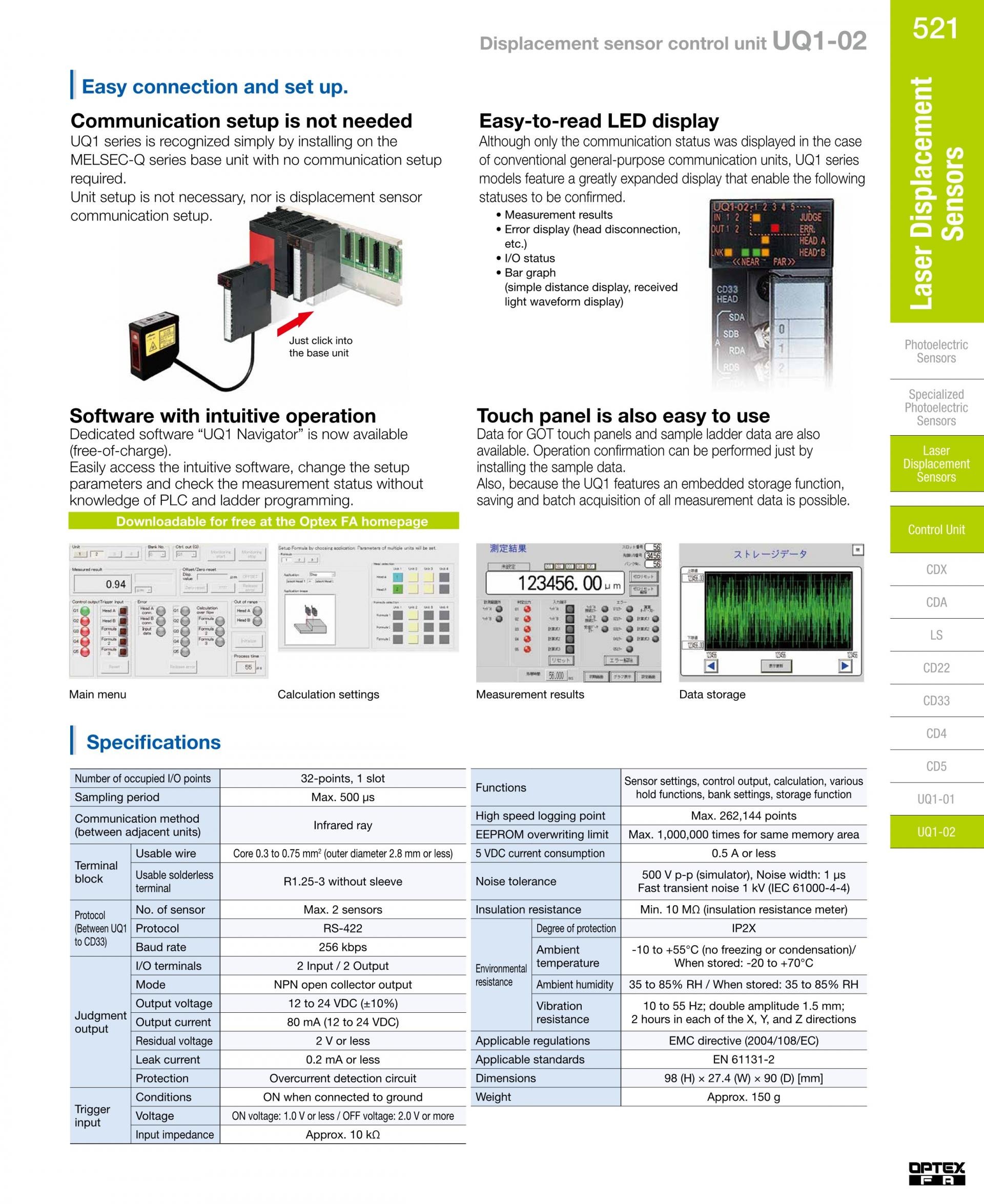

Communication setup is not needed UQ1 series is recognized simply by installing on the MELSEC-Q series base unit with no communication setup required. Unit setup is not necessary, nor is displacement sensor communication setup.  |

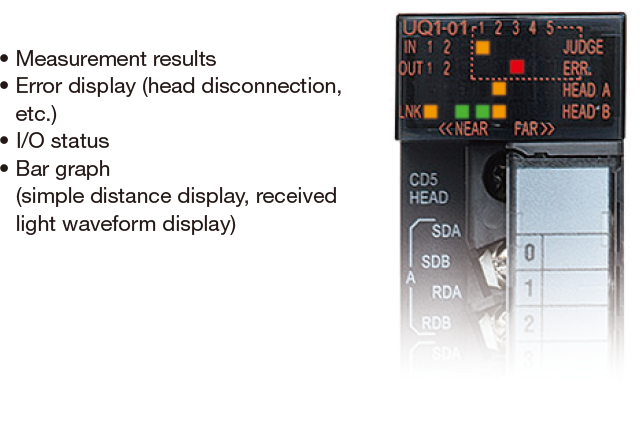

Although only the communication status was displayed in the case of conventional general-purpose communication units, UQ1 series models feature a greatly expanded display that enable the following statuses to be confirmed.  |

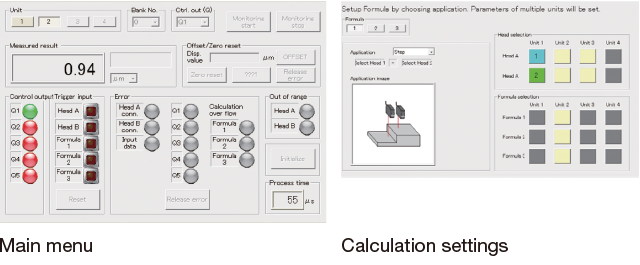

Dedicated software “UQ1 Navigator” is now available (free-of-charge). Easily access the intuitive software, change the setup parameters and check the measurement status without knowledge of PLC and ladder programming.  |

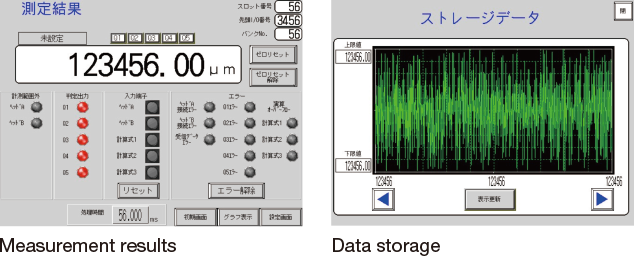

Data for GOT touch panels and sample ladder data are also available. Operation confirmation can be performed just by installing the sample data. Also, because the UQ1 features an embedded storage function, saving and batch acquisition of all measurement data is possible.  |
옵텍스 에프에이 OPTEX FA UQ1 SERIES 변위센서 통신유닛
UQ1-01 UQ1-02 UQ1 01 UQ1 02 UQ1 OPTEX FA UQ1 OPTEX UQ1 FASTUS UQ1 옵텍스 FA UQ1 옵텍스 UQ1 UQ1 OPTEX FA UQ1 OPTEX UQ1 FASTUS UQ1 옵텍스 FA UQ1 옵텍스
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA ・ OPTEX FA
UQ1 SERIES
변위센서 통신유닛
UQ1 SERIES Displacement Sensor Communication Units
옵텍스 에프에이 OPTEX FA UQ1 SERIES 변위센서 통신유닛
- With three industry firsts, this unit enables high-speed connection of displacement sensors!
No load on the CPU The UQ1 obtains measured values from the displacement sensor automatically and updates calculation results and judgment in periods with maximum speed of 100μs（UQ1-01）500μs（UQ1-02）. These processes are performed by the UQ1 unit itself so there is no load on the CPU.
High-speed response up By equipping I/O terminals (2 each) to the UQ1, highspeed response times of max. 100μs（UQ1-01）500μs（UQ1-02） have been achieved independent of the CPU scan times. | |
High-speed unique infrared communication “FIrST” UQ1 units can communicate through “FIrST” infrared communication which was originally developed for the UQ1 series. Calculations such as adding values from displacement sensor connected to other units can be processed at maximum speed of 100 μs. | |
Communication setup is not needed UQ1 series is recognized simply by installing on the MELSEC-Q series base unit with no communication setup required. Unit setup is not necessary, nor is displacement sensor communication setup. |
Although only the communication status was displayed in the case of conventional general-purpose communication units, UQ1 series models feature a greatly expanded display that enable the following statuses to be confirmed. |
Dedicated software “UQ1 Navigator” is now available (free-of-charge). Easily access the intuitive software, change the setup parameters and check the measurement status without knowledge of PLC and ladder programming. |
Data for GOT touch panels and sample ladder data are also available. Operation confirmation can be performed just by installing the sample data. Also, because the UQ1 features an embedded storage function, saving and batch acquisition of all measurement data is possible. |
옵텍스 에프에이 OPTEX FA UQ1 SERIES 변위센서 통신유닛
UQ1-01 UQ1-02 UQ1 01 UQ1 02 UQ1 OPTEX FA UQ1 OPTEX UQ1 FASTUS UQ1 옵텍스 FA UQ1 옵텍스 UQ1 UQ1 OPTEX FA UQ1 OPTEX UQ1 FASTUS UQ1 옵텍스 FA UQ1 옵텍스
