OPTEX FA BA SERIES 올인원 온도센서
OPTEX FA BA SERIES All-in-one Thermometers
Measurement temperature range: 0 to 500℃



문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
옵텍스 FA ・ OPTEX FA
BA SERIES
올인원 온도센서
BA SERIES All-in-one Thermometers

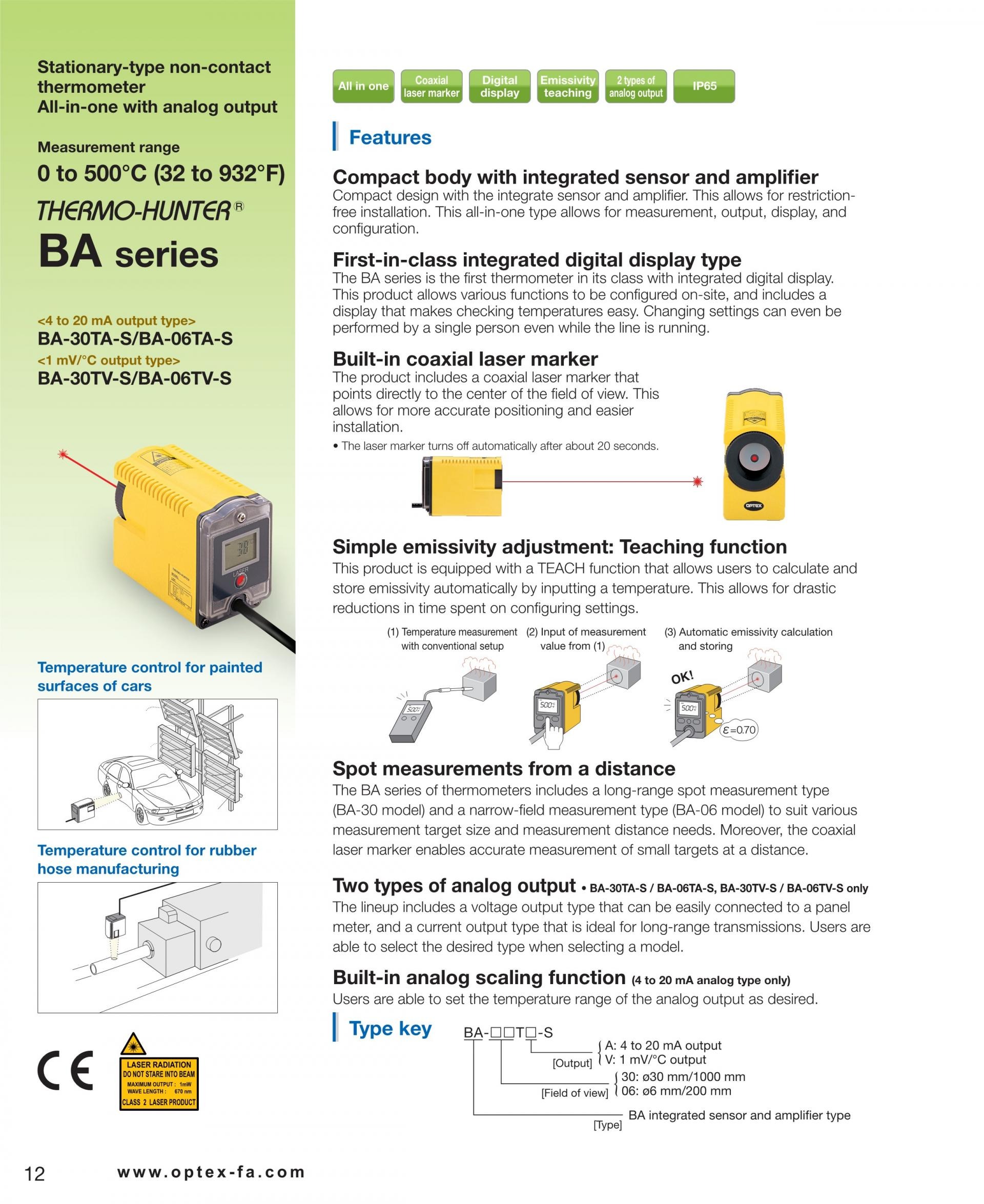

옵텍스 에프에이 OPTEX FA - BA SERIES 올인원 온도센서
- Immune to the influence of colors of measured objects - Measurement possible even if the target is vibrating - Long-distance detection (30 mm diameter at a distance of 1000 mm) - Detection even in severe environments |
Compact design with the integrate sensor and amplifier. This allows for restrictionfree installation. This all-in-one type allows for measurement, output, display, and configuration. |
The BA series is the first thermometer in its class with integrated digital display. This product allows various functions to be configured on-site, and includes a display that makes checking temperatures easy. Changing settings can even be performed by a single person even while the line is running. |
The BA series of thermometers includes a long-range spot measurement type (BA-30 model) and a narrow-field measurement type (BA-06 model) to suit various measurement target size and measurement distance needs. Moreover, the coaxial laser marker enables accurate measurement of small targets at a distance. |

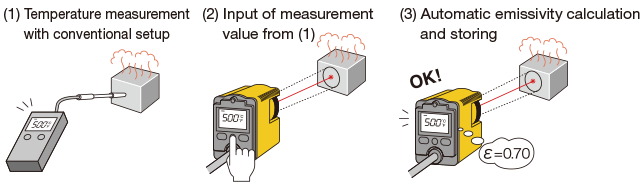

This product is equipped with a TEACH function that allows users to calculate and store emissivity automatically by inputting a temperature. This allows for drastic reductions in time spent on configuring settings. |
The product includes a coaxial laser marker that points directly to the center of the field of view. This allows for more accurate positioning and easier installation. -The laser marker turns off automatically after about 20 seconds. |
![]() | ![]() |
The lineup includes a voltage output type that can be easily connected to a panel meter, and a current output type that is ideal for long-range transmissions. Users are able to select the desired type when selecting a model. ・BA-30TA-S / BA-06TA-S, BA-30TV-S / BA-06TV-S only |
Users are able to set the temperature range of the analog output as desired. (4 to 20 mA analog type only) |

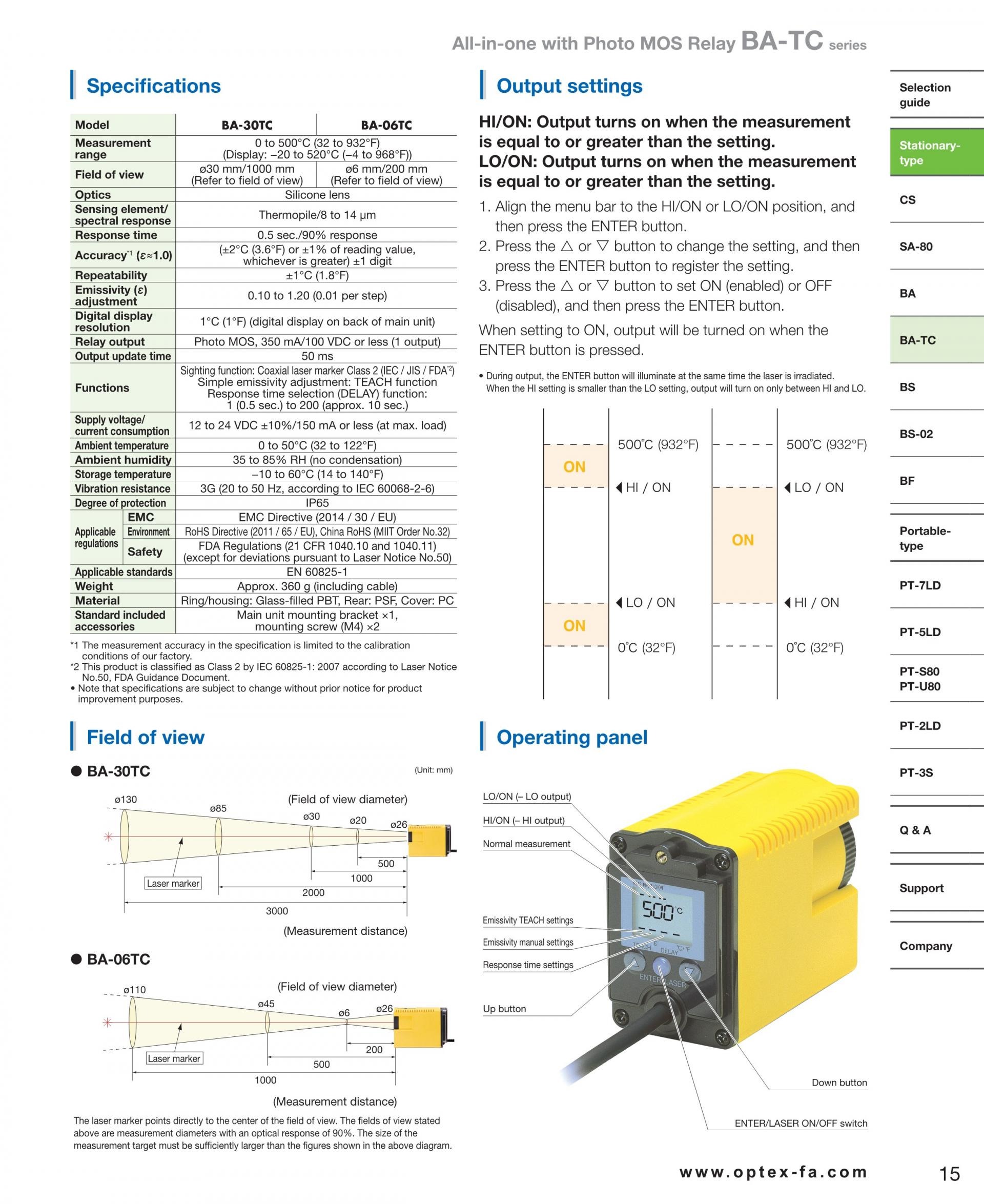

The photo MOS relay output function makes configuration of upper and lower limit settings possible. *BA-30TC / BA-06TC only |






옵텍스 에프에이 OPTEX FA - BA SERIES 올인원 온도센서
