키모 KIMO Si-PM3 휴대용 디지털 차압계 – 굿맨시스템 (가격문의)
111,111원

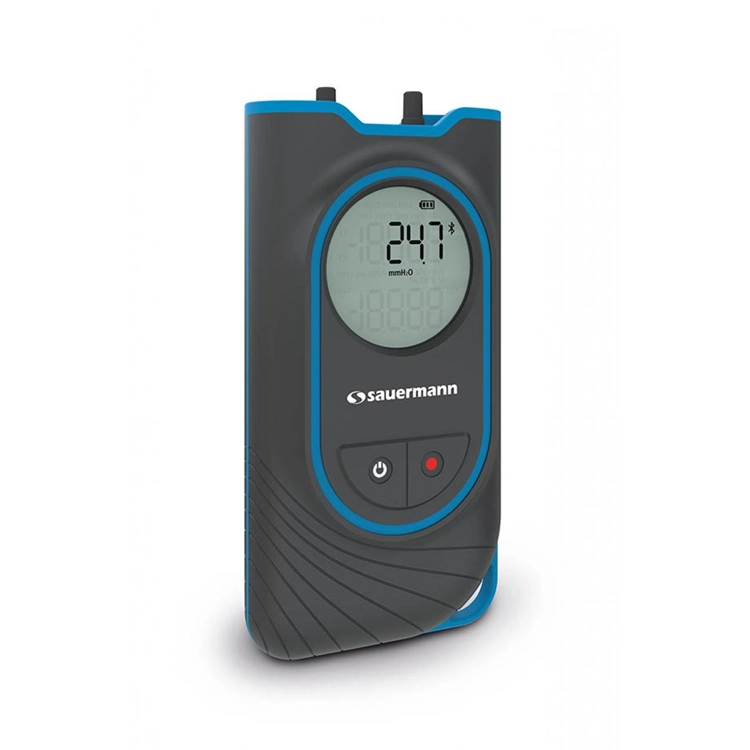

키모 KIMO Si-PM3 휴대용 디지털 차압계
The palm-sized Sauermann Si-PM3 digital differential pressure manometer easily measures pressure.
- 측정범위 : -150 ~ +150hPa
- 백라이트 LCD화면
- 쉬운 고정을 위한 마그네틱 기능
- 피토튜브를 사용하여 풍속/풍량 측정(옵션)
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
KIMO® – KIMO INSTRUMENTS ・ SAUERMANN GROUP
Si-PM3
– 휴대용 디지털 차압계
– Digital Differential Pressure Manometer
– Manomètre numérique de pression différentielle
키모 SiPM3 키모 Si-PM3 키모 Si PM3 키모 KIMO SiPM3 KIMO Si-PM3 KIMO Si PM3 KIMO
Measuring instruments > Portable instruments > Micromanometers > Si-PM3
Si-PM3
The palm-sized Sauermann Si-PM3 digital differential pressure manometer easily measures pressure.
- Measuring range: -150 to +150 hPa (-60 to 60 inH2O)
- Backlit LCD screen
- Magnetic backing for easy fixing & carrying bag
- Air velocity and airflow with Pitot tube (optional)
Product info-
MEASURE DETAILS
Units
inH2O, Pa, mbar, hPa, mmH2O, psi
MEASURING RANGES
Pressure
-150.00 hPa ... 150.00 hPa
Airflow
0.00 m³/h ... 9999.00 m³/h
Air velocity
2.00 m/s ... 80.00 m/s
TECHNICAL DETAILS
Parameters
Air velocity
Airflow
Differential pressure
Airflow
Differential pressure
Displays
2-line display
IP Protection
IP 40
Battery life
170 hours
Standards
RoHS II 2011/65/EU (EU)2015/863
2012/19/EU WEEE
2014/53/EU RED
2012/19/EU WEEE
2014/53/EU RED
Wireless connection
1
Power supply
3 alkaline batteries LR03 AAA 1.5 V
Protective cover
No
Interchangeable module
No
INSTRUMENT DIMENSIONS
Length
2 3/4 inches
70 mm
70 mm
Width
1 5/16 inch
33 mm
33 mm
Height
5 9/16 inches
141 mm
141 mm
Weight
7 pounds
200 g
200 g
OPERATING TEMPERATURE
Min
0.00 °C
Max
50.00 °C
STORAGE TEMPERATURE
Min
-20.00 °C
Max
70.00 °C
Supplied with
- 2 clear tubes Ø4x6 mm, 1 m (39.37’’) length
- 1 Certificate of conformity
- 1 Quick Start Guide
- 3 alkaline batteries LR03 AAA 1.5 V
- 1 Carrying bag
Software

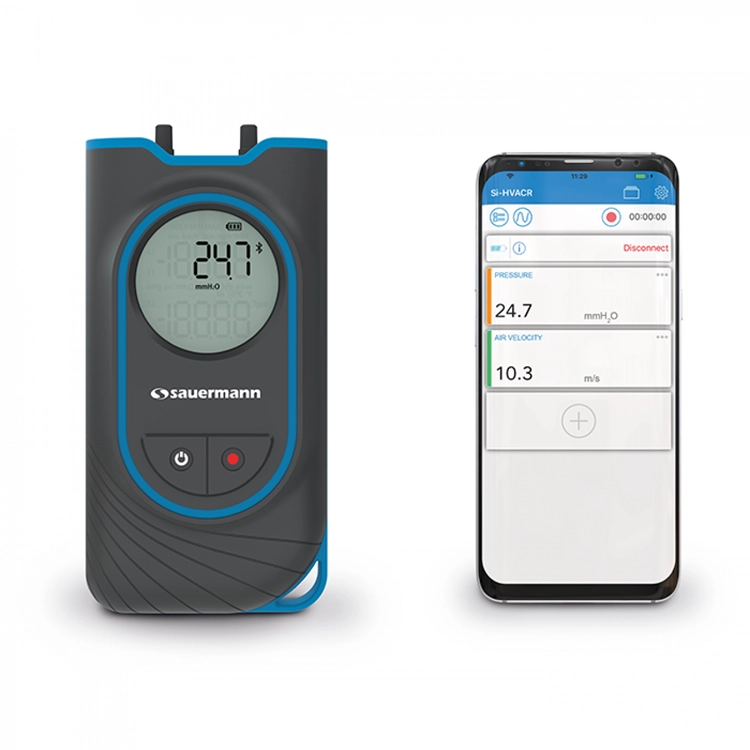

Si-HVACR Measurement Mobile App
- User-friendly interface
- Easily view different parameters
- Browse saved measurements history and data graphs
- Create reports (PDF, CSV or XML format)
Si-HVACR Measurement MobileApp delivers a user-friendly experience for the Si-TT3 / Si-TI3 / Si-HH3 / Si-VV3 / Si-PM3 / Si-VH3 Sauermann instruments.
This app displays on your smartphone screen all the results in real time and allows the management of measurement datasets over a duration of your choice, to create reports to be saved and exported in PDF, CSV or XML format.
Si-HVACR Measurement MobileApp relays the following measurements :
- Temperature (thermocouple, NTC, ambient, infrared)
- Relative humidity
- Pressure
- Air velocity
- Calculated parameters (air velocity, airflow, dew point, absolute humidity, enthalpy, mixing ratio, wet bulb temperature).
- Temperature (thermocouple, NTC, ambient, infrared)
- Relative humidity
- Pressure
- Air velocity
- Calculated parameters (air velocity, airflow, dew point, absolute humidity, enthalpy, mixing ratio, wet bulb temperature).
Full overview of Sauermann’s new easy-to-use HVACR Instrument Range
Our new Si-HVACR mobile app makes measurements more user-friendly
Videos
Full overview of Sauermann’s new easy-to-use HVACR Instrument Range
Si-PM3 : draft measurement to evaluate the draft at the exit of combustion boilers
Si-PM3 : pressure measurement of the gas inlet valve of a combustion boiler
키모 KIMO Si-PM3 휴대용 디지털 차압계

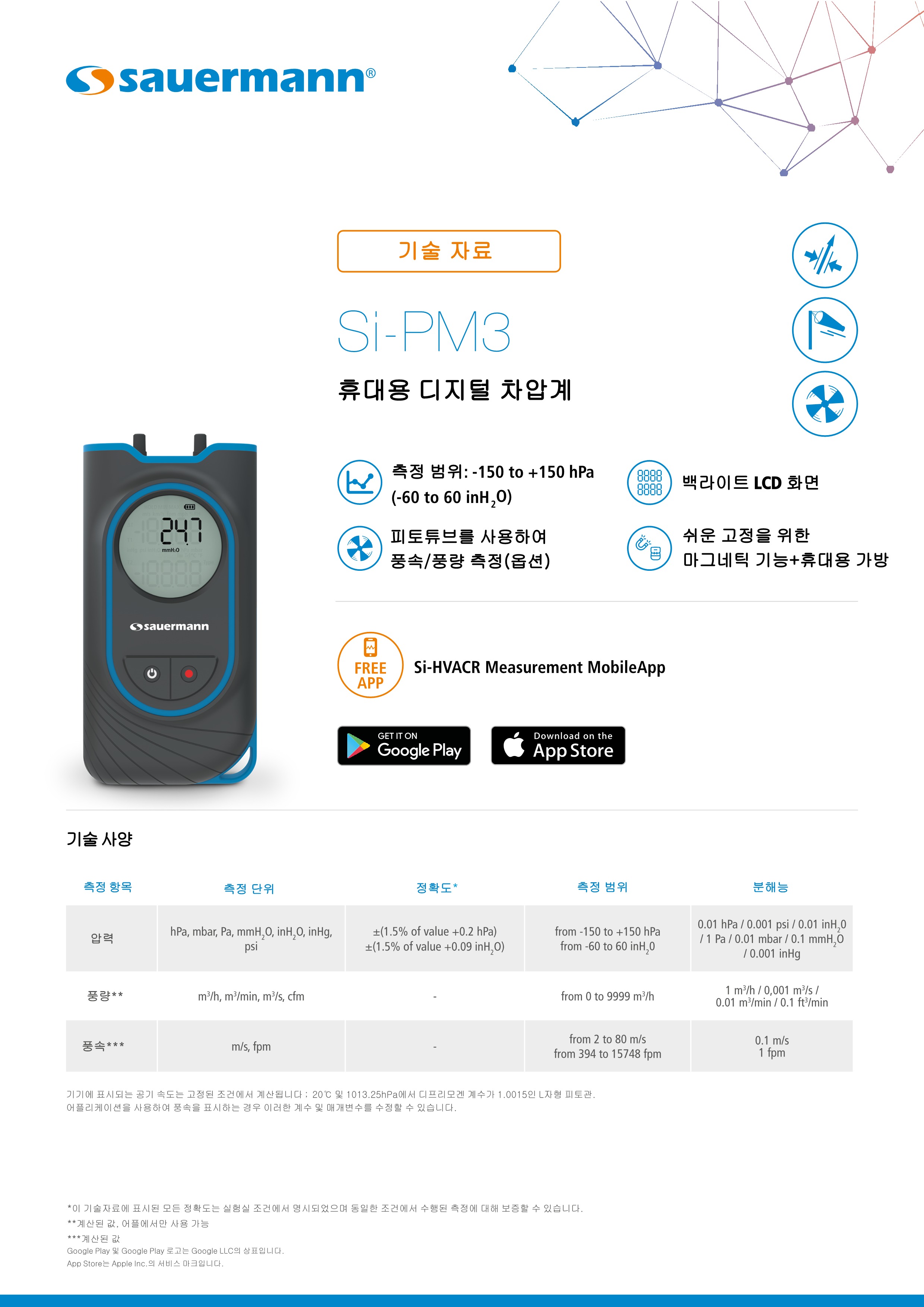

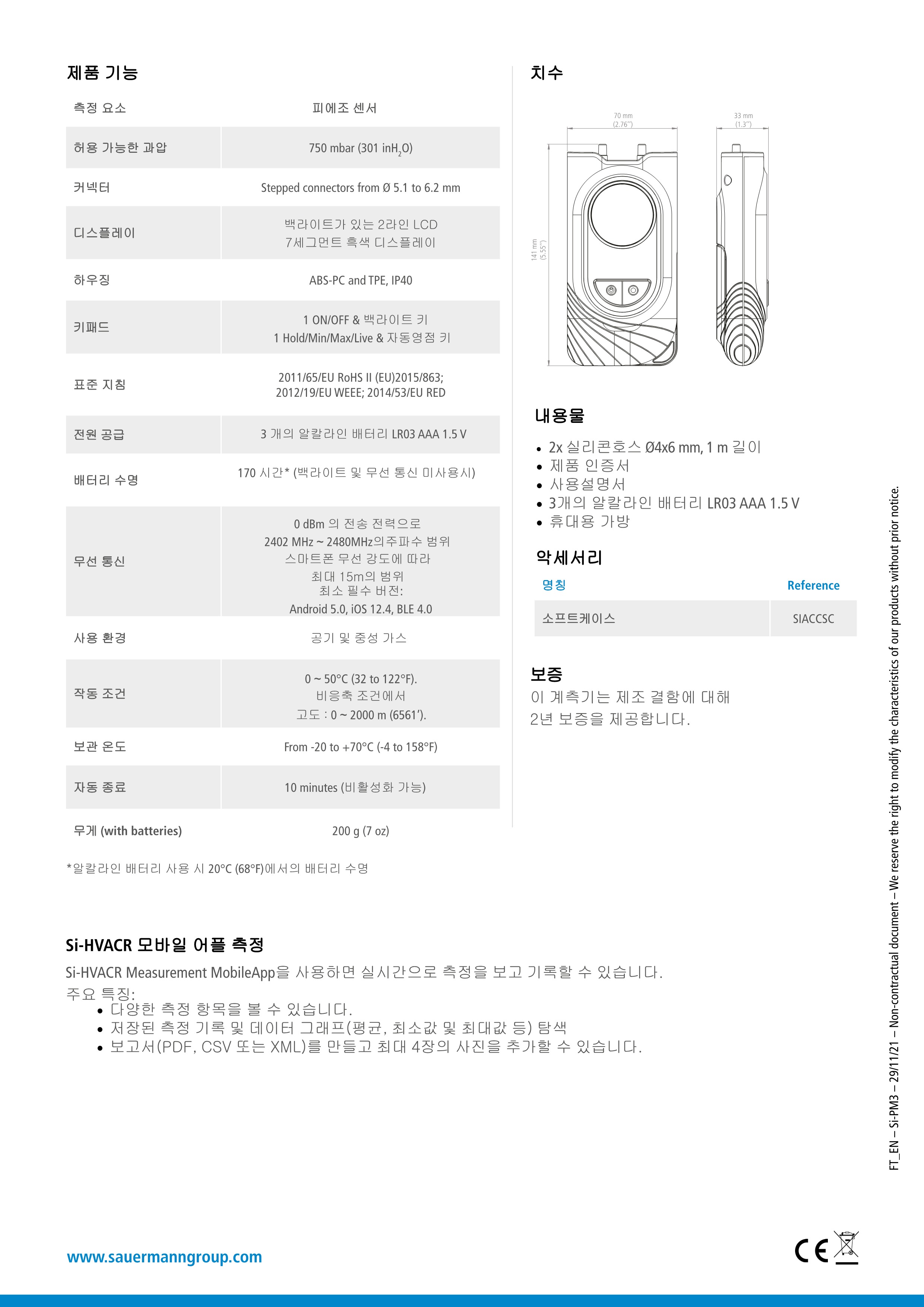

📄 기술자료 다운로드
