KIMO® – KIMO INSTRUMENTS ・ SAUERMANN GROUP

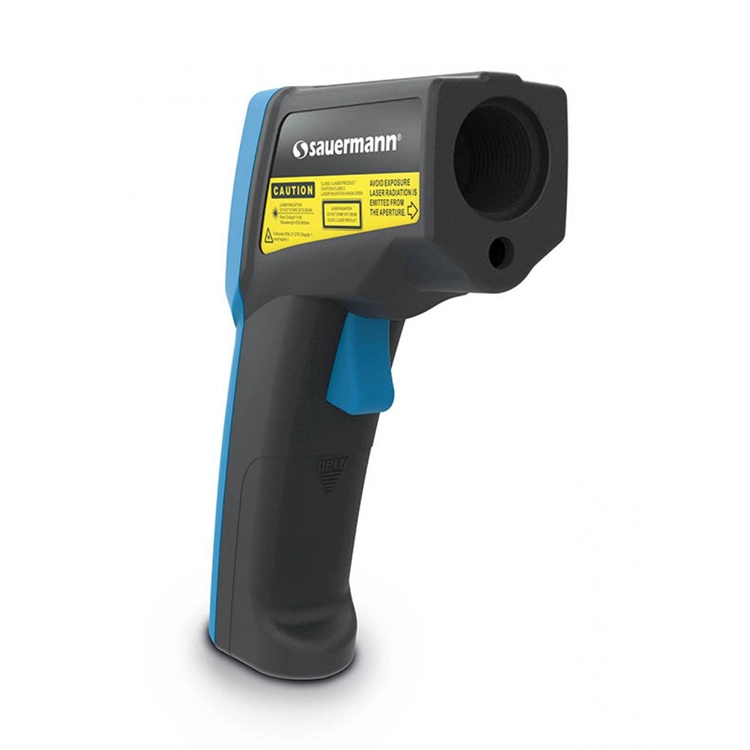

Si-Tl3
– 적외선 온도계
- 초점비 12:1
- 방사율 조정 가능
- 백라이트 LCD 화면
키모 SiTI3 키모 Si-TI3 키모 Si TI3 키모 KIMO SiTI3 KIMO Si-TI3 KIMO Si TI3 KIMO
-Product info-
MEASURE DETAILS
Units
°F, °C
MEASURING RANGES
Infrared temperature
-40.00 °C ... 500.00 °C
Ambient temperature
0.00 °C ... 50.00 °C
TECHNICAL DETAILS
Parameters
Temperature
Displays
3-line display
Battery life
17 hours
Standards
2011/65/EU RoHS II
2012/19/EU WEEE
2014/53/EU RED
2012/19/EU WEEE
2014/53/EU RED
Wireless connection
1
Power supply
2 alkaline batteries LR03 AAA 1.5 V
Protective cover
No
Interchangeable module
No
INSTRUMENT DIMENSIONS
Length
4 7/16 inches
112.6 mm
112.6 mm
Width
1 5/8 inch
41.3 mm
41.3 mm
Height
5 27/32 inches
148.2 mm
148.2 mm
Weight
5 3/32 pounds
145 g
145 g
OPERATING TEMPERATURE
Min
0.00 °C
Max
50.00 °C
STORAGE TEMPERATURE
Min
-10.00 °C
Max
60.00 °C
-Supplied with-
- 1 Certificate of conformity
- 1 Quick Start Guide
- 2 alkaline batteries LR03 AAA 1.5 V
- 1 Carrying bag
-Software-

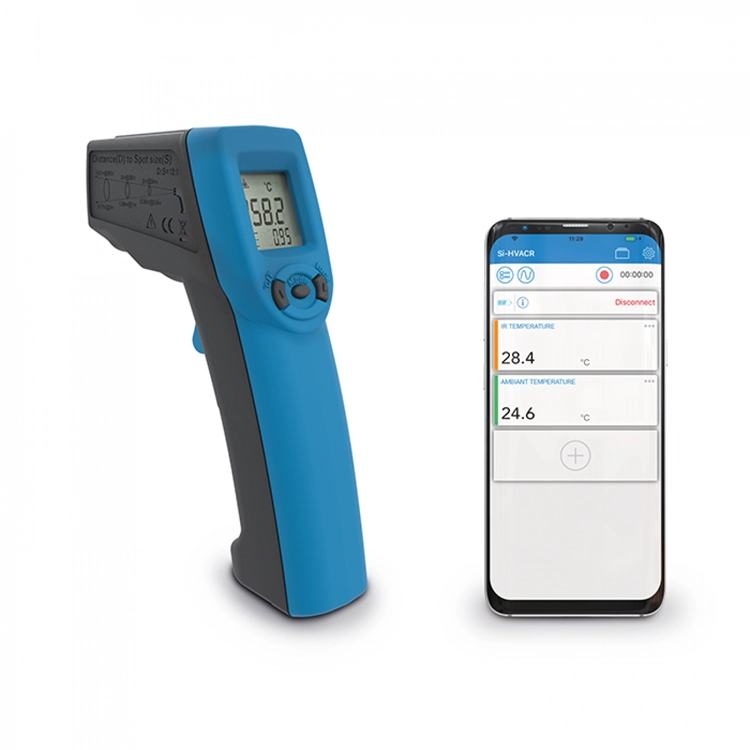

Si-HVACR Measurement Mobile App
- User-friendly interface
- Easily view different parameters
- Browse saved measurements history and data graphs
- Create reports (PDF, CSV or XML format)
Si-HVACR Measurement MobileApp delivers a user-friendly experience for the Si-TT3 / Si-TI3 / Si-HH3 / Si-VV3 / Si-PM3 / Si-VH3 Sauermann instruments.
This app displays on your smartphone screen all the results in real time and allows the management of measurement datasets over a duration of your choice, to create reports to be saved and exported in PDF, CSV or XML format.
Si-HVACR Measurement MobileApp relays the following measurements :
- Temperature (thermocouple, NTC, ambient, infrared)
- Relative humidity
- Pressure
- Air velocity
- Calculated parameters (air velocity, airflow, dew point, absolute humidity, enthalpy, mixing ratio, wet bulb temperature).
- Temperature (thermocouple, NTC, ambient, infrared)
- Relative humidity
- Pressure
- Air velocity
- Calculated parameters (air velocity, airflow, dew point, absolute humidity, enthalpy, mixing ratio, wet bulb temperature).
Full overview of Sauermann’s new easy-to-use HVACR Instrument Range
Our new Si-HVACR mobile app makes measurements more user-friendly
-Videos-
Full overview of Sauermann’s new easy-to-use HVACR Instrument Range

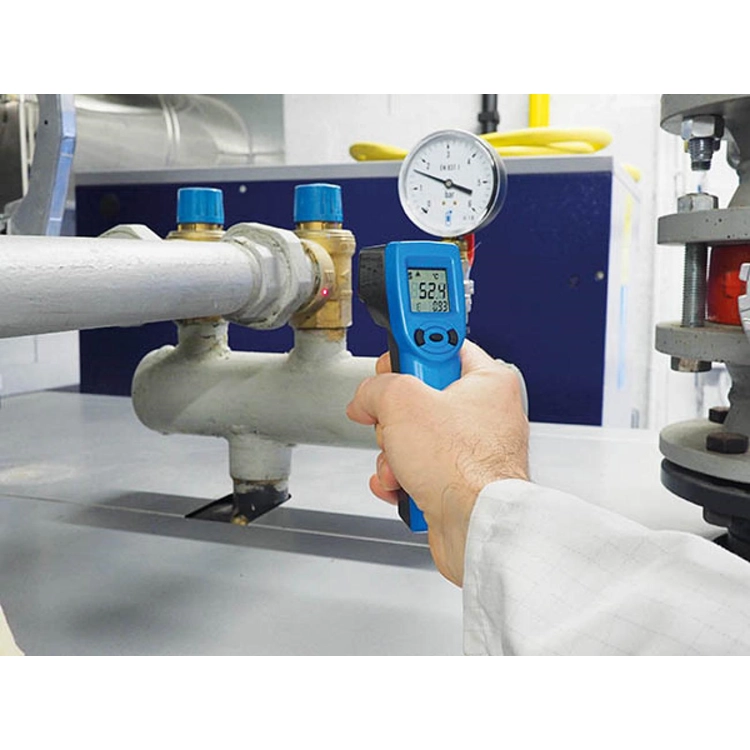

Si-TI3 : measurement of flow and return temperatures of a heating system
Si-TI3 : measurement of real temperature of a radiator
키모 KIMO Si-Tl3 적외선 온도계
