KIMO® – KIMO INSTRUMENTS ・ SAUERMANN GROUP
Si-CA 030
– 연소가스분석기
- O₂, CO
- 컬러 디스플레이
- 고농도 CO 자동 펌프 차단
- 350g의 컴팩트함
키모 SiCA030 키모 SiCA-030 키모 SiCA 030 키모 Si-CA030 키모 Si-CA-030 키모 Si-CA 030 키모 Si CA030 키모 Si CA-030 키모 Si CA 030 키모 KIMO SiCA030 KIMO SiCA-030 KIMO SiCA 030 KIMO Si-CA030 KIMO Si-CA-030 KIMO Si-CA 030 KIMO Si CA030 KIMO Si CA-030 KIMO Si CA 030 KIMO
제품 개요-
CO
0-8000 ppm
O₂
0~25%
Product info-
MEASURE DETAILS
Units
°C, %, ppm, mbar
MEASURING RANGES
O₂
0.00 % ... 25.00 %
CO
0.00 ppm ... 8000.00 ppm
CO₂
0.00 % ... 99.90 %
Flue temperature
-20.00 °C ... 1250.00 °C
Air temperature
-20.00 °C ... 120.00 °C
Differential temperature
0.00 °C ... 1250.00 °C
Pressure/draft
-200.00 mbar ... 200.00 mbar
Excess air
0.00 % ... 999.00 %
Efficiency
0.00 % ... 100.00 %
Efficiency (condensation)
0.00 % ... 125.00 %
TECHNICAL DETAILS
Parameters
CO
CO₂
O₂
CO₂
O₂
Displays
Colour graphical display
IP Protection
IP 42
Battery life
8 hours
Standards
2015/863 EU (RoHS 3)
NF EN 50379-1
NF EN 50379-2
2014/53/EU RED
NF EN 50379-1
NF EN 50379-2
2014/53/EU RED
Wireless connection
1
Power supply
Li-Ion 5100 mA/h 3.6 V rechargeable battery
USB
Yes
Sensors
CO
CO₂
O₂
CO₂
O₂
Auto zero
Yes
Printer
Remote
Sensor protection
Sensor protection by pump stopping
Mobile application
Yes
INSTRUMENT DIMENSIONS
Length
99 mm
Width
49 mm
Height
194 mm
Weight
350 g
OPERATING TEMPERATURE
Min
-5.00 °C
Max
45.00 °C
STORAGE TEMPERATURE
Min
-20.00 °C
Max
50.00 °C
Supplied with-
- 1 Si-CA 030 analyser
- 1 O₂ gas sensors
- 1 CO gas sensors
- 1 NO gas sensors (optional)
- 1 Protective rubber holster
- 1 Flue gas probe with dual hose
- 1 Water trap with filter
- 1 AC power supply / charger
- 1 USB cable
- 1 Mobile app
- 1 Internal wireless communication module
- 1 Carrying case or box packaging
- 1 Quick Start Guide
- 1 Calibration certificate

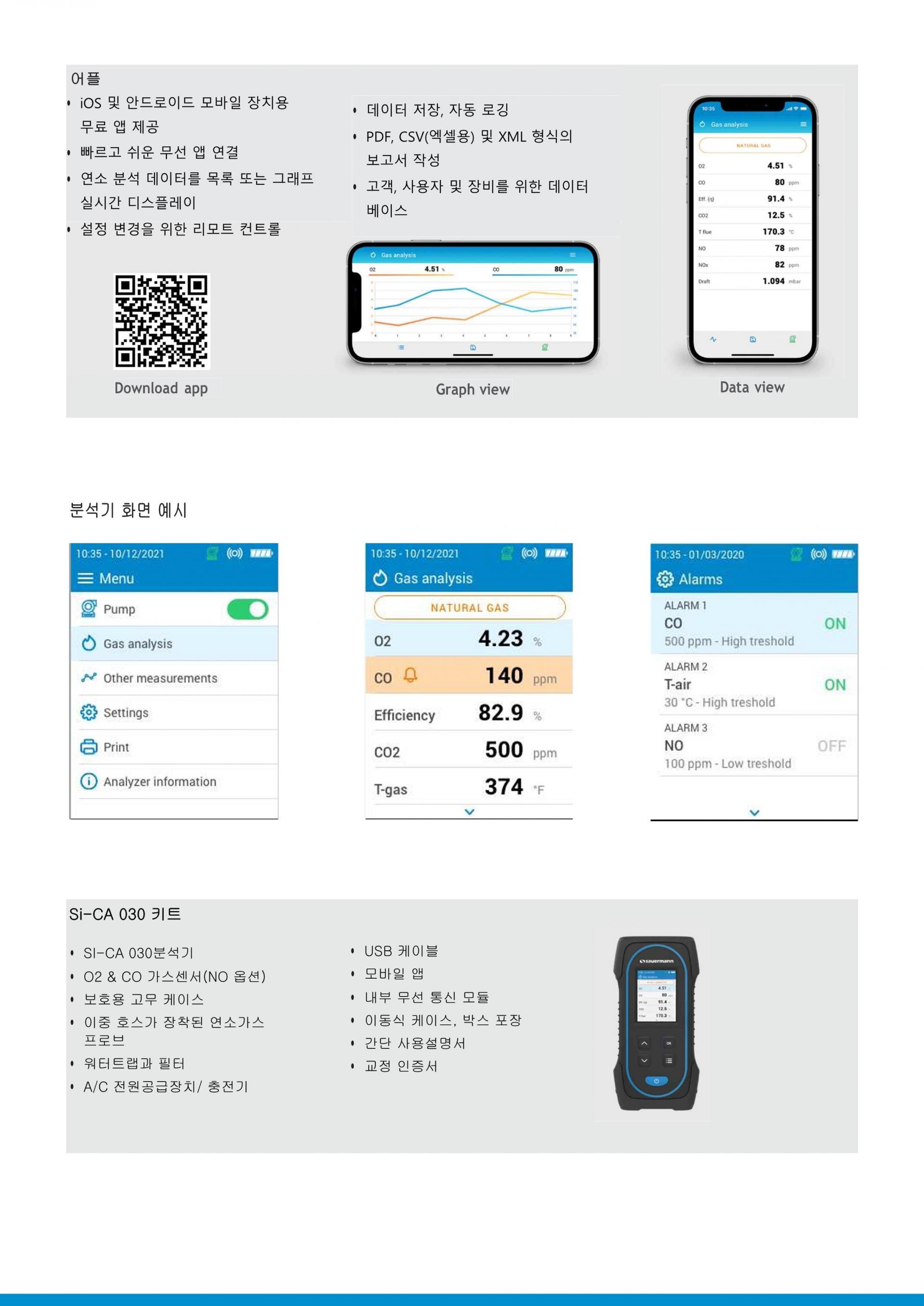

Software-
Mobile app Sauermann Combustion
- Fast, easy wireless connection
- Remote live view of combustion analysis data as list or graph
- Remote control to change settings
- Data saving, including automatic logging
- Report creation in PDF, CSV (for Excel) and XML formats
- Databases for customers, operators, & equipment
The Sauermann Combustion app lets you control your Si-CA analyser remotely, view measurement results in real time, and customise them before exporting in the format of your choice.

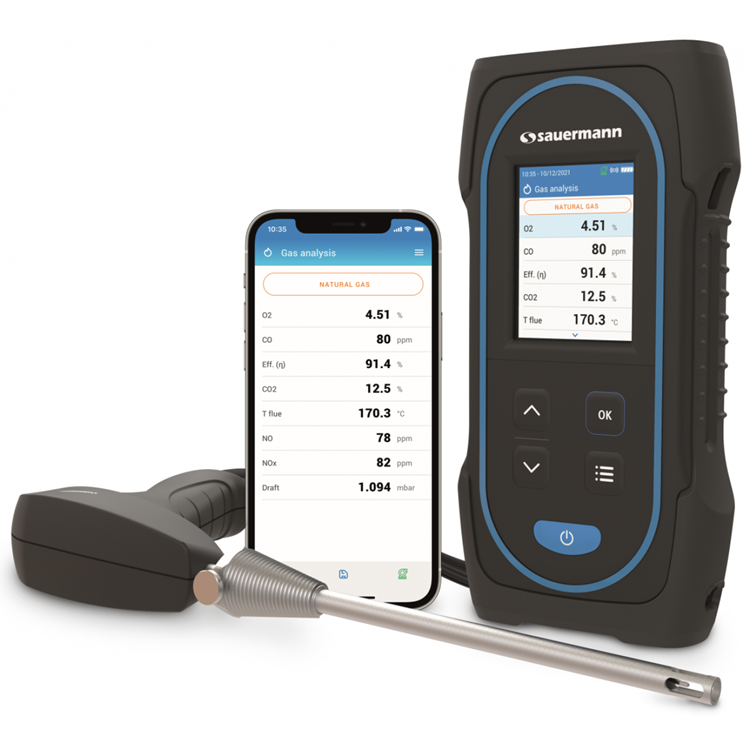

키모 KIMO Si-CA 030 연소가스분석기

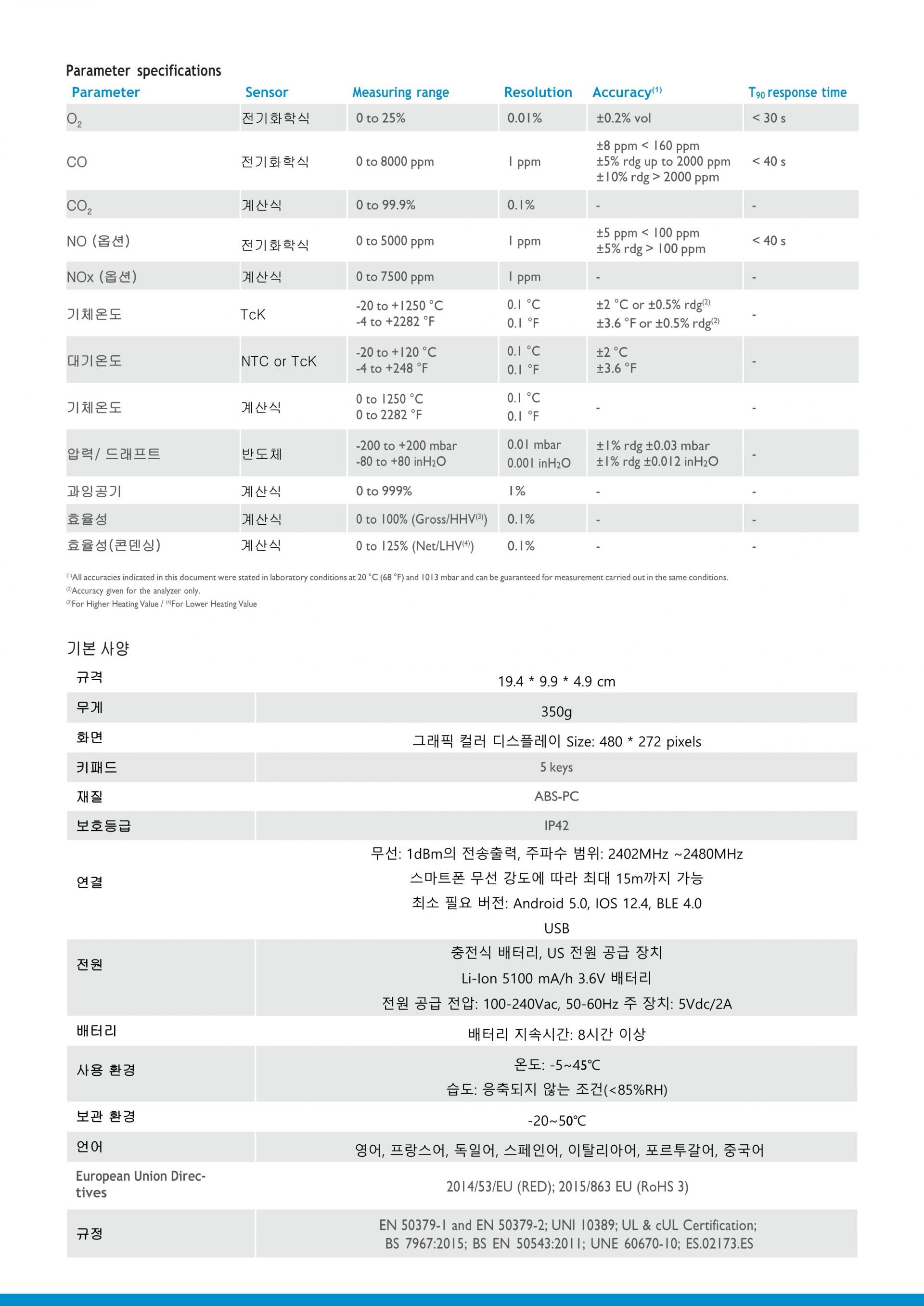

■ 제품 사양 (Specifications)
키모 제품 데이터시트의 핵심 사양입니다.
- 2 Color display screen
- Lightweight, only 350 g (12 oz)
- Parameter Sensor Measuring range Resolution Accuracy(1) T response time
- Pressure/Draft Semiconductor 0.001 -
- (1)All accuracies indicated in this document were stated in laboratory conditions at 20 °C (68 °F) and 1013 mbar and can be guaranteed for measurement carried out in the same conditions.
- (2)Accuracy given for the analyzer only.
- Dimensions 19.4 x 9.9 x 4.9 cm (7.5 x 3.5 x 4.9’’)
- Weight 350 g (12 oz)
- Display Color display screen; Size: 320 x 240 pixels
- Protection IP42
- - Wireless: class 2 range, range frequency from 2402 MHz to 2480 MHz
- with a transmit power of 1 dBm.
- Power supply Li-Ion 5100 mA/h 3.6 V battery / Power supply voltage of the mains unit: 100-240 Vac, 50-60 Hz
- Temperature: from -5 to 45 °C (23 to 113 °F),
- Storage temperature From -20 to 50 °C (-4 to 122 °F)
- Si-CA 030 Gas Analyzer Kit 2AC, includes two gas sensors (O, CO), 180 mm, probe
- Si-CA 030 Gas Analyzer Kit 2AS, includes two gas sensors (O, CO), 180 mm, probe
- Si-CA 030 Gas Analyzer Kit 2AH, includes two gas sensors (O, CO), 180 mm, probe
- Si-CA 030 Gas Analyzer Kit 2BS, includes two gas sensors (O, CO), 300 mm, probe
- Si-CA 030 Gas Analyzer Kit 2BH, includes two gas sensors (O, CO), 300 mm, probe
- Si-CA 030 Gas Analyzer Kit 3AC, includes three gas sensors (O, CO, NO), 180 mm,
- Si-CA 030 Gas Analyzer Kit 3AS, includes three gas sensors (O, CO, NO), 180 mm,
- Si-CA 030 Gas Analyzer Kit 3AH, includes three gas sensors (O, CO, NO), 180 mm,
- Si-CA 030 Gas Analyzer Kit 3BS, includes three gas sensors (O, CO, NO), 300 mm,
- Si-CA 030 Gas Analyzer Kit 3BH, includes three gas sensors (O, CO, NO), 300 mm,
- 27521 NO sensor for NOx
- 24646 Smart air temperature probe with 2 m cable
- 27865 Pt100 temperature probe
- 27538 Differential pressure hose kit
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
📄 기술자료 다운로드
