KIMO® – KIMO INSTRUMENTS ・ SAUERMANN GROUP

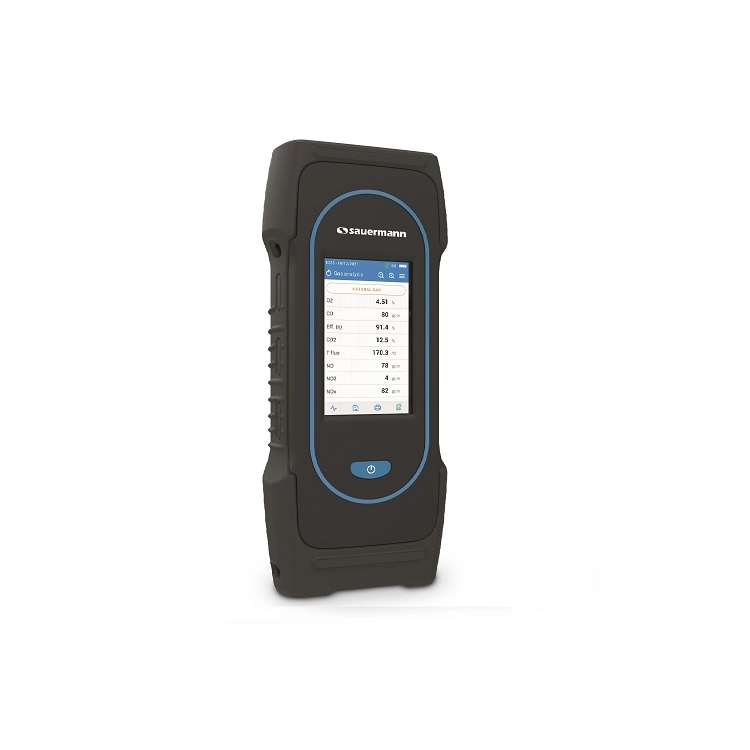

Si-CA 230
– 고성능 산업용 연소가스분석기
- O₂, CO, NO, Low NO, NO₂, Low NO₂, SO₂, Low SO₂, H₂S, CxHy 중 최대 6가스 측정가능
- CO 최대 50,000ppm 측정가능
- 대형 컬러 터치스크린
- PC소프트웨어를 통한 데이터관리
키모 SiCA230 키모 SiCA-230 키모 SiCA 230 키모 Si-CA230 키모 Si-CA-230 키모 Si-CA 230 키모 Si CA230 키모 Si CA-230 키모 Si CA 230 키모 KIMO SiCA230 KIMO SiCA-230 KIMO SiCA 230 KIMO Si-CA230 KIMO Si-CA-230 KIMO Si-CA 230 KIMO Si CA230 KIMO Si CA-230 KIMO Si CA 230 KIMO
제품 개요-
CO
0-10000 ppm
CO(희석 기능)
0~21%
O₂
0-25%
NO
0-5000 PPM
Low NO
0-300 ppm
NO₂
0-1000 ppm
Low NO₂
0-100ppm
NOₓ
0-7500 ppm
Low NOₓ
0-450 PPM
SO₂
0-5000 ppm
Low SO₂
0-100 ppm
CxHy(HC)
0~5%
H₂S
0-500 ppm
Product info-
MEASURE DETAILS
Units
°C, %, Pa, ppm, m/s, mbar

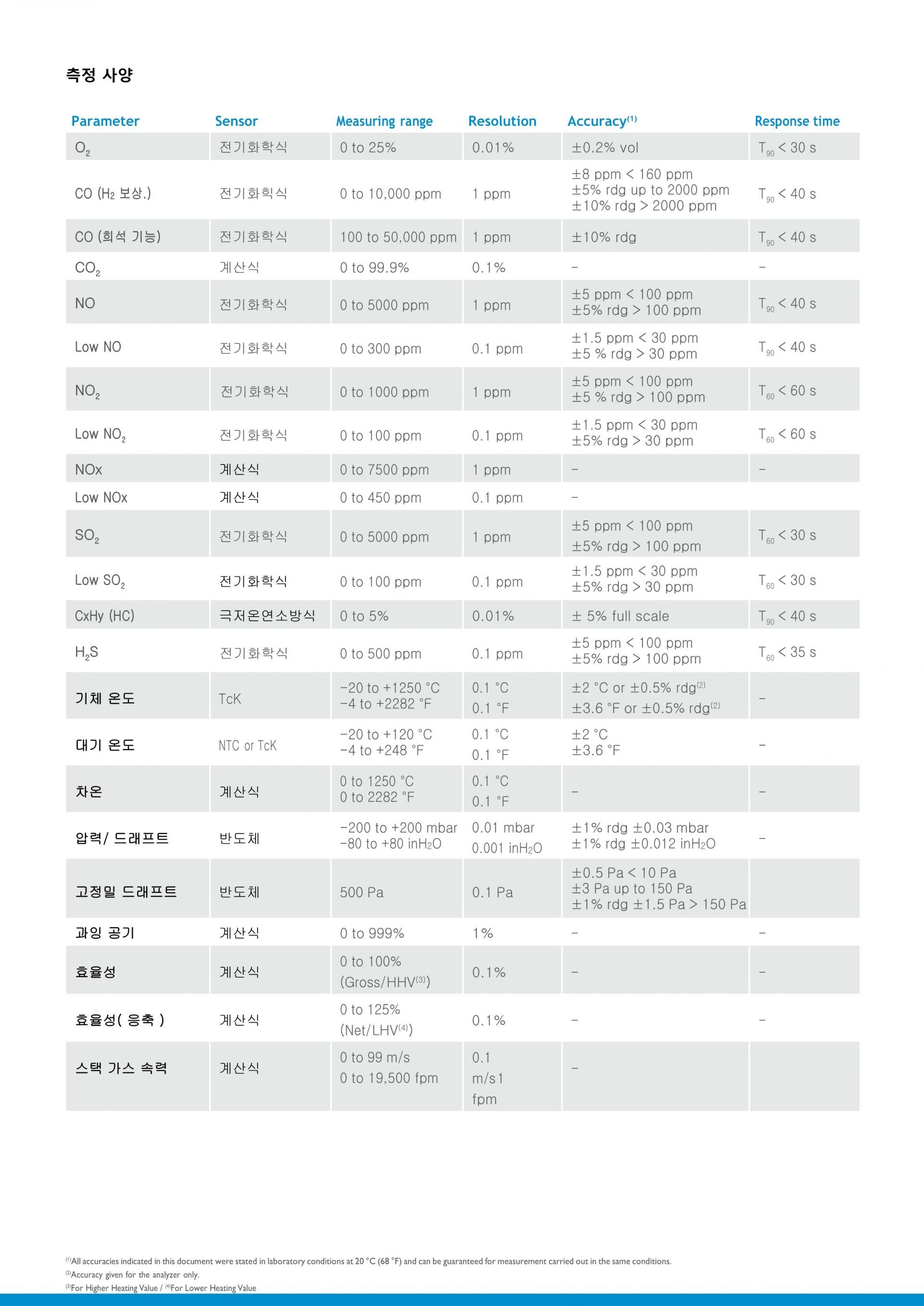

MEASURING RANGES
O₂
0.00 % ... 25.00 %
CO (H₂ comp.)
0.00 ppm ... 10000.00 ppm
CO (with dilution)
100.00 ppm ... 50000.00 ppm
CO₂
0.00 % ... 99.00 %
NO
0.00 ppm ... 5000.00 ppm
Low NO
0.00 ppm ... 300.00 ppm
NO₂
0.00 ppm ... 1000.00 ppm
Low NO₂
0.00 ppm ... 100.00 ppm
NOₓ
0.00 ppm ... 7500.00 ppm
Low NOₓ
0.00 ppm ... 450.00 ppm
SO₂
0.00 ppm ... 5000.00 ppm
Low SO₂
0.00 ppm ... 100.00 ppm
CxHy (HC)
0.00 % ... 5.00 %
H₂S
0.00 ppm ... 500.00 ppm
Flue temperature
-20.00 °C ... 1250.00 °C
Air temperature
-20.00 °C ... 120.00 °C
Differential temperature
0.00 °C ... 1250.00 °C
Pressure/draft
-200.00 mbar ... 200.00 mbar
High accuracy draft
500.00 Pa ... 500.00 Pa
Excess air
0.00 % ... 999.00 %
Efficiency
0.00 % ... 100.00 %
Efficiency (condensation)
0.00 % ... 125.00 %
Stack Gas Velocity
0.00 m/s ... 99.00 m/s

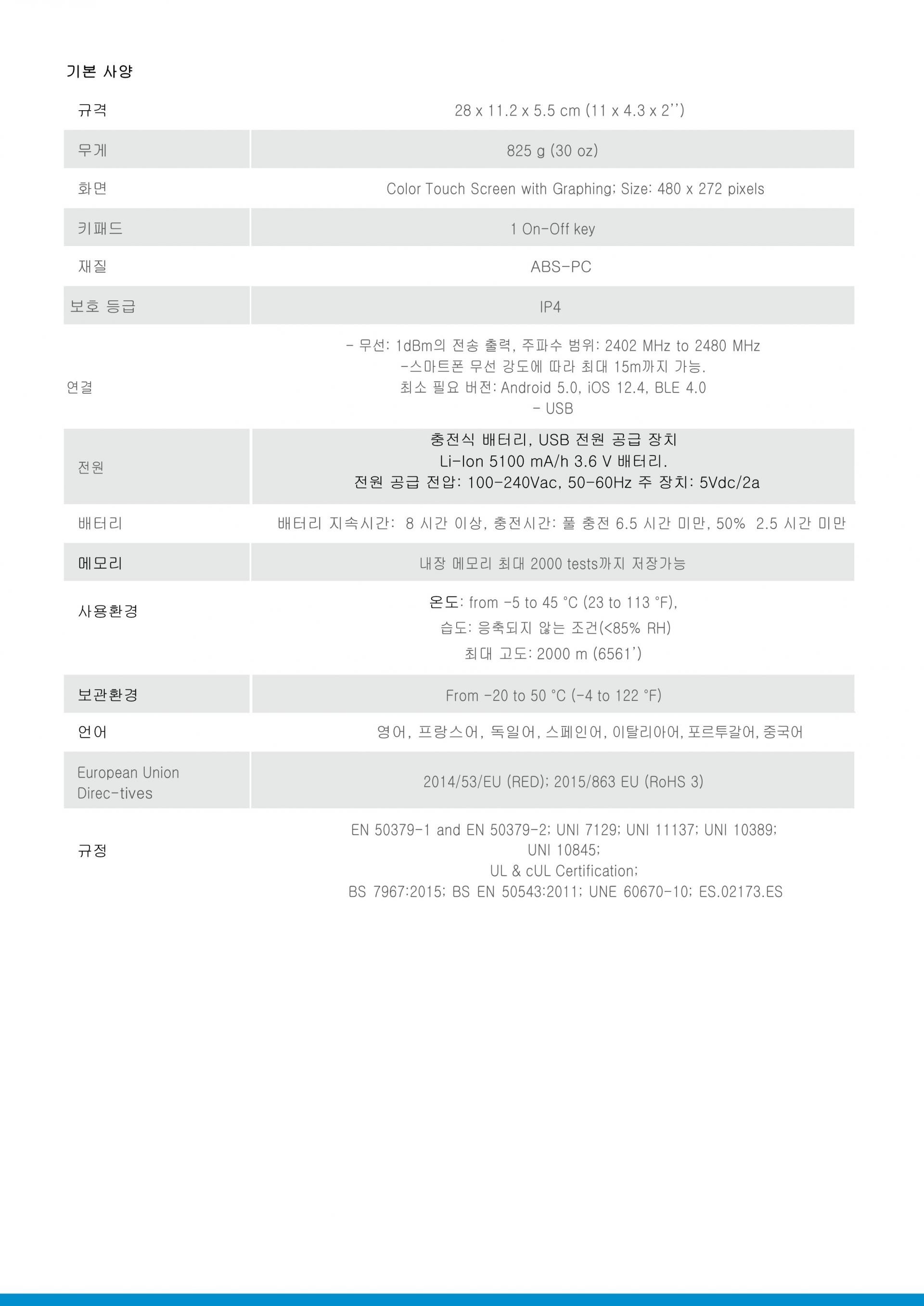

TECHNICAL DETAILS
Parameters
Air quality
Gas analysis
CO
CO₂
H₂S
NO
NO₂
O₂
SO₂
Gas analysis
CO
CO₂
H₂S
NO
NO₂
O₂
SO₂
Displays
Colour graphical display
IP Protection
IP 42
Battery life
8 hours
Standards
2015/863 EU (RoHS 3)
NF EN 50379-1
NF EN 50379-2
2014/53/EU RED
NF EN 50379-1
NF EN 50379-2
2014/53/EU RED
Wireless connection
1
Power supply
Li-Ion 5100 mA/h 3.6 V rechargeable battery
USB
Yes
Sensors
CO
CO₂
CxHy
H₂S
NOₓ
NO
NO₂
O₂
SO₂
CO₂
CxHy
H₂S
NOₓ
NO
NO₂
O₂
SO₂
Auto zero
Yes
Printer
Remote
Sensor protection
Sensor protection by pump stopping
Mobile application
Yes
INSTRUMENT DIMENSIONS
Length
112 mm
Width
55 mm
Height
280 mm
Weight
825 g
OPERATING TEMPERATURE
Min
-5.00 °C
Max
45.00 °C
STORAGE TEMPERATURE
Min
-20.00 °C
Max
50.00 °C
Supplied with-
- 1 Si-CA 230 analyser
- 1 O2 gas sensors
- 1 CO gas sensors
- 1 CO Dilution Auto-Range to 50,000 ppm
- 1 Protective rubber holster
- 1 300 mm flue gas probe with 3 m dual hose (other probe lengths available)
- 1 Water trap with filter
- 1 AC power supply / charger
- 1 USB cable
- 1 Mobile app & PC software
- 1 Internal wireless communication module
- 1 Carrying case
- 1 Quick Start Guide
- 1 Calibration certificate

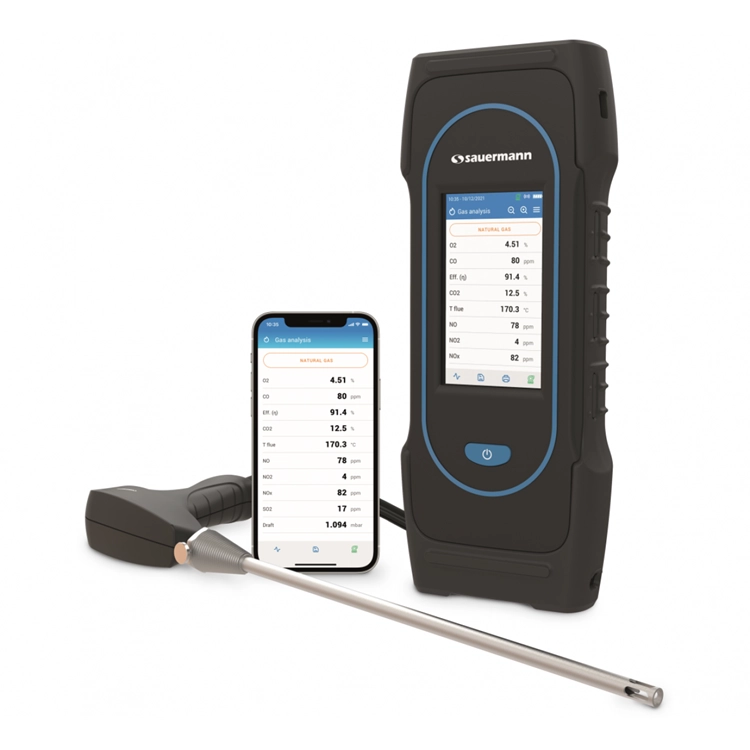

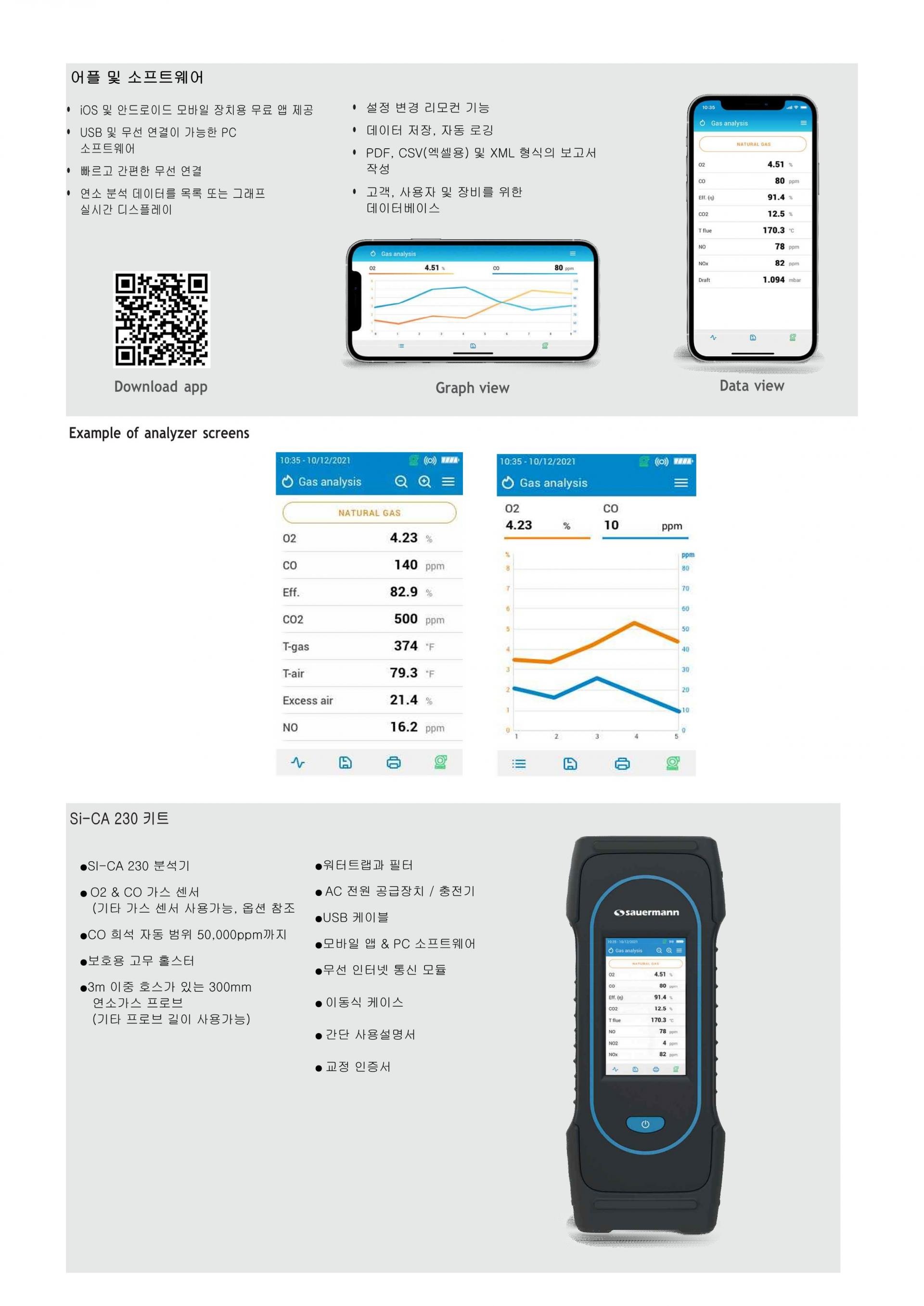

Software-
Mobile app Sauermann Combustion
- Fast, easy wireless connection
- Remote live view of combustion analysis data as list or graph
- Remote control to change settings
- Data saving, including automatic logging
- Report creation in PDF, CSV (for Excel) and XML formats
- Databases for customers, operators, & equipment
The Sauermann Combustion app lets you control your Si-CA analyser remotely, view measurement results in real time, and customise them before exporting in the format of your choice.

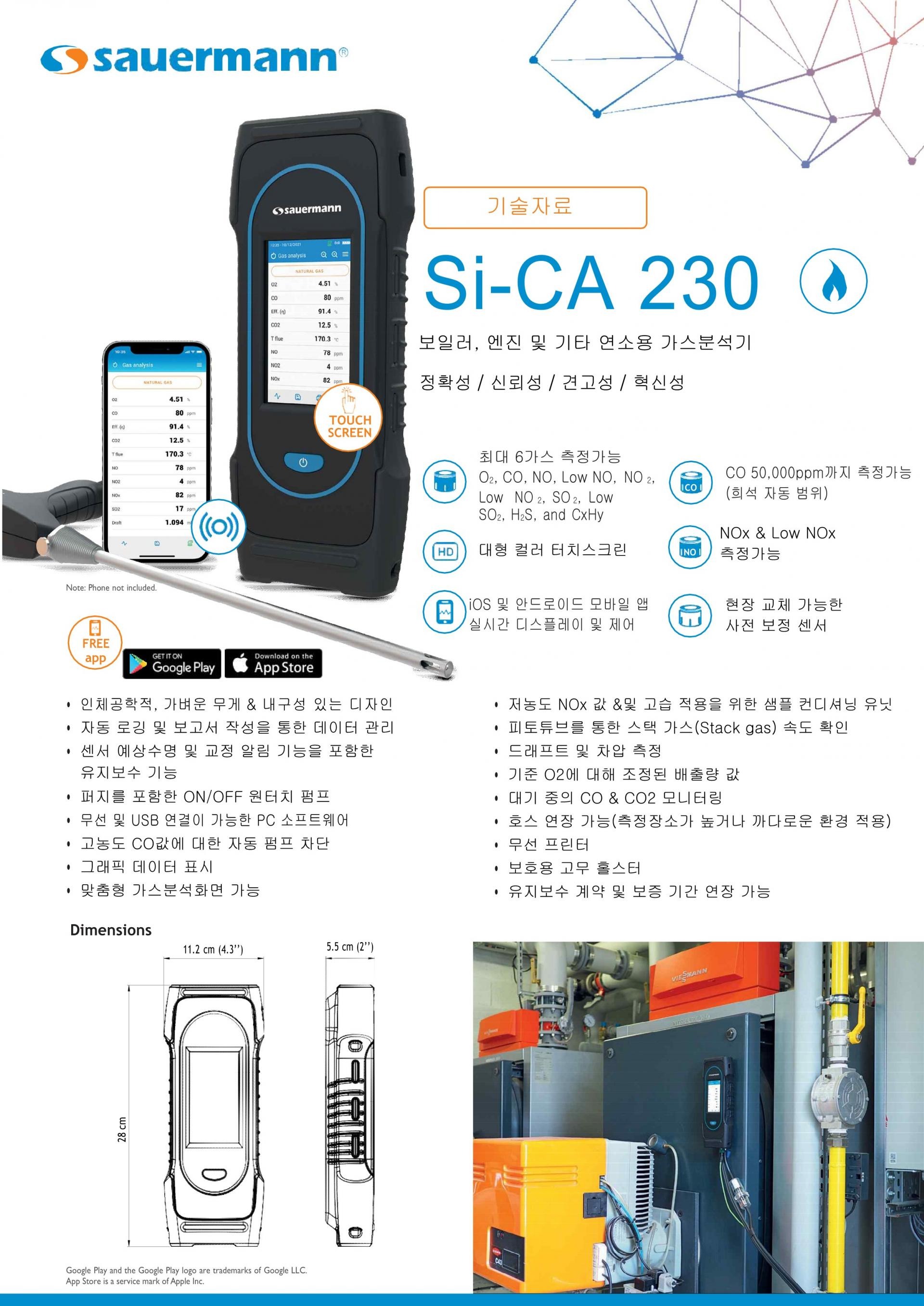

키모 KIMO Si-CA 230 연소가스분석기
