FUTEK 퓨텍 LLB400 (가격문의) Load Button with Threaded/Tapped Holes - FSH03889 FSH03890 FSH03891 FSH03892 FSH03893 FSH03894 FSH04603 FSH04604 FSH04605 FSH04606 FSH04607 FSH04608
가격문의(상세정보 참조)
퓨텍 FUTEK LLB400 Load Button with Threaded/Tapped Holes - FSH03889 FSH03890 FSH03891 FSH03892 FSH03893 FSH03894 FSH04603 FSH04604 FSH04605 FSH04606 FSH04607 FSH04608
Features
- Ultra low deflection
- Robust strain relief
- 17-4 PH stainless-steel construction
- For use in compression
- Utilizes metal foil strain gauge technology
- Adheres to RoHS directive 2015/863/EU
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.

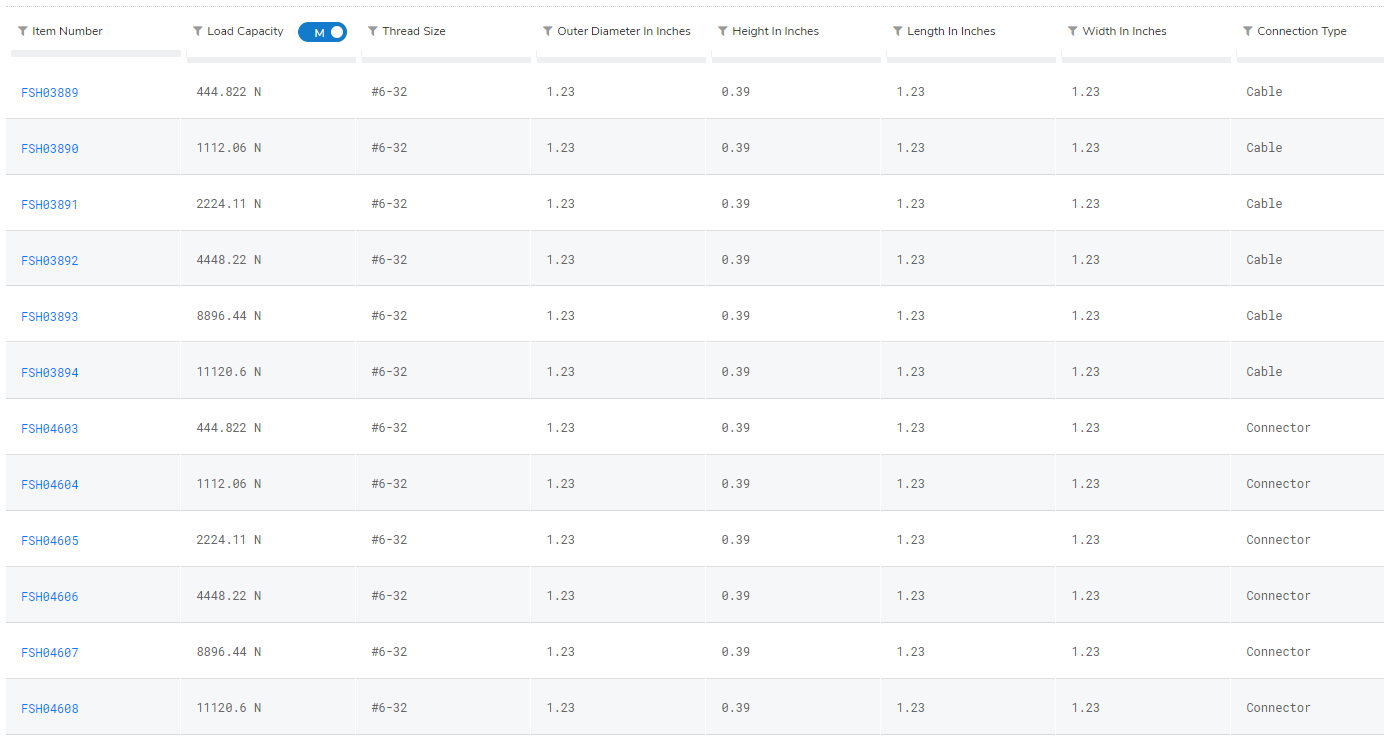

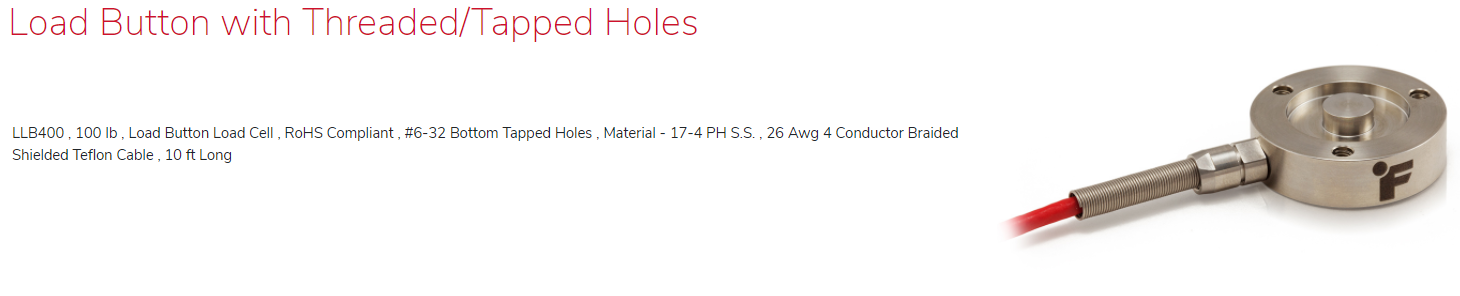

LLB400 , 100 lb , Load Button Load Cell , RoHS Compliant , #6-32 Bottom Tapped Holes , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long
FSH03889
FSH03890
FSH03891
FSH03892
FSH03893
FSH03894
FSH04603
FSH04604
FSH04605
FSH04606
FSH04607
FSH04608
Description

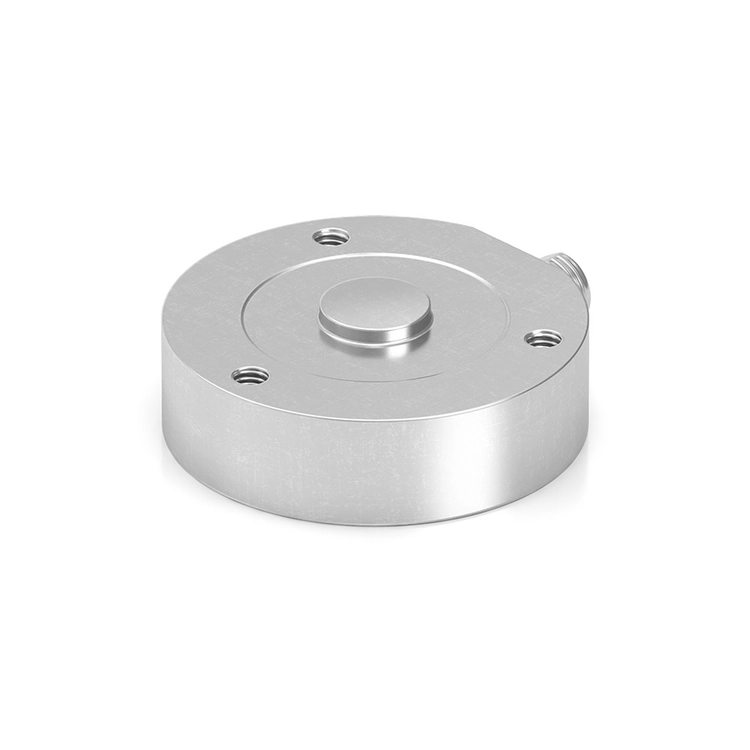

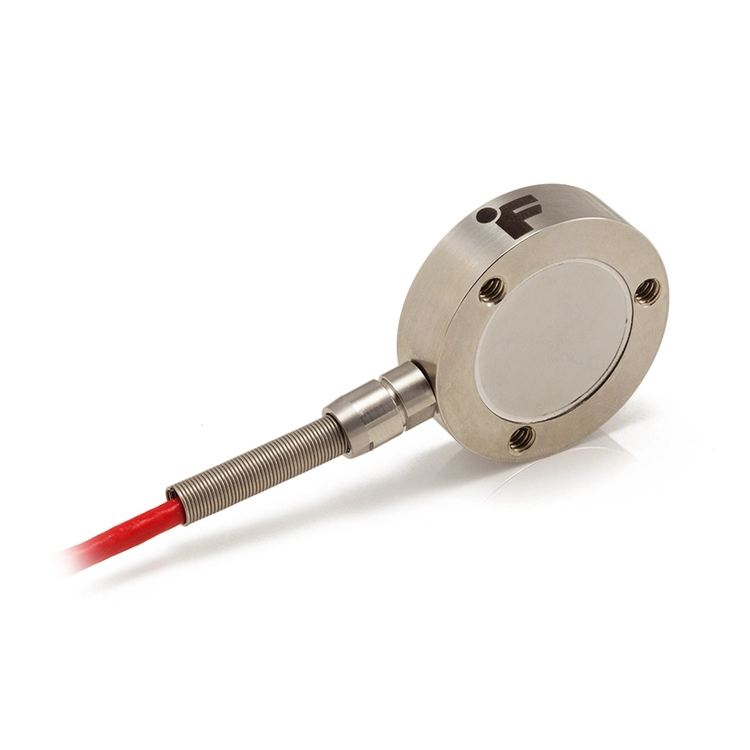

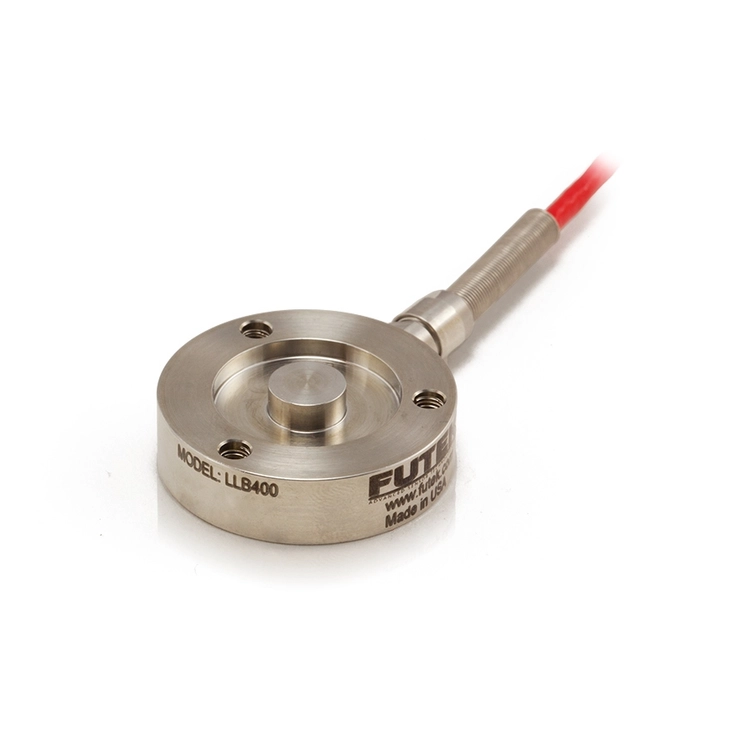

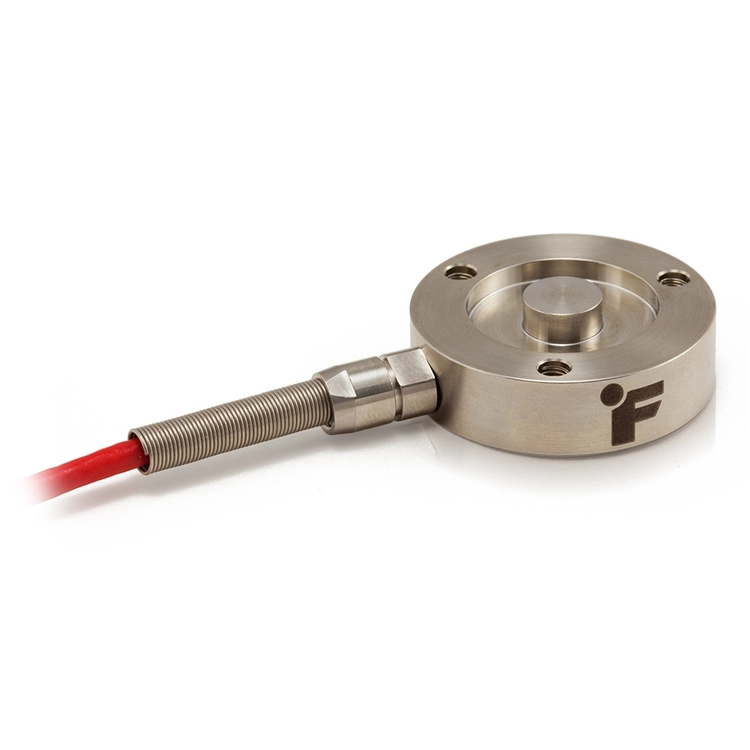

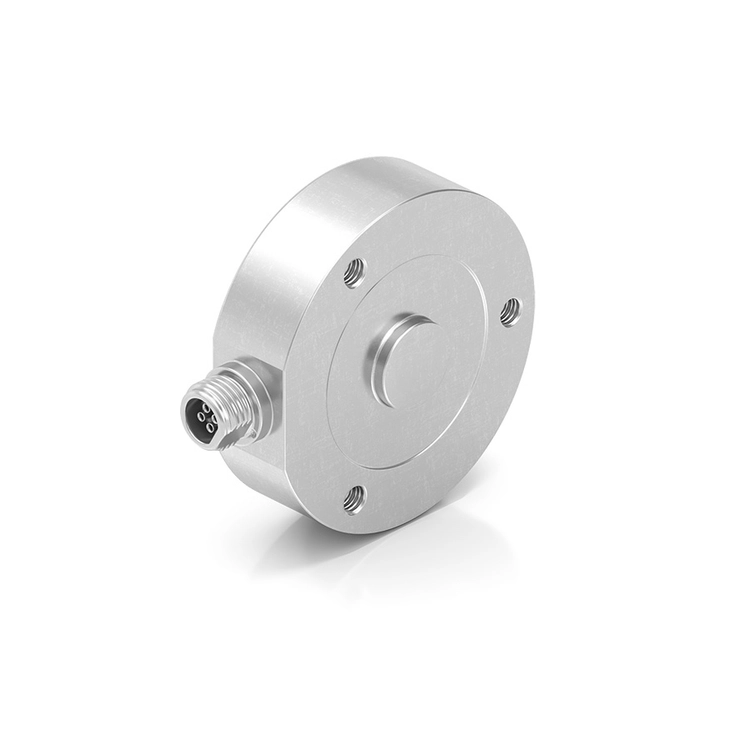

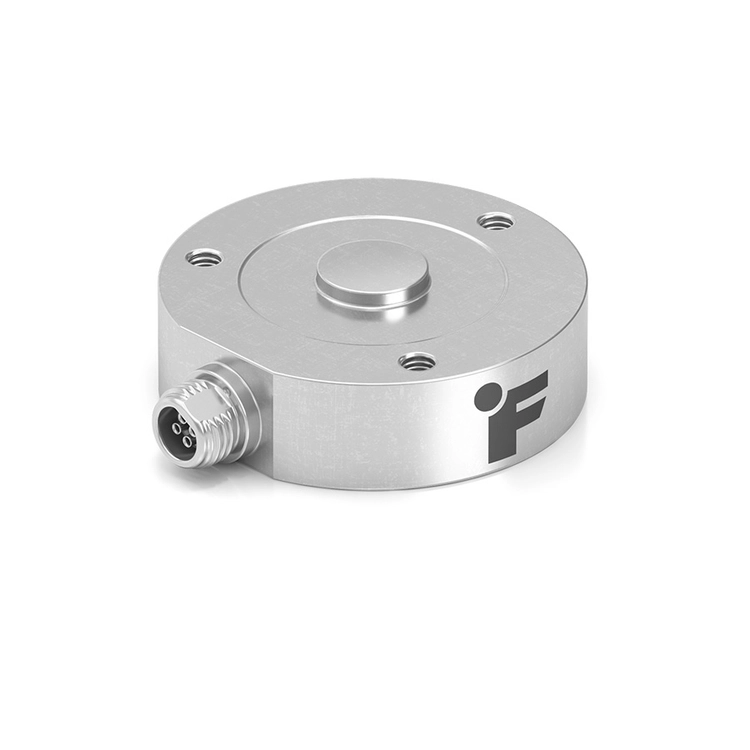

Model LLB400 is a Load Button Load Cell with Threaded Mounting Holes built for Press, or Inline compression applications. The standard LLB400 Load Button Load Cell model has a very robust construction available in 17-4 Stainless Steel, with a 1.25” outside diameter and a 10 feet long 26 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available.

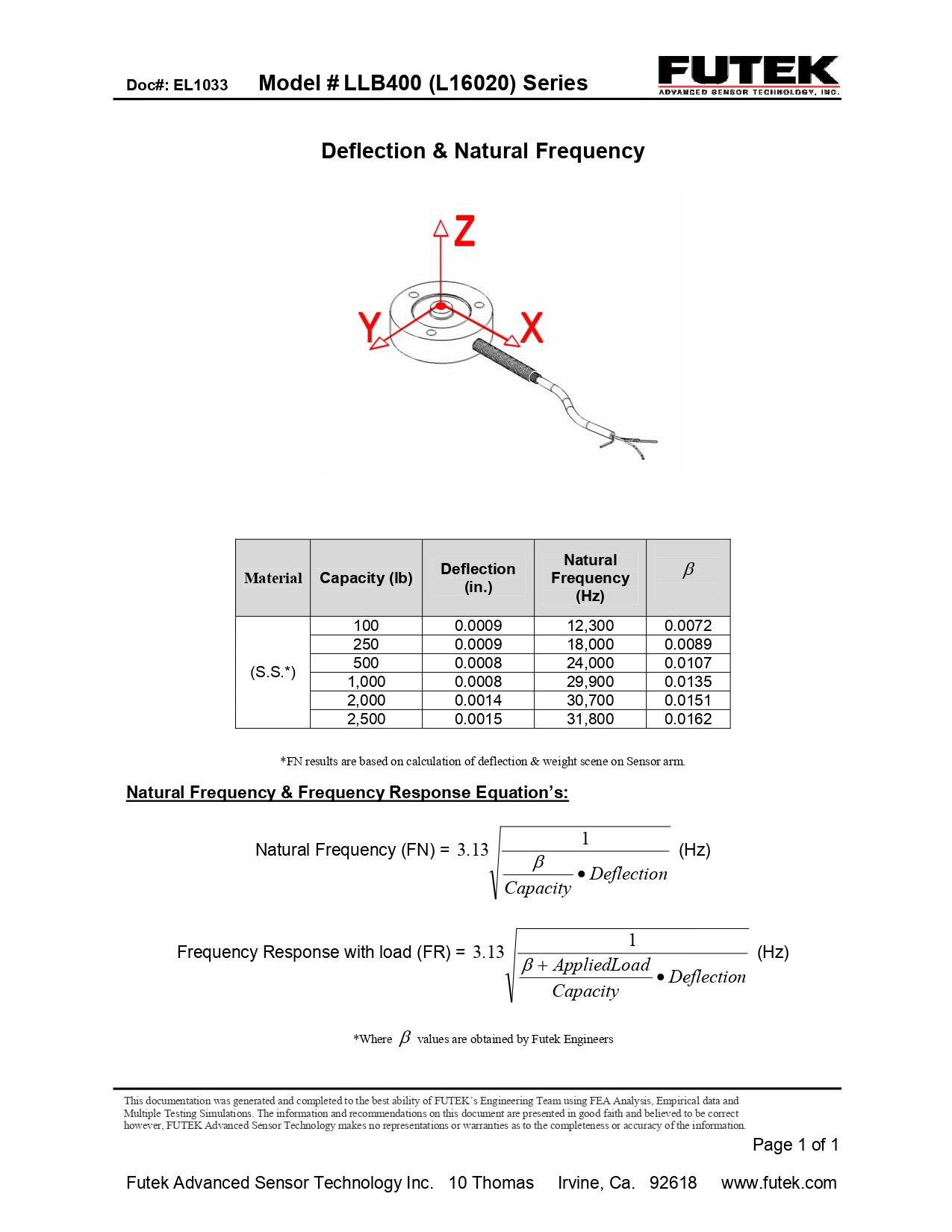

Although Load Button Load Cells are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. The Load Button Load Cell offers high accuracy. It has Nonlinearity of ±0.5% and Deflection of 0.0009” to 0.0015” nominal. The standard LLB400 Load Button Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24-hour shipping. Similar to our entire Load Cell product line this model is manufactured in the USA and uses metal foil strain gauge technology.
Features
- Ultra low deflection
- Robust strain relief
- 17-4 PH stainless-steel construction
- For use in compression
- Utilizes metal foil strain gauge technology
- Adheres to RoHS directive 2015/863/EU

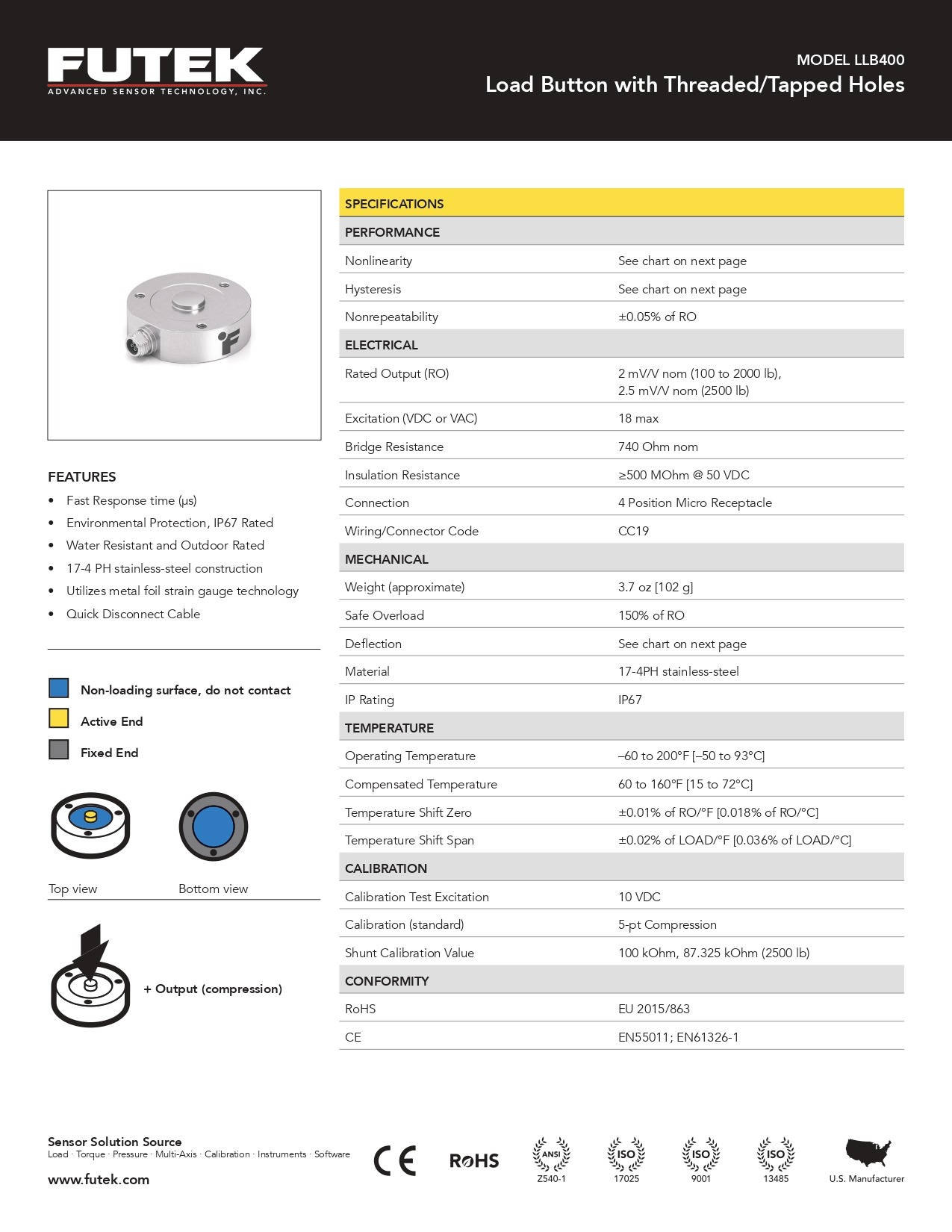

Specifications
퓨텍 FUTEK LLB400 Load Button with Threaded/Tapped Holes - FSH03889 FSH03890 FSH03891 FSH03892 FSH03893 FSH03894 FSH04603 FSH04604 FSH04605 FSH04606 FSH04607 FSH04608
📄 기술자료 다운로드
FUTEK LLB400 로드 버튼(Load Button with Threaded/Tapped Holes, FSH03889~FSH04608)은 초저처짐과 견고한 스트레인 릴리프, 17-4 PH 스테인리스강 구조를 갖춘 압축용 로드 버튼으로 금속 포일 스트레인 게이지 기술을 사용하며 RoHS 지침 2015/863/EU를 준수합니다.

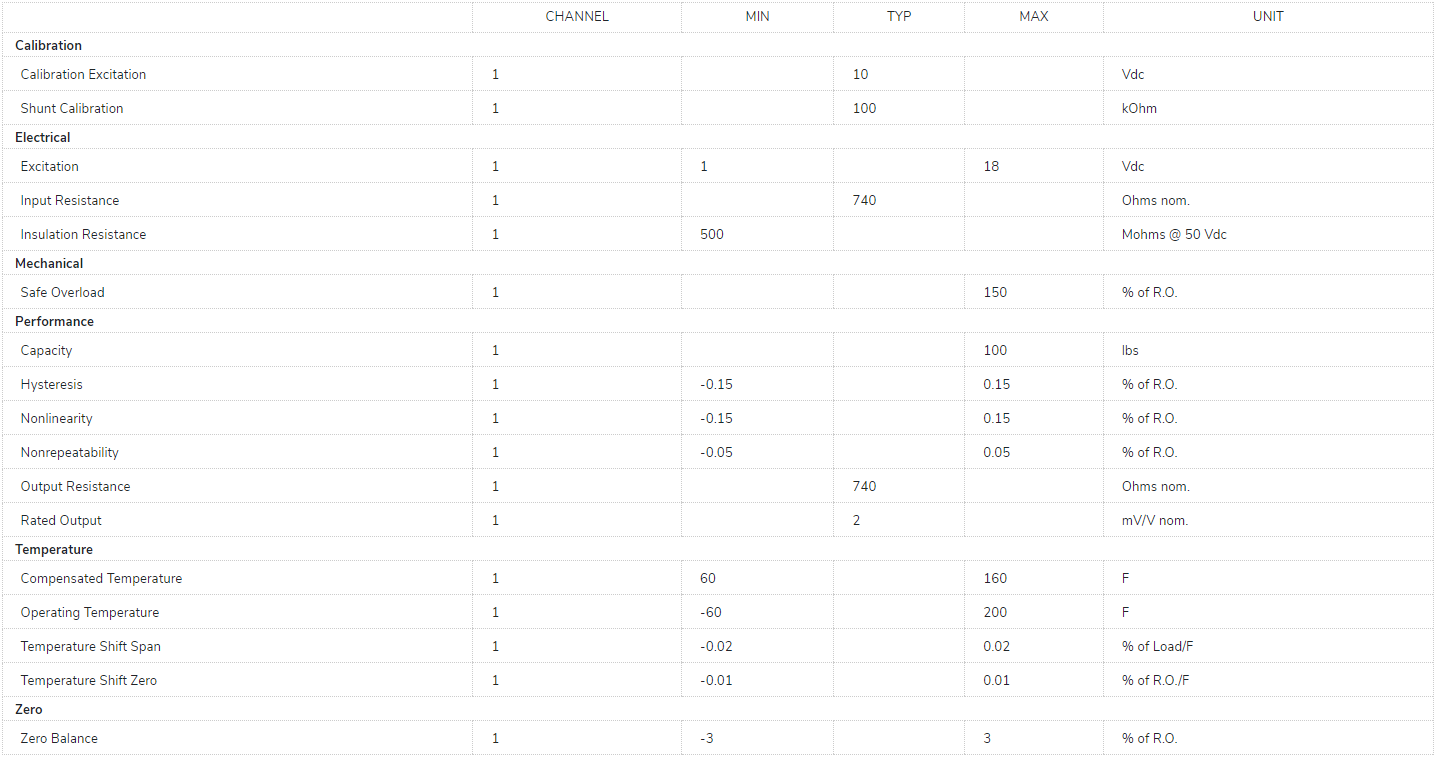

■ 제품 사양 (Specifications)
FUTEK LLB400 제품 데이터시트의 핵심 사양입니다.
- Rated Output (RO) 2 mV/V nom (100 to 2000 lb),
- Bridge Resistance 740 Ohm nom
- FEATURES Insulation Resistance ≥500 MOhm @ 50 VDC
- • Environmental Protection, IP67 Rated
- • Utilizes metal foil strain gauge technology Weight (approximate) 3.7 oz [102 g]
- • Quick Disconnect Cable Safe Overload 150% of RO
- Material 17-4PH stainless-steel
- IP Rating IP67
- Fixed End Operating Temperature –60 to 200°F [–50 to 93°C]
- Compensated Temperature 60 to 160°F [15 to 72°C]
- Temperature Shift Zero ±0.01% of RO/°F [0.018% of RO/°C]
- Temperature Shift Span ±0.02% of LOAD/°F [0.036% of LOAD/°C]

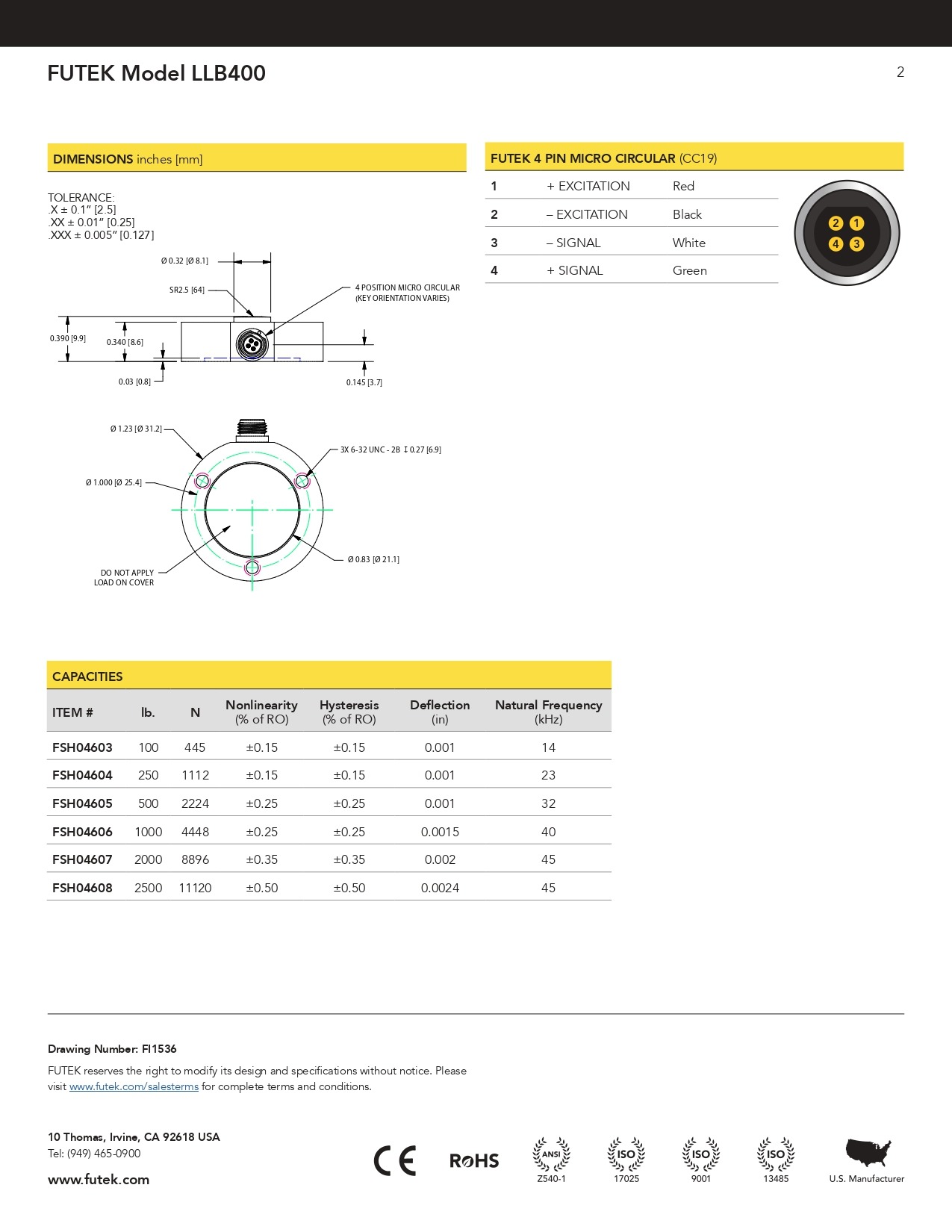

- DIMENSIONS inches [mm] FUTEK 4 PIN MICRO CIRCULAR (CC19)
- 3 – SIGNAL White 4 3
- 4 + SIGNAL Green
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
