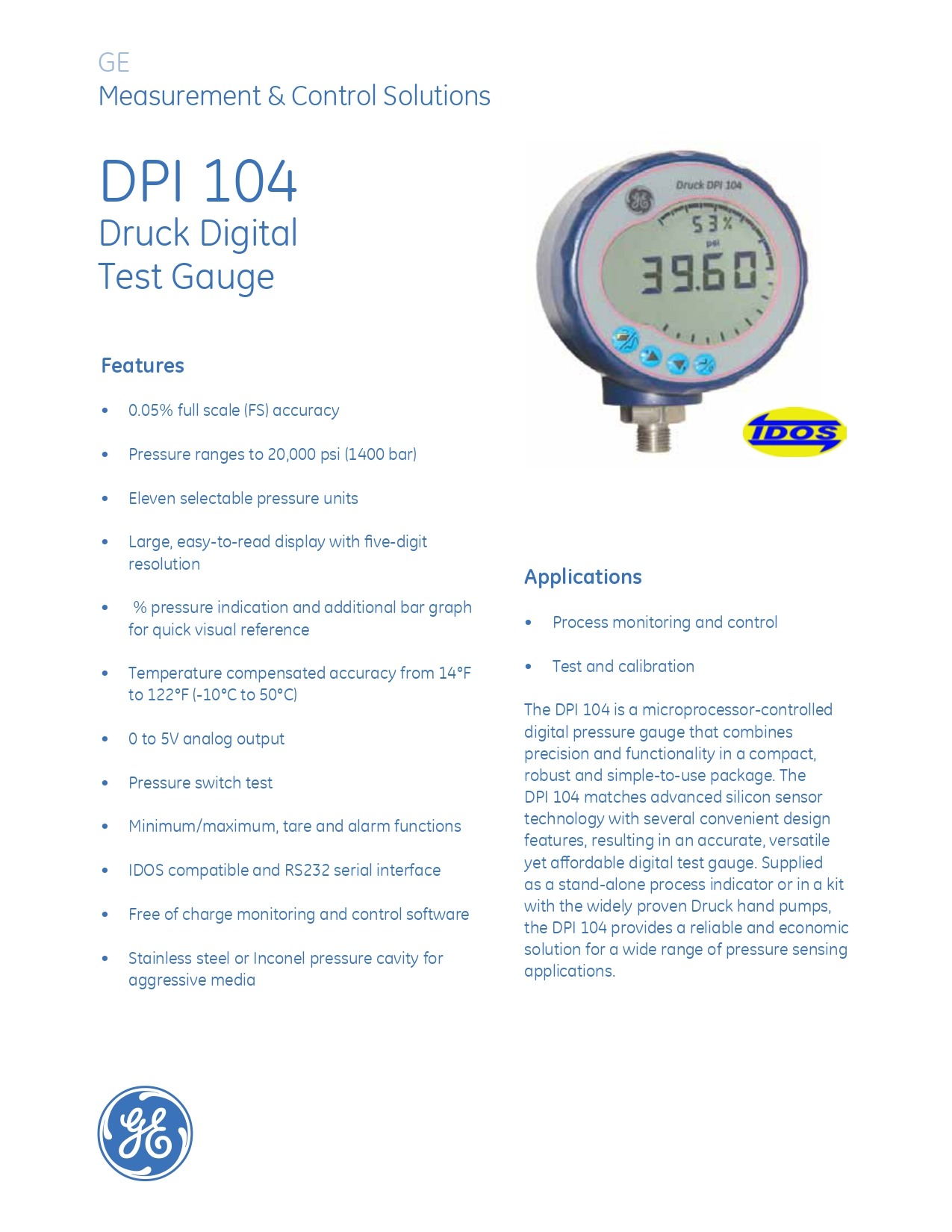

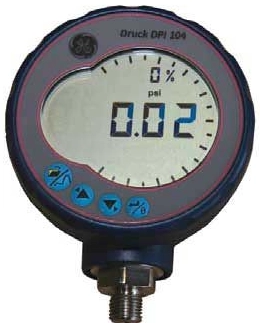

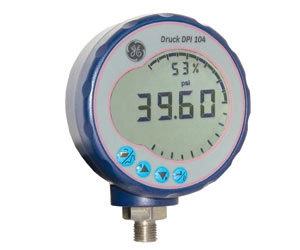

드럭 DRUCK DPI104 – 디지털 압력게이지 (0.05%)

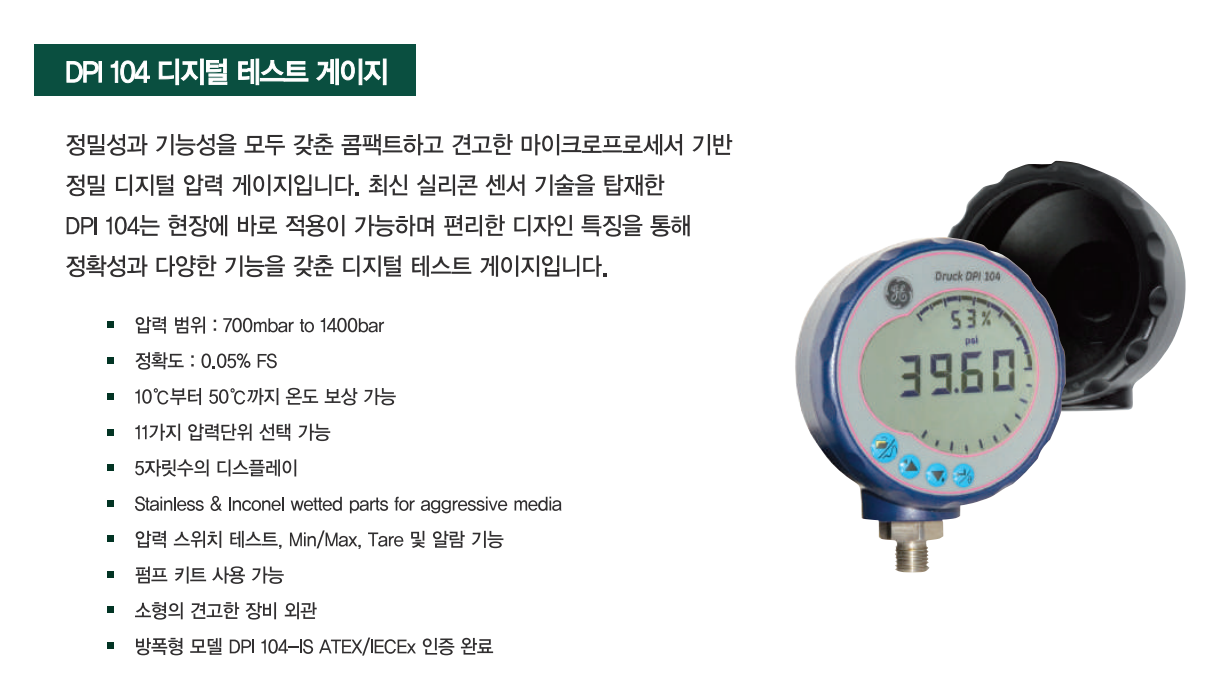

정밀성과 기능성을 모두 갖춘 견고한 마이크로프로세서 기반 디지털 압력 게이지
- 0.05% full scale (FS) accuracy
- Pressure ranges to 20,000 psi (1,400 bar)
- Eleven selectable pressure units
- Large, easy-to-read display with a five-digit resolution
- % pressure indication and additional bar graph for quick visual reference
- Temperature-compensated accuracy from 14°F to 122°F (-10°C to 50°C)
- 0 to 5V analog output
- Pressure switch test
- Minimum/maximum, tare, and alarm functions
- IDOS compatible and RS232 serial interface
- Free of charge monitoring and control software
- Stainless steel or Inconel pressure cavity for aggressive media
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
드럭 DRUCK DPI104 – 디지털 압력게이지 (0.05%)
메이커 | DRUCK |
제품명 | DPI104 |
제품설명 | 디지털 압력계 Digital Test Gauge |
주요특징 | - 압력범위 : 700 mbar to 1,400 bar (10 psi to 20,000 psi) - 정확도 : 0.05%FS Temperature compensated from -10 to 50°C - 11가지 압력단위 선택 가능 - 5 자릿수의 디스플레이 - Stainless & Inconel wetted parts for aggressive media - 압력 스위치 테스트, Min/Max, Tare 및 알람 기능 - Handpump kit 사용 가능 - 소형의 견고한 장비 외관 |
제품소개 | DPI104는 작고 단단하며, 기능성과 정밀도가 뛰어난 Druck사의 silicon sensor 기술력이 바탕이 된 다목적 정밀 디지털 게이지 입니다. |
제품특징 | 1. 압력 범위

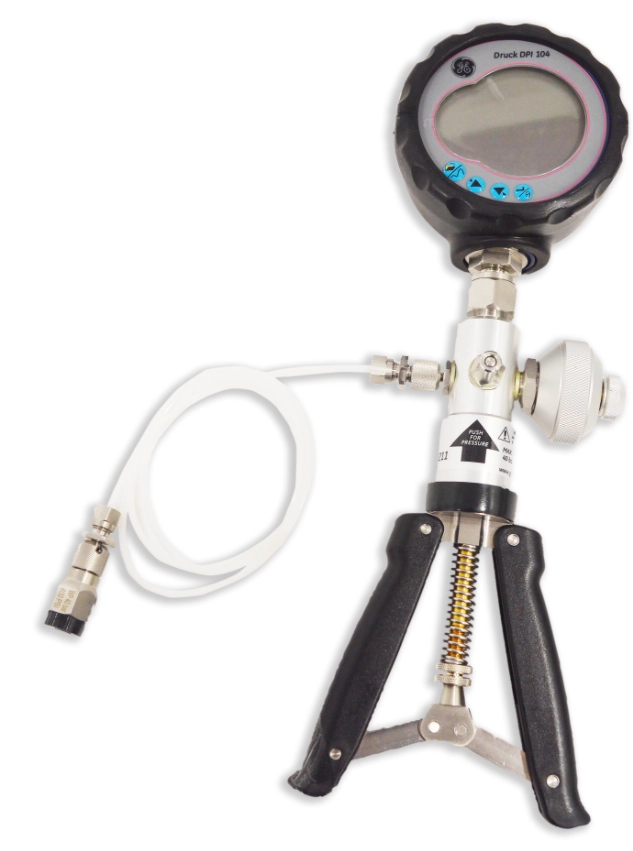

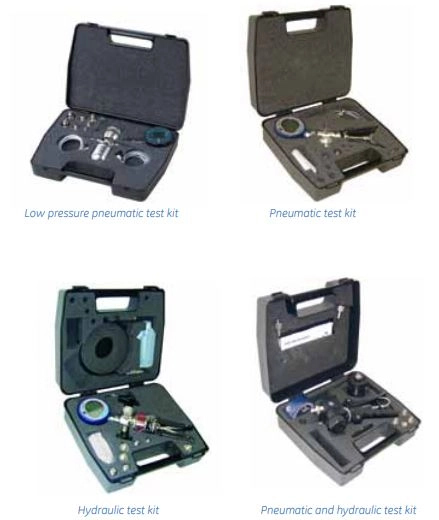

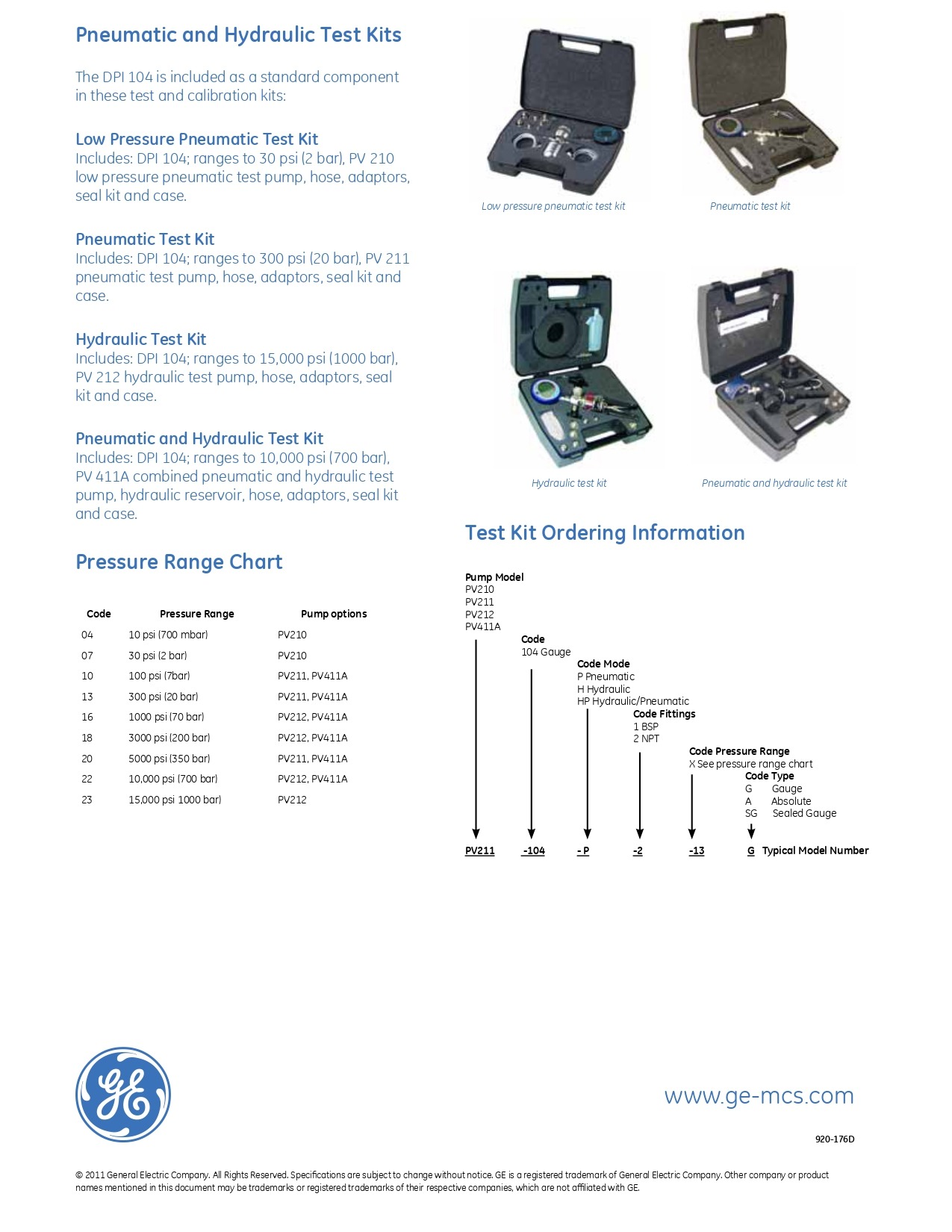

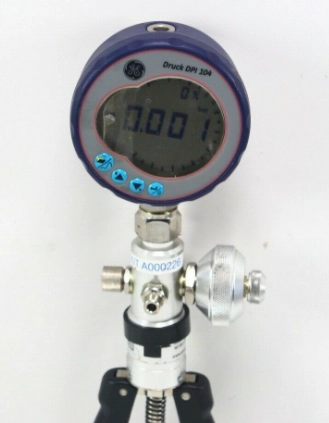

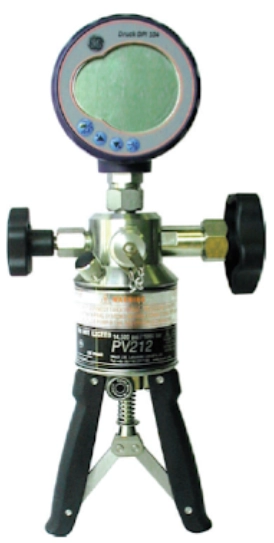

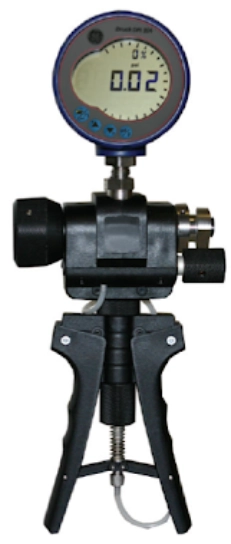

2. 압력 단위 kPa, MPa, kg/cm2, psi, mbar, bar, inHg, inH2O, mH2O, mmH2O and mmHg 3. 샘플링 속도 2 Hz, 500 ms, 초당 2번 . 4. Pneumatic and Hydraulic Test Kits 단독으로 공급이 가능하지만, 압력 범위가 다양하여 핸드드펌프와의 조합으로 test kit set로 구성이 가능하며 여러 압력 측정 어플리케이션에 경제적인 솔루션을 제공합니다.
|
기타 |

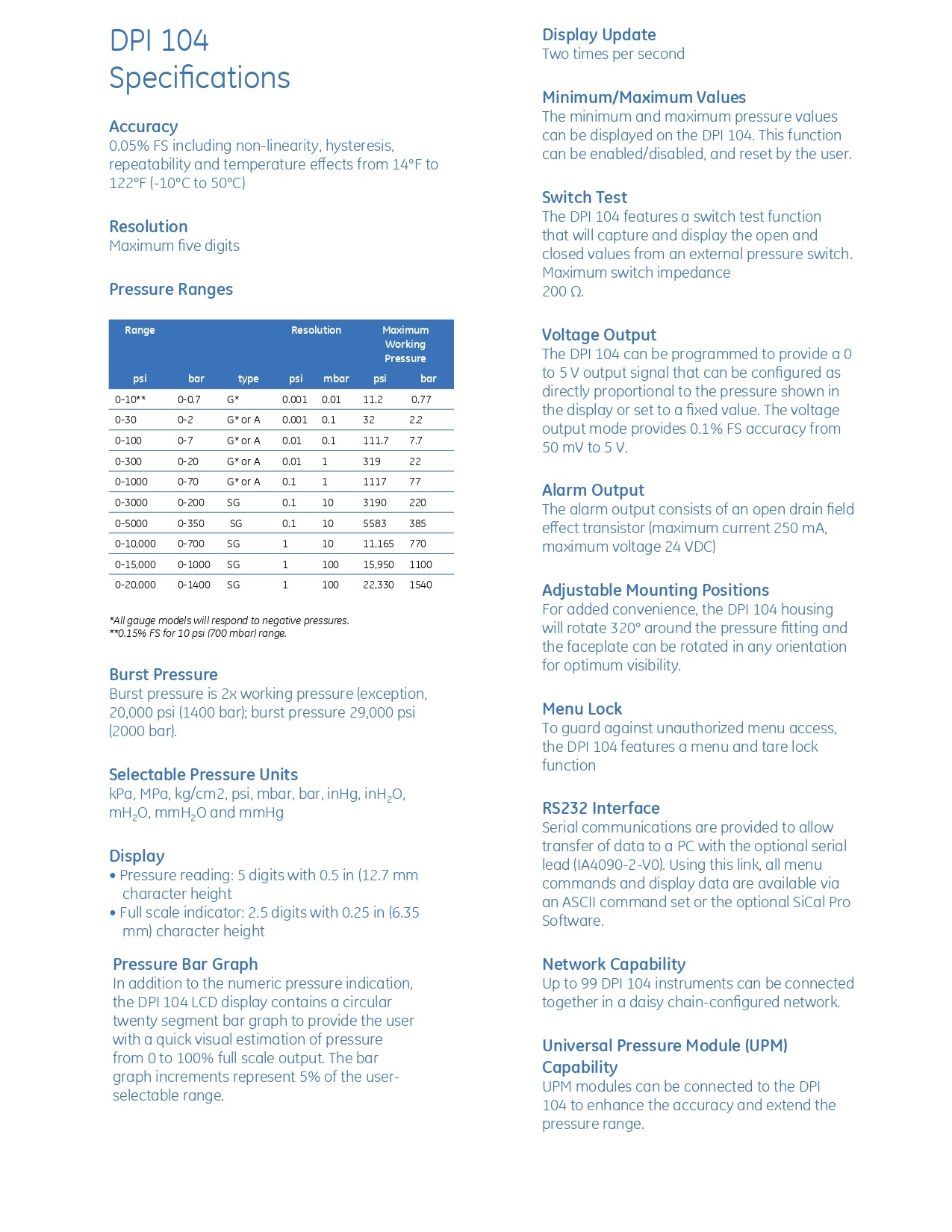

Accuracy
0.05% FS including non-linearity, hysteresis, repeatability, and temperature effects from 14°F to 122°F (-10°C to 50°C)
Burst Pressure
Burst pressure is 2x working pressure (exception, 20,000 psi (1,400 bar); burst pressure 29,000 psi (2,000 bar).
Selectable Pressure Units
kPa, MPa, kg/cm2, psi, mbar, bar, inHg, inH2O, mH2O, mmH2O and mmHg
Display
Pressure reading: 5 digits with 0.5 in (12.7 mm character height
Full-scale indicator: 2.5 digits with 0.25 in (6.35 mm) character height.
Pressure Bar Graph
In addition to the numeric pressure indication, the DPI 104 LCD display contains a circular twenty segment bar graph to provide the user with a quick visual estimation of pressure from 0 to 100% full-scale output. The bar graph increments represent 5% of the user-selectable range.
Minimum/Maximum Values
The minimum and maximum pressure values can be displayed on the DPI 104. This function can be enabled/disabled, and reset by the user.
Switch Test
The DPI 104 features a switch test function that will capture and display the open and closed values from an external pressure switch. Maximum switch impedance 200 Ω.
Voltage Output
The DPI 104 can be programmed to provide a 0 to 5 V output signal that can be configured as directly proportional to the pressure shown in the display or set to a fixed value. The voltage output mode provides 0.1% FS accuracy from 50 mV to 5 V.
Alarm Output
The alarm output consists of an open drain field-effect transistor (maximum current 250 mA, maximum voltage 24 VDC)
Adjustable Mounting Positions
For added convenience, the DPI 104 housing will rotate 320° around the pressure fitting and the faceplate can be rotated in any orientation for optimum visibility.
Menu Lock
To guard against unauthorized menu access, the DPI 104 features a menu and tare lock function
📄 기술자료 다운로드

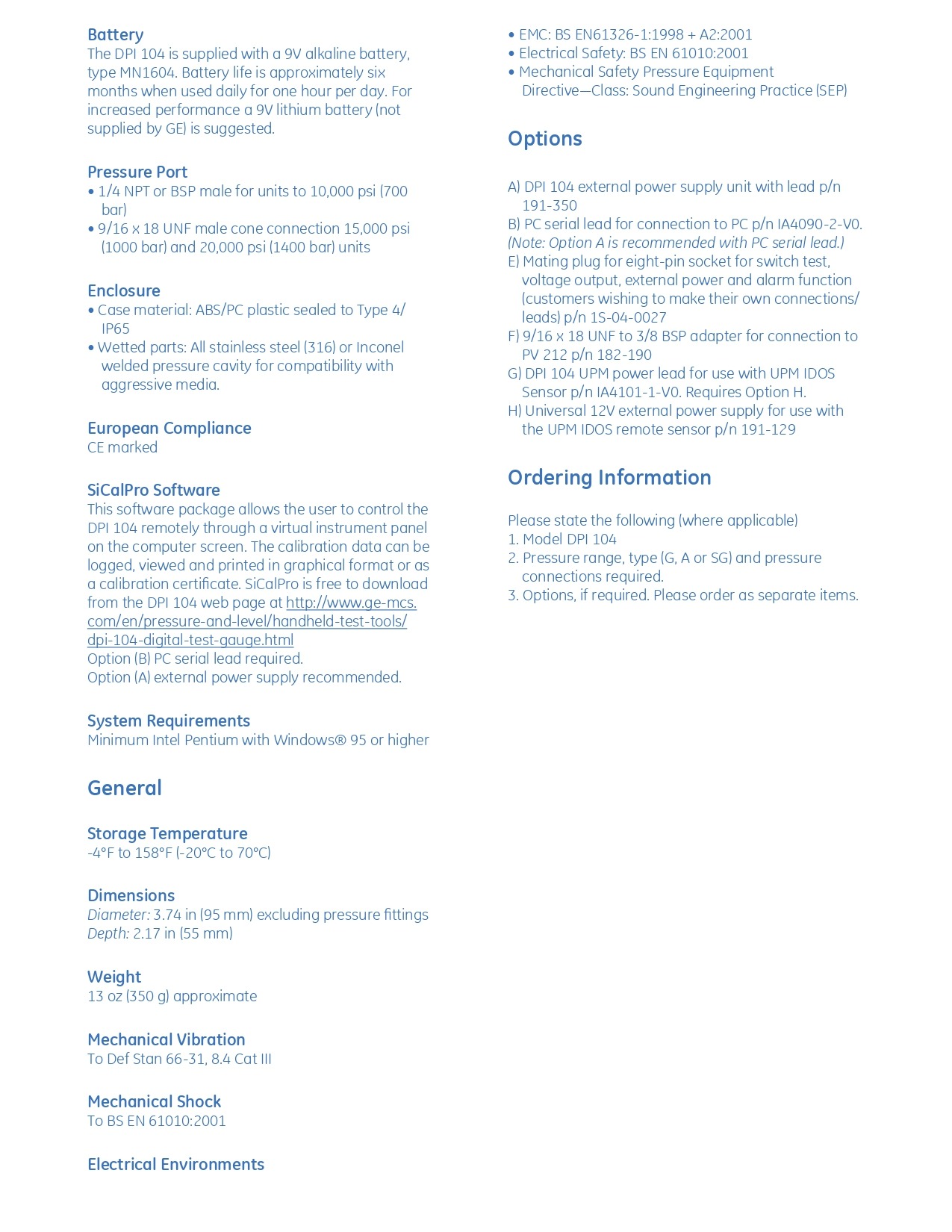

■ 제품 사양 (Specifications)
DRUCK DPI104 제품 데이터시트의 핵심 사양입니다.
- • 0.05% full scale (FS) accuracy
- • Pressure ranges to 20,000 psi (1400 bar)
- • Temperature compensated accuracy from 14°F
- • 0 to 5V analog output
- • IDOS compatible and RS232 serial interface
- DPI 104 Display Update
- repeatability and temperature effects from 14°F to

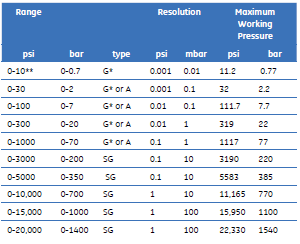

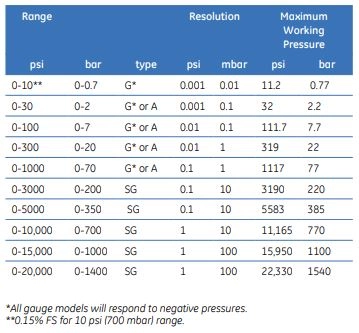

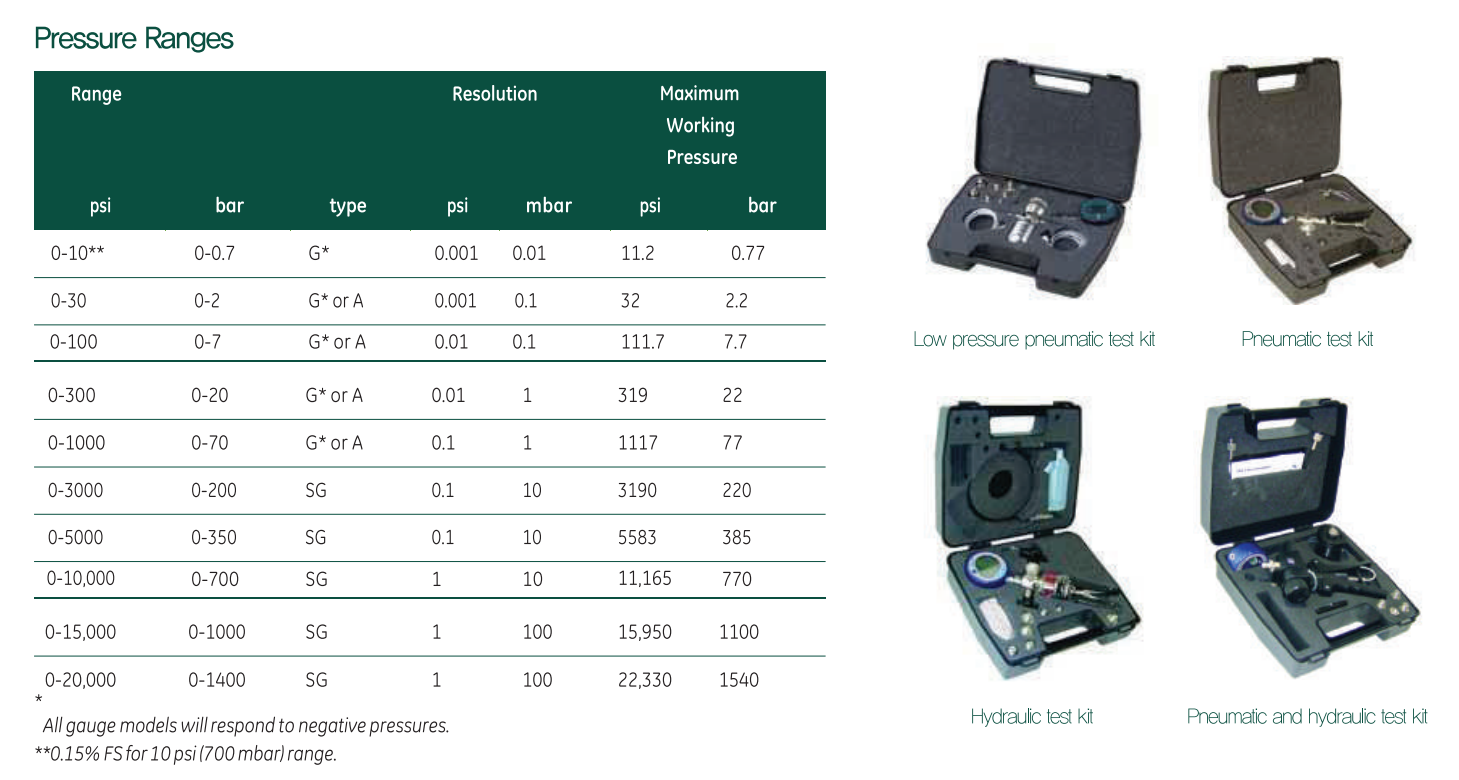

- Pressure Ranges 200 Ω.
- to 5 V output signal that can be configured as
- output mode provides 0.1% FS accuracy from
- 0-5000 0-350 SG 0.1 10 5583 385 effect transistor (maximum current 250 mA,
- 0-10,000 0-700 SG 1 10 11,165 770 maximum voltage 24 VDC)
- will rotate 320° around the pressure fitting and
- **0.15% FS for 10 psi (700 mbar) range.
- Burst pressure is 2x working pressure (exception,
- 20,000 psi (1400 bar); burst pressure 29,000 psi
- RS232 Interface
- • Pressure reading: 5 digits with 0.5 in (12.7 mm
- the DPI 104 LCD display contains a circular together in a daisy chain-configured network.
- from 0 to 100% full scale output. The bar
- 104 to enhance the accuracy and extend the
- • 1/4 NPT or BSP male for units to 10,000 psi (700 A) DPI 104 external power supply unit with lead p/n
- • Case material: ABS/PC plastic sealed to Type 4/
- G) DPI 104 UPM power lead for use with UPM IDOS
- Sensor p/n IA4101-1-V0. Requires Option H.
- H) Universal 12V external power supply for use with
- European Compliance the UPM IDOS remote sensor p/n 191-129
- 2. Pressure range, type (G, A or SG) and pressure
- Diameter: 3.74 in (95 mm) excluding pressure fittings

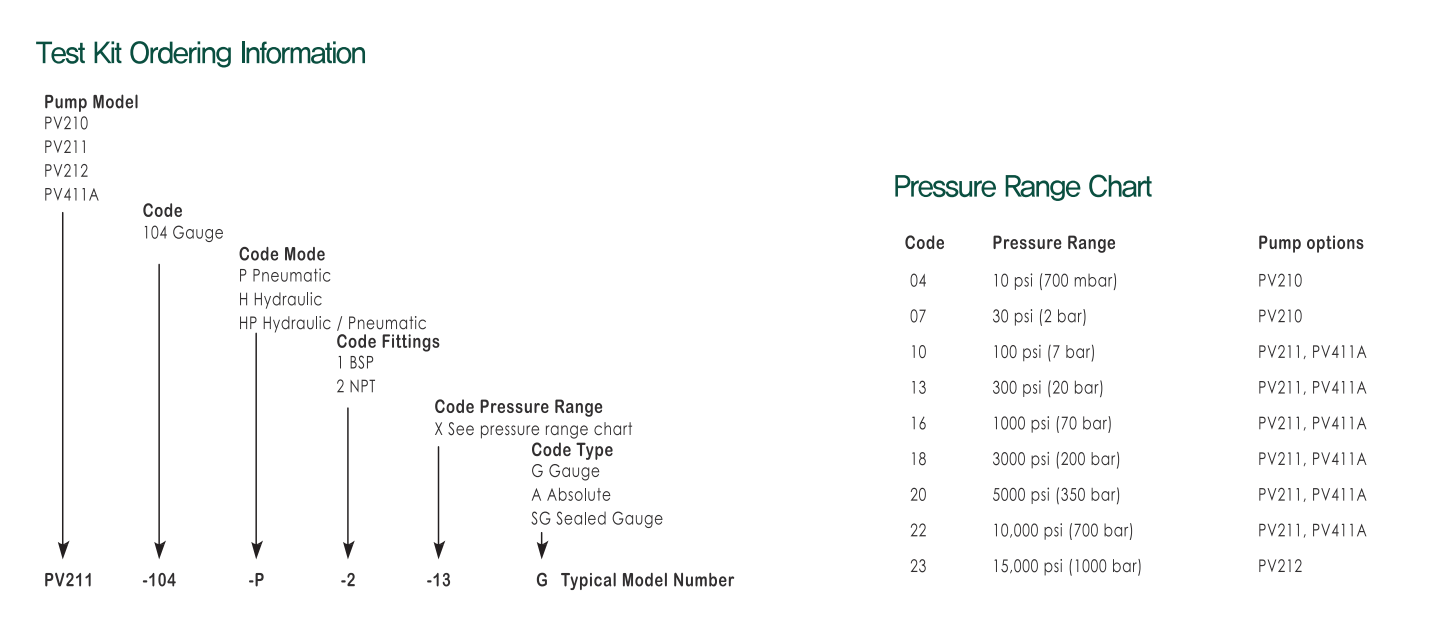

- Code Pressure Range Pump options PV212
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
