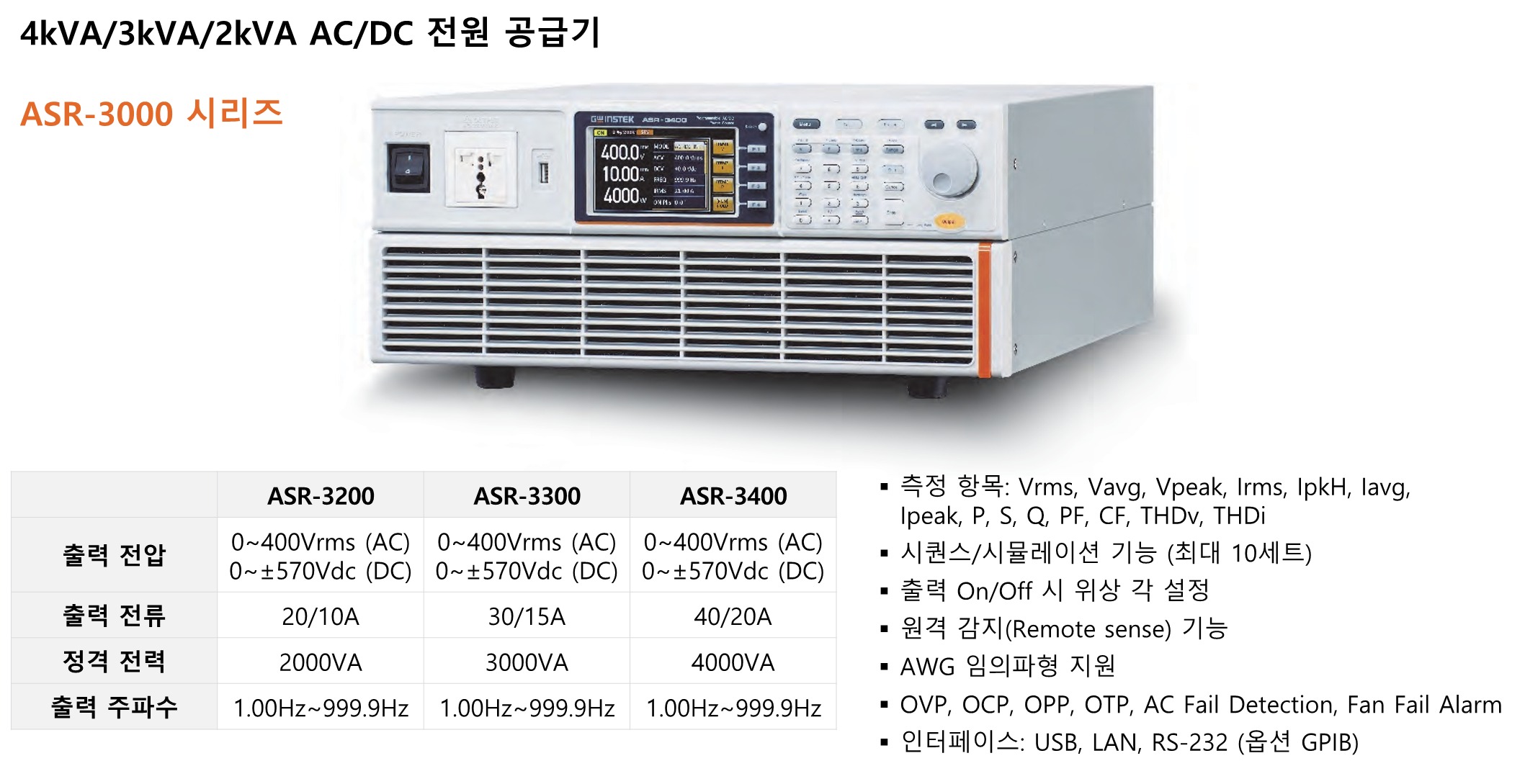

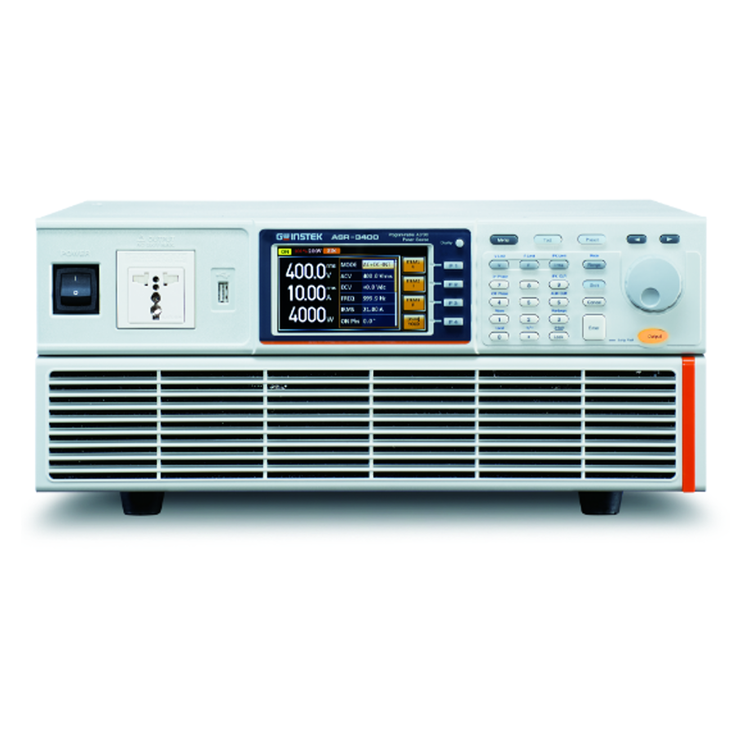

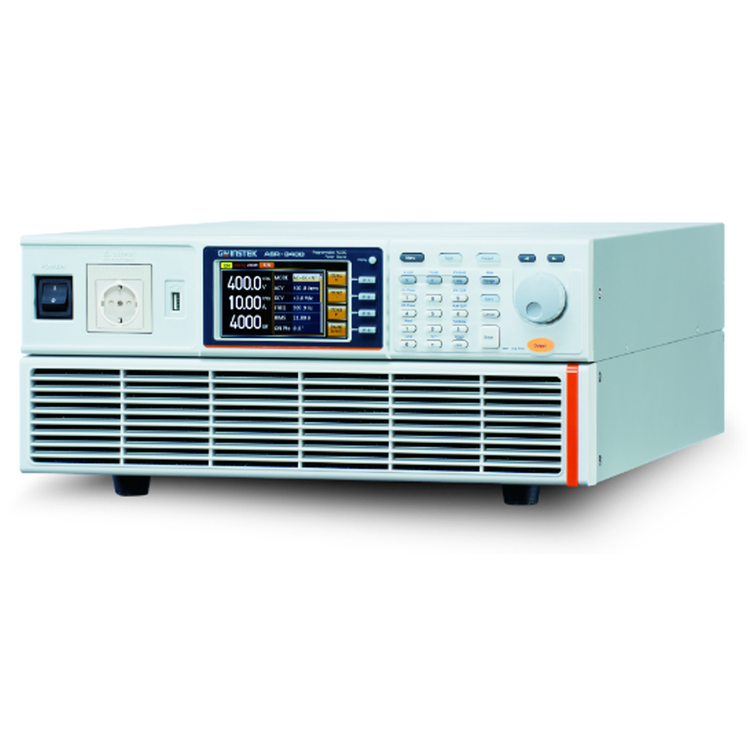

ASR-3000 시리즈는 AC+DC 전원으로 고속 DC 전압 상승 및 하강 시간(≤100us)이 특징입니다.
ASR-3000은 온보드 충전기, 서버 전원, LED 모듈, AC 모터, AC 팬, UPS 및 다양한 전자 부품의 개발은 물론 자동차 전기 장비 및 가전 제품의 테스트 애플리케이션에 이상적입니다.
이 시리즈에는 세 가지 모델이 있습니다.
1. ASR-3200(2kVA)
2. ASR-3300(3kVA)
3. ASR-3400(4kVA)
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
ASR-3000 시리즈는 프로그래머블 AC + DC 전원 공급기로써 고속 DC 전압 상승 및 하강 시간 (≤100us)이 특징입니다.
이 시리즈에는 ASR-3200 (2kVA), ASR-3300 (3kVA) 및 ASR-3400 (4kVA)의 세 가지 모델이 있으며 AC 와 DC 로 9 가지의 출력 모드를 제공합니다. 9 개의 ASR-3000 시리즈 출력 모드는
ASR-3000 시리즈는 온-보드 충전기, 서버 전원, LED 모듈, AC 모터, AC 팬, UPS 및 다양한 전자 부품의 개발은 물론 자동차용 전기 장치 및 가전 제품의 애플리케이션 테스트에 이상적입니다. ASR-3000 시리즈는 사용자에게 다음과 같은 파형 출력 기능을 제공합니다.

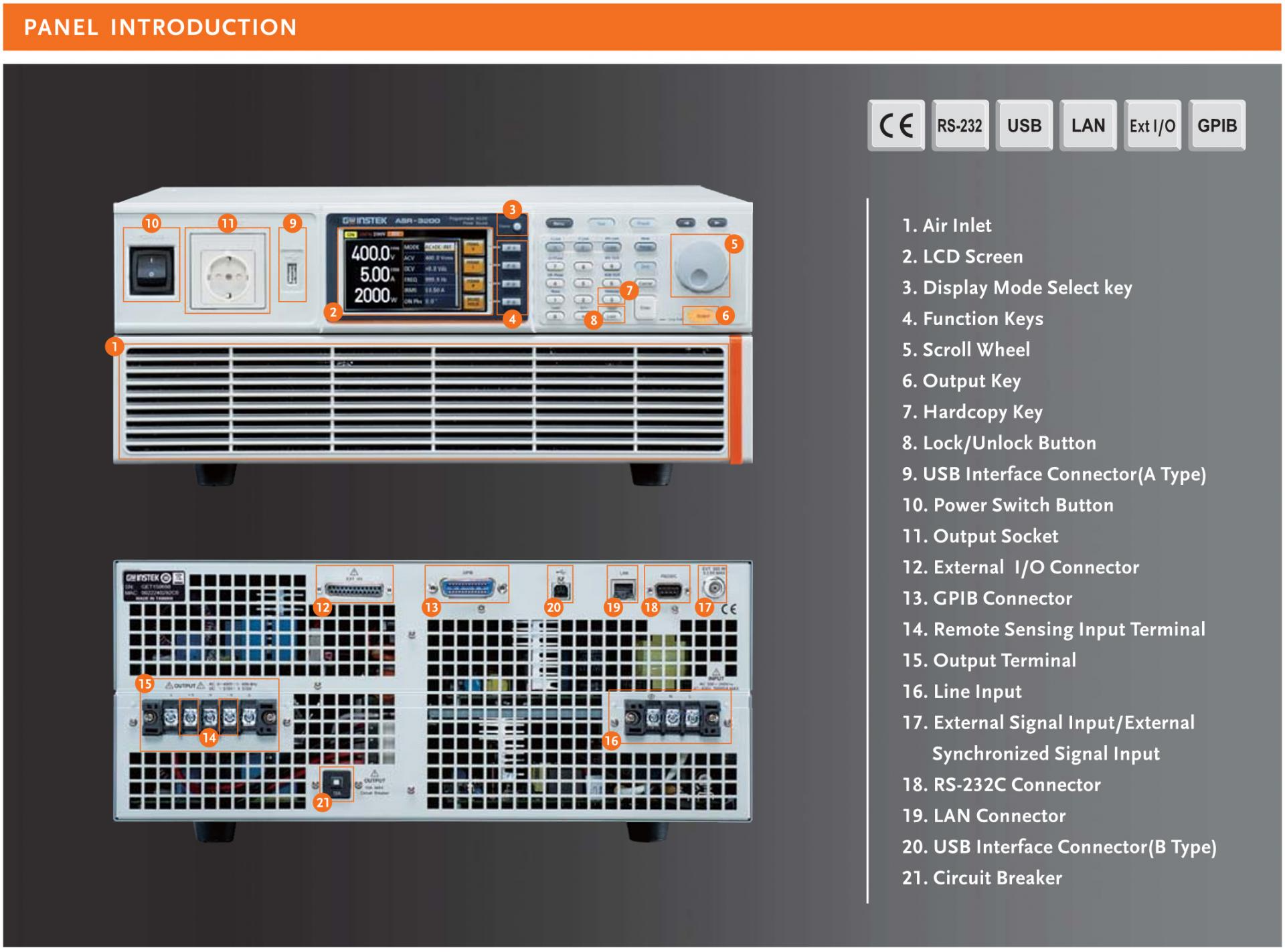

ASR-3000 시리즈는 전원 출력과 동시에 Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 40 차 전압 고조파 및 전류 고조파도 측정할 수 있습니다. 또한 Remote sensing 기능으로 정확한 전압 출력을 보장하며, 출력 On/Off 를 위한 맞춤형 위상 각도 기능은 테스트 요구 사항에 따라 전압 출력의 시작 및 끝의 각도를 설정할 수 있습니다. V-Limit, Ipeak-Limit 및 F-Limit 의 보호 한계값은 사용자 요구 사항에 따라 설정할 수 있으며, OVP/ OCP/ OPP 기능으로 출력 프로세스중에 DUT 를 보호할 수 있습니다. 팬 고장 경보 기능과 AC 고장 경보 기능도 ASR3000 시리즈에 설계되어 있습니다. ASR-3000 시리즈의 전면 패널에는 범용 또는 유럽 소켓이 부착되어 있어서 사용자가 쉽게 연결하여 사용할 수 있어 배선 시간을 절약할 수 있습니다. ASR-3000 시리즈의 후면 패널은 전원 소켓 사양의 최대 전류가 15A 이므로 전류 회로 차단기로 설계되었습니다. 소켓 전류가 15A 보다 크면 사용자를 보호하기 위해 자동으로 차단됩니다. ASR-3000 시리즈는 I/O 인터페이스를 지원하며 USB, LAN, 외부 I/O, RS-232C 및 GPIB 가 기본으로 장착되어 있습니다.
특징
응용 분야
기본 액세서리 | |
CD (User Manual/ Programming Manual), Safety Guide, Input Terminal Cover, Output Terminal Cover Include Remote Sensing, GRA-442-E Rack Mount Adapter(EIA), GTL-246 USB Cable | |
옵션 액세서리 | |
GPW-005 | Power Cord, 3m, 105℃, UL/CSA Type |
GPW-006 | Power Cord, 3m, 105℃, VDE Type |
GPW-007 | Power Cord, 3m, 105℃, PSE Type |
GRA-442-J | Rack Mount Adapter(JIS) |
GTL-137 | Output Power Wire(Load wire_10AWG: 50A, 600V/ Sense wire_16AWG: 20A, 600V) |
GTL-232 | RS-232C Cable, approx. 2M |
GTL-248 | GPIB Cable, approx. 2M |

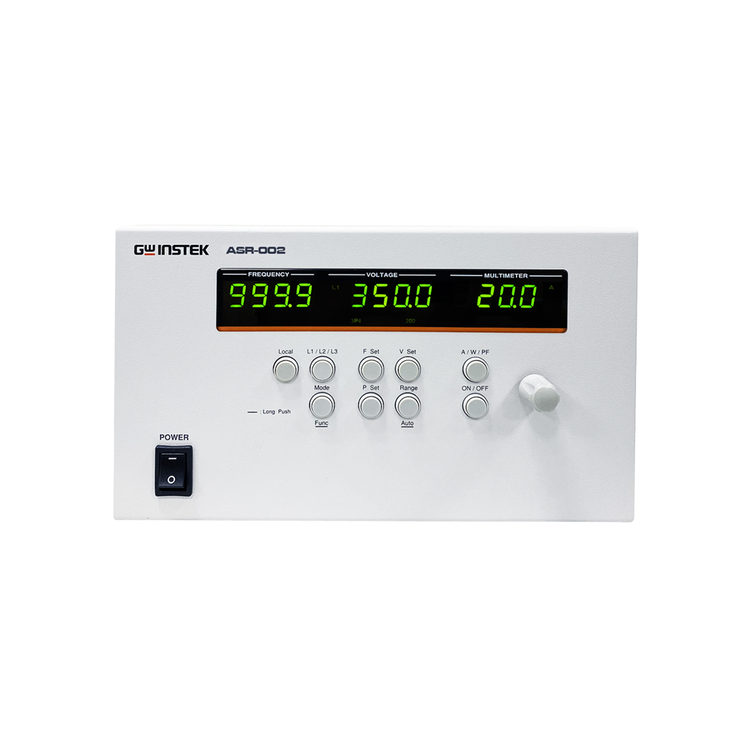

ASR-002 | External Three Phase Control Unit |
APS-008 | Air Inlet Filter |
주문 정보 | ||
ASR-3200 | 1채널 프로그래머블 스위칭 AC/DC 전원 공급기 (2kVA) | |
ASR-3300 | 1채널 프로그래머블 스위칭 AC/DC 전원 공급기 (3kVA) | |
ASR-3400 | 1채널 프로그래머블 스위칭 AC/DC 전원 공급기 (4kVA) | |
옵션 액세서리 | ||
GPW-005 | Power Cord, 3m, 105℃, UL/CSA Type | |
GPW-006 | Power Cord, 3m, 105℃, VDE Type | |
GPW-007 | Power Cord, 3m, 105℃, PSE Type | |
GRA-442-J | Rack Mount Adapter(JIS) | |
GTL-137 | Load wire_10AWG: 50A/600V & Sense wire_16AWG: 20A/600V | |
GTL-232 | RS-232C Cable, approx. 2M | |
GTL-248 | GPIB Cable, approx. 2M | |
ASR-002 | External Three Phase Control Unit | |
APS-008 | Air Inlet Filter | |
The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100us).
ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of automotive electrical equipment and home appliances.
There are three models of the series:
The series can provide rated power output during AC output and DC output. Ten ASR-3000 output modes are available.
Standard Accessories
Optional Accessories (factory installed)
| Optional Accessories | |
| GPW-005 |
|
| GPW-006 |
|
| GPW-007 |
|
| GRA-442-J |
|
| GTL-137 |
|
| GTL-232 |
|
| GTL-248 |
|
| *ASR-002 |
|
| APS-008 |
|
*Functions of ASR-Series are limited when ASR-Series applied to ASR-002
1) No DC Output( 100% of Rated Power).
2) Measurement Items: only current(A), power(W) and PF for each phase.
3) No voltage and current Harmonic Analysis(THDv, THDi)
4) No Remote Sensing Capability
5) No Arbitrary Waveform Function
6) No Sequence and Simulation Function( up to 10 sets)
7) Interface: only support USB
8) Not supported Built-in External Control I/O
9) No memory Function( up to 10 sets)
10) No LAN port(Built-in Web Server)
| Ordering Information | |
ASR-3200 |
|
ASR-3300 |
|
ASR-3400 |
|

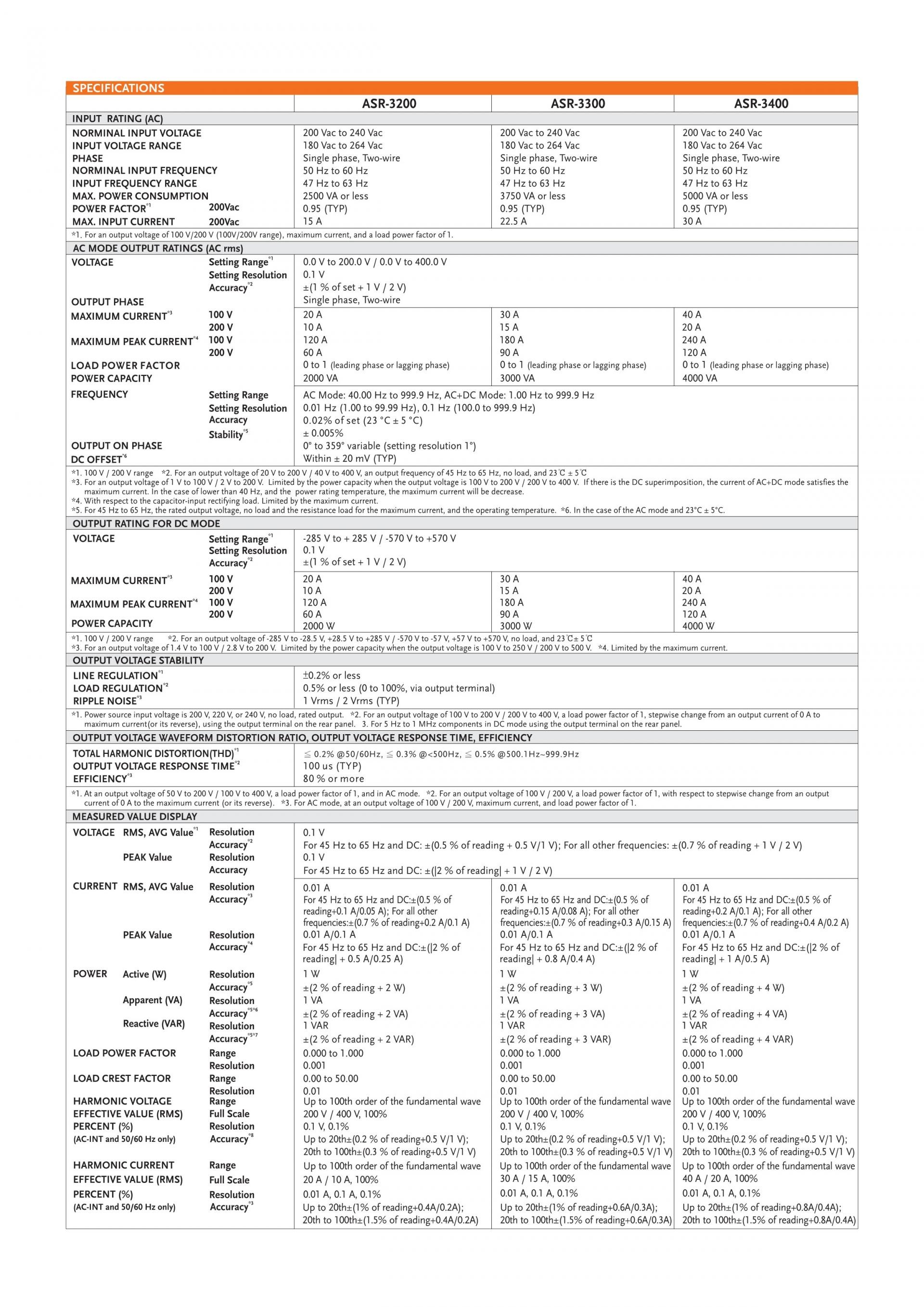

ASR-3000 Specifications
The specifications apply when the ASR-3000 is powered on for at least 30 minutes under +20°C~+30°C.
| Input ratings (AC rms) | ||
Nominal input voltage | 200 Vac to 240 Vac | |
Input voltage range | 180 Vac to 264 Vac | |
Phase | Single phase, Two-wire | |
Nominal input Frequency | 50 Hz to 60 Hz | |
Input frequency range | 47 Hz to 63 Hz | |
Max. power consumption | 2500 VA or less (ASR-3200) | |
3750 VA or less (ASR-3300) | ||
5000 VA or less (ASR-3400) | ||
Power factor*¹ | 200Vac | 0.95 (TYP) |
Max. input current | 200Vac | 15 A (ASR-3200) |
22.5 A (ASR-3300) | ||
30 A (ASR-3400) | ||
*1. For an output voltage of 100 V / 200 V (100V / 200V range), maximum current, and a load power factor of 1.
| AC mode output ratings (AC rms) | ||
Voltage | Setting Range*¹ | 0.0 V to 200.0 V / 0.0 V to 400.0 V |
Setting Resolution | 0.1 V | |
Accuracy*² | ±(1 % of set + 1 V / 2 V) | |
Output phase | Single phase, Two-wire | |
Maximum current*³ | 100 V | 20 A (ASR-3200) |
30 A (ASR-3300) | ||
40 A (ASR-3400) | ||
200 V | 10 A (ASR-3200) | |
15 A (ASR-3300) | ||
20 A (ASR-3400) | ||
Maximum peak current*⁴ | 100 V | 120 A (ASR-3200) |
180 A (ASR-3300) | ||
240 A (ASR-3400) | ||
200 V | 60 A (ASR-3200) | |
90 A (ASR-3300) | ||
120 A (ASR-3400) | ||
Load power factor | 0 to 1 (leading phase or lagging phase) | |
Power capacity | 2000 VA (ASR-3200) | |
3000 VA (ASR-3300) | ||
4000 VA (ASR-3400) | ||
Frequency | Setting range | AC Mode: 40.0 Hz to 999.9 Hz, AC+DC Mode: 1 Hz to 999.9 Hz |
Setting resolution | 0.01 Hz (1.00 to 99.99 Hz), 0.1 Hz (100.0 to 999.9 Hz) | |
Accuracy | 0.02% of set (23 °C ± 5 °C) | |
Stability*⁵ | ± 0.005% | |
Output on phase | 0° to 359° variable (setting resolution 1°) | |
DC offset*⁶ | Within ± 20 mV (TYP) | |
*1. 100 V / 200 V range
*2. For an output voltage of 20 V to 200 V / 40 V to 400 V, an output frequency of 45 Hz to 65 Hz, no load, and 23℃ ± 5℃
*3. For an output voltage of 1 V to 100 V / 2 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 200 V / 200 V to 400 V.
If there is the DC superimposition, the current of AC+DC mode satisfies the maximum current. In the case of lower than 40 Hz, and the power rating temperature,
the maximum current will be decrease.
*4. With respect to the capacitor-input rectifying load. Limited by the maximum current.
*5. For 45 Hz to 65 Hz, the rated output voltage, no load and the resistance load for the maximum current, and the operating temperature.
*6. In the case of the AC mode and 23°C ± 5°C.
| Output rating for DC mode | ||
Voltage | Setting Range*¹ | -285 V to +285 V / -570 V to +570 V |
Setting Resolution | 0.1 V | |
Accuracy*² | ±(1 % of set + 1 V / 2 V) | |
Maximum current*³ | 100 V | 20 A (ASR-3200) |
30 A (ASR-3300) | ||
40 A (ASR-3400) | ||
200 V | 10 A (ASR-3200) | |
15 A (ASR-3300) | ||
20 A (ASR-3400) | ||
Maximum peak current*⁴ | 100 V | 120 A (ASR-3200) |
180 A (ASR-3300) | ||
240 A (ASR-3400) | ||
200 V | 60 A (ASR-3200) | |
90 A (ASR-3300) | ||
120 A (ASR-3400) | ||
Power capacity | 2000 W (ASR-3200) | |
3000 W (ASR-3300) | ||
4000 W (ASR-3400) | ||
*1. 100 V / 200 V range
*2. For an output voltage of -285 V to -28.5 V, +28.5 V to +285 V / -570 V to -57 V, +57 V to +570 V, no load, and 23℃ ± 5℃
*3. For an output voltage of 1.4 V to 100 V / 2.8 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 250 V / 200 V to 500 V.
*4. Limited by the maximum current.
| Output voltage stability | ||
Line regulation*¹ | 0.2% or less | |
Load regulation*² | 0.5% or less (0 to 100%, via output terminal) | |
Ripple noise*³ | 1 Vrms / 2 Vrms (TYP) | |
*1. Power source input voltage is 200 V, 220 V, or 240 V, no load, rated output.
*2. For an output voltage of 100 V to 200 V / 200 V to 400 V, a load power factor of 1, stepwise change from an output current of 0 A to maximum current
(or its reverse), using the output terminal on the rear panel.
*3. For 5 Hz to 1 MHz components in DC mode using the output terminal on the rear panel.
| Output voltage waveform distortion ratio, Output voltage response time, Efficiency | ||
Total harmonic distortion(THD)*¹ | ≦ 0.2% @50/60Hz | |
≦ 0.3% @<500Hz | ||
≦ 0.5% @500.1Hz~999.9Hz | ||
Output voltage response time*² | 100 us (TYP) | |
Efficiency*³ | 80 % or more | |
*1. At an output voltage of 50 V to 200 V / 100 V to 400 V, a load power factor of 1, and in AC mode.
*2. For an output voltage of 100 V / 200 V, a load power factor of 1, with respect to stepwise change from an output current of 0 A to the maximum current (or its reverse).
*3. For AC mode, at an output voltage of 100 V / 200 V, maximum current, and load power factor of 1.
| Measured value display | |||
Voltage | RMS, AVG value*¹ | Resolution | 0.1 V |
Accuracy*² | For 45 Hz to 65 Hz and DC: ±(0.5 % of reading + 0.5 V / 1 V) For all other frequencies: ±(0.7 % of reading + 1 V / 2 V) | ||
PEAK value | Resolution | 0.1 V | |
Accuracy | For 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 1 V / 2 V) | ||
Current | RMS, AVG value | Resolution | 0.01 A |
Accuracy*³ | ASR-3200 For 45 Hz to 65 Hz and DC: ±(0.5 % of reading+0.1 A/0.05 A)
±(0.7 % of reading+0.2 A/0.1 A) | ||
ASR-3300 For 45 Hz to 65 Hz and DC: ±(0.5 % of reading+0.15 A/0.08 A)
±(0.7 % of reading+0.3 A/0.15 A) | |||
ASR-300 For 45 Hz to 65 Hz and DC: ±(0.5 % of reading+0.2 A/0.1 A)
±(0.7 % of reading+0.4 A/0.2 A) | |||
PEAK value | Resolution | 0.01A/ 0.1A | |
Accuracy*⁴ | ASR-3200 For 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 0.5 A/0.25 A) | ||
ASR-3300 For 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 0.8 A/0.4 A) | |||
ASR-3400 For 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 1 A/0.5 A) | |||
Power | Active (W) | Resolution | 1 W |
Accuracy*⁵ | ASR-3200 ±(2 % of reading +2 W) | ||
ASR-3300 ±(2 % of reading +3 W) | |||
ASR-3400 ±(2 % of reading +4 W) | |||
Apparent (VA) | Resolution | 1 VA | |
Accuracy*⁵*⁶ | ASR-3200 ±(2 % of reading +2 VA) | ||
ASR-3300 ±(2 % of reading +3 VA) | |||
ASR-3400 ±(2 % of reading +4 VA) | |||
Reactive (VAR) | Resolution | 1 VAR | |
Accuracy*⁵*⁷ | ASR-3200 ±(2 % of reading +2 VAR) | ||
ASR-3300 ±(2 % of reading +3 VAR) | |||
ASR-3400 ±(2 % of reading +4 VAR) | |||
Load power factor | Range | 0.000 to 1.000 | |
Resolution | 0.001 | ||
Load crest factor | Range | 0.00 to 50.00 | |
Resolution | 0.01 | ||
Harmonic voltage (AC-INT and 50/60 Hz only) | Range | Up to 100th order of the fundamental wave | |
Full Scale | 200 V / 400 V, 100% | ||
Resolution | 0.1 V, 0.1% | ||
Accuracy*⁸ | Up to 20th ±(0.2 % of reading + 0.5 V / 1 V) ±(0.3 % of reading + 0.5 V / 1 V) | ||
Harmonic current | Range | Up to 100th order of the fundamental wave | |
Full Scale | ASR-3200 20 A / 10 A, 100% | ||
ASR-3300 30 A / 15 A, 100% | |||
ASR-3400 40 A / 20 A, 100% | |||
Resolution | 0.01 A, 0.1A, 0.1% | ||
Accuracy*³ | ASR-3200 Up to 20th ±(1 % of reading+0.4 A/0.2 A)
±(1.5 % of reading+0.4 A/0.2 A) | ||
ASR-3300 Up to 20th ±(1 % of reading+0.6 A/0.3 A)
±(1.5 % of reading+0.6 A/0.3 A) | |||
ASR-3400 Up to 20th ±(1 % of reading+0.8 A/0.4 A)
±(1.5 % of reading+0.8 A/0.4 A) | |||
*1. The voltage display is set to RMS in AC/AC+DC mode and AVG in DC mode.
*2. AC mode: For an output voltage of 20 V to 200 V / 40 V to 400 V and 23 °C ± 5 °C. DC mode: For an output voltage of 28.5 V to 285 V / 57 V to 570 V and 23 °C ± 5 °C.
*3. An output current in the range of 5 % to 100 % of the maximum current, and 23 °C ± 5 °C.
*4. An output current in the range of 5 % to 100 % of the maximum peak current in AC mode, an output current in the range of 5 % to 100 % of the maximum instantaneous
current in DC mode, and 23 °C ± 5 °C. The accuracy of the peak value is for a waveform of DC or sine wave
*5. For an output voltage of 50 V or greater, an output current in the range of 10 % to 100 % of the maximum current, DC or an output frequency of 45 Hz to 65 Hz, and 23 °C ±
5 °C.
*6. The apparent and reactive powers are not displayed in the DC mode.
*7. The reactive power is for the load with the power factor 0.5 or lower.
*8. An output voltage in the range of 20 V to 200 V / 40 V to 400 V and 23 °C ± 5 °C.

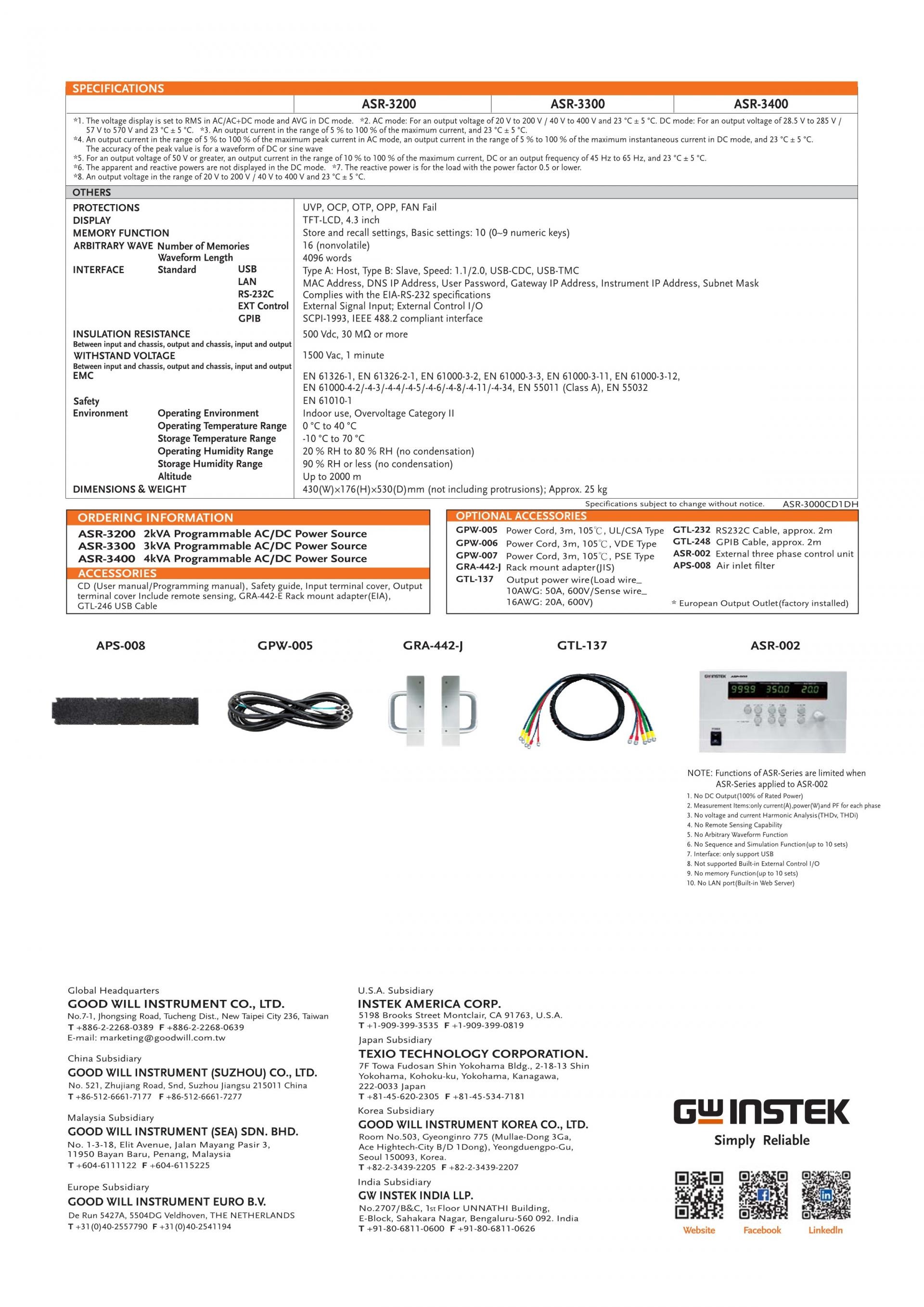

| Others | ||
Protections | UVP, OCP, OTP, OPP, Fan Fail | |
Display | TFT-LCD, 4.3 inch | |
Memory Function | Store and recall settings, Basic settings: 10 (0~9 numeric keys) | |
Arbitrary Wave | Number of memories | 16 (nonvolatile) |
Waveform length | 4096 words | |
| General Specifications | ||||
Interface | Standard | USB | Type A: Host, Type B: Slave, Speed: 1.1/2.0, USB-CDC, USB-TMC | |
LAN | MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask | |||
RS-232C | Complies with the EIA-RS-232 specifications | |||
EXT Control | External Signal Input External Control I/O | |||
GPIB | SCPI-1993, IEEE 488.2 compliant interface | |||
Insulation resistance | Between input and chassis, output and chassis, input and output | 500 Vdc, 30 MΩ or more | ||
Withstand voltage | Between input and chassis, output and chassis, input and output | 1500 Vac, 1 minute | ||
EMC | EN 61326-1 EN 61326-2-1 EN 61000-3-2 EN 61000-3-3 EN 61000-3-11 EN 61000-3-12 EN 61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-8/-4-11/-4-34 EN 55011 (Class A) EN 55032 | |||
Safety | EN 61010-1 | |||
Environment | Operating environment | Indoor use, Overvoltage Category II | ||
Operating temperature range | 0 °C to 40 °C | |||
Storage temperature range | -10 °C to 70 °C | |||
Operating humidity range | 20 % to 80 % RH (no condensation) | |||
Storage humidity range | 90 % RH or less (no condensation) | |||
Altitude | Up to 2000 m | |||
Transportation Integrity | ISTA 2A Test Procedure | |||
Dimensions (mm) | 430(W)×176(H)×530(D) (not including protrusions) | |||
Weight | ASR-3200 Approx. 25 kg | |||
ASR-3300 Approx. 25 kg | ||||
ASR-3400 Approx. 25 kg | ||||
Accessories | Safety information | 1 copy | ||
CD-ROM | 1 disc | |||
Input/Output Cover | 1 set | |||
EIA Rack Mount | 1 set | |||
USB Cable | 1 piece | |||
A value with the accuracy is the guaranteed value of the specification. However, an accuracy noted as reference value shows the supplemental data
for reference when the product is used, and is not under the guarantee. A value without the accuracy is the nominal value or representative
value (shown as typ.).
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
ASR-3000 시리즈는 프로그래머블 AC + DC 전원 공급기로써 고속 DC 전압 상승 및 하강 시간 (≤100us)이 특징입니다.
이 시리즈에는 ASR-3200 (2kVA), ASR-3300 (3kVA) 및 ASR-3400 (4kVA)의 세 가지 모델이 있으며 AC 와 DC 로 9 가지의 출력 모드를 제공합니다. 9 개의 ASR-3000 시리즈 출력 모드는
ASR-3000 시리즈는 온-보드 충전기, 서버 전원, LED 모듈, AC 모터, AC 팬, UPS 및 다양한 전자 부품의 개발은 물론 자동차용 전기 장치 및 가전 제품의 애플리케이션 테스트에 이상적입니다. ASR-3000 시리즈는 사용자에게 다음과 같은 파형 출력 기능을 제공합니다.
ASR-3000 시리즈는 전원 출력과 동시에 Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 40 차 전압 고조파 및 전류 고조파도 측정할 수 있습니다. 또한 Remote sensing 기능으로 정확한 전압 출력을 보장하며, 출력 On/Off 를 위한 맞춤형 위상 각도 기능은 테스트 요구 사항에 따라 전압 출력의 시작 및 끝의 각도를 설정할 수 있습니다. V-Limit, Ipeak-Limit 및 F-Limit 의 보호 한계값은 사용자 요구 사항에 따라 설정할 수 있으며, OVP/ OCP/ OPP 기능으로 출력 프로세스중에 DUT 를 보호할 수 있습니다. 팬 고장 경보 기능과 AC 고장 경보 기능도 ASR3000 시리즈에 설계되어 있습니다. ASR-3000 시리즈의 전면 패널에는 범용 또는 유럽 소켓이 부착되어 있어서 사용자가 쉽게 연결하여 사용할 수 있어 배선 시간을 절약할 수 있습니다. ASR-3000 시리즈의 후면 패널은 전원 소켓 사양의 최대 전류가 15A 이므로 전류 회로 차단기로 설계되었습니다. 소켓 전류가 15A 보다 크면 사용자를 보호하기 위해 자동으로 차단됩니다. ASR-3000 시리즈는 I/O 인터페이스를 지원하며 USB, LAN, 외부 I/O, RS-232C 및 GPIB 가 기본으로 장착되어 있습니다.
특징
응용 분야
기본 액세서리 | |
CD (User Manual/ Programming Manual), Safety Guide, Input Terminal Cover, Output Terminal Cover Include Remote Sensing, GRA-442-E Rack Mount Adapter(EIA), GTL-246 USB Cable | |
옵션 액세서리 | |
GPW-005 | Power Cord, 3m, 105℃, UL/CSA Type |
GPW-006 | Power Cord, 3m, 105℃, VDE Type |
GPW-007 | Power Cord, 3m, 105℃, PSE Type |
GRA-442-J | Rack Mount Adapter(JIS) |
GTL-137 | Output Power Wire(Load wire_10AWG: 50A, 600V/ Sense wire_16AWG: 20A, 600V) |
GTL-232 | RS-232C Cable, approx. 2M |
GTL-248 | GPIB Cable, approx. 2M |
ASR-002 | External Three Phase Control Unit |
APS-008 | Air Inlet Filter |
주문 정보 | ||
ASR-3200 | 1채널 프로그래머블 스위칭 AC/DC 전원 공급기 (2kVA) | |
ASR-3300 | 1채널 프로그래머블 스위칭 AC/DC 전원 공급기 (3kVA) | |
ASR-3400 | 1채널 프로그래머블 스위칭 AC/DC 전원 공급기 (4kVA) | |
옵션 액세서리 | ||
GPW-005 | Power Cord, 3m, 105℃, UL/CSA Type | |
GPW-006 | Power Cord, 3m, 105℃, VDE Type | |
GPW-007 | Power Cord, 3m, 105℃, PSE Type | |
GRA-442-J | Rack Mount Adapter(JIS) | |
GTL-137 | Load wire_10AWG: 50A/600V & Sense wire_16AWG: 20A/600V | |
GTL-232 | RS-232C Cable, approx. 2M | |
GTL-248 | GPIB Cable, approx. 2M | |
ASR-002 | External Three Phase Control Unit | |
APS-008 | Air Inlet Filter | |
The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100us).
ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of automotive electrical equipment and home appliances.
There are three models of the series:
The series can provide rated power output during AC output and DC output. Ten ASR-3000 output modes are available.
Standard Accessories
Optional Accessories (factory installed)
| Optional Accessories | |
| GPW-005 |
|
| GPW-006 |
|
| GPW-007 |
|
| GRA-442-J |
|
| GTL-137 |
|
| GTL-232 |
|
| GTL-248 |
|
| *ASR-002 |
|
| APS-008 |
|
*Functions of ASR-Series are limited when ASR-Series applied to ASR-002
1) No DC Output( 100% of Rated Power).
2) Measurement Items: only current(A), power(W) and PF for each phase.
3) No voltage and current Harmonic Analysis(THDv, THDi)
4) No Remote Sensing Capability
5) No Arbitrary Waveform Function
6) No Sequence and Simulation Function( up to 10 sets)
7) Interface: only support USB
8) Not supported Built-in External Control I/O
9) No memory Function( up to 10 sets)
10) No LAN port(Built-in Web Server)
| Ordering Information | |
ASR-3200 |
|
ASR-3300 |
|
ASR-3400 |
|
ASR-3000 Specifications
The specifications apply when the ASR-3000 is powered on for at least 30 minutes under +20°C~+30°C.
| Input ratings (AC rms) | ||
Nominal input voltage | 200 Vac to 240 Vac | |
Input voltage range | 180 Vac to 264 Vac | |
Phase | Single phase, Two-wire | |
Nominal input Frequency | 50 Hz to 60 Hz | |
Input frequency range | 47 Hz to 63 Hz | |
Max. power consumption | 2500 VA or less (ASR-3200) | |
3750 VA or less (ASR-3300) | ||
5000 VA or less (ASR-3400) | ||
Power factor*¹ | 200Vac | 0.95 (TYP) |
Max. input current | 200Vac | 15 A (ASR-3200) |
22.5 A (ASR-3300) | ||
30 A (ASR-3400) | ||
*1. For an output voltage of 100 V / 200 V (100V / 200V range), maximum current, and a load power factor of 1.
| AC mode output ratings (AC rms) | ||
Voltage | Setting Range*¹ | 0.0 V to 200.0 V / 0.0 V to 400.0 V |
Setting Resolution | 0.1 V | |
Accuracy*² | ±(1 % of set + 1 V / 2 V) | |
Output phase | Single phase, Two-wire | |
Maximum current*³ | 100 V | 20 A (ASR-3200) |
30 A (ASR-3300) | ||
40 A (ASR-3400) | ||
200 V | 10 A (ASR-3200) | |
15 A (ASR-3300) | ||
20 A (ASR-3400) | ||
Maximum peak current*⁴ | 100 V | 120 A (ASR-3200) |
180 A (ASR-3300) | ||
240 A (ASR-3400) | ||
200 V | 60 A (ASR-3200) | |
90 A (ASR-3300) | ||
120 A (ASR-3400) | ||
Load power factor | 0 to 1 (leading phase or lagging phase) | |
Power capacity | 2000 VA (ASR-3200) | |
3000 VA (ASR-3300) | ||
4000 VA (ASR-3400) | ||
Frequency | Setting range | AC Mode: 40.0 Hz to 999.9 Hz, AC+DC Mode: 1 Hz to 999.9 Hz |
Setting resolution | 0.01 Hz (1.00 to 99.99 Hz), 0.1 Hz (100.0 to 999.9 Hz) | |
Accuracy | 0.02% of set (23 °C ± 5 °C) | |
Stability*⁵ | ± 0.005% | |
Output on phase | 0° to 359° variable (setting resolution 1°) | |
DC offset*⁶ | Within ± 20 mV (TYP) | |
*1. 100 V / 200 V range
*2. For an output voltage of 20 V to 200 V / 40 V to 400 V, an output frequency of 45 Hz to 65 Hz, no load, and 23℃ ± 5℃
*3. For an output voltage of 1 V to 100 V / 2 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 200 V / 200 V to 400 V.
If there is the DC superimposition, the current of AC+DC mode satisfies the maximum current. In the case of lower than 40 Hz, and the power rating temperature,
the maximum current will be decrease.
*4. With respect to the capacitor-input rectifying load. Limited by the maximum current.
*5. For 45 Hz to 65 Hz, the rated output voltage, no load and the resistance load for the maximum current, and the operating temperature.
*6. In the case of the AC mode and 23°C ± 5°C.
| Output rating for DC mode | ||
Voltage | Setting Range*¹ | -285 V to +285 V / -570 V to +570 V |
Setting Resolution | 0.1 V | |
Accuracy*² | ±(1 % of set + 1 V / 2 V) | |
Maximum current*³ | 100 V | 20 A (ASR-3200) |
30 A (ASR-3300) | ||
40 A (ASR-3400) | ||
200 V | 10 A (ASR-3200) | |
15 A (ASR-3300) | ||
20 A (ASR-3400) | ||
Maximum peak current*⁴ | 100 V | 120 A (ASR-3200) |
180 A (ASR-3300) | ||
240 A (ASR-3400) | ||
200 V | 60 A (ASR-3200) | |
90 A (ASR-3300) | ||
120 A (ASR-3400) | ||
Power capacity | 2000 W (ASR-3200) | |
3000 W (ASR-3300) | ||
4000 W (ASR-3400) | ||
*1. 100 V / 200 V range
*2. For an output voltage of -285 V to -28.5 V, +28.5 V to +285 V / -570 V to -57 V, +57 V to +570 V, no load, and 23℃ ± 5℃
*3. For an output voltage of 1.4 V to 100 V / 2.8 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 250 V / 200 V to 500 V.
*4. Limited by the maximum current.
| Output voltage stability | ||
Line regulation*¹ | 0.2% or less | |
Load regulation*² | 0.5% or less (0 to 100%, via output terminal) | |
Ripple noise*³ | 1 Vrms / 2 Vrms (TYP) | |
*1. Power source input voltage is 200 V, 220 V, or 240 V, no load, rated output.
*2. For an output voltage of 100 V to 200 V / 200 V to 400 V, a load power factor of 1, stepwise change from an output current of 0 A to maximum current
(or its reverse), using the output terminal on the rear panel.
*3. For 5 Hz to 1 MHz components in DC mode using the output terminal on the rear panel.
| Output voltage waveform distortion ratio, Output voltage response time, Efficiency | ||
Total harmonic distortion(THD)*¹ | ≦ 0.2% @50/60Hz | |
≦ 0.3% @<500Hz | ||
≦ 0.5% @500.1Hz~999.9Hz | ||
Output voltage response time*² | 100 us (TYP) | |
Efficiency*³ | 80 % or more | |
*1. At an output voltage of 50 V to 200 V / 100 V to 400 V, a load power factor of 1, and in AC mode.
*2. For an output voltage of 100 V / 200 V, a load power factor of 1, with respect to stepwise change from an output current of 0 A to the maximum current (or its reverse).
*3. For AC mode, at an output voltage of 100 V / 200 V, maximum current, and load power factor of 1.
| Measured value display | |||
Voltage | RMS, AVG value*¹ | Resolution | 0.1 V |
Accuracy*² | For 45 Hz to 65 Hz and DC: ±(0.5 % of reading + 0.5 V / 1 V) For all other frequencies: ±(0.7 % of reading + 1 V / 2 V) | ||
PEAK value | Resolution | 0.1 V | |
Accuracy | For 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 1 V / 2 V) | ||
Current | RMS, AVG value | Resolution | 0.01 A |
Accuracy*³ | ASR-3200 For 45 Hz to 65 Hz and DC: ±(0.5 % of reading+0.1 A/0.05 A)
±(0.7 % of reading+0.2 A/0.1 A) | ||
ASR-3300 For 45 Hz to 65 Hz and DC: ±(0.5 % of reading+0.15 A/0.08 A)
±(0.7 % of reading+0.3 A/0.15 A) | |||
ASR-300 For 45 Hz to 65 Hz and DC: ±(0.5 % of reading+0.2 A/0.1 A)
±(0.7 % of reading+0.4 A/0.2 A) | |||
PEAK value | Resolution | 0.01A/ 0.1A | |
Accuracy*⁴ | ASR-3200 For 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 0.5 A/0.25 A) | ||
ASR-3300 For 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 0.8 A/0.4 A) | |||
ASR-3400 For 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 1 A/0.5 A) | |||
Power | Active (W) | Resolution | 1 W |
Accuracy*⁵ | ASR-3200 ±(2 % of reading +2 W) | ||
ASR-3300 ±(2 % of reading +3 W) | |||
ASR-3400 ±(2 % of reading +4 W) | |||
Apparent (VA) | Resolution | 1 VA | |
Accuracy*⁵*⁶ | ASR-3200 ±(2 % of reading +2 VA) | ||
ASR-3300 ±(2 % of reading +3 VA) | |||
ASR-3400 ±(2 % of reading +4 VA) | |||
Reactive (VAR) | Resolution | 1 VAR | |
Accuracy*⁵*⁷ | ASR-3200 ±(2 % of reading +2 VAR) | ||
ASR-3300 ±(2 % of reading +3 VAR) | |||
ASR-3400 ±(2 % of reading +4 VAR) | |||
Load power factor | Range | 0.000 to 1.000 | |
Resolution | 0.001 | ||
Load crest factor | Range | 0.00 to 50.00 | |
Resolution | 0.01 | ||
Harmonic voltage (AC-INT and 50/60 Hz only) | Range | Up to 100th order of the fundamental wave | |
Full Scale | 200 V / 400 V, 100% | ||
Resolution | 0.1 V, 0.1% | ||
Accuracy*⁸ | Up to 20th ±(0.2 % of reading + 0.5 V / 1 V) ±(0.3 % of reading + 0.5 V / 1 V) | ||
Harmonic current | Range | Up to 100th order of the fundamental wave | |
Full Scale | ASR-3200 20 A / 10 A, 100% | ||
ASR-3300 30 A / 15 A, 100% | |||
ASR-3400 40 A / 20 A, 100% | |||
Resolution | 0.01 A, 0.1A, 0.1% | ||
Accuracy*³ | ASR-3200 Up to 20th ±(1 % of reading+0.4 A/0.2 A)
±(1.5 % of reading+0.4 A/0.2 A) | ||
ASR-3300 Up to 20th ±(1 % of reading+0.6 A/0.3 A)
±(1.5 % of reading+0.6 A/0.3 A) | |||
ASR-3400 Up to 20th ±(1 % of reading+0.8 A/0.4 A)
±(1.5 % of reading+0.8 A/0.4 A) | |||
*1. The voltage display is set to RMS in AC/AC+DC mode and AVG in DC mode.
*2. AC mode: For an output voltage of 20 V to 200 V / 40 V to 400 V and 23 °C ± 5 °C. DC mode: For an output voltage of 28.5 V to 285 V / 57 V to 570 V and 23 °C ± 5 °C.
*3. An output current in the range of 5 % to 100 % of the maximum current, and 23 °C ± 5 °C.
*4. An output current in the range of 5 % to 100 % of the maximum peak current in AC mode, an output current in the range of 5 % to 100 % of the maximum instantaneous
current in DC mode, and 23 °C ± 5 °C. The accuracy of the peak value is for a waveform of DC or sine wave
*5. For an output voltage of 50 V or greater, an output current in the range of 10 % to 100 % of the maximum current, DC or an output frequency of 45 Hz to 65 Hz, and 23 °C ±
5 °C.
*6. The apparent and reactive powers are not displayed in the DC mode.
*7. The reactive power is for the load with the power factor 0.5 or lower.
*8. An output voltage in the range of 20 V to 200 V / 40 V to 400 V and 23 °C ± 5 °C.
| Others | ||
Protections | UVP, OCP, OTP, OPP, Fan Fail | |
Display | TFT-LCD, 4.3 inch | |
Memory Function | Store and recall settings, Basic settings: 10 (0~9 numeric keys) | |
Arbitrary Wave | Number of memories | 16 (nonvolatile) |
Waveform length | 4096 words | |
| General Specifications | ||||
Interface | Standard | USB | Type A: Host, Type B: Slave, Speed: 1.1/2.0, USB-CDC, USB-TMC | |
LAN | MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask | |||
RS-232C | Complies with the EIA-RS-232 specifications | |||
EXT Control | External Signal Input External Control I/O | |||
GPIB | SCPI-1993, IEEE 488.2 compliant interface | |||
Insulation resistance | Between input and chassis, output and chassis, input and output | 500 Vdc, 30 MΩ or more | ||
Withstand voltage | Between input and chassis, output and chassis, input and output | 1500 Vac, 1 minute | ||
EMC | EN 61326-1 EN 61326-2-1 EN 61000-3-2 EN 61000-3-3 EN 61000-3-11 EN 61000-3-12 EN 61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-8/-4-11/-4-34 EN 55011 (Class A) EN 55032 | |||
Safety | EN 61010-1 | |||
Environment | Operating environment | Indoor use, Overvoltage Category II | ||
Operating temperature range | 0 °C to 40 °C | |||
Storage temperature range | -10 °C to 70 °C | |||
Operating humidity range | 20 % to 80 % RH (no condensation) | |||
Storage humidity range | 90 % RH or less (no condensation) | |||
Altitude | Up to 2000 m | |||
Transportation Integrity | ISTA 2A Test Procedure | |||
Dimensions (mm) | 430(W)×176(H)×530(D) (not including protrusions) | |||
Weight | ASR-3200 Approx. 25 kg | |||
ASR-3300 Approx. 25 kg | ||||
ASR-3400 Approx. 25 kg | ||||
Accessories | Safety information | 1 copy | ||
CD-ROM | 1 disc | |||
Input/Output Cover | 1 set | |||
EIA Rack Mount | 1 set | |||
USB Cable | 1 piece | |||
A value with the accuracy is the guaranteed value of the specification. However, an accuracy noted as reference value shows the supplemental data
for reference when the product is used, and is not under the guarantee. A value without the accuracy is the nominal value or representative
value (shown as typ.).
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
