굿윌인스텍 GW INSTEK GDM-8255A , GDM-8351, GDM-8251A 벤치탑 5 ½ 디지트 듀얼 측정 멀티미터 (시리즈별가격문의)
- GDM-8255A — 199,999 카운트 디스플레이
- GDM-8251A — 120,000 카운트 디스플레이
현재 멀티미터의 분해능이 가장 작은 신호를 읽기에 부적절합니까? 데이터 로깅 기능이 있는 사용하기 쉬운 멀티미터가 필요하십니까? GoodWill GDM-8255A · GDM-8251A 시리즈 5 1/2 디지트 듀얼 디스플레이 디지털 멀티미터를 살펴보십시오. 업계 최고의 응답 시간과 함께 0.012%의 DC 전압 정확도가 특징입니다. 강력한 하드웨어와 소프트웨어를 통해 GDM-825xA · GDM-8251A 시리즈는 디버깅 및 분석 시간을 절약하는 동시에 비용을 절약할 수 있습니다.
굿윌인스텍 GW INSTEK GDM-8255A , GDM-8351, GDM-8251A 벤치탑 5 ½ 디지트 듀얼 측정 멀티미터
| 견적·기술 문의하기 | 070-8800-8282 |
| 010-7574-9841 | 카톡 문의 |

GOOD WILL INSTEK
GDM-8255A ・ GDM-8351A(GDM-8251A) — 199999 · 120000 Counts 5 ½ Digit Dual Display Multimeter
굿윌인스텍 GW INSTEK GDM-8255A , GDM-8351, GDM-8251A 벤치탑 5 ½ 디지트 듀얼 측정 멀티미터

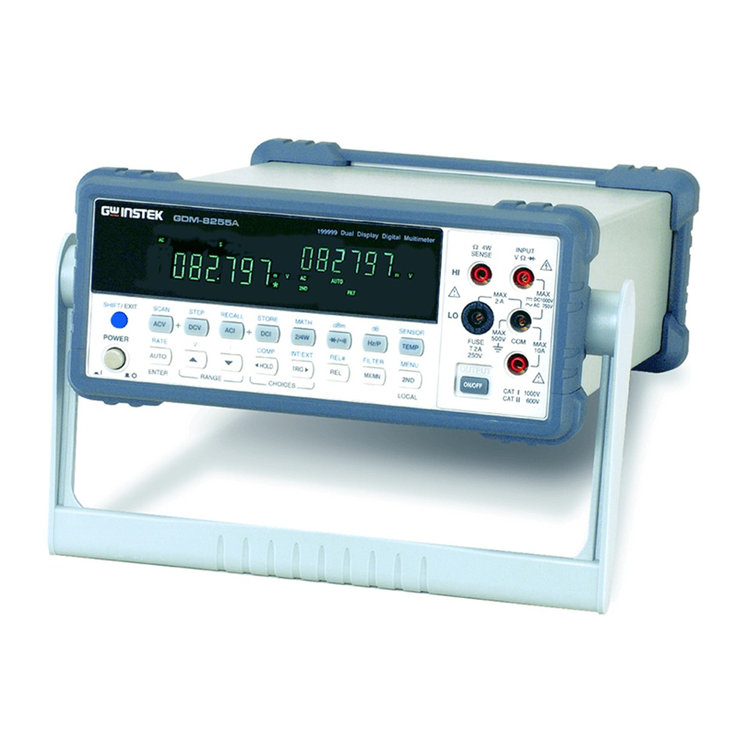

• GDM-8255A (5 ½ Digit & 199 999 Counts Multimeter) ・ GDM-8251A (5 ½ Digit & 120 000 Counts Multimeter)

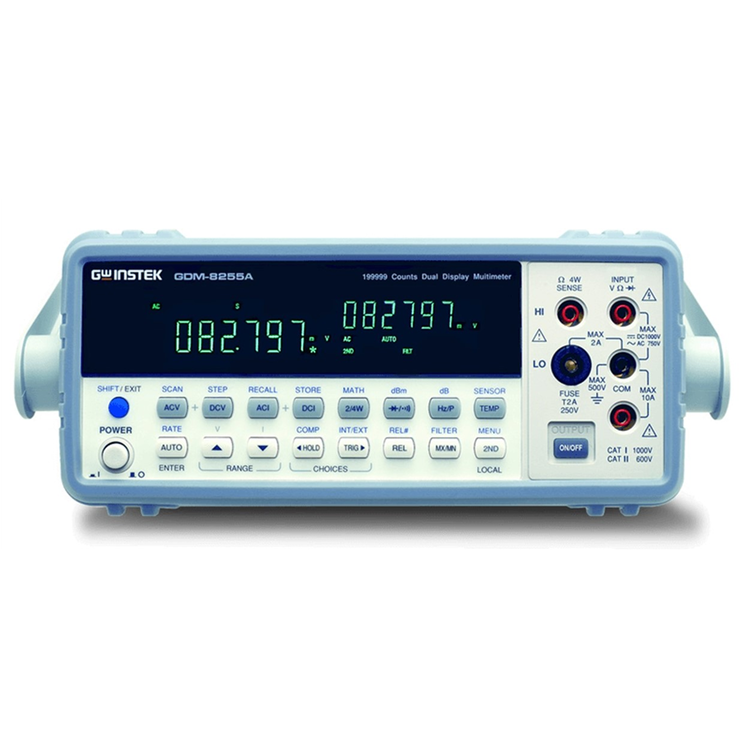

• GDM-8255A (5 ½ Digit & 199 999 Counts Multimeter)
특징
- GDM-8255A 199,999 카운트 디스플레이
- VFD 2색 디스플레이
- 0.012% DCV 정확도
- 실제 RMS(AC, AC+DC)
- 9가지 주요 측정 기능과 10가지 고급 측정 기능
- 2W/4W 저항 측정
- 고전압 1000V 및 10A 전류 범위

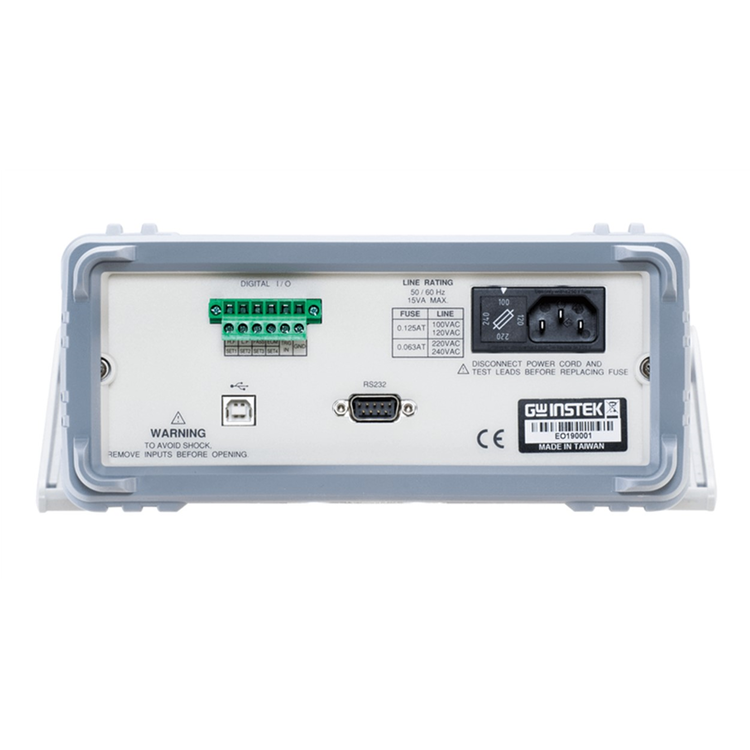

- 표준 인터페이스 : RS-232C, USB 장치, 디지털 I/O
- 무료 PC 소프트웨어(DMM-VIEWER), LabVIEW 드라이버
- 옵션: 16+2 채널 스캐너 카드

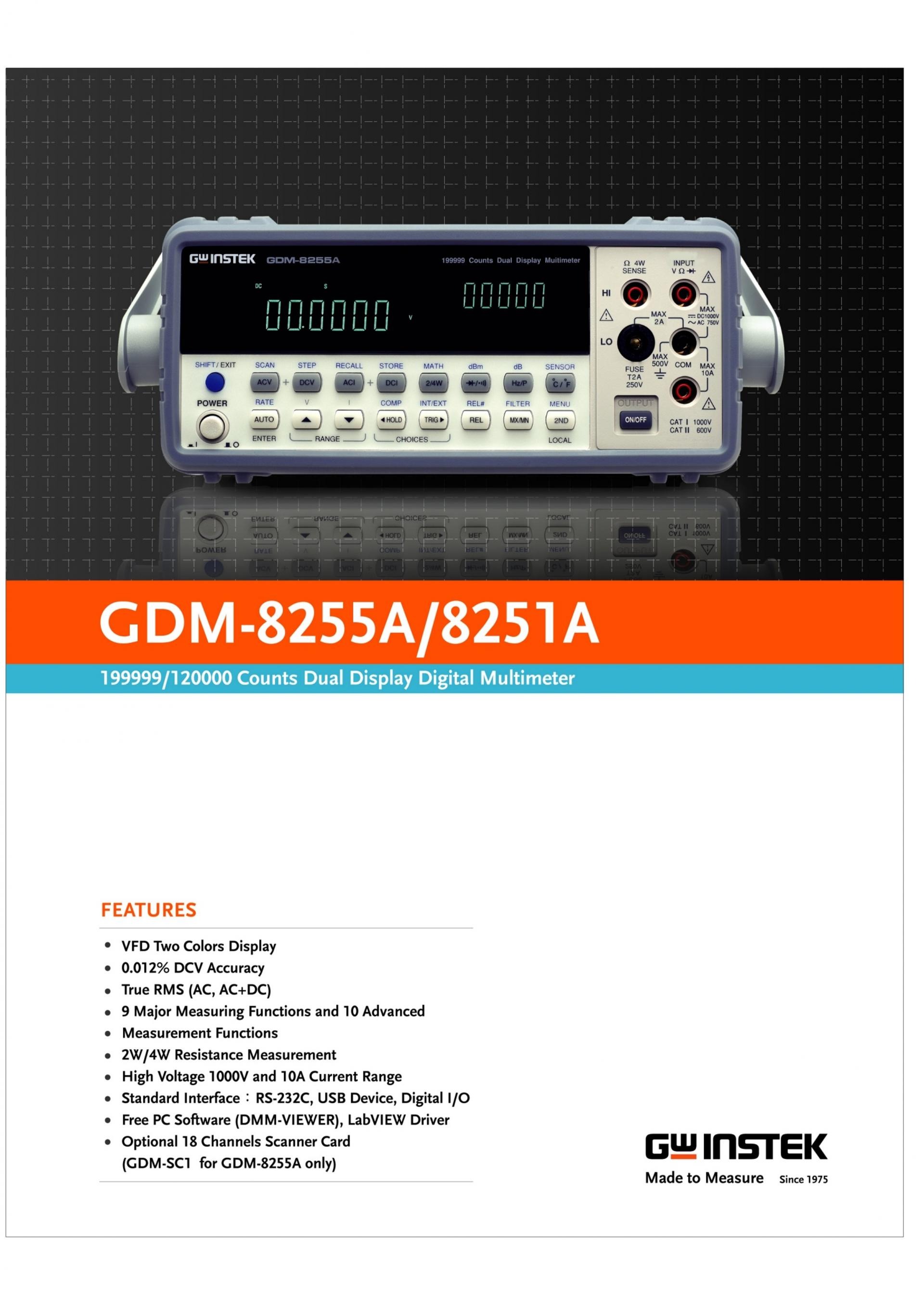

Features
- GDM-8255A 199,999 Counts Display
- VFD Two Colors Display
- 0.012% DCV Accuracy
- True RMS (AC, AC+DC)
- 9 Major Measuring Functions and 10 Advanced Measurement Functions
- 2W/4W Resistance Measurement
- High Voltage 1000V and 10A Current Range

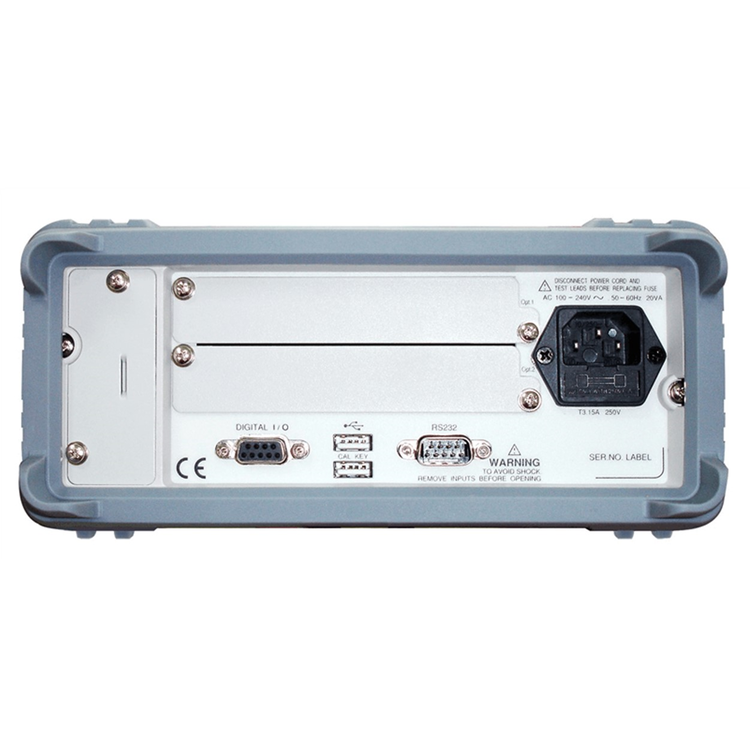

- Standard Interface : RS-232C, USB Device, Digital I/O
- Free PC Software (DMM-VIEWER), LabVIEW Driver
- Optional: 16+2 Channels Scanner Card
설명
현재 멀티미터의 분해능이 가장 작은 신호를 읽기에 부적절합니까? 데이터 로깅 기능이 있는 사용하기 쉬운 멀티미터가 필요하십니까? GoodWill GDM-8255A 시리즈 5 1/2 디지트 듀얼 디스플레이 디지털 멀티미터를 살펴보십시오. 업계 최고의 응답 시간과 함께 0.012%의 DC 전압 정확도가 특징입니다. 강력한 하드웨어와 소프트웨어를 통해 GDM-825xA 시리즈는 디버깅 및 분석 시간을 절약하는 동시에 비용을 절약할 수 있습니다.
GDM-8255A는 두 개의 측정 항목을 동시에 표시할 수 있는 듀얼 디스플레이를 통해 광범위한 표준 측정 항목 목록을 제공합니다. Max/Min, Hold, 상대값 및 비교와 같은 고급 측정 기능은 생산 테스트, 연구 및 현장 검증과 같은 다양한 애플리케이션에 적합합니다. USB, RS-232C 및 9핀 디지털 I/O 인터페이스는 ATE용 데이터 캡처 및 Romte 제어를 위한 표준 기능으로 포함되어 있습니다.
편리한 PC 기반 원격 제어 및 광범위한 데이터 캡처를 위해 GDM-8255A에는 추가 비용 없이 DMM-Viewer 소프트웨어가 포함되어 있습니다. DMM-Viewer는 PC에서 멀티미터의 작동을 모방하므로 적은 노력으로 소프트웨어를 빠르게 사용할 수 있습니다.
선택 사양인 스캐너 카드(GDM-SC1A)는 플러그인 디자인의 독립형 다지점 측정 솔루션을 생성합니다. 이 접근 방식은 다지점 측정 및 데이터 처리의 복잡성을 제거합니다. 스캐너를 사용하면 단일 GDM-8255A에 연결된 여러 채널을 효과적으로 측정할 수 있습니다.
- 기능이 강화된 풍부한 측정 기능
- 빠른 측정 속도 및 전송 속도
- VFD 듀얼 컬러 디스플레이로 다양한 측정 조합
- 다중 표준 인터페이스
- 편리한 PC 소프트웨어
- 효과적인 다중 측정 스캐너 카드

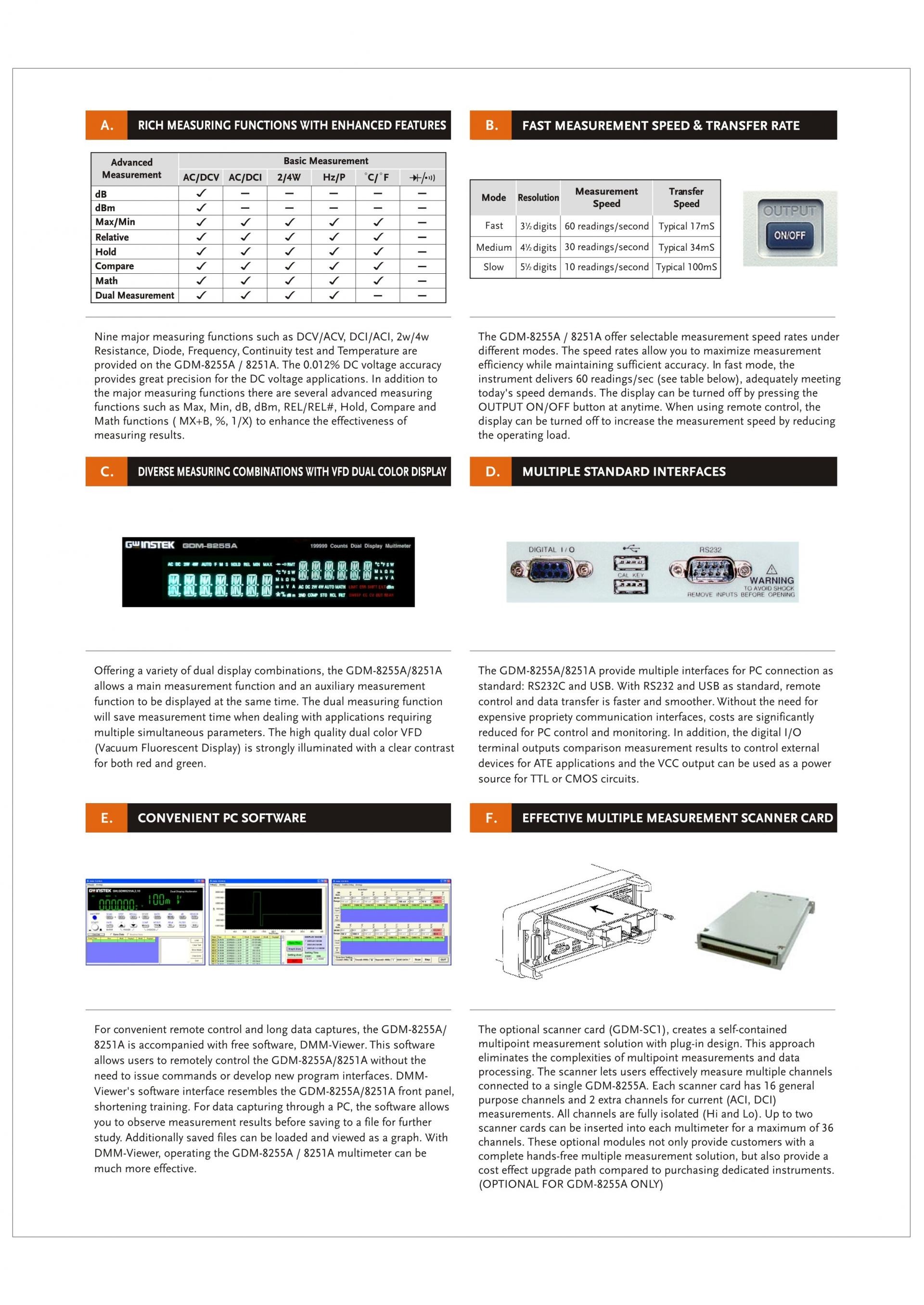

Description
Is the resolution of your current mulitmeter inadequate to read the smallest signal? Need an easy to use multimeter with data-logging? Take a look at the GoodWill GDM-8255A series 5 1/2 digit dual-display digital multimeter. It features a DC voltage accuracy of 0.012% with an industry-leading response time. With robust hardware and software the GDM-825xA series will save time on debugging and analysis whilst saving you money.
The GDM-8255A carries an extensive list of standard measurement items with a dual-display allowing two measurement items to be displayed simultaneously. Advanced measurement functions, such as Max/Min, Hold, Relative value and Compare, are suitable for a multiplicity of applications such as production testing, research and field verification. The USB, RS-232C and 9-pin digital I/O interface are included as standard features for romte control and data capturing for ATE.
For convenient PC-based remote control and extensive data capture, the GDM-8255A includes DMM-Viewer software at no additional cost. DMM-Viewer mimics the operation of the multimeters on the PC, allowing you to quickly use the software with little effort.
The optional scanner card (GDM-SC1A), creates a self-contained multipoint measurement solution with plug-in design. This approach eliminates the complexities of multipoint measurements and data processing. The scanner lets users effectively measure multiple channels connected to a single GDM-8255A.
- Rich Measurement Functions with Enhanced Features
- Fast Measurement Speed & Transfer rate
- Diverse Measuring Combinations with VFD Dual Color Display
- Multiple Standard Interfaces
- Convenient PC Software
- Effective Multiple Measurement Scanner Card
• GDM-8251A (5 ½ Digit & 120 000 Counts Multimeter)
특징
- GDM-8251A 120,000 카운트 디스플레이
- VFD 2색 디스플레이
- 0.012% DCV 정확도
- 실제 RMS(AC, AC+DC)
- 9가지 주요 측정 기능과 10가지 고급 측정 기능
- 2W/4W 저항 측정
- 고전압 1000V 및 10A 전류 범위
- 표준 인터페이스: RS-232C, USB 장치, 디지털 I/O
- 무료 PC 소프트웨어(DMM-VIEWER), LabVIEW 드라이버
Features
- GDM-8251A 120,000 Counts Display
- VFD Two Colors Display
- 0.012% DCV Accuracy
- True RMS (AC, AC+DC)
- 9 Major Measuring Functions and 10 Advanced Measurement Functions
- 2W/4W Resistance Measurement
- High Voltage 1000V and 10A Current Range
- Standard Interface: RS-232C, USB Device, Digital I/O
- Free PC Software (DMM-VIEWER), LabVIEW Driver
설명
현재 멀티미터의 분해능이 가장 작은 신호를 읽기에 부적절합니까? 데이터 로깅 기능이 있는 사용하기 쉬운 멀티미터가 필요하십니까? GoodWill GDM-8251A 시리즈 5 1/2 디지트 듀얼 디스플레이 디지털 멀티미터를 살펴보십시오. 업계 최고의 응답 시간과 함께 0.012%의 DC 전압 정확도가 특징입니다. 강력한 하드웨어와 소프트웨어를 통해 GDM-8251A 시리즈는 디버깅 및 분석 시간을 절약하는 동시에 비용을 절약할 수 있습니다.
GDM-8251A는 두 개의 측정 항목을 동시에 표시할 수 있는 듀얼 디스플레이를 통해 광범위한 표준 측정 항목 목록을 제공합니다. Max/Min, Hold, 상대값 및 비교와 같은 고급 측정 기능은 생산 테스트, 연구 및 현장 검증과 같은 다양한 애플리케이션에 적합합니다. USB, RS-232C 및 9핀 디지털 I/O 인터페이스는 ATE용 데이터 캡처 및 Romte 제어를 위한 표준 기능으로 포함되어 있습니다.
편리한 PC 기반 원격 제어 및 광범위한 데이터 캡처를 위해 GDM-8251A에는 추가 비용 없이 DMM-Viewer 소프트웨어가 포함되어 있습니다. DMM-Viewer는 PC에서 멀티미터의 작동을 모방하므로 적은 노력으로 소프트웨어를 빠르게 사용할 수 있습니다.
- 기능이 강화된 풍부한 측정 기능
- 빠른 측정 속도 및 전송 속도
- VFD 듀얼 컬러 디스플레이로 다양한 측정 조합
- 다중 표준 인터페이스
- 편리한 PC 소프트웨어
Description
Is the resolution of your current mulitmeter inadequate to read the smallest signal? Need an easy to use multimeter with data-logging? Take a look at the GoodWill GDM-8251A series 5 1/2 digit dual-display digital multimeter. It features a DC voltage accuracy of 0.012% with an industry-leading response time. With robust hardware and software the GDM-8251A series will save time on debugging and analysis whilst saving you money.
The GDM-8251A carries an extensive list of standard measurement items with a dual-display allowing two measurement items to be displayed simultaneously. Advanced measurement functions, such as Max/Min, Hold, Relative value and Compare, are suitable for a multiplicity of applications such as production testing, research and field verification. The USB, RS-232C and 9-pin digital I/O interface are included as standard features for romte control and data capturing for ATE.
For convenient PC-based remote control and extensive data capture, the GDM-8251A includes DMM-Viewer software at no additional cost. DMM-Viewer mimics the operation of the multimeters on the PC, allowing you to quickly use the software with little effort.
- Rich Measurement Functions with Enhanced Features
- Fast Measurement Speed & Transfer rate
- Diverse Measuring Combinations with VFD Dual Color Display
- Multiple Standard Interfaces
- Convenient PC Software

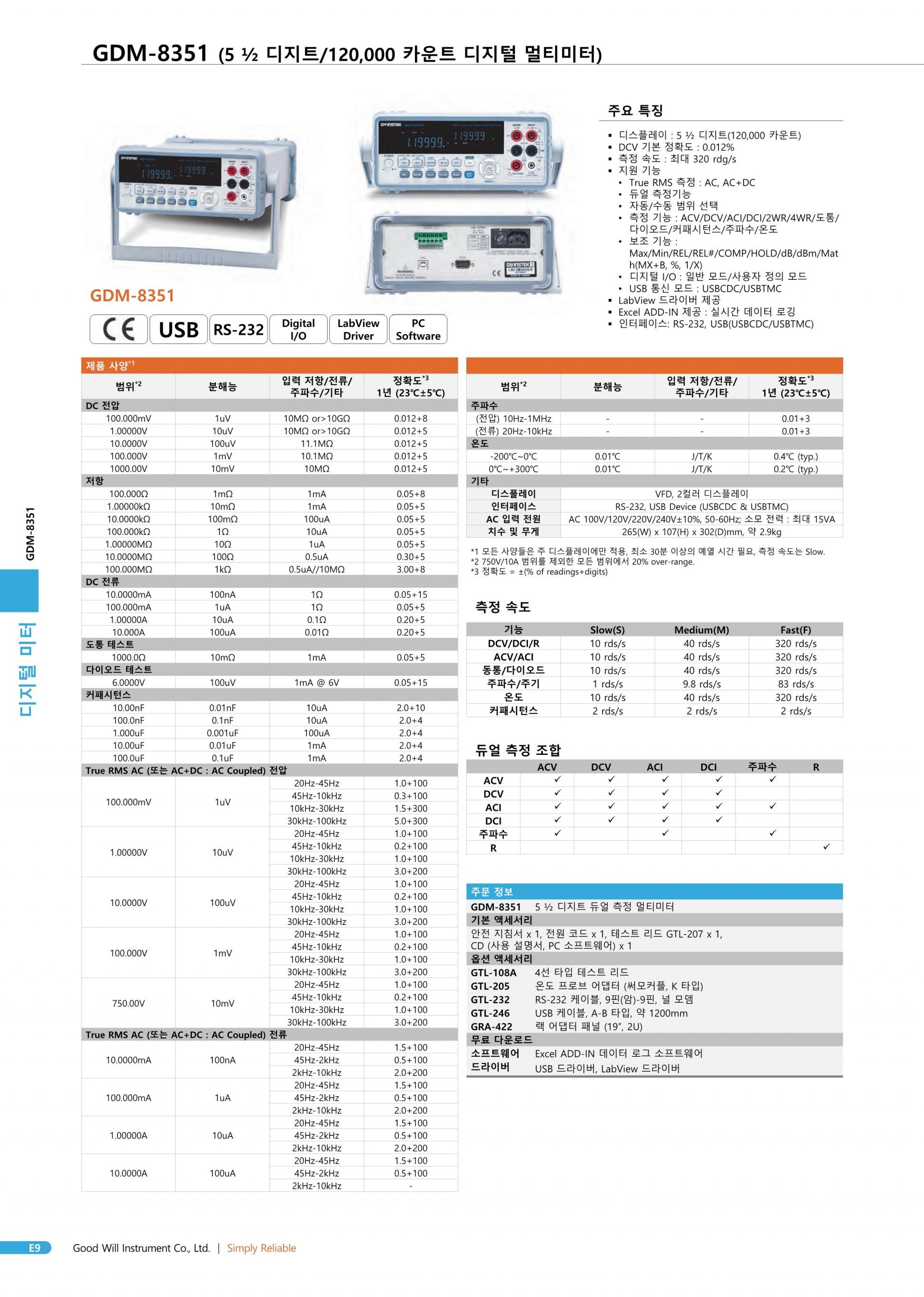

■ 제품 사양 (Specifications)

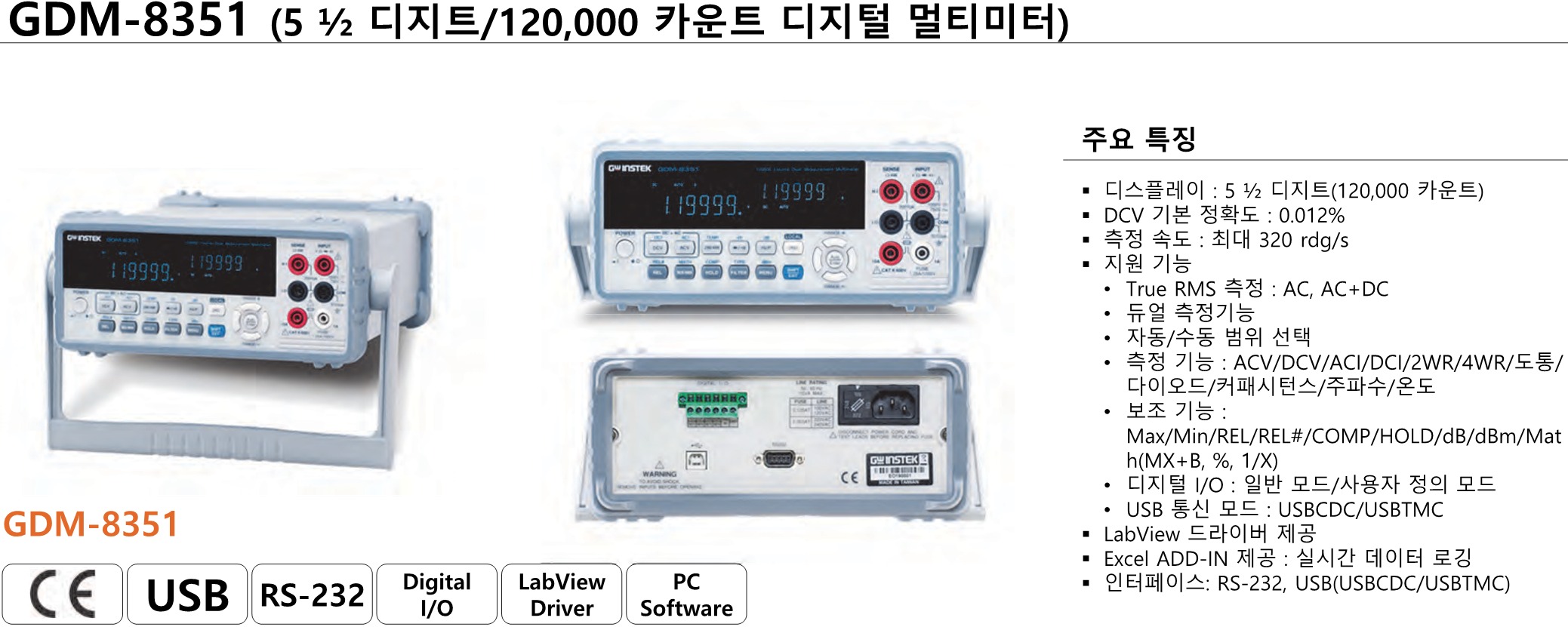

GW INSTEK GDM-8351 제품 데이터시트의 핵심 사양입니다.

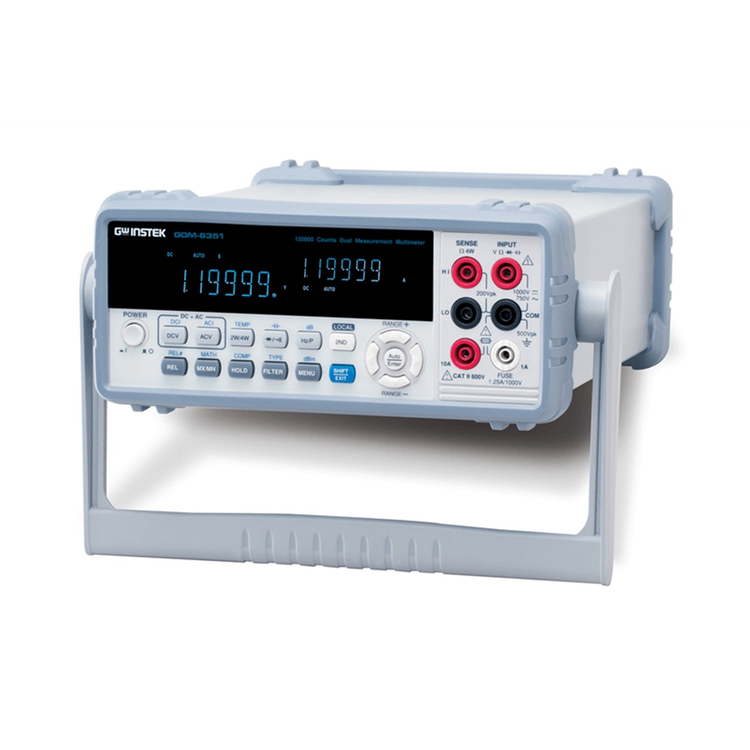

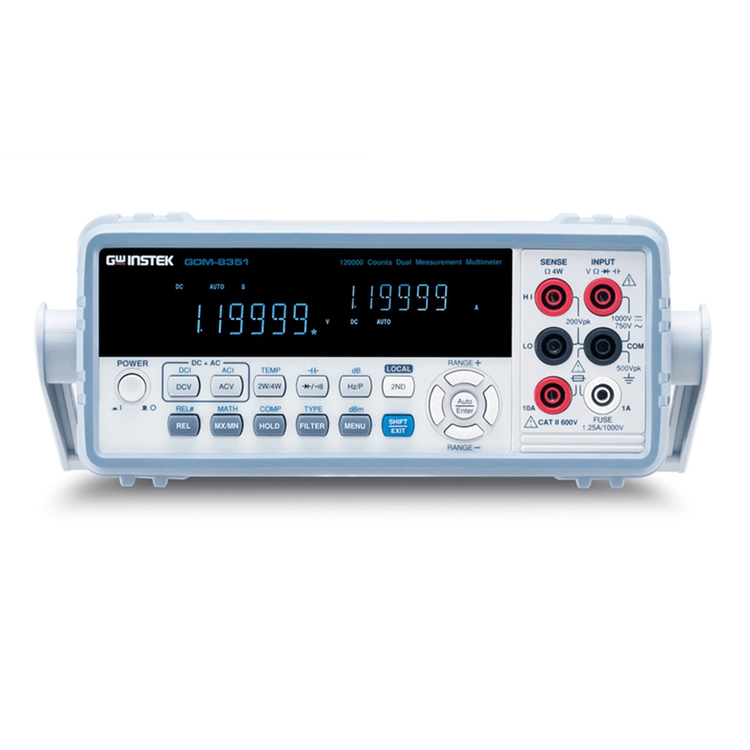

- GW Instek presents the brand new 5 1/2 Digit Dual Measurement Multimeter-GDM-8351 to replace GDM-8251A of the same
- category. GDM-8351 eatures VFD dual-display, maximum 120,000 counts, 0.012% basic DC voltage accuracy and USB/RS232C
- current, 2W/4W resistance, frequency, temperature measurement, continuity beeper and diode test, GDM-8351 also equips with
- minimum values, dB, dBm, compare, reading hold, algorithms (MX+B, 1/X, %) etc. to meet the measurement requirements for
- RS-232C and USB interface to edit control programs and read measurement results. It is worth noting that for utilizing the USB
- 1. VFD Dual Display
- 2. Measurement Function Keys
- 5. Measurement Terminal
- Frequency/Period 1 9.8 83
- Temperature 10 40 320
- GDM-8351 has fastest measurement speed among the same measurement can reach 320 readings per second on the fast mode,
- GDM-8351, similar to GW Instek 6 1/2 and 5 1/2 digit multimeters, components of test wiring. The results of each measurement will
- GDM-8351 provides various measurement items and functionalities and continuity beeper test, and even the capability of measuring
- twelve major measurement items of GDM-8351, including AC values, reading hold, relative values, dB, dBm, algorithms (MX+B,
- voltage/current, DC voltage/current, AC+DC voltage/current, 1/X, %) and compare, are designed to reinforce the major
- Range(*2) Resolution Test Current or Etc. Accuracy(*3)1 Year(23°C±5°C) Range(*3) Resolution Frequency or Etc. Accuracy 1 Year (23°C±5°C)
- RESISTANCE 10kHz ~ 30kHz 1.0 + 100
- DC CURRENT 750.00V 10mV 20Hz ~ 45Hz 1.0 + 100
- (Voltage)10Hz~1MHz ------- ------- 0.01 + 3
- (Current)20Hz~10kHz ------- ------- 0.01 + 3
- Interface RS-232C, USB device (USBCDC & USBTMC)
- Power Source AC 100 V / 120 V / 220 V / 240 V ±10%, 50-60Hz;
- Power Consumption Max. 15VA -200°C ~ 0°C 0.01 °C J / T / K 0.6 °C(typical)
- Dimensions & Weight 265(W) x 107(H) x 302(D) mm, approx. 2.9kg 0°C ~ +300°C 0.01 °C J / T / K 0.3 °C(typical)
- 1. All specifications are applicable to the main (1st) display only and warmed up for at least 30 minutes and operated in the slow rate.
- 2. 20% overrange on all ranges, except 750V/10A range
- 3. Accuracy: ± (% of Reading + Digits)
- GDM-8351 5½DigitDualMeasurementMultimeter GTL-108A4Wire Test Lead (Kelvin Clip), Approx. 1100mm
- GTL-205ATemperature probe adaptor with thermocouple (K-type), Approx. 1000mm
- Safety Instruction Sheet x 1, Power cord x 1, Test lead GTL-207A x 1, GTL-246 USB Cable, A-B type, Approx. 1200mm
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
