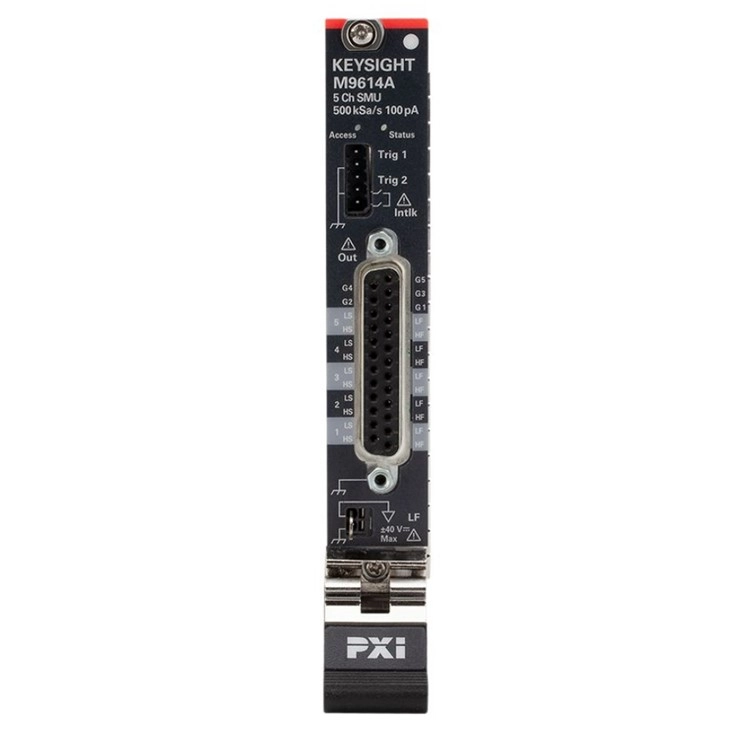

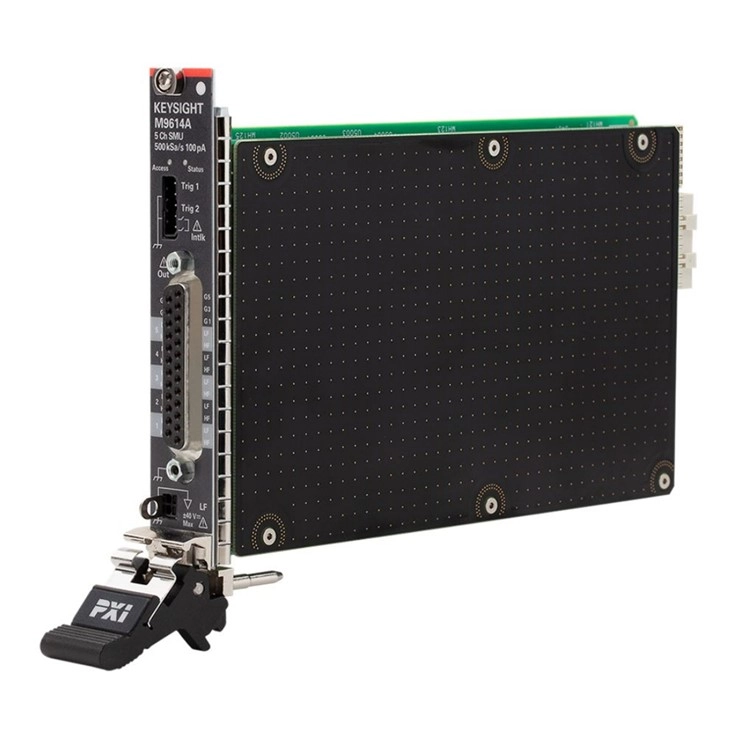

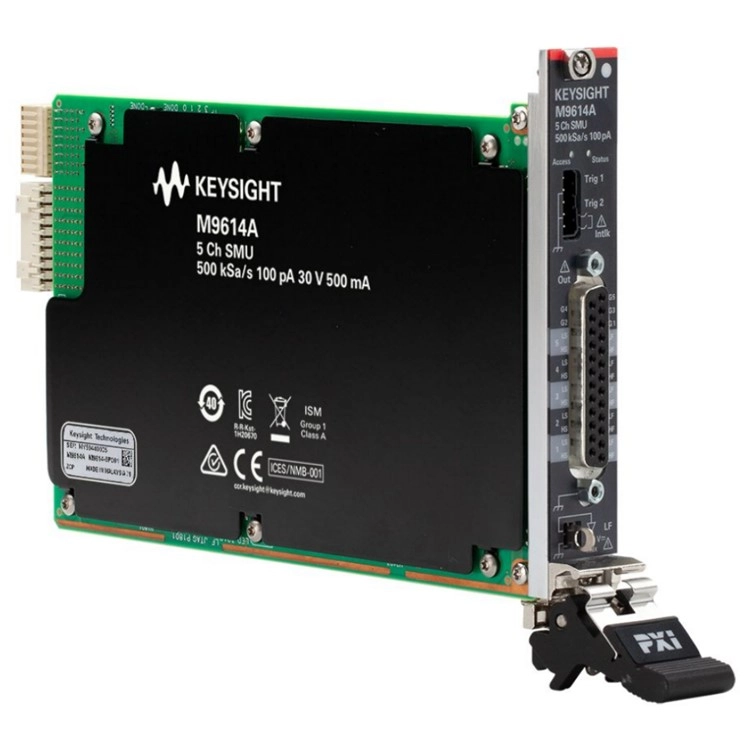

키사이트 KEYSIGHT M9614A PXIe 5-채널 소스 / 측정 유닛, 100 pA
KEYSIGHT M9614A PXIe 5-channel Source / Measure Unit, 100 pA
- The Keysight M9614A is a PXIe five-channel source / measure unit (SMU). It supports accurate measurement up to 30 V / 500 mA with resolution down to 6 μV / 100 pA.
문의 010 7574 9841
평일 오전9시 ~ 오후6시 입니다. (공휴일은 통화불가합니다)
부재중일시 전화나 카톡 남겨주시면 업무시간때 체크후 피드백 드리겠습니다.
키사이트 ・ KEYSIGHT
M9614A
PXIe 5-채널 소스 / 측정 유닛, 100 pA
M9614A PXIe 5-channel Source / Measure Unit, 100 pA

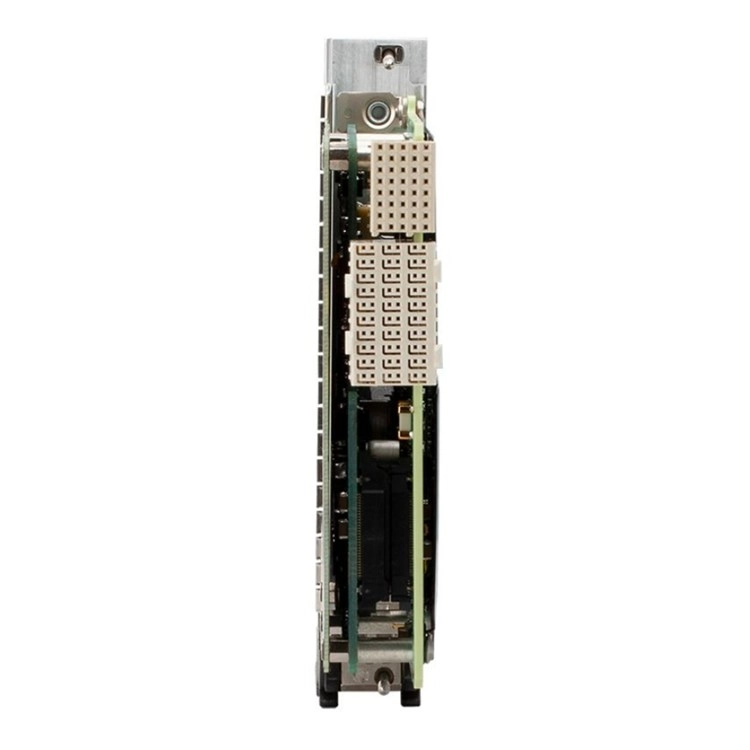

키사이트 KEYSIGHT M9614A PXIe 5-채널 소스 / 측정 유닛, 100 pA
HIGHLIGHTS
- 5 channels, high density per a single-slot module
- Wide output range, up to 30 V / 500 mA per channel
- Resolution down to 6 μV / 100 pA
- Accurate and flexible measurements, from DC to pulsed measurements, with pulse width down to 100 μs at 500 kSa/s sampling rate

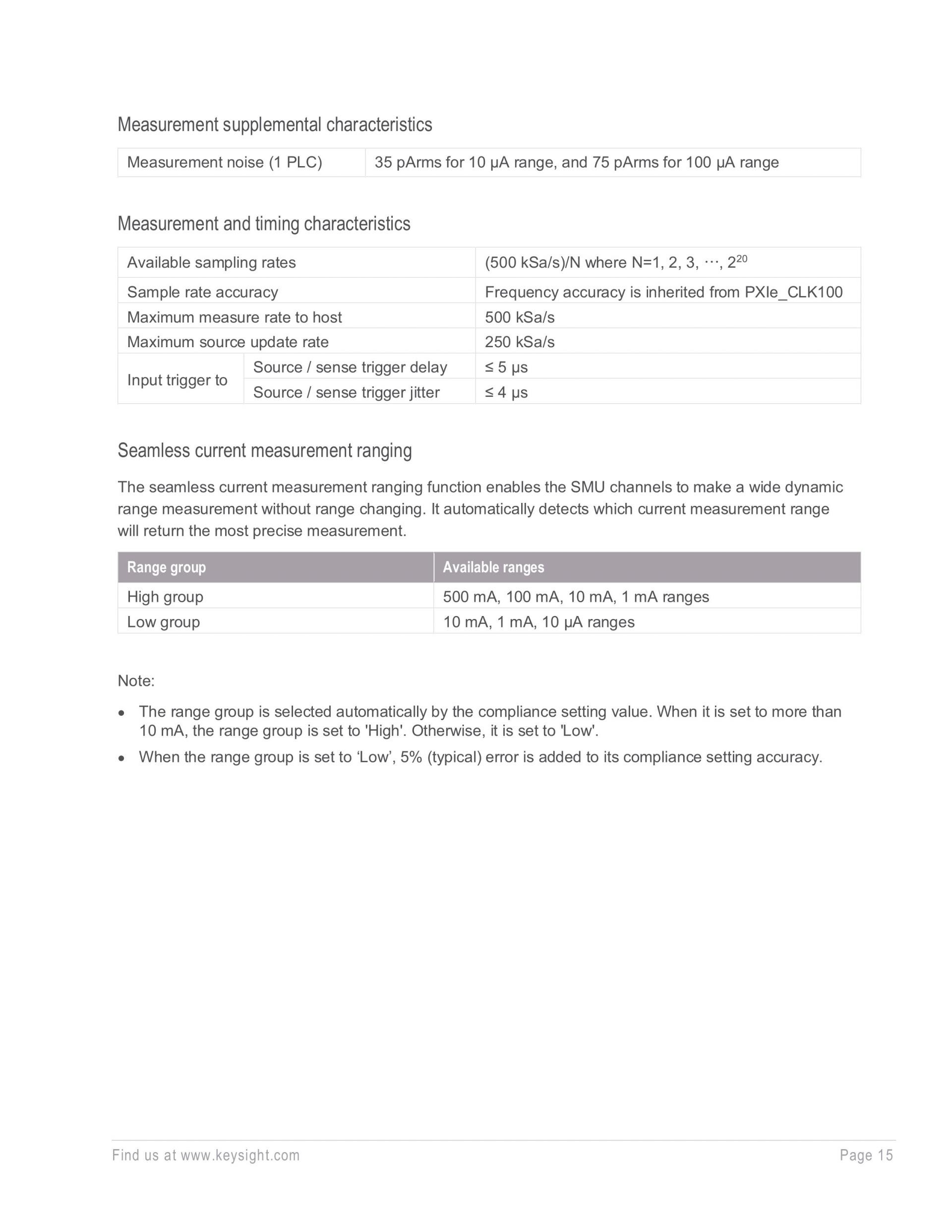

- Seamless current measurement ranging

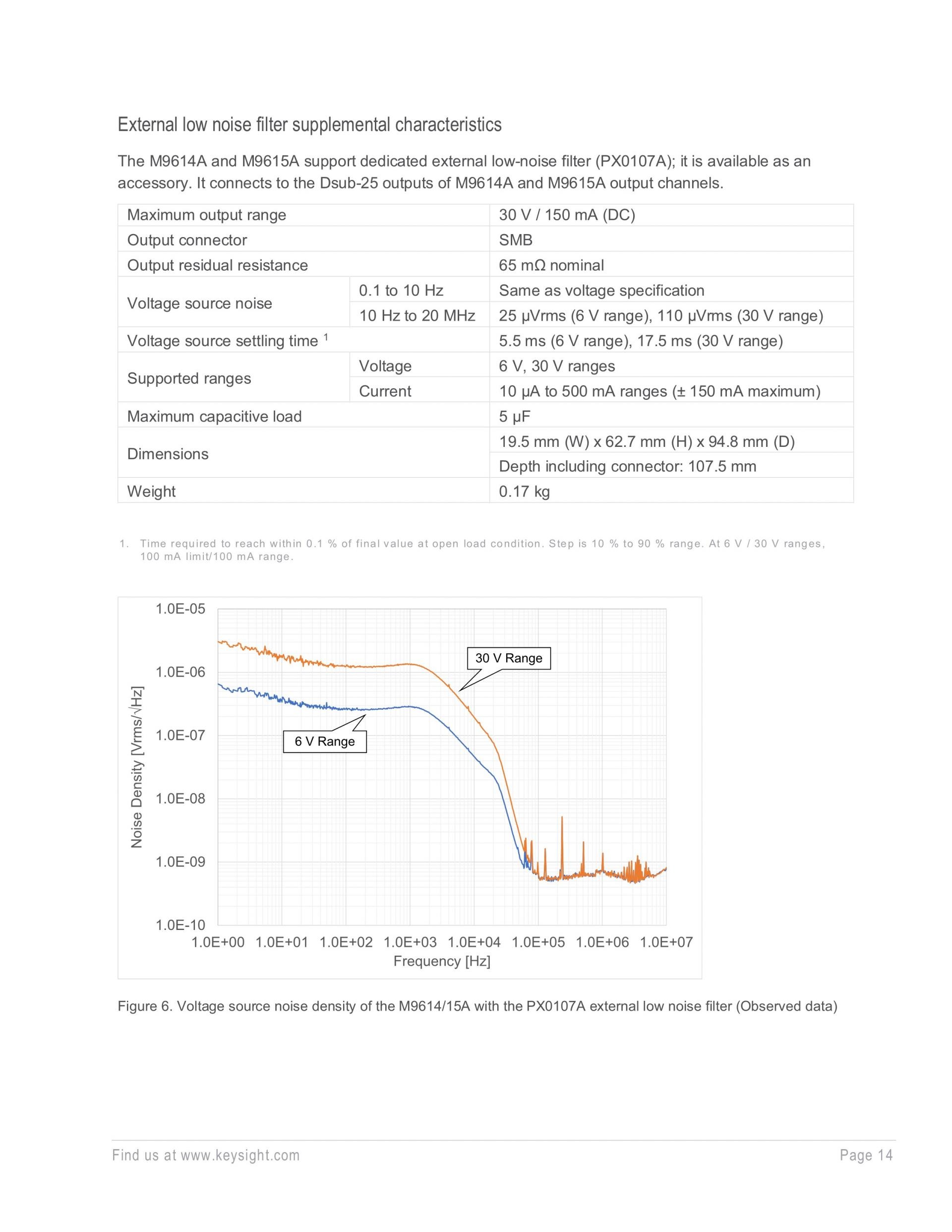

- 25 μVrms low voltage source noise performance with PX0107A low noise filter

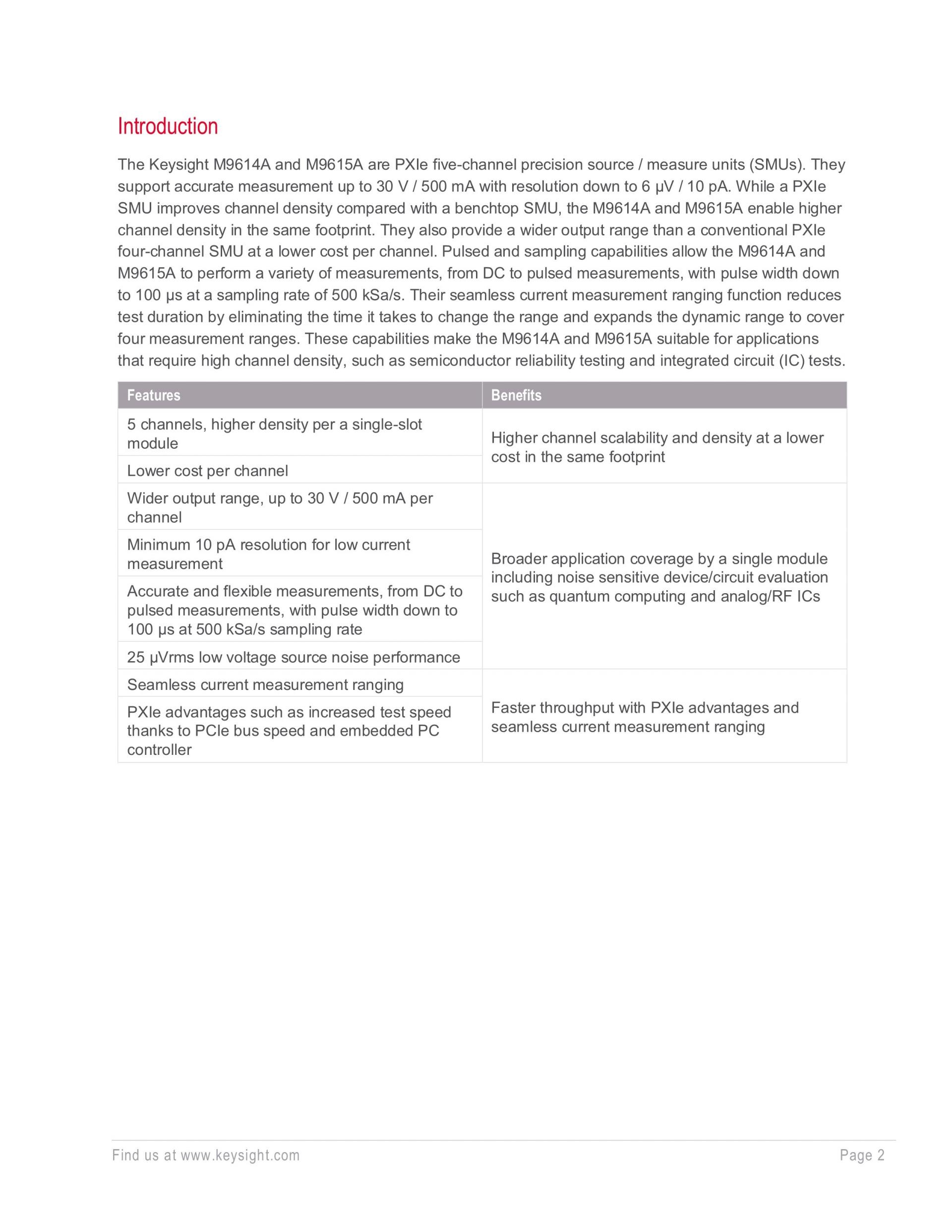

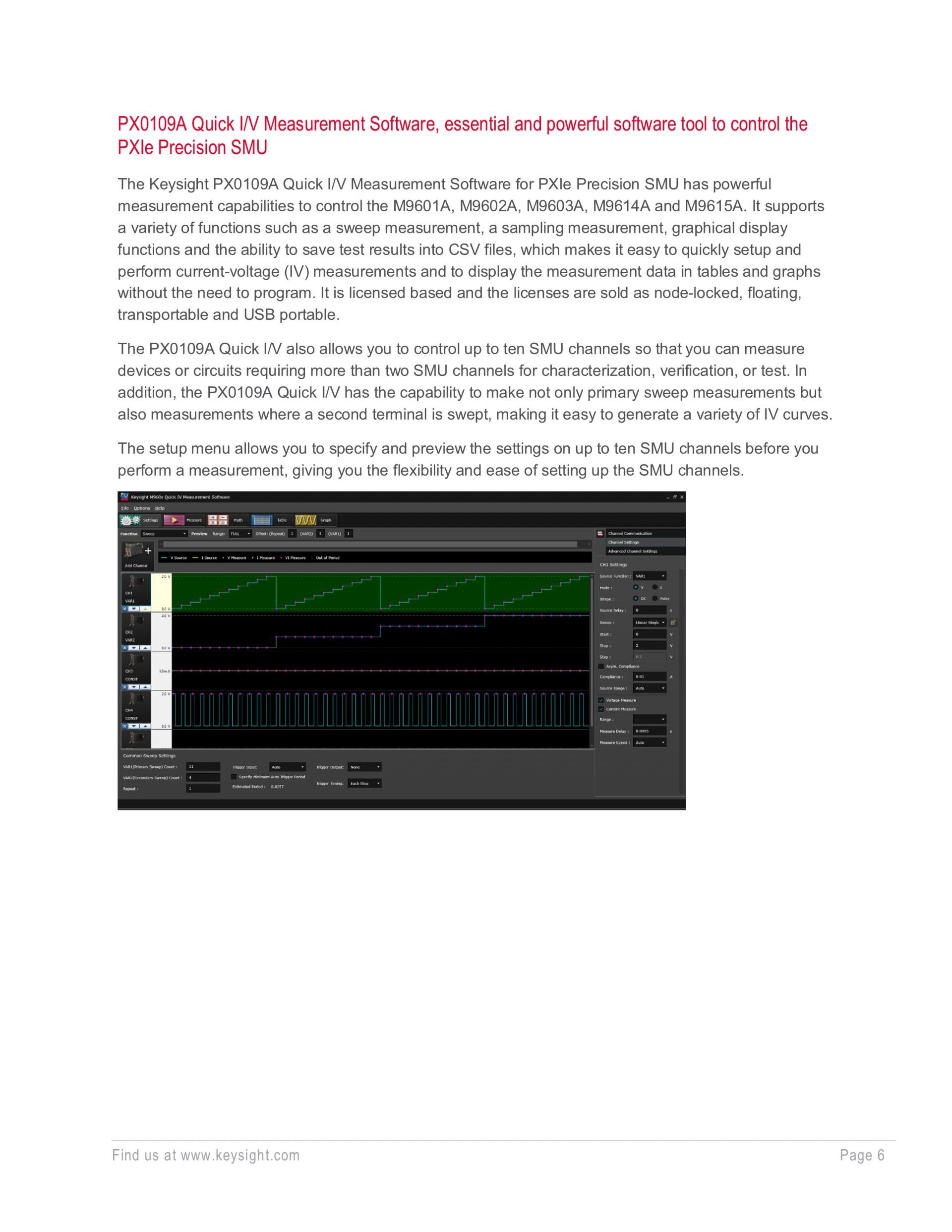

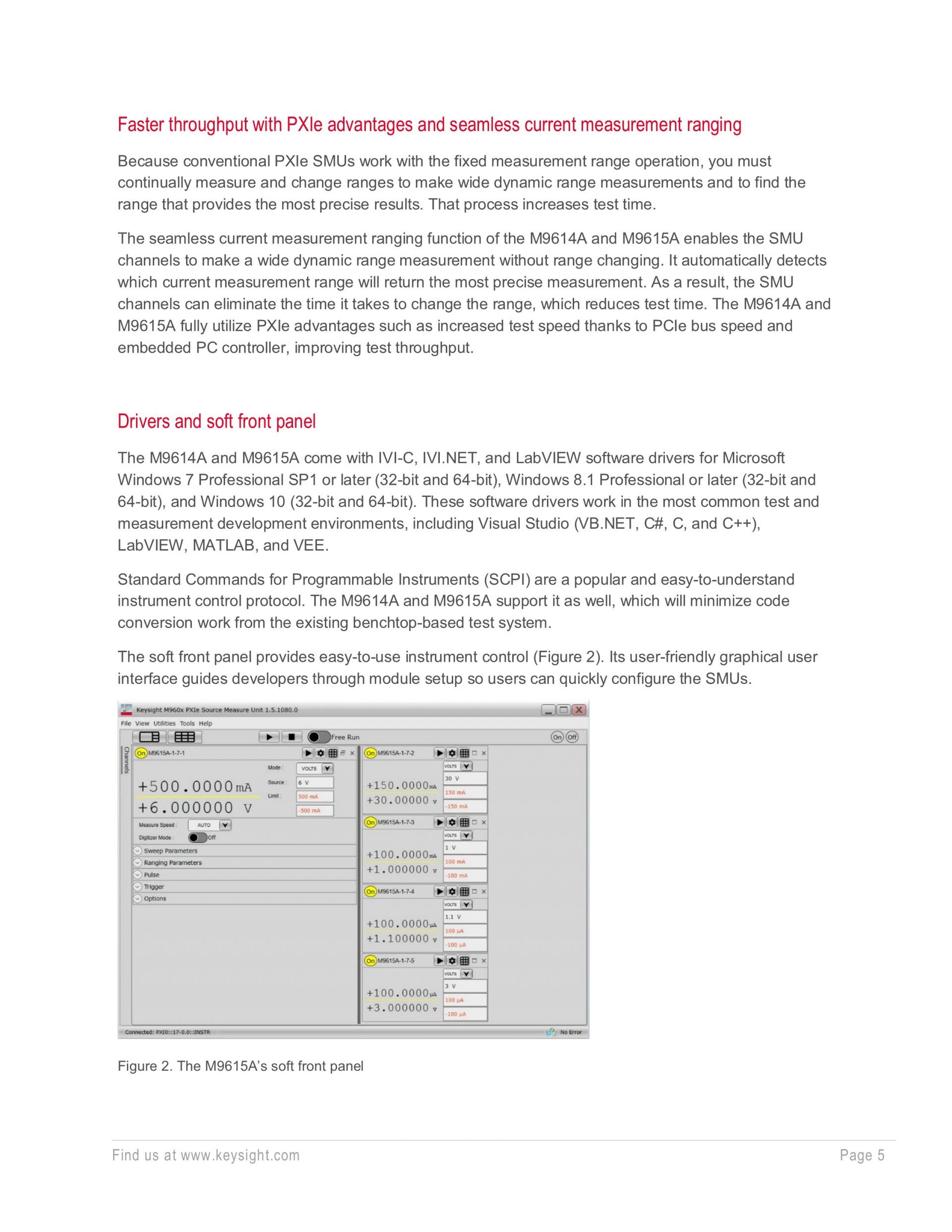

The Keysight M9614A is a PXIe five-channel source / measure unit (SMU). It supports accurate measurement up to 30 V / 500 mA with resolution down to 6 μV / 100 pA. While a PXIe SMU improves channel density compared with a benchtop SMU, the M9614A enables higher channel density in the same footprint. They also provide a wider output range than a conventional PXIe four-channel SMU at a lower cost per channel. Pulsed and sampling capabilities allow the M9614A to perform a variety of measurements, from DC to pulsed measurements, with pulse width down to 100 μs at a sampling rate of 500 kSa/s. Their seamless current measurement ranging function reduces test duration by eliminating the time it takes to change the range and expands the dynamic range to cover four measurement ranges. These capabilities make the M9614A suitable for applications that require high channel density, such as semiconductor reliability testing and integrated circuit (IC) tests.
M9614A M9614A KEYSIGHT KEYSIGHT M9614A M9614A 키사이트 키사이트 M9614A

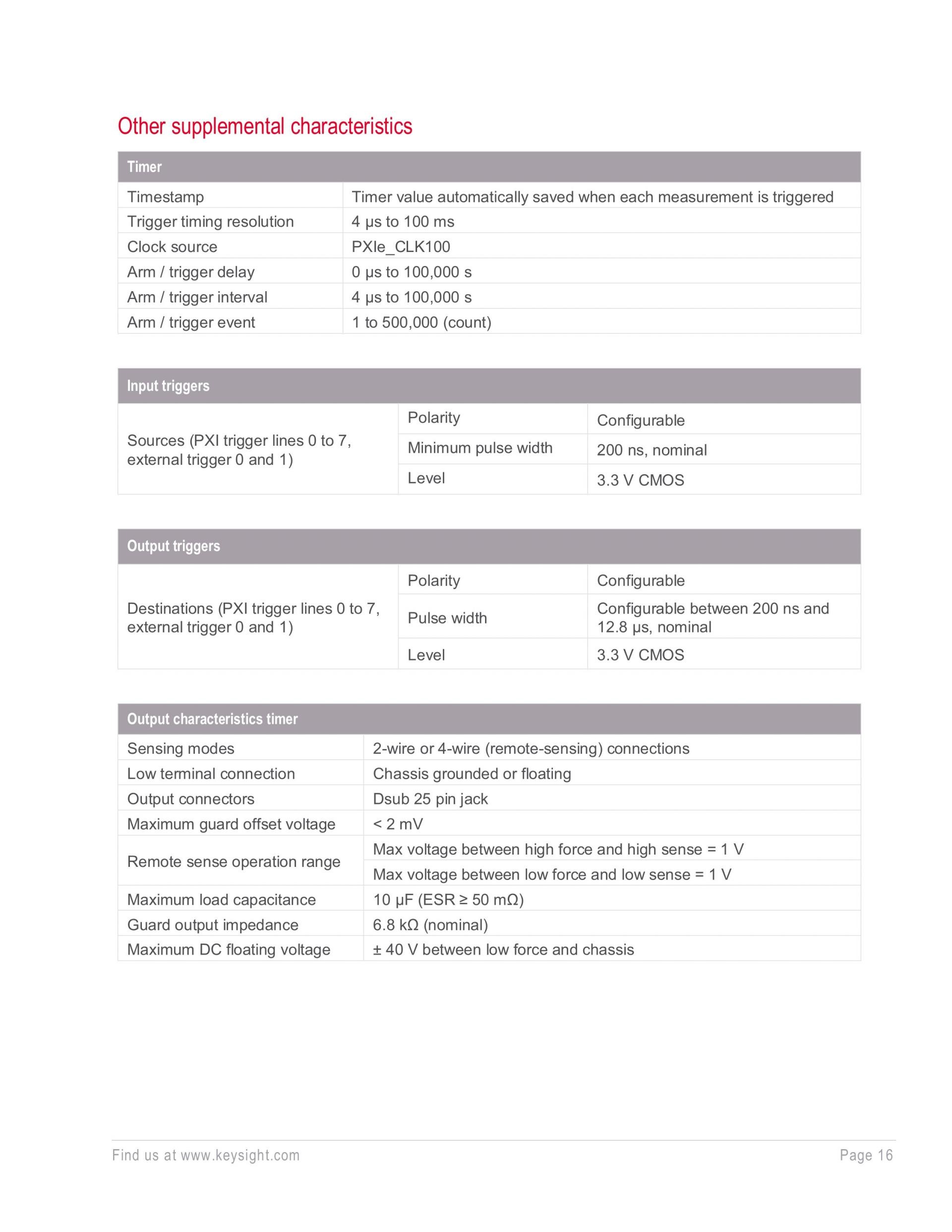

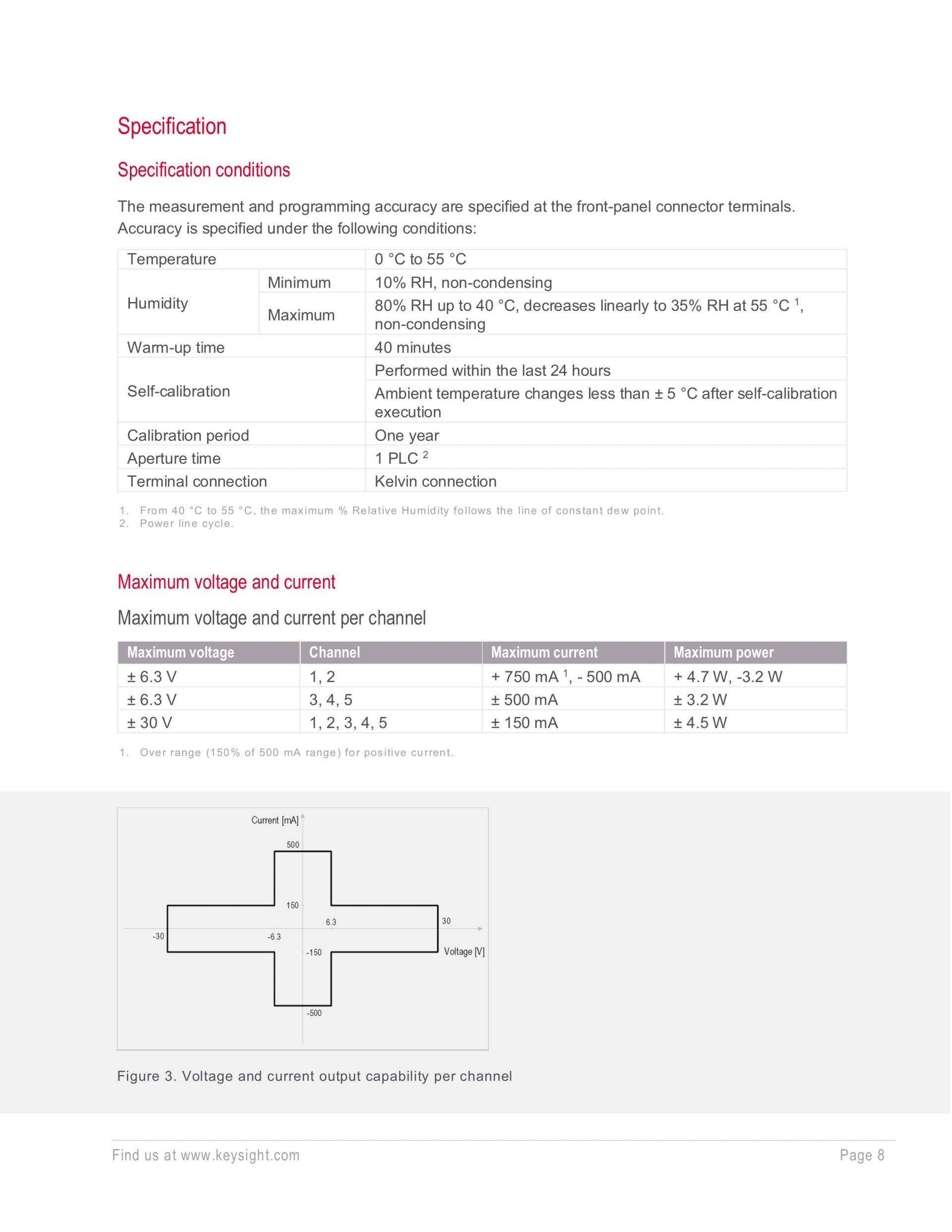

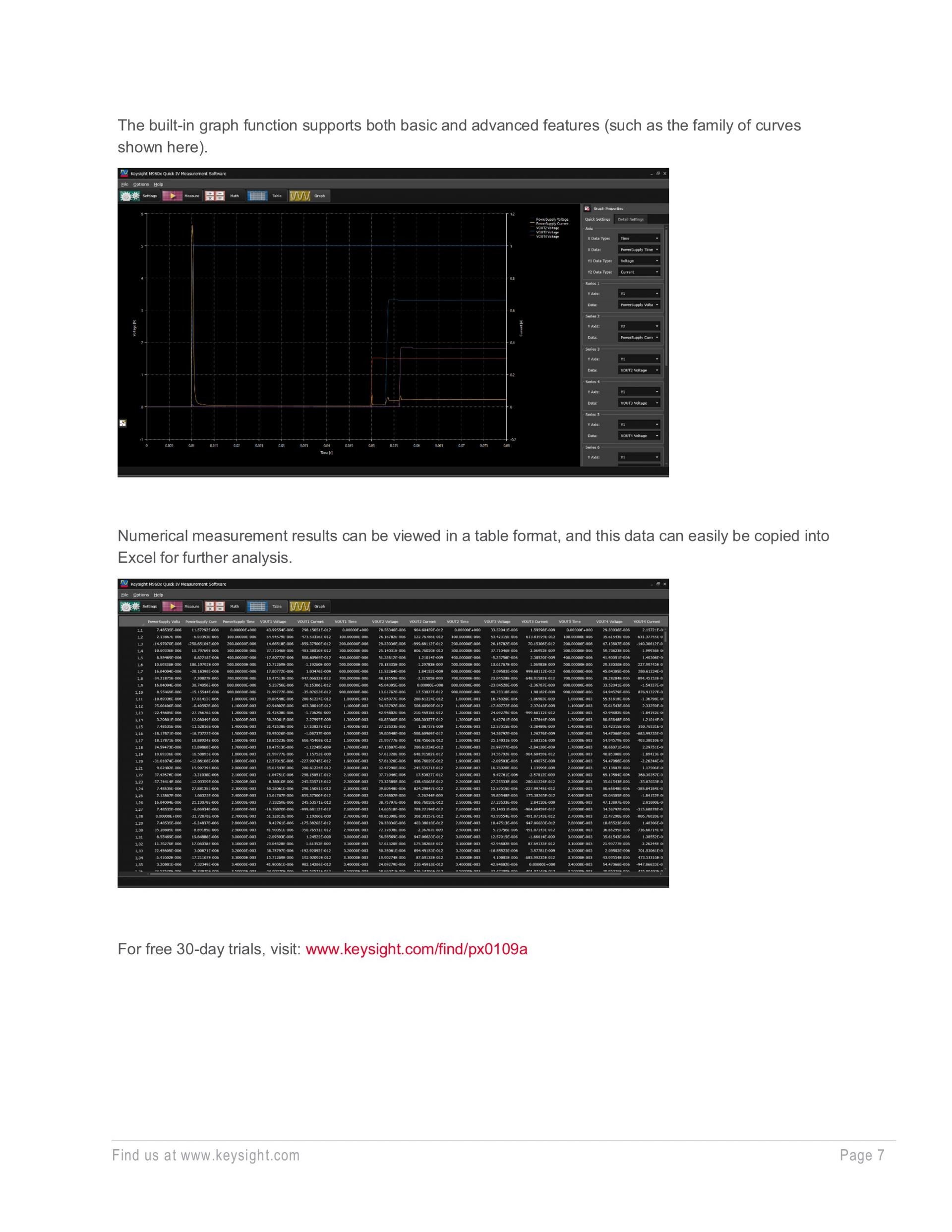

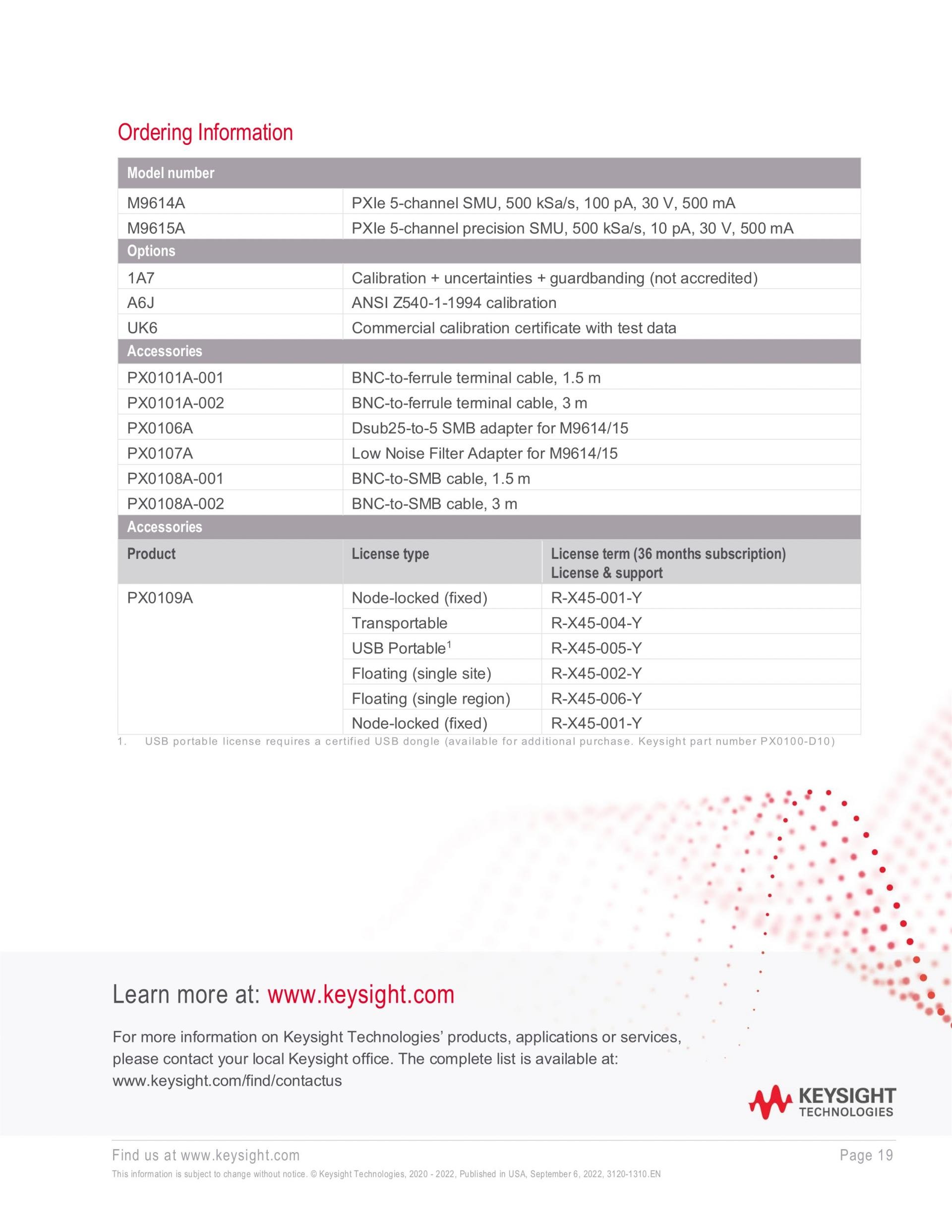

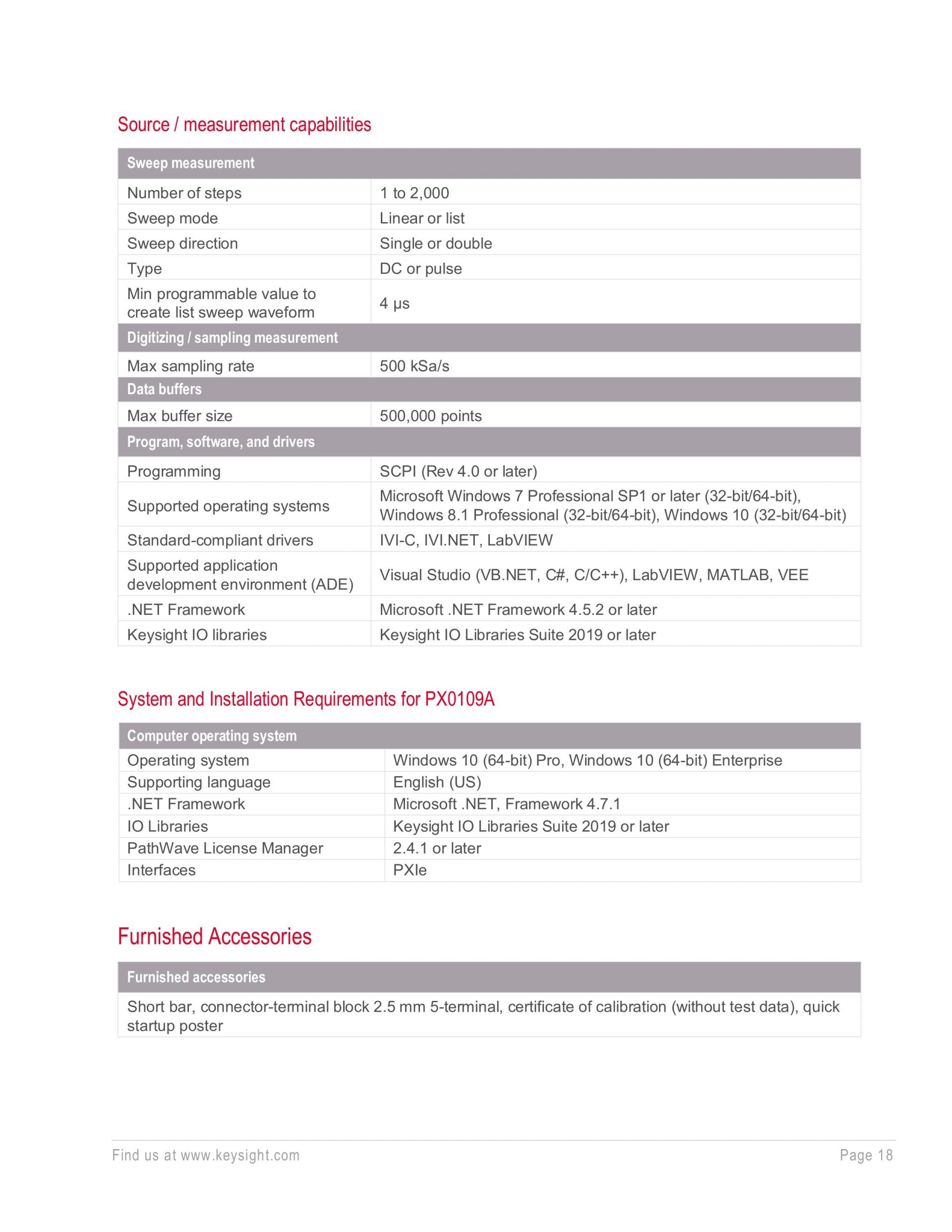

■ 제품 사양 (Specifications)
키사이트 제품 데이터시트의 핵심 사양입니다.
- 30 V/500 mA and fast throughput at a low cost per channel
- Wider output range, up to 30 V / 500 mA per
- Minimum 10 pA resolution for low current

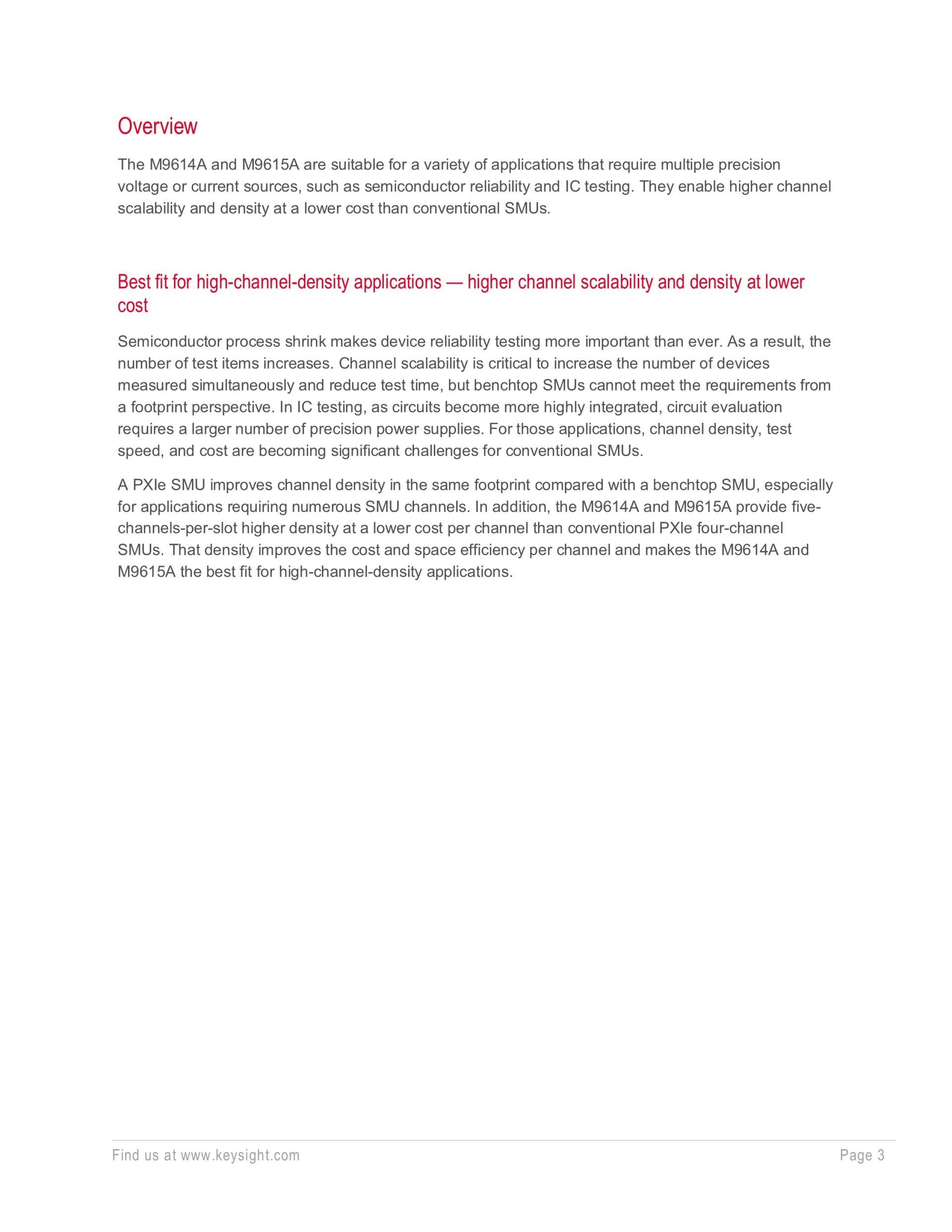

- M9615A the best fit for high-channel-density applications.

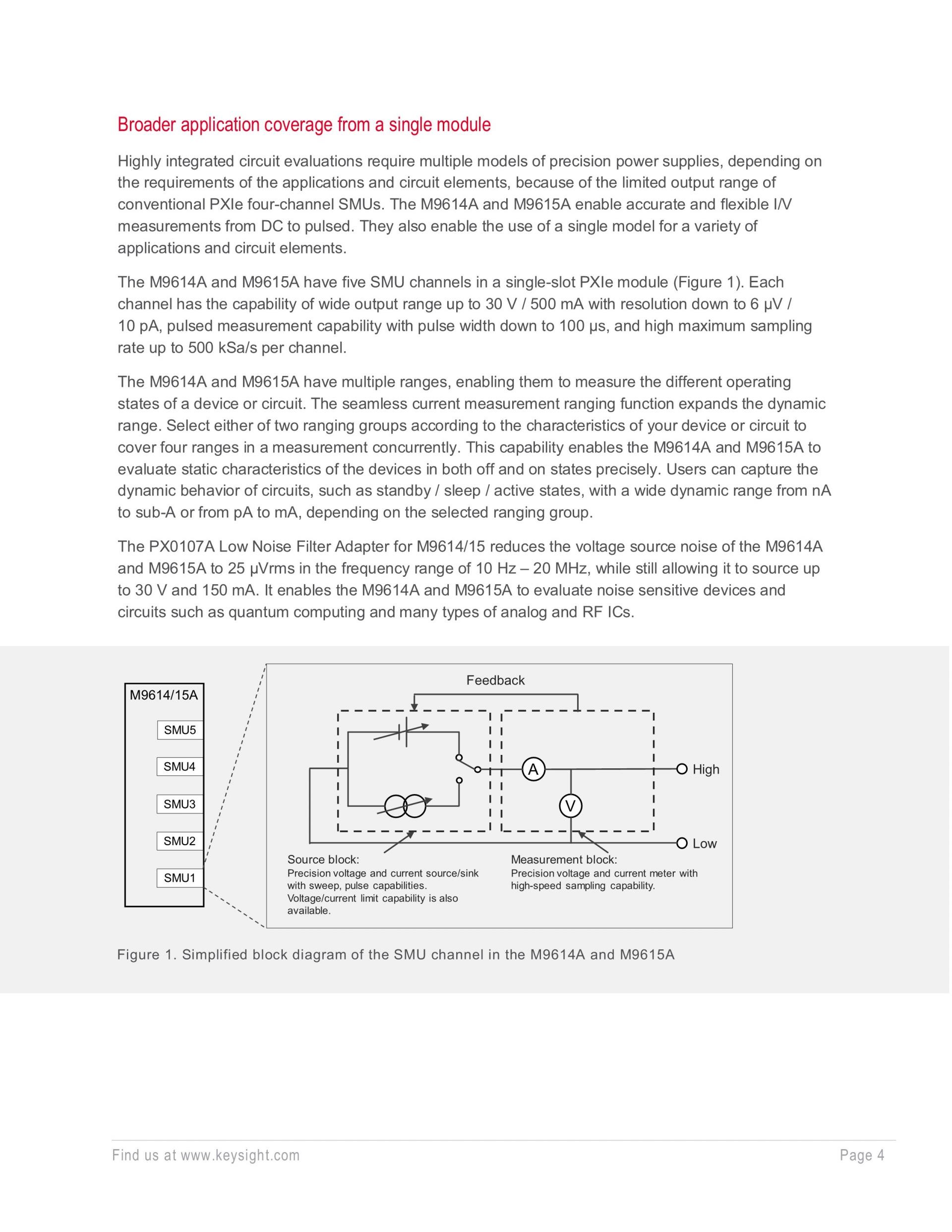

- The M9614A and M9615A have five SMU channels in a single-slot PXIe module (Figure 1). Each
- channel has the capability of wide output range up to 30 V / 500 mA with resolution down to 6 μV /
- 10 pA, pulsed measurement capability with pulse width down to 100 μs, and high maximum sampling
- The M9614A and M9615A have multiple ranges, enabling them to measure the different operating

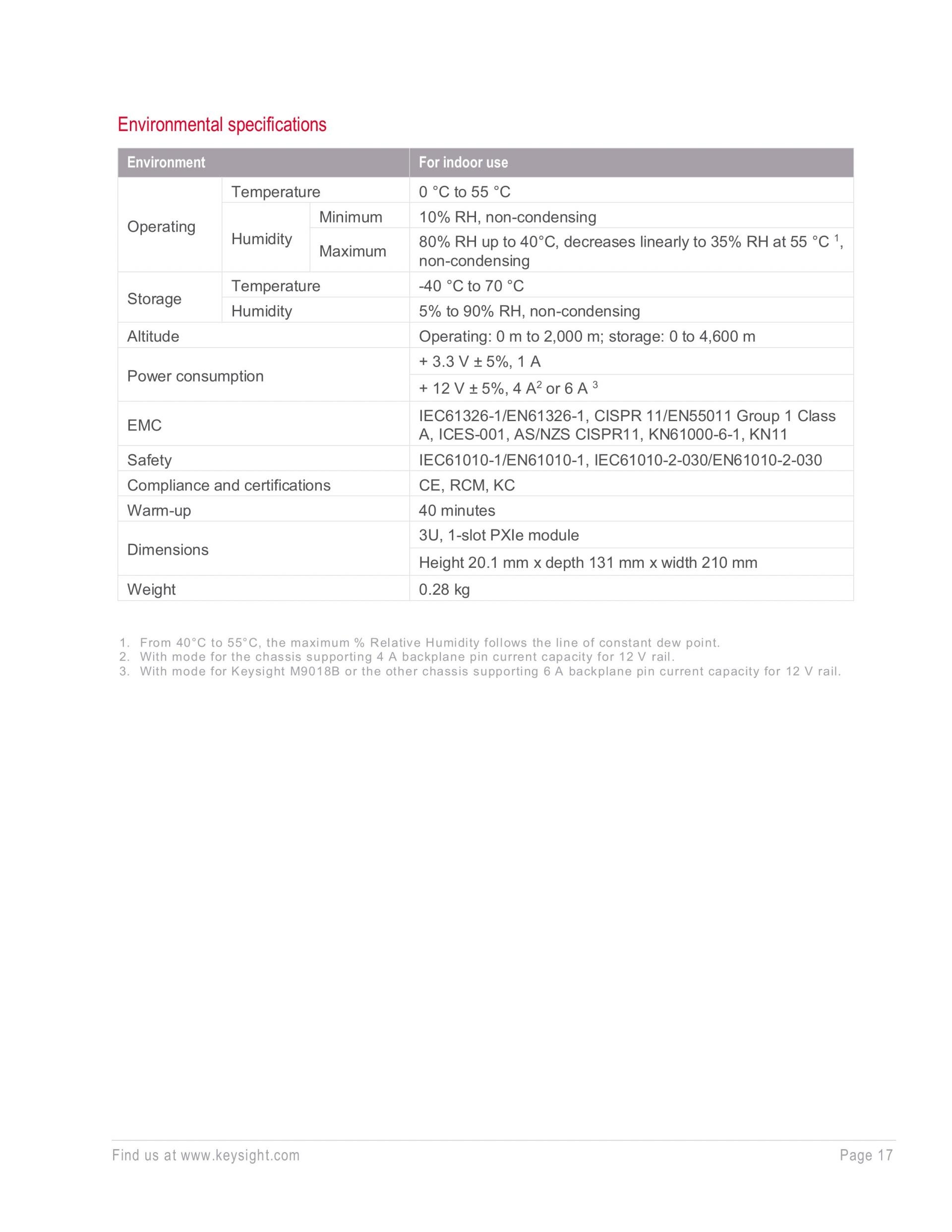

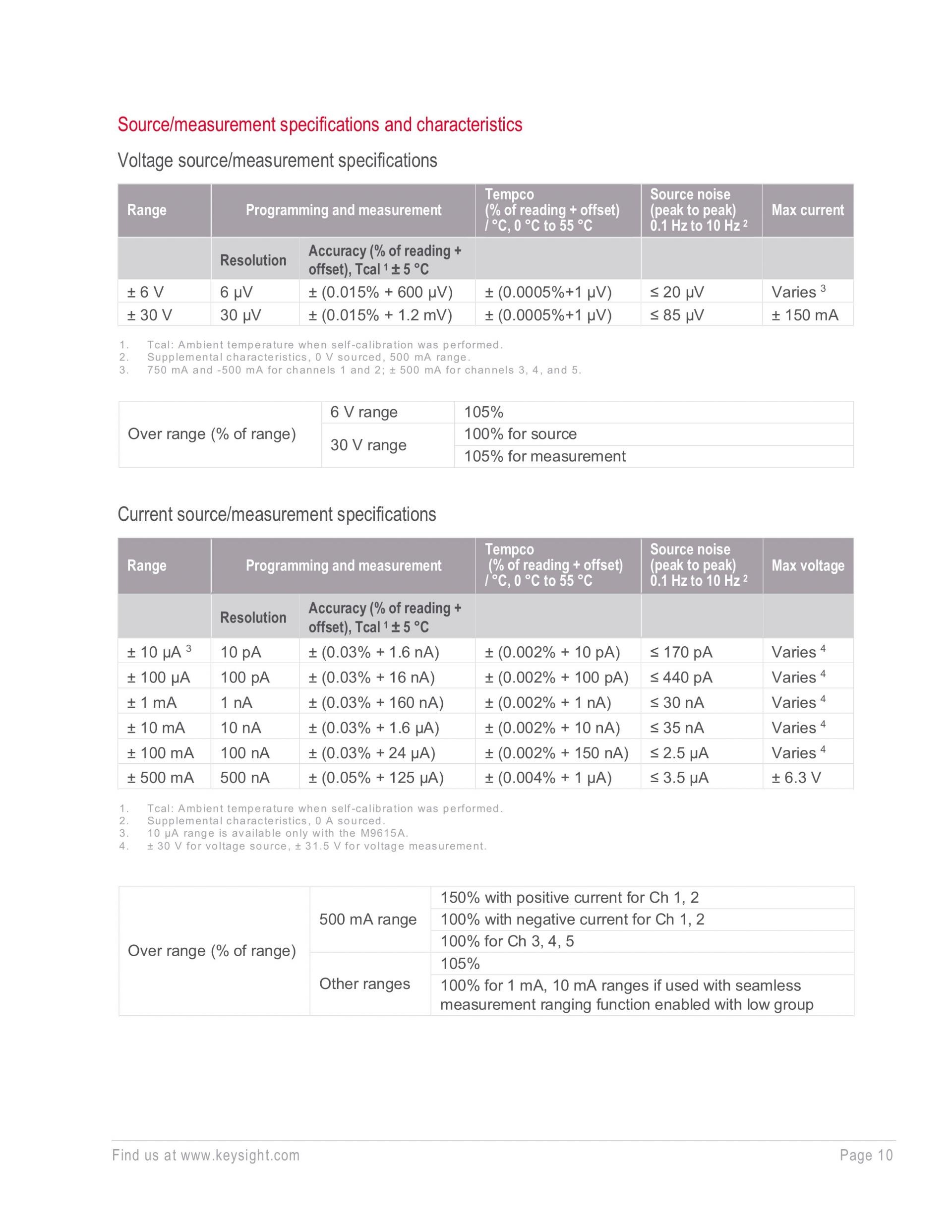

- Temperature 0 °C to 55 °C
- 1. Over range (150% of 500 mA range) for positive current.
- current capacity for 12 V rail. The M9614A and M9615A use an XJ4 connector manufactured by ERNI (PN 214443).
- 2. Supplemental characteristics, 0 V sourced, 500 mA range.
- 6 V range 105%
- 30 V range
- 4. ± 30 V for voltage source, ± 31.5 V for voltage measurement.
- 500 mA range 100% with negative current for Ch 1, 2

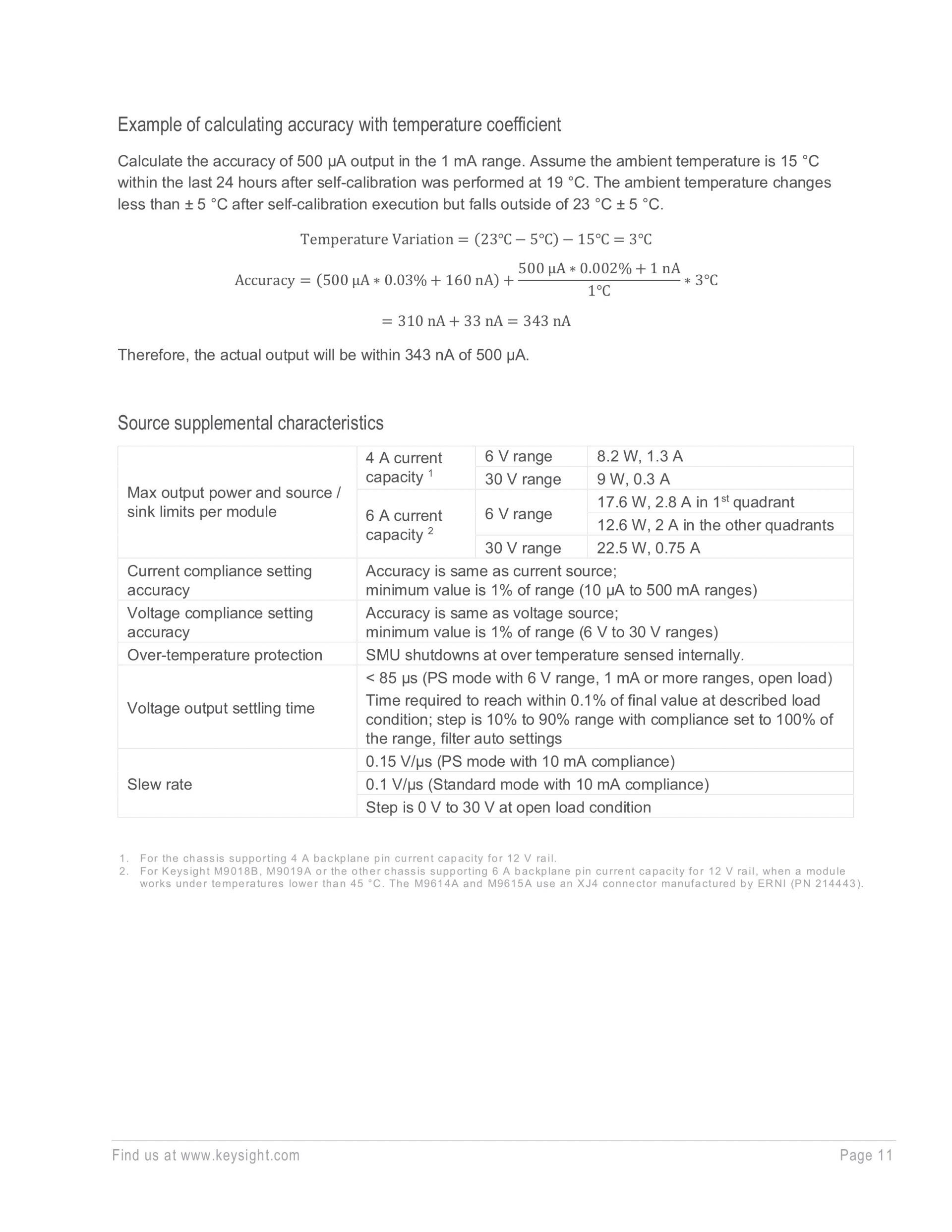

- Accuracy=(500 μA∗0.03%+160 nA)+ ∗3℃

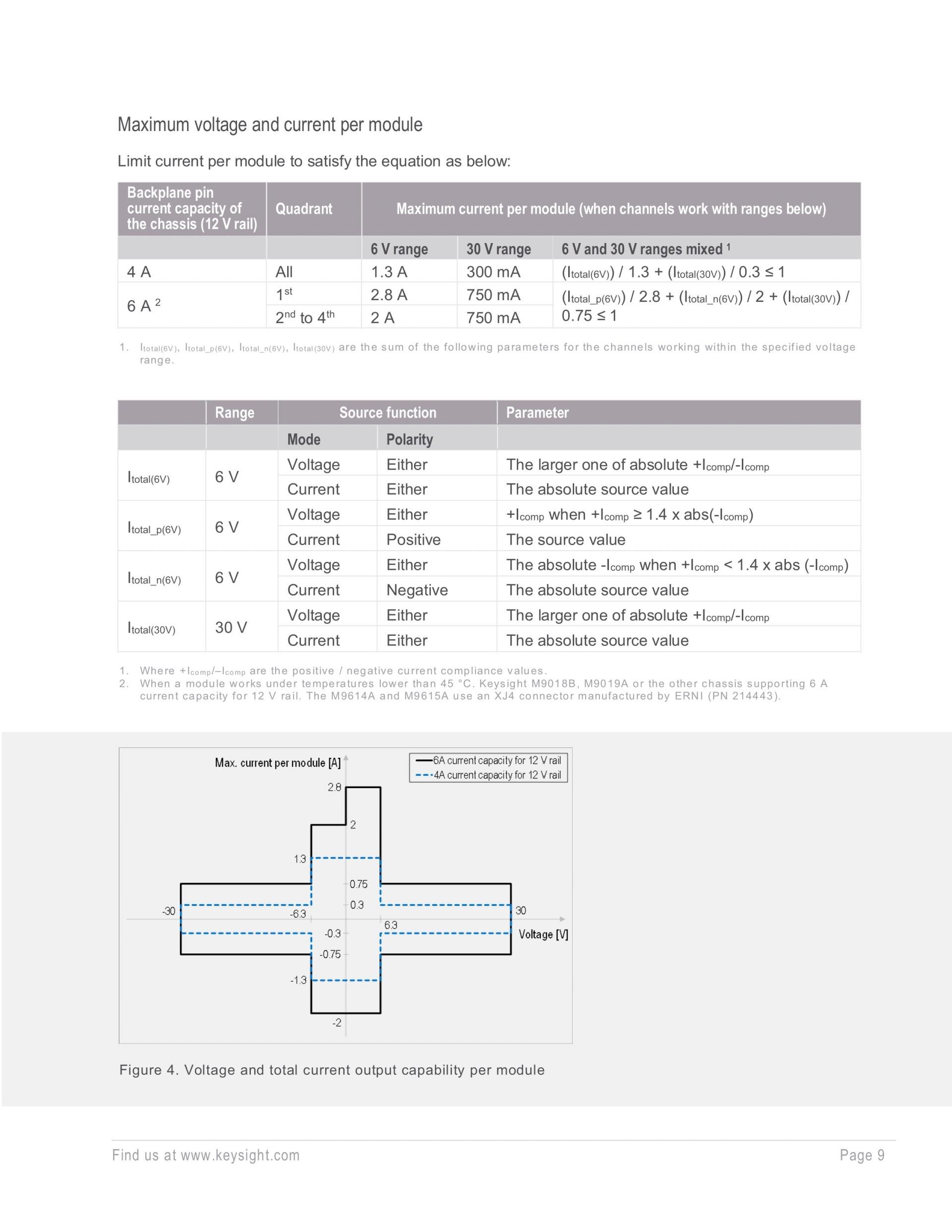

- sink limits per module 6 A current 6 V range
- < 85 μs (PS mode with 6 V range, 1 mA or more ranges, open load)
- 1. For the chassis supporting 4 A backplane pin current capacity for 12 V rail.

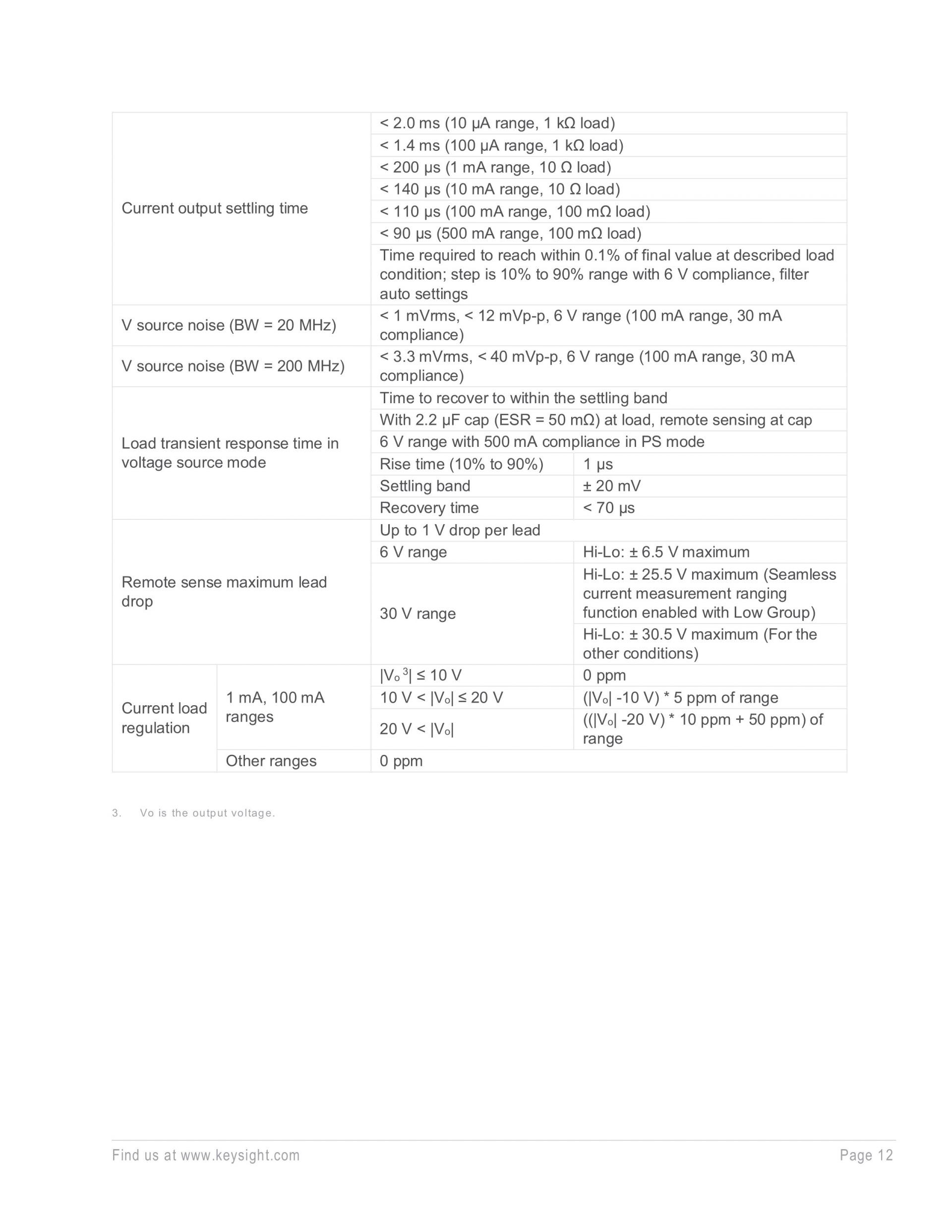

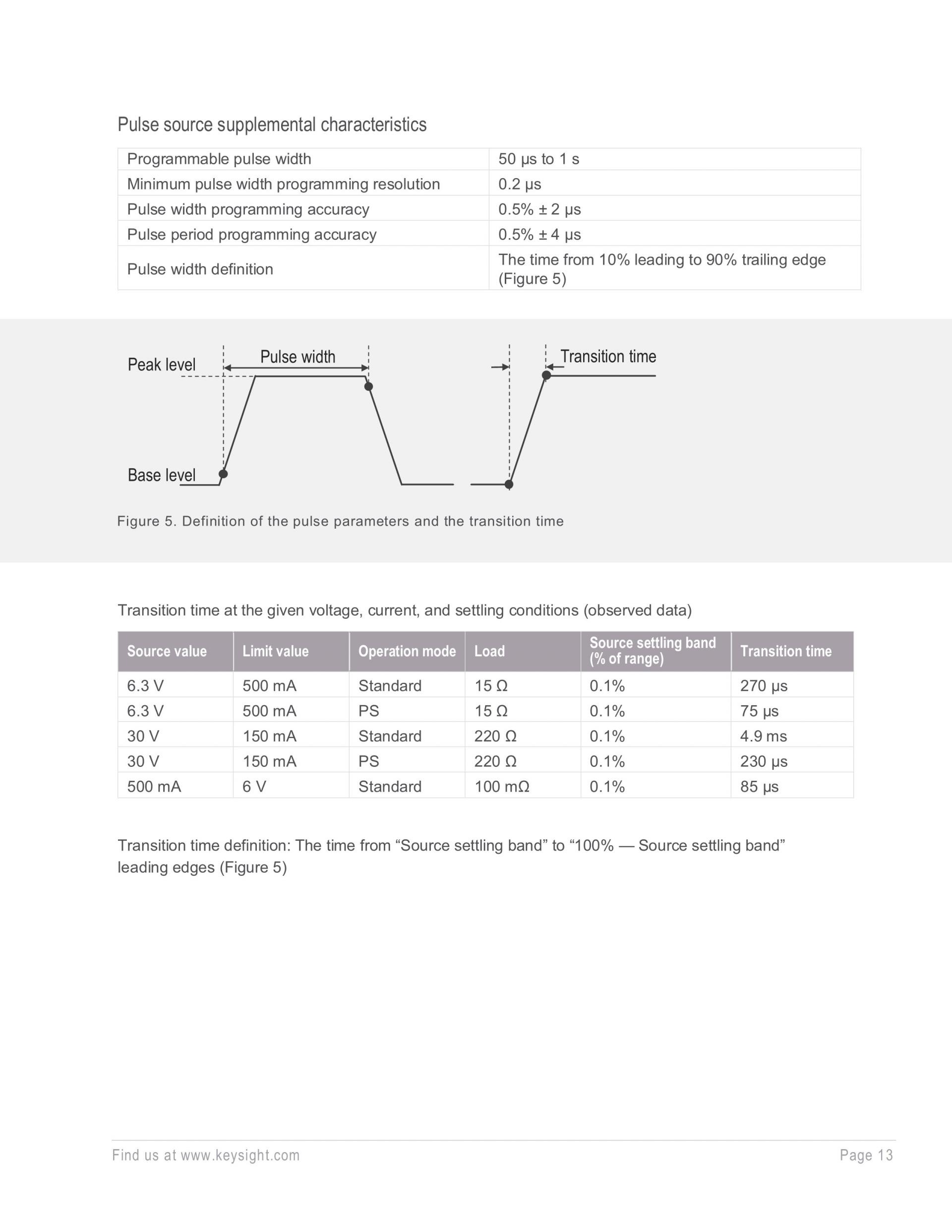

- < 2.0 ms (10 μA range, 1 kΩ load)
- < 1.4 ms (100 μA range, 1 kΩ load)
- < 200 μs (1 mA range, 10 Ω load)
- < 140 μs (10 mA range, 10 Ω load)
- Current output settling time < 110 μs (100 mA range, 100 mΩ load)
- < 90 μs (500 mA range, 100 mΩ load)
- Load transient response time in 6 V range with 500 mA compliance in PS mode
- 6 V range Hi-Lo: ± 6.5 V maximum
- 30 V range function enabled with Low Group)
- Other ranges 0 ppm
