그라프텍 ・ GRAPHTEC
B-563SL-30
30채널 나사 입력 단자

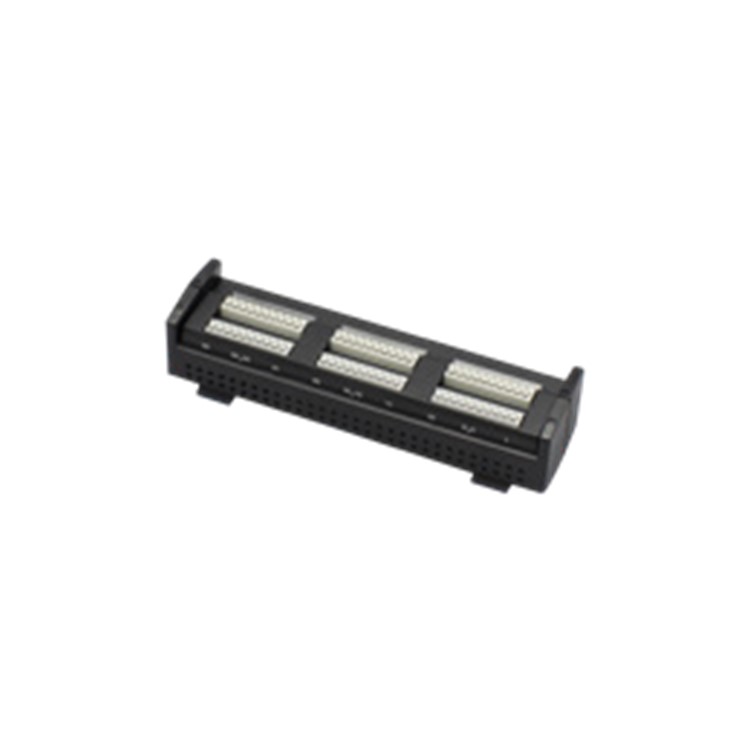

B-563SL-30 30CH SCREW INPUT TERMINAL
GRAPHTEC 그라프텍 B-563SL-30 30채널 무나사 입력 단자

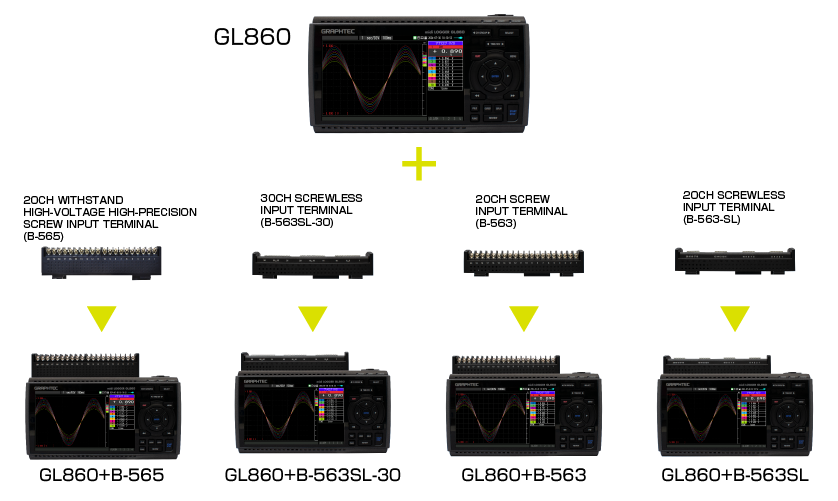

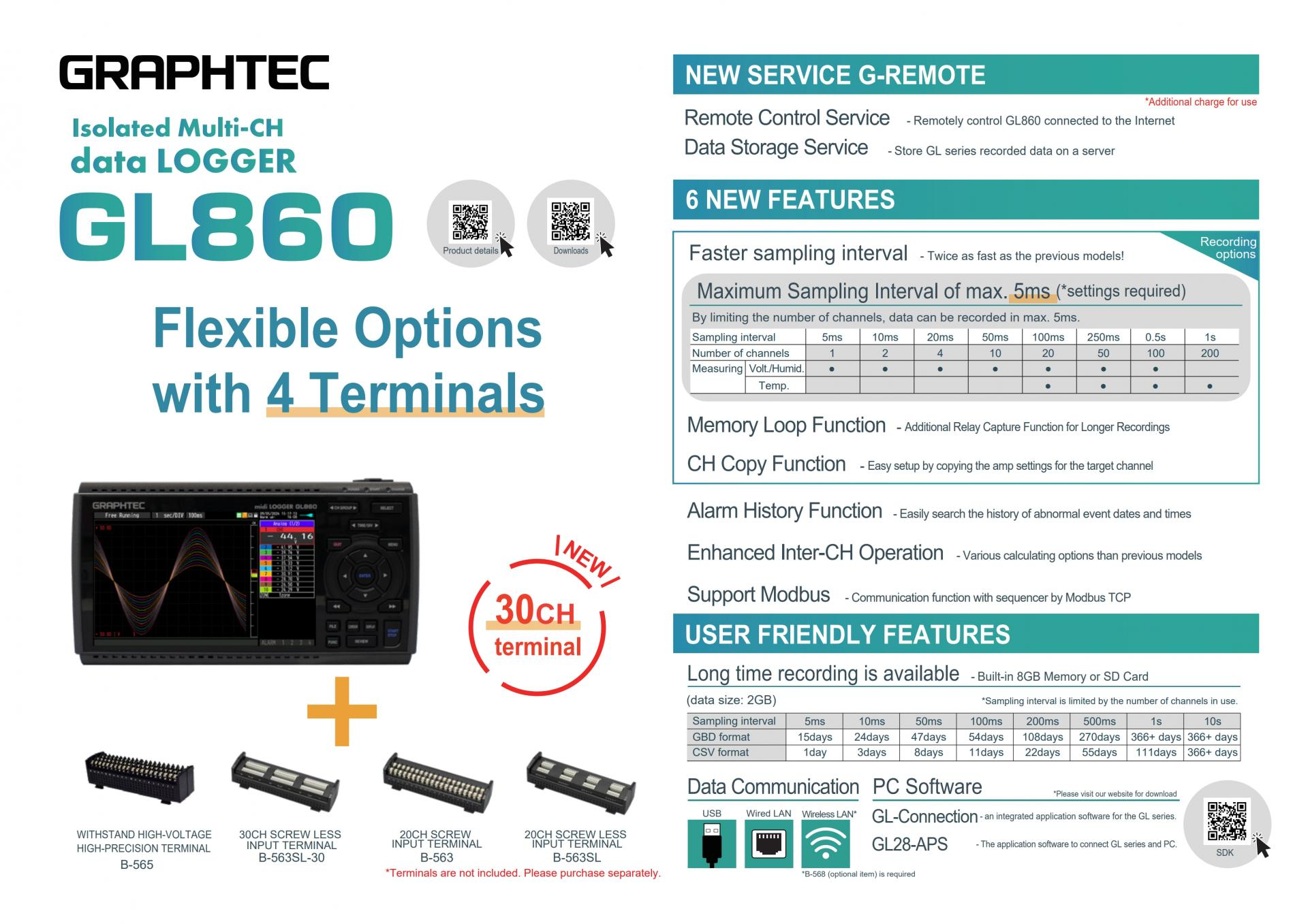

Flexible Options with 4 Terminals
4 types of terminals including high withstand voltage B-565 are lined-up.
Select the terminal that best suits your measurement application.

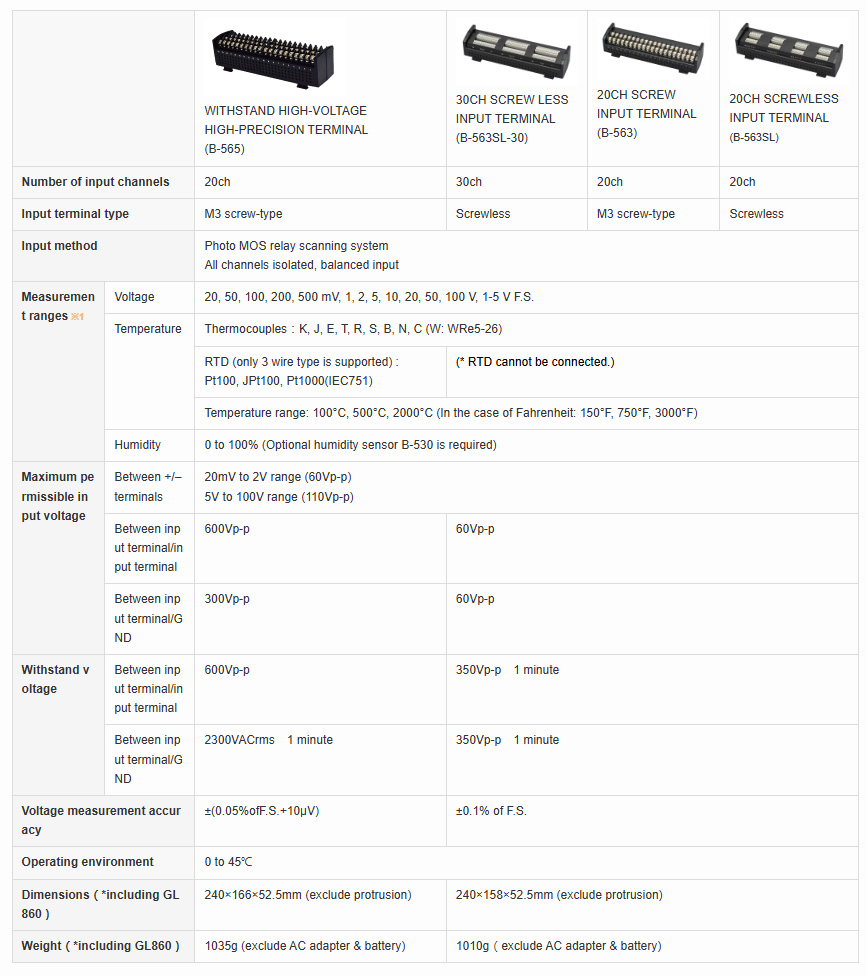

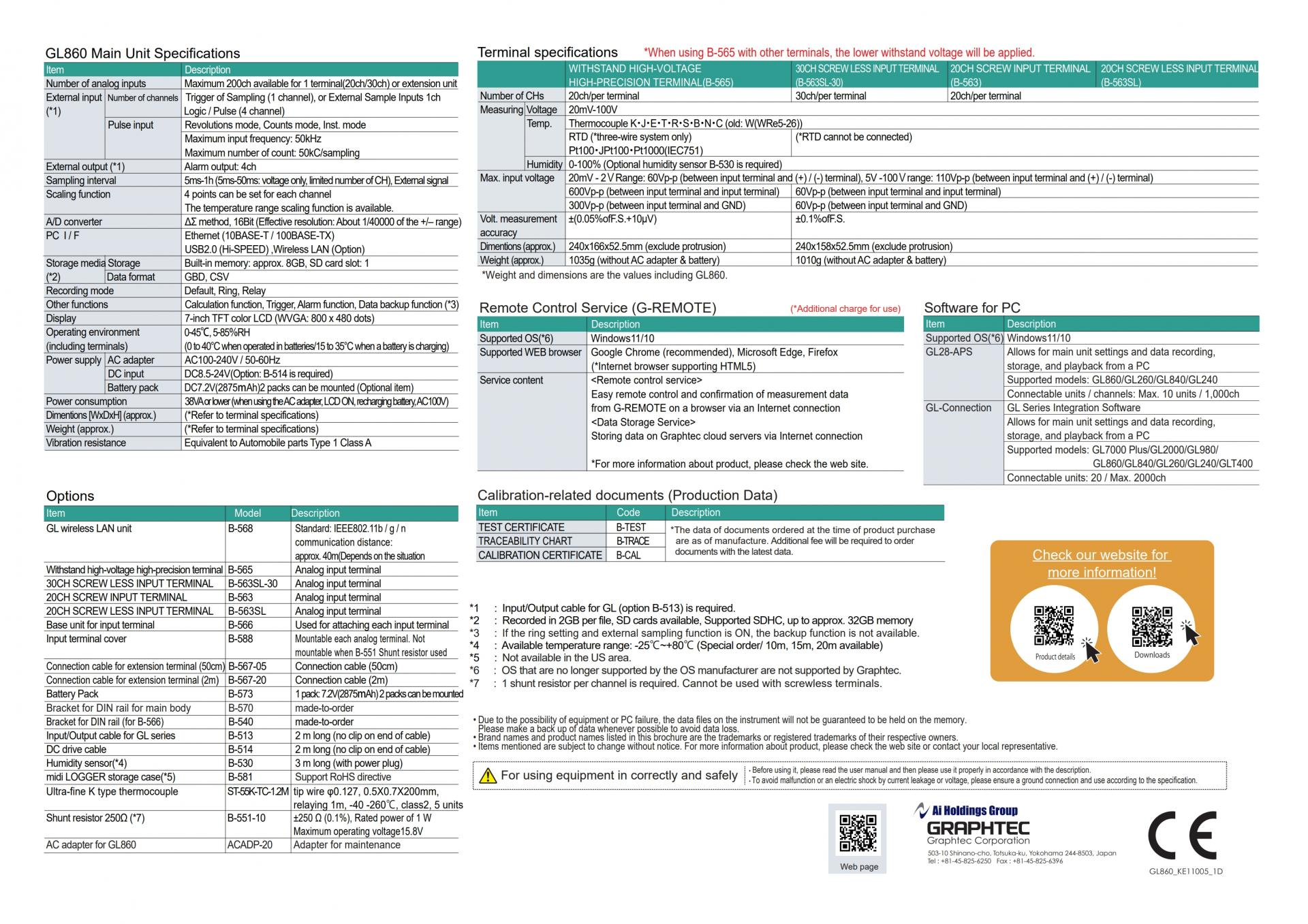

- Terminal Specification Comparison
*Please refer to the user manual for the measurement accuracy of each terminal.

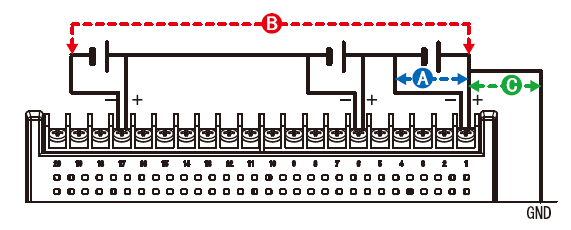

- Maximum input voltage
B-565 < Between +/– terminals (A) > – Maximum input voltage: 60Vp-p (Range of 20mV to 2V) 110Vp-p (Range of 5V to 100V) < Between input terminal/input terminal (B) > – Maximum input voltage: 600Vp-p – Withstand voltage: 600Vp-p < Between input terminal/GND (C) > – Maximum input voltage: 300Vp-p – Withstand voltage: 2300Vp-p at 1 minute |  |
B-563SL-30 / B-563 / B-563SL < Between +/– terminals (A) > – Maximum input voltage: 60Vp-p (Range of 20mV to 2V) 110Vp-p (Range of 5V to 100V) < Between input terminal/input terminal (B) > – Maximum input voltage: 60Vp-p – Withstand voltage: 350Vp-p at 1 minute < Between input terminal/GND (C) > – Maximum input voltage: 60Vp-p – Withstand voltage: 350Vp-p at 1 minute |  |
Channel Expansion of Analog Signal Input Port
Expandable up to 200 channels.
- Example

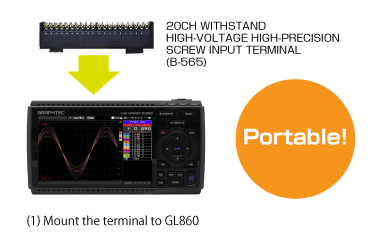

- 20CH / 30CH
- 40ch or more (up to 200ch)

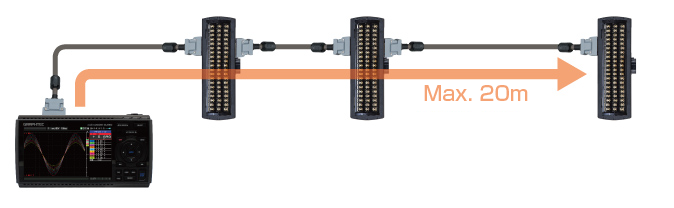

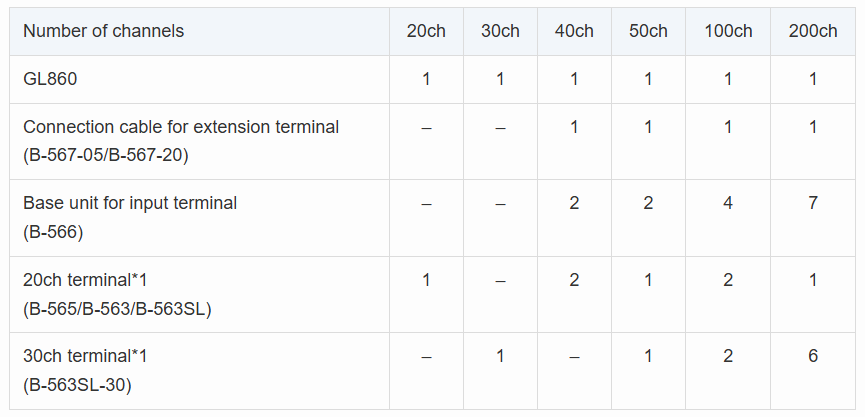

- Example of channel expansion
*1. When using B-565 with other terminals,
Withstand voltage: lower withstand voltage will be applied
Accuracy: depends on the terminal

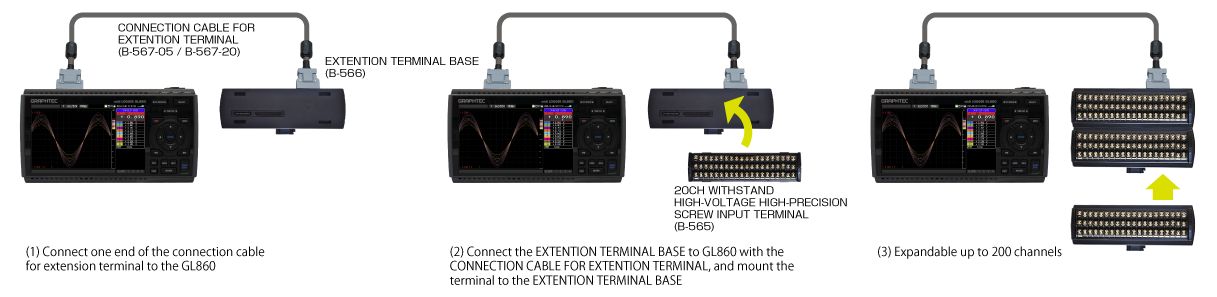

- The input terminal and GL860 can be extended by using the connection cable for extension terminal (50cm / 2m)
*If the measurement is affected by noise, slow down the sampling interval.

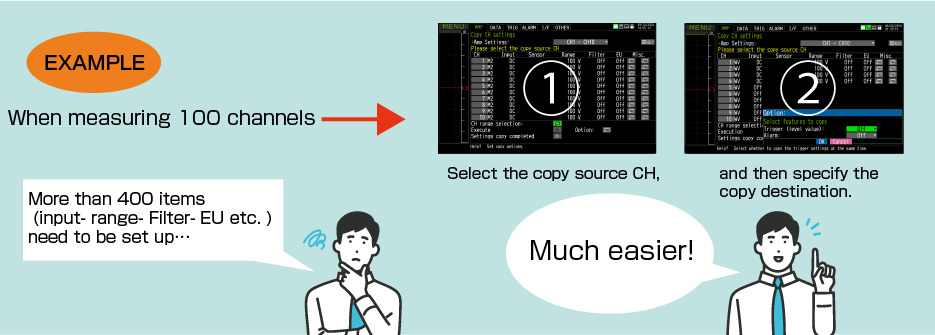

- CH copy function is useful for multi-channel measurements
Copy settings such as input, range, filter, EU, etc. at once.
The setup can be done simply by selecting a channel, greatly reducing the man-hours required.
Trigger and alarm settings can also be copied
