NOVOTEST 노보테스트 TP-1M 코팅 두께 측정기 - 가격문의 -
가격문의(상세정보 참조)

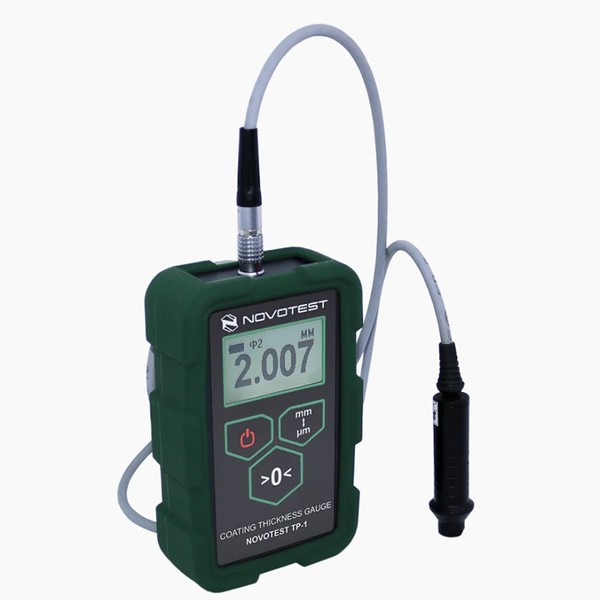

NOVOTEST TP-1M 코팅 두께 측정기
NOVOTEST TP-1M Coating Thickness Gauge
Coating thickness gauge for measuring the thickness of various coatings on metals is very and ready to use right out of the box, and does not require special user skills. The minimum number of buttons and an intuitive menu makes it an ideal device of operational non-destructive measurement of the thickness of almost any coating with high accuracy.
노보테스트 ・ NOVOTEST
NOVOTEST TP-1M
코팅 두께 측정기
TP-1M Coating Thickness Gauge
MEASUREMENT OF ELECTROPLATING ON STEEL The most common task that is successfully solved by the device. Typically, coating measurements in the range of 0 to 500 μm require high accuracy; for these purposes, a coating thickness gauge complete with an F-0.5 probe is ideal. Also, for measuring the thickness of coatings on small, radius products, or in grooves, it is possible to use a specialized probe F-0.3. |  |
 | MEASUREMENT OF COATINGS ON NON-FERROUS METALS To measure the thickness of coatings on non-ferrous metals, the NF-2 probe is used, which allows user to measure coatings in the range from 0 to 2 mm. By default, the NF-2 probe calibration is performed for aluminum, if the task is to measure the coating on materials significantly different in properties from aluminum, the probe can be calibrated by user itself. |
MEASURING DIELECTRIC COATINGS ON STEEL For measuring paintwork coatings, polymers and other dielectric coatings in the range up to 5 mm, probes F-2 and F-5 are suitable, which will provide a testing range of up to 2 or 5 mm, accordingly. As with any measuring instrument: the wider the range, the higher the error, so the user, when choosing a probe, should be guided by this principle to select the best option. |  |
 | MEASUREMENT OF COATINGS UP TO 60 MM (60 000 μm) To measure very thick coatings on any metals (steel or non-ferrous metals) – probes M-12, M-30 and M-60 are used, which provide measuring ranges up to 12, 30 and 60 mm, accordingly. This can be bitumen insulation, a coating of polymer tapes, or some specific task of measuring the main thickness of the material, where ultrasonic waves can’t be used due to large attenuation in the material, inhomogeneity or multilayer material. |
SPECIALIZED PROBES Measurement of groove depth and roughness. The DSH probe allows user to evaluate roughness, measure the depth of corrosion, surface defects and grooves. To determine the roughness, it is necessary to perform a series of measurements on the surface of a small area, and then using the formula to calculate the desired value. Measurement of temperature, humidity and dew point. Using the DTVR probe, it is possible to measure humidity and air temperature, on the basis of which the device calculates the dew point, which is very important to know before applying the paint to the base. Surface temperature measurement. Using the DT probe, the surface temperature is measured by the contact method. |  |
 | DESIGN The device is made in an ergonomic enclosure, which is equipped with a silicone cover, which makes the electronic unit of the device shockproof. Also, the device is resistant to extreme temperatures, and can be used at temperatures from -20 to +40 ° C. |
