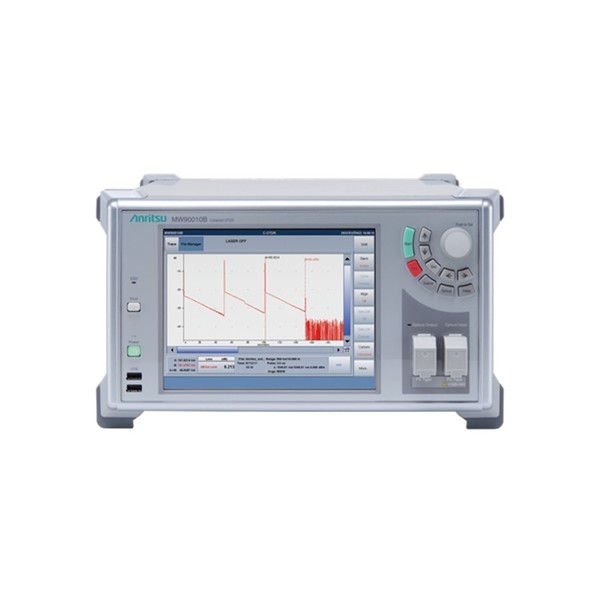

ANRITSU MW90010B 코히어런트 OTDR
ANRITSU MW90010B Coherent OTDR
The MW90010B has a tunable light source covering C-band wavelengths. The 10 m resolution locates fault precisely and the 20,000 km max. range supports submarine-cable measurement.
안리쓰 ・ ANRITSU
MW90010B
코히어런트 OTDR
MW90010B Coherent OTDR
The Coherent OTDR MW90010B can measure ultra-long submarine cables of up to 20,000 km to locate faults with 10 m measurement resolution.
Coherent detection technology captures waveform data, including fault location, cable loss, bending loss, fiber length, etc., for detailed evaluation of submarine cables. Its excellent basic performance, such as measurement time and dynamic range, accurately measures submarine cables with optical-amplifier repeaters separated by distances of 80 km or more.
Moreover, setting the built-in tunable light source with a wavelength accuracy of ±0.05 nm to a wavelength range of 1527.60 nm to 1567.13 nm supports measurement of DWDM submarine cables.
- Covers c-band wavelengths from 1527.60 nm to 1567.13 nm
- Built-in tunable light source with ±0.05 nm wavelength accuracy
- Standard 12,000 km measurement distance range optionally extendable to 20,000 km with 10 m resolution
- Easily portable at 10 kg max. mass
