오원 ・ OWON
OWH67
고전력 DC 파워서플라이

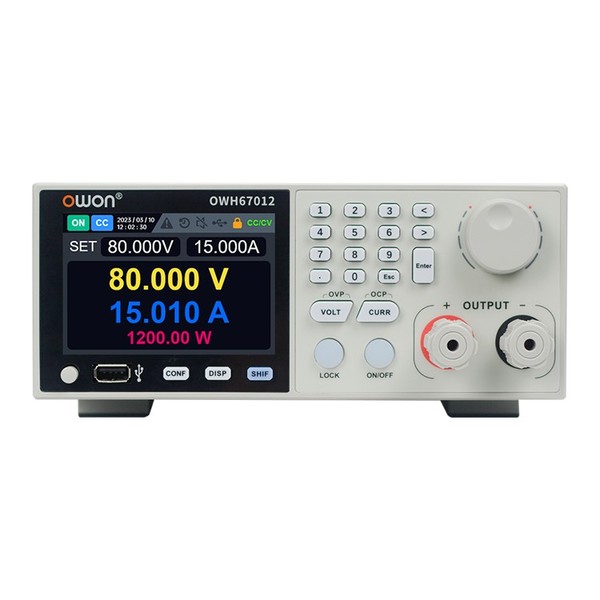

OWH67 High Power DC Power Supply
- 1/2 2U standard 19-inch rack
- Supports wide voltage input (85V-265V) to meet the needs of different countries
- High precision constant power output of 1200W - 3000W，wider output voltage/current range
- High output resolution 10mV / 1mA
- Supports 100-step LIST waveform programmable output
- CV / CC priority, with adjustable rise/fall time
- Built-in discharge circuit for output
- Supports SCPI, USB serial communication for remote control
- Supports photovoltaic simulator output function, embedded with EN50530, Sandia and other PV standard curves for direct evaluation of PV inverter MPPT efficiency(optional)
- Supports analog input and output as well as dry contact functionality
- 3.9" TFT LCD, capable of real-time display of voltage/currentcurves and online recording of 1-minute data, achieving integrated source-meter functionality, convenient for locating and capturing load anomalies.
OWH67012-80 OWH67012-150 OWH67012-300 OWH67018-150 OWH67020-150 OWH67020-300 OWH67020-600 OWH67030-150 OWH67030-300 OWH67030-600 OWH67012 80 OWH67012 150 OWH67012 300 OWH67018 150 OWH67020 150 OWH67020 300 OWH67020 600 OWH67030 150 OWH67030 300 OWH67030 600 OWH67018-150
