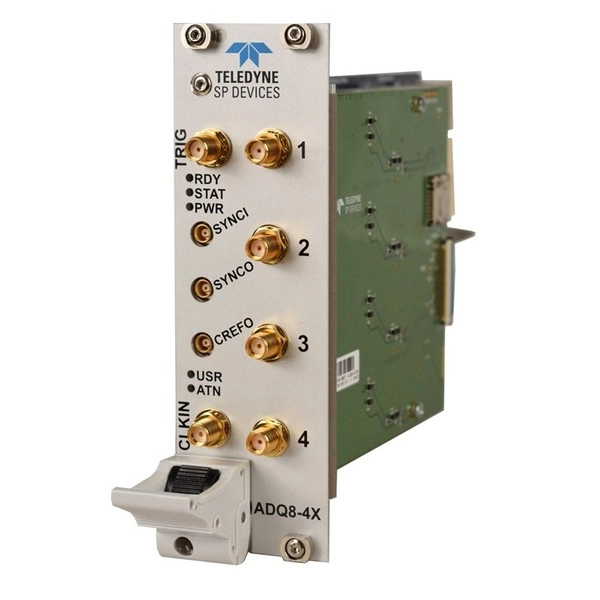

SP DEVICES ADQ8-4X 고성능 10-bit, 4 GSPS 디지타이저
SP DEVICES ADQ8-4X High-performance 10-bit, 4 GSPS digitizer
- 10 bits vertical resolution
- 4 channels at 2 GSPS or 2 channels at 4 GSPS (software-selectable)

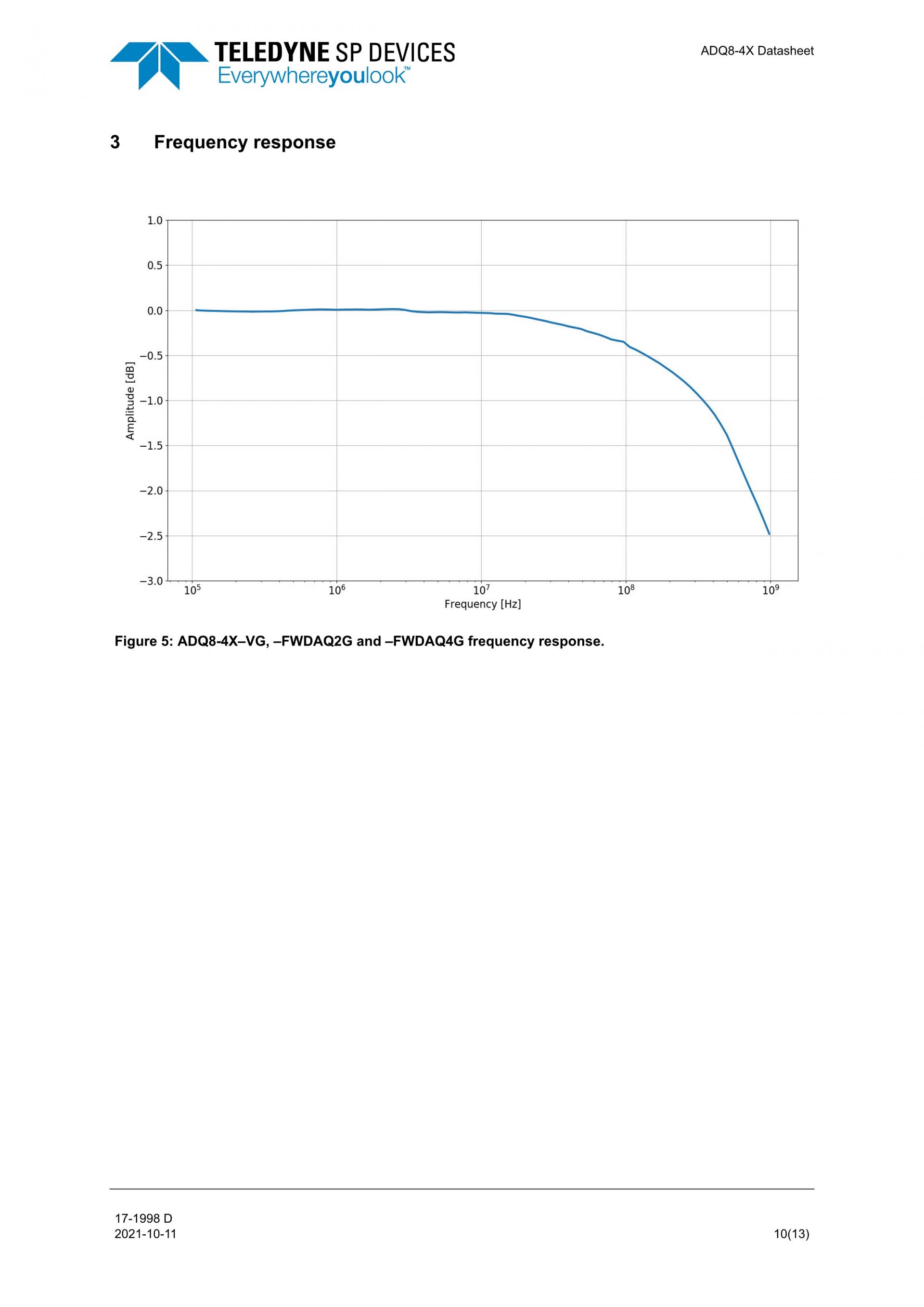

- 1 GHz input bandwidth
- DC-coupled with up to 1 GHz input bandwidth (0.5 Vpp input range)
- Programmable DC-offset
- 1 Gbyte onboard memory
- Open FPGA for custom real-time signal processing requires DEVDAQ
- PXIe, MTCA.4 form factors

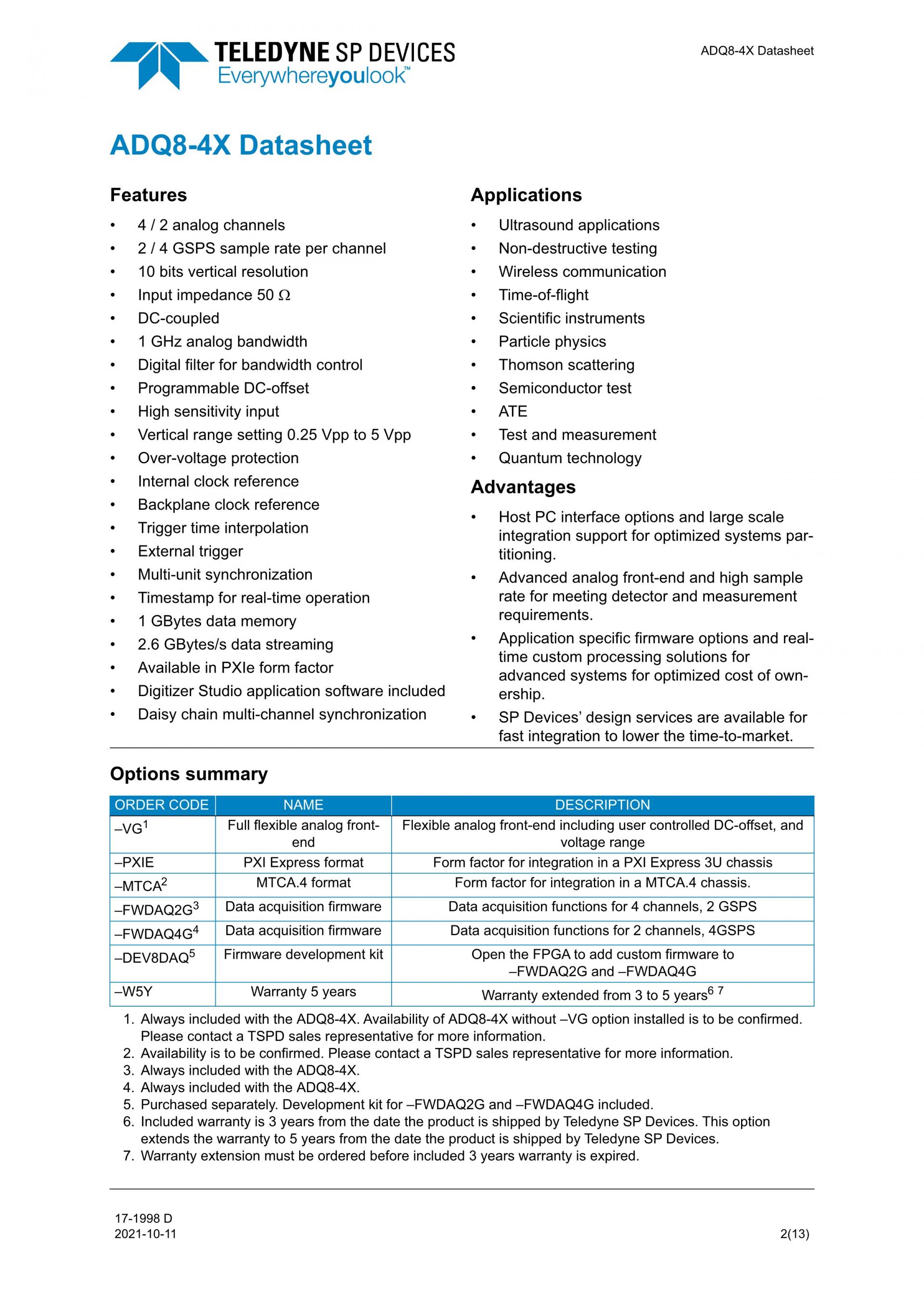

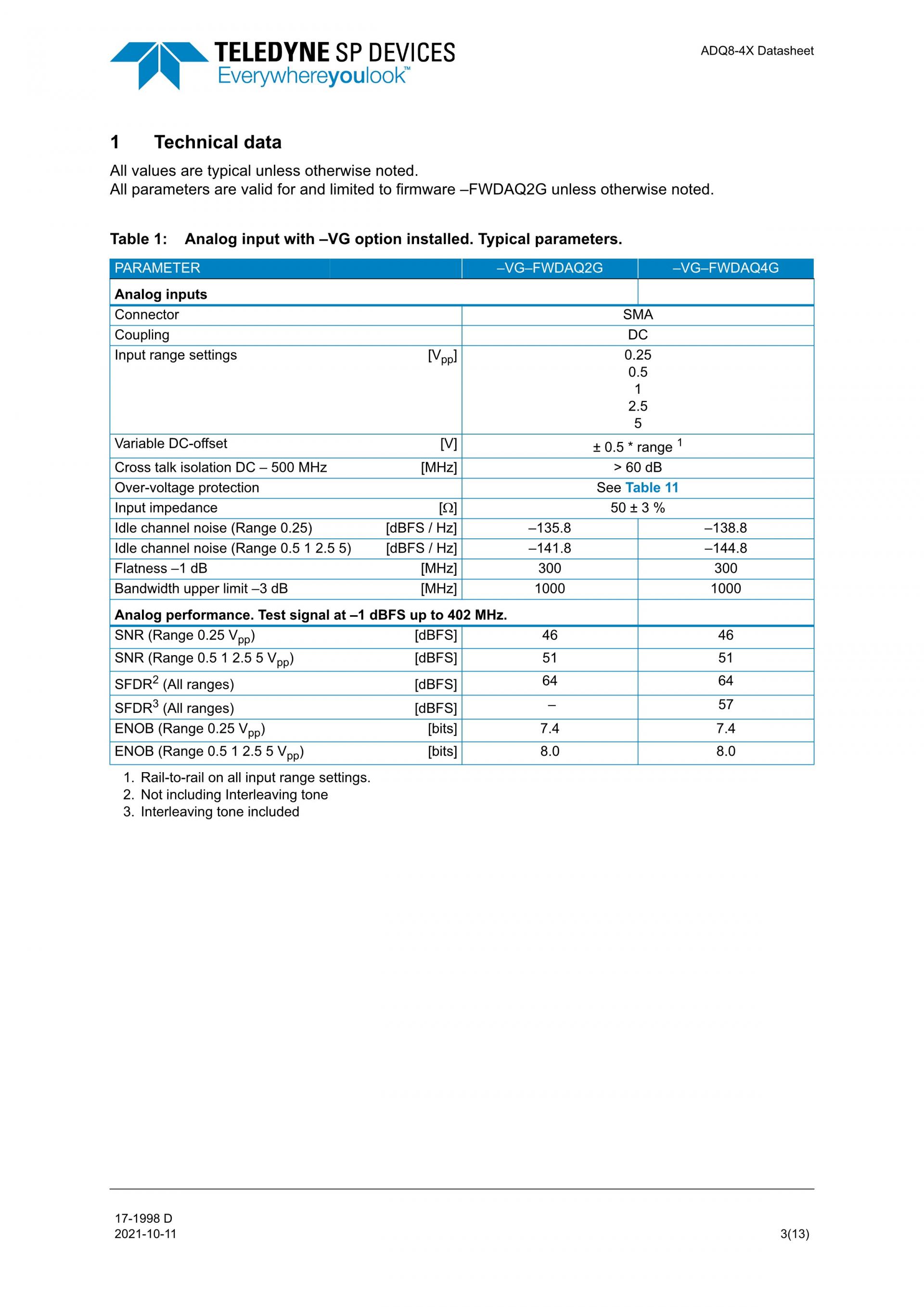

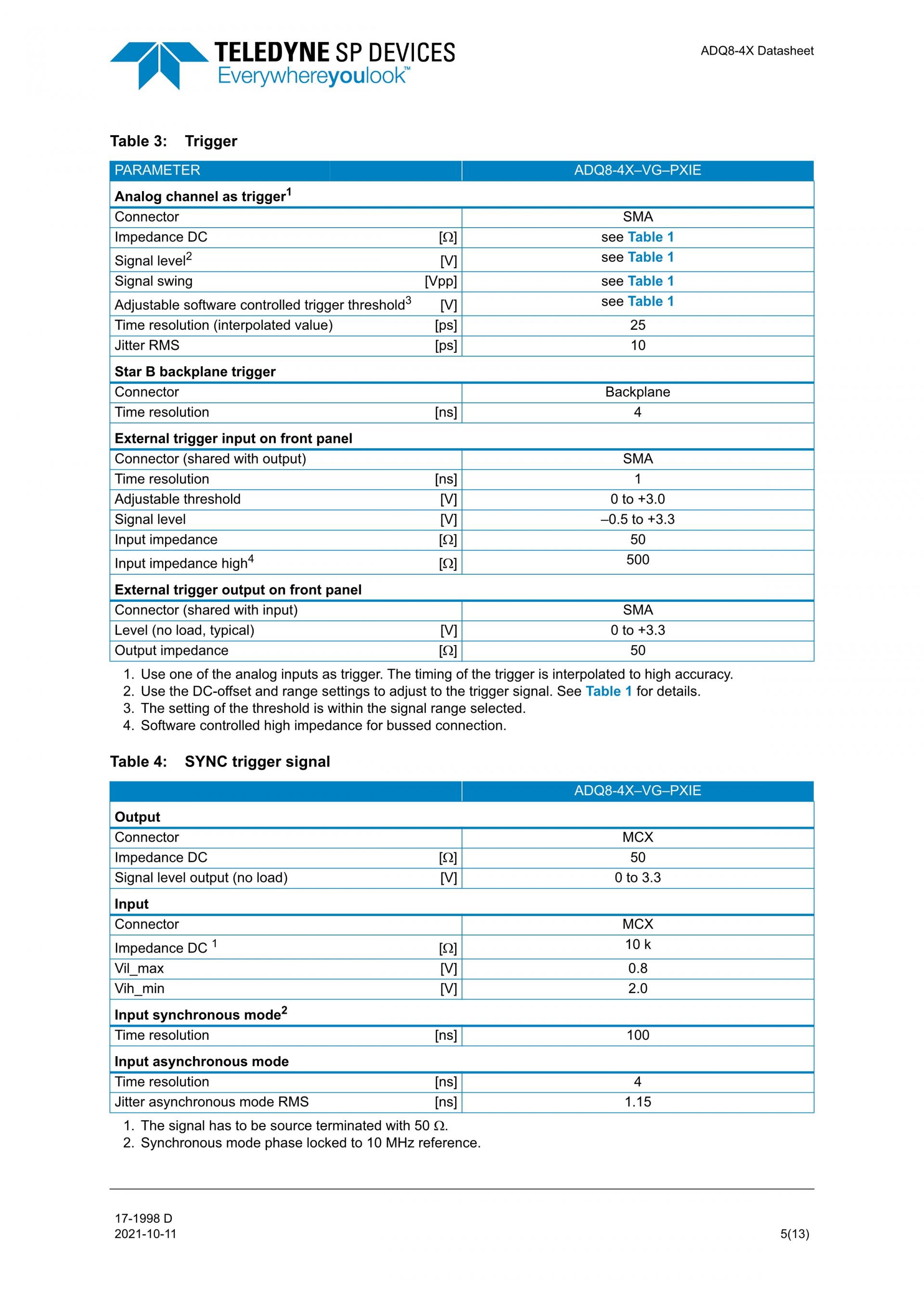

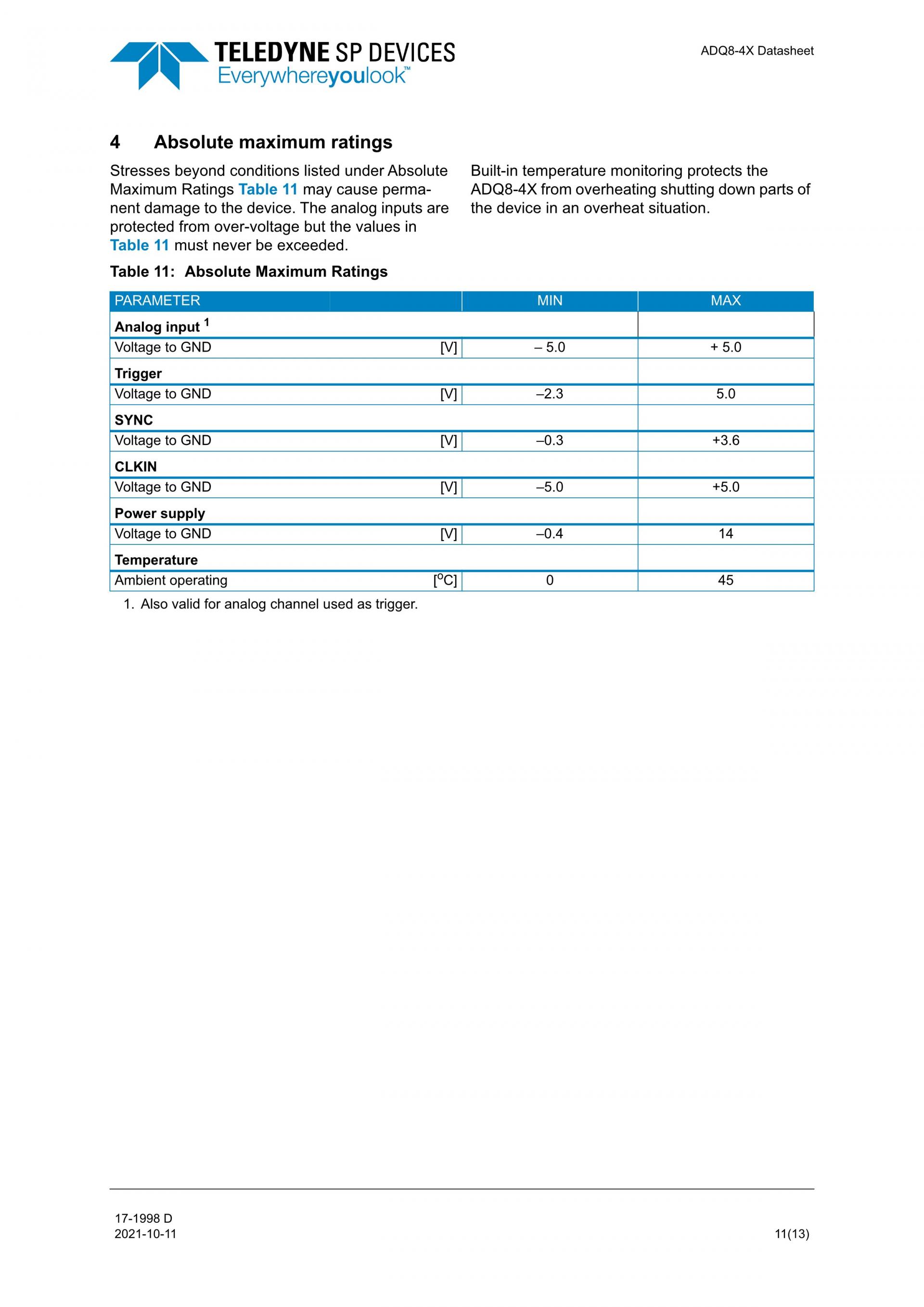

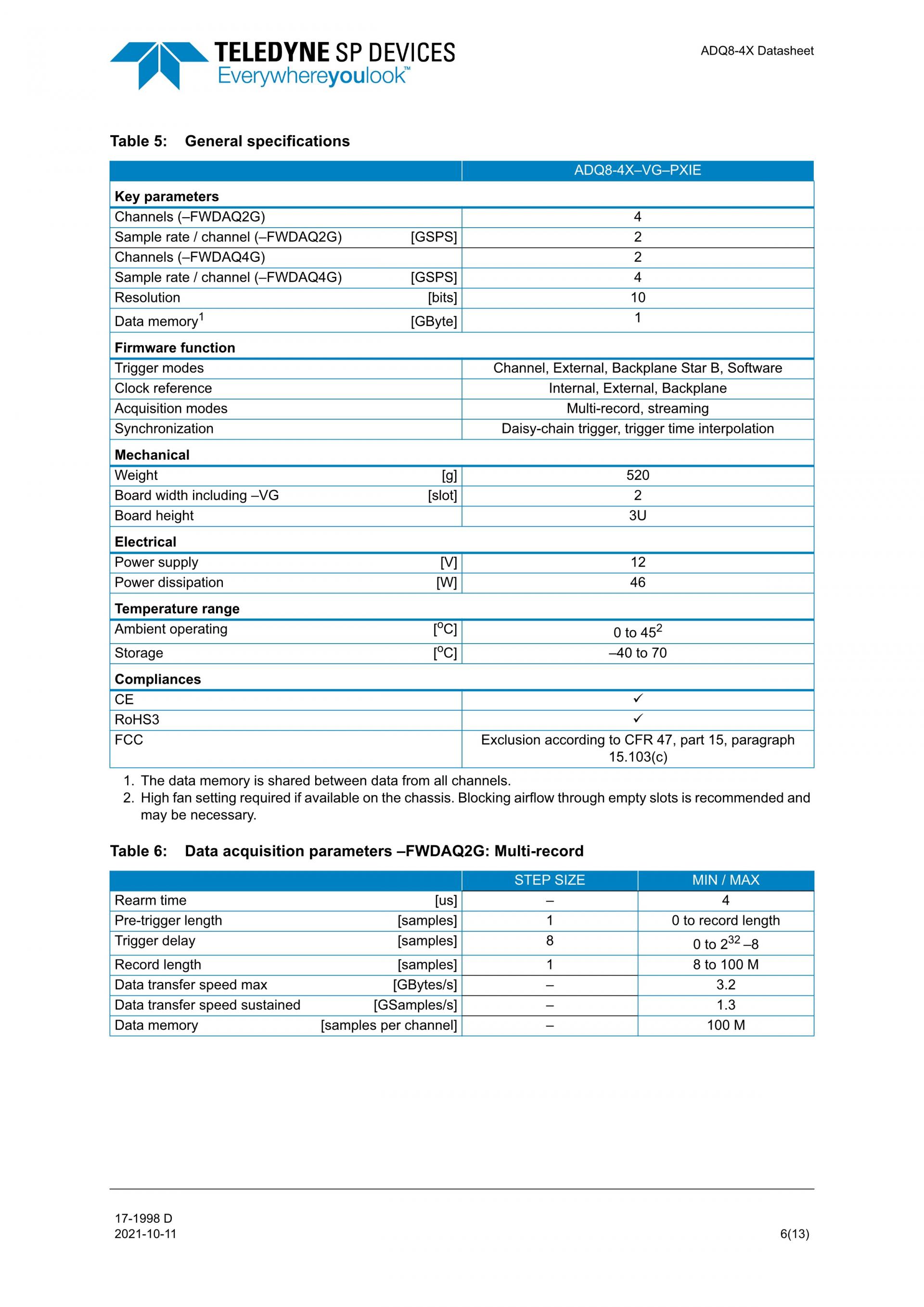

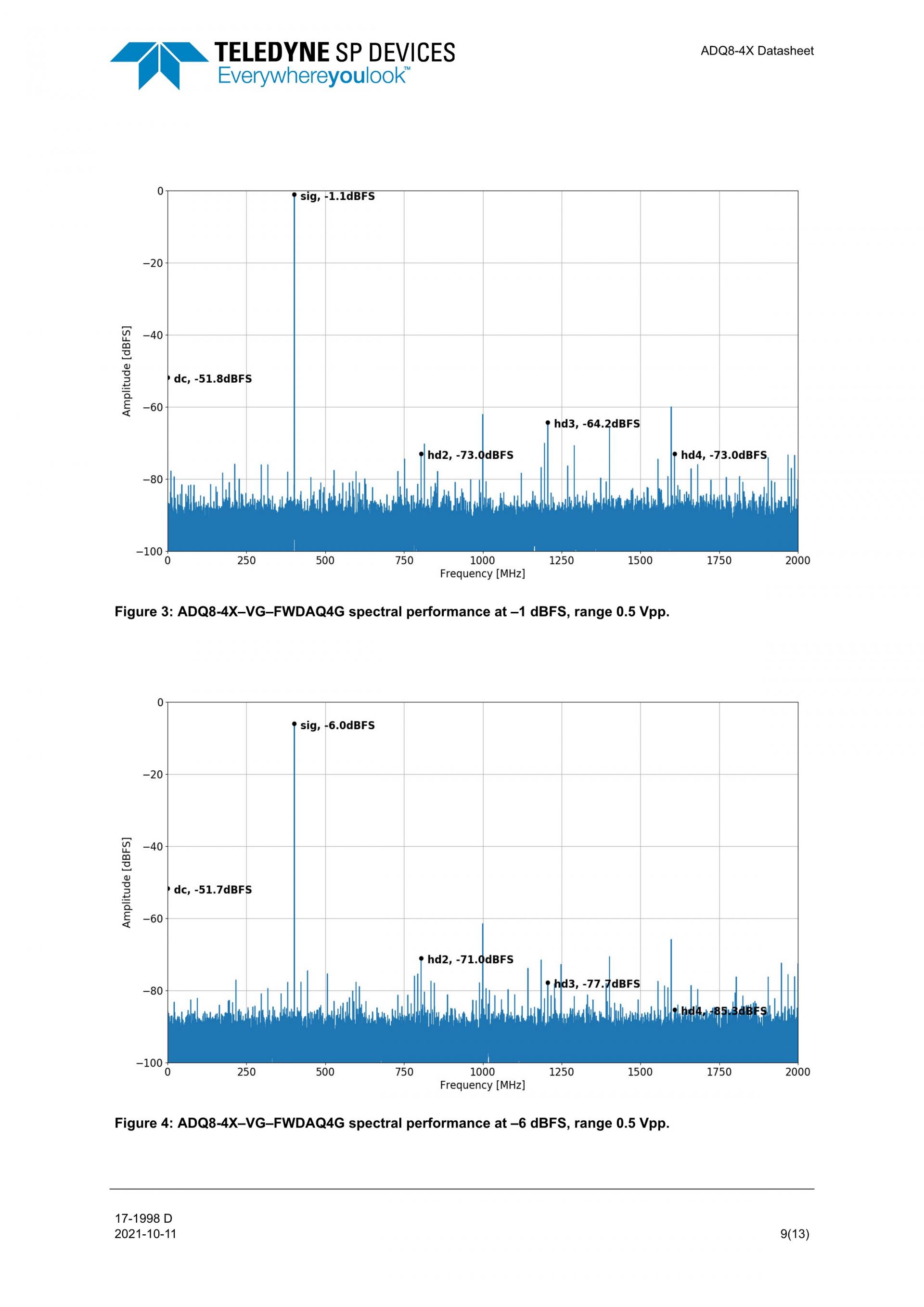

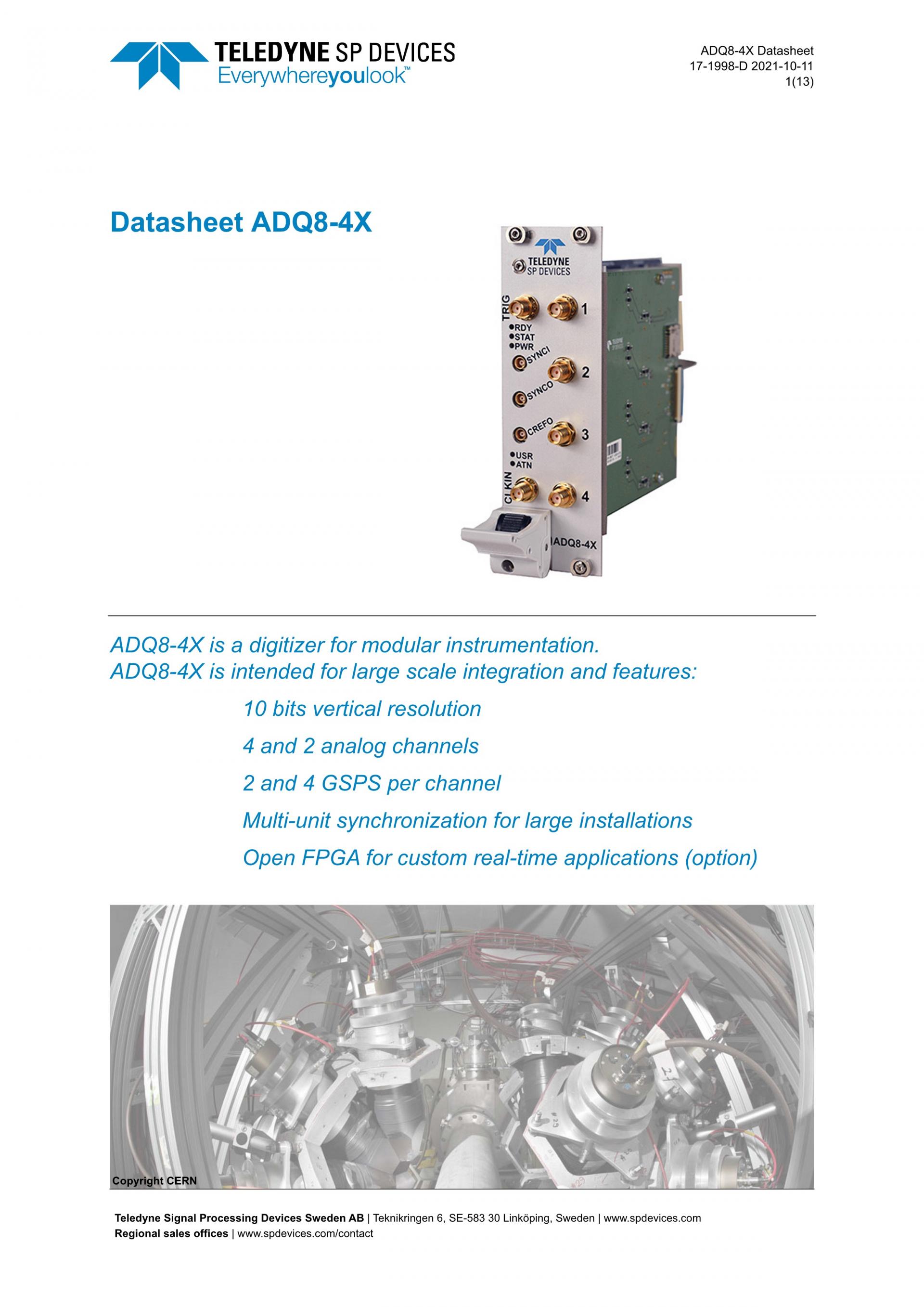

- For product technical specifications (see the datasheet)
- How to use and configure the product and output the data (see the users guide)
SP 디바이스 ・ SP DEVICES
ADQ8-4X
고성능 10-bit, 4 GSPS 디지타이저
ADQ8-4X High-performance 10-bit, 4 GSPS digitizer
Description
ADQ8-4X offers software-configurable sampling on two or four channels. The sampling rate is 4 GSPS in two-channel mode or 2 GSPS in four-channel mode. This feature enables flexible operation during development since the channel count and sampling rate can be varied.
The signal inputs are DC-coupled and offer programmable DC-offset as well as configurable input voltage range. It also supports high analog input bandwidth and therefore supports a wide range of sensors.
ADQ8-4X supports multi-board synchronization with exceptional precision, and the modular approach is scalable so that it can easily be expanded over time to include more channels.
The on-board Xilinx FPGA is open to the user and allows for customized real-time digital signal processing.
Applications
- Thomson Scattering
- Semiconductor test / ATE
- Particle physics
- Time-of-flight
- Scientific instruments
- Hydrodynamic FXR
- Quantum technology
