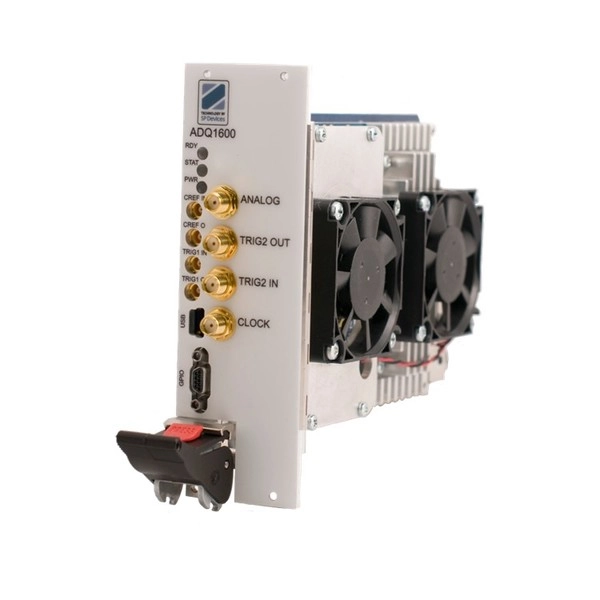

SP DEVICES ADQ1600TD 고성능 14-bit, 1.6GSPS 디지타이저
SP DEVICES ADQ1600TD High-performance 14-bit, 1.6 GSPS digitizer
- 14 bits vertical resolution
- 1.6 GSPS sampling rate
- AC-coupled with up to 680 MHz input bandwidth (2.2 Vpp input range)
- 512 MSamples onboard memory
- Open FPGA for custom real-time signal processing requires DEVDAQ
- Hardware triggers and GPIO
- USB 3.0, PXIe, PCIe, Micro-TCA form factors

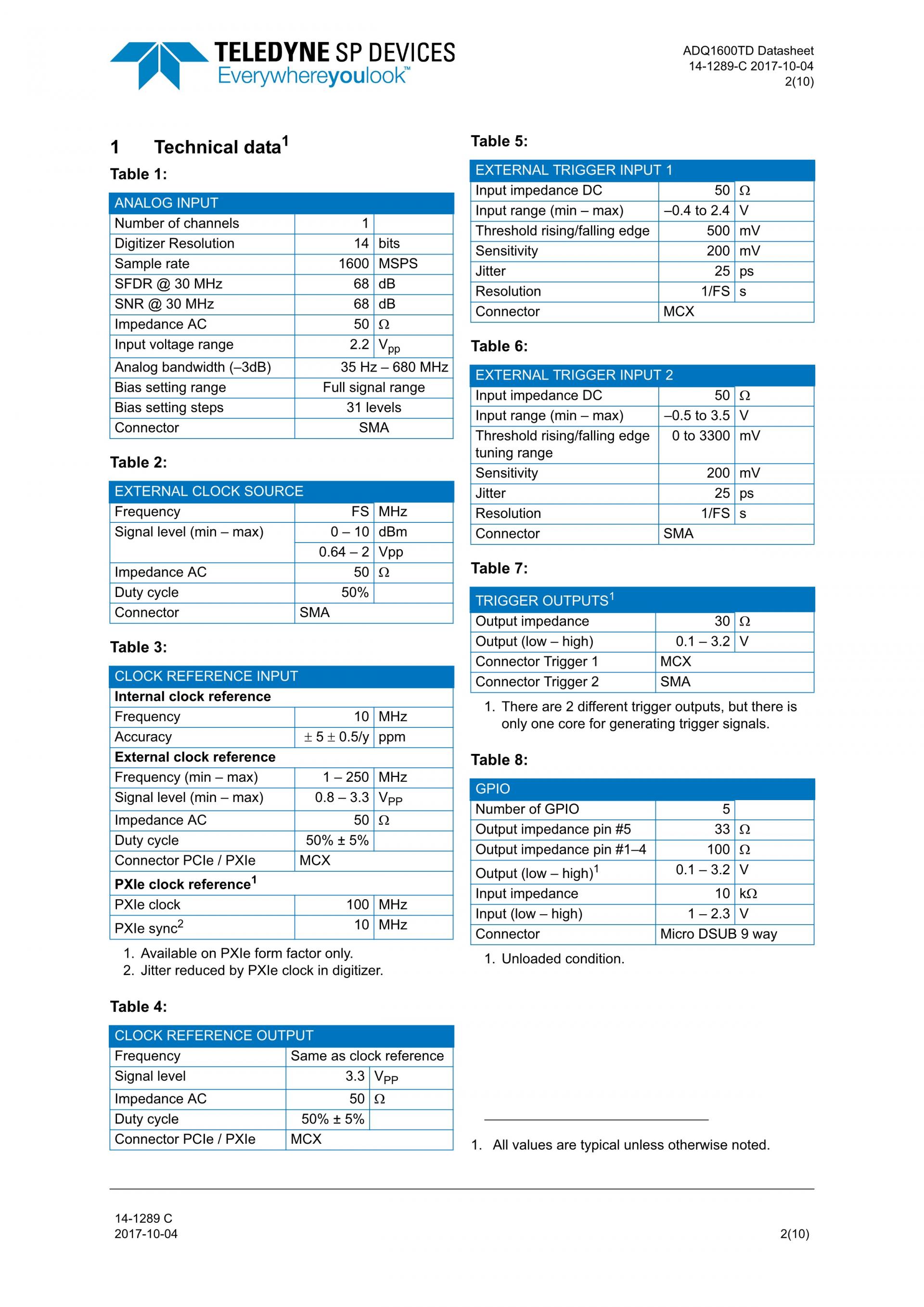

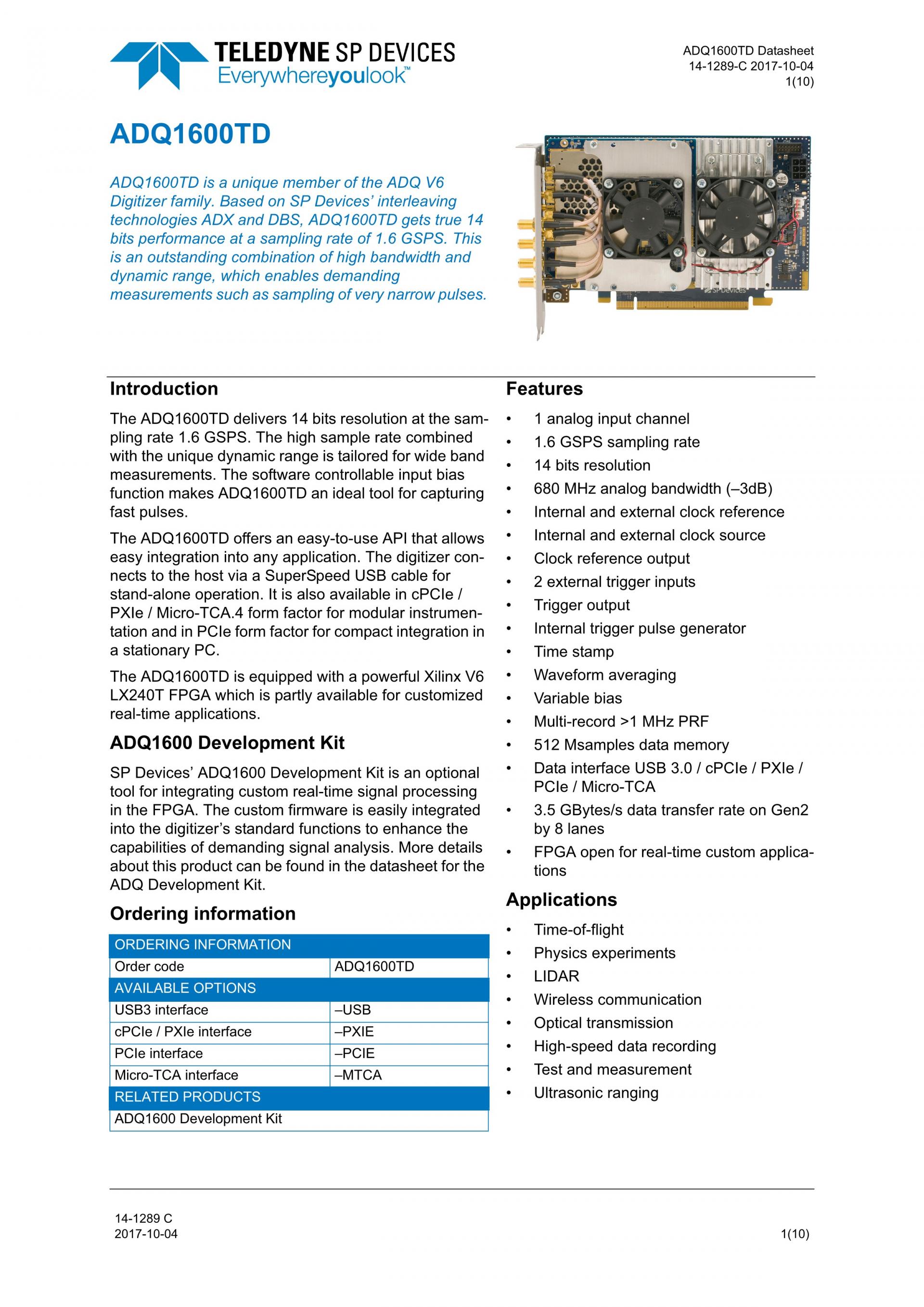

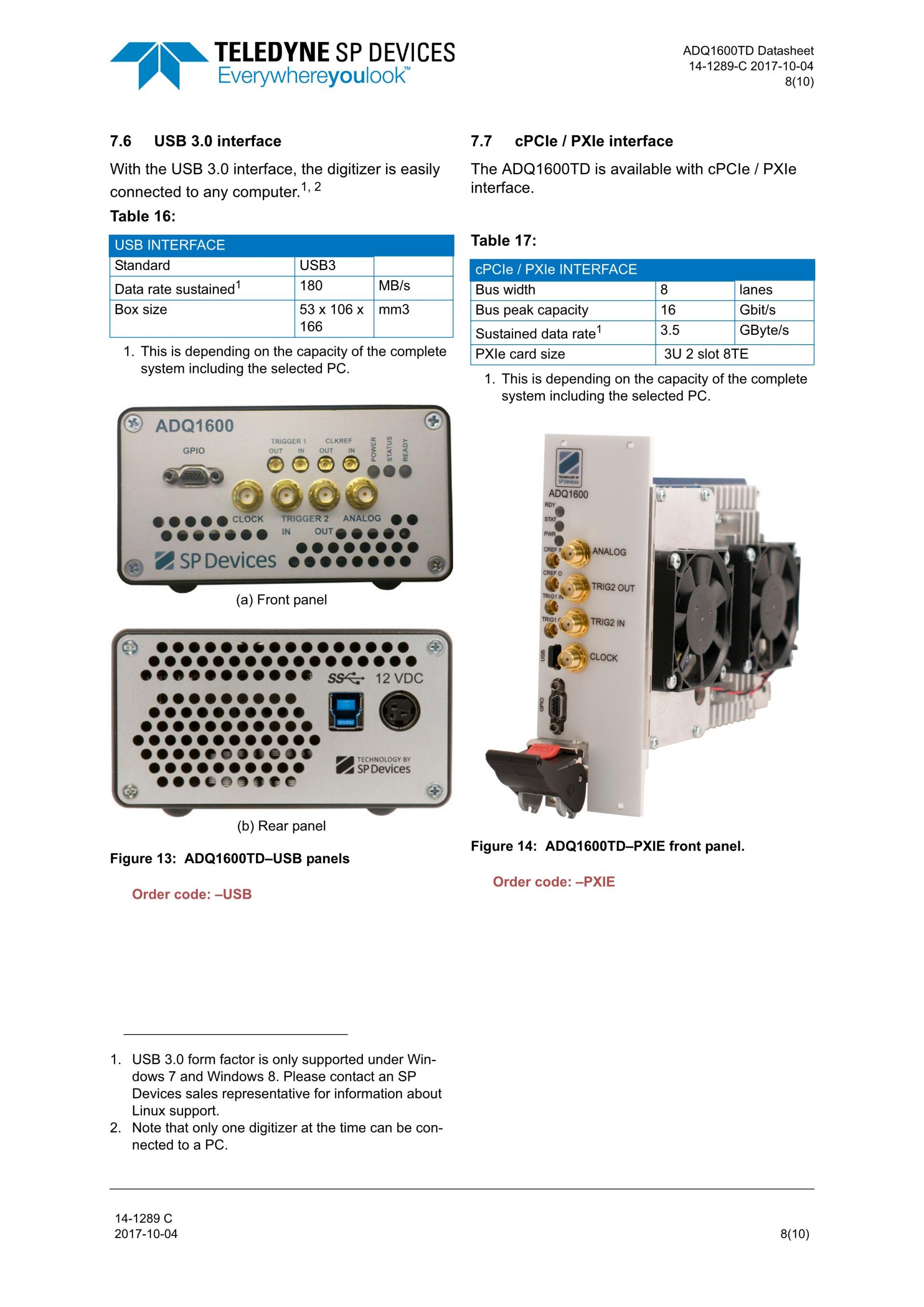

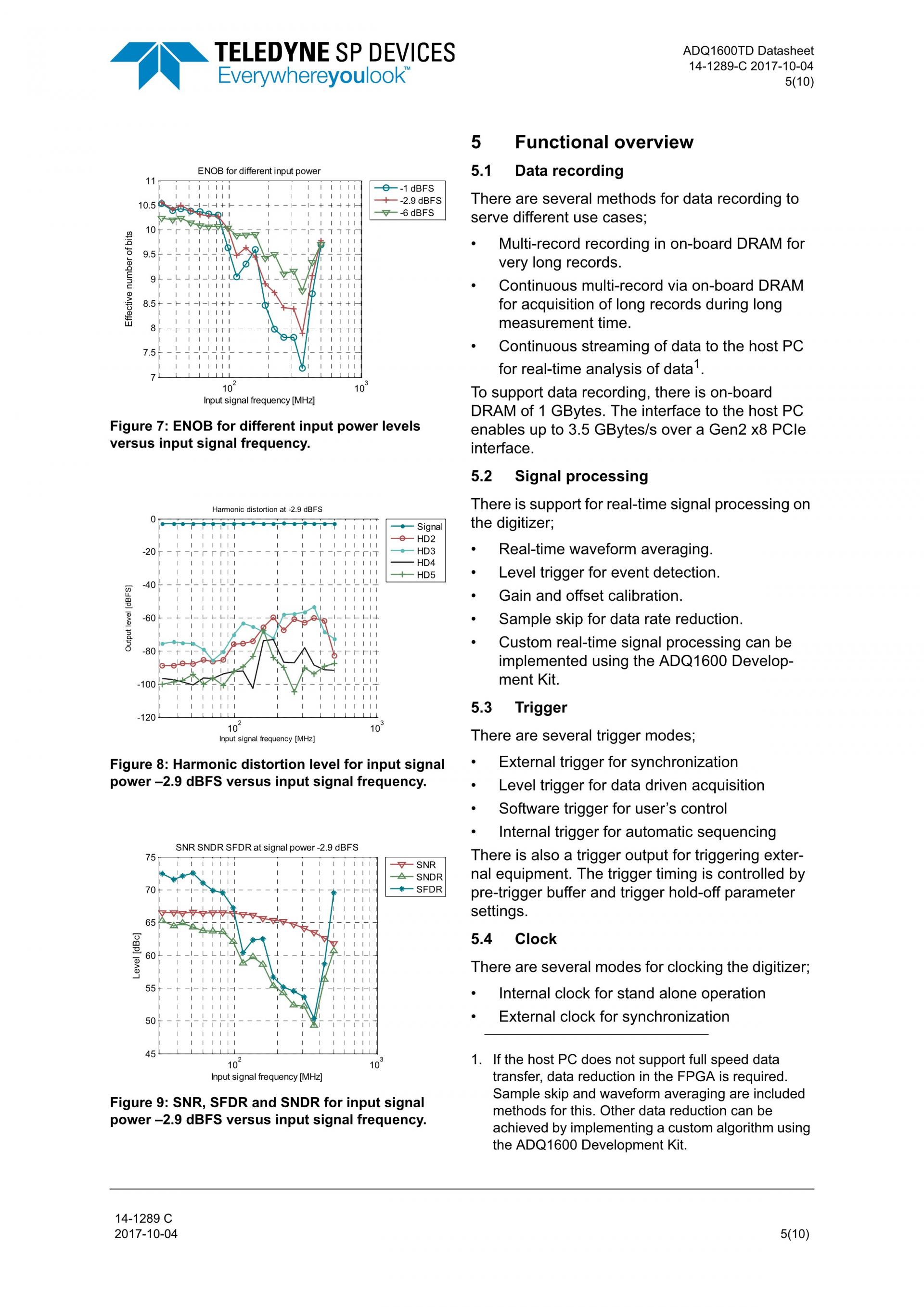

- For product technical specifications (see the datasheet)
- How to use and configure the product and output the data (see the users guide)
SP 디바이스 ・ SP DEVICES
ADQ1600TD
고성능 14-bit, 1.6GSPS 디지타이저
ADQ1600TD High-performance 14-bit, 1.6 GSPS digitizer
Description
The ADQ1600TD is a world-leading 14 bit digitizer optimized for time-domain pulse capture. With its unique 1600 MSPS capture rate, enabled by SP Devices’ ADC interleaving technology ADX, the ADQ1600TD opens for demanding measurements such as time-domain pulse capture and high-speed data recording.
The AFE of the ADQ1600TD is AC-coupled and optimized for low background noise over a large bandwidth. The adjustable bias together with the Digital Baseline Stabilization (DBS) technology increases the dynamic range for unipolar pulses.
The digitizer connects to the host via a high-speed USB 3.0 cable for easy-to-use standalone operation. PXI Express or MTCA.4 µTCA interface is available for systems integration as a modular instrument. A PCIe version for integration into a PC is also available. All interface types allows for streaming of data at high transfer rates.
Applications
- Time-of-Flight Mass Spectrometry
- LiDAR
- Physics Experiments
- Wireless Communication
- Optical Transmission
- High-Speed Data Recording
- Test and Measurement
- Ultrasonic Ranging
