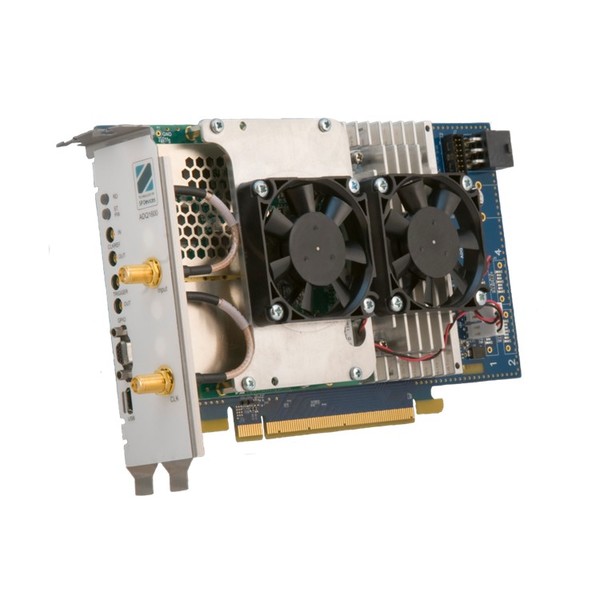

SP DEVICES ADQ1600RF 고성능 14-bit, 1.6 GSPS 디지타이저
SP DEVICES ADQ1600RF 14-bit, 1.6 GSPS digitizer
- 14 bits vertical resolution
- Up to 1.6 GSPS sampling rate
- AC-coupled with up to 750 MHz input bandwidth (2.2 Vpp input range)
- 512 Msamples onboard memory
- Open FPGA for custom real-time signal processing requires DEVDAQ
- Hardware triggers and GPIO
- USB 3.0, PXIe, PCIe, MTCA.4 form factors

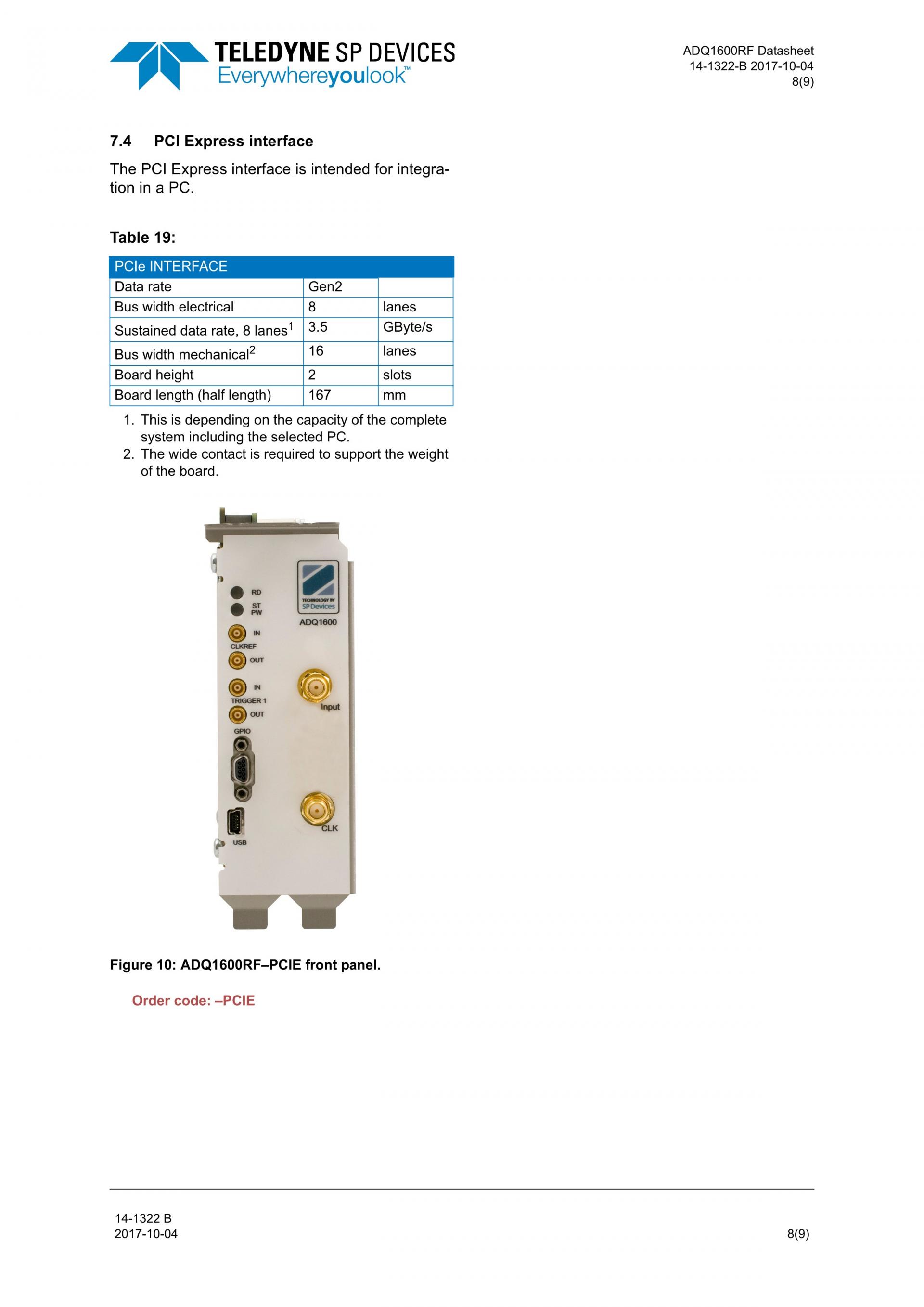

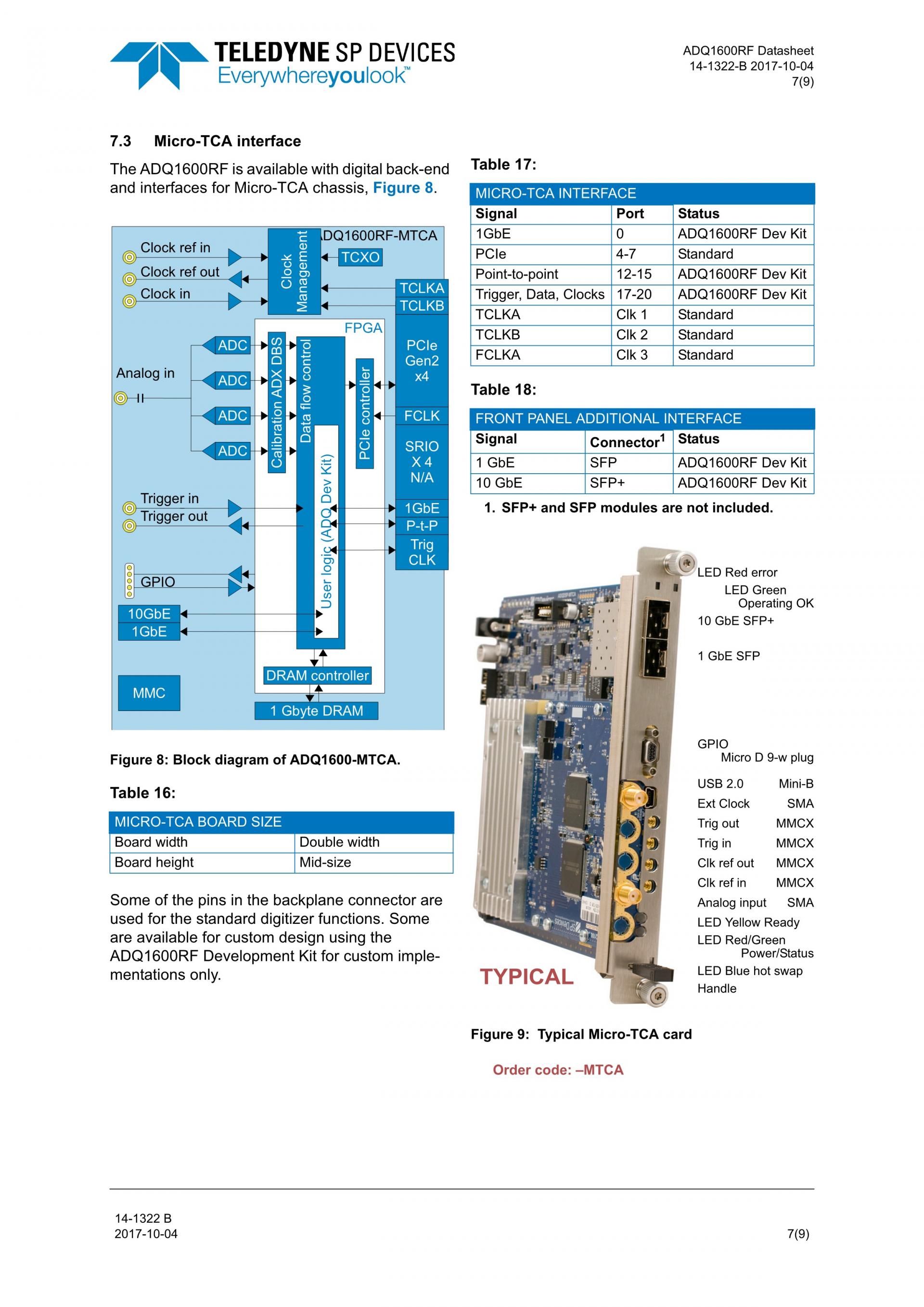

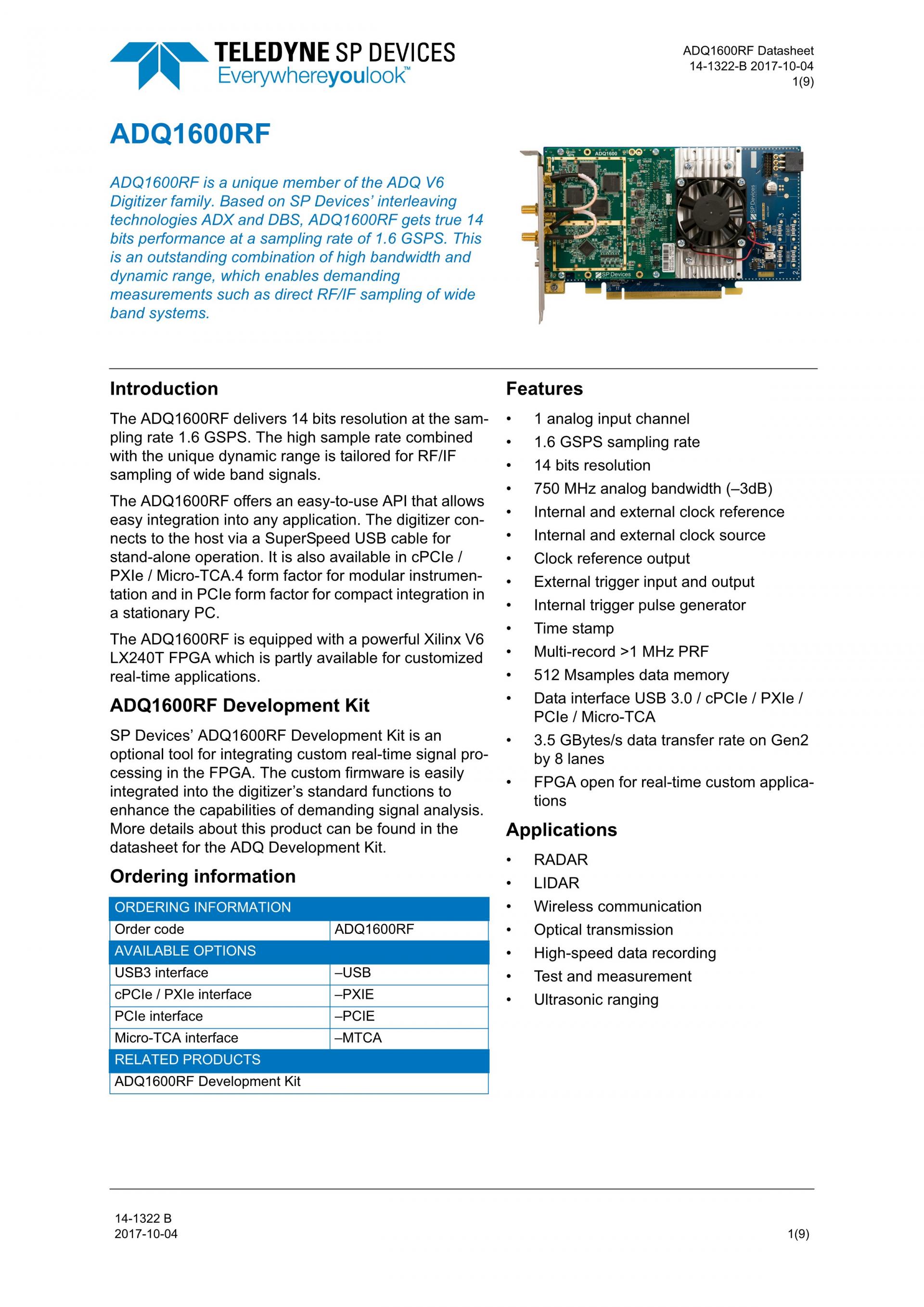

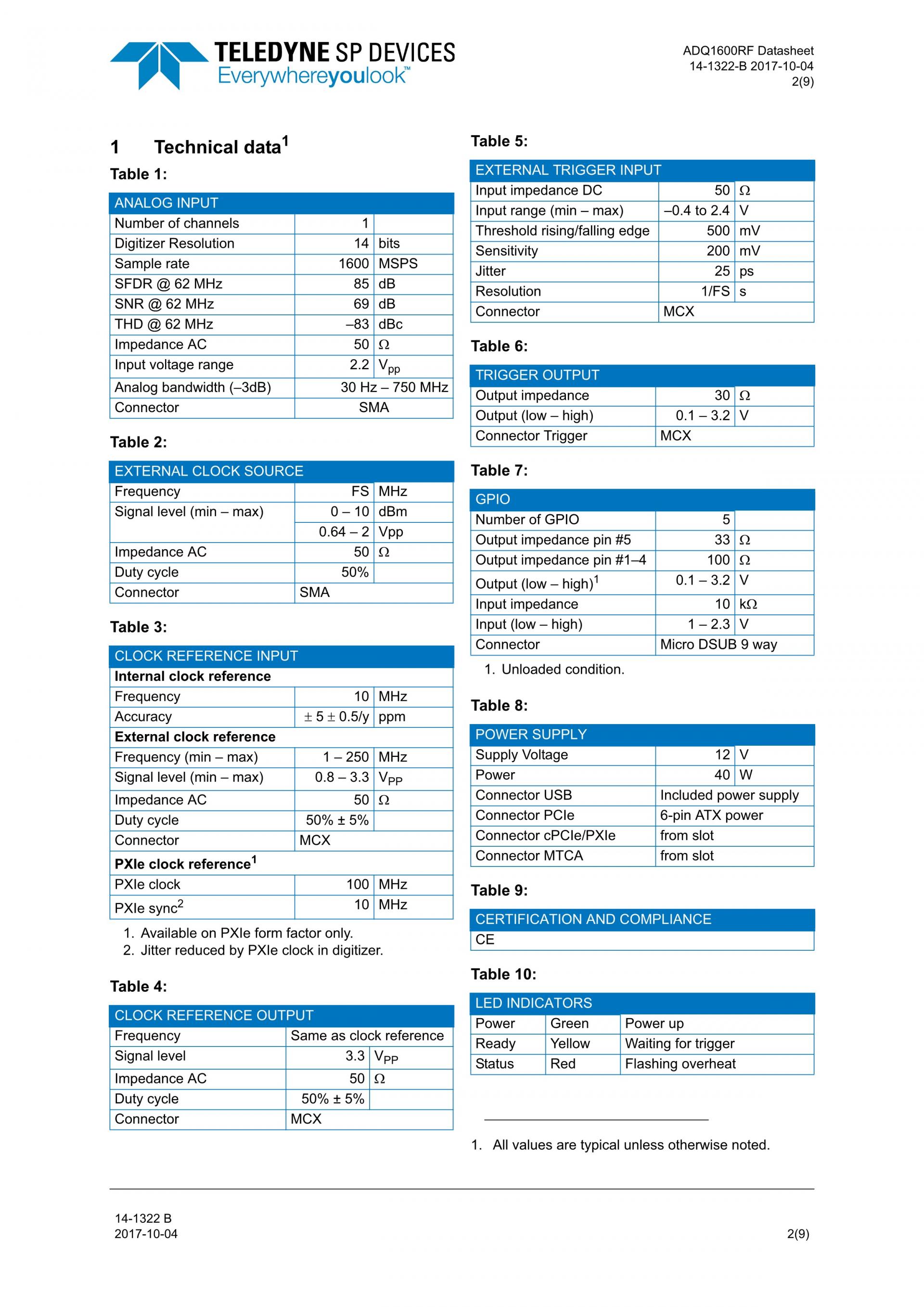

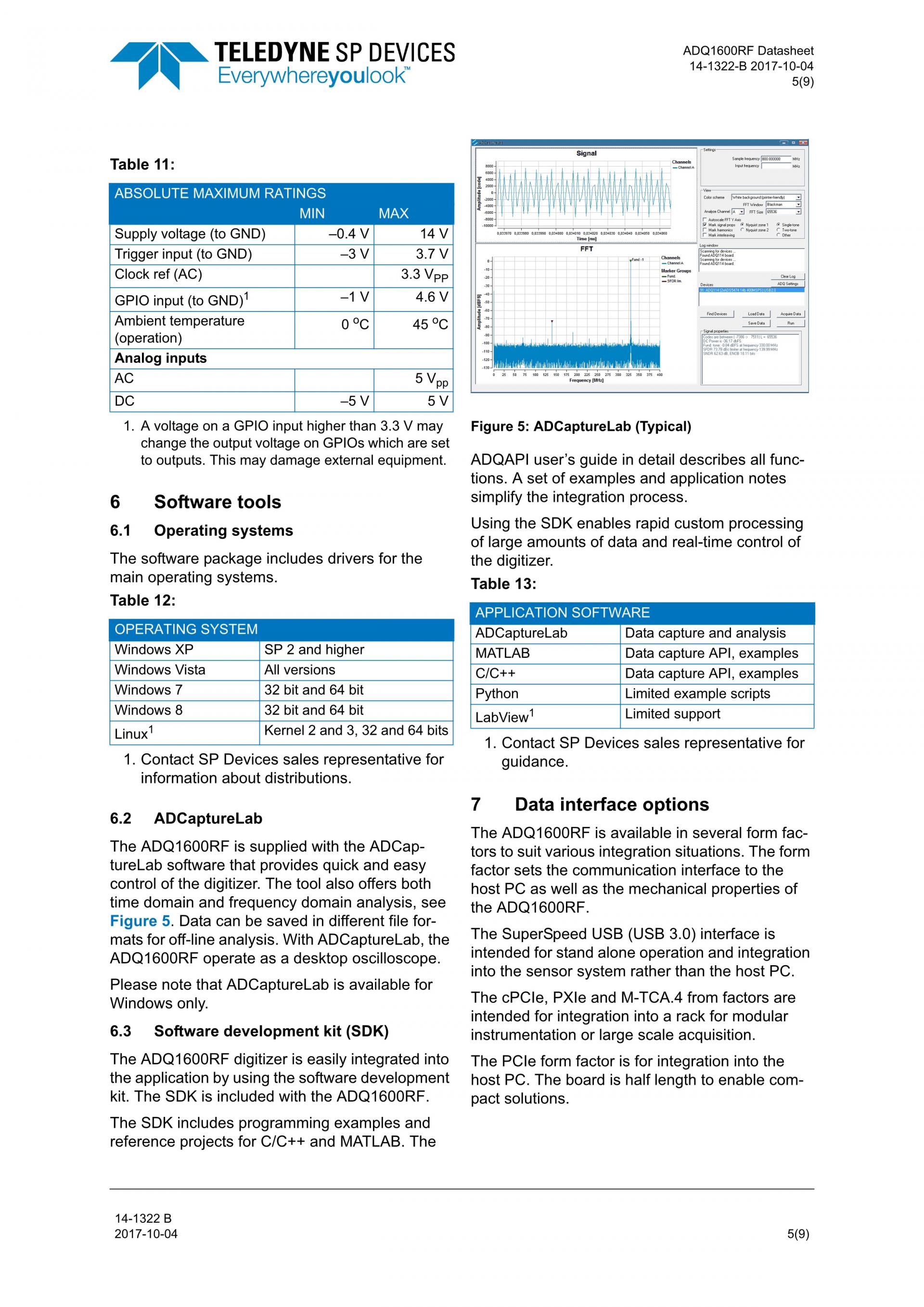

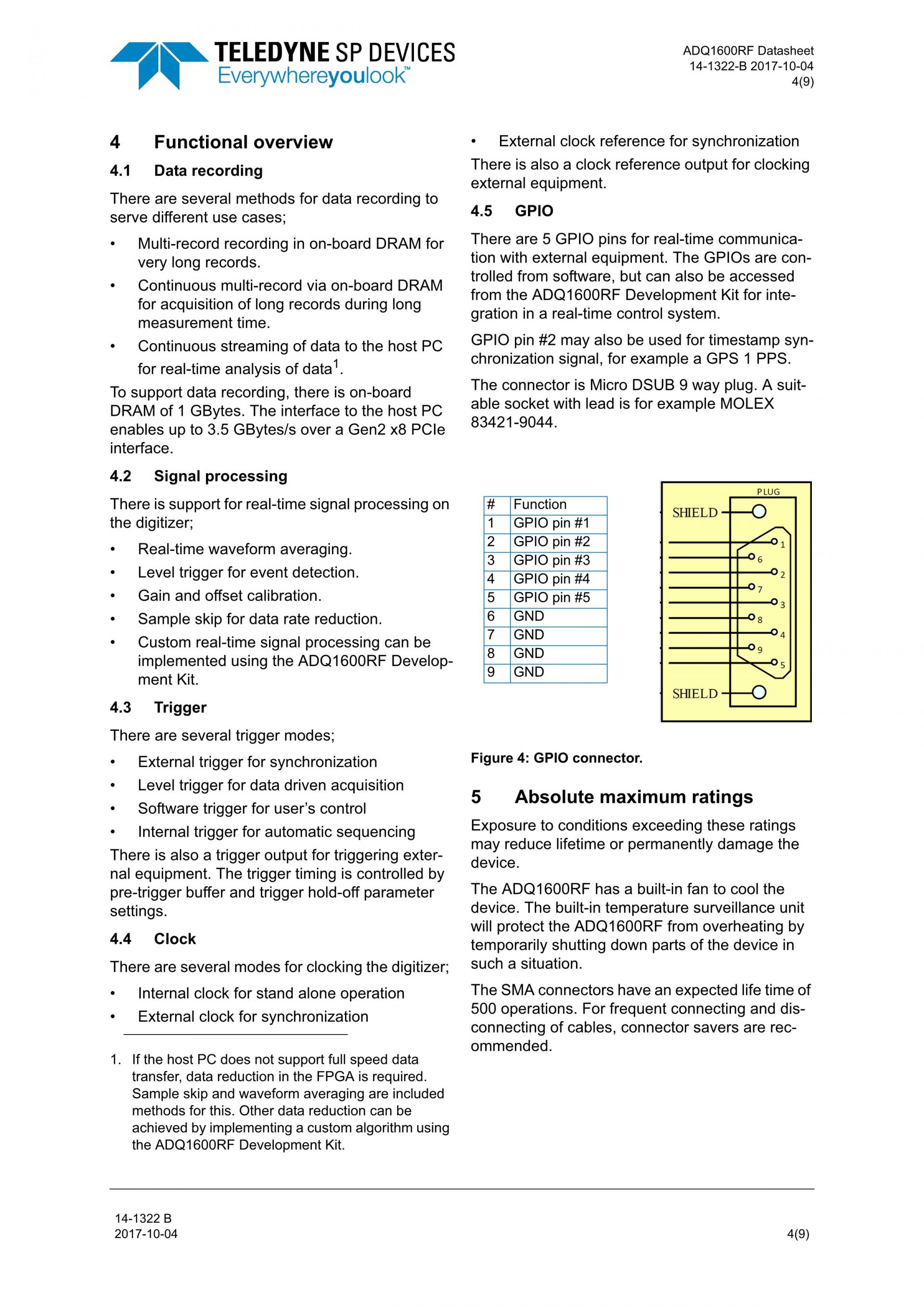

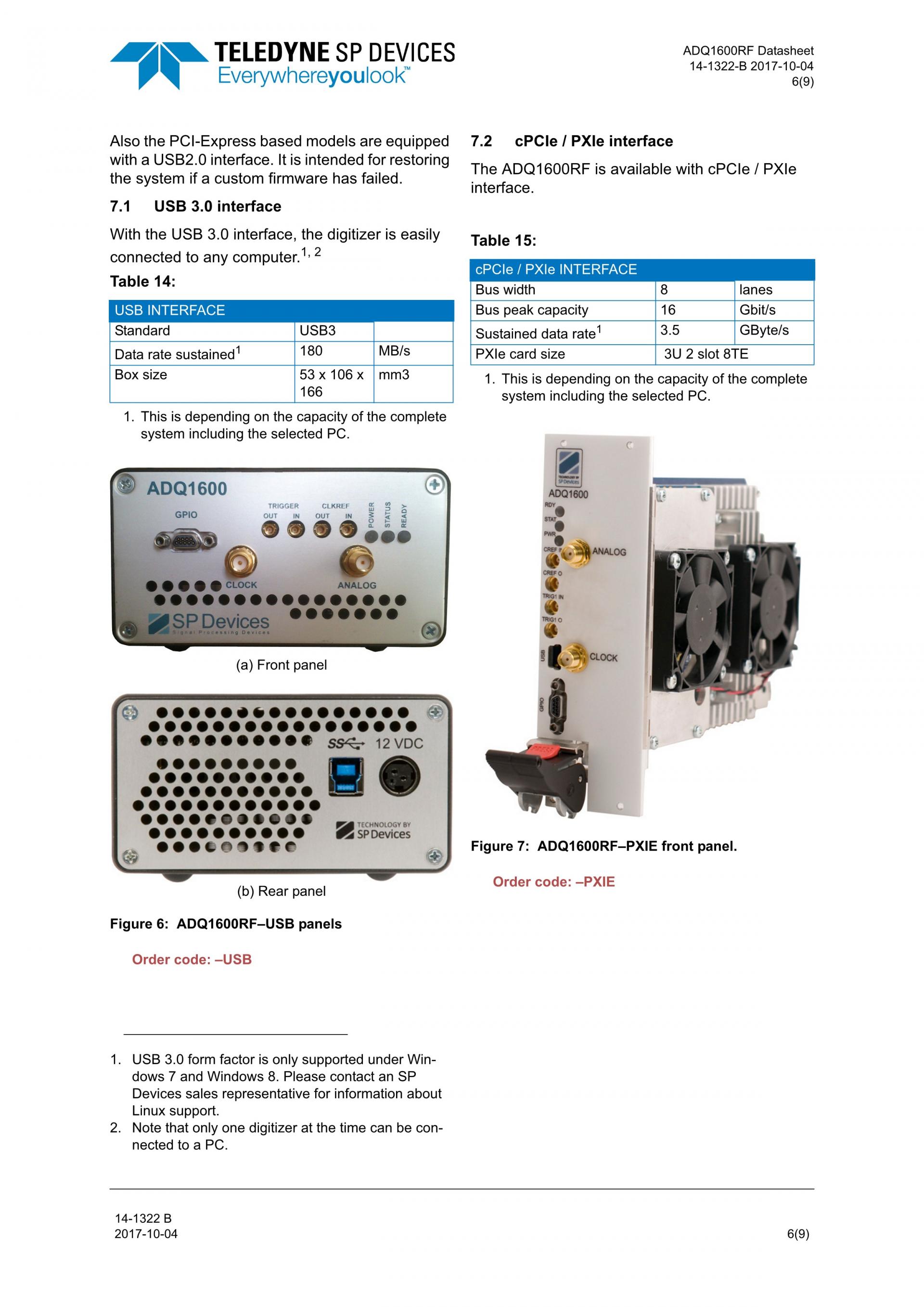

- For product technical specifications (see the datasheet)
- How to use and configure the product and output the data (see the users guide)
SP 디바이스 ・ SP DEVICES
ADQ1600RF
고성능 14-bit, 1.6 GSPS 디지타이저
ADQ1600RF 14-bit, 1.6 GSPS digitizer
Description
The ADQ1600RF (formerly named ADQ1600) is a world-leading 14 bit digitizer. With its unique 1600 MSPS capture rate, enabled by SP Devices’ ADC interleaving technology ADX, the ADQ1600RF opens for demanding measurements such as RF/IF sampling, high resolution ultra sound imaging and high-speed data recording.
The AFE of the ADQ1600RF is AC-coupled and optimized for spectral purity over a large bandwidth. The analog -3dB bandwidth is 750 MHz.
The digitizer connects to the host via a high-speed USB 3.0 cable for easy to use standalone operation. PXI Express or MTCA.4 µTCA interface is available for systems integration as a modular instrument. A PCIe version for integration into a PC is also available. All interface types allows for streaming of data at high transfer rates.
Applications
- LiDAR
- RADAR
- Wireless Communication
- Optical Transmission
- High-speed Data Recording
- Test and Measurement
- Ultrasonic Ranging
