SP DEVICES 에스피 디바이시스 ADQ14 고성능 14-bit, 2 GSPS 디지타이저 - 가격문의 -

SP DEVICES ADQ14 고성능 14-bit, 2 GSPS 디지타이저

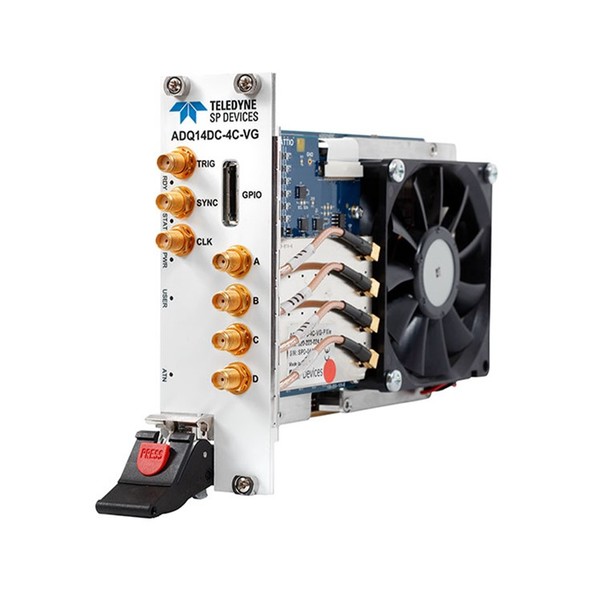

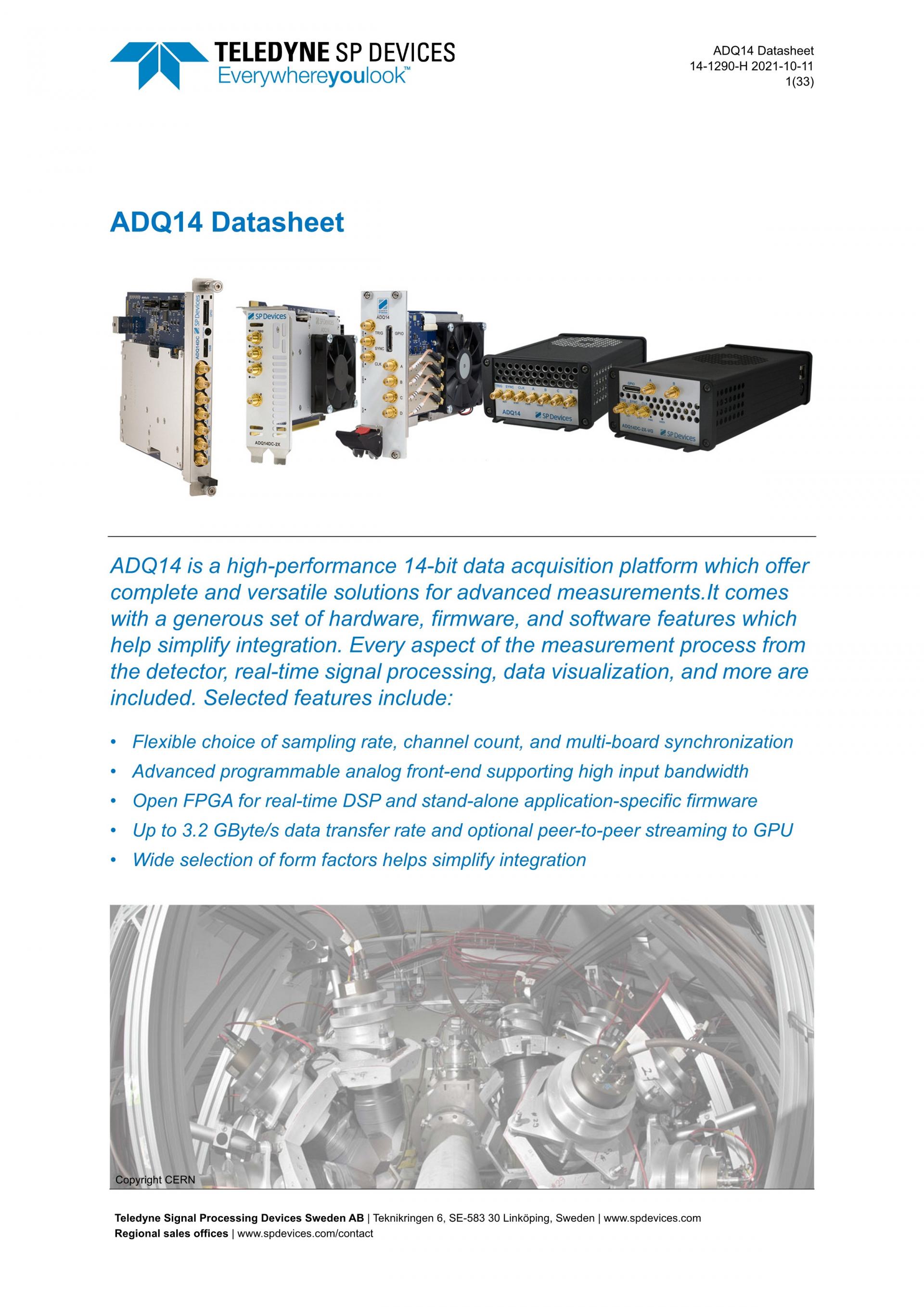

SP DEVICES ADQ14 High-performance 14-bit, 2 GSPS digitizer

• 14 bits vertical resolution
• Up to 2 GSPS sampling rate
• 1, 2, or 4 channels
• 0.5, 1, or 2 GSPS sampling rate

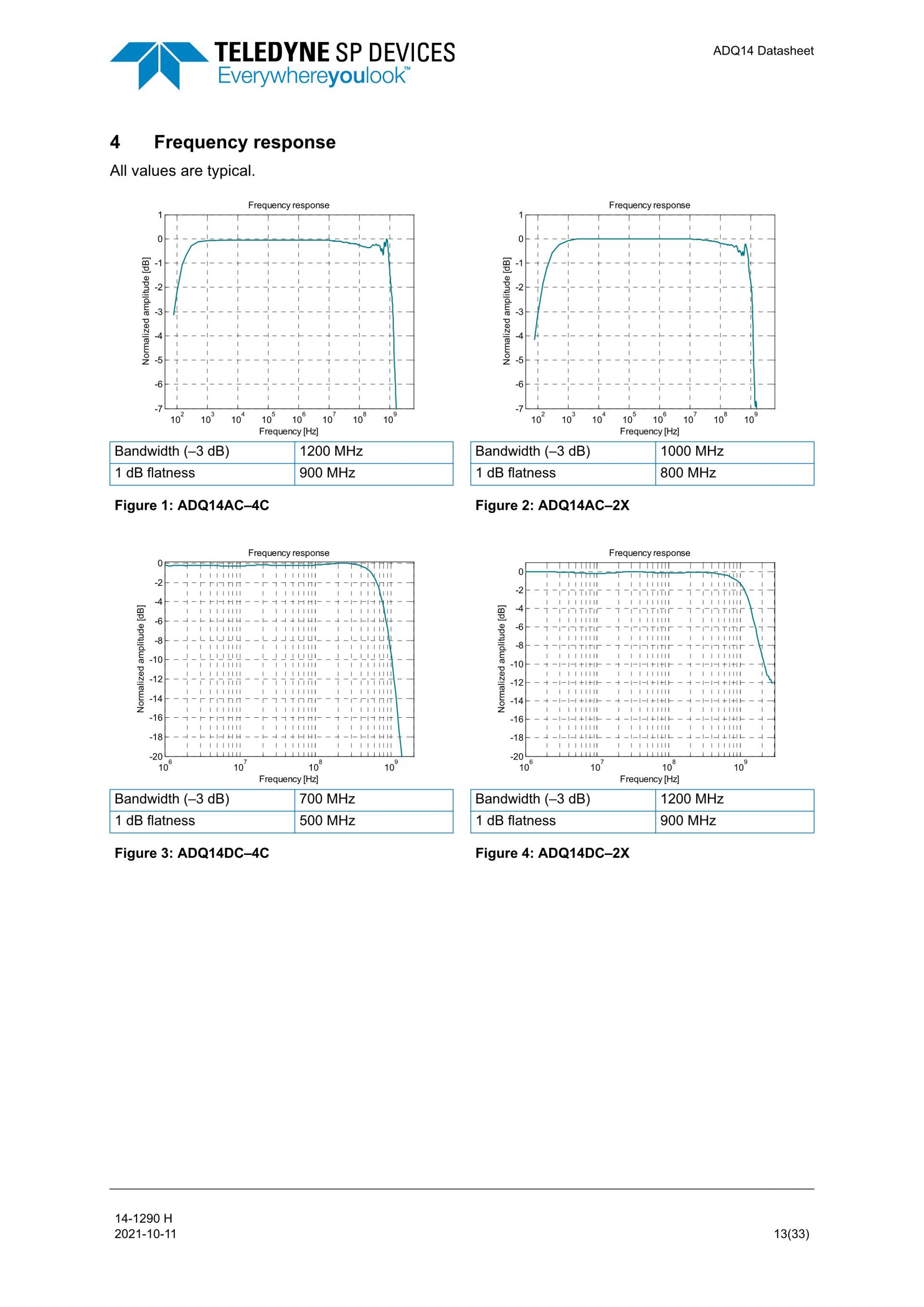

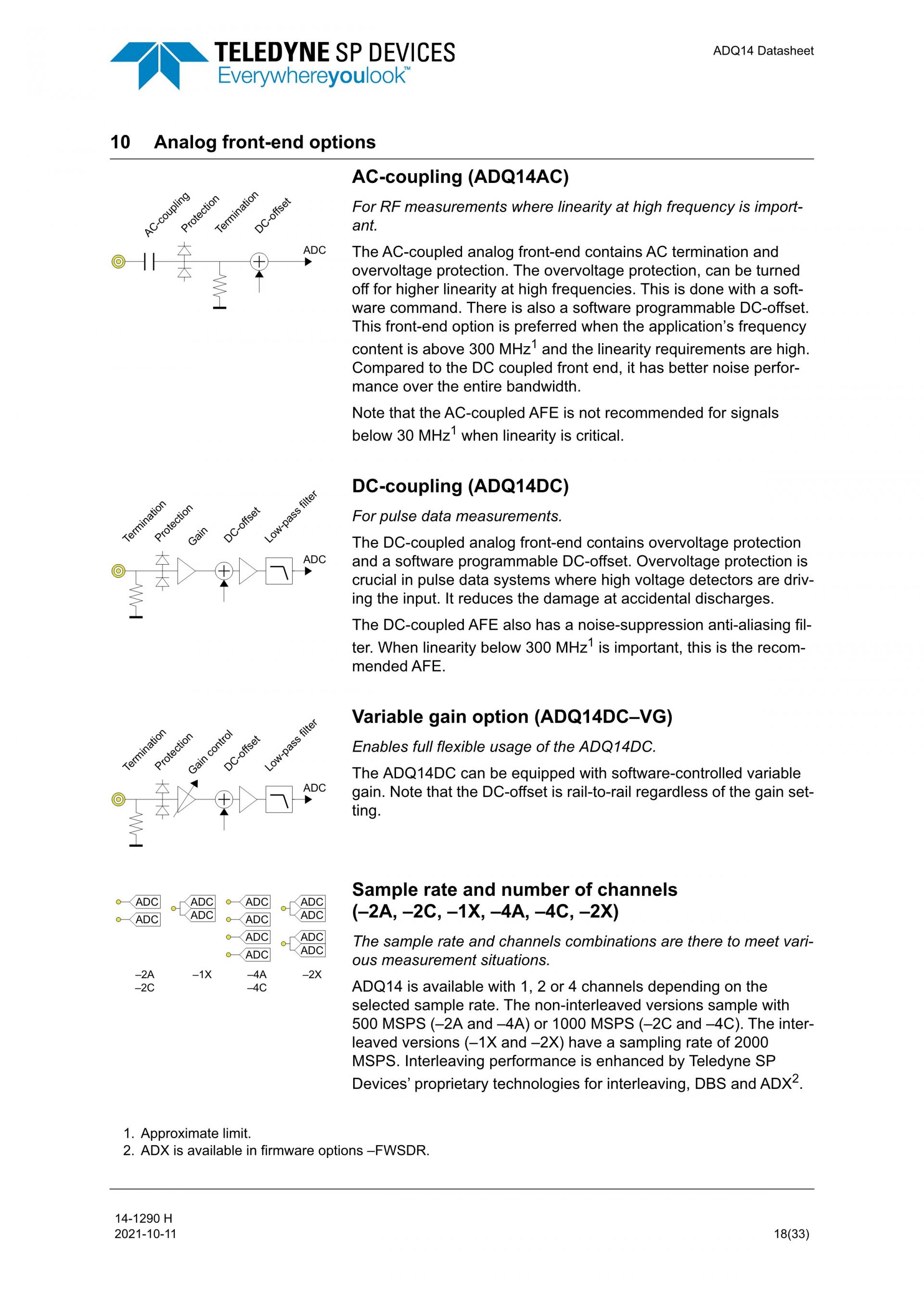

• AC- and DC-coupled models with up to 1.2 GHz input bandwidth
• DC-coupled with 0.5, 1 Vpp input range
• AC-coupled with 1.9 Vpp input range
• Programmable DC-offset

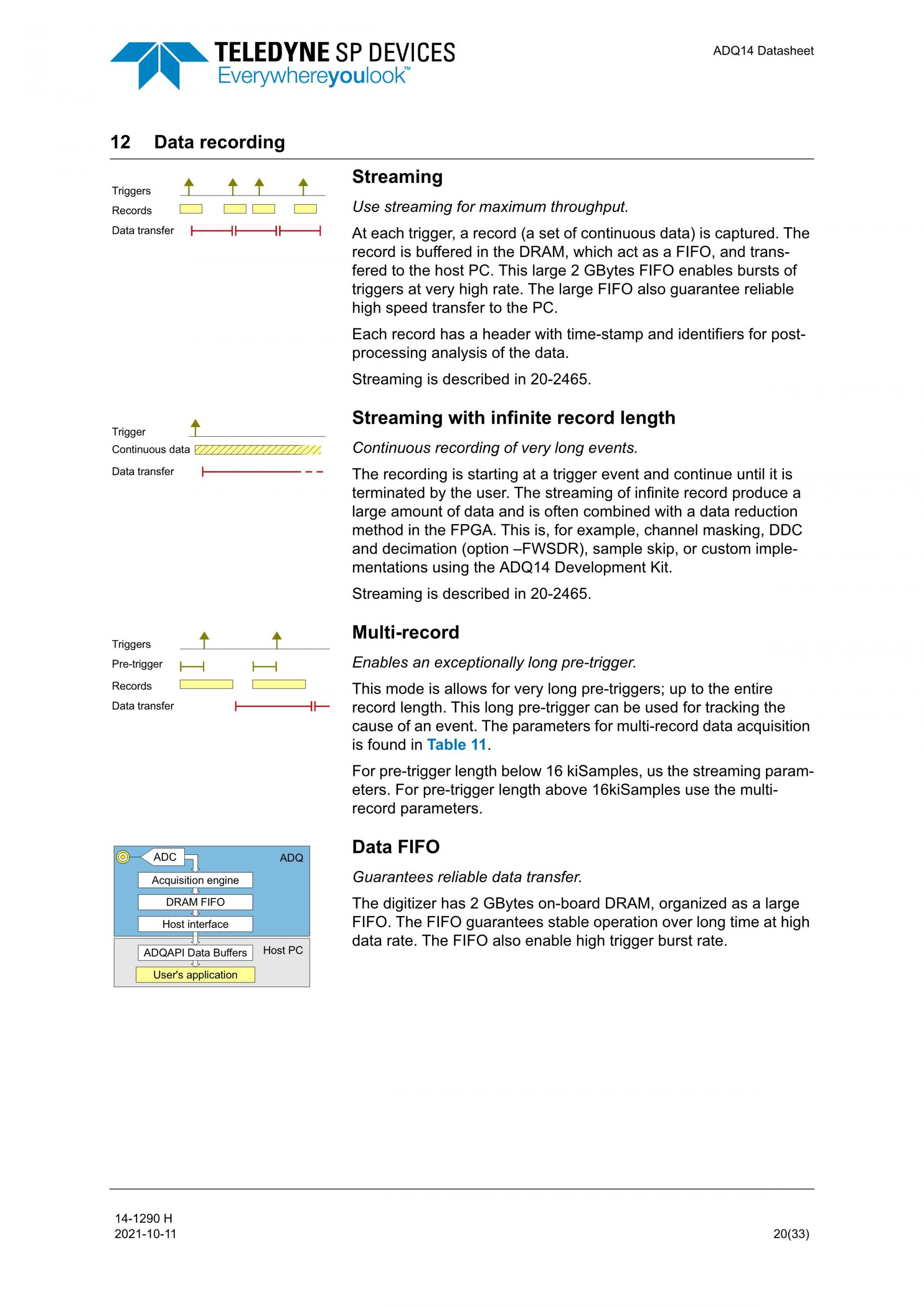

• 2 Gbyte onboard memory

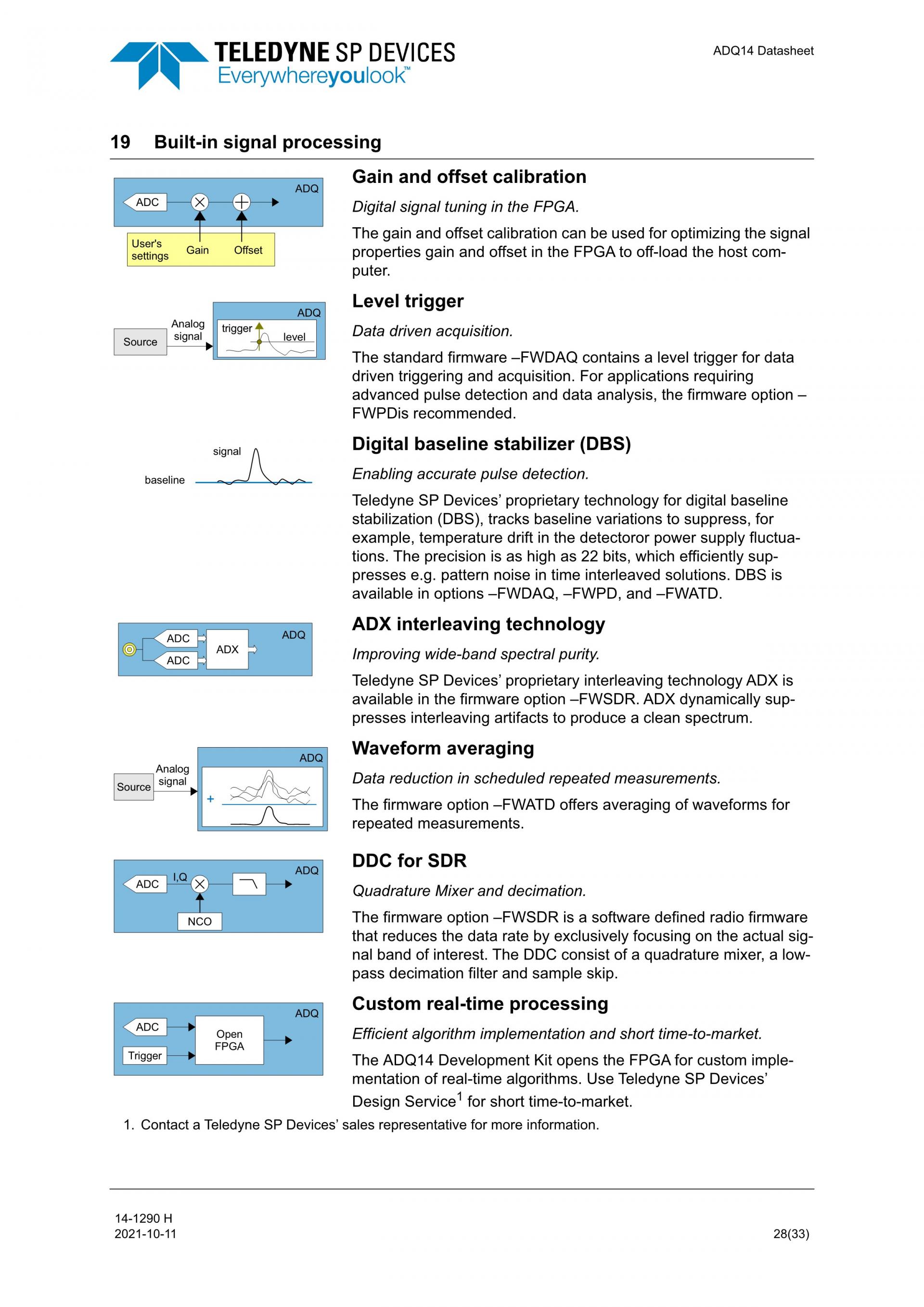

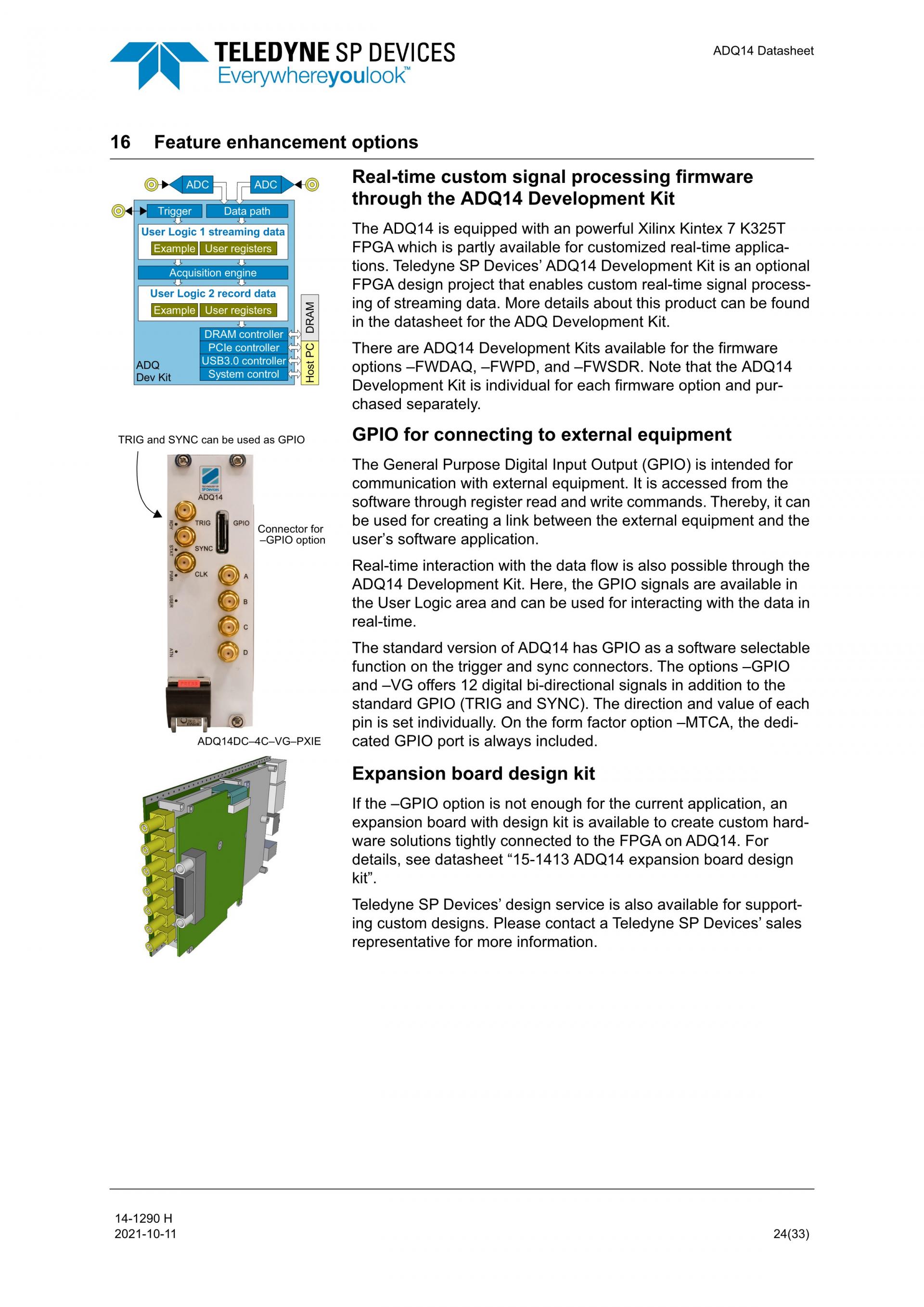

• Open FPGA for custom real-time signal processing requires DEVDAQ

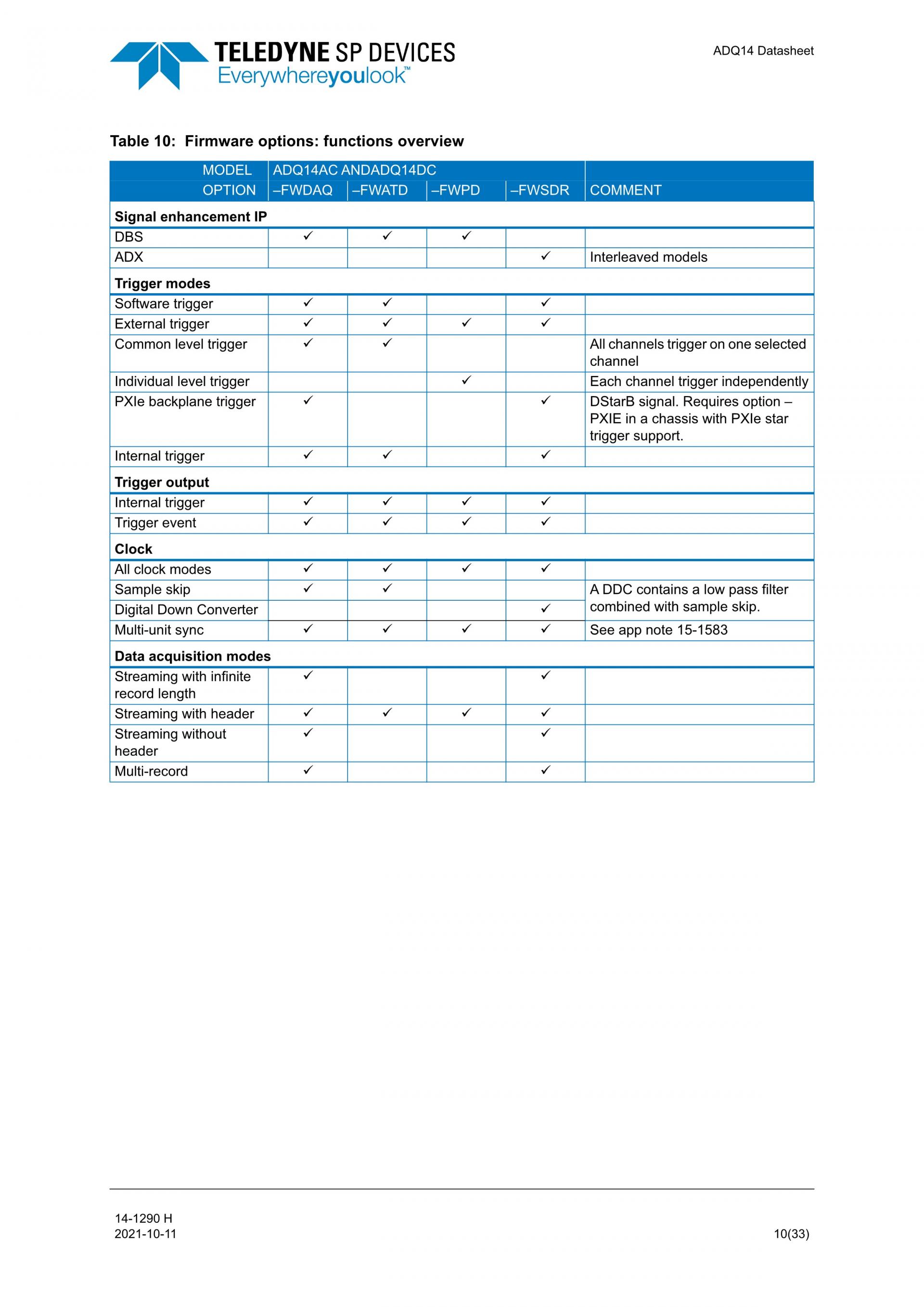

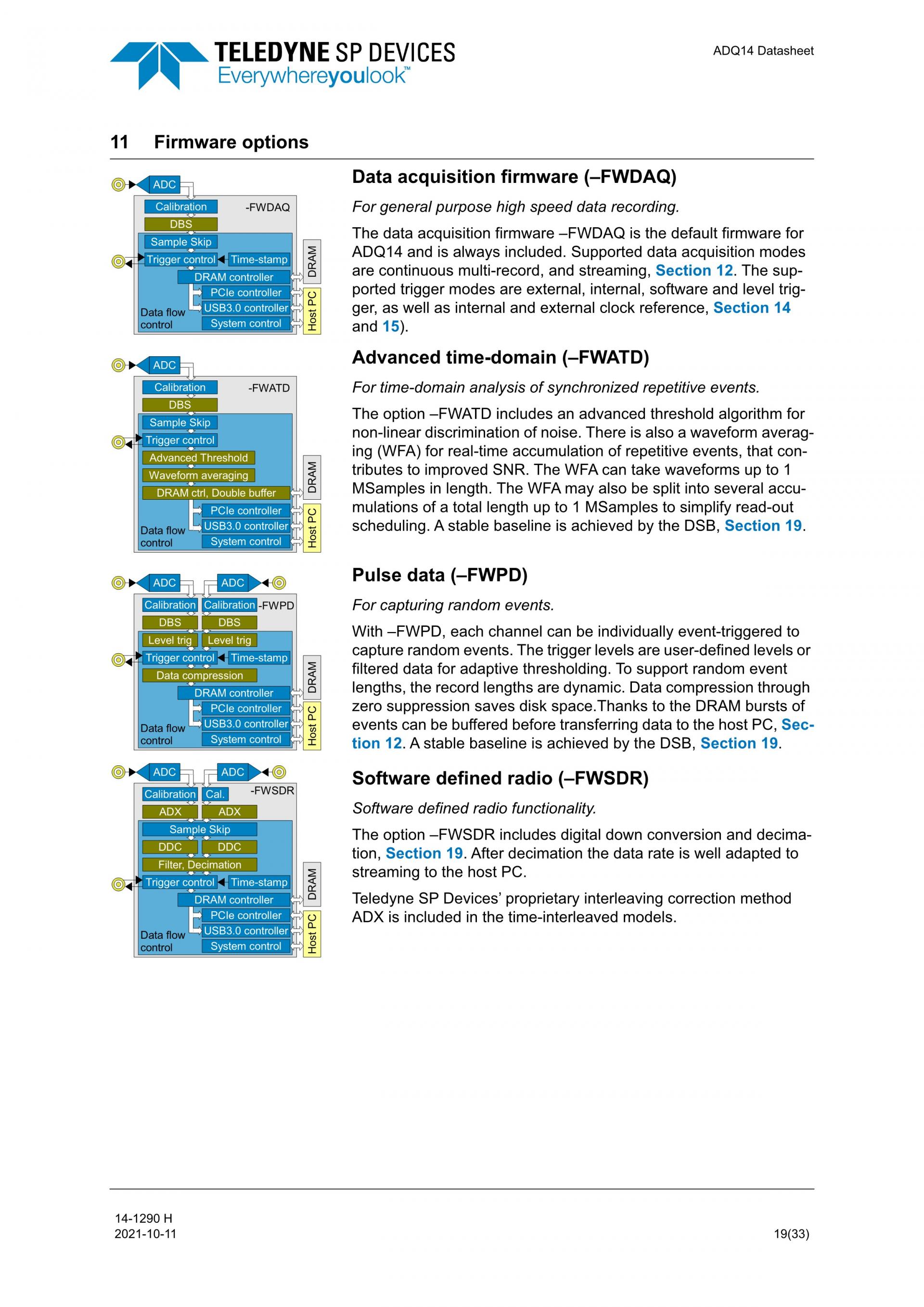

• Application-specific firmware options

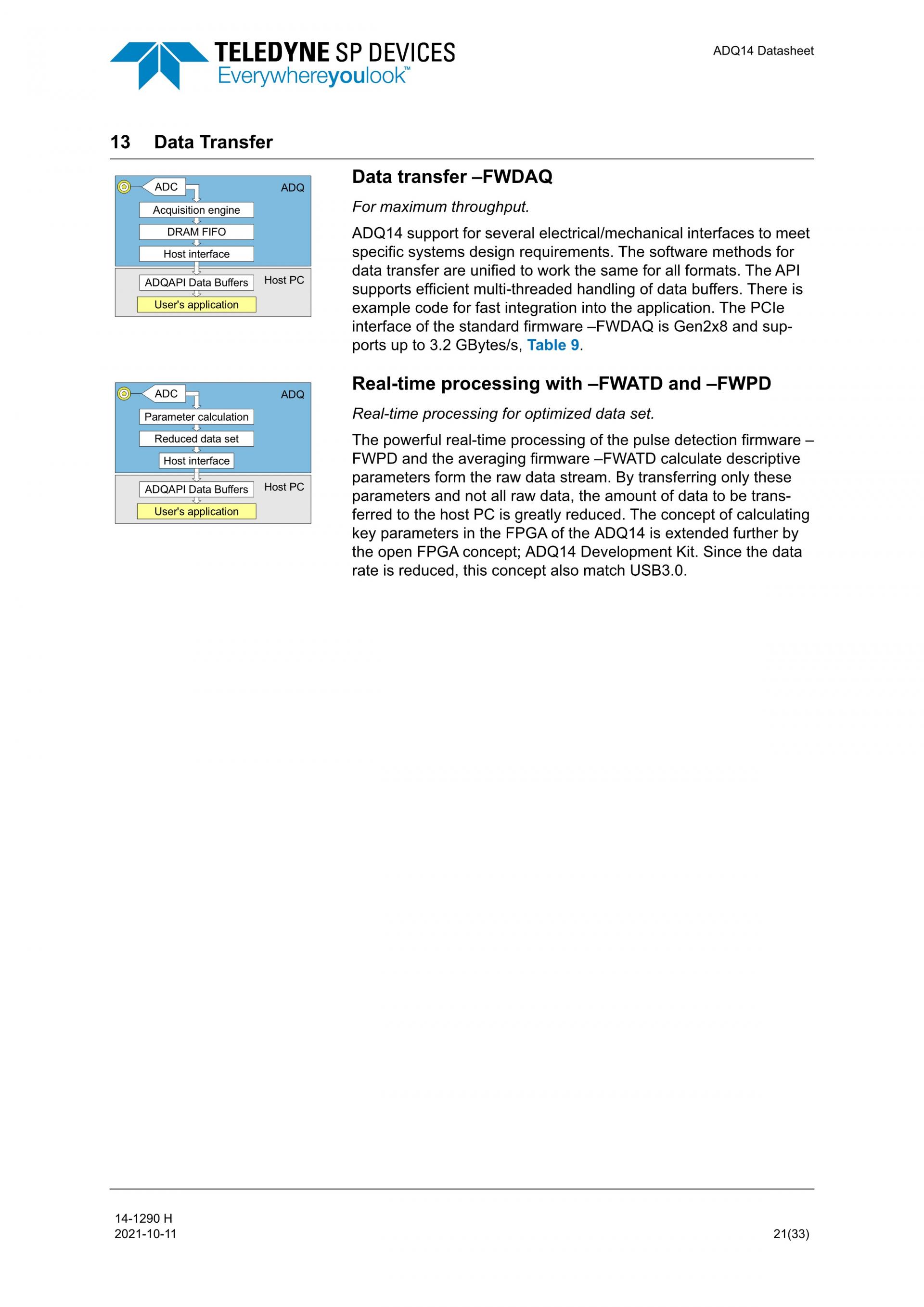

• Peer-to-peer streaming to GPU at 7 Gbyte/s

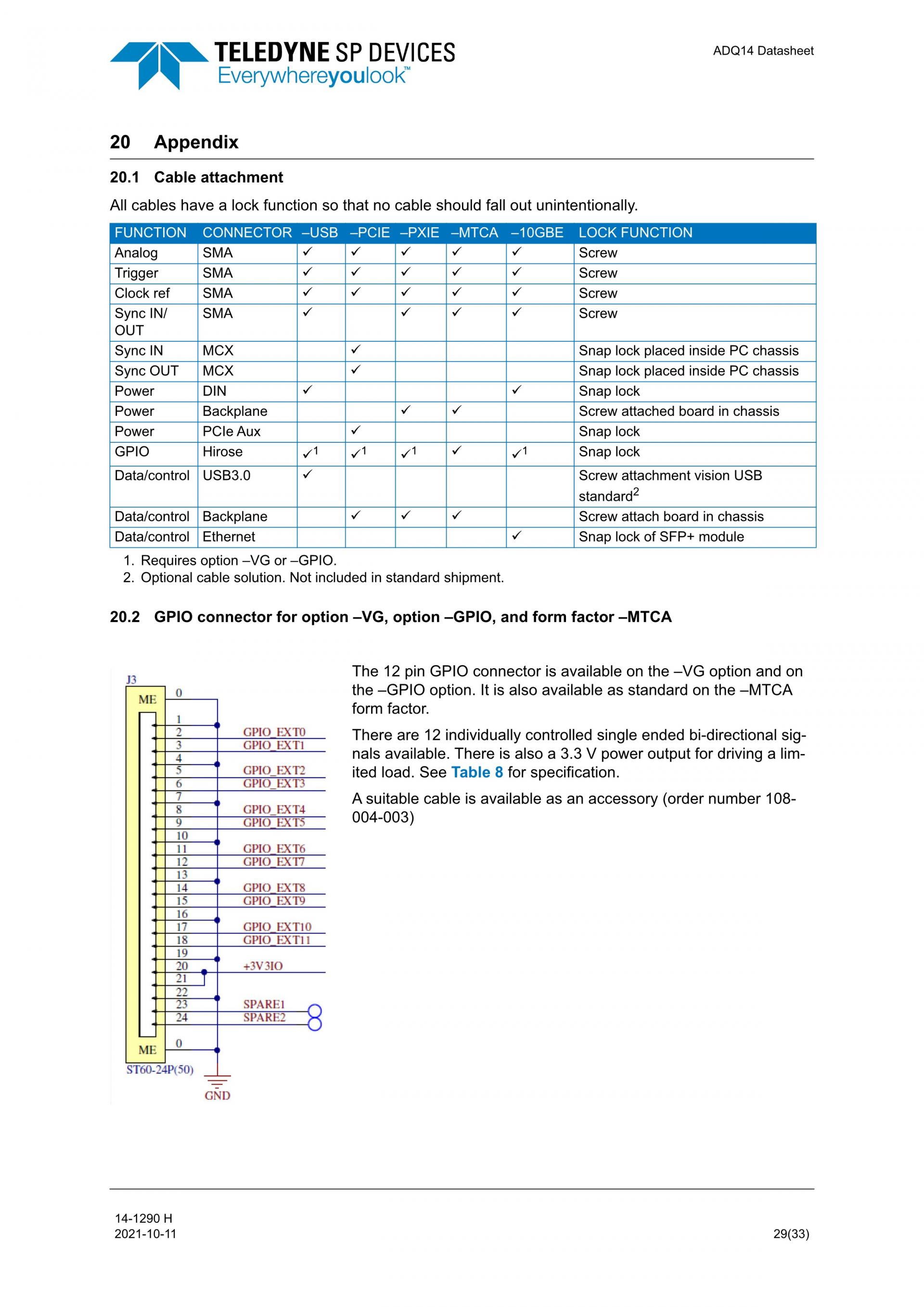

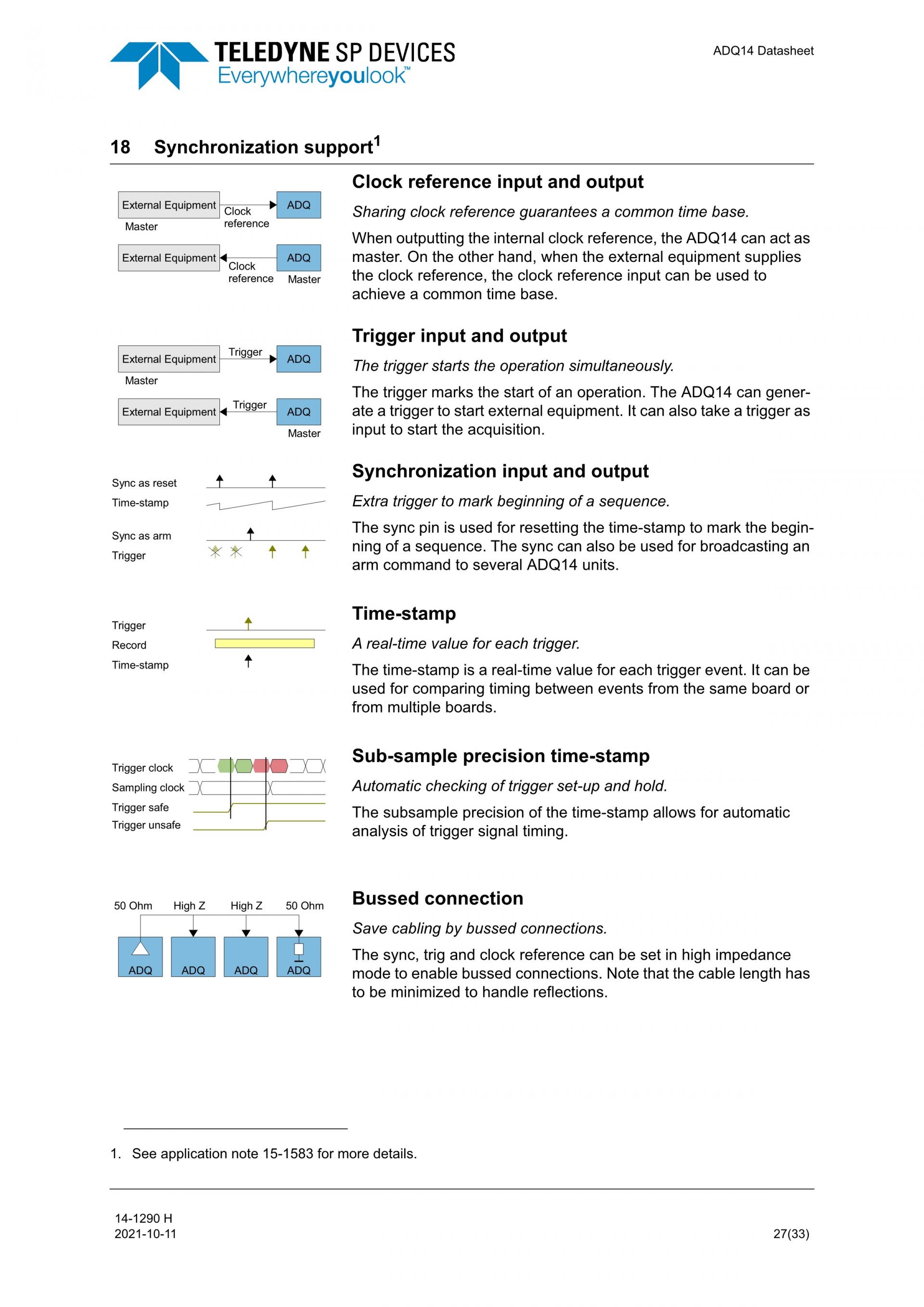

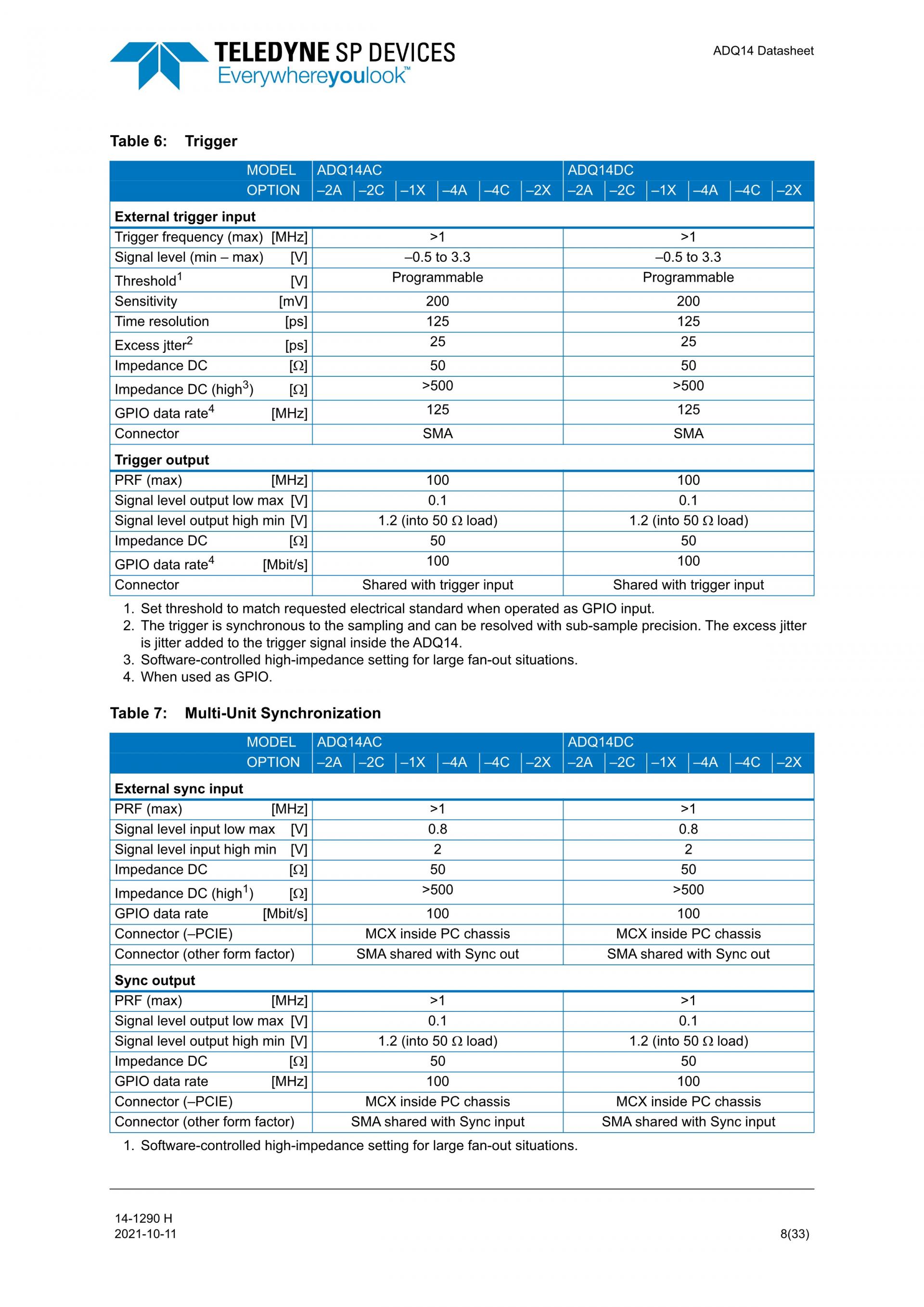

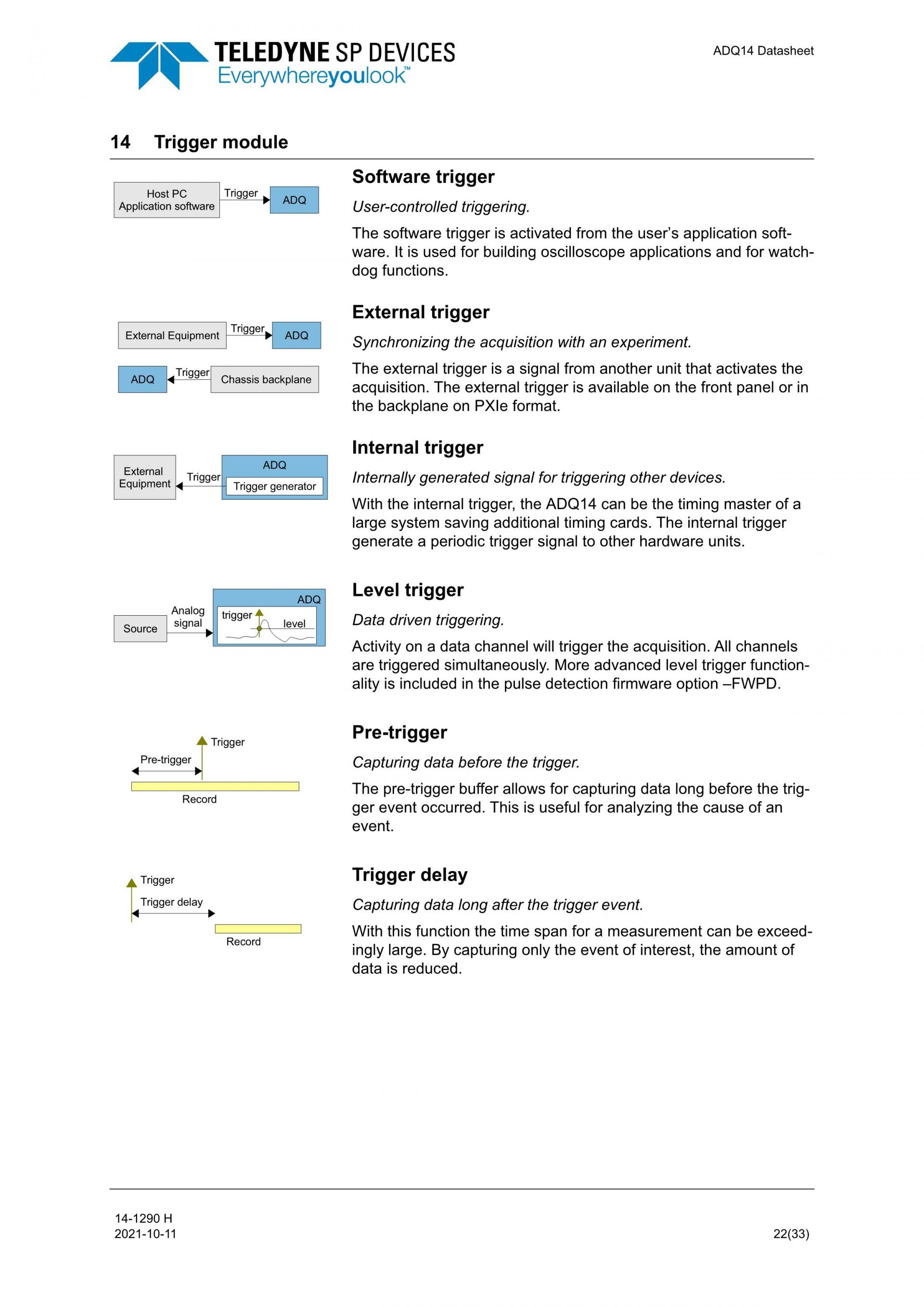

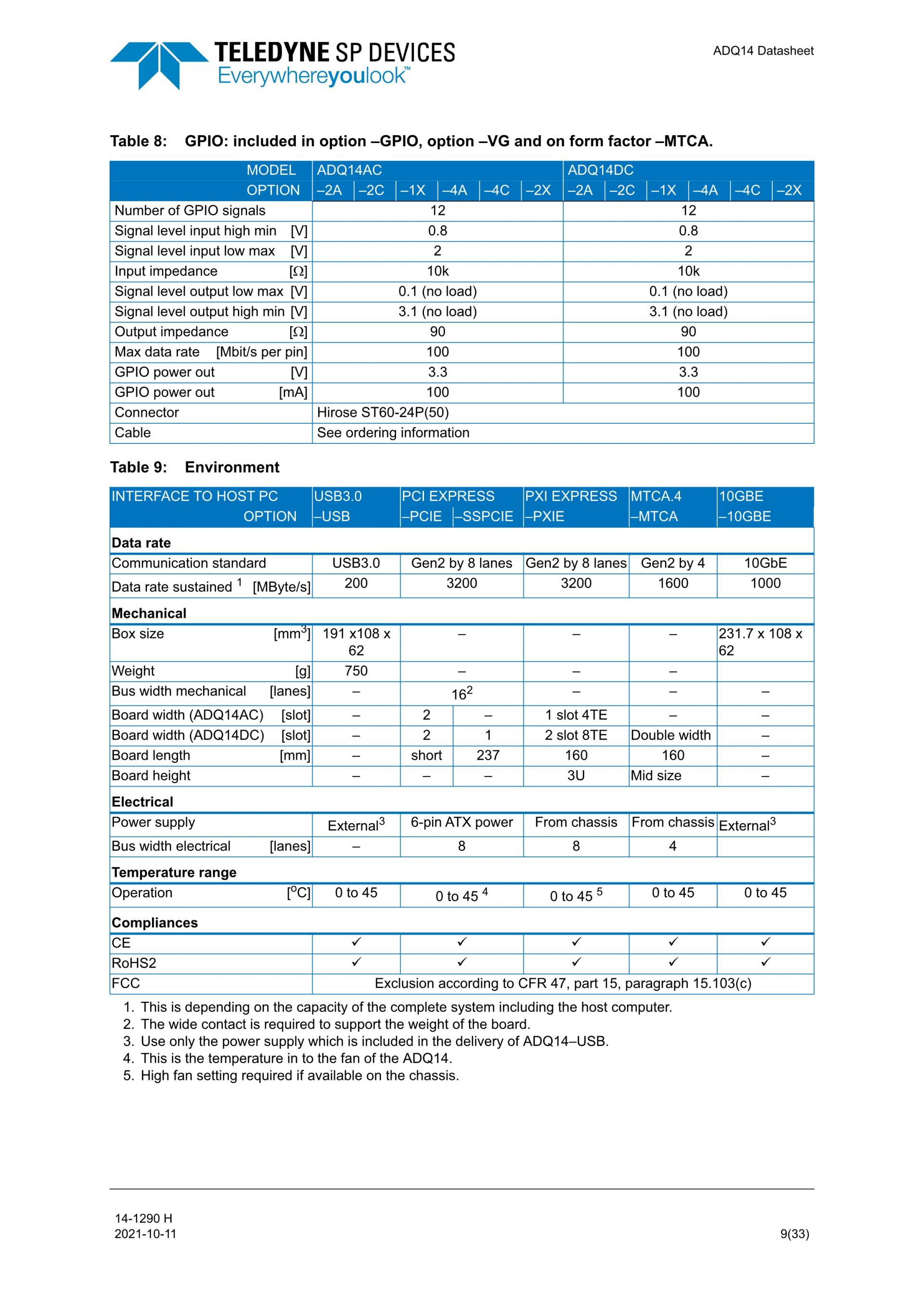

• Hardware triggers and GPIO

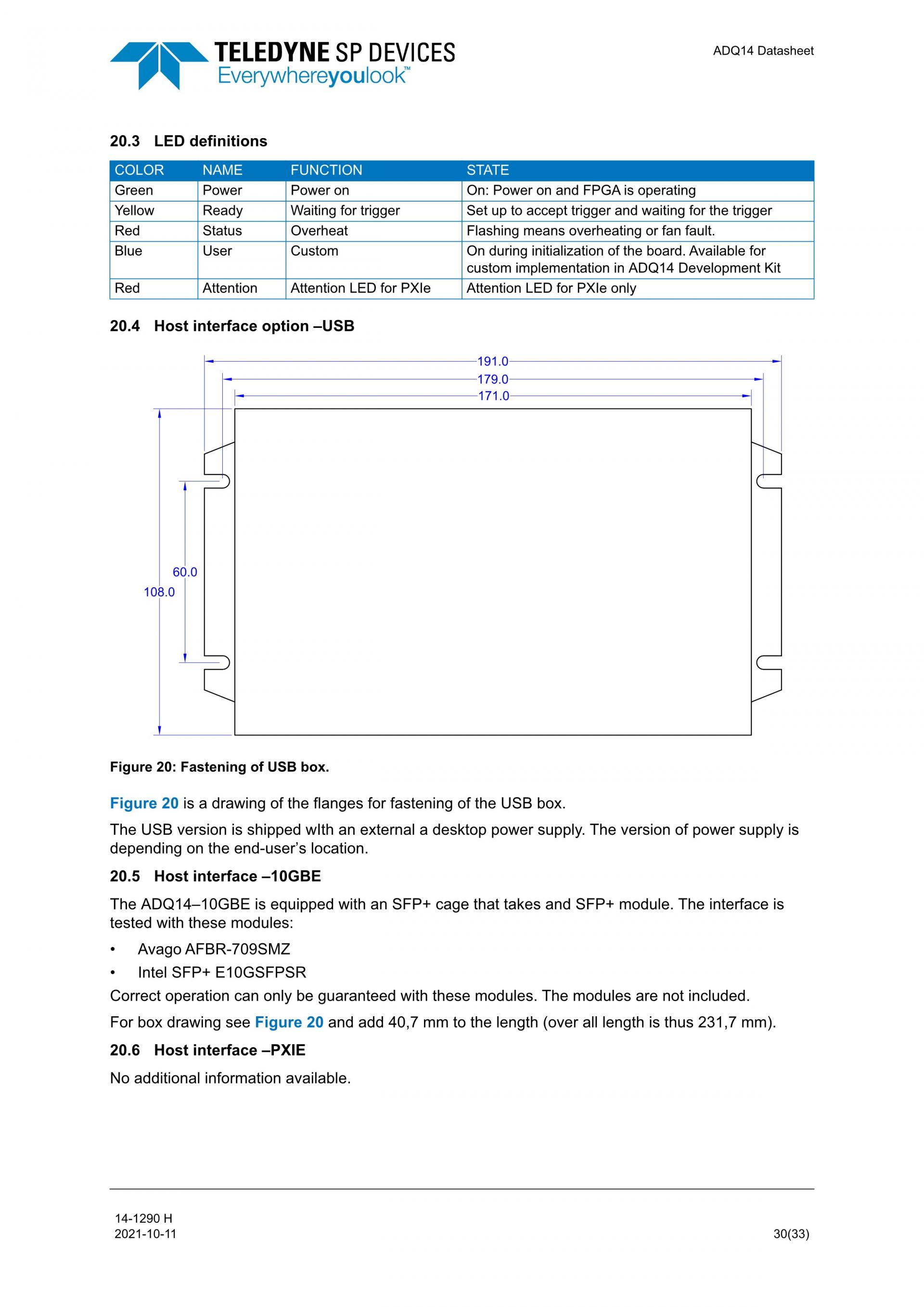

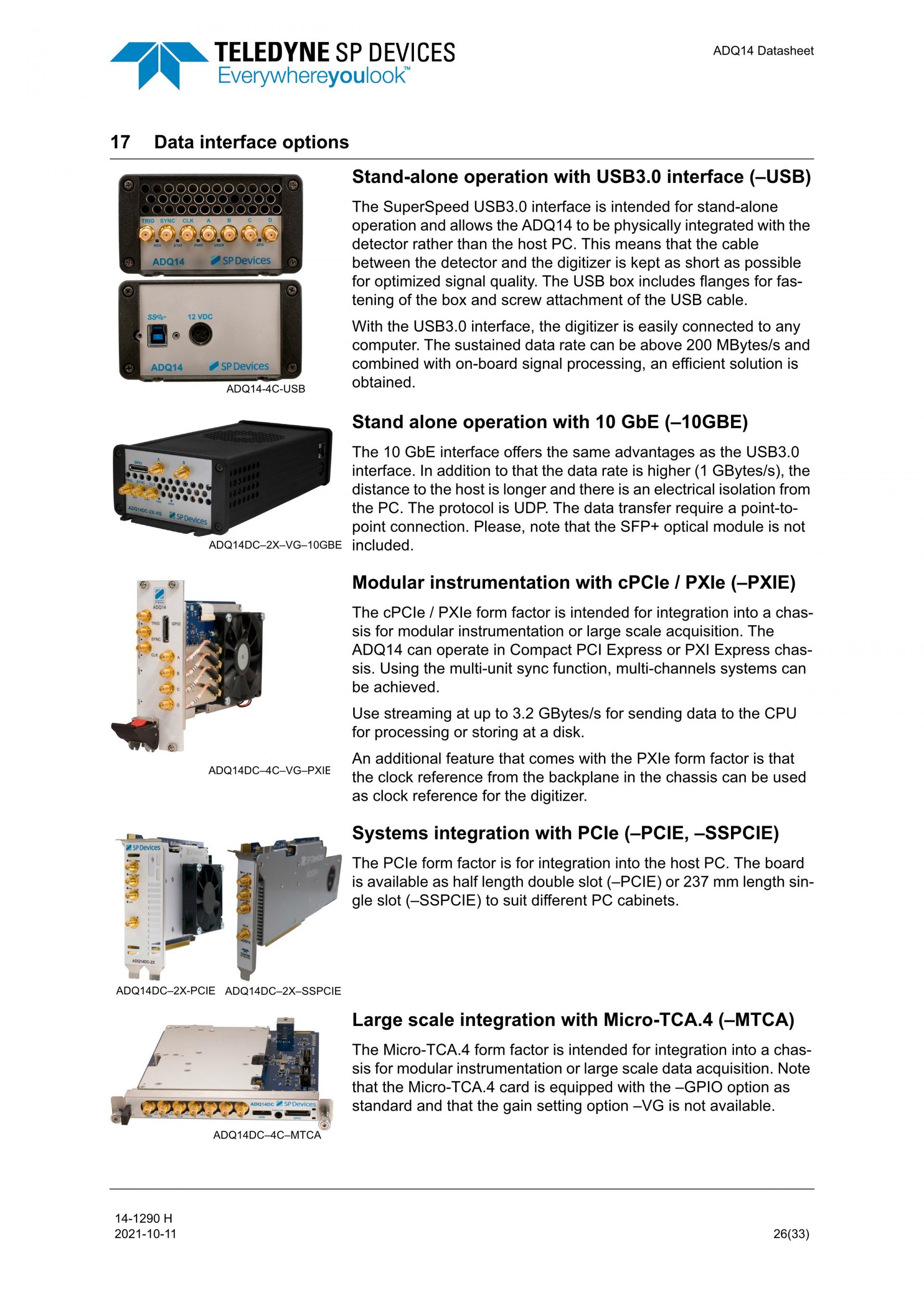

• PXIe, PCIe, USB3.0, MTCA.4, 10 GbE form factors

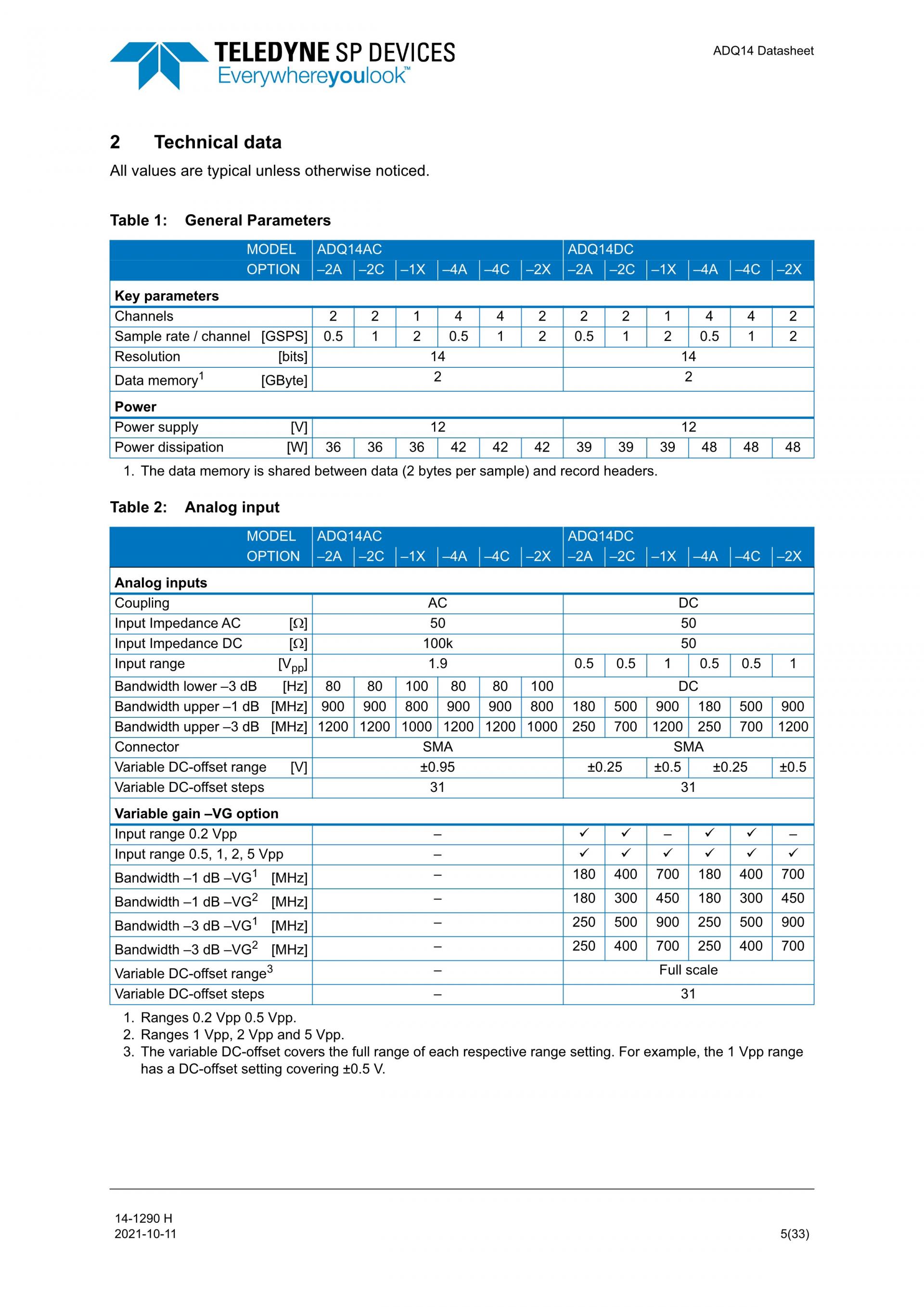

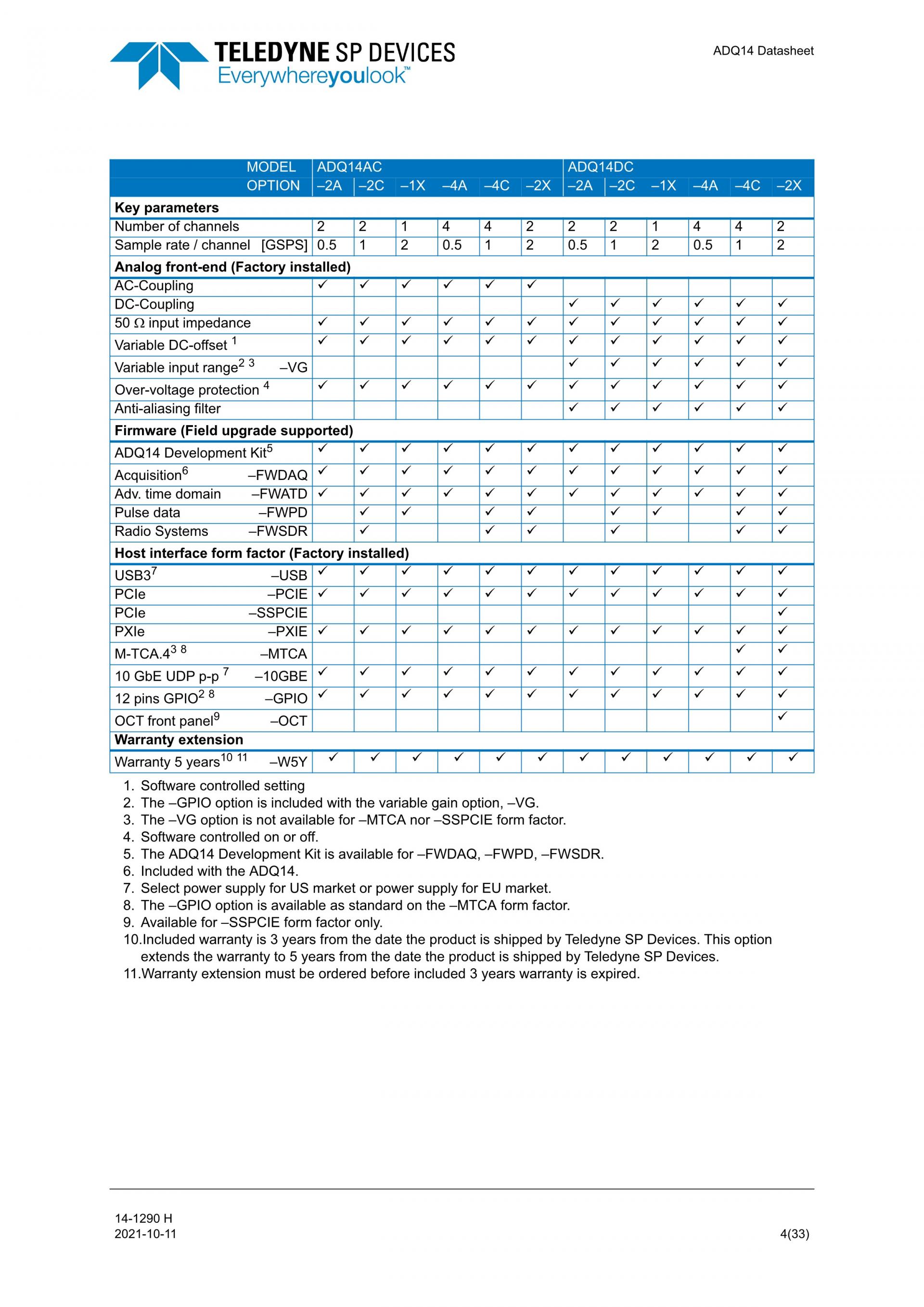

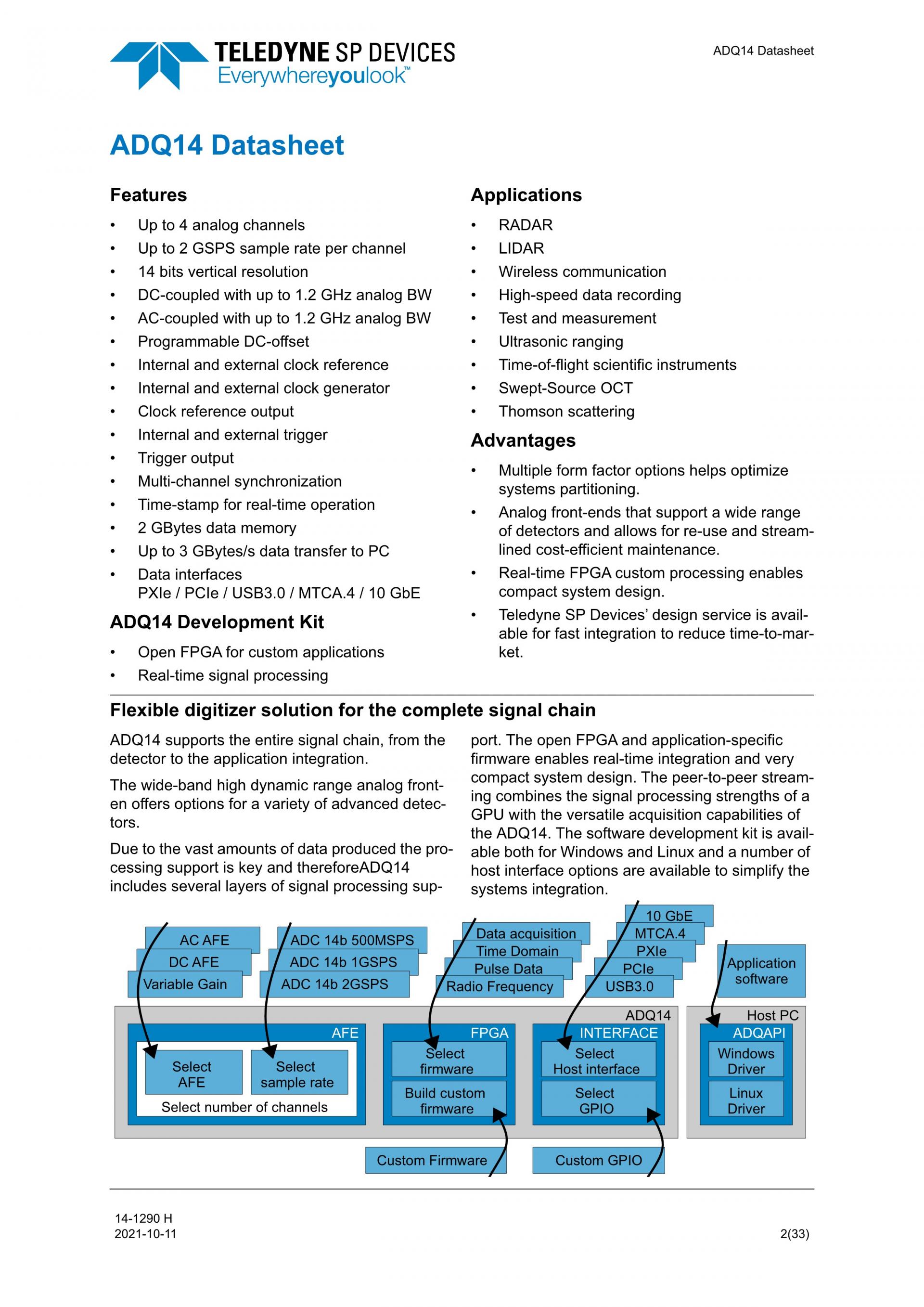

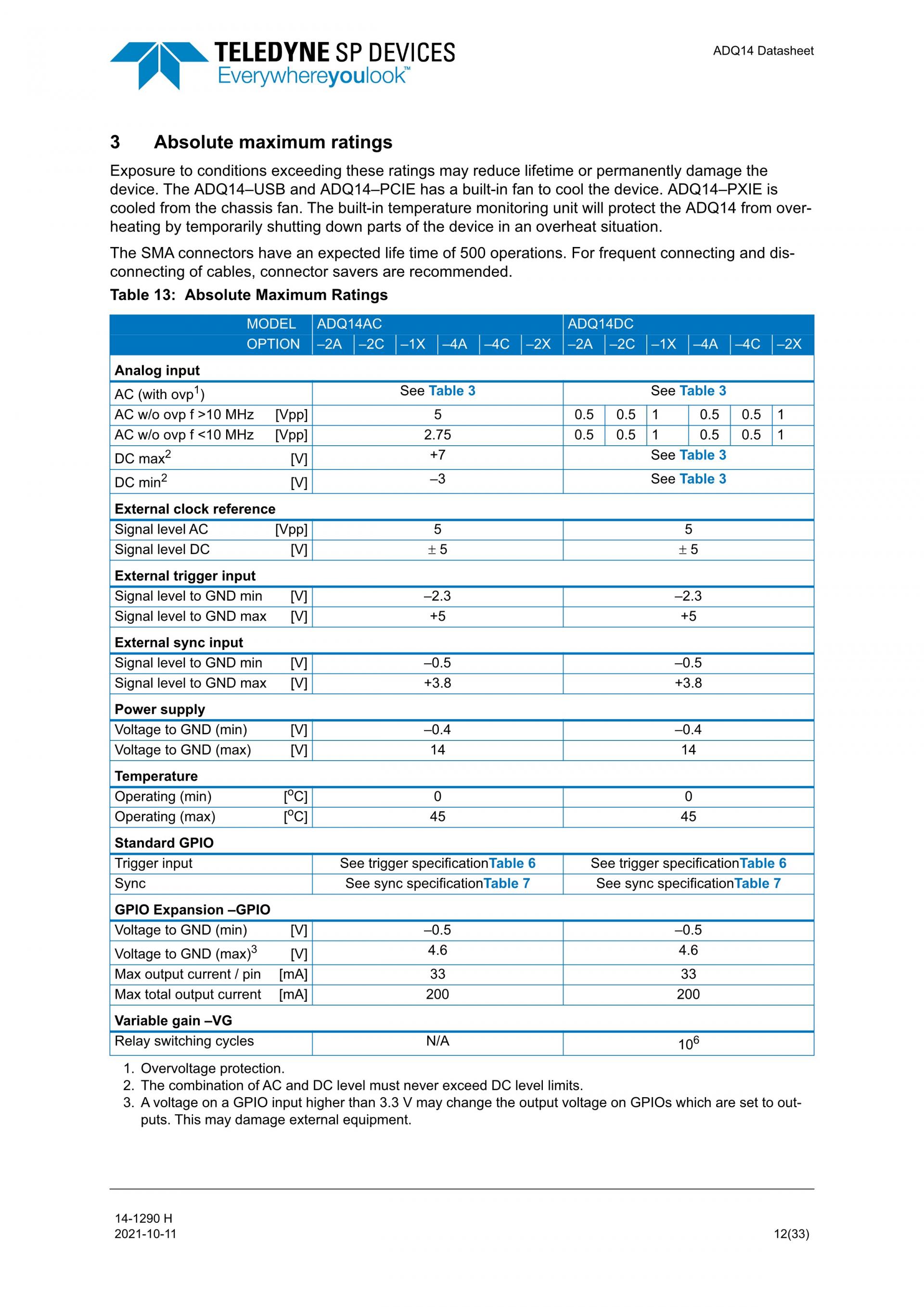

• For product technical specifications (see the datasheet)
• How to use and configure the product and output the data (see the users guide)
