SP DEVICES 에스피 디바이시스 ADQ36 고성능 12-bit, 5 GSPS 디지타이저 - 가격문의 -
가격문의(상세정보 참조)

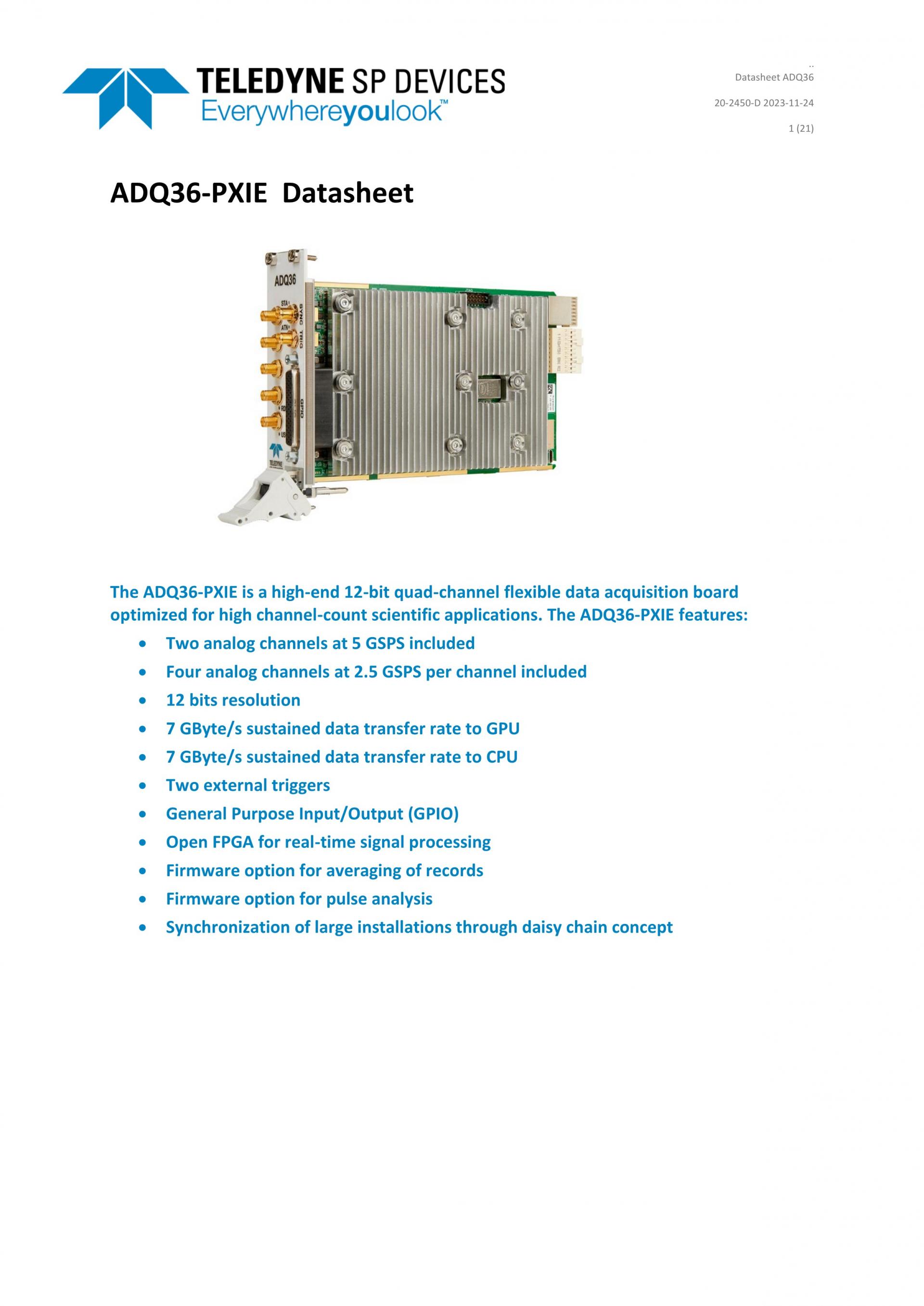

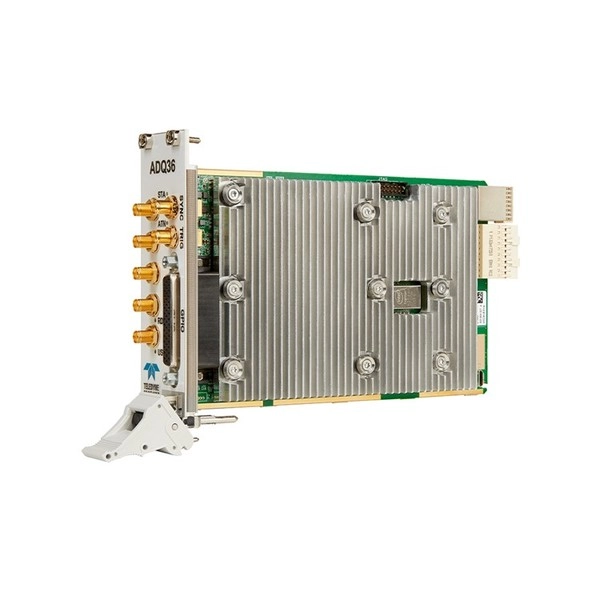

SP DEVICES ADQ36 고성능 12-bit, 5 GSPS 디지타이저
SP DEVICES ADQ36 High-performance 12-bit, 5 GSPS digitizer

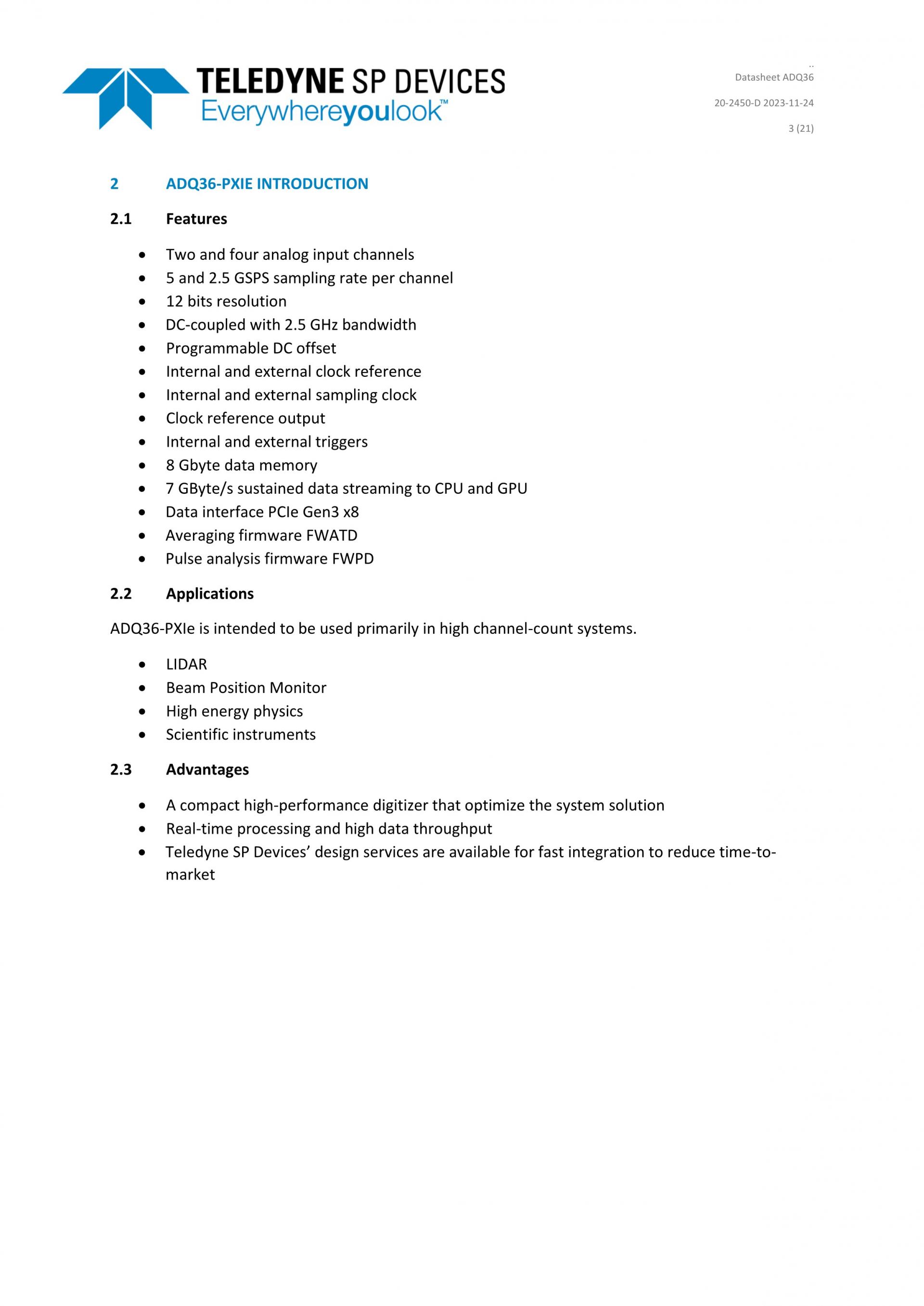

- 12 bits vertical resolution
- Up to 5 GSPS sampling rate
- 4 channels at 2.5 GSPS or 2 channels at 5 GSPS (software-selectable)

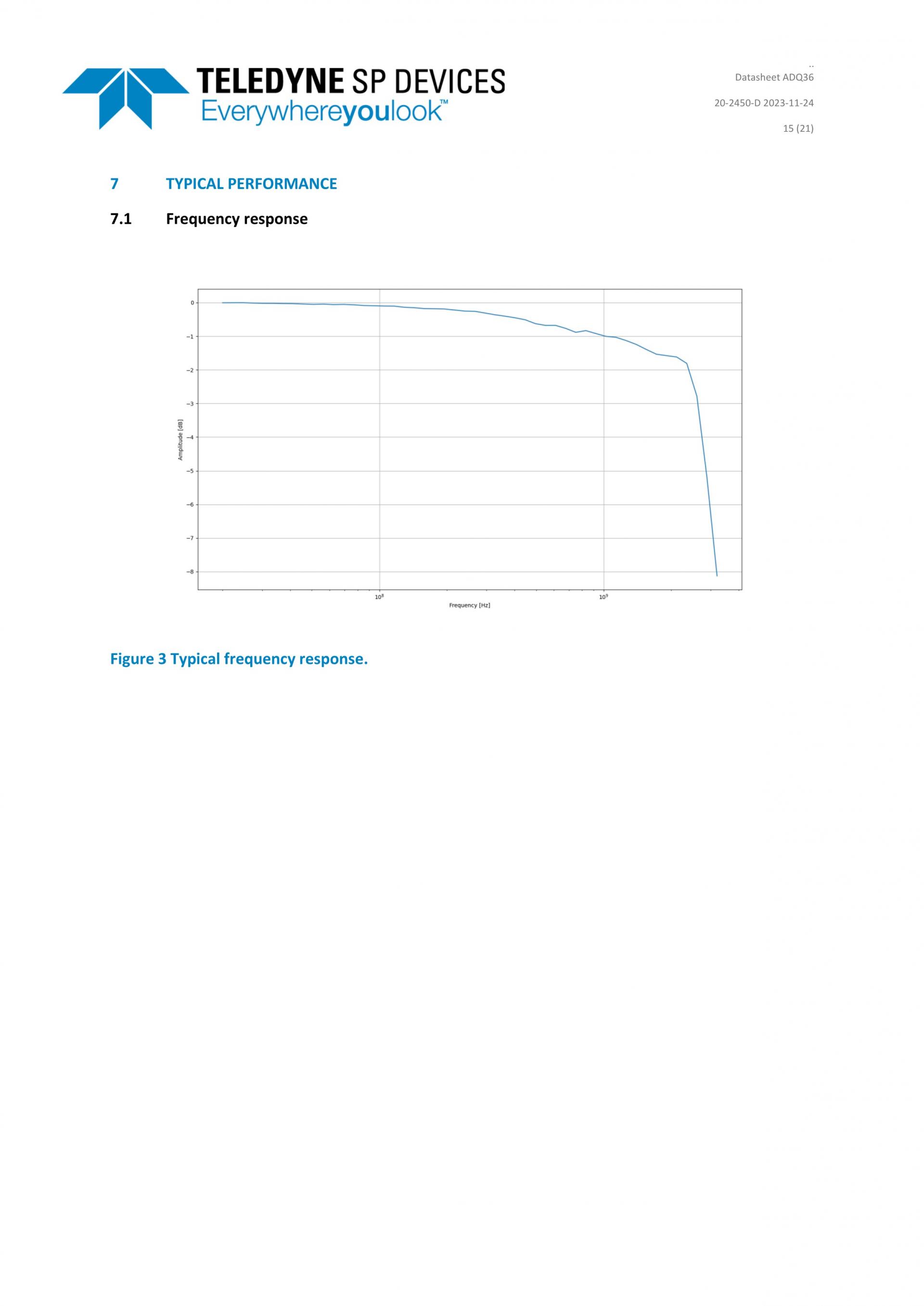

- DC-coupled with up to 2.5 GHz input bandwidth (0.5 Vpp input range)
- Programmable DC-offset

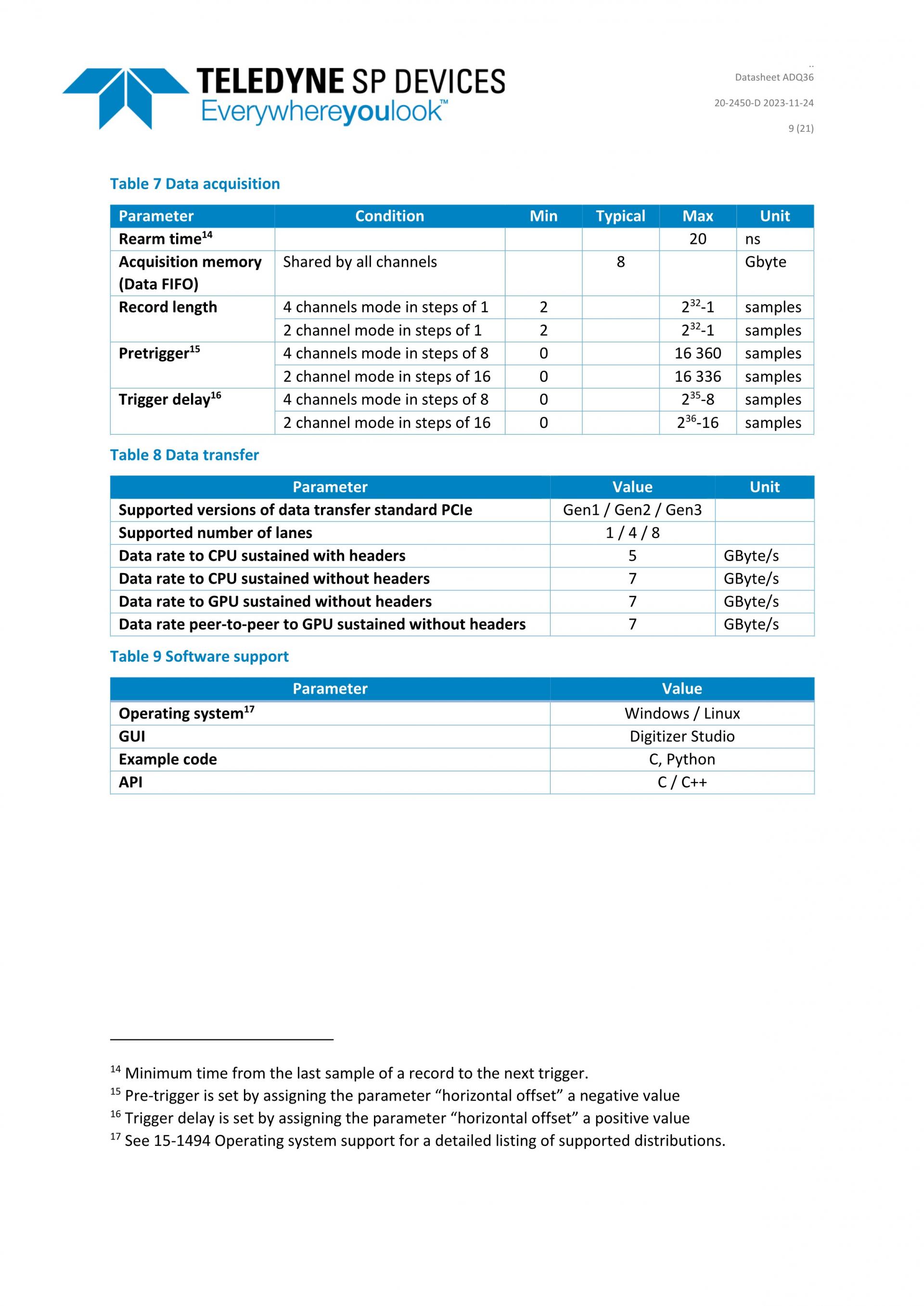

- 8 Gbyte onboard memory
- Open FPGA for custom real-time signal processing requires DEVDAQ

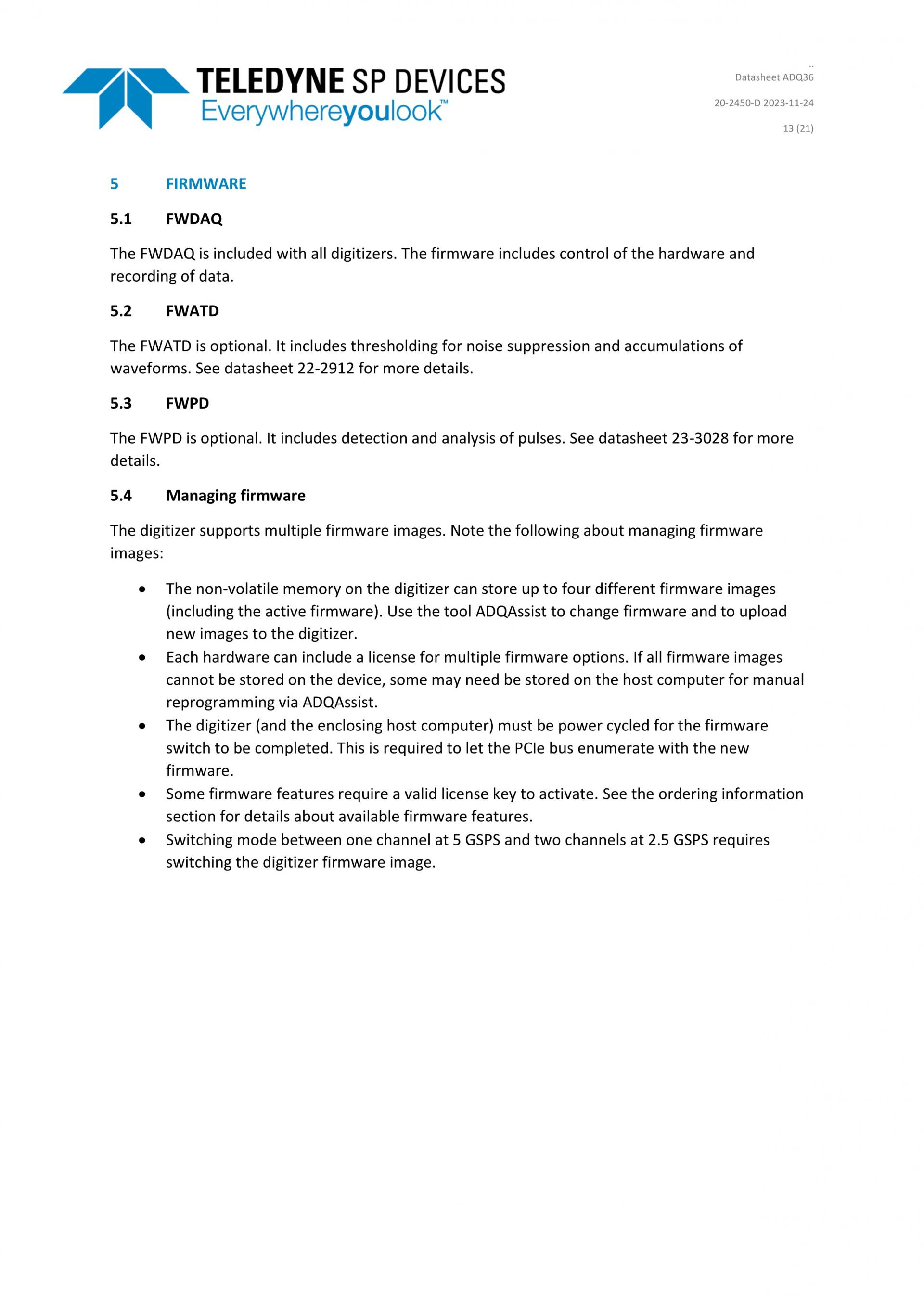

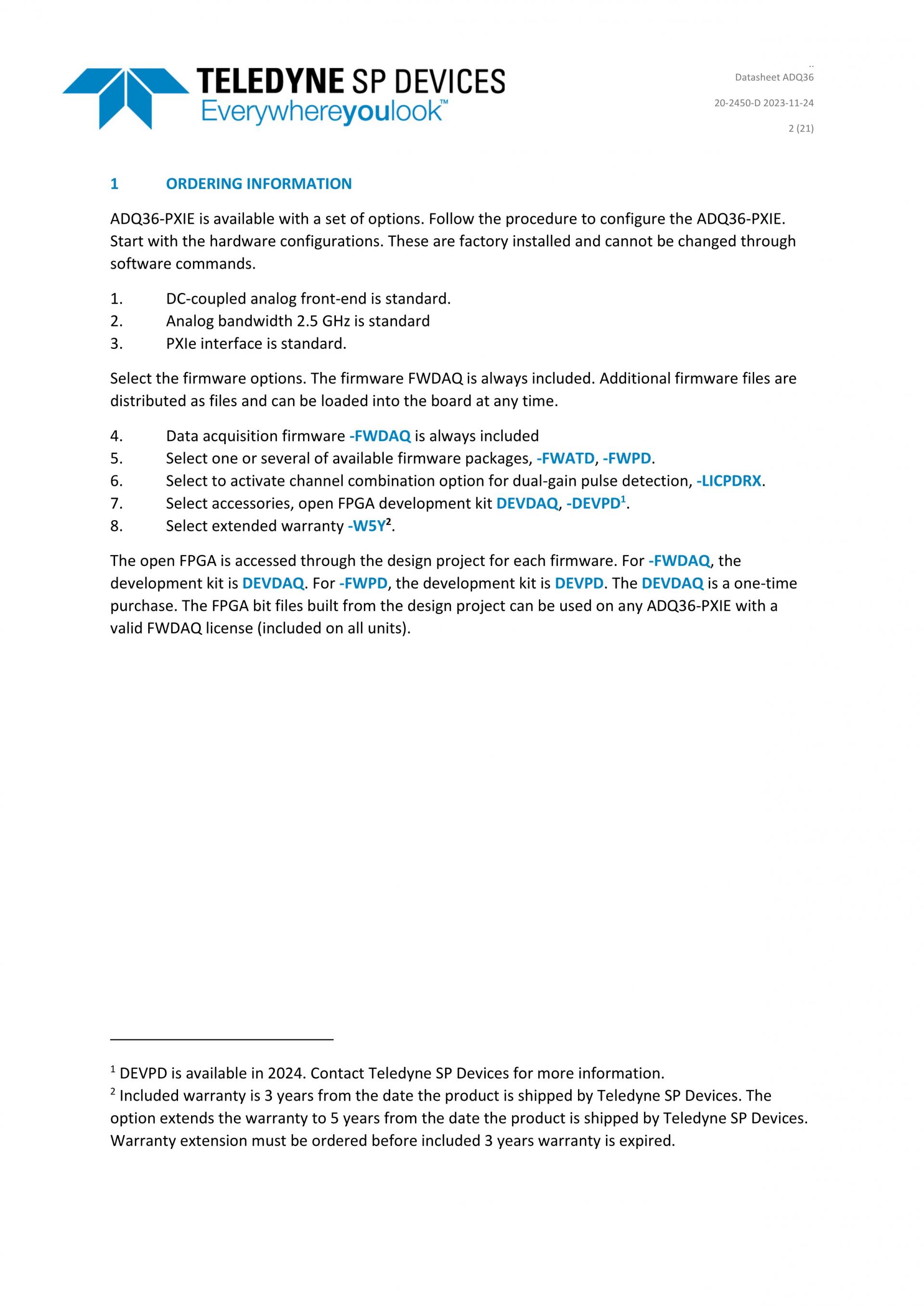

- Application-specific firmware options

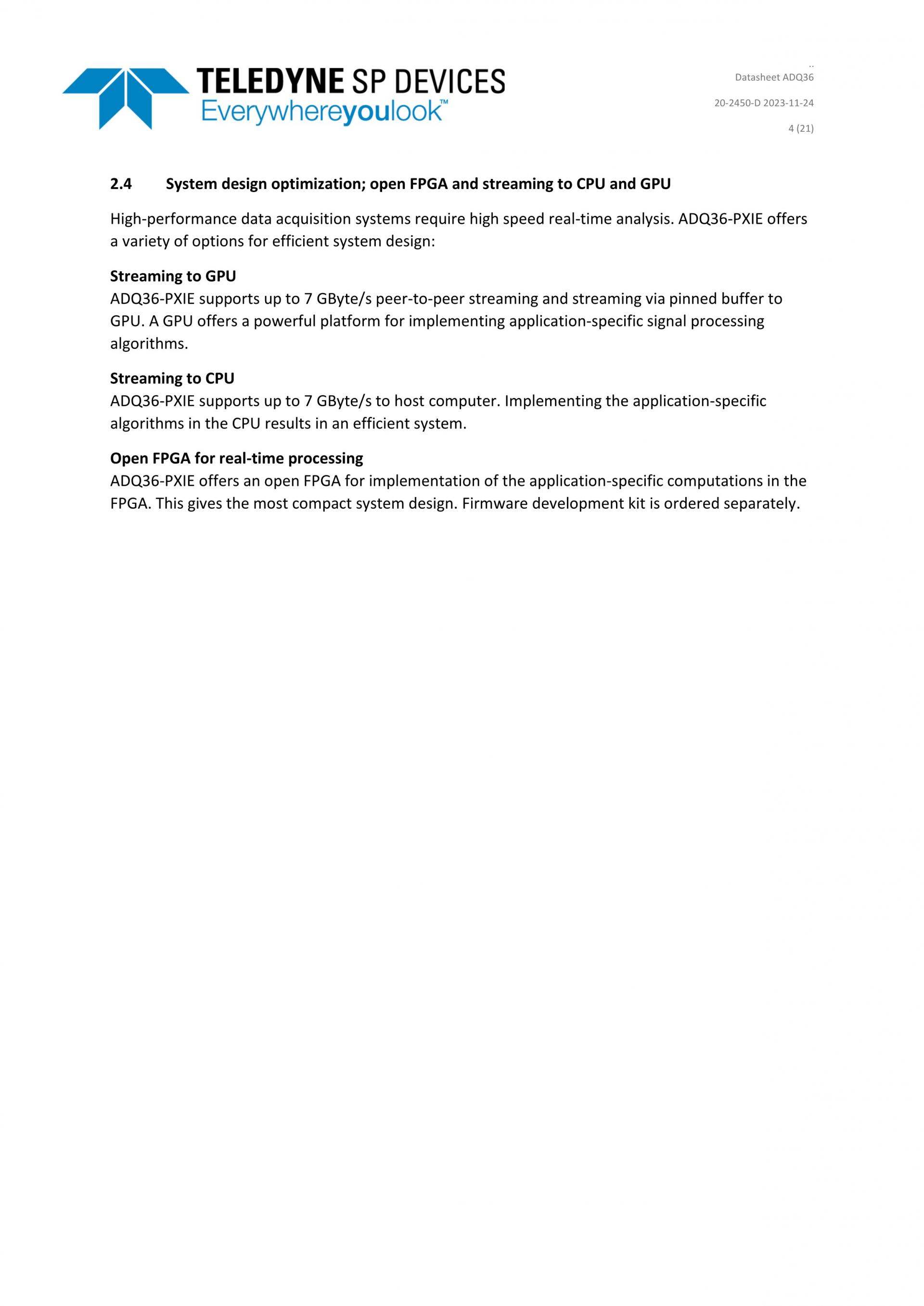

- Peer-to-peer streaming to GPU at 7 Gbyte/s

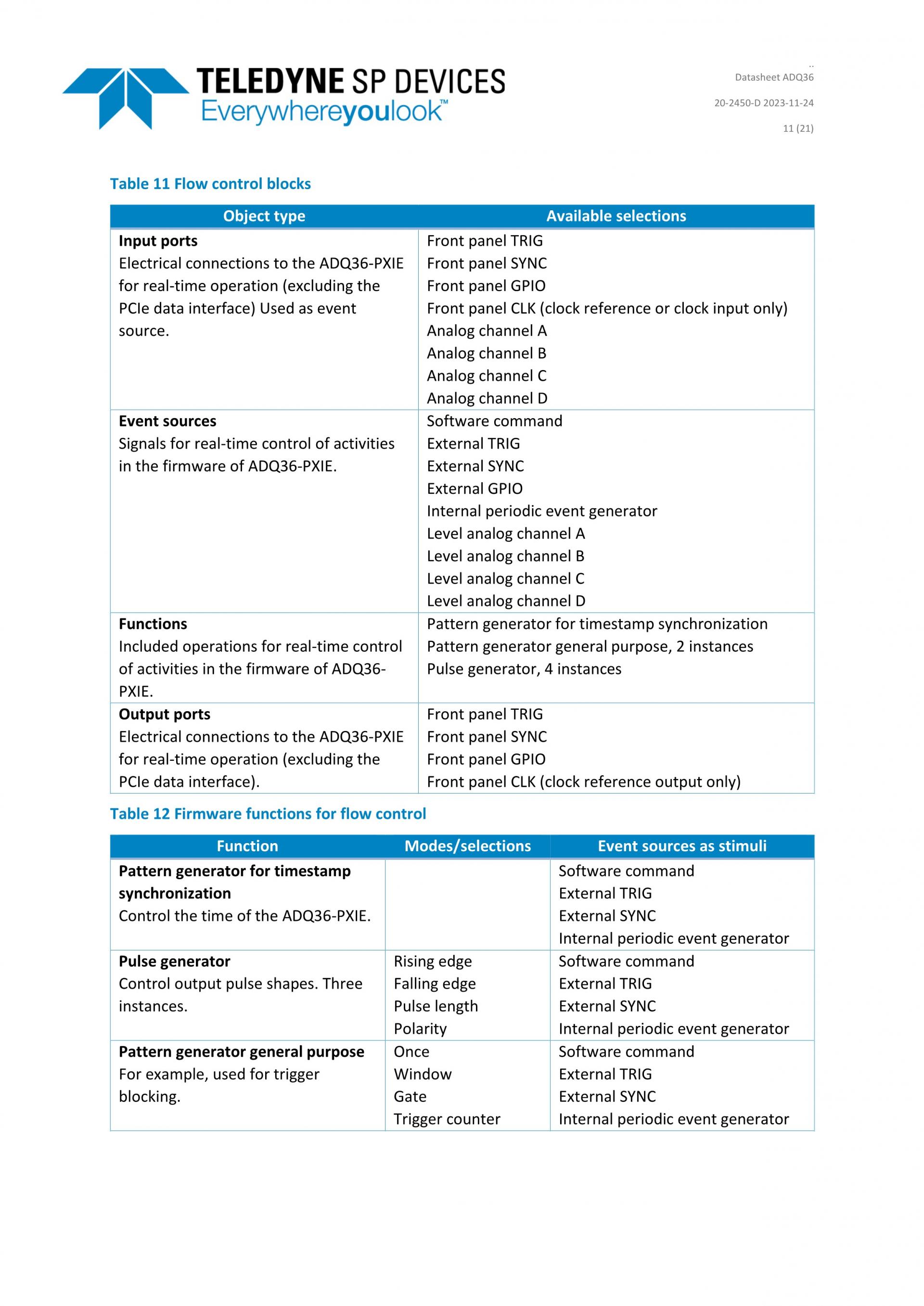

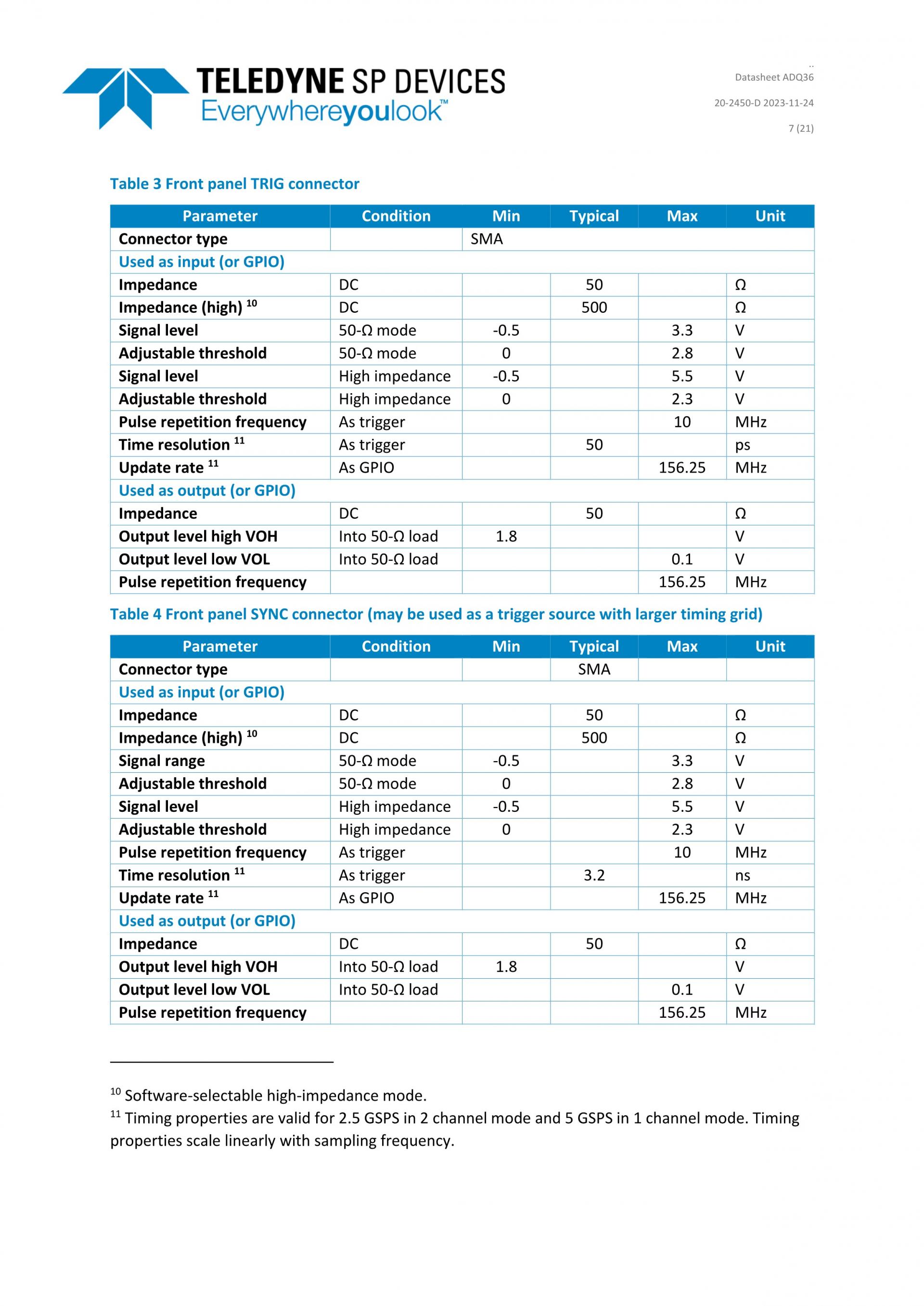

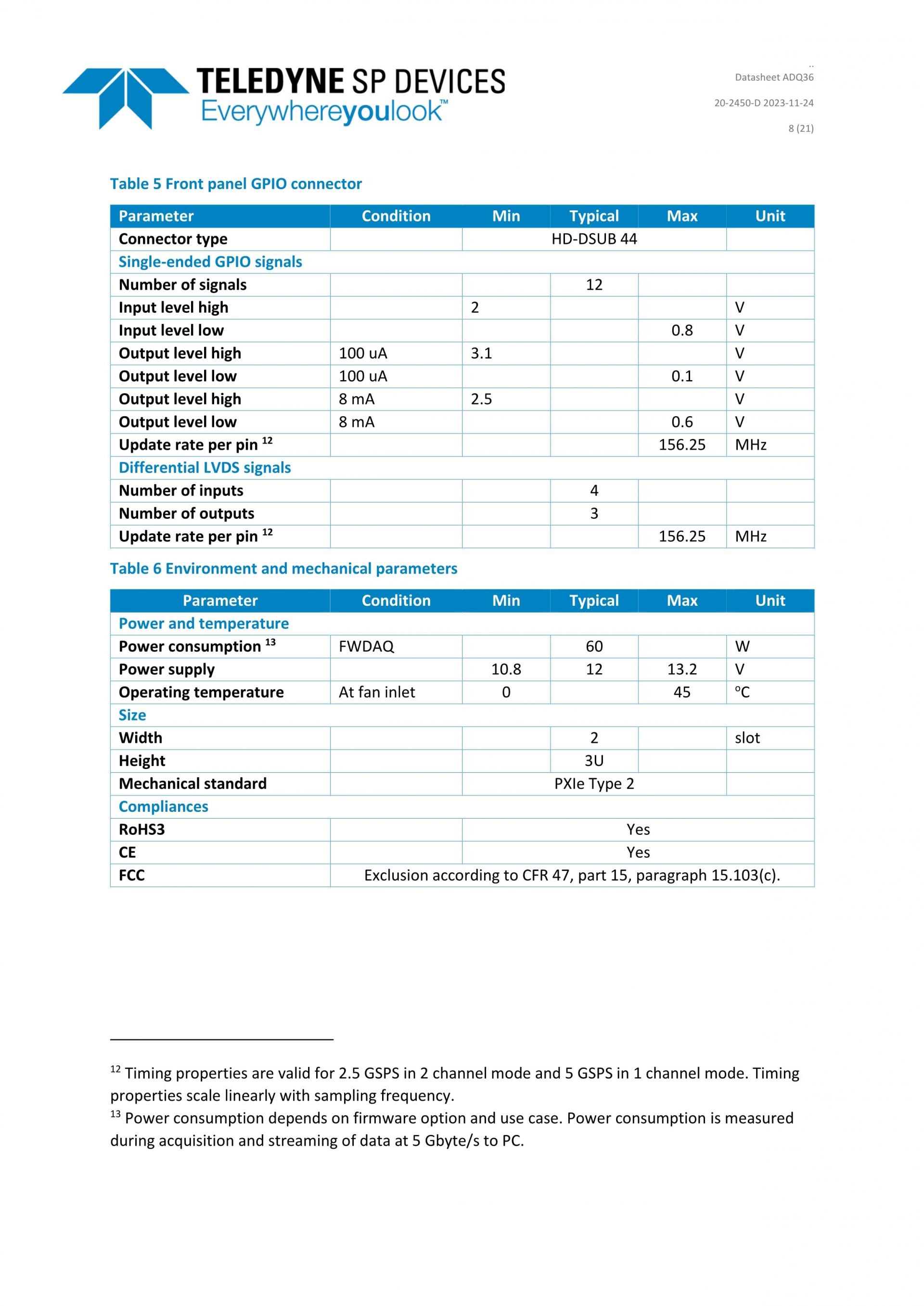

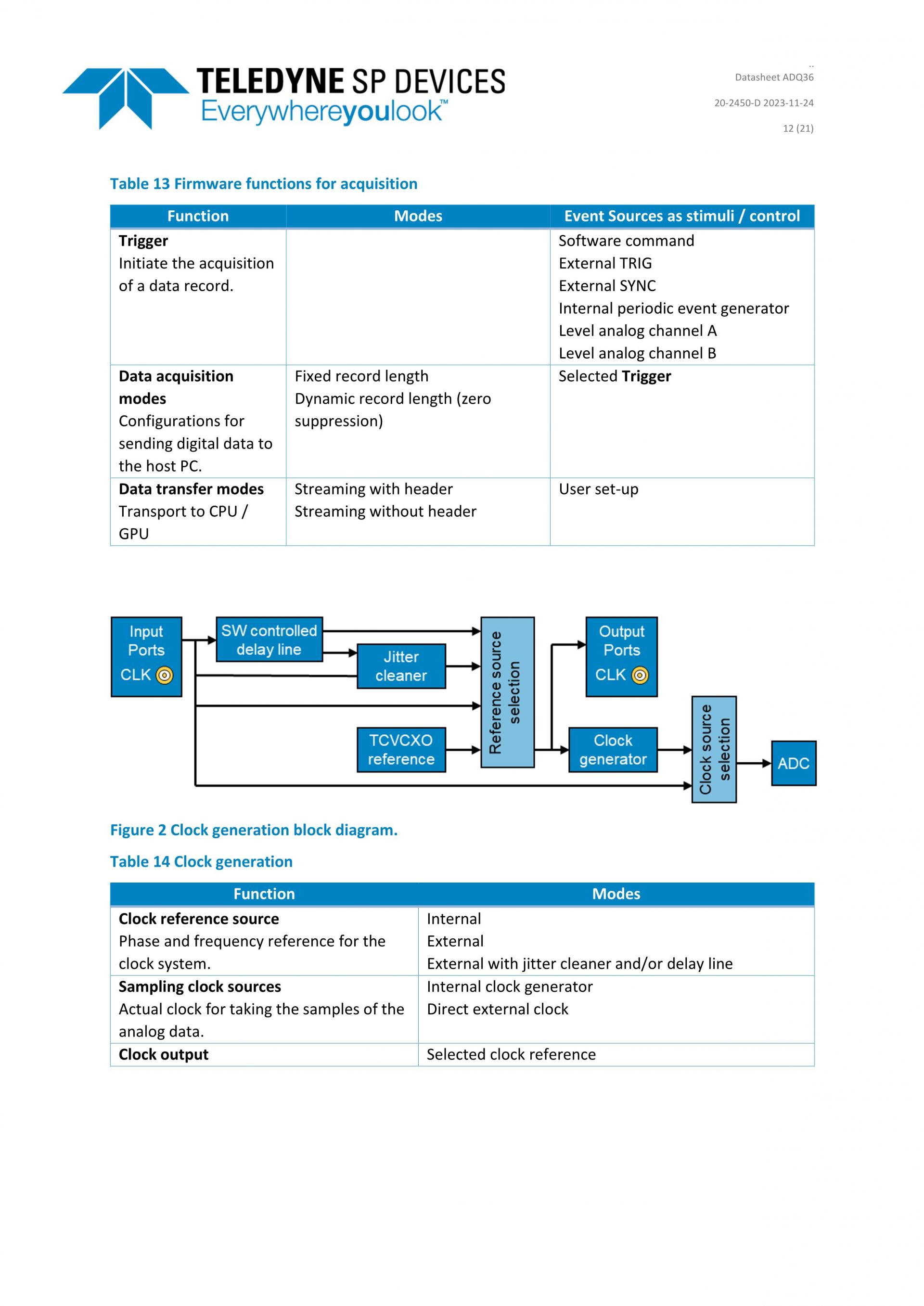

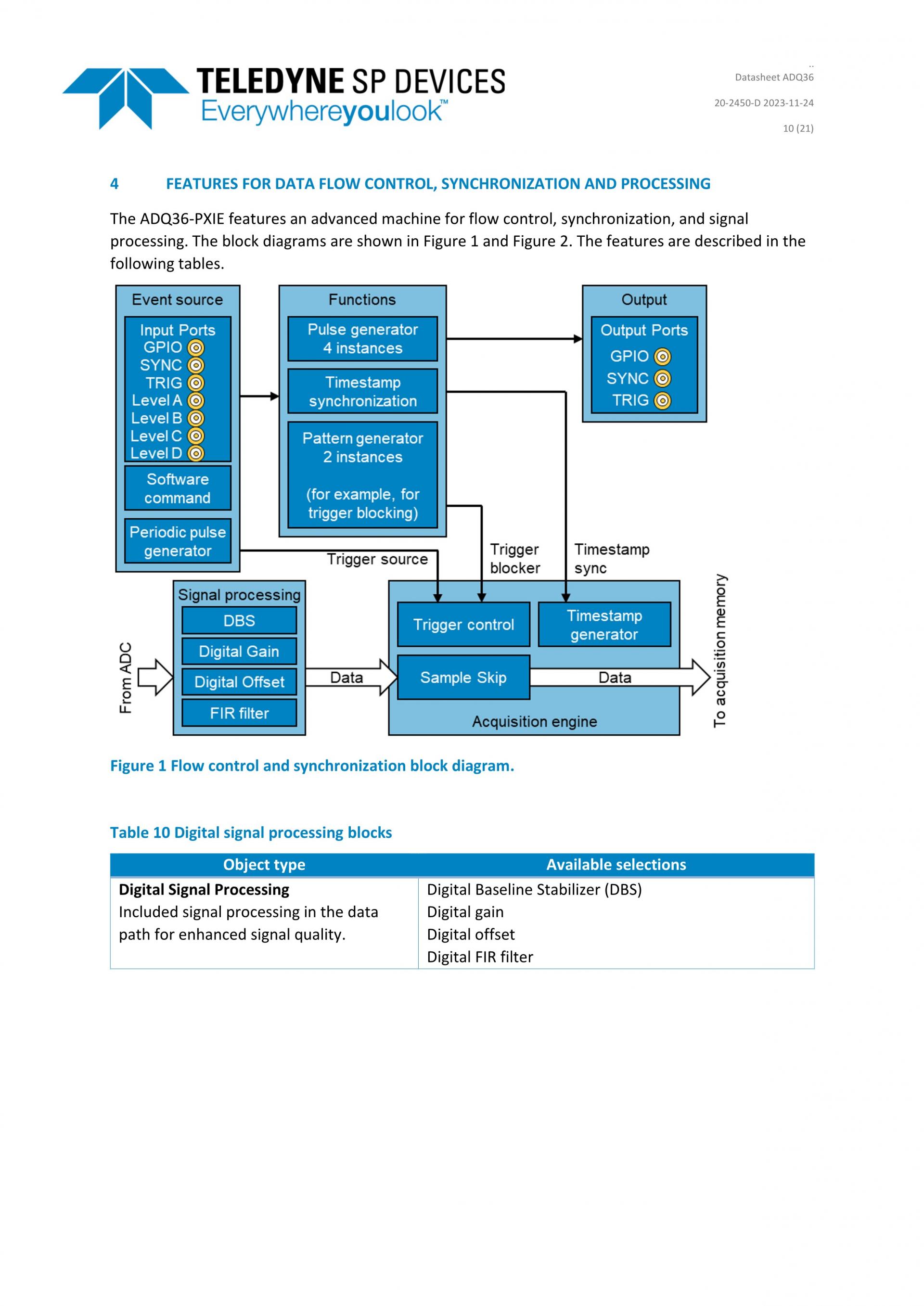

- Hardware triggers and GPIO
- PXIe form factor

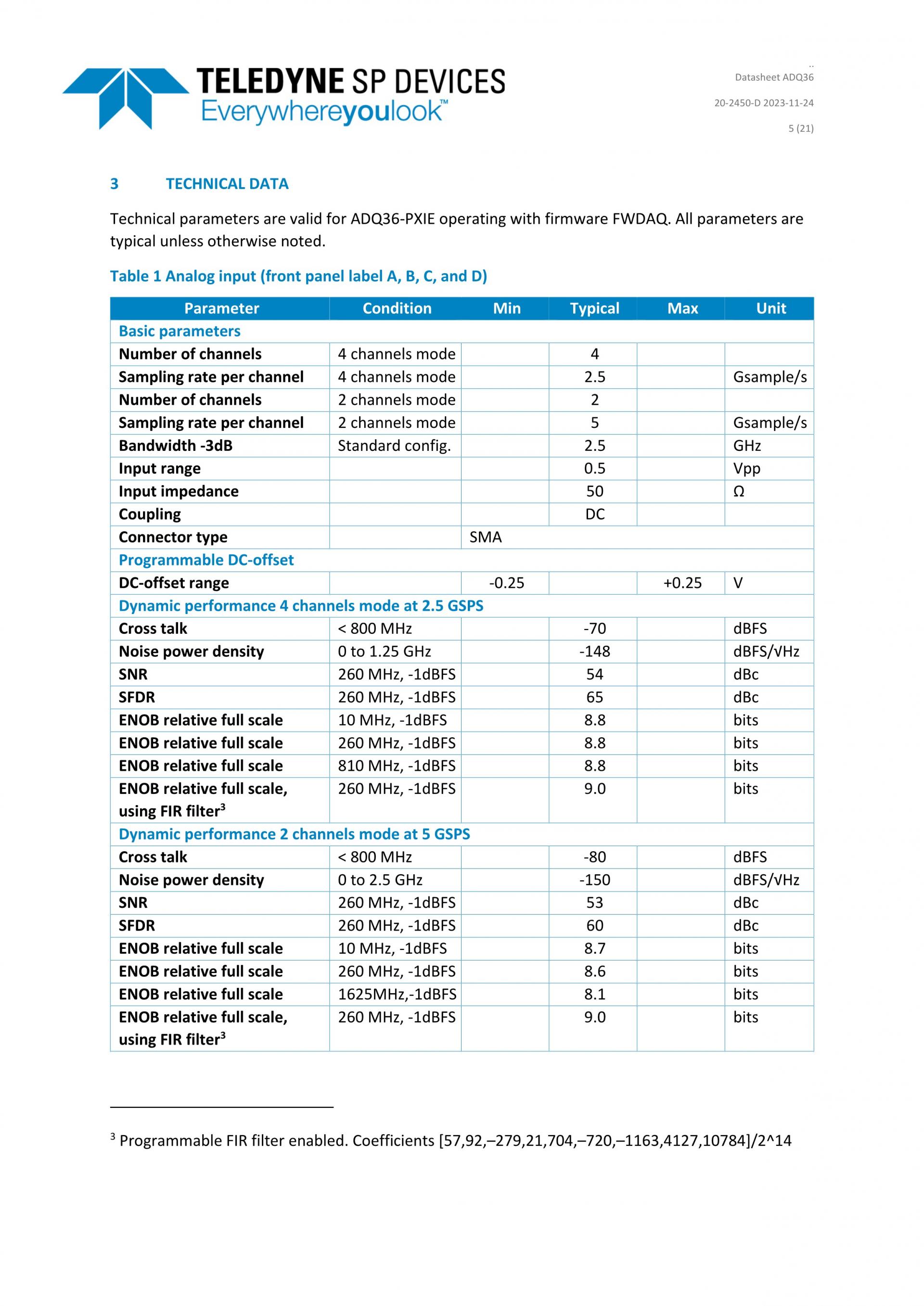

- For product technical specifications (see the datasheet)
- How to use and configure the product and output the data (see the users guide)
SP 디바이스 ・ SP DEVICES
ADQ36
고성능 12-bit, 5 GSPS 디지타이저
ADQ36 High-performance 12-bit, 5 GSPS digitizer
Description
ADQ36 offers software-selectable two- or four-channel configuration with 5 or 2.5 GSPS sampling rates respectively. The programmable DC-offset makes it ideal for sampling unipolar signals. The open onboard Xilinx Kintex Ultrascale KU115 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP). ADQ36 supports peer-to-peer streaming of up to 7 Gbyte/s either to the host PC or to graphics processing units (GPUs).
Applications
- LiDAR
- Beam Position Monitor
- High energy physics
ADQ36 ADQ36 SP DEVICES SP DEVICES ADQ36 ADQ36 SP 디바이스 SP 디바이스 ADQ36
