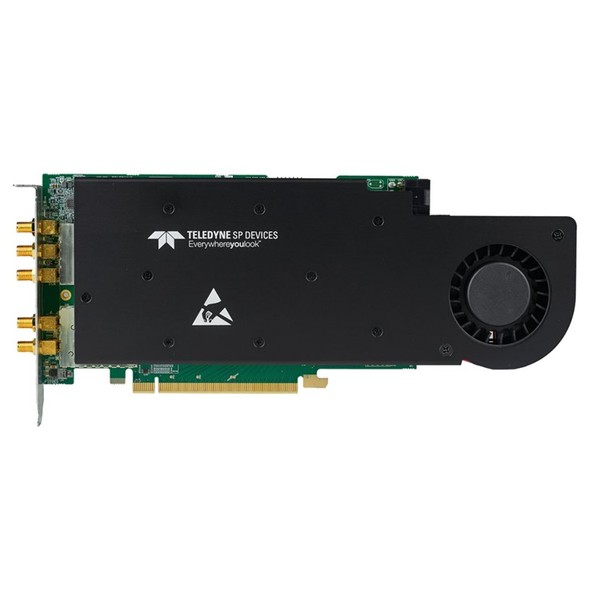

SP DEVICES ADQ35-PDRX 고성능 12-bit, 5 GSPS 펄스데이터시스템용 디지타이저
SP DEVICES ADQ35-PDRX High-performance 12-bit, 5 GSPS digitizer for pulse data systems

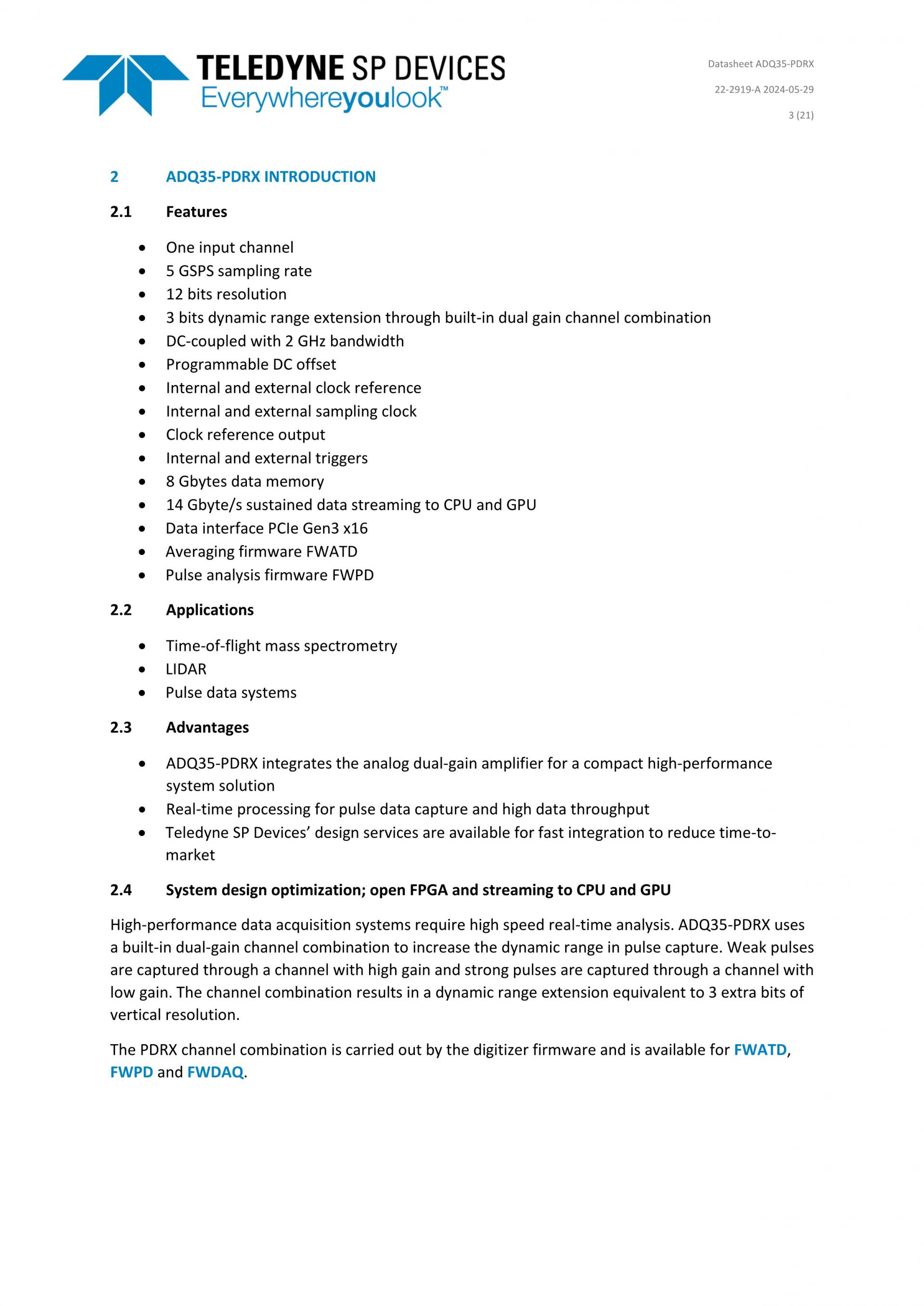

- 12 bits vertical resolution
- 3 bits dynamic range extension through built-in dual-gain channel combination
- 5 GSPS sampling rate
- DC-coupled with up to 2 GHz input bandwidth (1 Vpp input range)
- Programmable DC-offset for optimized detection of positive or negative pulses
- 8 Gbyte onboard memory
- Open FPGA for custom real-time signal processing requires DEVDAQ
- Application-specific firmware options
- Peer-to-peer streaming to GPU/CPU at 14 Gbyte/s
- Hardware triggers and GPIO
- PCIe form factor

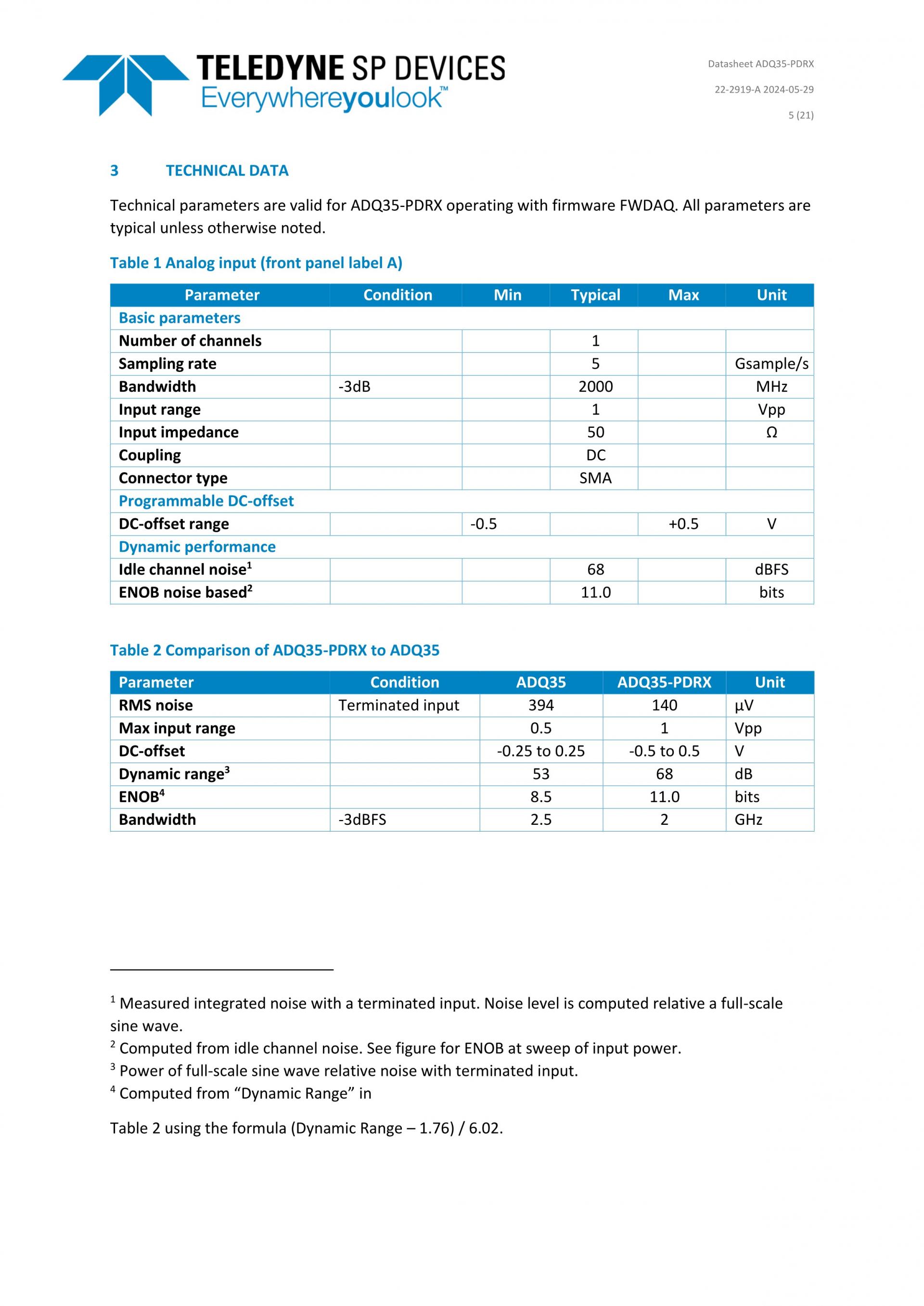

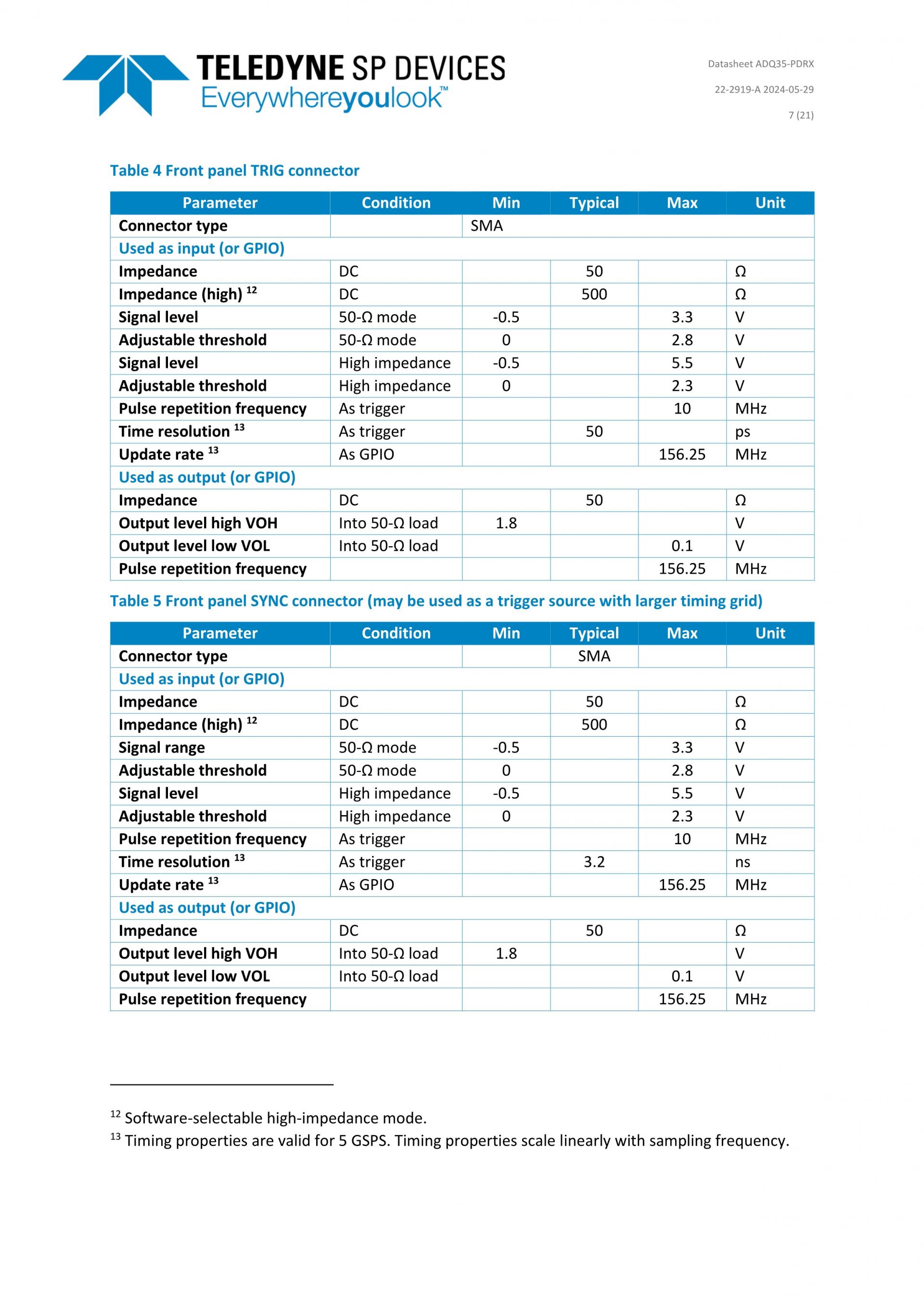

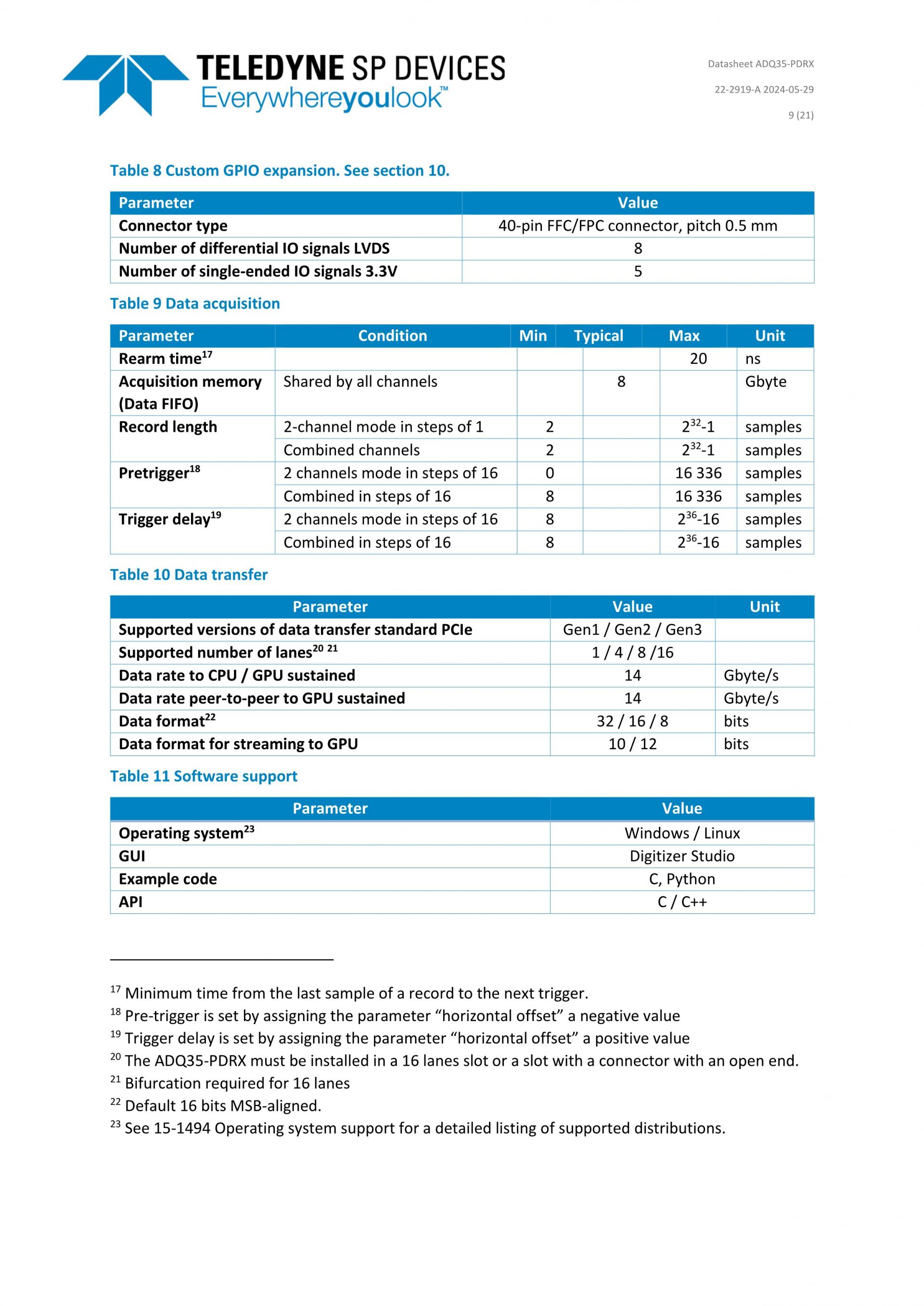

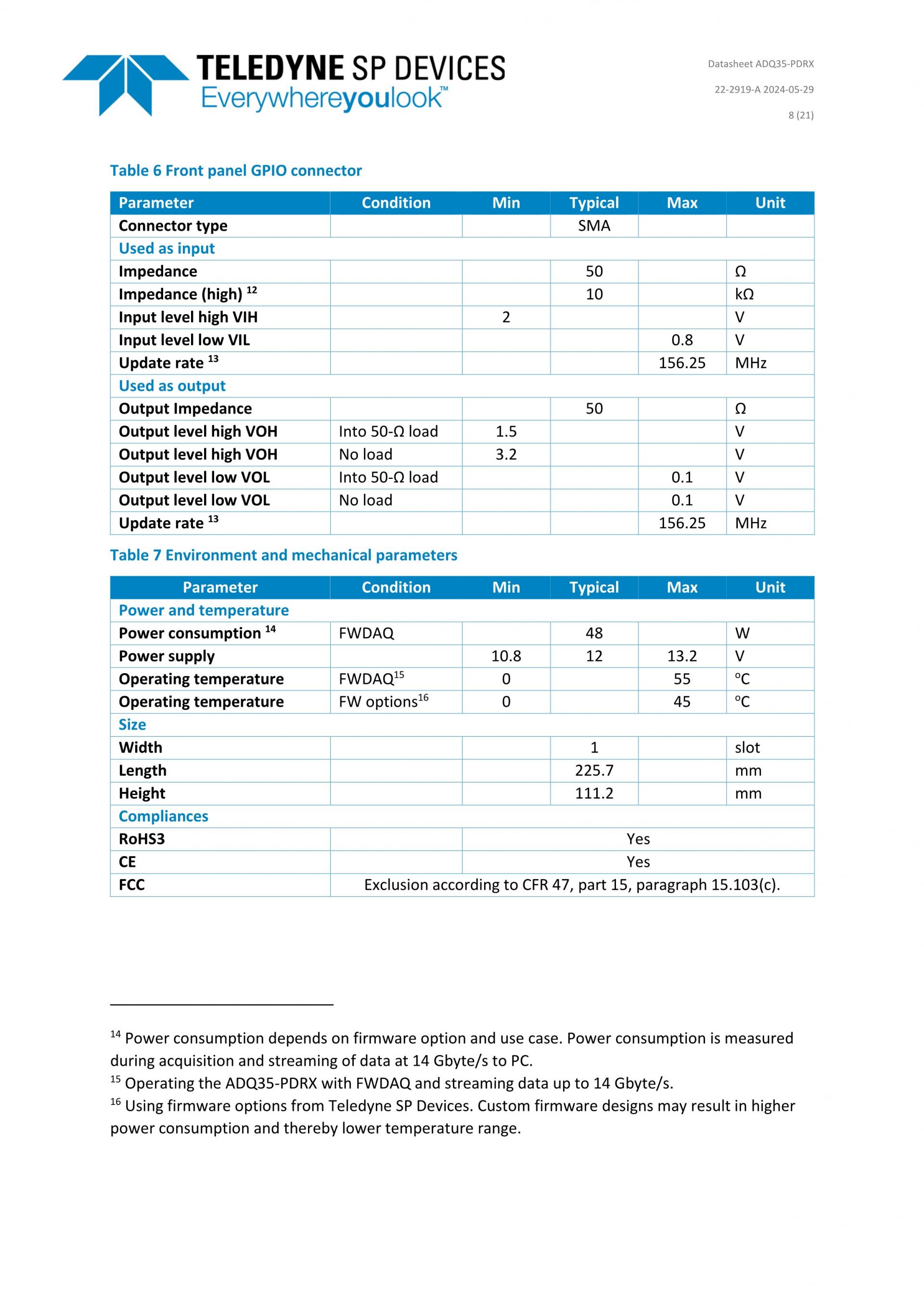

- For product technical specifications (see the datasheet)
- How to use and configure the product and output the data (see the users guide)
SP 디바이스 ・ SP DEVICES
ADQ35-PDRX
고성능 12-bit, 5 GSPS 펄스데이터시스템용 디지타이저
ADQ35-PDRX High-performance 12-bit, 5 GSPS digitizer for pulse data systems
Description

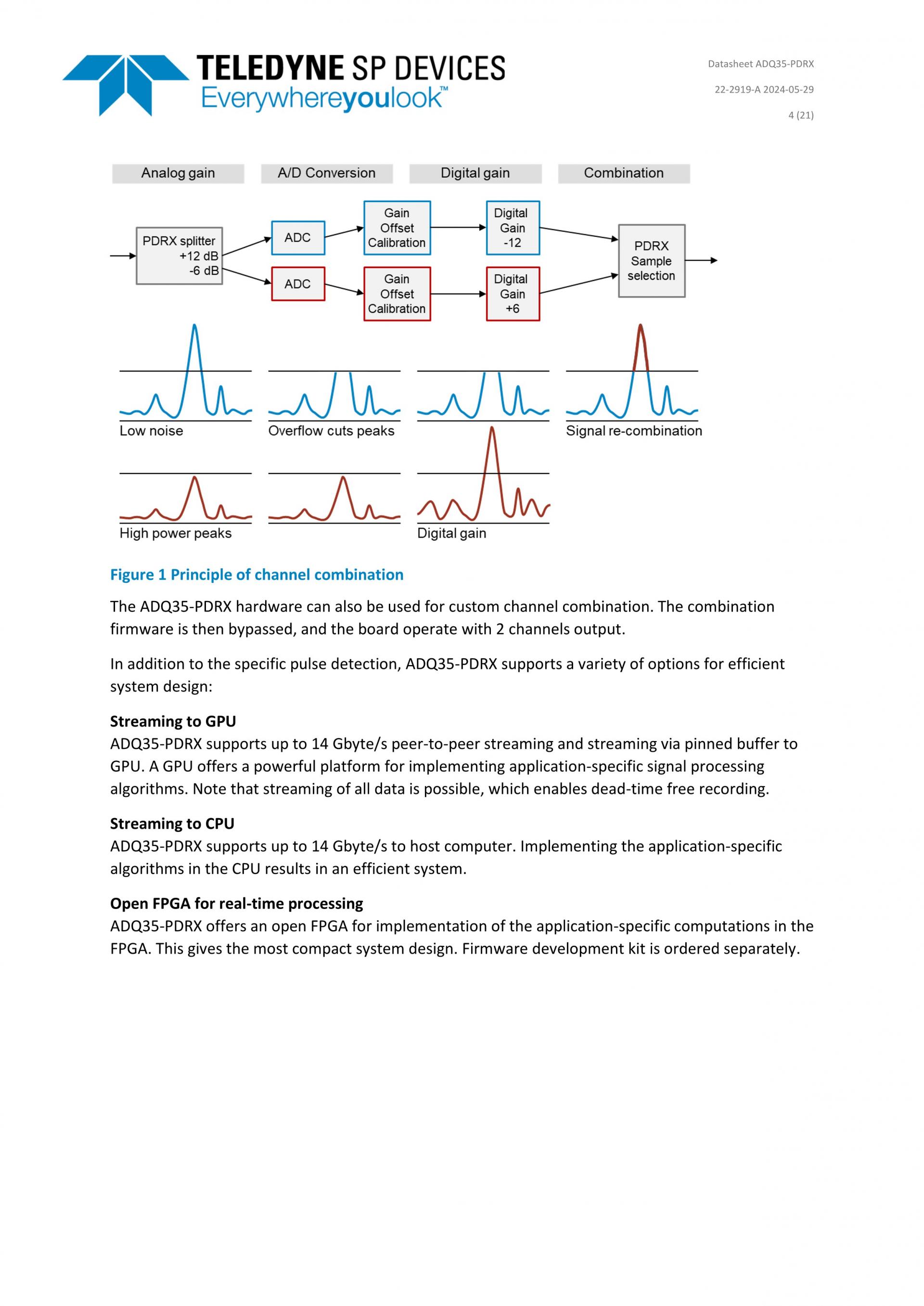

The ADQ35-PDRX acquires the input signal through a single connector and uses an onboard splitter to divide the signal into two separate paths with distinct gain settings. The high gain path accurately captures low-amplitude portions of the signal, while the low gain path captures high-amplitude peaks without causing saturation. These two signal paths are then combined in real-time within the onboard field-programmable gate array (FPGA) to produce a digitized output with enhanced performance.
PDRX increases the dynamic range by 3 bits and is seamlessly integrated into the digitizer for quick and easy system-level integration. Consequently, the ADQ35-PDRX achieves a dynamic range comparable to a 16-bit digitizer, but with the added advantage of a higher sampling rate.
The ADQ35-PDRX includes all features of ADQ35 including high-speed data streaming, open FPGA, extensive software suite, advanced triggering and clocking, general-purpose input/output (GPIO), and more. More information about PDRX is available here:
Applications
- Time-of-Flight Mass Spectrometry
- LIDAR
- Pulse data systems
