DITECT 디텍트 HAS-U2 고속카메라 - 가격문의 -
가격문의(상세정보 참조)

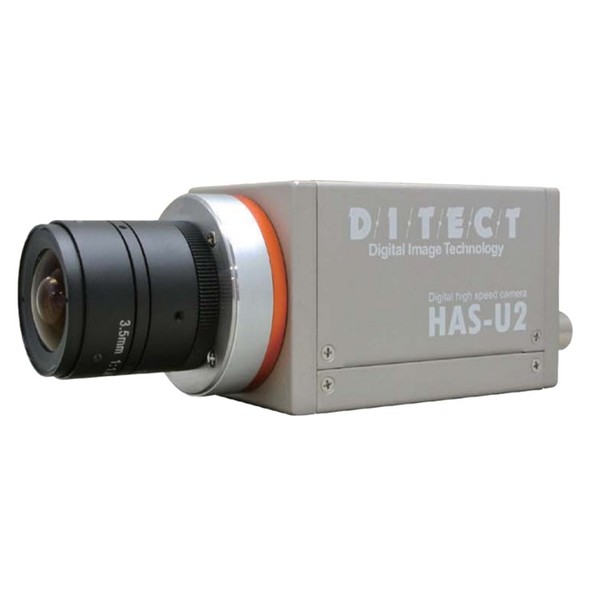

DITECT HAS-U2 고속카메라
DITECT HAS-U2 USB3. 0 high resolution digital high speed camera
- Capable of 100fps at 5M pixel
- Maximum shooting speed at 7,500fps by limiting the pixel area
- Perfect for multiple high speed camera imaging with 6GB embedded memory
- 2592x2048 pixel
- USB3.0
- Start / End / Variable trigger mode
디텍트 ・ DITECT
HAS-U2
고속카메라
HAS-U2 USB3. 0 high resolution digital high speed camera
HAS-U2 is a high speed camera with 1-inch CMOS sensor and 2592×2048 effective pixels that can shoot 100fps at full resolution, 1,000fps at VGA, and up to 7,500fps by limiting the pixel area.
Perfect for multiple high speed camera imaging with embedded memory in one compact solution.
Perfect for all kinds of research / production engineering in behavior, fluid, sports science, biomechanical, robotics, machine vision,
crash test, droplet, microscopy, trouble shooting, and more.
Product
- Camera unit
- USB3.0 cable
- Control software
 |  |
Frame rate and pixel size
Connection diagram
Embedded memory mode
Multiple cameras with one PC
Full spec operation available above USB3.0 max data transfer speed
DMA transfer mode
Large volume of memory available using 64bit OS
Frame rate and resolution will be limited by USB3.0 max data transfer speed.
Details
- Well balanced between high resolution and high frame rates
- It can be used in embedded 2GB memory mode or direct memory access mode with USB3.0 as the situation demands
- Fully synchronized multiple high speed cameras with just one laptop PC
- Full spec operation available above USB3.0 max data transfer speed
- Large volume of memory by using 64bit OS
- The low power consumption design, made for USB3.0 bus power, simplifies your cabling layout
- Internal / External sync
- 10bit A/D
- Data transmission rate approx. 506MB/sec (embedded memory mode) and 303MB/sec (DMA transfer mode)
- Unit weight approx. 210g, unit size (W×H×D) 44×44×81.5mm
Frame number, resolution and recording duration table
Dimensions
