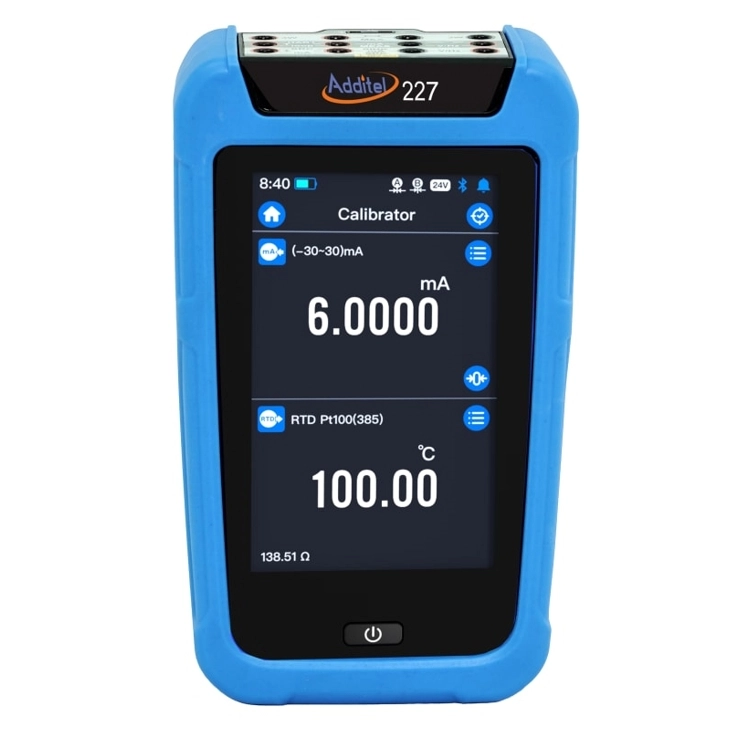

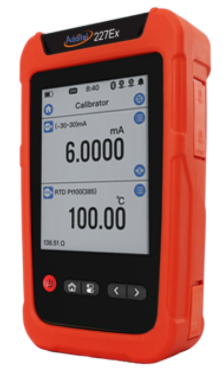

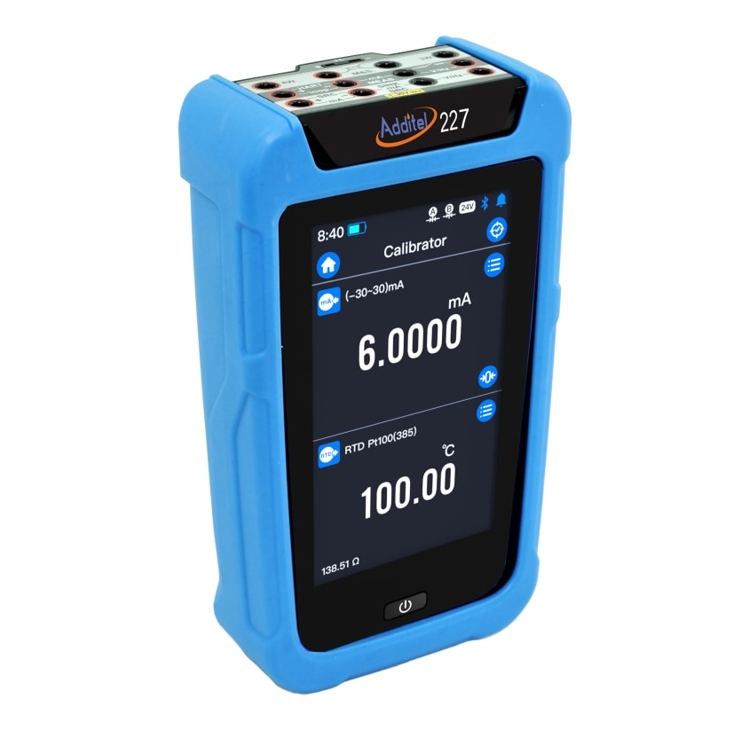

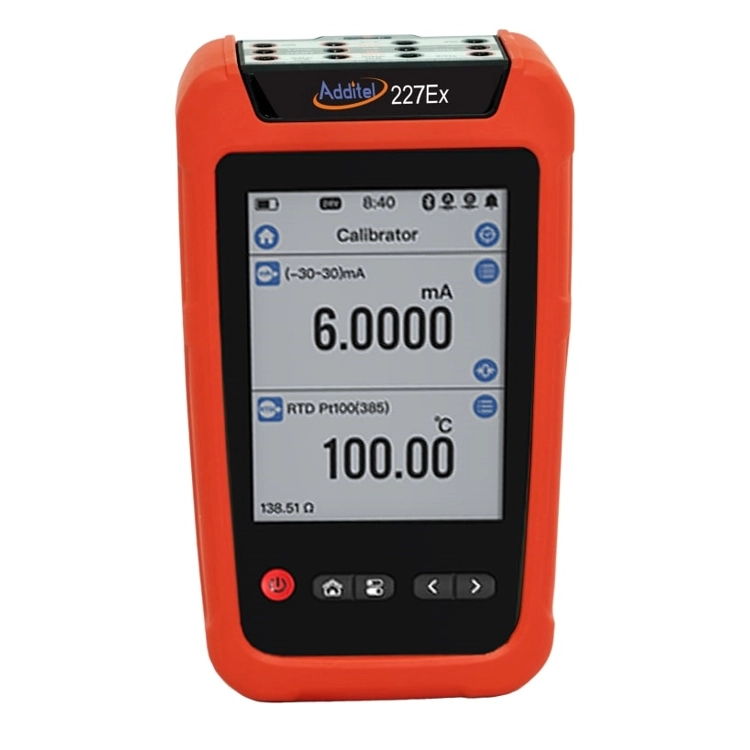

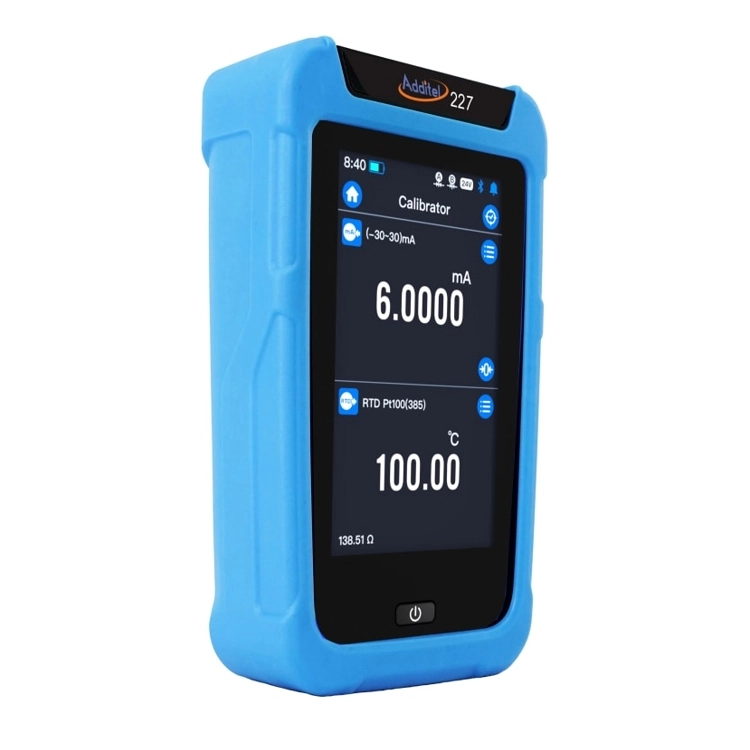

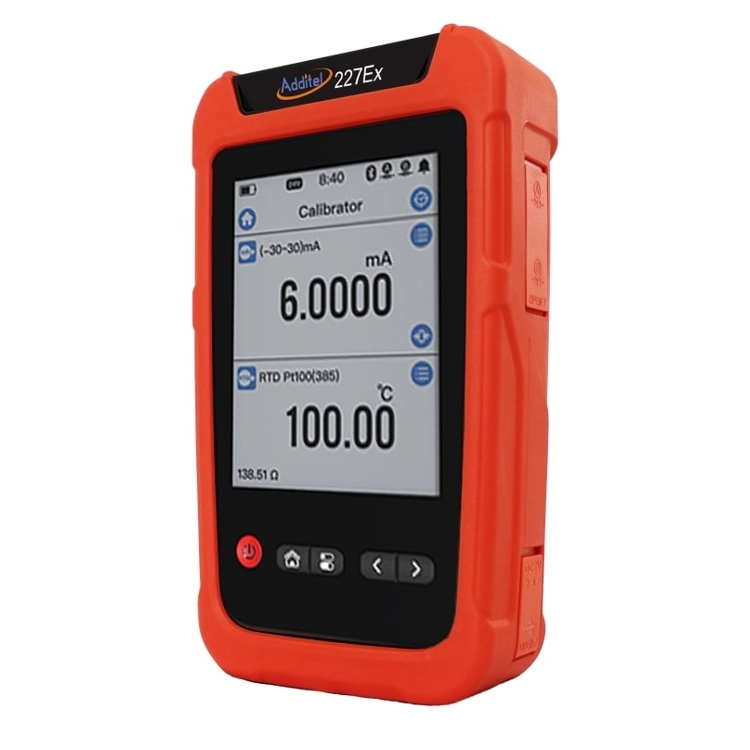

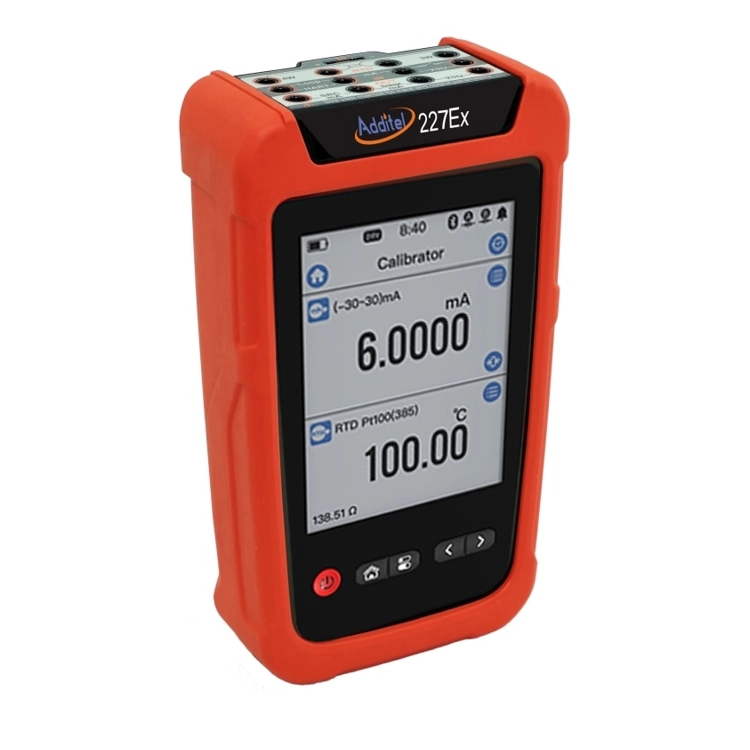

에디텔 ADDITEL ADT227 & ADT227Ex 프로세스 교정기
전기, 온도 및 압력 신호 발생, 측정, 시뮬레이션
고전압 측정 (300V AC)
진정 실효값(True RMS) 측정
2개 압력채널 지원
높은 정적 차압 측정 정확도 0.002%FS
IP67 방진, 방수등급 적용

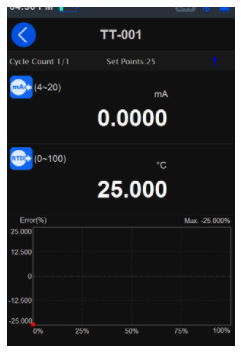

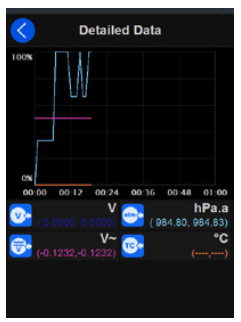

실시간 데이터 로깅 및 문서화 기능

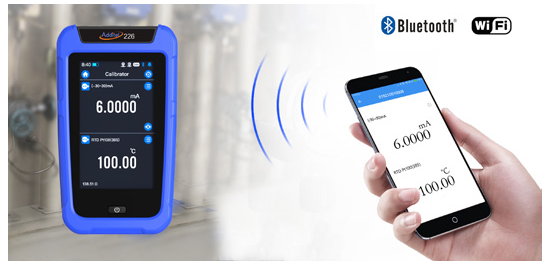

Additel Link 모바일 앱으로 원격 제어

택배 · 기본 무료

50,000원 이상 구매 시 무료배송

0 장바구니

구매하기 구매하기

구매하기 구매하기

Specifications	ADT227			ADT227Ex
Specifications	Range	Resolution	Accuracy	Range	Resolution	Accuracy
Voltage DC	0 to 15 V	0.1 mV	0.005%RDG+0.005%FS	0 to 10.5 V	0.1 mV	0.01%RDG+0.005%FS
Current DC	0 to 25 mA	0.1 uA	0.01%RDG+0.005%FS	0 to 25 mA	0.1 uA	0.01%RDG+0.005%FS
Resistance	0 to 400 Ω	1 mΩ	0.005%RDG+0.005%FS	0 to 400 Ω	1 mΩ	0.01%RDG+0.005%FS
Resistance	0 to 4000 Ω	10 mΩ	0.01%RDG+0.005%FS	0 to 4000 Ω	10 mΩ	0.01%RDG+0.005%FS
Frequency	0.01 to 50000.0 Hz	Auto range, 6-digit	0.002%RDG+2 on last digit	0.01 to 50000.0 Hz	Auto range, 6-digit	0.002%RDG+2 on last digit
Voltage mV (TC)	-10 to 75 mV	0.1 uV	0.0008%RDG + 0.004%FS	-10 to 75 mV	0.1 uV	0.01%RDG + 0.004%FS
Pulse	0 to 9999999	1	N/A	0 to 9999999	1	N/A
Pulse	Optional rising edge and falling edge, minimum threshold voltage: 2.5V
Loop power (max 25mA)	24 V	N/A	±1 V	20 V	N/A	± 10%

Specifications	ADT227			ADT227Ex
	Range	Resolution	Accuracy	Range	Resolution	Accuracy
Voltage DC	-300 to 300 mV	1 μV	0.005% RDG + 0.005% FS	-300 to 300 mV	1μV	0.01% RDG + 0.005% FS
	-30 to 30 V	0.1 mV	0.005% RDG + 0.005% FS	-30 to 30 V	0.1 mV	0.01% RDG + 0.005% FS
	Temperature Coefficiet: ±5 ppm FS/°C (-10°C to 10°C and 30°C to 50°C)
	Impedance: -300 mV to 300 mV => 100 MΩ, -30 mV to 30 mV => 1 MΩ
DC High Voltage	-300 to 300 V	10 mV	0.05% RDG + 0.01% FS	N/A
	Temperature coefficient: ±0.0025% FS/°C (-10°C to 10°C and 30°C to 50°C)
	Maximum input voltage = 300 V, IEC61010 300V CATII
	Commong mode rejection: >100 dB (at 50 or 60 Hz)
	Impedance: > 4 MΩ, DC coupling
AC High Voltage	300V (40 to 500 Hz)	10 mV	0.5% RDG + 0.05% FS	N/A
	Temperature coefficient: ±（0.025% RD + 0.0025% FS）/°C (-10°C to 10°C and 30°C to 50°C)
	Maximum input voltage = 300 V, IEC61010 300V CATII
	9% to 100% of range is suitable for the above accuracy indicators
	Impedance: >4 MΩ, <100pF, AC coupling
Current DC	-30 to 30 mA	0.1 μA	0.01% RDG + 0.005% FS	-30 to 30 mA	0.1 μA	0.01% RDG + 0.005% FS
	Temperature Coefficient: ±5ppm FS/°C (-10°C to 10°C and 30°C to 50°C), Impedance: < 40 Ω
Resistance (4-Wire)	0 to 400 Ω	1 mΩ	0.005% RDG + 0.005% FS	0 to 400 Ω	1 mΩ	0.01% RDG + 0.005% FS
	0 to 4000 Ω	10 mΩ	0.01% RDG + 0.005% FS	0 to 4000 Ω	10 mΩ	0.01% RDG + 0.005% FS
	Temperature coeficient: ±5 ppm FS/°C (-10°C to 10°C and 30°C to 50°C)
	2-Wire + 50 mΩ, 3-wire+ 10 mΩ
	Excitation current: 0.25 mA
Voltage mV (TC)	-10 to 75 mV	0.1 μV	0.008% RDG + 0.004% FS	-10 to 75 mV	0.1 μV	0.01% RDG + 0.004% FS
	Temperature Coefficient: ±5ppm FS/°C (-10°C to 10°C and 30°C to 50°C)
	Impedance: >100 MΩ
Frequency	0.01 to 50000 Hz	Auto range, 6-digit	0.002% RDG + 2 on last digit	0.01 to 50000 Hz	Auto range, 6-digit	0.002% RDG + 2 on last digit
	Minimum threshold voltage: 2.5 V
	Supported units: Hz, kHz, MHz, CPM, CPH, s, ms, µs
Pulse	0 to 9999999	1	N/A	0 to 9999999	1	N/A
	Optional rising edge and falling edge, minimum threshold voltage: 2.5V
Switch	Supports dry or wet switches. Voltage range of 3 to 30 V. Response speed < 10 ms

	ADT227	ADT227Ex
Operating Temperature	-10°C to 50°C
Specification guaranteed temperature range	10°C to 30°C
Storage Temperature	-20°C to 60°C
Humidity	<90%, non-condensing
Power supply	6600mAh, 23.8Wh lithium battery, charging time 4~6 hours, battery pack can be charged independently	4000mAh 14.4Wh Explosion-proof lithium battery packcharging time 6~8 hours, battery pack can be charged independently
User interface	Icon drive menus	Icon driven menus with navigation buttons
Ports protection voltage	50V max	30V max
Display	5.0 inch 480 x 800 mm TFT LCD capacitive screen	4.4 inch 640 x 480 mm color display capacitive screen
Maximum altitude	3000 meters
European Compliance	CE Mark
Electrical Connection	Ø4mm sockets and flat mini-jack thermocouple socket
Size	6.97" x 4.13" x 2.04" (177 mm x 105 mm x 52 mm)
Weight	1.6 lb (0.7 kg)	1.65 lb (0.75 kg)
Battery	Rechargeable Li-ion battery (included)
Battery Life	Typically 16 hours	Typically 35 hours
Battery Charge	110V/220V external power adapter included. Battery can be charged external to the unit. Typically charge time is 6-8 hours.
External pressure module	Dual channel serial plug, can connect two digital pressure modules
Warm-up time	Full specification performance is achieved after a 10 minute warm-up time.
ROHS compliant	Rohs II Directive 2011/65/EU, EN50581:2012
Display rate	3 readings per second
Barometric Accuracy (Built-in barometer)	50Pa
IP protection level	IP67, 1 meter drop test
Communication	Isolate USB-TYPEC (slave), Bluetooth BLE
Calibration	ISO 17025 accredited calibration with data
Warranty	3 years

	ADT227				ADT227Ex
Type	Standard	Temperature Range (°C)		Accuracy (°C)	Standard	Temperature Range (°C)		Accuracy (°C)
Type	Standard	Temperature Range (°C)		Measure / Source	Standard	Temperature Range (°C)		Measure / Source
S	IEC 584	-50 to 1768	-50~0	0.76	IEC 584	-50 to 1768	-50~100	0.77
			0~100	0.56			100~1000	0.42
			100~1768	0.44			1000~1768	0.47
R	IEC 584	-50 to 1768	-50~0	0.82	IEC 584	-50 to 1768	-50~0	0.82
			0~200	0.57			0~200	0.57
			200~1768	0.38			200~1768	0.42
B	IEC 584	0 to 1820	200~300	1.51	IEC 584	0 to 1820	200~300	1.51
			300~500	1			300~500	1
			500~800	0.62			500~800	0.62
			800~1820	0.43			800~1820	0.43
K	IEC 584	-270 to 1372	-250 to -200	0.72	IEC 584	-270 to 1372	-250 to -200	0.75
			-200 to -100	0.23			-200 to -100	0.24
			-100 to 600	0.12			-100 to 600	0.13
			600 to 1372	0.22			600 to 1372	0.25
N	IEC 584	-270 to 1300	-250 to -200	1.14	IEC 584	-270 to 1300	-250 to -200	1.17
			-200 to -100	0.33			-200 to -100	0.34
			-100 to 1300	0.19			-100 to 1300	0.22
E	IEC 584	-270 to 1000	-250~-200	0.39	IEC 584	-270 to 1000	-250~-200	0.41
			-200~-100	0.15			-200~-100	0.15
			-100~700	0.09			-100~700	0.1
			700~1000	0.12			700~1000	0.14
J	IEC 584	-210~1200	-210~-100	0.19	IEC 584	-210~1200	-210~-100	0.2
			-100~700	0.1			-100~700	0.11
			700~1200	0.15			700~1200	0.17
T	IEC 584	-270 to 400	-250~-100	0.55	IEC 584	-270 to 400	-250~-100	0.57
			-100~0	0.12			-100~0	0.23
			0~400	0.08			0~400	0.08
C	ASTM E988	0 to 2315	0 to 1000	0.24	ASTM E988	0 to 2315	0 to 1000	0.26
			1000 to 1800	0.4			1000 to 1800	0.45
			1800 to 2315	0.65			1800 to 2315	0.73
D	ASTM E988	0~2315	0~100	0.31	ASTM E988	0~2315	0~100	0.31
			100~1200	0.25			100~1200	0.27
			1200~2000	0.42			1200~2000	0.47
			2000~2315	0.65			2000~2315	0.74
G	ASTM E1751	0 to 2315	50~100	0.9	ASTM E1751	0 to 2315	50~100	0.9
			100~200	0.57			100~200	0.57
			200~400	0.35			200~400	0.36
			400~1500	0.25			400~1500	0.27
			1500~2315	0.49			1500~2315	0.55
L	DIN43710	-200 to 900	-200 to -100	0.11	DIN43710	-200 to 900	-200 to -100	0.12
			-100 to 400	0.08			-100 to 400	0.09
			400 to 900	0.1			400 to 900	0.12
U	DIN43710	-200 to 600	-200 to 0	0.21	DIN43710	-200 to 600	-200 to 0	0.21
U	DIN43710	-200 to 600	0 to 600	0.08	DIN43710	-200 to 600	0 to 600	0.09
Note: Internal CJC is ±0.15°C (-10°C to 50°C ambient temperature)
Accuracy with external cold junction only, for internal cold junction add 0.15 ℃(k=2)

Measure and Simulate	Temperature Range (°C)		Accuracy (°C)
Measure and Simulate	Temperature Range (°C)		ADT227	ADT227Ex
PT10(385)	-200 to 850	-200~200	0.57	0.59
		200~600	0.67	0.72
		600~850	0.75	0.82
PT25(385)	-200 to 850	-200~200	0.24	0.27
		200~600	0.3	0.35
		600~850	0.34	0.41
PT50(3916)	-200 to 850	-200~200	0.13	0.16
		200~600	0.17	0.22
		600~850	0.2	0.27
PT100(385) PT100(391) PT100(3916) PT100(3926)	-200 to 850	-200~200	0.08	0.1
		200~600	0.11	0.16
		600~850	0.14	0.2
PT200(385)	-200 to 850	-200~200	0.32	0.08
		200~300	0.34	0.34
		300~600	0.41	0.41
		600~850	0.48	0.48
PT400(385)	-200 to 850	-200~0	0.15	0.04
		0~200	0.18	0.18
		200~600	0.25	0.25
		600~850	0.3	0.3
PT500(385)	-200 to 850	-200~200	0.16	0.16
		200~600	0.22	0.22
		600~850	0.27	0.27
PT1000(385)	-200 to 850	-200~200	0.1	0.1
		200~600	0.16	0.16
		600~850	0.2	0.2
Cu10(427)	-200~260	-200~260	0.54	0.56
Cu50(428)	--200~260	-200~260	0.11	0.13
Cu100(428)	-200~260	-200~260	0.07	0.08
Ni100(617) Ni100(618)	-60~180	-60~0	0.05	0.06
Ni100(617) Ni100(618)	-60~180	0~180	0.05	0.05
Ni120(672)	--80~260	-80~260	0.04	0.05
Ni1000	-50~150	-50~150	0.07	0.07

에디텔 ADDITEL ADT227 & ADT227Ex 프로세스 교정기 (가격문의)

■ 제품 사양 (Specifications)

■ 관련 상품

■ 제품 사양 (Specifications)

■ 관련 상품

Model Number	Description	QTY
9811-X	110V/220V external power adapter	1 pc
9704	Chargeable Li-ion battery	1 pc
9023	Test leads	1 set (6 pcs)
9027	Right angle test leads kit	1 set (2 pcs)
9040	Hanging strap with magnet	1 pc
	Manual	1 pc
	ISO 17025 accredited calibration certificate	1 pc

Model Number	Specifications
ADT161 – XXX	Digital Pressure Modules
ADT161Ex – XXX	Intrinsically Safe Digital Pressure Modules
ADT129-X	Differential Pressure Manifold, -15 to 3,000 psi
9060	Pressure module connection cable (only for 226)
9052	USB Cable (Type – A to C)
9080	Cable kit (including TC plug, compensation cable, S, R, B, K, J, T, E, N)
9704	Spare chargeable Li-ion battery for multifunction calibrator
9811-X	110 V/220 V external power adapter
9906A	Hard carrying case for handheld instrument with accessories
9918-SC	Soft carrying case, with space for handheld instrument, test leads, and accessories
9530-BASIC	Additel/Acal Task management software for multifunction calibrator
