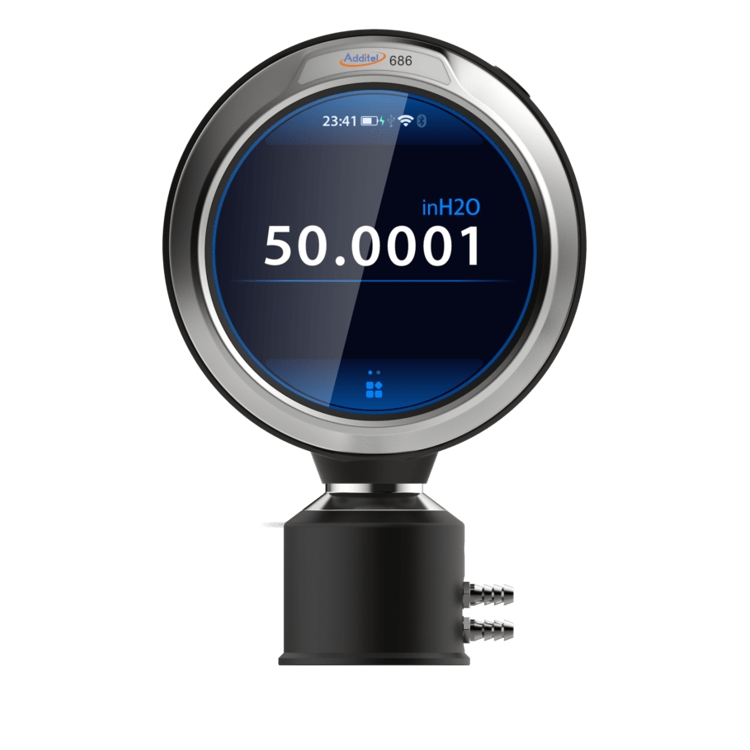

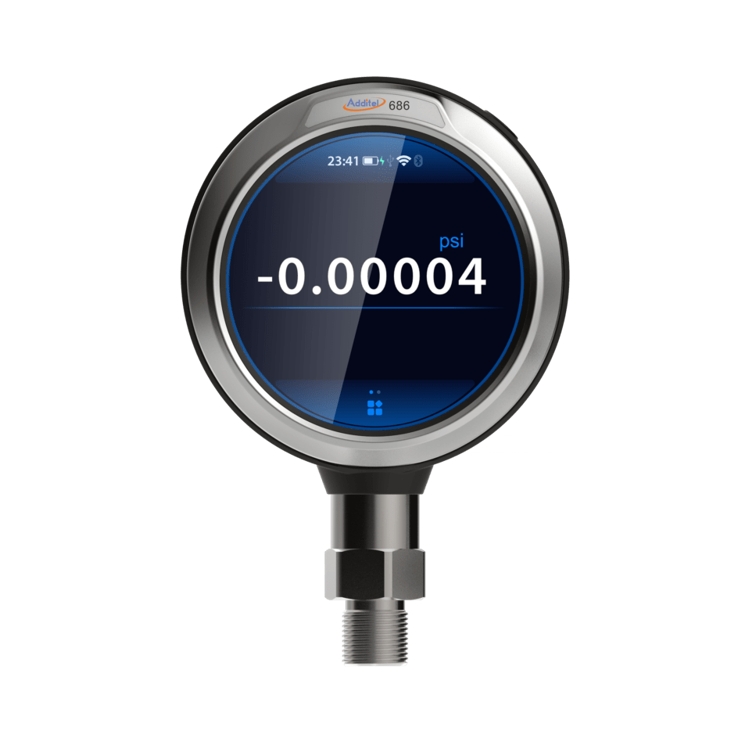

에디텔 ADDITEL ADT686 (가격문의) 디지털 압력 게이지 (0.02%~0.1%) - 가격문의

111,111원

100% 진공~60,000psi (4,200bar)
0.02%, 0.05%, 0.1%, 0.2%FS, 0.1%RD
기압계 내장 (정확도 50Pa)
게이지압-절대압 간 전환 용이
온도보상 능력
컬러 터치스크린
11개의 압력 단위 (카탈로그 참조)
6 디지트 디스플레이
초과 압력시 디스플레이 경고 (<120%)
IP67 방진, 방수등급 적용

0

구매평

Q&A

0 장바구니

구매하기 구매하기

장바구니

구매하기 구매하기

구매평

Q&A

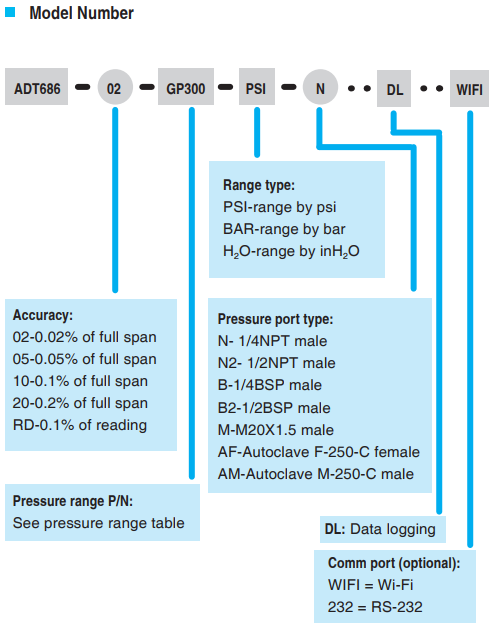

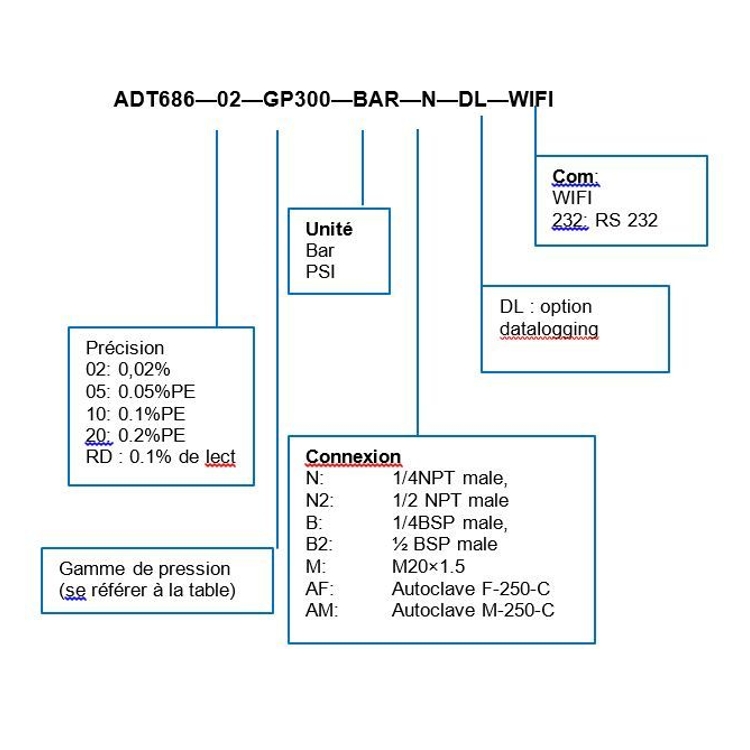

Model	ADT686
Description	Advanced Digital Pressure Gauge
Accuracy (For detailed accuracy, please see pressure range table)	686-02 : 0.02% of full span
	686-05 : 0.05% of full span
	686-RD: 0% to 20% of Range: 0.02% of full span, 20% to 110% of Range: 0.1% of reading, Vacuum: 0.25% of full span[1][2]
Barometric Accuracy (built-in barometer)	55Pa
Gauge Types	Gauge pressure, compound pressure, absolute pressure, differential pressure and barometric pressure
Display	Color Touchscreen (capacitive)
	Screen protector: tempered glass film (replaceable)
	Display rate: 3 readings per second (Default setting). Adjustable from 10 readings per second to 1 reading every 20 seconds
	Resolution: 4,5 or 6 digits (user selectable)
Pressure Units	Pa, kPa, MPa, psi, bar, mbar, kgf/cm2, inH2O@4°C, mmH2O@4°C, inHg@0°C, mmHg@0°C and 5 customizable units
Environmental	Compensated Temperature: 14°F to 122°F (-10°C to 50°C)
	Operating Temperature: 14°F to 122°F (-10°C to 50°C)
	Storage Temperature: -4°F to 158°F (-20°C to 70°C)
	Humidity: 0 - 95%, Non-condensing
Pressure Port	≤15,000 psi: 1/4NPT male, 1/2NPT male, 1/4BSP male, 1/2BSP male, M20×1.5 male
	>15,000 psi: 1/4HP female or 1/4HP male, 1/4HP female: Autoclave F-250-C, 9/16" - 18 UNF-2B, 1/4HP male: Autoclave M-250-C, 9/16" - 18 UNF-2A
	Differential Pressure: Barb fitting
	Other connections available per request
Power	Battery: Rechargeable Li-ion battery
	Li-Battery life: 16 hours typical
	Recharge time: 4 hours typical
	External power: 110 V/220 V power adapter (5 VDC)
Enclosure	Case material: 304 SS
	Wetted parts: 316 SS[3]
	Dimensions: 4.65" (118mm) width X 1.77" (42mm) depth X 7.01" (178mm) height
	Weight: 1.50 lbs. (0.68 kg)
Compliance	Protection Level: IP67
	Vibration: 5 g (10-500 Hz)
	Shock Resistance: 8 g/11 ms
	CE
Data Logging (Available on with data logging tion ADT686-...-DL)	Data storage: 8GB (100M+ records)
	Rate: user selectable from 0.1 to 9999.9 second intervals
Communication	USB Type-C and Bluetooth included, RS232 or WiFi (optional)
Warranty	1 year
[1] FS = -14.5 psi
[2] Applicable ADT686-RD-CPX
[3] Wetted parts material types may vary by pressure range. Please refer to the manual or contact Additel for more information.

P/N	Pressure Range		Media [2]	Accuracy		Burst
P/N	(psi)	(bar)	Media [2]	%FS	%RD	Burst
V15	-15	-1	G	0.02 (0.05)	N/A	3×
GP2	2	0.16	G, L	0.05	N/A	3×
GP5	5	0.35	G, L	0.05	0.1	3×
GP10	10	0.7	G, L [3]	0.02 (0.05)	0.1	3×
GP15	15	1	G, L [3]	0.02 (0.05)	0.1	3×
GP30	30	2	G, L [3]	0.02 (0.05)	0.1	3×
GP50	50	3.5	G, L	0.02 (0.05)	0.1	3×
GP100	100	7	G, L	0.02 (0.05)	0.1	3×
GP150	150	10	G, L	0.02 (0.05)	0.1	3×
GP300	300	20	G, L	0.02 (0.05)	0.1	3×
GP500	500	35	G, L	0.02 (0.05)	0.1	3×
GP600	600	40	G, L	0.02 (0.05)	0.1	3×
GP1K	1000	70	G, L	0.02 (0.05)	0.1	3×
GP1.5K	1500	100	G, L	0.02 (0.05)	0.1	3×
GP2K	2000	140	G, L	0.02 (0.05)	0.1	3×
GP3K	3000	200	G, L	0.02 (0.05)	0.1	3×
GP5K	5000	350	G, L	0.02 (0.05)	0.1	3×
GP10K	10000	700	G, L	0.02 (0.05)	0.1	1.5×
GP15K	15000	1000	G, L	0.05 (0.1)	0.1	1.5×
GP20K	20000	1400	G, L	0.05 (0.1)	N/A	1.5×
GP25K	25000	1600	G, L	0.05 (0.1)	N/A	1.5×
GP30K	30000	2000	G, L	0.05 (0.1)	N/A	1.5×
GP36K	36000	2500	G, L	0.05 (0.1)	N/A	1.5×
GP40K	40000	2800	G, L	0.05 (0.1)	N/A	1.35×
GP50K	50000	3500	G, L	0.1 (0.2)	N/A	1.2×
GP60K	60000	4200	G, L	0.1 (0.2)	N/A	1.1×
[1] Sealed gauge pressure for above 1,000 psi
[2] G=Gas, L=Liquid
[3] 0.02% FS for gas media only

P/N	Pressure Range		Media	Accuracy		Burst Pressure
P/N	(psi)	(bar)	Media	%FS[1]	%RD	Burst Pressure
CP2	±2	±0.16	G	0.05	N/A	3×
CP5	±5	±0.35	G	0.02 (0.05)	0.1	3×
CP10	±10	±0.7	G	0.02 (0.05)	0.1	3×
CP15	±15	±1	G	0.02 (0.05)	0.1	3×
CP30	-15 to 30	-1 to 2	G	0.02 (0.05)	0.1	3×
CP100	-15 to 100	-1 to 7	G, L	0.02 (0.05)	0.1	3×
CP300	-15 to 300	-1 to 20	G, L	0.02 (0.05)	0.1	3×
CP500	-15 to 500	-1 to 35	G, L	0.02 (0.05)	0.1	3×
CP600	-15 to 600	-1 to 40	G, L	0.02 (0.05)	0.1	3×
CP1K	-15 to 1000	-1 to 70	G, L	0.02 (0.05)	0.1	3×
[1] FS specification applies to the span of the range

P/N	Pressure Range		Media	Accuracy (%FS)	Burst Pressure
P/N	(psi)	(bar)	Media	Accuracy (%FS)	Burst Pressure
AP5	5	0.35	G, L	0.1	3×
AP10	10	0.7	G, L	0.1	3×
AP15	15	1	G, L	0.1	3×
AP30	30	2	G, L	0.1	3×
AP50	50	3.5	G, L	0.1	3×
AP100	100	7	G, L	0.05 (0.1)	3×
AP300	300	20	G, L	0.05 (0.1)	3×
AP500	500	35	G, L	0.05 (0.1)	3×
AP1K	1000	70	G, L	0.05 (0.1)	3×
AP3K	3000	200	G, L	0.05 (0.1)	3×
AP5K	5000	350	G, L	0.05 (0.1)	3×

P/N	Pressure Range		Media	Accuracy (%FS) [1]	Burst Pressure	Static Pressure Range
P/N	(inH2O)	(mbar)	Media	Accuracy (%FS) [1]	Burst Pressure	Static Pressure Range
DP1	±1	±2.5	G	0.05[2]	100×	±10 psi
DP2	±2	±5.0	G	0.05[2]	100×	±10 psi
DP5	±5	±10	G	0.05[2]	50×	±10 psi
DP10	±10	±25	G	0.05[2]	20×	±10 psi
DP20	±20	±50	G	0.05	20×	±10 psi
DP30	±30	±75	G	0.05	20×	±10 psi
DP50	±50	±125	G	0.05	3×	±10 psi
DP100	±100	±250	G	0.02	3×	±15 psi
DP150	±150	±350	G	0.02	3×	50 psi
DP300	±300	±700	G	0.02	3×	50 psi
[1] FS specification applies to the span of the range. Accuracy includes one year stability.
[2] 0.05%FS accuracy (incl 6 months stability). One year accuracy is 0.05%FS calibration accuracy combined with 0.05%FS one year stability.

Communication Type	ADT685	ADT685Ex	ADT686	ADT673
RS232	○	○	○	○
RS485	○	○
Wifi			○	○
USB	●	●	●	●
Bluetooth (BLE)	●	●	●	●
● Included ○ Optional

Communication Type	ADT685/ADT685Ex				ADT686/ADT673
Communication Type	ACal	LogII	Land	Link	ACal	LogII	Land	Link
RS232	●	●	●		●	●	●
RS485 only for 685	◐ [2]	◐ [2]	◐ [2]
Wifi					●	●	●	● [1]
USB	●	●	●		●	●	●
Bluetooth (BLE)				●				●
● Supported ◐ Non Ex models only
[1] This configuration requires that the device be connected to ACloud via Wi-Fi to utilize the Additel Link app.
[2] 4-20mA output and RS-485 not available in ADT685Ex models.

Model Number	Description
9903	Carrying Case for (1) digital pressure gauge
9502	Additel/Log II real time data logging and graphical software for ADT 685 and ADT 685Ex
9530-BASIC	Additel/Acal Automated calibration software with asset management, basic version
9530-NET	Additel/Acal Automated calibration software with asset management, network version, Includes server installation and 1 user license
9050	USB to RS232 (DB9/M) Adapter
9050-EXT	RS 232 (DB9/M) extension cable, 9 feet
1220610724	Screen protector kit
Note: For oil-free applications contact Additel.
