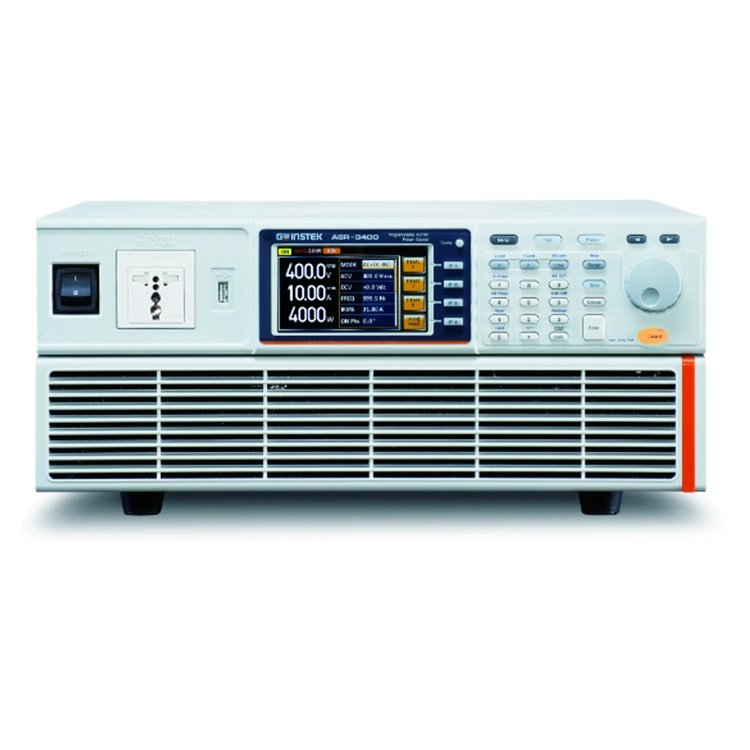

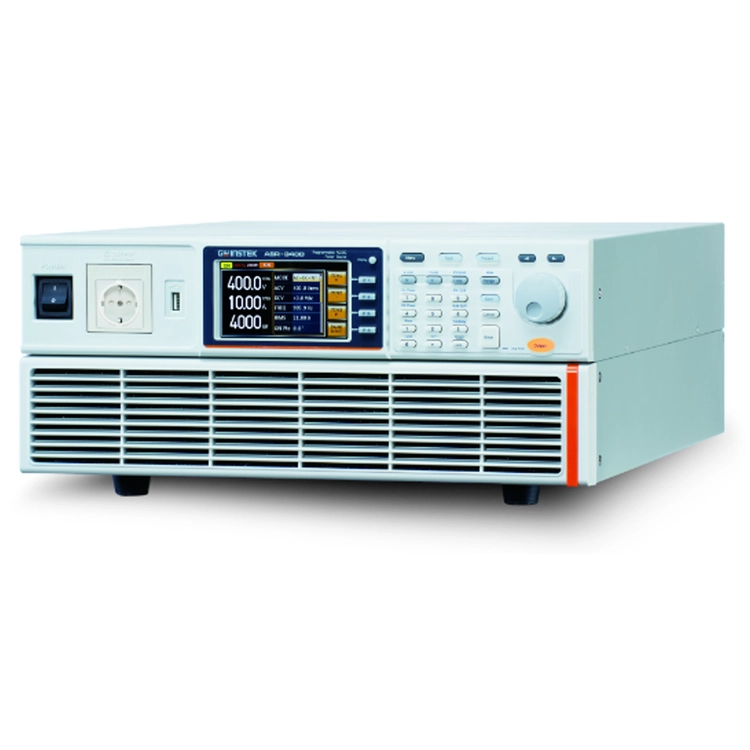

GW INSTEK 굿윌인스텍 ASR-3300 프로그래머블 AC/DC 전원공급기

ASR-3000 시리즈는 AC+DC 전원으로 고속 DC 전압 상승 및 하강 시간(≤100us)이 특징입니다.
ASR-3000은 온보드 충전기, 서버 전원, LED 모듈, AC 모터, AC 팬, UPS 및 다양한 전자 부품의 개발은 물론 자동차 전기 장비 및 가전 제품의 테스트 애플리케이션에 이상적입니다.

이 시리즈에는 세 가지 모델이 있습니다.
1. ASR-3200(2kVA)
2. ASR-3300(3kVA)
3. ASR-3400(4kVA)

0

구매평

Q&A

배송

택배 · 기본 무료

50,000원 이상 구매 시 무료배송

0 장바구니

구매하기 구매하기

장바구니

구매하기 구매하기

구매평

Q&A

기본 액세서리
CD (User Manual/ Programming Manual), Safety Guide, Input Terminal Cover, Output Terminal Cover Include Remote Sensing, GRA-442-E Rack Mount Adapter(EIA), GTL-246 USB Cable
옵션 액세서리
GPW-005	Power Cord, 3m, 105℃, UL/CSA Type
GPW-006	Power Cord, 3m, 105℃, VDE Type
GPW-007	Power Cord, 3m, 105℃, PSE Type
GRA-442-J	Rack Mount Adapter(JIS)
GTL-137	Output Power Wire(Load wire_10AWG: 50A, 600V/ Sense wire_16AWG: 20A, 600V)
GTL-232	RS-232C Cable, approx. 2M
GTL-248	GPIB Cable, approx. 2M

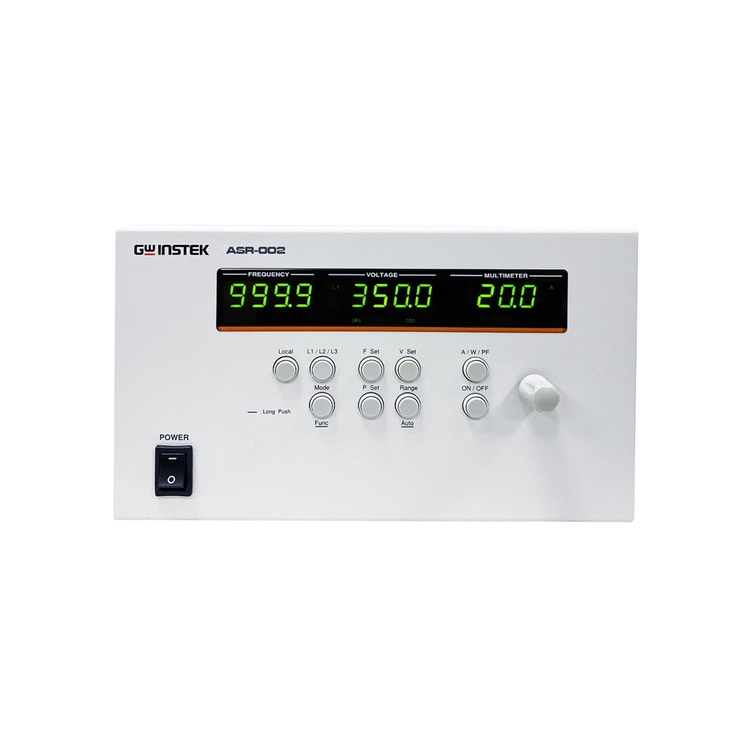

ASR-002	External Three Phase Control Unit
APS-008	Air Inlet Filter

주문 정보
ASR-3200	1채널 프로그래머블 스위칭 AC/DC 전원 공급기 (2kVA)
ASR-3300	1채널 프로그래머블 스위칭 AC/DC 전원 공급기 (3kVA)
ASR-3400	1채널 프로그래머블 스위칭 AC/DC 전원 공급기 (4kVA)
옵션 액세서리
GPW-005	Power Cord, 3m, 105℃, UL/CSA Type
GPW-006	Power Cord, 3m, 105℃, VDE Type
GPW-007	Power Cord, 3m, 105℃, PSE Type
GRA-442-J	Rack Mount Adapter(JIS)
GTL-137	Load wire_10AWG: 50A/600V & Sense wire_16AWG: 20A/600V
GTL-232	RS-232C Cable, approx. 2M
GTL-248	GPIB Cable, approx. 2M
ASR-002	External Three Phase Control Unit
APS-008	Air Inlet Filter

Optional Accessories
GPW-005	Power Cord, 3m, 105℃, UL/CSA Type
GPW-006	Power Cord, 3m, 105℃, VDE Type
GPW-007	Power Cord, 3m, 105℃, PSE Type
GRA-442-J	Rack Mount Adapter(JIS)
GTL-137	Output Power Wire(Load wire_10AWG: 50A, 600V/ Sense wire_16AWG: 20A, 600V)
GTL-232	RS232C cable, approx. 2m
GTL-248	GPIB Cable, approx. 2m
*ASR-002	External Three Phase Control Unit for 1P2W, 1P3W, 3P4W output (CE application in progress)
APS-008	Air inlet filter

Ordering Information
ASR-3200	2kVA Programmable AC/DC Power Source
ASR-3300	3kVA Programmable AC/DC Power Source
ASR-3400	4kVA Programmable AC/DC Power Source

Input ratings (AC rms)
Nominal input voltage		200 Vac to 240 Vac
Input voltage range		180 Vac to 264 Vac
Phase		Single phase, Two-wire
Nominal input Frequency		50 Hz to 60 Hz
Input frequency range		47 Hz to 63 Hz
Max. power consumption		2500 VA or less (ASR-3200)
		3750 VA or less (ASR-3300)
		5000 VA or less (ASR-3400)
Power factor*¹	200Vac	0.95 (TYP)
Max. input current	200Vac	15 A (ASR-3200)
		22.5 A (ASR-3300)
		30 A (ASR-3400)

AC mode output ratings (AC rms)
Voltage	Setting Range*¹	0.0 V to 200.0 V / 0.0 V to 400.0 V
	Setting Resolution	0.1 V
	Accuracy*²	±(1 % of set + 1 V / 2 V)
Output phase		Single phase, Two-wire
Maximum current*³	100 V	20 A (ASR-3200)
		30 A (ASR-3300)
		40 A (ASR-3400)
	200 V	10 A (ASR-3200)
		15 A (ASR-3300)
		20 A (ASR-3400)
Maximum peak current*⁴	100 V	120 A (ASR-3200)
		180 A (ASR-3300)
		240 A (ASR-3400)
	200 V	60 A (ASR-3200)
		90 A (ASR-3300)
		120 A (ASR-3400)
	Load power factor	0 to 1 (leading phase or lagging phase)
	Power capacity	2000 VA (ASR-3200)
		3000 VA (ASR-3300)
		4000 VA (ASR-3400)
Frequency	Setting range	AC Mode: 40.0 Hz to 999.9 Hz, AC+DC Mode: 1 Hz to 999.9 Hz
	Setting resolution	0.01 Hz (1.00 to 99.99 Hz), 0.1 Hz (100.0 to 999.9 Hz)
	Accuracy	0.02% of set (23 °C ± 5 °C)
	Stability*⁵	± 0.005%
Output on phase		0° to 359° variable (setting resolution 1°)
DC offset*⁶		Within ± 20 mV (TYP)

Output rating for DC mode
Voltage	Setting Range*¹	-285 V to +285 V / -570 V to +570 V
	Setting Resolution	0.1 V
	Accuracy*²	±(1 % of set + 1 V / 2 V)
Maximum current*³	100 V	20 A (ASR-3200)
		30 A (ASR-3300)
		40 A (ASR-3400)
	200 V	10 A (ASR-3200)
		15 A (ASR-3300)
		20 A (ASR-3400)
Maximum peak current*⁴	100 V	120 A (ASR-3200)
		180 A (ASR-3300)
		240 A (ASR-3400)
	200 V	60 A (ASR-3200)
		90 A (ASR-3300)
		120 A (ASR-3400)
Power capacity		2000 W (ASR-3200)
		3000 W (ASR-3300)
		4000 W (ASR-3400)

Output voltage stability
Line regulation*¹	0.2% or less
Load regulation*²	0.5% or less (0 to 100%, via output terminal)
Ripple noise*³	1 Vrms / 2 Vrms (TYP)

Output voltage waveform distortion ratio, Output voltage response time, Efficiency
Total harmonic distortion(THD)*¹	≦ 0.2% @50/60Hz
	≦ 0.3% @<500Hz
	≦ 0.5% @500.1Hz~999.9Hz
Output voltage response time*²	100 us (TYP)
Efficiency*³	80 % or more

Measured value display
Voltage	RMS, AVG value*¹	Resolution	0.1 V
	RMS, AVG value*¹	Accuracy*²	For 45 Hz to 65 Hz and DC: ±(0.5 % of reading + 0.5 V / 1 V) For all other frequencies: ±(0.7 % of reading + 1 V / 2 V)
	PEAK value	Resolution	0.1 V
	PEAK value	Accuracy	For 45 Hz to 65 Hz and DC: ±(\|2 % of reading\| + 1 V / 2 V)
Current	RMS, AVG value	Resolution	0.01 A
		Accuracy*³	ASR-3200 For 45 Hz to 65 Hz and DC: ±(0.5 % of reading+0.1 A/0.05 A) For all other frequencies: ±(0.7 % of reading+0.2 A/0.1 A)
			ASR-3300 For 45 Hz to 65 Hz and DC: ±(0.5 % of reading+0.15 A/0.08 A) For all other frequencies: ±(0.7 % of reading+0.3 A/0.15 A)
			ASR-300 For 45 Hz to 65 Hz and DC: ±(0.5 % of reading+0.2 A/0.1 A) For all other frequencies: ±(0.7 % of reading+0.4 A/0.2 A)
	PEAK value	Resolution	0.01A/ 0.1A
		Accuracy*⁴	ASR-3200 For 45 Hz to 65 Hz and DC: ±(\|2 % of reading\| + 0.5 A/0.25 A)
			ASR-3300 For 45 Hz to 65 Hz and DC: ±(\|2 % of reading\| + 0.8 A/0.4 A)
			ASR-3400 For 45 Hz to 65 Hz and DC: ±(\|2 % of reading\| + 1 A/0.5 A)
Power	Active (W)	Resolution	1 W
		Accuracy*⁵	ASR-3200 ±(2 % of reading +2 W)
			ASR-3300 ±(2 % of reading +3 W)
			ASR-3400 ±(2 % of reading +4 W)
	Apparent (VA)	Resolution	1 VA
		Accuracy⁵⁶	ASR-3200 ±(2 % of reading +2 VA)
			ASR-3300 ±(2 % of reading +3 VA)
			ASR-3400 ±(2 % of reading +4 VA)
	Reactive (VAR)	Resolution	1 VAR
		Accuracy⁵⁷	ASR-3200 ±(2 % of reading +2 VAR)
			ASR-3300 ±(2 % of reading +3 VAR)
			ASR-3400 ±(2 % of reading +4 VAR)
Load power factor		Range	0.000 to 1.000
Load power factor		Resolution	0.001
Load crest factor		Range	0.00 to 50.00
Load crest factor		Resolution	0.01
Harmonic voltage Effective value (rms) Percent (%) (AC-INT and 50/60 Hz only)		Range	Up to 100th order of the fundamental wave
		Full Scale	200 V / 400 V, 100%
		Resolution	0.1 V, 0.1%
		Accuracy*⁸	Up to 20th ±(0.2 % of reading + 0.5 V / 1 V) 20th to 100th ±(0.3 % of reading + 0.5 V / 1 V)
Harmonic current Effective value (rms) Percent (%)		Range	Up to 100th order of the fundamental wave
		Full Scale	ASR-3200 20 A / 10 A, 100%
			ASR-3300 30 A / 15 A, 100%
			ASR-3400 40 A / 20 A, 100%
		Resolution	0.01 A, 0.1A, 0.1%
		Accuracy*³	ASR-3200 Up to 20th ±(1 % of reading+0.4 A/0.2 A) 20th to 100th ±(1.5 % of reading+0.4 A/0.2 A)
			ASR-3300 Up to 20th ±(1 % of reading+0.6 A/0.3 A) 20th to 100th ±(1.5 % of reading+0.6 A/0.3 A)
			ASR-3400 Up to 20th ±(1 % of reading+0.8 A/0.4 A) 20th to 100th ±(1.5 % of reading+0.8 A/0.4 A)

Others
Protections		UVP, OCP, OTP, OPP, Fan Fail
Display		TFT-LCD, 4.3 inch
Memory Function		Store and recall settings, Basic settings: 10 (0~9 numeric keys)
Arbitrary Wave	Number of memories	16 (nonvolatile)
	Waveform length	4096 words

General Specifications
Interface	Standard	USB	Type A: Host, Type B: Slave, Speed: 1.1/2.0, USB-CDC, USB-TMC
		LAN	MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask
		RS-232C	Complies with the EIA-RS-232 specifications
		EXT Control	External Signal Input External Control I/O
		GPIB	SCPI-1993, IEEE 488.2 compliant interface
Insulation resistance	Between input and chassis, output and chassis, input and output		500 Vdc, 30 MΩ or more
Withstand voltage	Between input and chassis, output and chassis, input and output		1500 Vac, 1 minute
EMC			EN 61326-1 EN 61326-2-1 EN 61000-3-2 EN 61000-3-3 EN 61000-3-11 EN 61000-3-12 EN 61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-8/-4-11/-4-34 EN 55011 (Class A) EN 55032
Safety			EN 61010-1
Environment	Operating environment		Indoor use, Overvoltage Category II
	Operating temperature range		0 °C to 40 °C
	Storage temperature range		-10 °C to 70 °C
	Operating humidity range		20 % to 80 % RH (no condensation)
	Storage humidity range		90 % RH or less (no condensation)
	Altitude		Up to 2000 m
Transportation Integrity			ISTA 2A Test Procedure
Dimensions (mm)			430(W)×176(H)×530(D) (not including protrusions)
Weight			ASR-3200 Approx. 25 kg
			ASR-3300 Approx. 25 kg
			ASR-3400 Approx. 25 kg
Accessories	Safety information		1 copy
	CD-ROM		1 disc
	Input/Output Cover		1 set
	EIA Rack Mount		1 set
	USB Cable		1 piece
