센세카 ・ SENSECA
ECO 210-5
마노미터

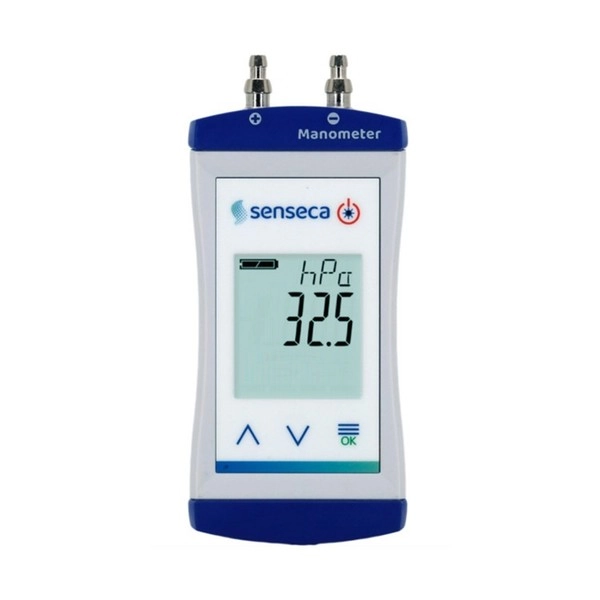

ECO 210-5 Manometer (formerly G 1113)
The primary focus in the development of the new ECO 21x series was placed on the essential functions of the measurement technology.
The heart of the instrument – the sensor – is a high-class component – which excels in this instrument class..
The high reliability, speed and precision of the ECO Line variants, packed in a compact an water protected housing makes the instruments an ideal partner of industry and craft sector, Made in Germany
ECO 21x Series – The reference class in pocketsize.
ECO 210-3
Fine pressure manometer for application in Heating / Ventilation / Air-conditioning (HVAC)
The measurement range up to 200 hPa (mbar) / 20 kPa and the high resolution up to 0.1 Pascal in the
optimized fine pressure mode covers the main applications for gas pressure 150 hPa (mbar) and burner
adjustments with a single instrument. The high precision simplifies e.g. adjustments of dynamic pressure or
draft measurements. The measurement is independent of instruments orientation – better than many, even
much more expensive, competitors.
ECO 210-5
The sister device of the extremely high-resolution ECO 210-3 is the first choice when differential pressures> ± 200 hPa (mbar) are to be measured.
Up to ± 2000 hPa are covered precisely and with high resolution (up to 0.01 hPa or 0.1 Pascal in optimized fine pressure mode).
ECO 210-3 ECO 210-3 senseca senseca ECO 210-3 ECO 210-3센세카 센세카 ECO 210-3 ECO 210-5 ECO 210-5 senseca senseca ECO 210-5 ECO 210-5 센세카 센세카 ECO 210-5
■ 제품 사양 (Specifications)
SENSECA 제품 데이터시트의 핵심 사양입니다.
- • 3-line backlit display / overhead display at
- • Waterproof (IP67 excl. pressure ports)
- The high reliability, speed and precision of the ECO 210 variants,
- Pressure connection 2 tube connections, interchangeable with G1/8 universal ports
- Ranges / resolution standard -200.0...+200.0 hPa (mbar) -2000…+2000 hPa (mbar)
- Slow: 2,5 measurements per second
- Fast: 25 measurements per second
- Max. overload +/- 1700 hPa +/- 3100 hPa
- Display 3-line segment LCD, additional symbols, illuminated (white, illumination time
- Optional special functions FINE: With 0.1 Pa resolution FINE: With 1 Pa resolution
- Break-proof ABS housing, protection rating IP67
- dimensions L x W x H: 108 x 54 x 8 mm, with connection ca. 122 x 54 x 8 mm,
- weight: 150 g incl. battery
- Operating conditions -20 to +50 °C; 0 to 95 % r.h. (temporarily 100 % r.h.)
- Storage temperature -20 to +70 °C
- current consumption: ca. 1 mA (slow measurement SLO), battery life ca.
- Power supply 3000 h,
- 1. Measuring range
- 2x G1/8-inch port incl. quick connector for tube with outer-Ø 6 mm
- 2x G1/8-inch port incl. screw connector for tube with outer-Ø 6 mm
- ECO 210-3-UT Fine manometer, pressure connection: 2x G1/8-inch port incl. connection for tube
- ECO 210-3-UT-SET8 Fine manometer, pressure connection: 2x G1/8-inch port incl. connection for tube
- ECO 210-5-UT Manometer, pressure connection: 2x G1/8-inch port incl. connection for tube 6x1
- ECO 210-5-ST6-WPD Manometer, pressure connection: 2x G1/8-inch port incl. screw connector for tube
- ECO 210-5-QC6 Manometer, pressure connection: 2x G1/8-inch port incl. quick connector for tube
- ST-G1000 Protection bag with belt clip Art no. 611373
- G1000-Cover Rubber protection cover for ECO-Line/G 1000 series, black, incl. 2 neodymium
- GCLIP1000 Metal belt clip self-adhesive Art no. 475820
- GDZ-UT Universal pressure port for tube 6/4 or 8/6 with male thread G 1/8, brass nickel-
- GKK1002 Case for ECO-Line / G1000 series, dimensions: 235 x 185 x 48 mm Art no. 411907
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
📄 기술자료 다운로드
