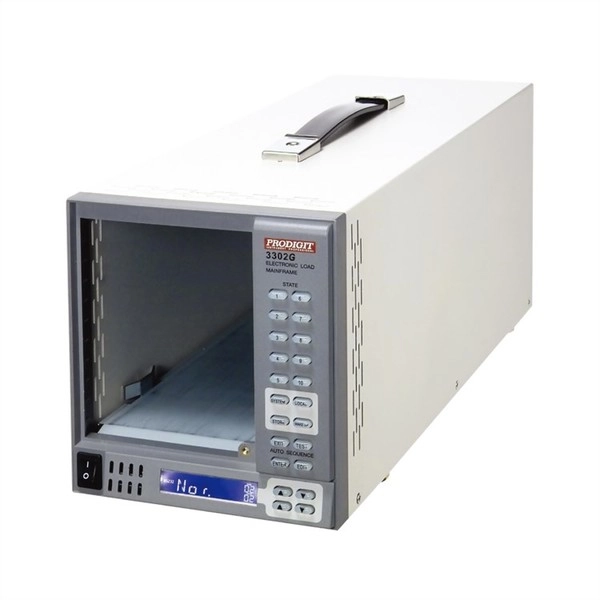

프로디지트 ・ PRODIGIT
3302G
싱글채널 메인프레임
3302G Single Channel Mainframe
DESCRIPTION
- 3300G is a 4 Channels 1200W Mainframe which accepts up to four 3310G / 3310F series Load Module.
- 3300F is a 4 Channels 1200W Mainframe which accepts up to four 3310F series Load Module.
- 3300C is a 4 Channels 1200W Mainframe which accepts up to four 3310D / 3250A / 3330A series Load Module.
- 3301A is a 4 Channels 1200W Mainframe which accepts up to four 3320 series Load Module.
- 3305G is a 2 channels 600W Mainframe which accepts up to two 3310G / 3310F series Load Module.
- 3305F is a 2 channels 600W Mainframe which accepts up to two 3310F series Load Module.
- 3302G is 300W Mainframe which accepts any single 3310G / 3310F series Load Module.
- 3302F is 300W Mainframe which accepts any single 3310F series Load Module.
- 3302C is 300W Mainframe which accepts any single 3310D / 3320 / 3250A / 3330A series Load Module.
- 3300G and 3300F and 3300C include the built-in 150 states Store/Recall key or an Optional Remote controller provide user friendly one key operation for quick recall of previous stored data from all Load Modules. GPIB, RS-232, USB, LAN address is needed to control all Modules remotely.
FEATURES
- Accept 3310Ｇ Series DC Electronic Load Module
- Accept 3310F Series DC Electronic Load Module
- Flexible Load Module configuration
- include 150 states Store / Recall Memory
- External Recall key
3302G 3302G PRODIGIT PRODIGIT 3302G 3302G 프로디지트 프로디지트 3302G
■ 제품 사양 (Specifications)
PRODIGIT 3302G 제품 데이터시트의 핵심 사양입니다.
- materials in the parts is above the relevant threshold of the SJ/T 11363-2006 standard.
- This product is a Safety Class 1 instrument (provided with a protective earth terminal). The protective
- It is designed to operate at a maximum relative humidity of 80% and at altitudes of up to 2000 meters.
- Complies with the essential requirements of the Low Voltage Directive 2014/35/EU and the
- The 3302G electronic load mainframe is required to provide the DC power conversion and
- optional computer communications to the ‘F’ series of Load Modules. The 3302G is designed
- 1.1.3. Computer Interfaces: GPIB,RS232, USB or LAN are optionally
- 1.1.4. Front panel memory: Common test settings can be stored and recalled.
- 1.1.5. Auto Sequence: Memory locations can be linked to form a sequence
- 1.1.7. Intelligent Cooling: Temperature controlled fans are used to minimise
- 1.2.4. 3Pin Power cable 1PC
- 1.3.1. GPIB+RS232 interface
- 1.3.2. RS232 interface
- 1.3.3. GPIB interface
- 1.3.4. USB interface + USB DRIVER CD
- 1.3.5. LAN interface + LAN DRIVER CD
- FREQUENCY 50/60 HZ
- AC INPUT T1A/250V T0.5A/250V
- DIMENSIONS (W*H*D) 150 mm*177 mm*445 mm
- WEIGHT NET : 5.5 Kg
- 2.2 Check line voltage
- The 3302G mainframe can be operated from a 100/115 or 200/230Vac input as indicated on
- 2.2.1 With the 3302G mainframe power OFF, disconnect the power cord.
- a. Set Switch to 100V/115V for 115Vac line voltage
- 2.3 Input Fuse
- disconnect th e plug of the AC Power cable from the input socket of the 3302G.
- 2.3.1 Check the rating of the mains input fuse. Replace only with the correct
- For 100V/115Vac Input use T1A/250V (5*20mm),
- For 200V/230Vac Input useT0.5A/250V (5*20mm)
- 2.3.3 Refit the fuse holder and connect the power cord.
본 사양은 제조사 공식 데이터시트의 핵심 항목을 정리한 것입니다. 전체 원문은 Lab 게시판 데이터시트를 참고하시고, 정확한 견적·재고는 굿맨시스템으로 문의 바랍니다.
